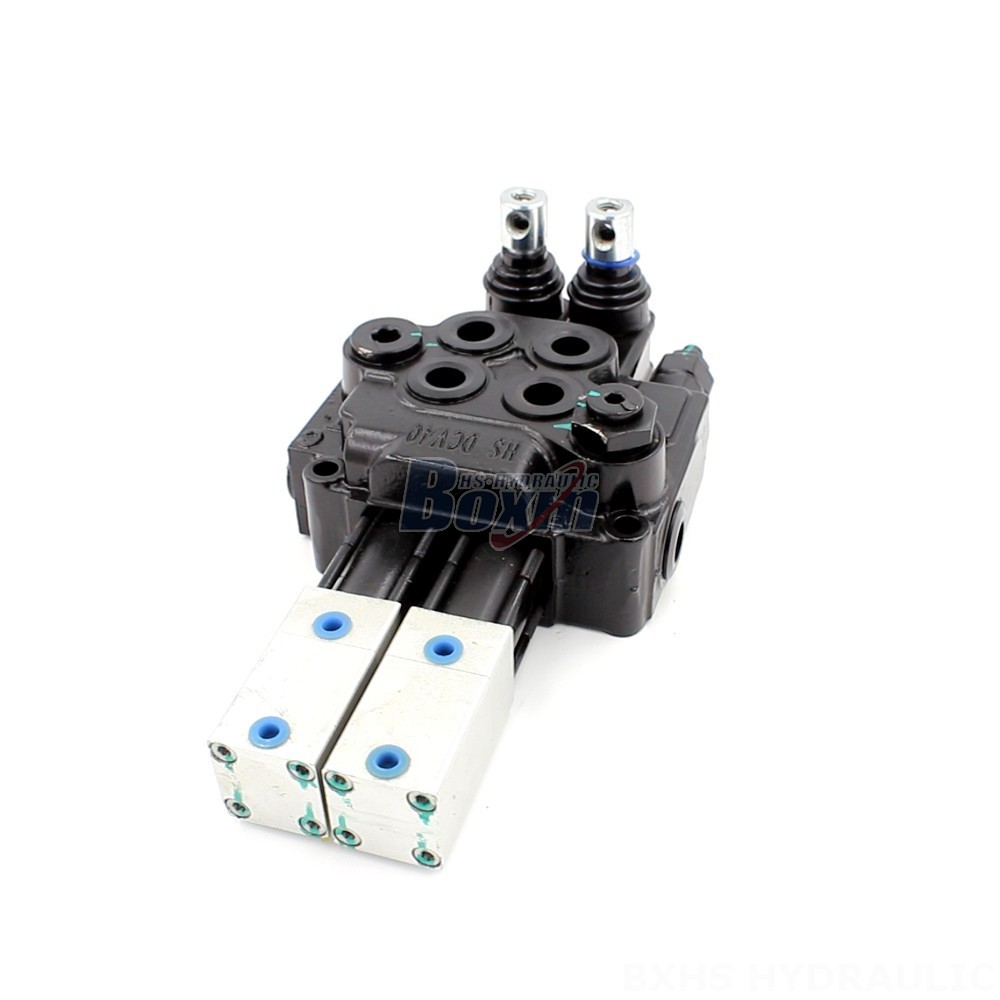

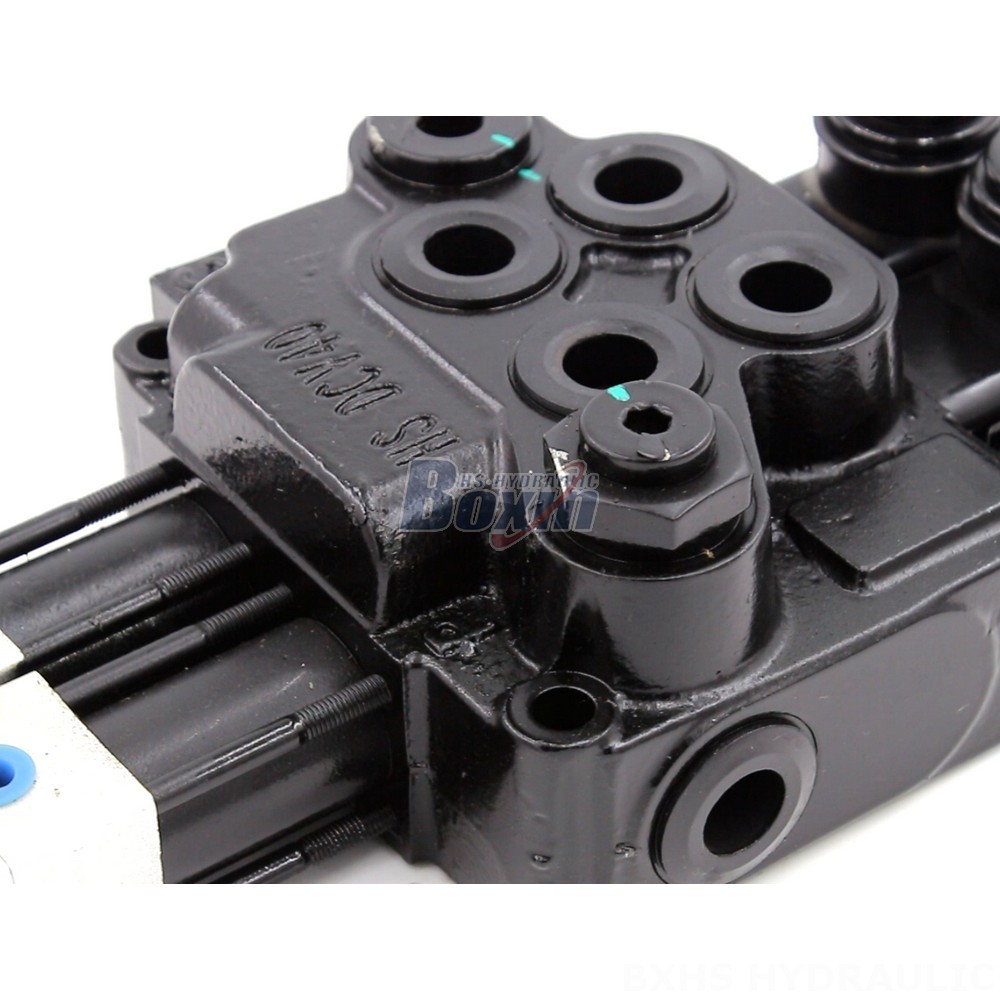

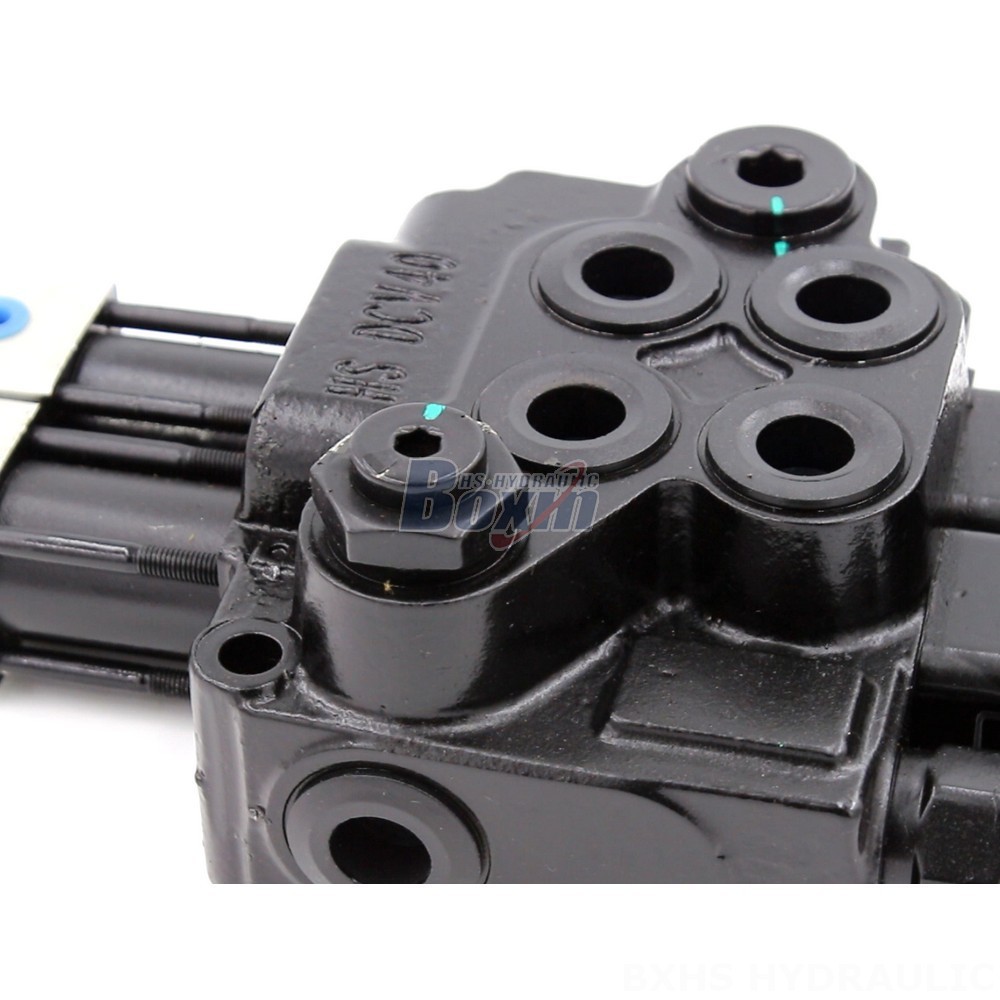

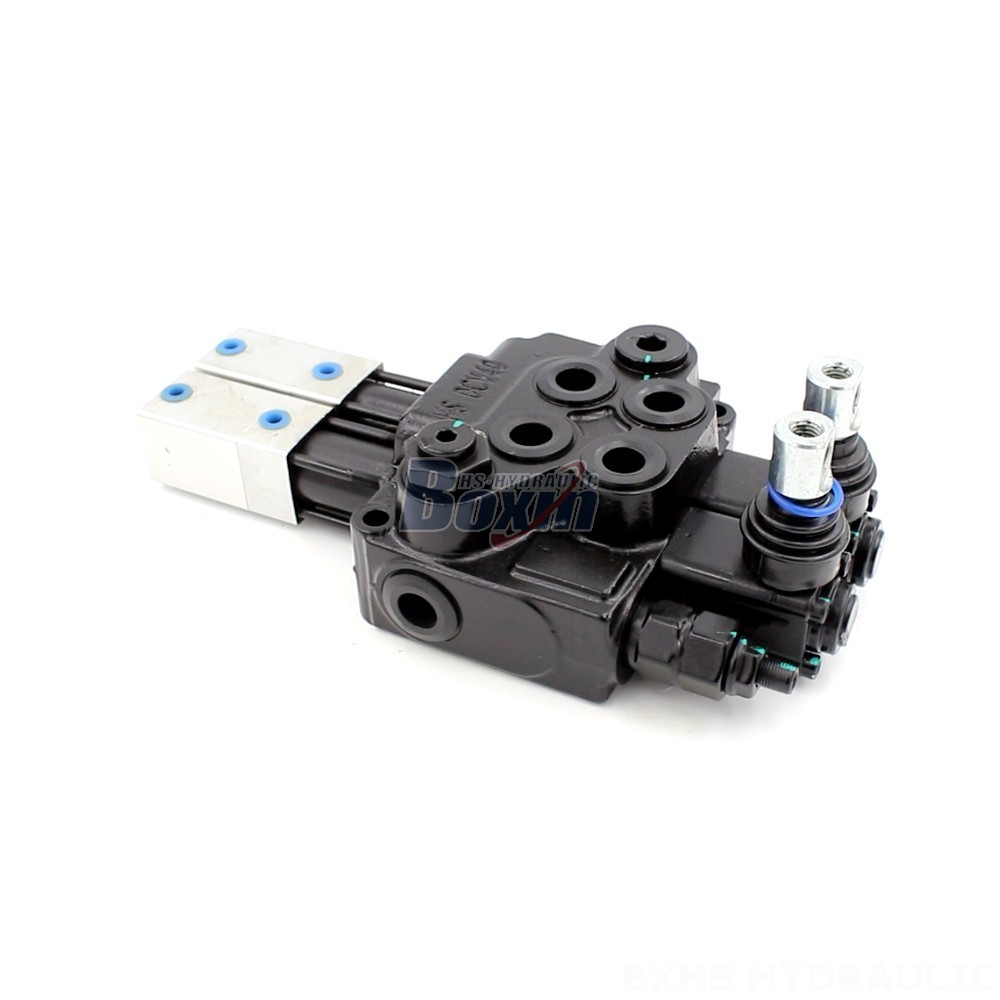

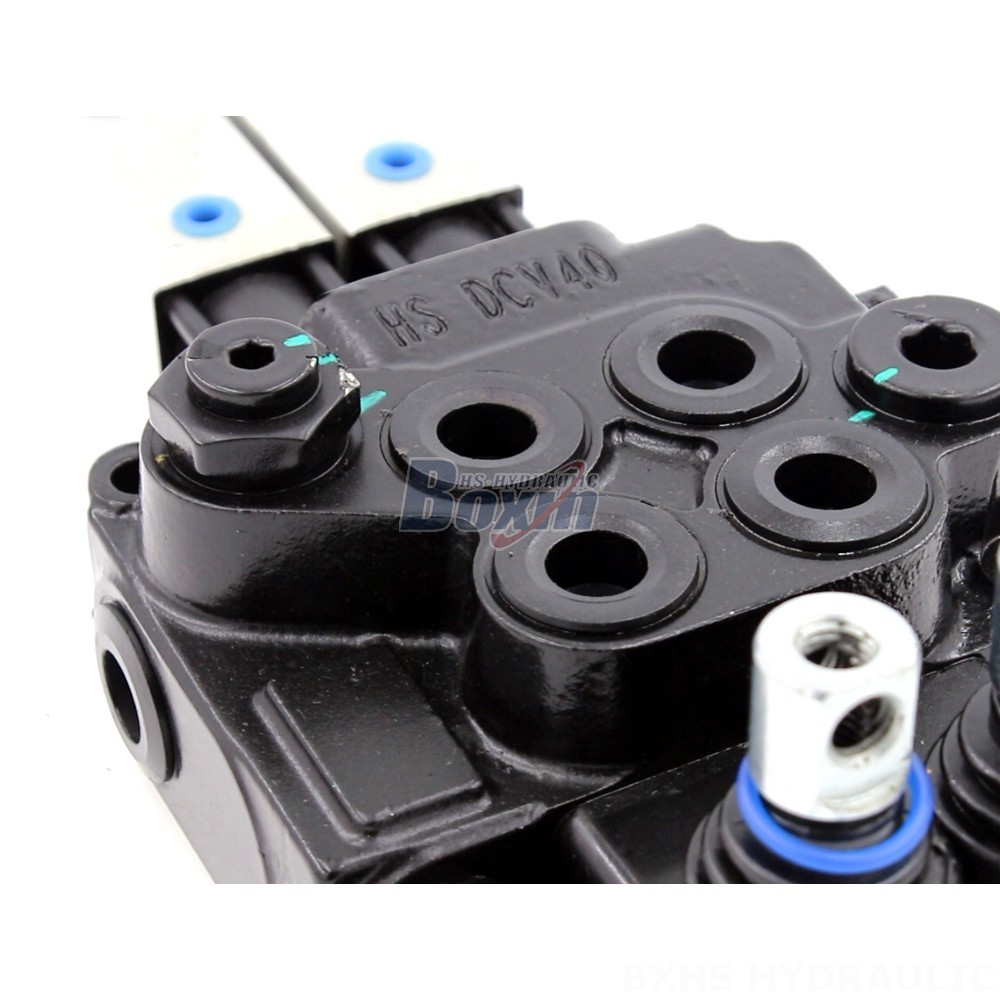

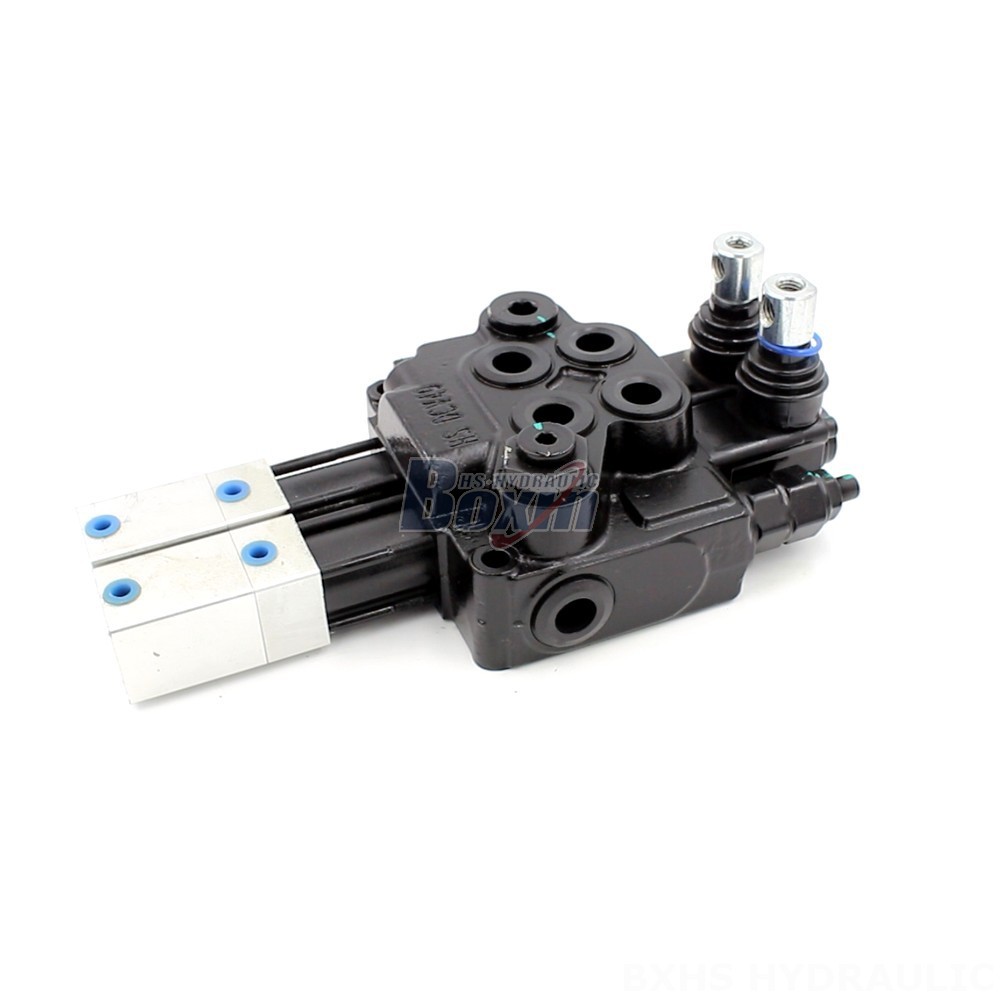

Introducing the Industry-Leading DCV40 Valve, designed to deliver exceptional performance and reliability in various hydraulic systems. Its advanced pneumatic control, robust monoblock construction, and high flow capacity of 40 L/min (10.5 US gpm) make it an ideal solution for demanding applications.
| DCV40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁和手动, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G3/8接口, G1/2接口, SAE 8接头, SAE 14接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 14接头, 1/2 NPT螺纹 |
| 接口尺寸 | G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 14接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The DCV40 Valve boasts a durable construction, ensuring longevity and reliability in harsh operating conditions. Its wide operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) allow it to perform consistently in diverse environments. With its two sections, two spools, and compatibility with a broad range of applications, the DCV40 Valve offers versatility and adaptability to meet specific system requirements. Whether it's material handling, construction, earth moving, agriculture, or industrial vehicles, this valve delivers the precision and control needed for optimal machine performance.
