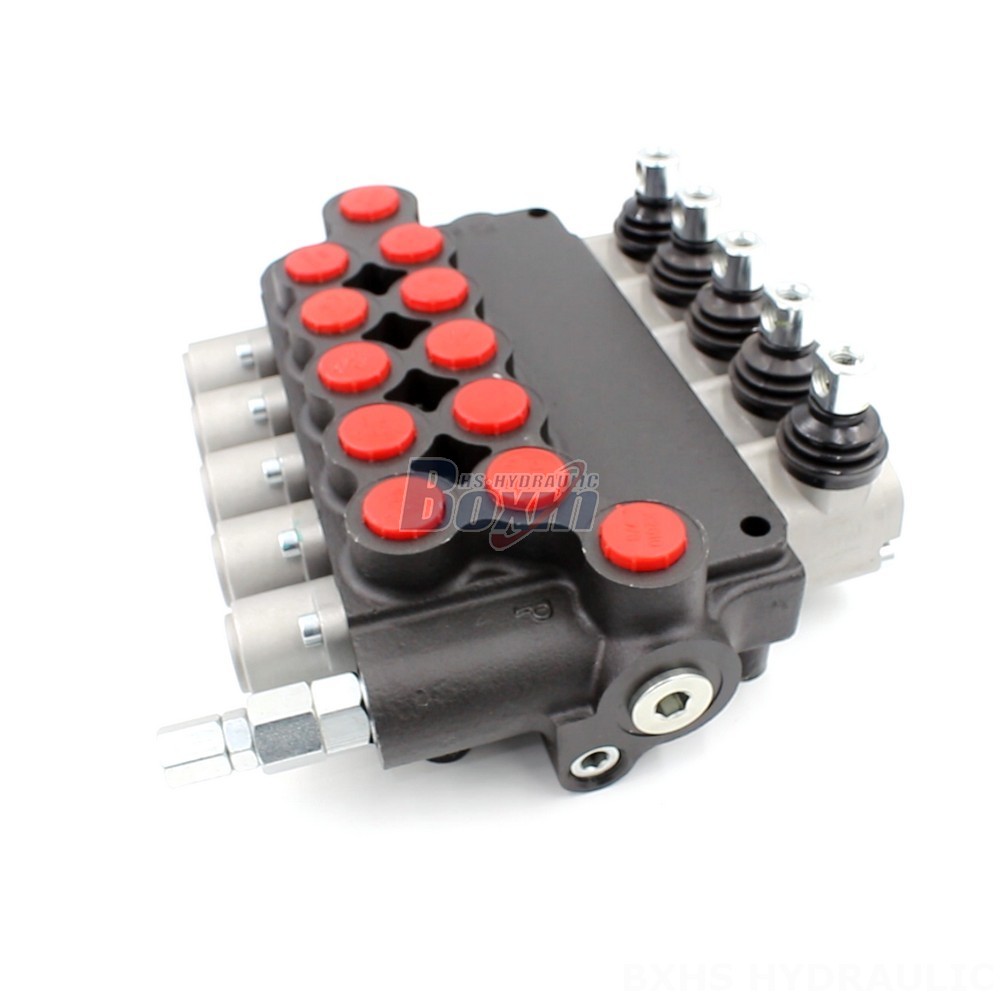

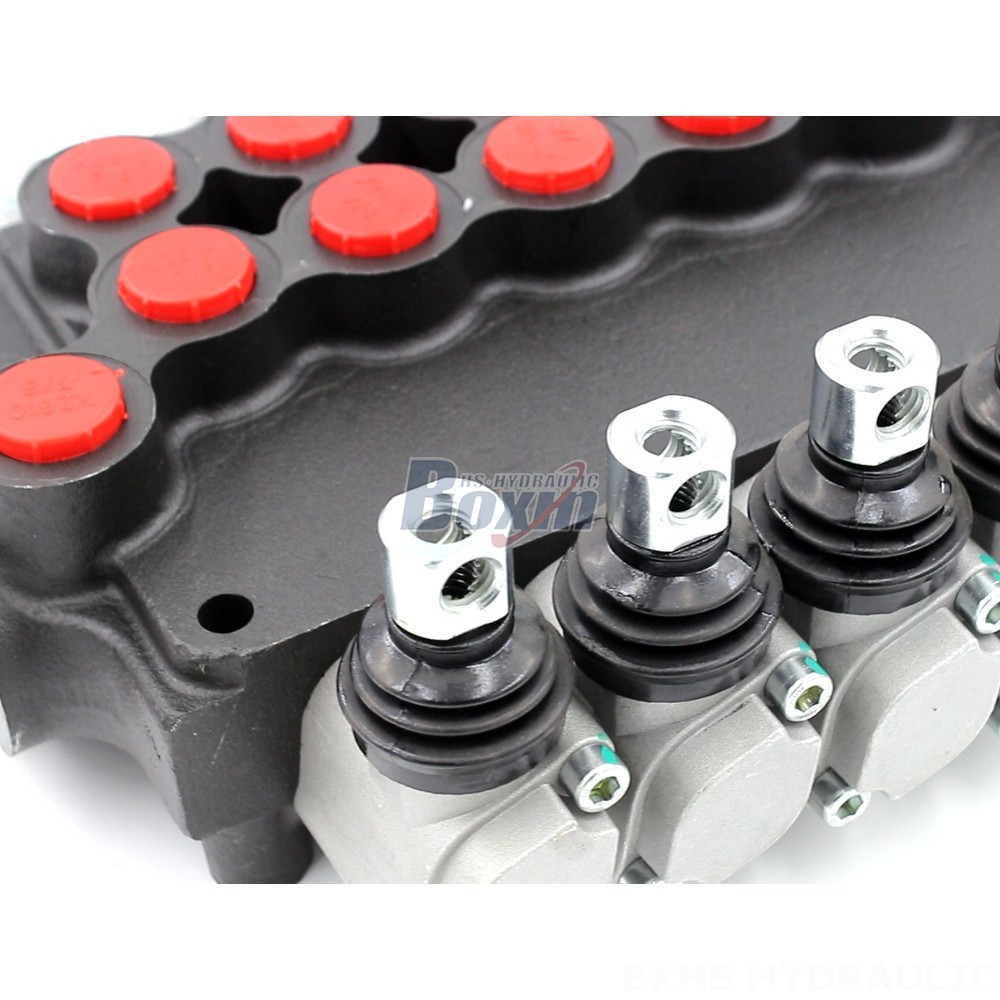

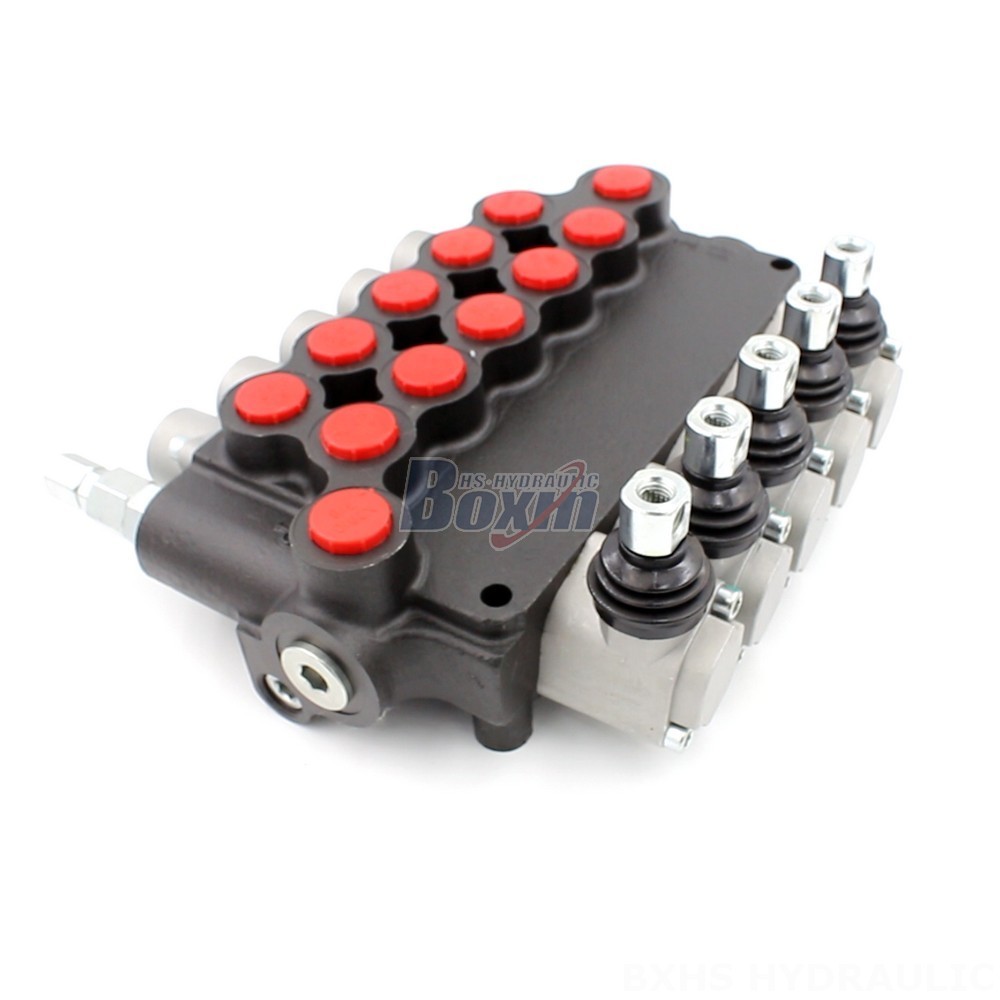

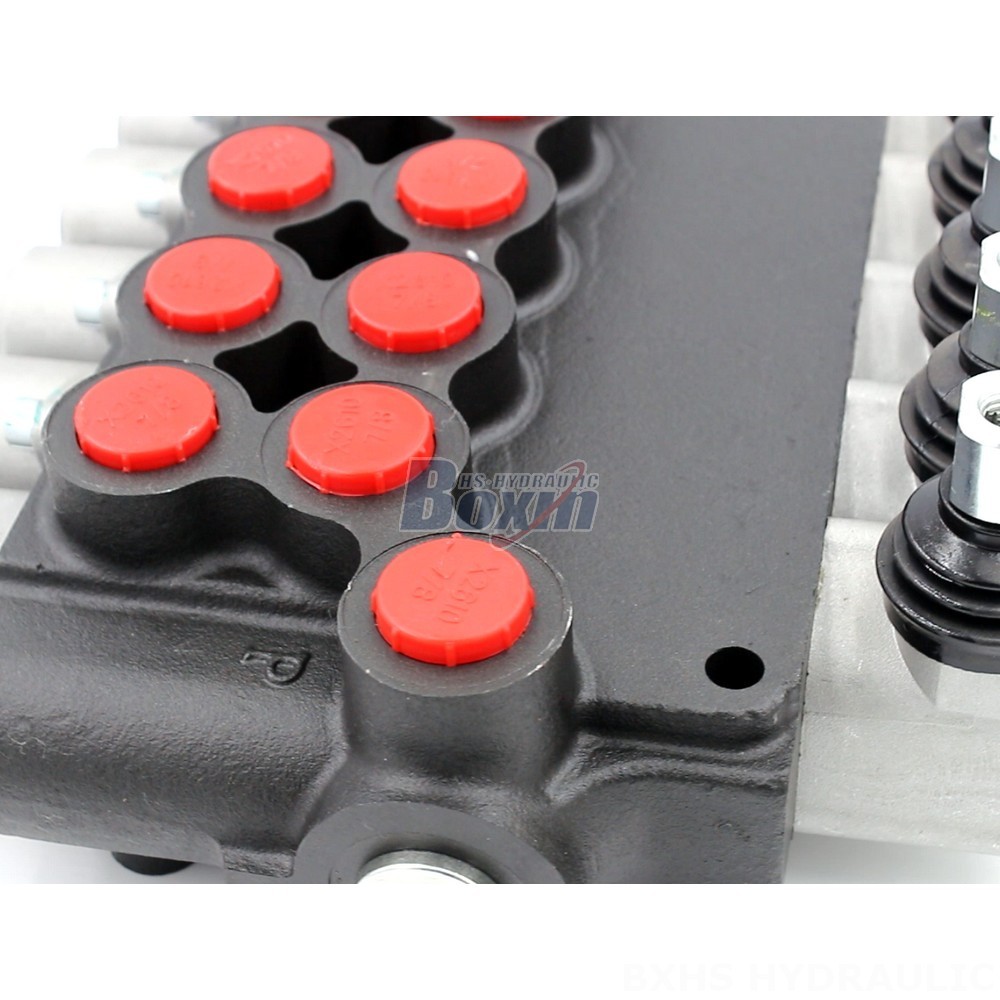

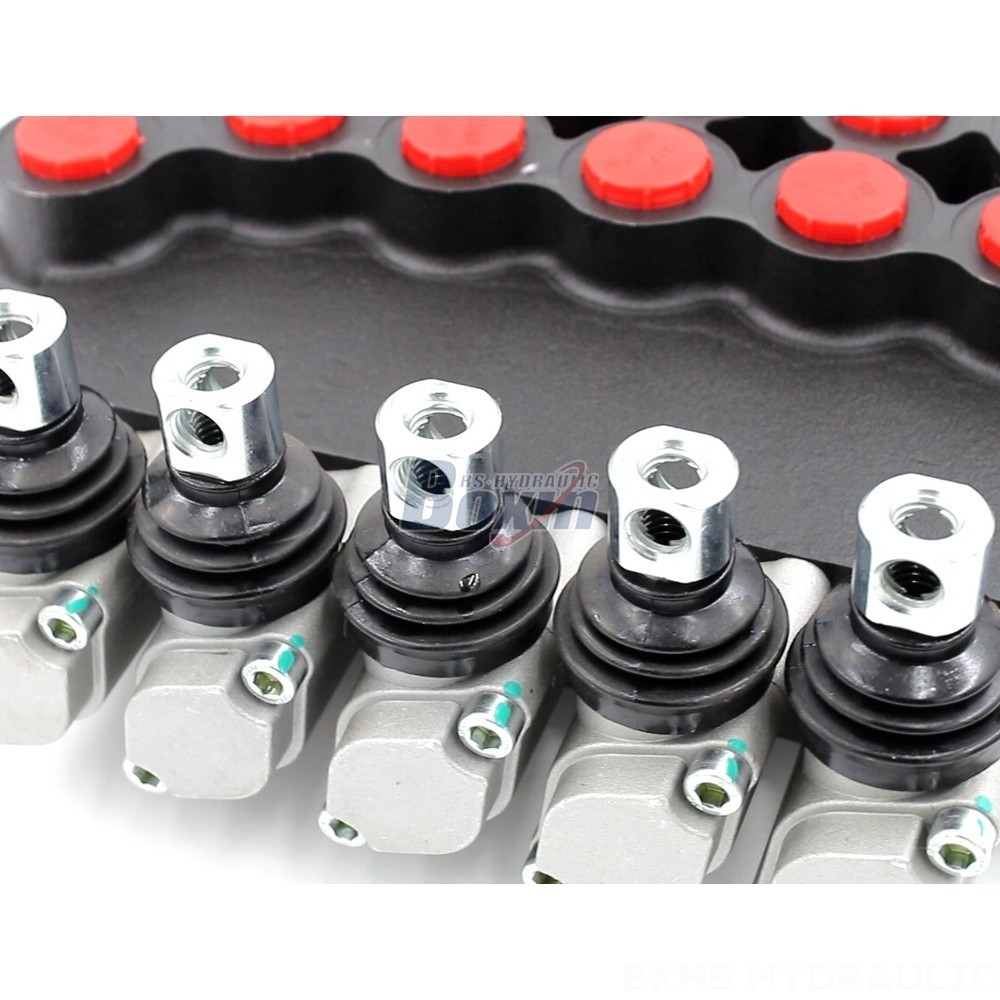

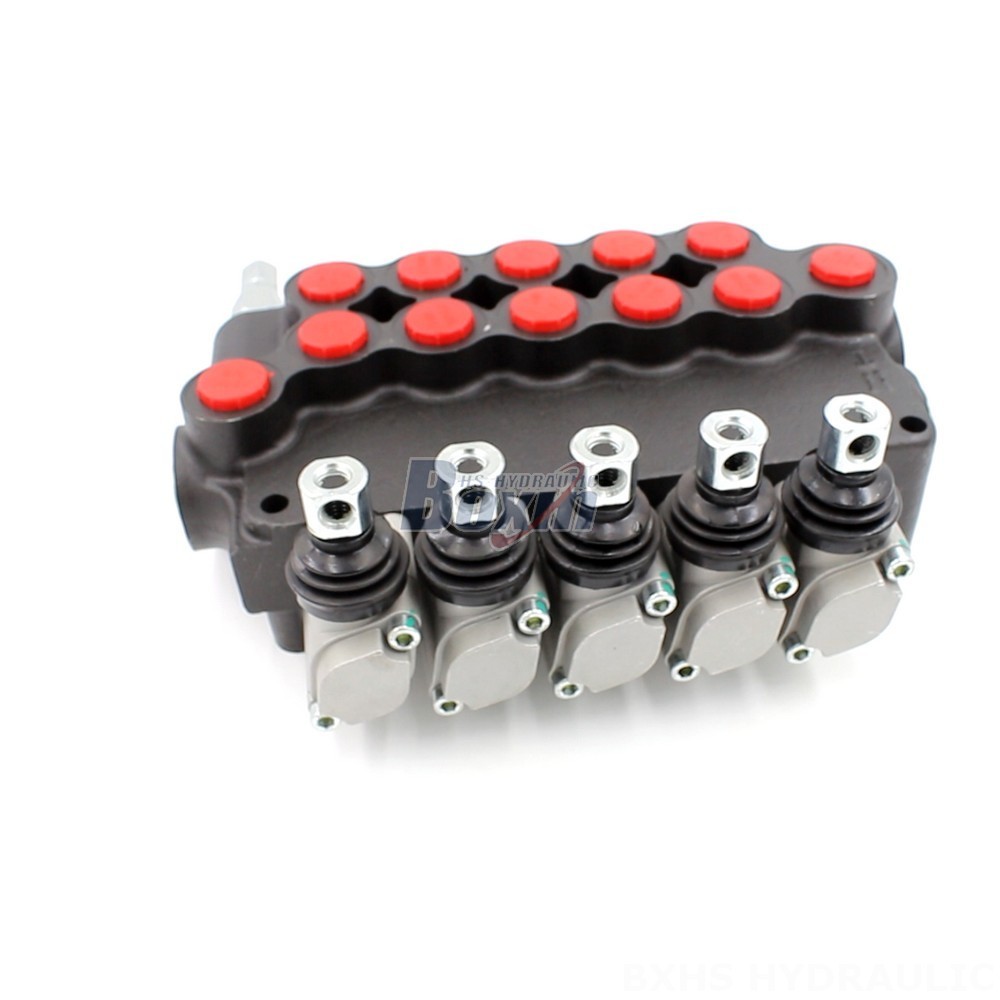

The P80-U116-U78-OT 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With its manual control, 5 sections, and monoblock construction, this valve offers precise and reliable flow control. Its rated flow of 80 L/min and maximum pressure of 250 bar make it suitable for demanding hydraulic systems. The valve is designed to operate within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80-U116-U78-OT 5 Spool Monoblock Directional Valve is manufactured to the highest quality standards and is backed by a comprehensive warranty. Its robust construction and durable materials ensure long-lasting performance even in the most challenging operating conditions. The valve is easy to install and maintain, making it an ideal choice for a variety of industrial applications. Its compact size and lightweight design make it easy to integrate into existing systems, while its modular design allows for easy customization to meet specific application requirements.
