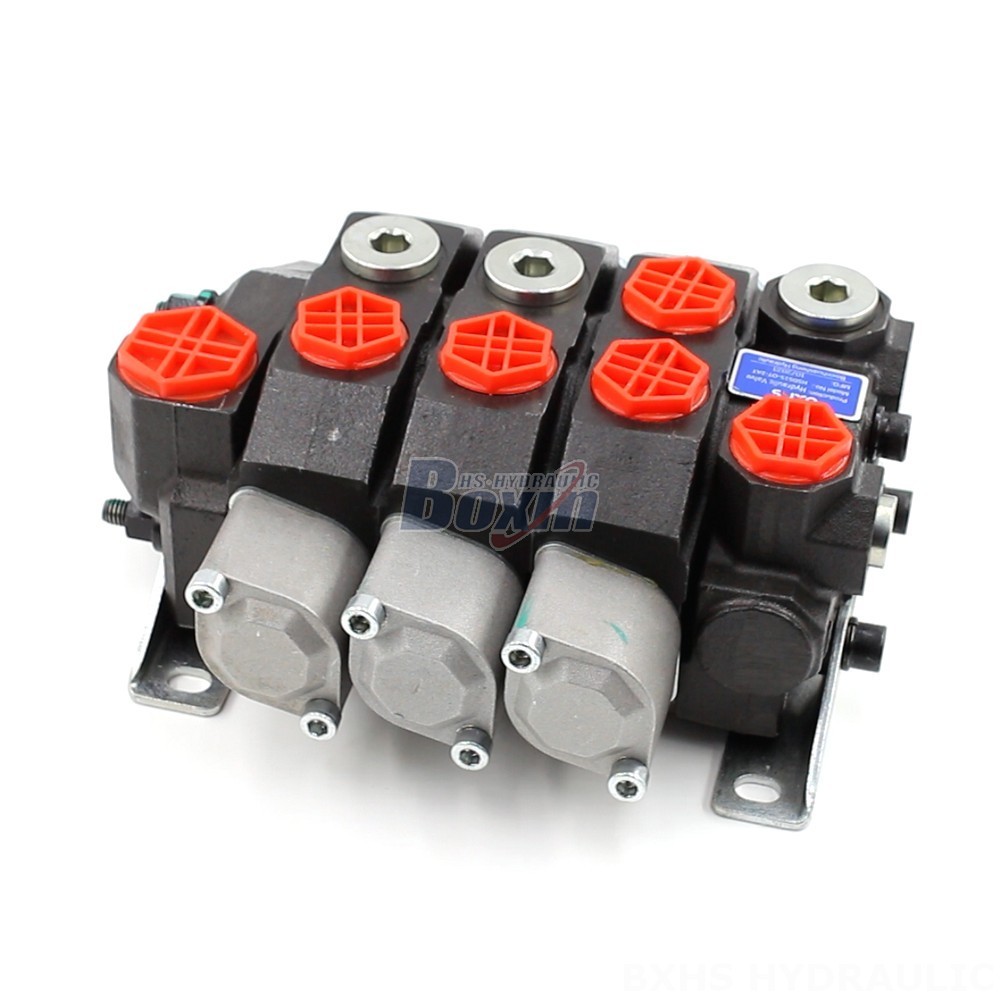

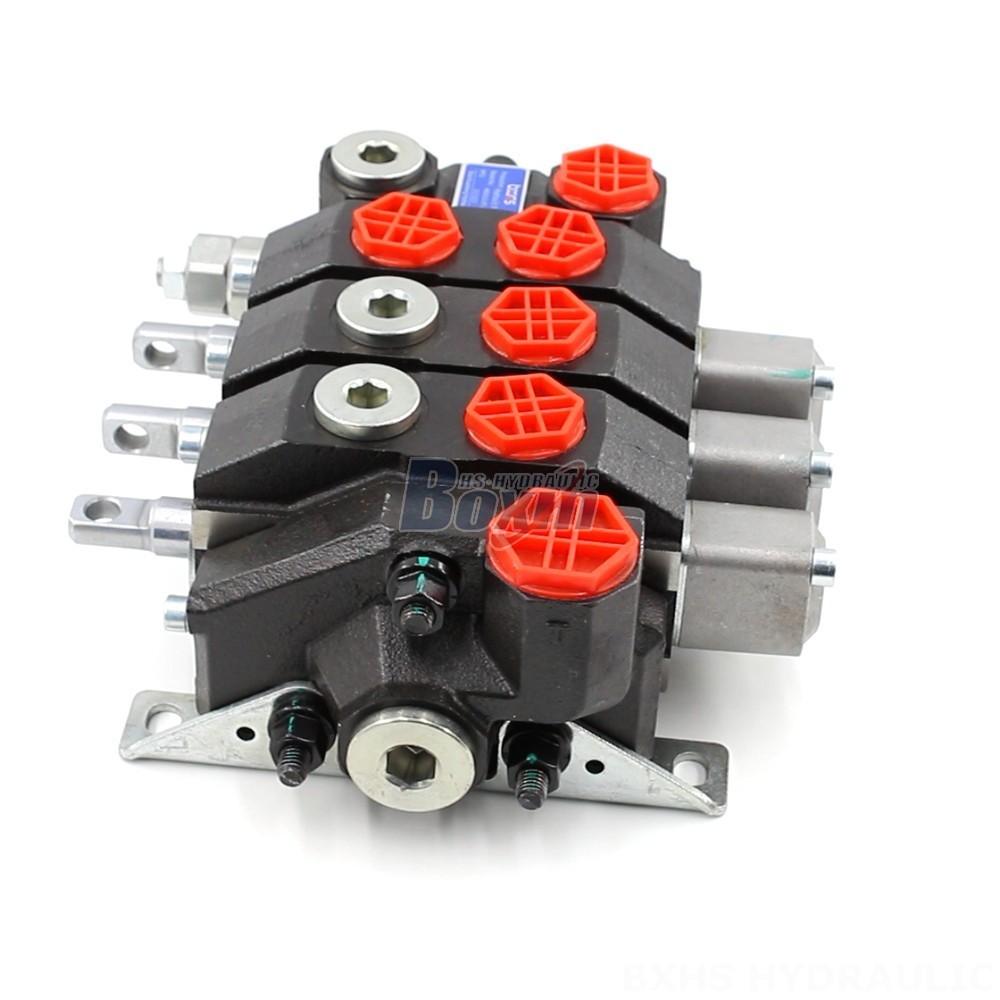

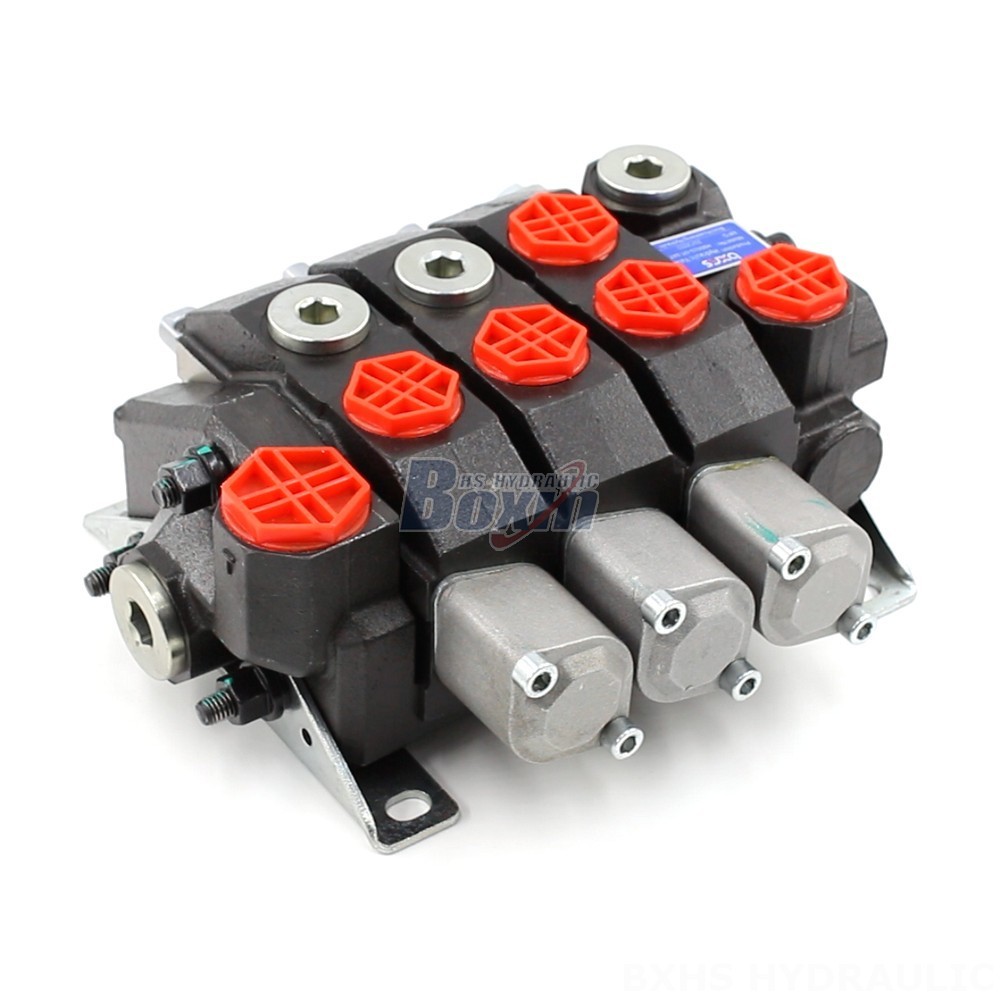

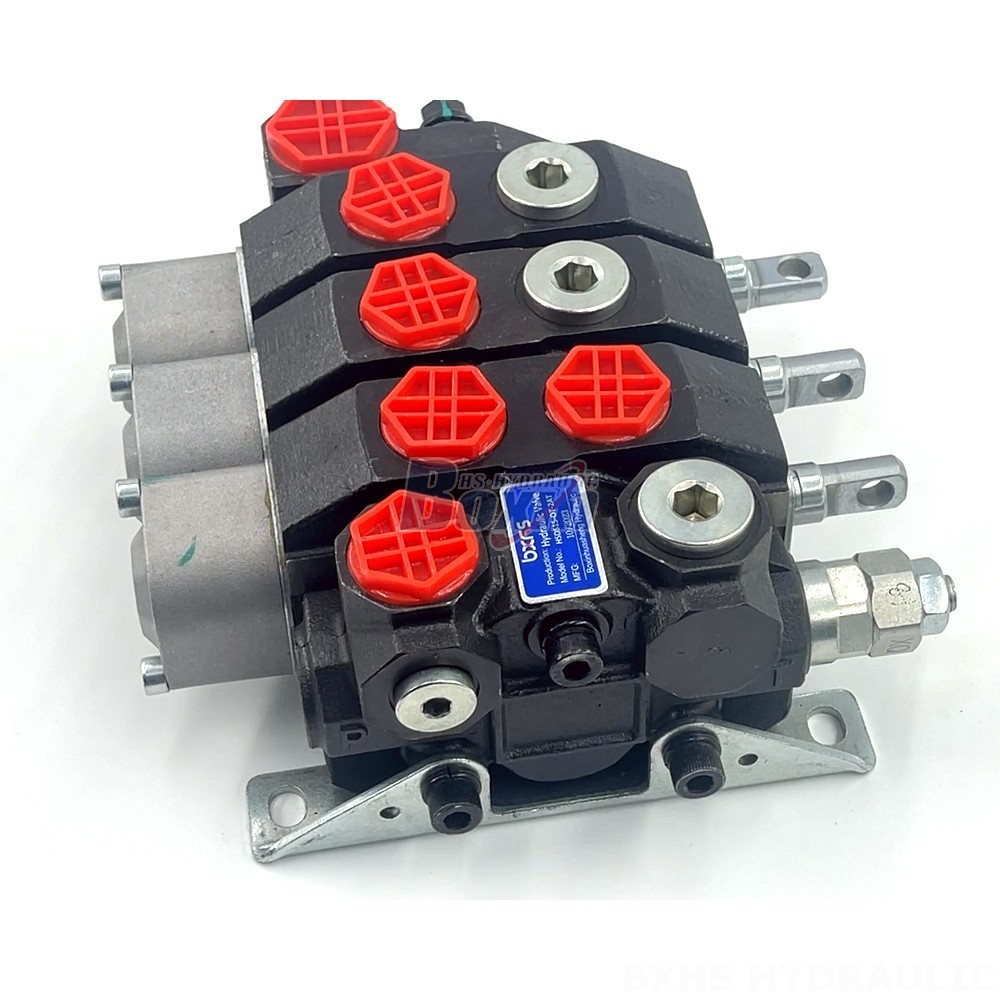

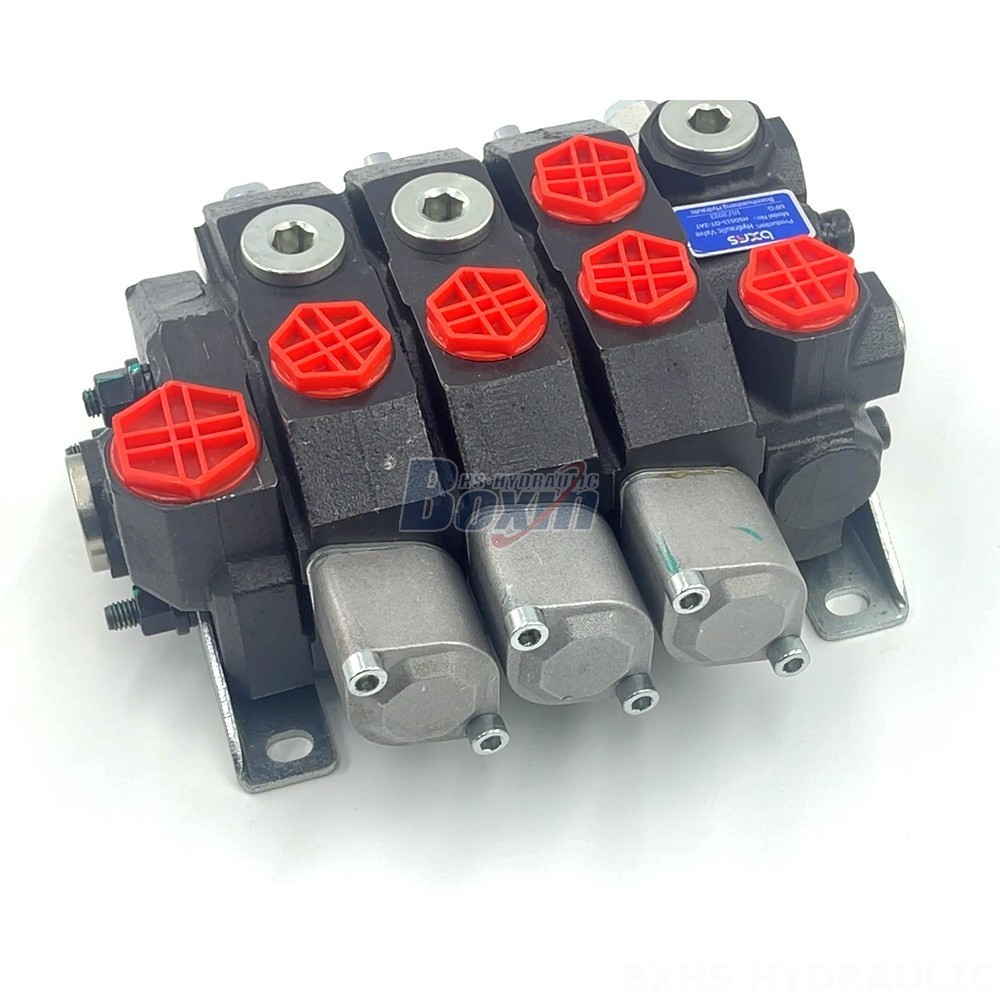

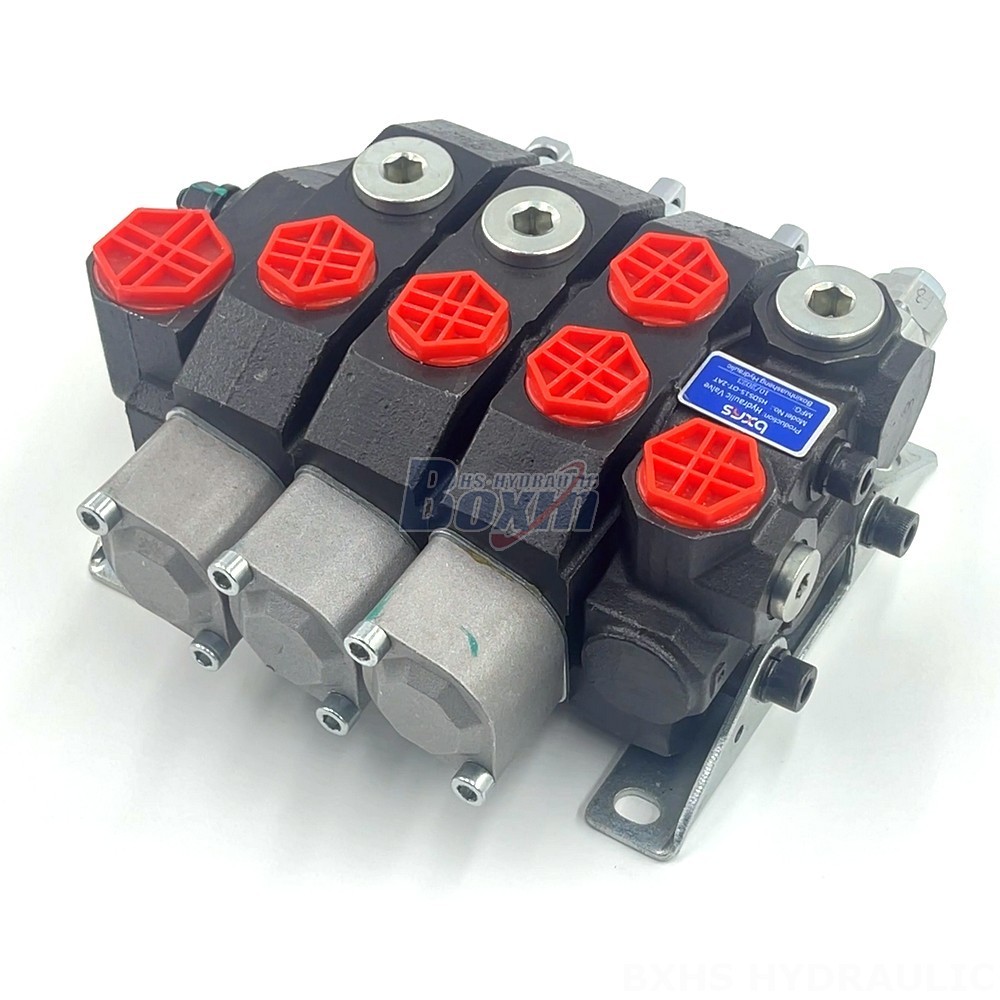

The HSDS15 Series Manual 3 Spool Monoblock Directional Valve is a high-performance, reliable hydraulic valve designed for use in a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It features a 3 spool configuration, a rated flow of 60 L/min, and a maximum pressure of 315 bar.
| HSDS15系列 分块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 额定流量 | 60 L/min (15.8 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G1/2接口, SAE 8接头 |
| 出油口 | G1/2接口, G3/4接口, SAE 8接头 |
| 接口尺寸 | G1/2接口, SAE 8接头 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
This manual 3 spool monoblock directional valve is a robust and versatile solution for controlling hydraulic systems. Designed for demanding applications, it offers a rated flow of 60 L/min and a maximum pressure of 315 bar. Its compact and modular design makes it easy to integrate into existing systems. The valve is suitable for various applications, including forklifts, telehandlers, mini excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and sprayers. The HSDS15 series is known for its reliability and durability, making it an ideal choice for demanding operating environments.
