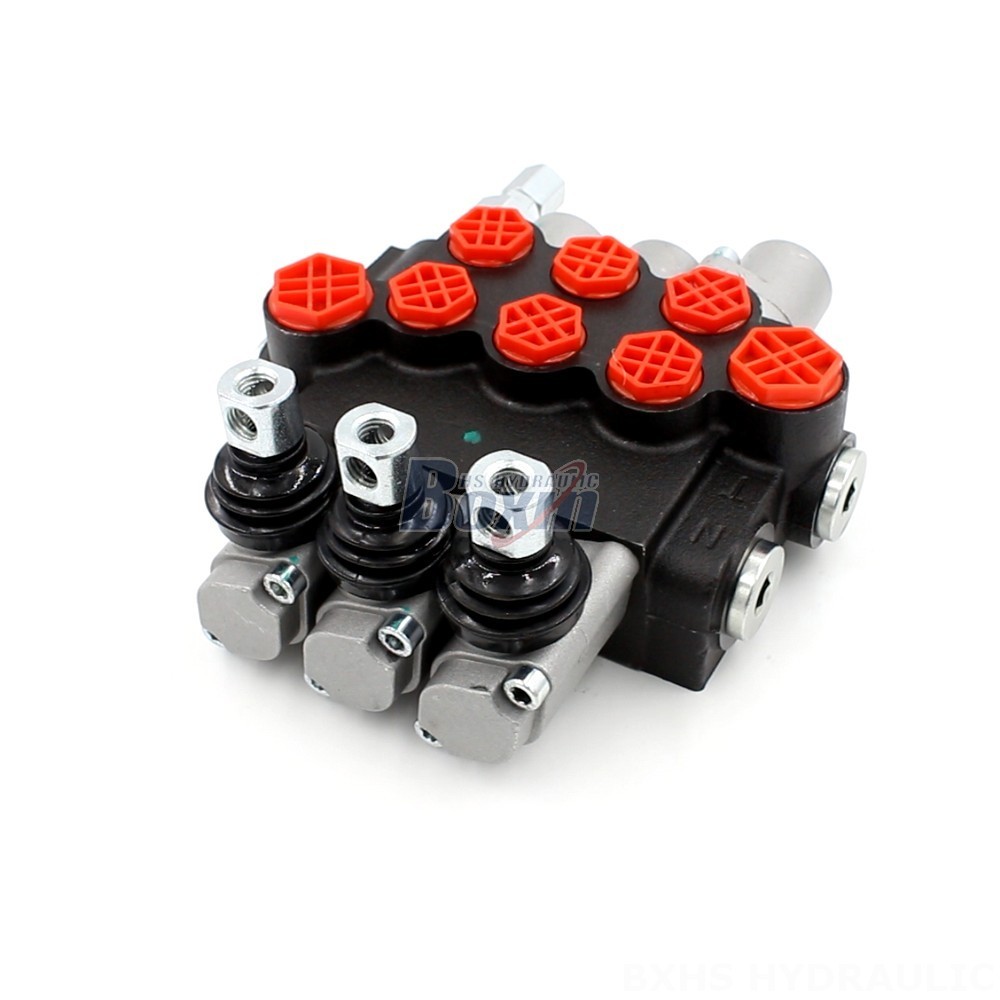

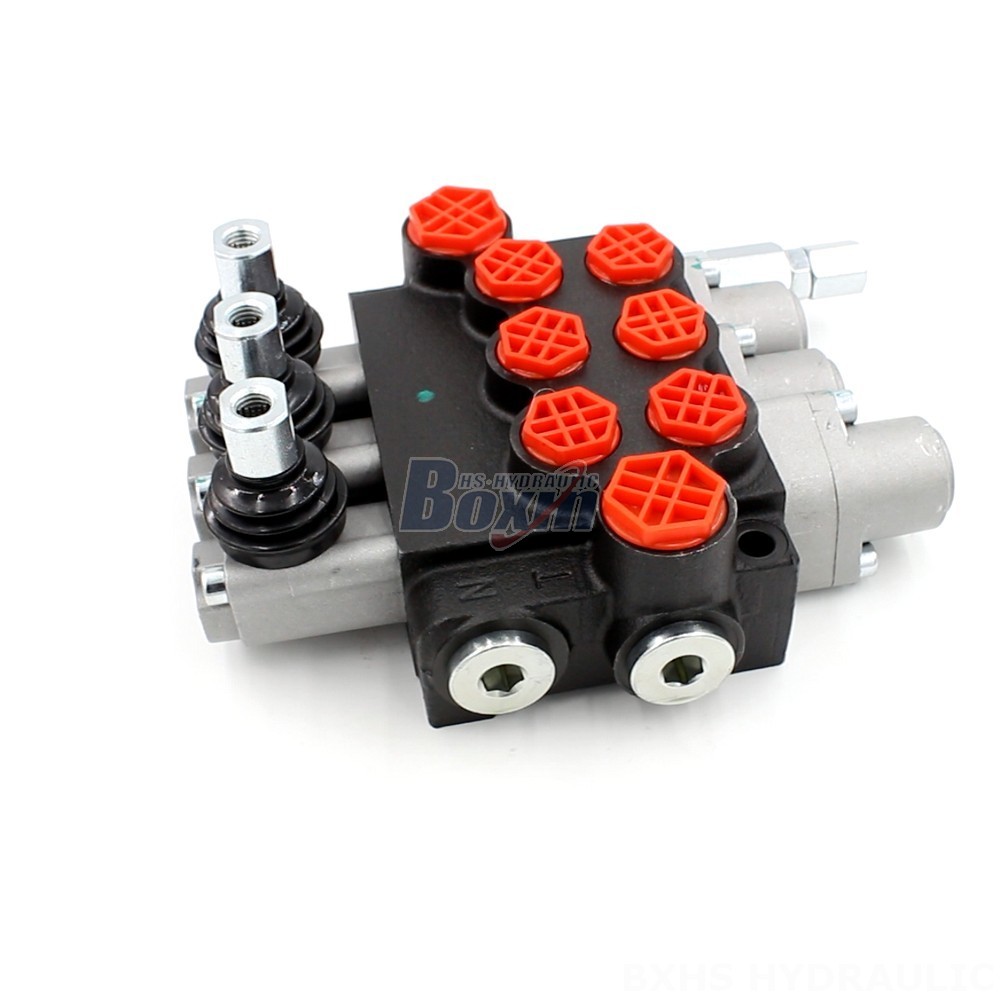

The P40-G12-G38-OT-OT-OT 6 Port Selector Valve is a manual control hydraulic valve designed for industrial applications such as material handling, construction, and agriculture. It features a compact monoblock design, 3 sections, 3 spools, and a rated flow of 40 L/min (10.5 US gpm). This valve is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, and various other heavy equipment.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-G12-G38-OT-OT-OT 6 Port Selector Valve is a high-performance hydraulic valve designed for demanding industrial applications. It is a manual control valve, offering simple and reliable operation. The valve features a robust monoblock construction with 3 sections and 3 spools, providing versatile control options for hydraulic systems. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi), it can handle a wide range of applications. This valve is specifically designed for use in various types of heavy equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi and mini excavators, skid steer loaders, tractors, and front-end loaders. Its wide operating temperature range of -40°C to +80°C (-40°F to +176°F) ensures reliable operation in demanding environments. The P40-G12-G38-OT-OT-OT 6 Port Selector Valve is a versatile and durable solution for industrial hydraulic systems requiring precise control and high performance.
