Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve

控制方式:手控

路数:5 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:SAE 10接头

出油口:SAE 10接头

接口尺寸:SAE 10接头

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列单块式方向阀

Packagingsize:25.1*30*11

Grossweight:16.00 kg

库存: 有货

描述

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve drawing image

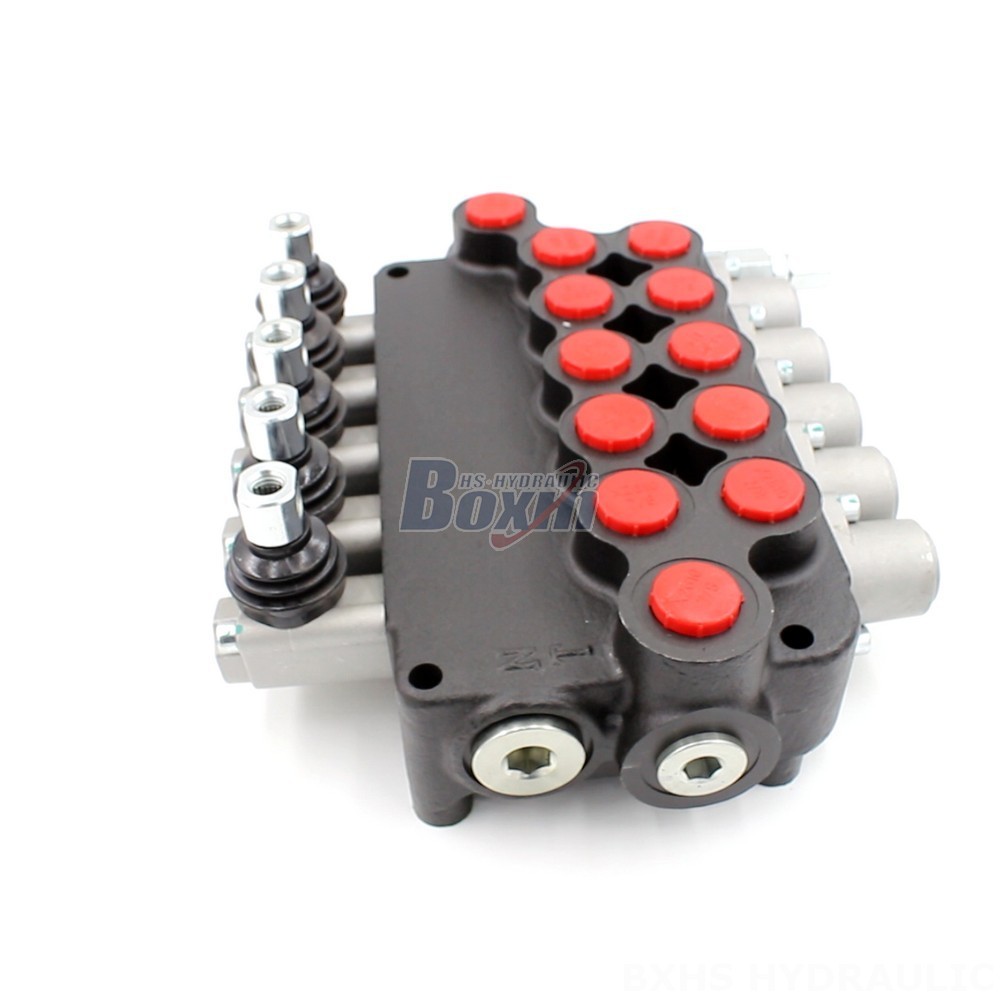

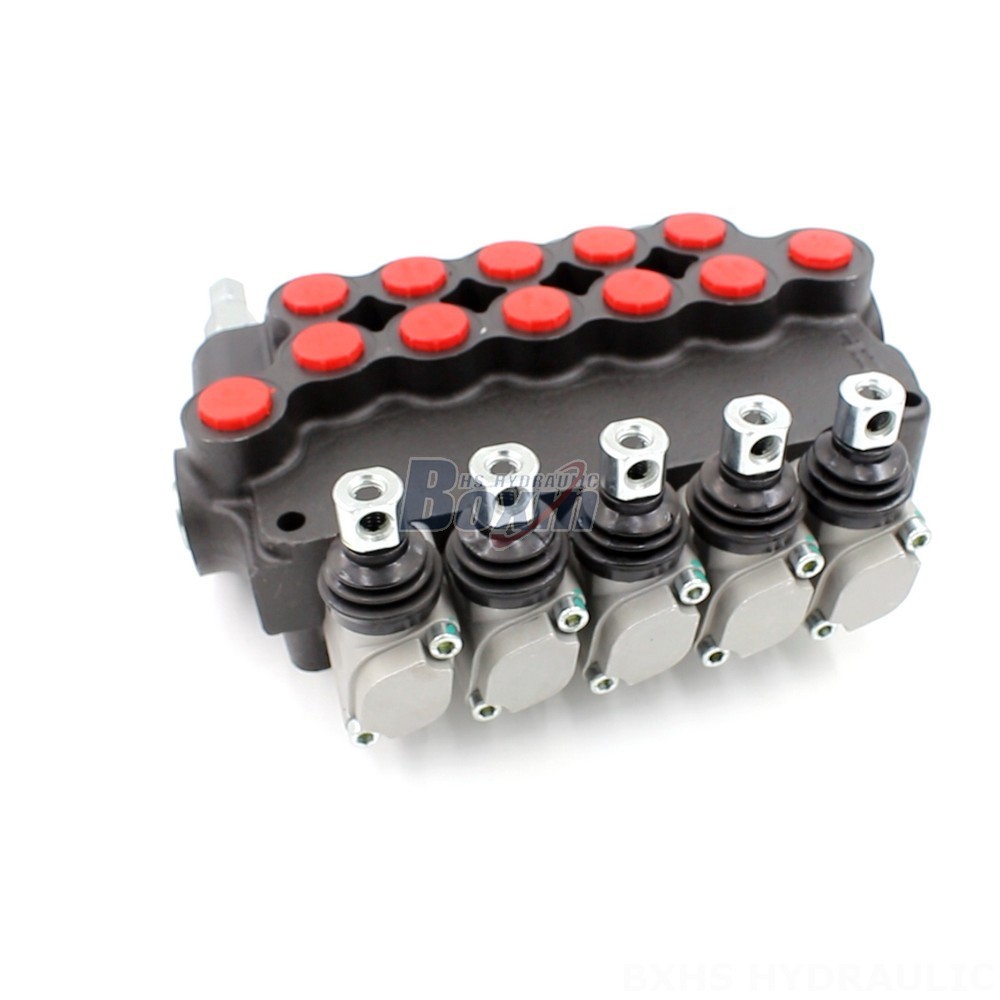

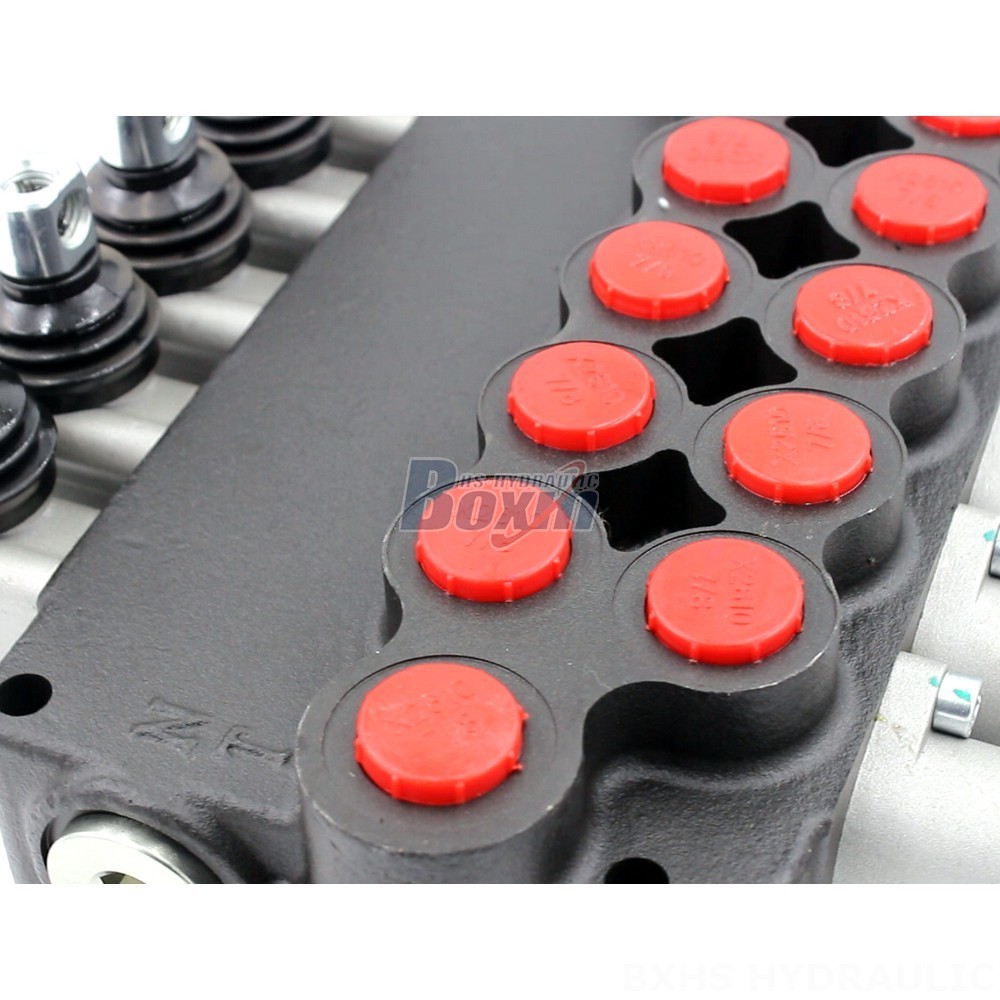

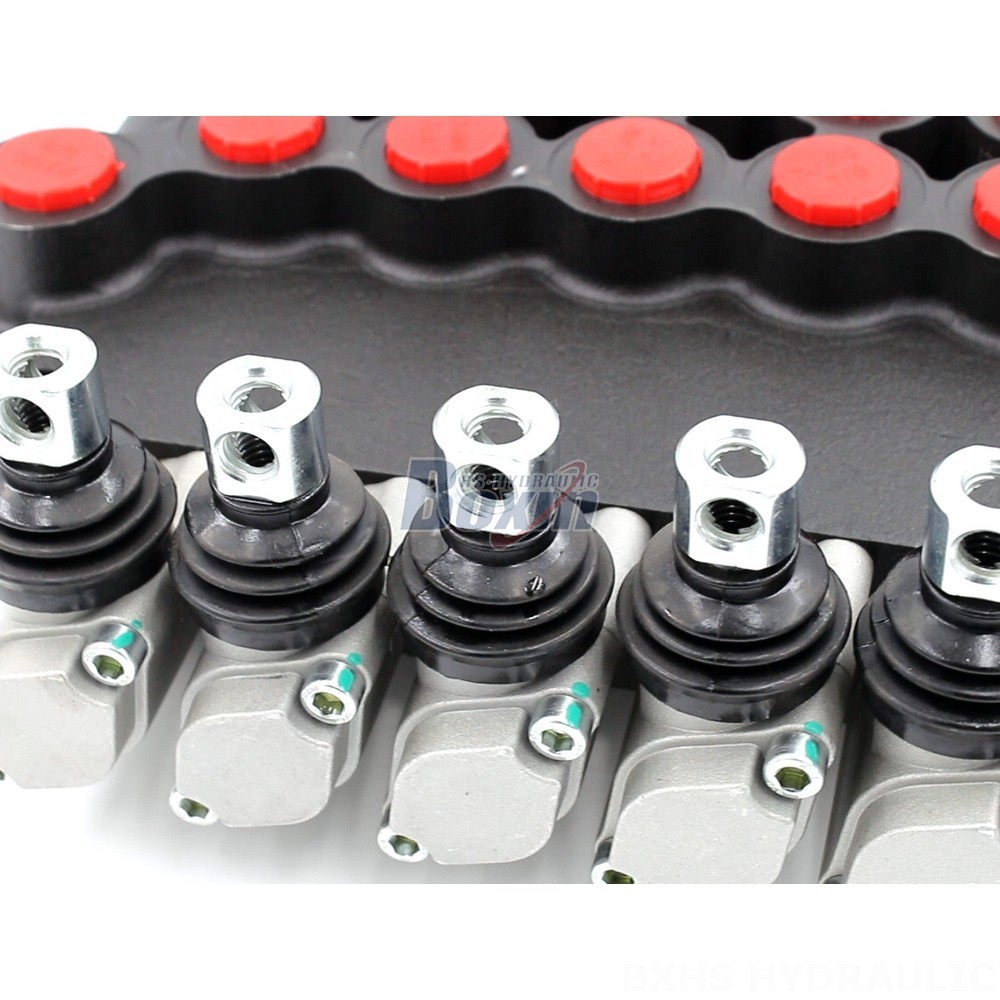

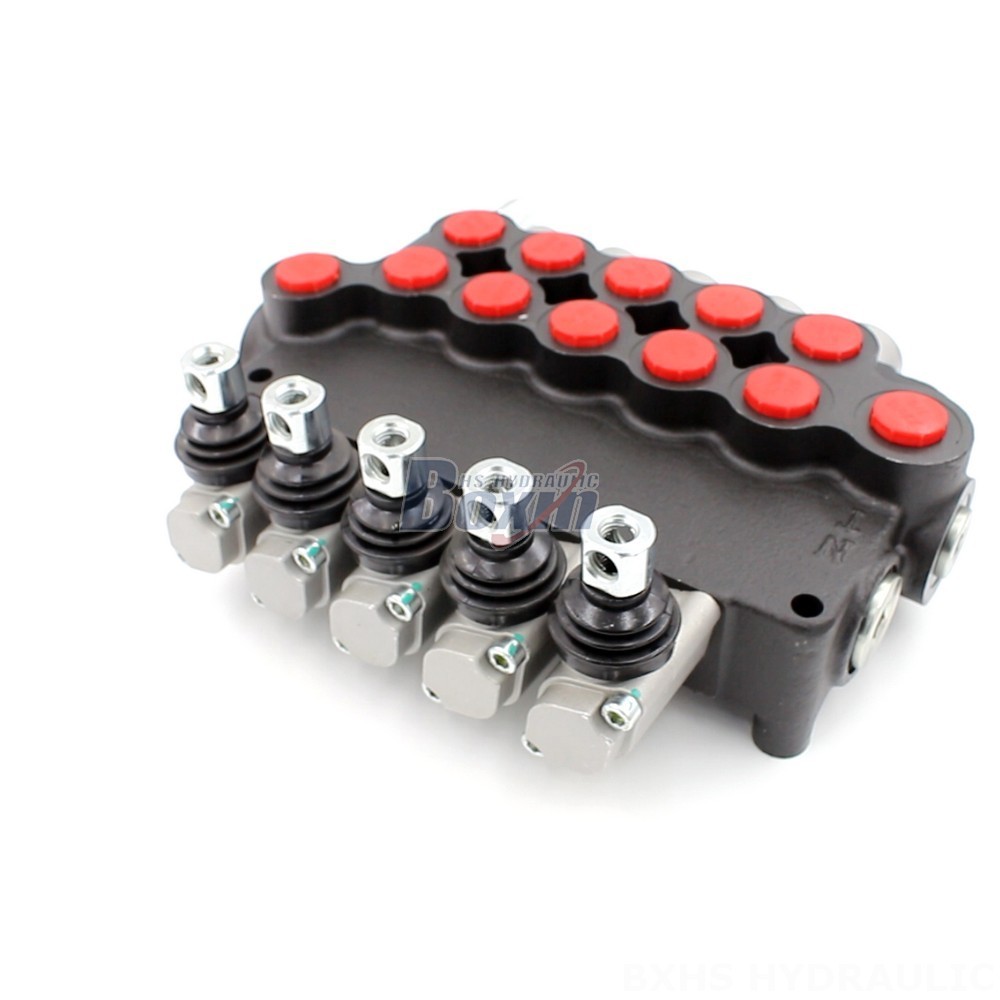

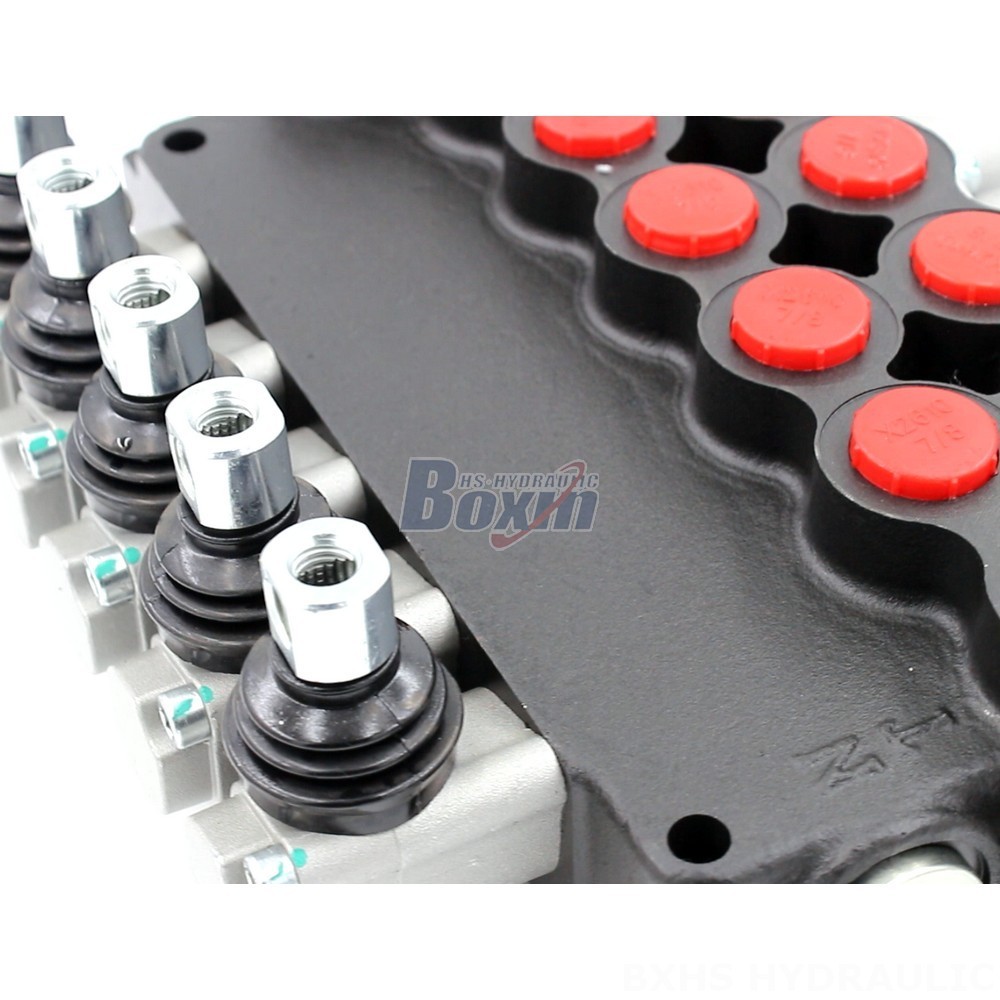

The P80-U116-U78-OT Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in various industries. It features a robust monoblock construction, manual control, and a compact 5-section design.

P80系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	80 L/min (21.2 US gpm)
最大压力	315 bar (4600 psi)
进油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸	G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

**P80-U116-U78-OT Directional Control Valve**

**Product Overview:**

The P80-U116-U78-OT Directional Control Valve is a versatile and reliable hydraulic component engineered to provide precise control over fluid flow in hydraulic systems. It is widely used in mobile and industrial applications, including material handling, construction, agriculture, and industrial vehicles.

**Key Features:**

* Manual control for intuitive operation
* Monoblock construction for durability and compactness
* 5-section design for versatility and customization
* Rated flow of 80 L/min for high flow capacity
* Maximum pressure of 250 bar for robust performance
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for wide-ranging applications
* 5 spool design for precise flow control
* Compatible with P80 Series valves for system integration

**Applications:**

The P80-U116-U78-OT Directional Control Valve finds applications in a wide range of hydraulic systems, including:

* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
