Hydraulic Monoblock Valve Factory Direct Supply P40-QTW1-QTW

控制方式:手控

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:28*18*12

Grossweight:6.50 kg

库存: 有货

13 次查看了此产品

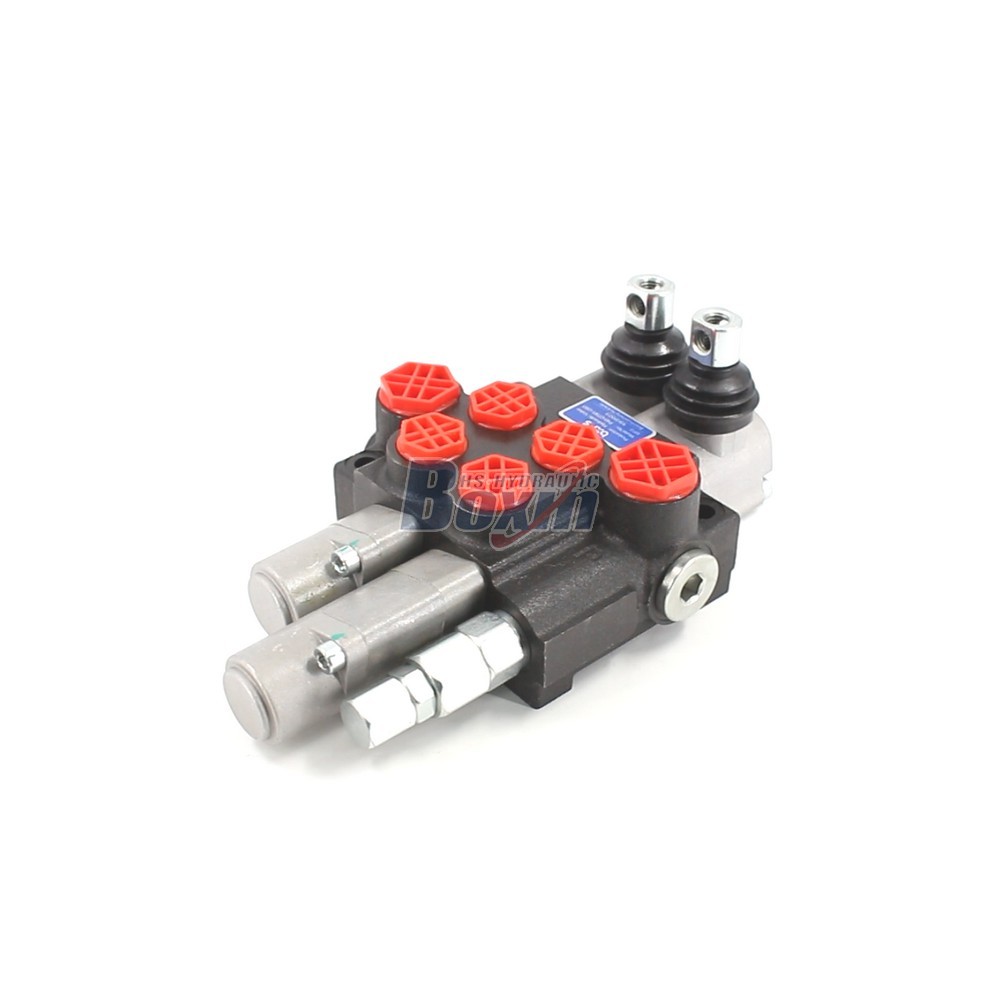

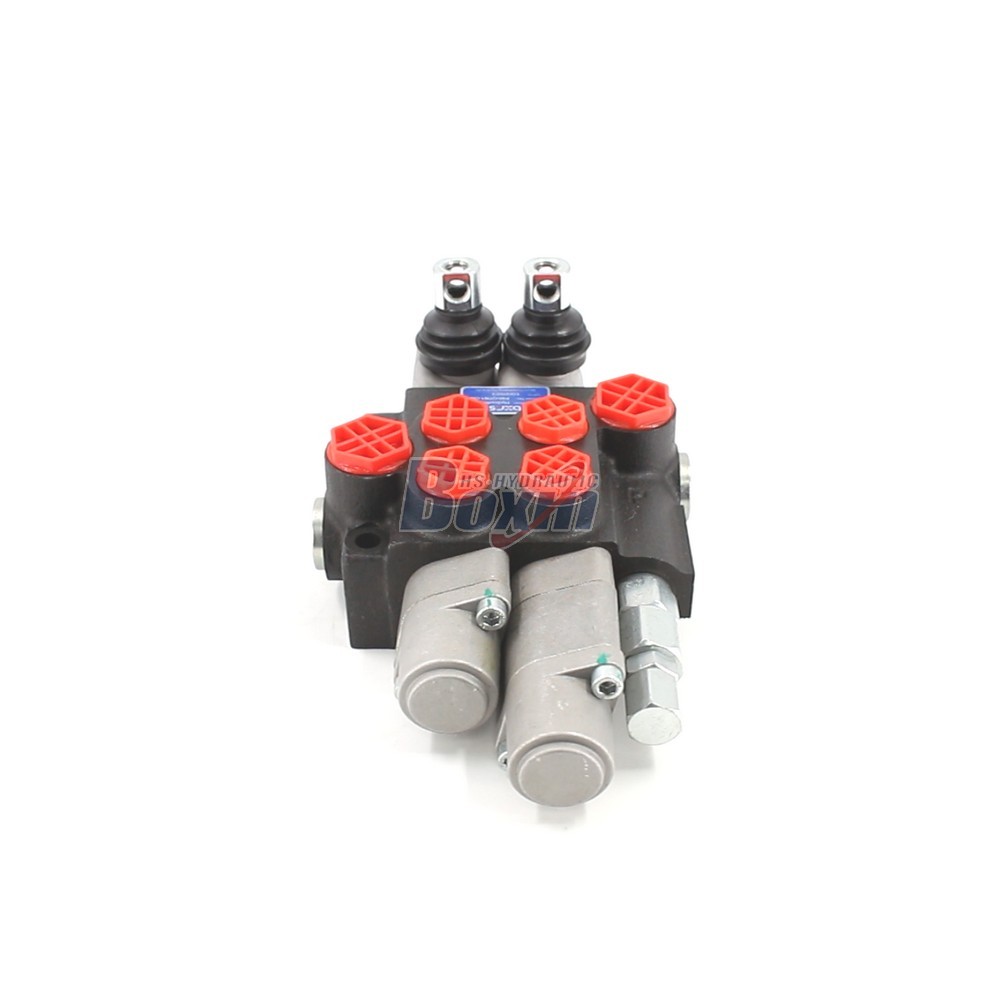

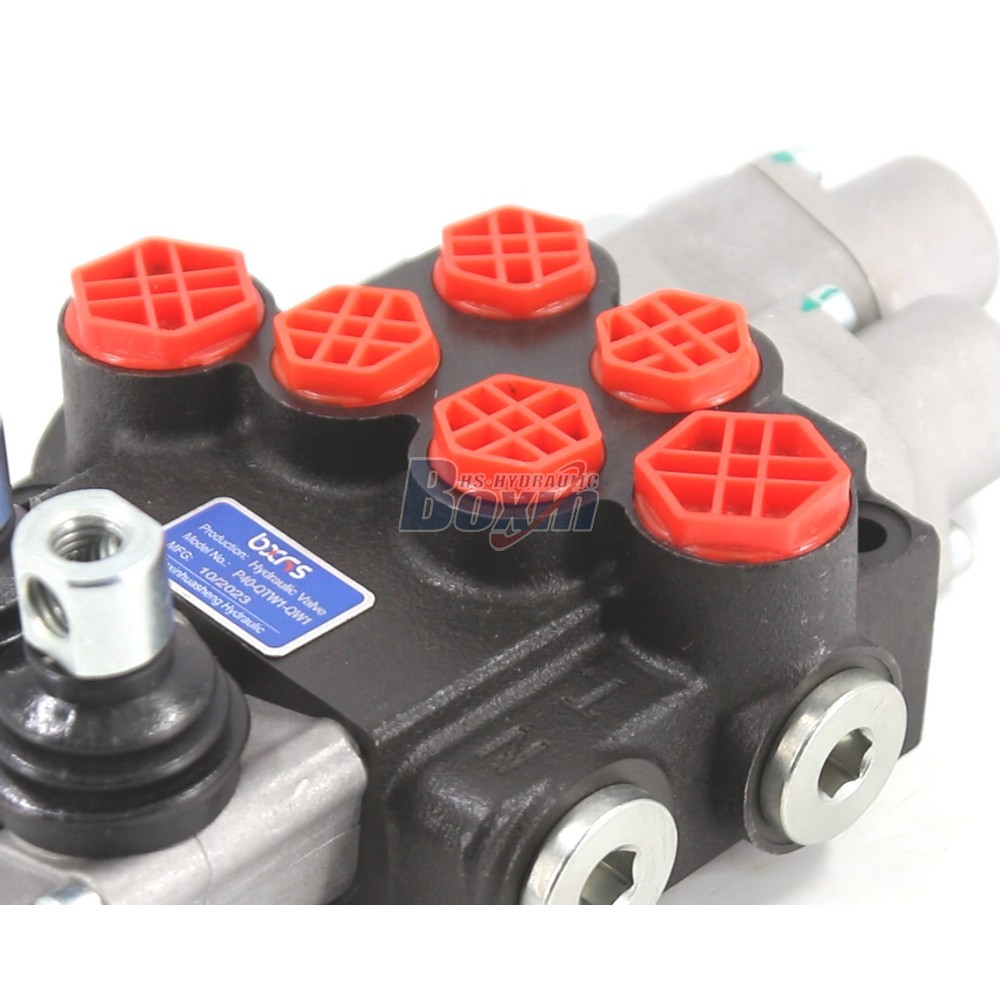

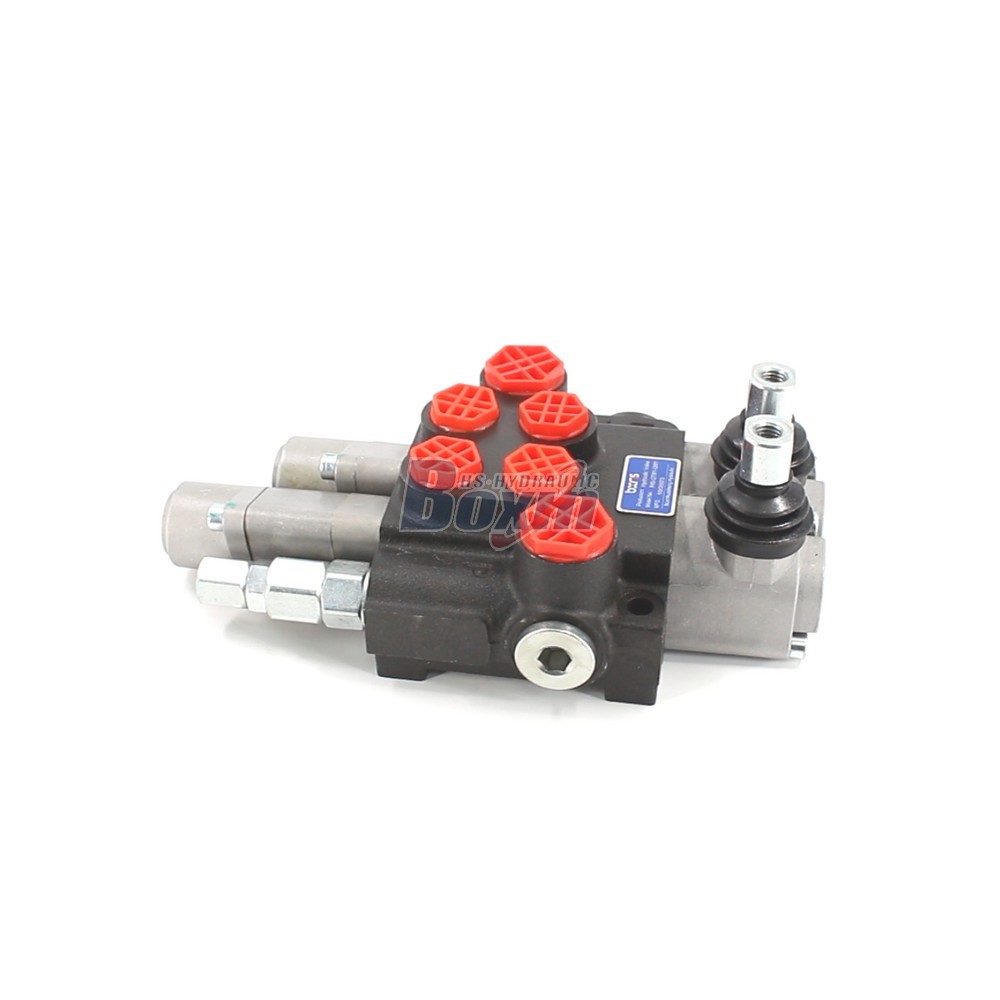

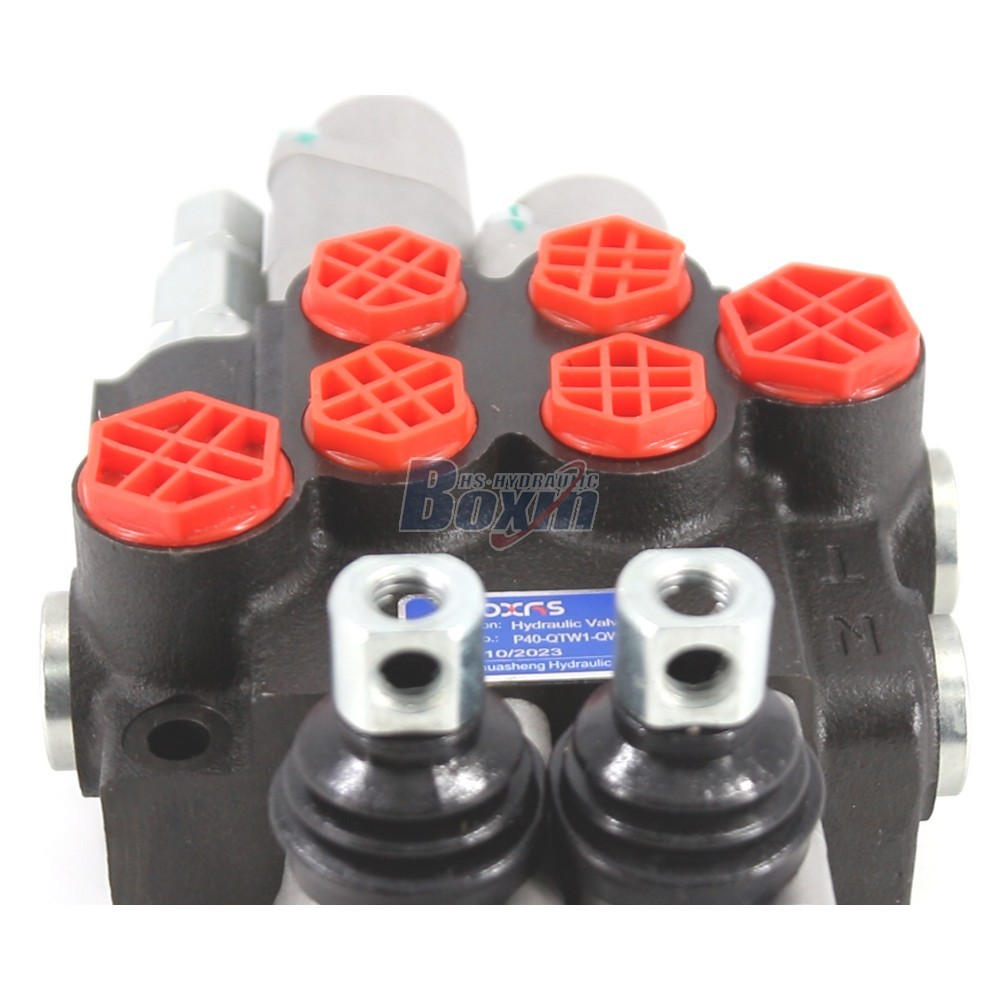

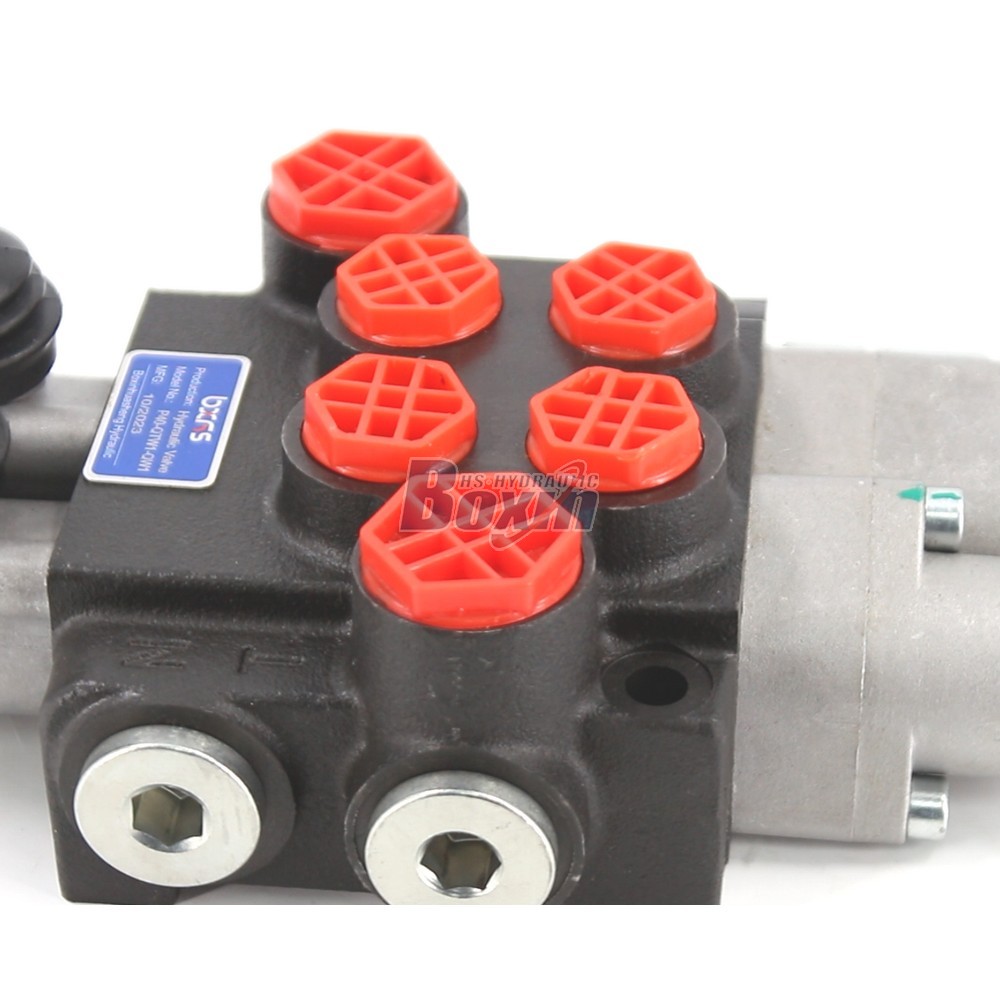

Hydraulic Monoblock Valve Factory Direct Supply P40-QTW1-QTW

Hydraulic Monoblock Valve Factory Direct Supply P40-QTW1-QTW

Hydraulic Monoblock Valve Factory Direct Supply P40-QTW1-QTW drawing image

High-performance P40 series monoblock directional control valve designed for manual operation in demanding mobile and industrial hydraulic systems, offering reliable performance for construction, agriculture, and material handling equipment.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

As a professional hydraulic manufacturer, we provide precision-engineered P40 series monoblock valves with a rated flow of 40 L/min and maximum pressure of 250 bar. Our robust manual control valves are ideal for tractors, forklifts, wood splitters, and excavators. We specialize in factory-direct supply, offering comprehensive services including OEM, ODM, custom configuration, and wholesale distribution. We are actively seeking long-term partnerships with global distributors, wholesalers, and international traders. With our advanced manufacturing facilities, we ensure high quality, competitive pricing, and flexible customization capabilities to meet your specific project requirements. Partner with us to benefit from professional technical support and reliable supply chain logistics for your hydraulic component needs.
