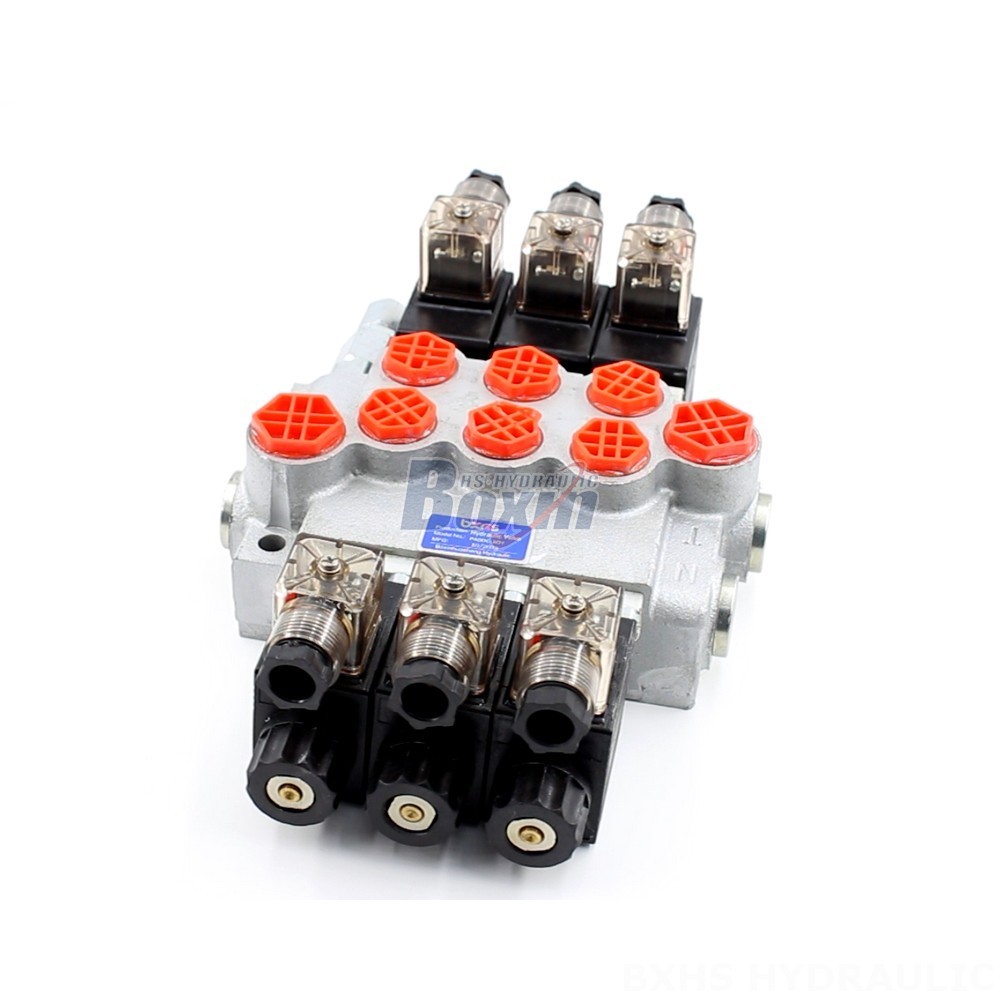

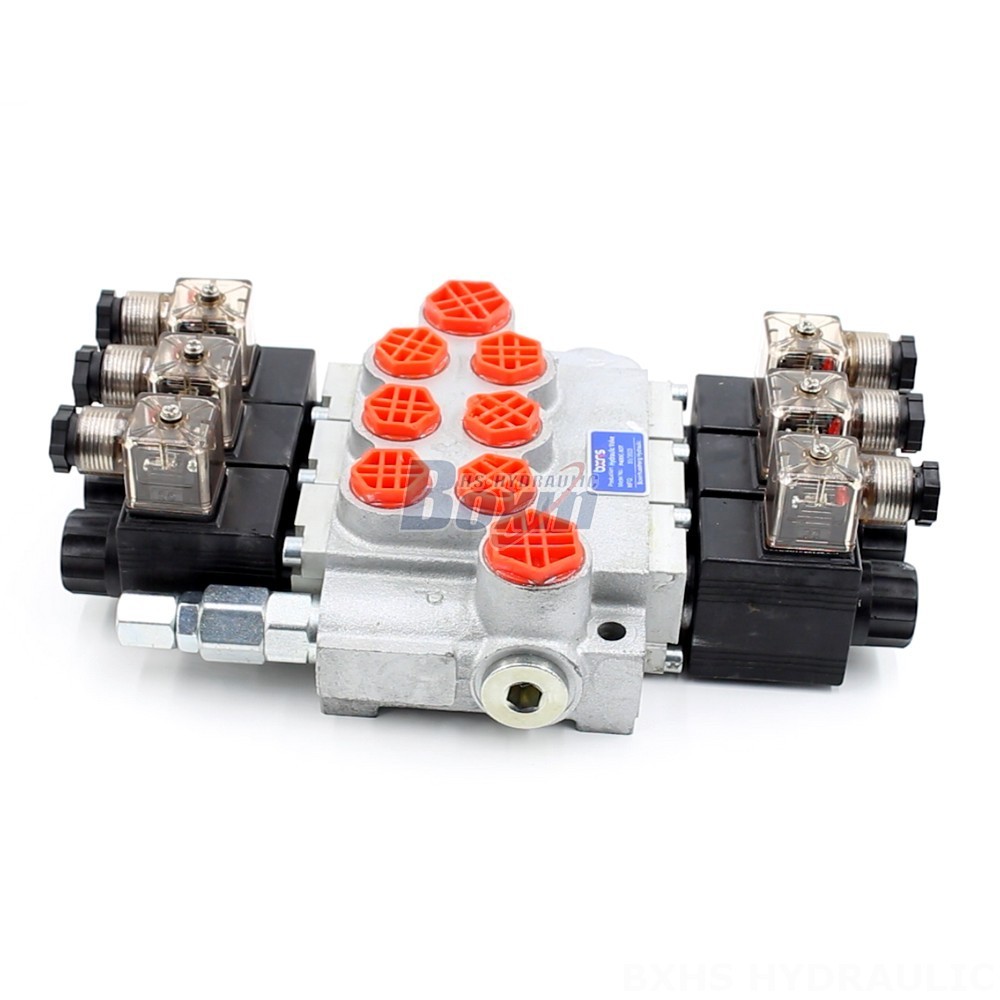

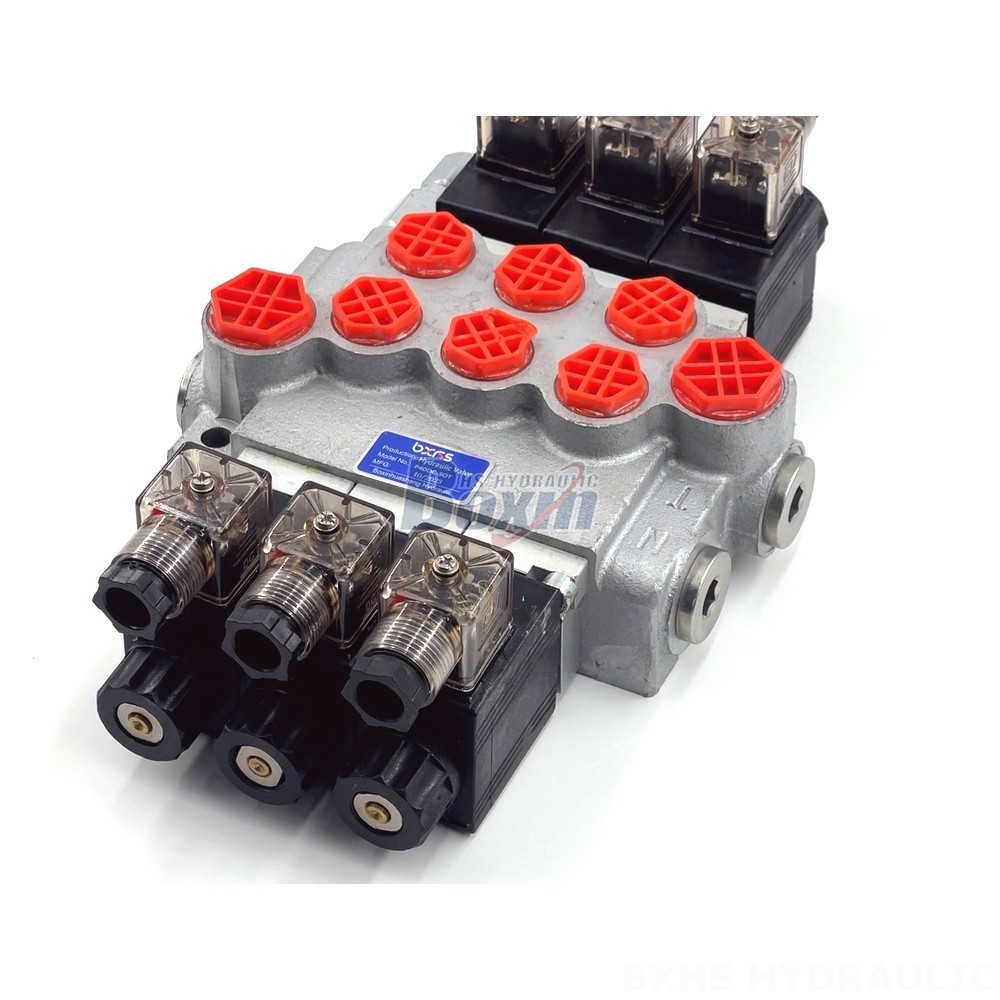

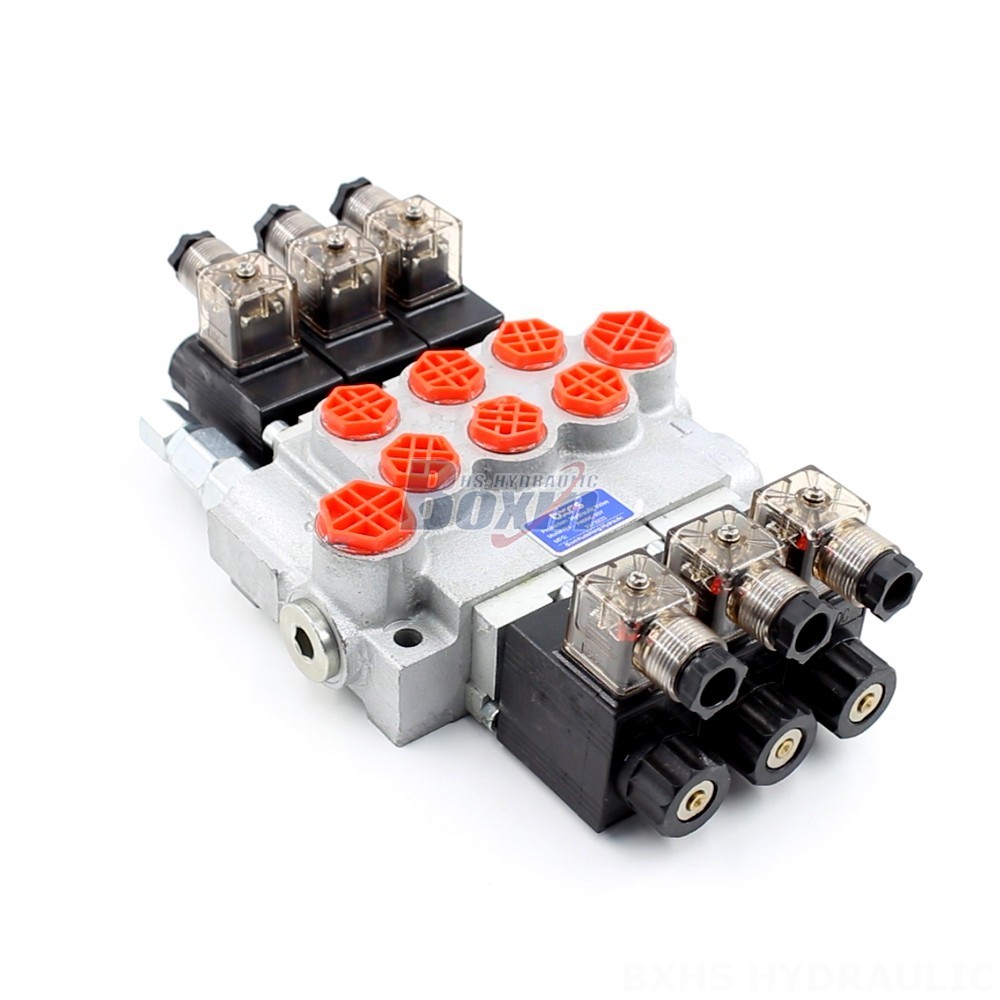

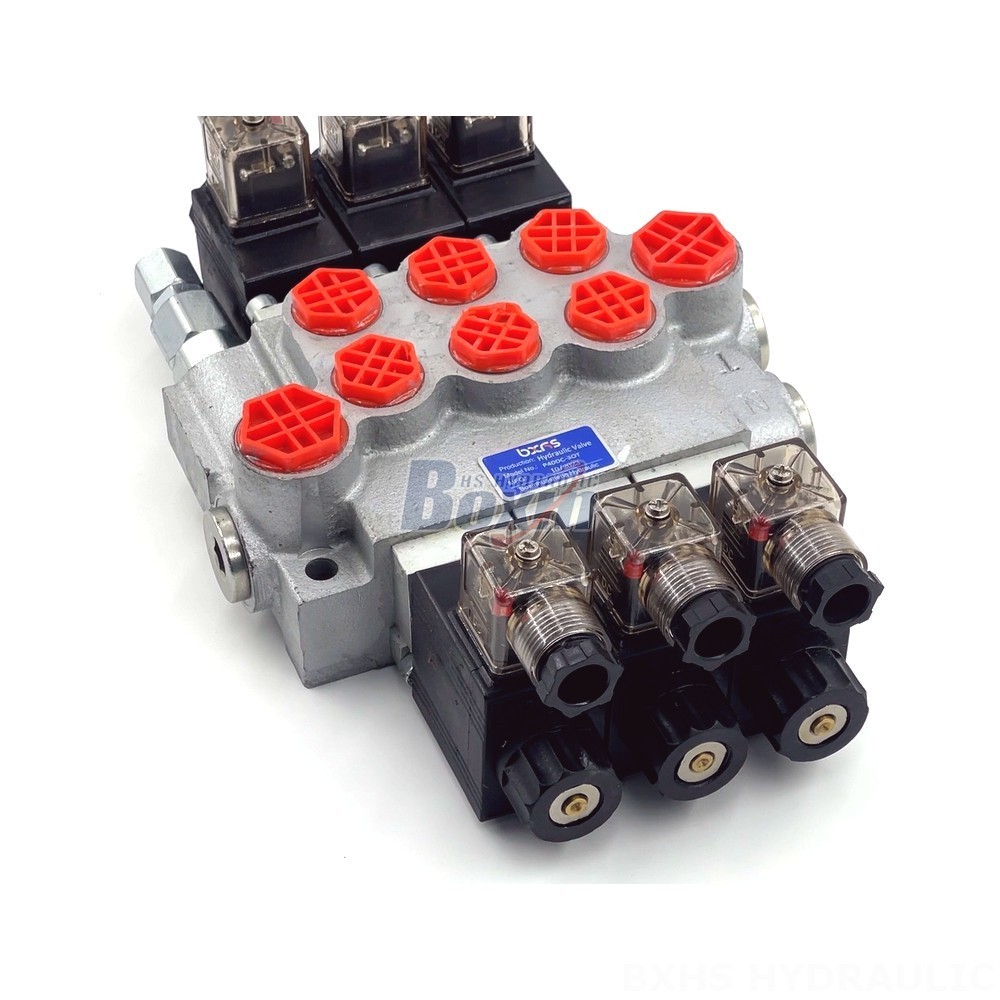

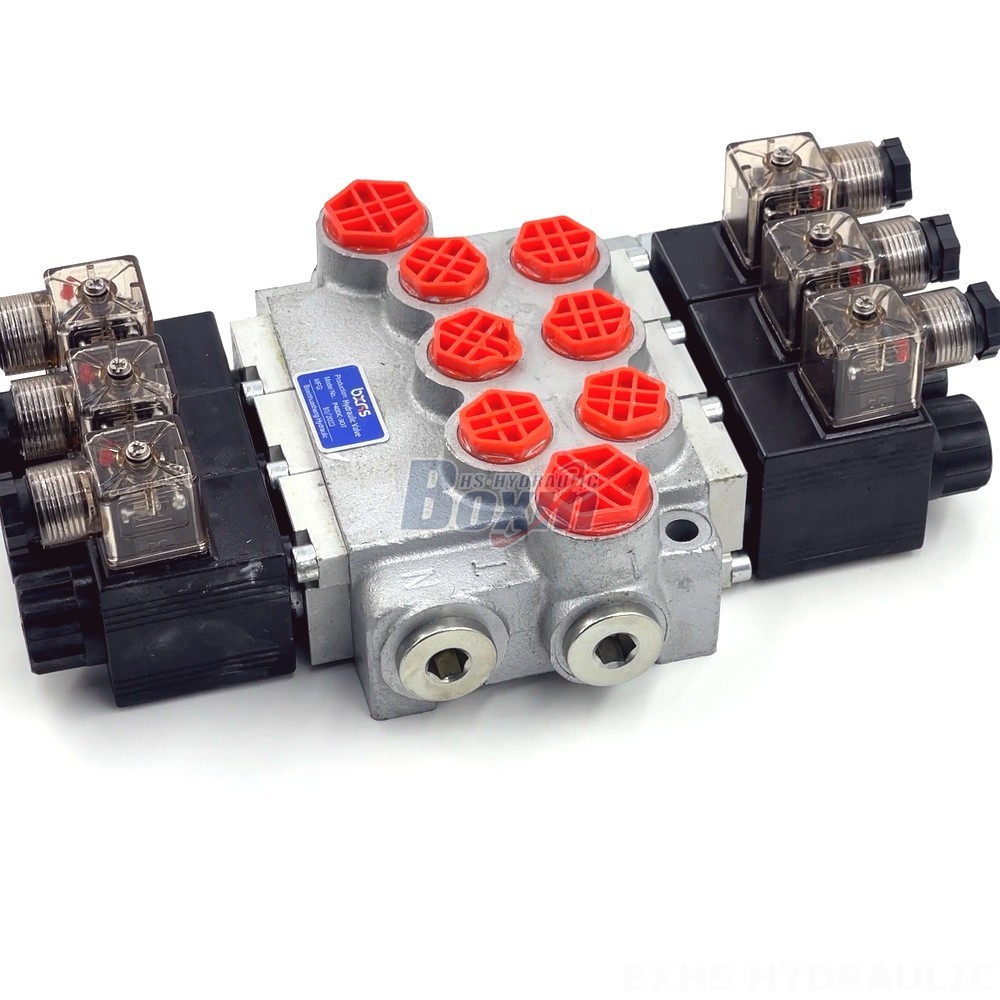

Hydraulic Lever Hydraulic Monoblock Directional Valve | P40-DKL Series | Wholesale & OEM

控制方式:电磁

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40-DKL系列 单块式方向阀

Packagingsize:31*21*17

Grossweight:9.00 kg

库存: 有货

853 次查看了此产品

Hydraulic Lever Hydraulic Monoblock Directional Valve | P40-DKL Series | Wholesale & OEM

Hydraulic Lever Hydraulic Monoblock Directional Valve | P40-DKL Series | Wholesale & OEM

Hydraulic Lever Hydraulic Monoblock Directional Valve | P40-DKL Series | Wholesale & OEM drawing image

The P40-DKL Series Hydraulic Lever Hydraulic Monoblock Directional Valve is a reliable and high-performance valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This 3-section, solenoid-controlled valve features a rated flow of 40 L/min and a maximum pressure of 250 bar. It is available for wholesale and OEM purposes.

P40-DKL系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-DKL Series Hydraulic Lever Hydraulic Monoblock Directional Valve is a robust and versatile solution for controlling hydraulic systems. This 3-section valve features a monoblock construction for enhanced durability and compact design. The solenoid control mechanism allows for precise and responsive operation. The valve is rated for a flow rate of 40 L/min and can handle pressures up to 250 bar. The P40-DKL Series is suitable for a wide range of applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve for wholesale and OEM purposes, enabling you to integrate it into your own machinery or purchase in bulk for your specific needs. Contact us for more information about this product and its availability.
