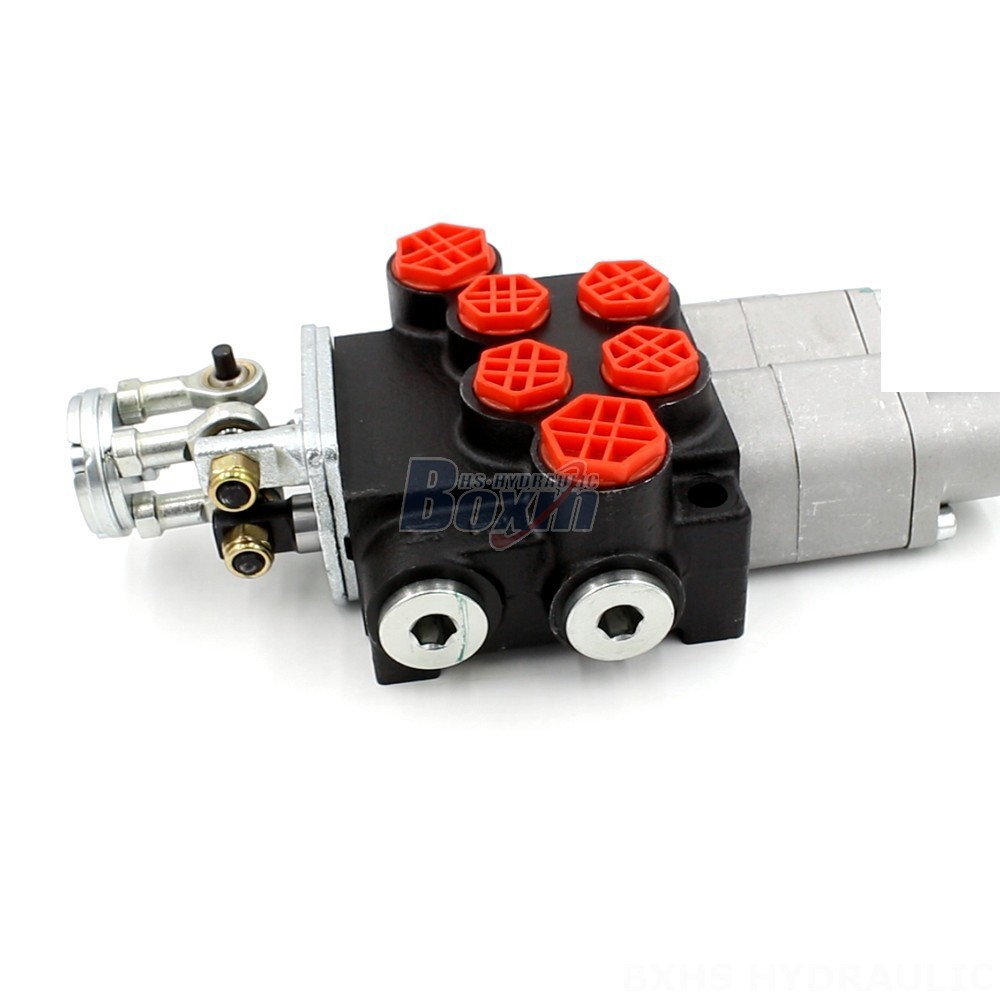

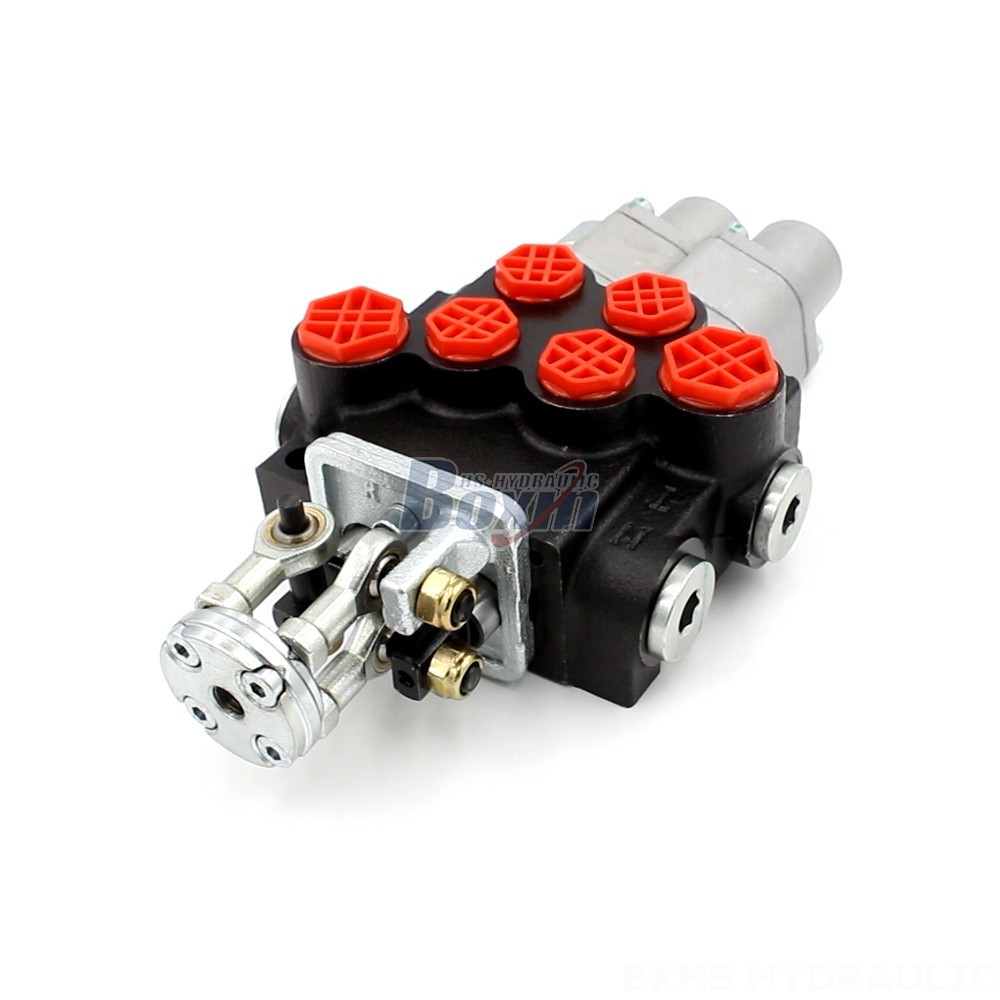

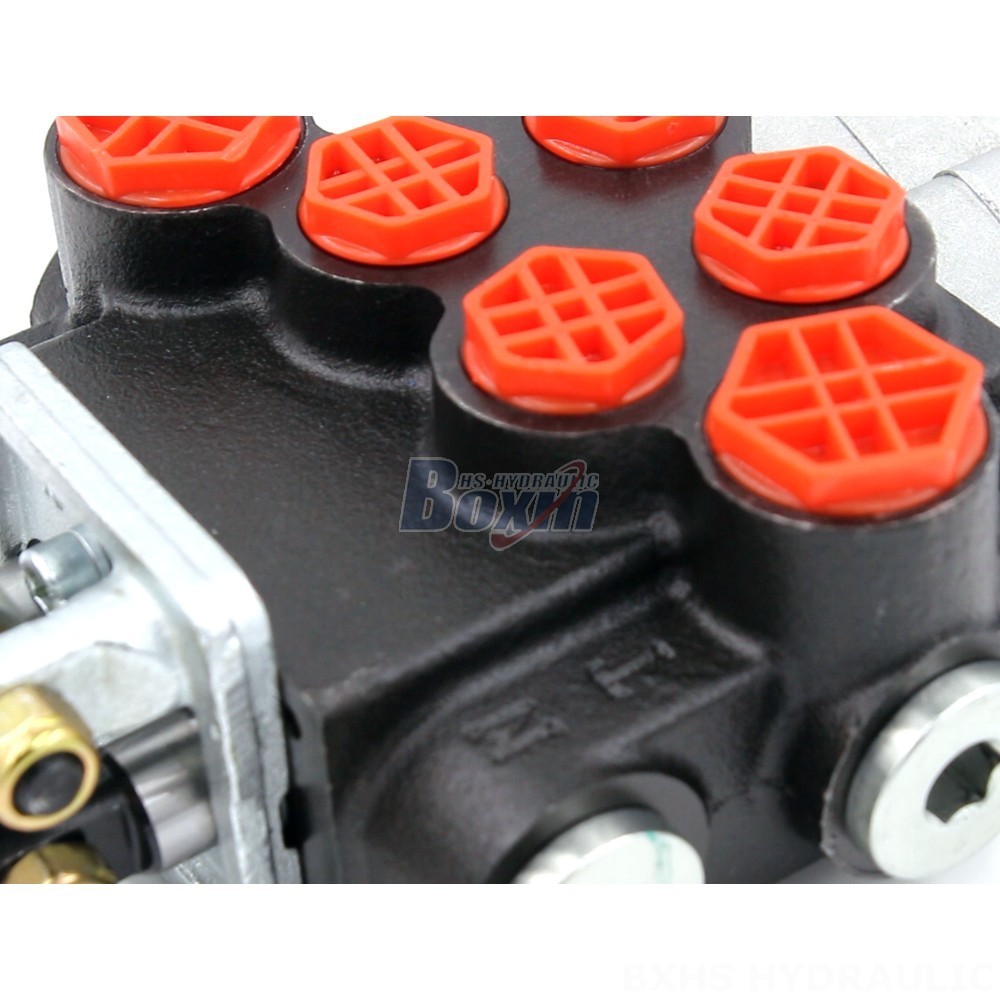

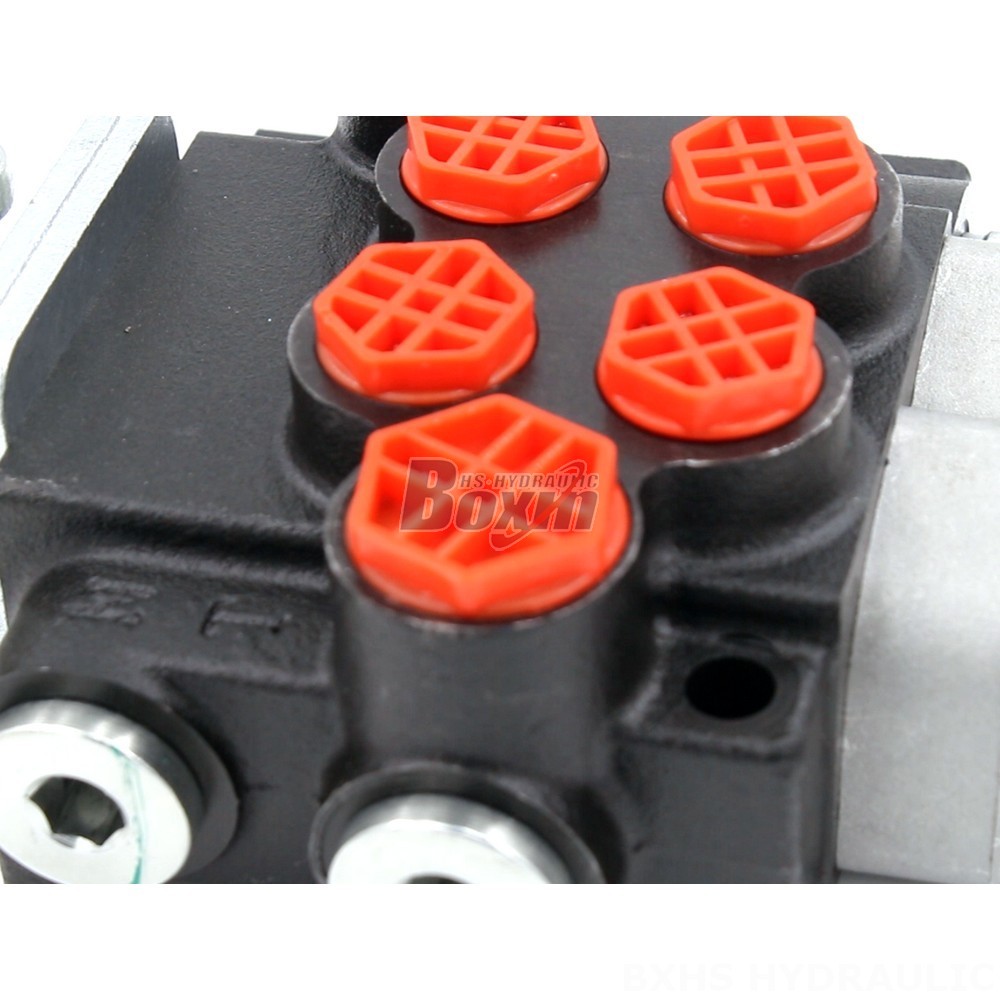

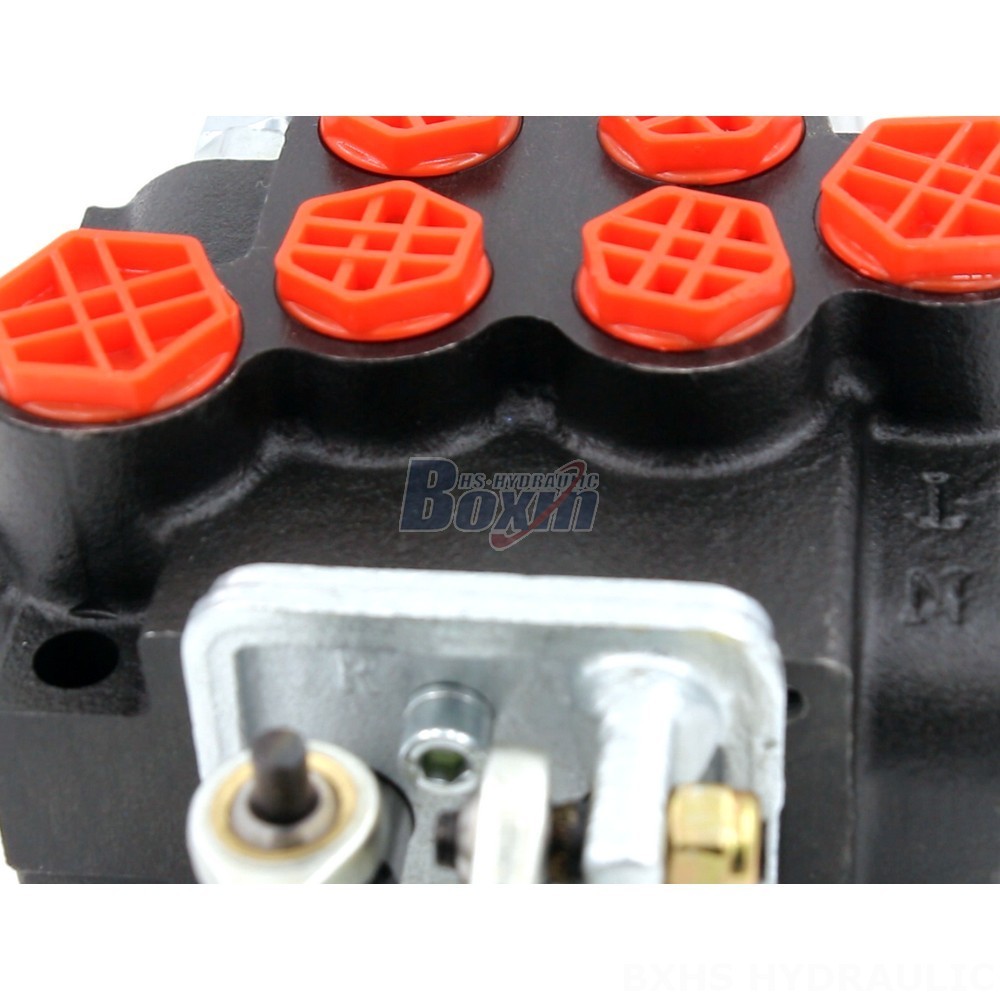

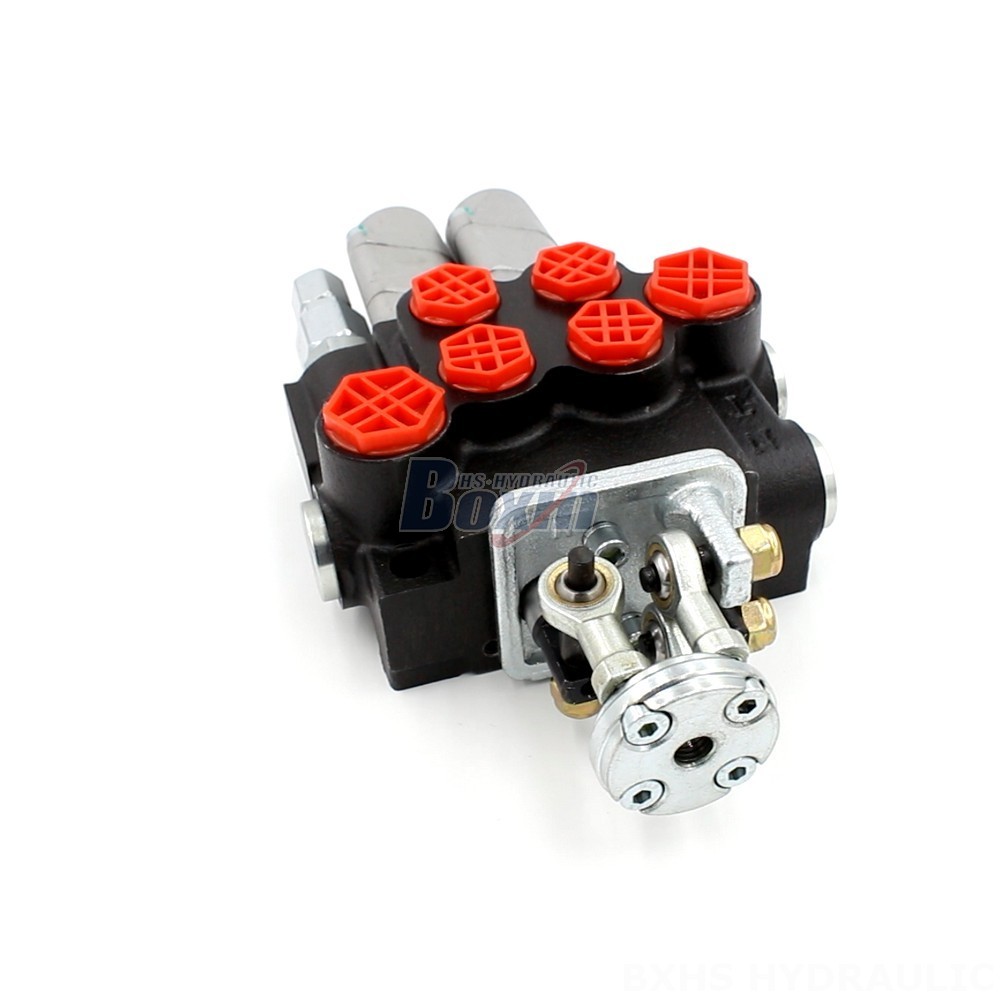

Hydraulic Directional Valve with Manual and Joystick Control

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series

控制方式:手控+一控二

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列单块式方向阀

Packagingsize:23*18*13

Grossweight:6.50 kg

库存: 有货

描述

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series drawing image

The P40 Series Hydraulic Directional Valve with Manual and Joystick Control is a high-performance valve designed for use in various industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers reliable and efficient flow control. Its monoblock valve design ensures durability and minimizes leakage, while the operating viscosity range of 15 - 75 mm²/s makes it suitable for a wide range of fluids. The P40 Series valve is ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and harvesters.

P40系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	40 L/min (10.5 US gpm)
最大压力	250 bar (3600 psi)
进油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸	G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

**P40 Series Hydraulic Directional Valve with Manual and Joystick Control**

**Key Features:**

- Control Method: Manual and Joystick
- Section: 2 Section
- Structure Type: Monoblock valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 2 Spool
- Series: P40 Series

**Application Areas:**

- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES

**Applicable Models:**

- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- HARVESTER
