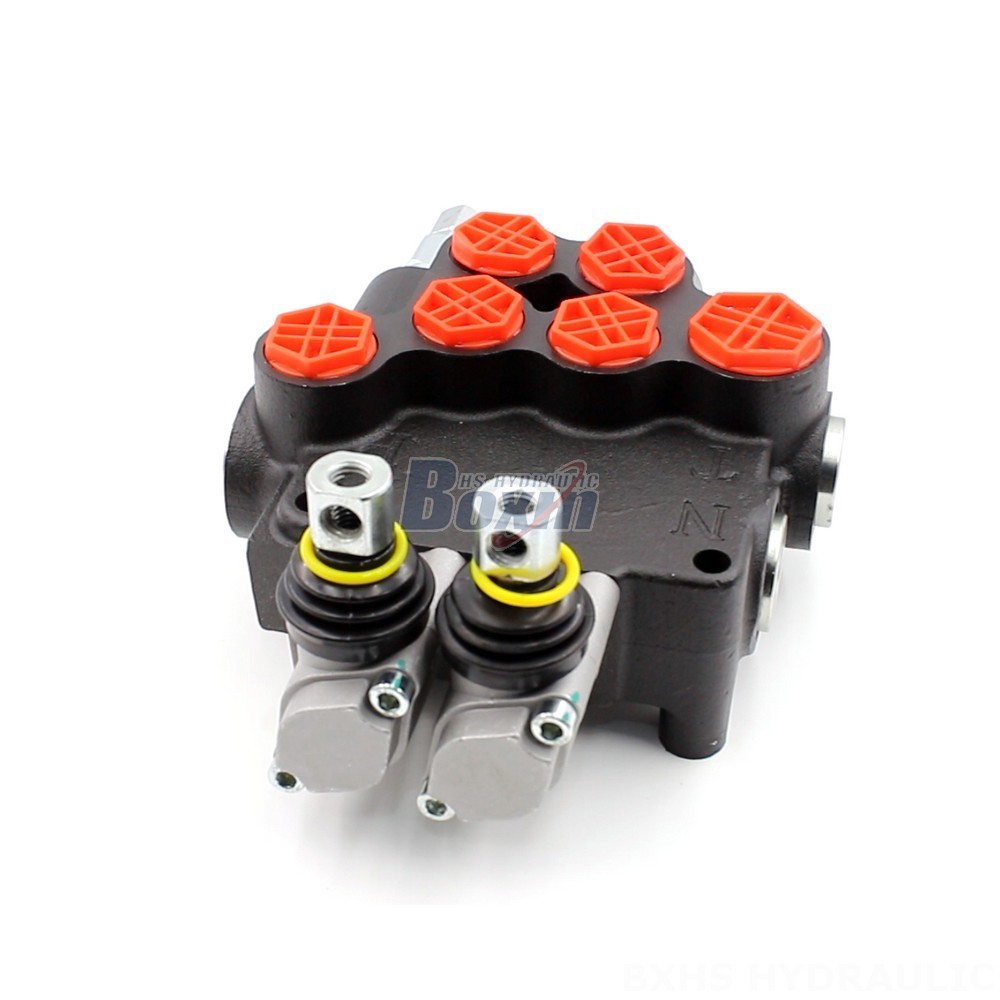

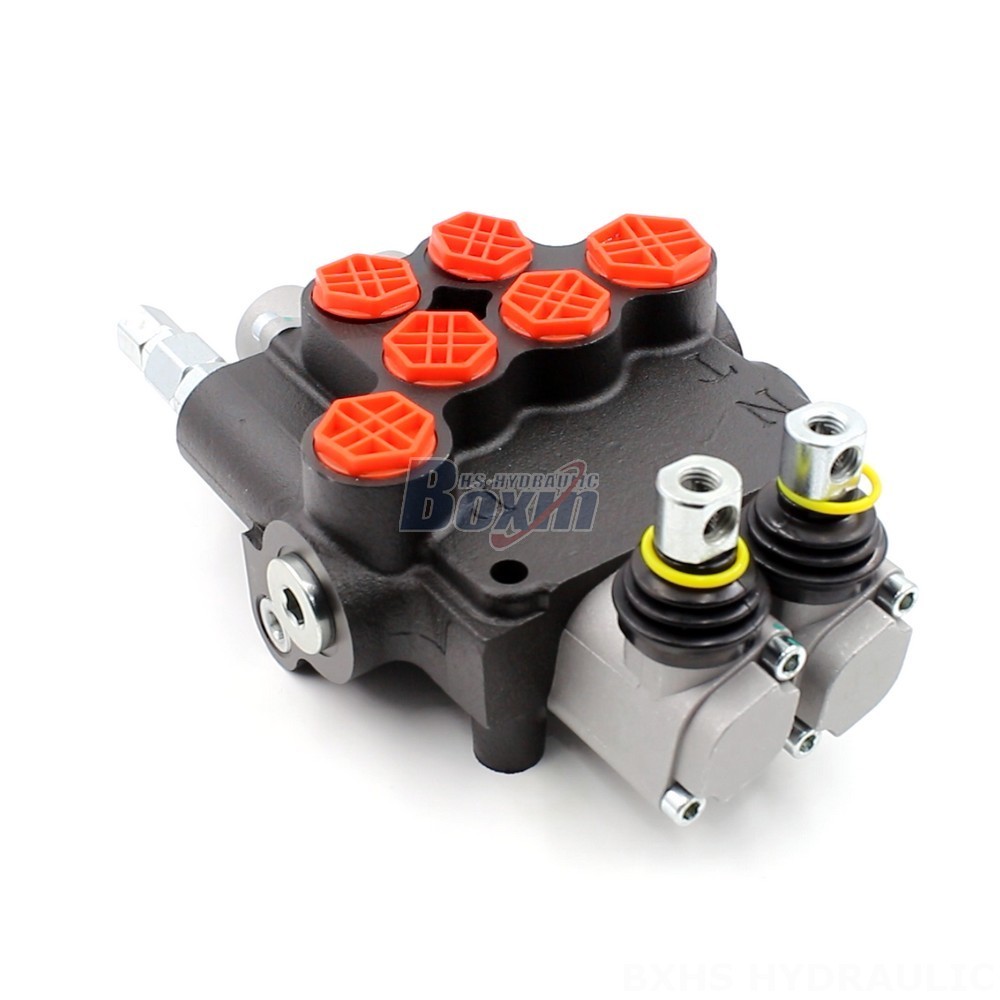

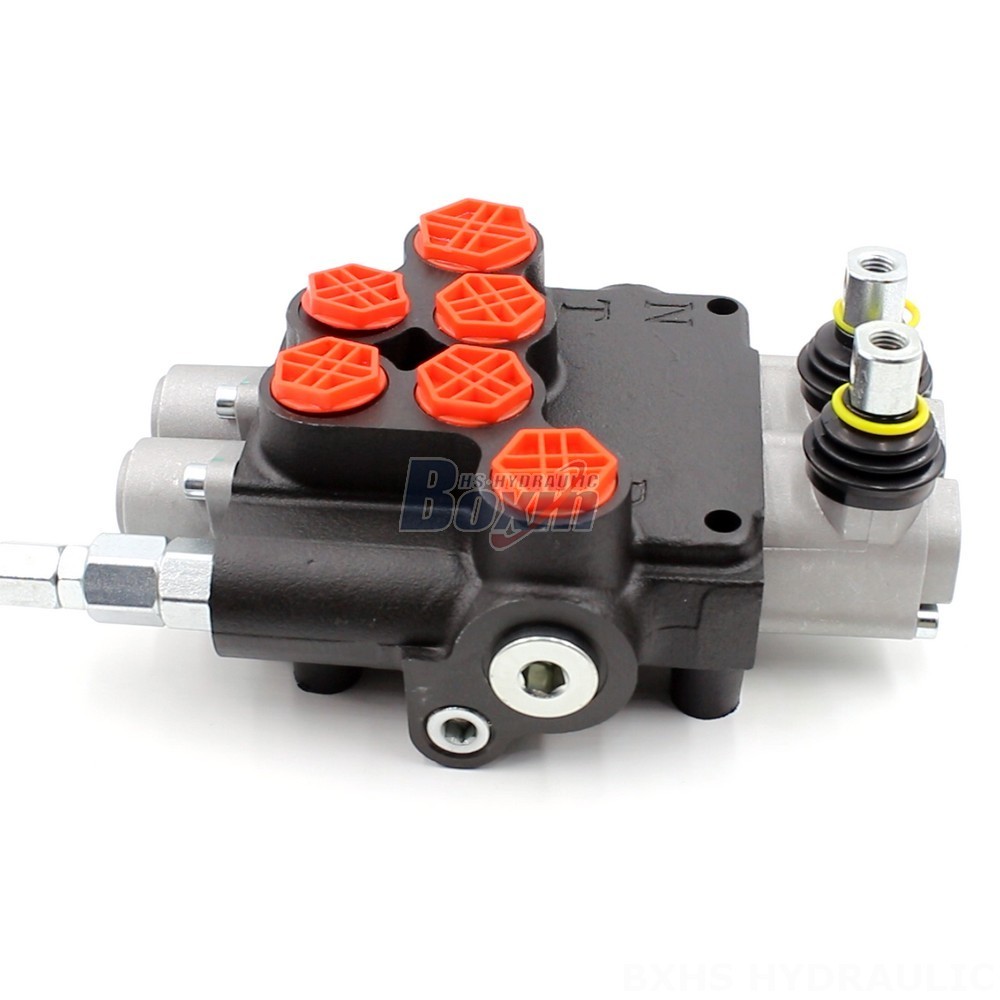

Hydraulic Fittings Hydraulic Directional Valve P80-G12-G34-OW | Manufacturer & Distributor

控制方式:手控

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:26*18*11

Grossweight:8.00 kg

库存: 有货

851 次查看了此产品

Hydraulic Fittings Hydraulic Directional Valve P80-G12-G34-OW | Manufacturer & Distributor

Hydraulic Fittings Hydraulic Directional Valve P80-G12-G34-OW | Manufacturer & Distributor

Hydraulic Fittings Hydraulic Directional Valve P80-G12-G34-OW | Manufacturer & Distributor drawing image

The P80-G12-G34-OW is a high-performance hydraulic directional valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual control, 2-section monoblock valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of mobile equipment.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

The P80-G12-G34-OW is a reliable and durable hydraulic directional valve featuring a robust monoblock construction and a 2-spool design. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar, ensuring efficient operation in demanding environments. The valve is suitable for various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The P80-G12-G34-OW is a manual control valve, allowing for precise and intuitive operation. With a wide operating viscosity range (15-75 mm²/s) and an ambient temperature range of -40°C to +80°C, this valve is designed to withstand diverse operating conditions. Its compact size and lightweight design make it easy to install and integrate into various hydraulic systems.
