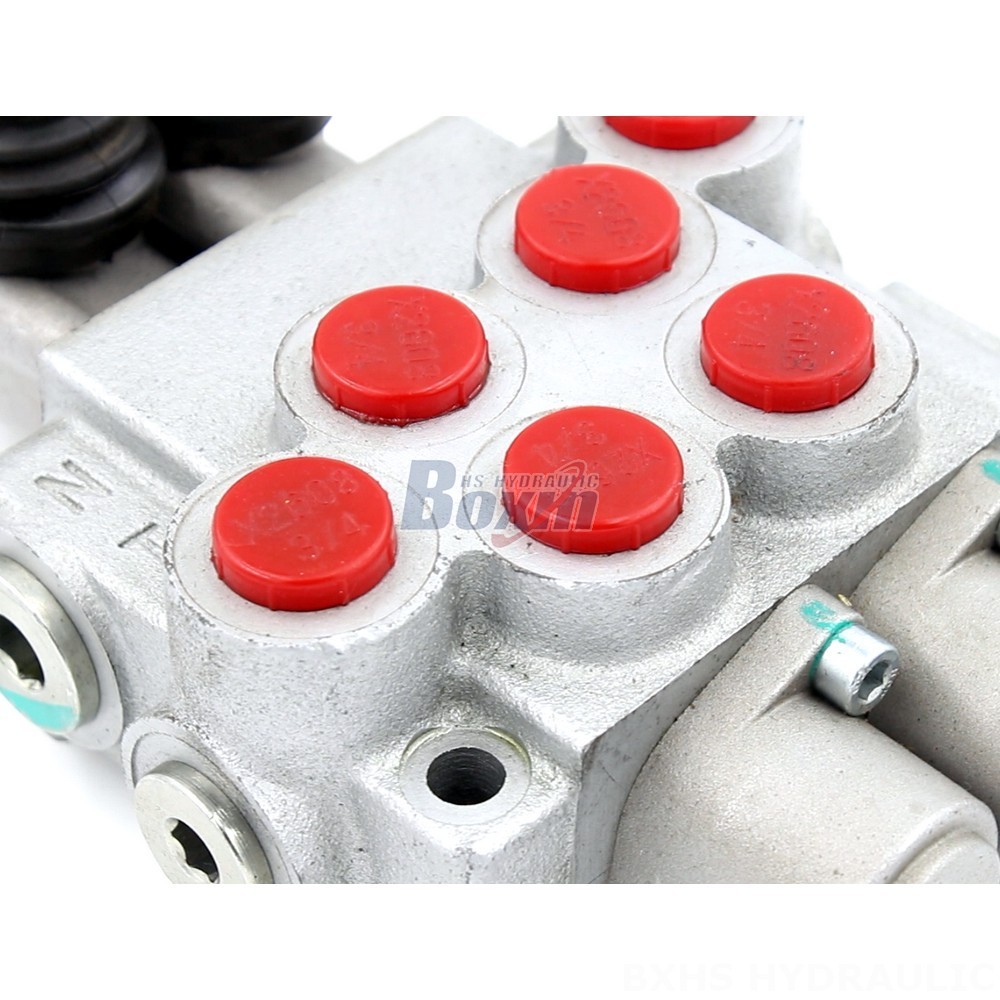

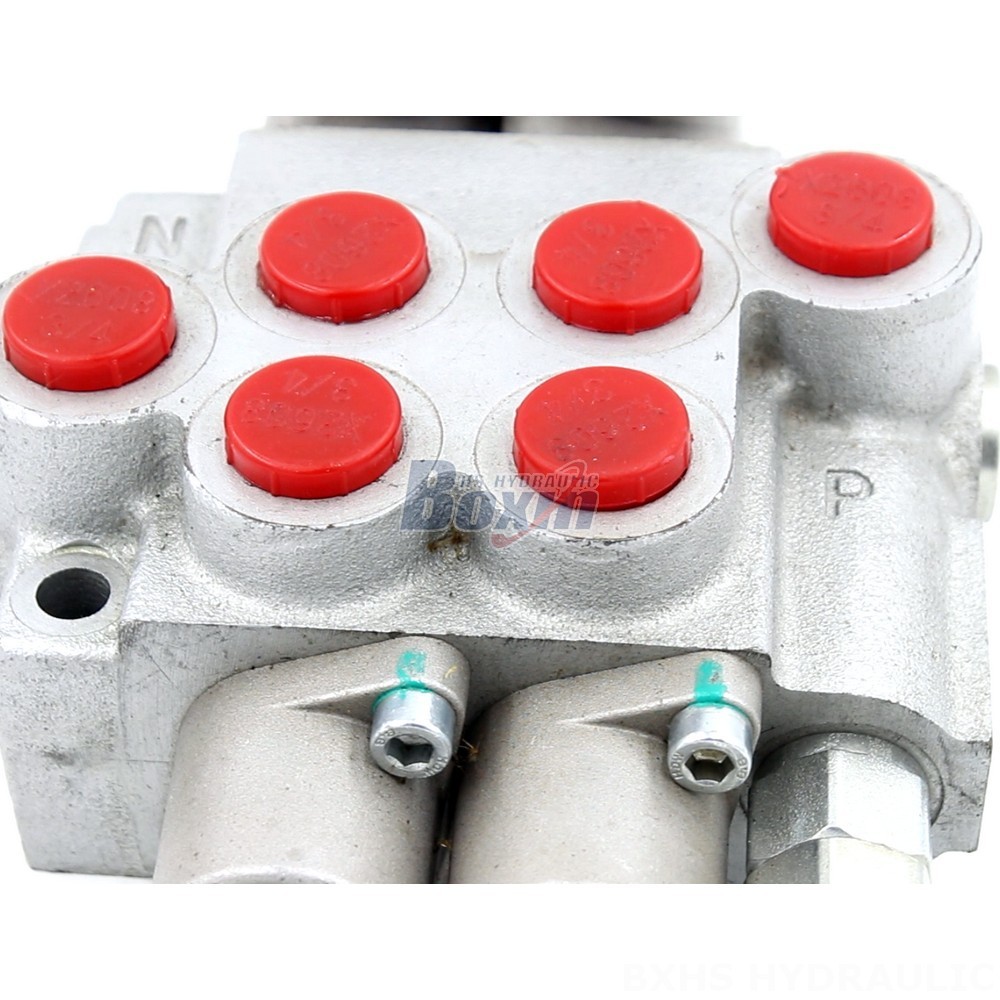

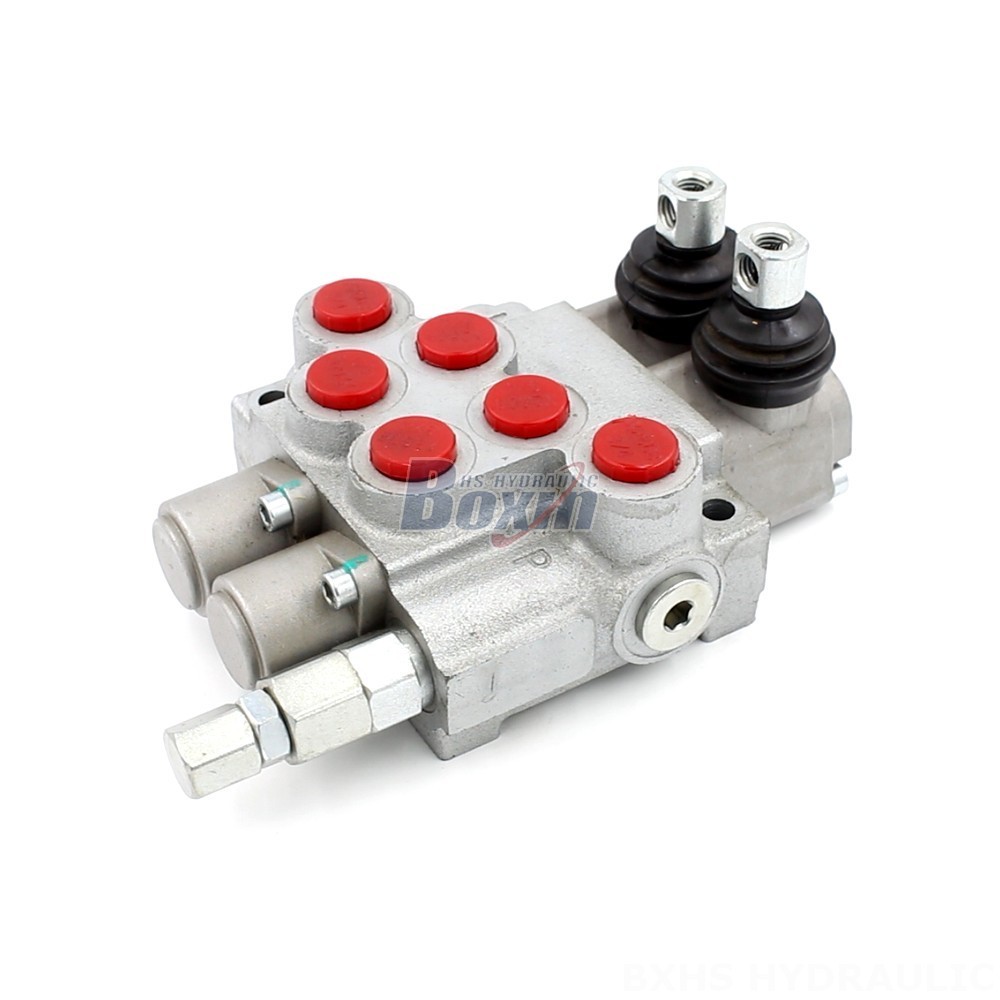

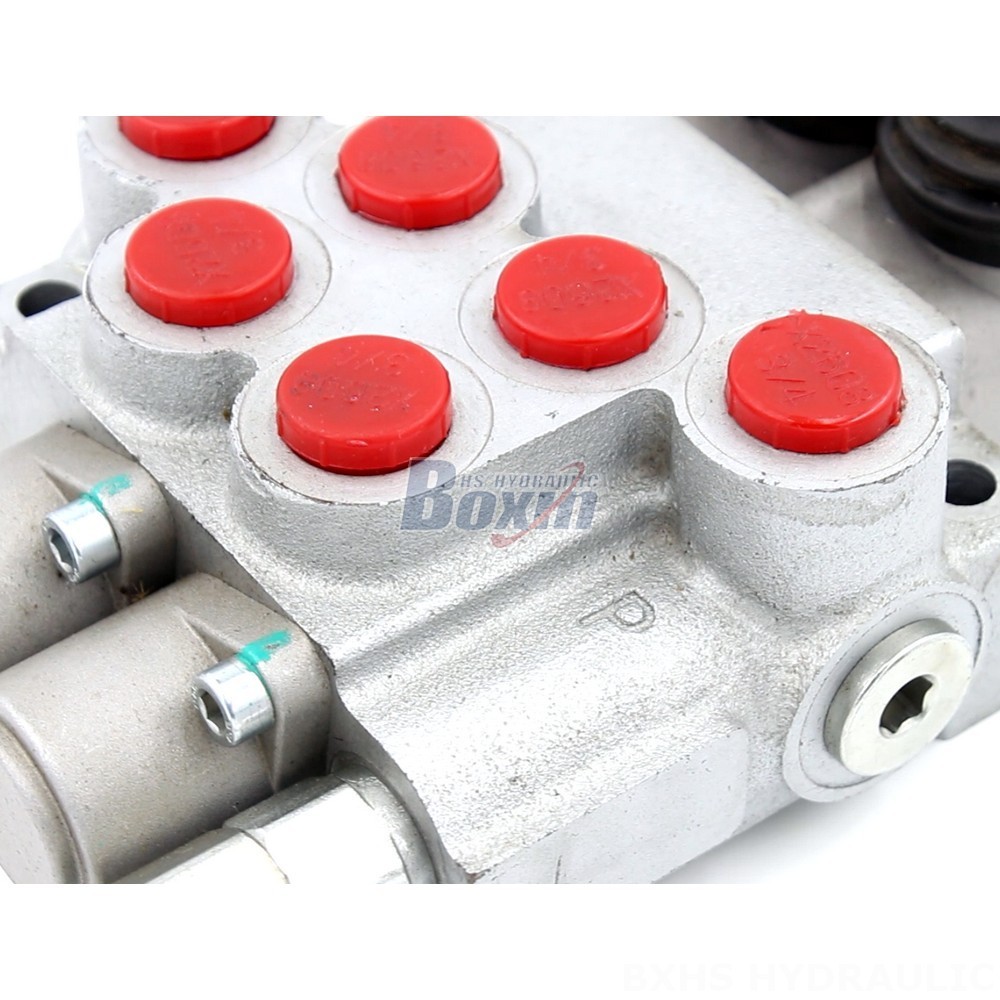

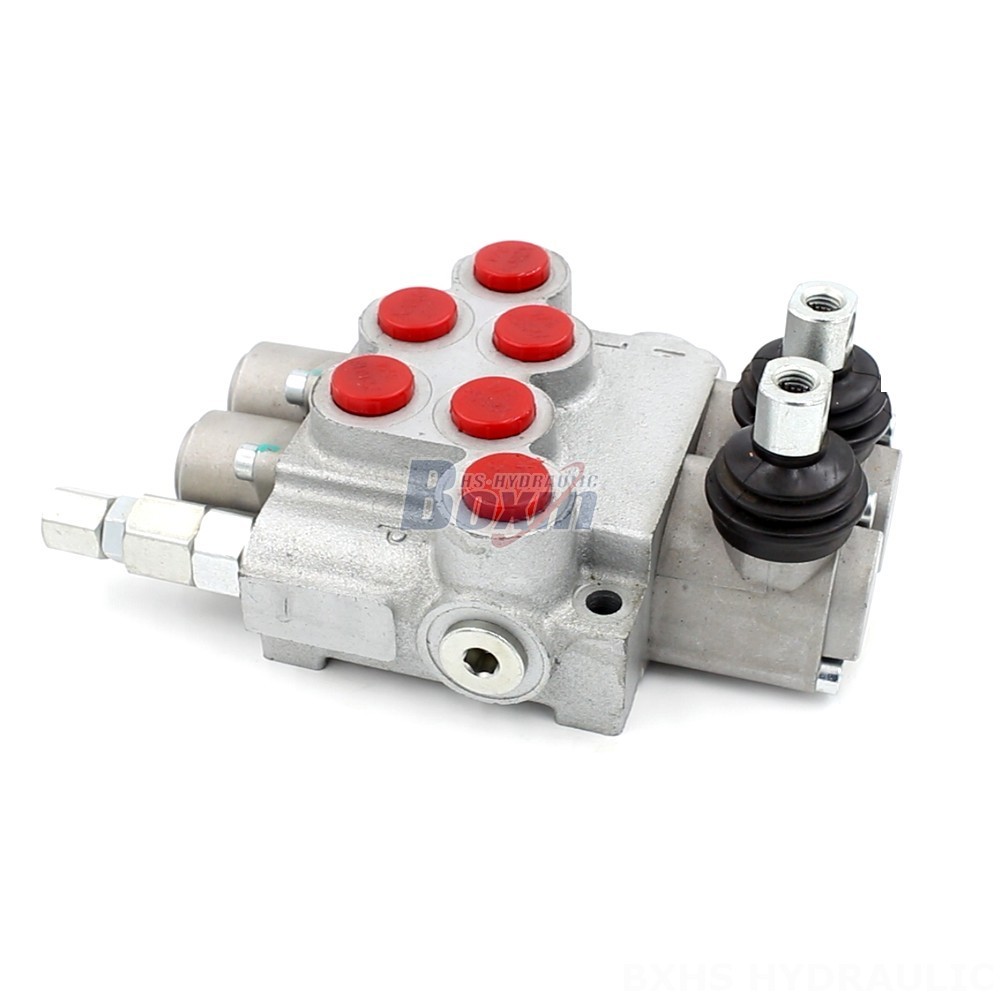

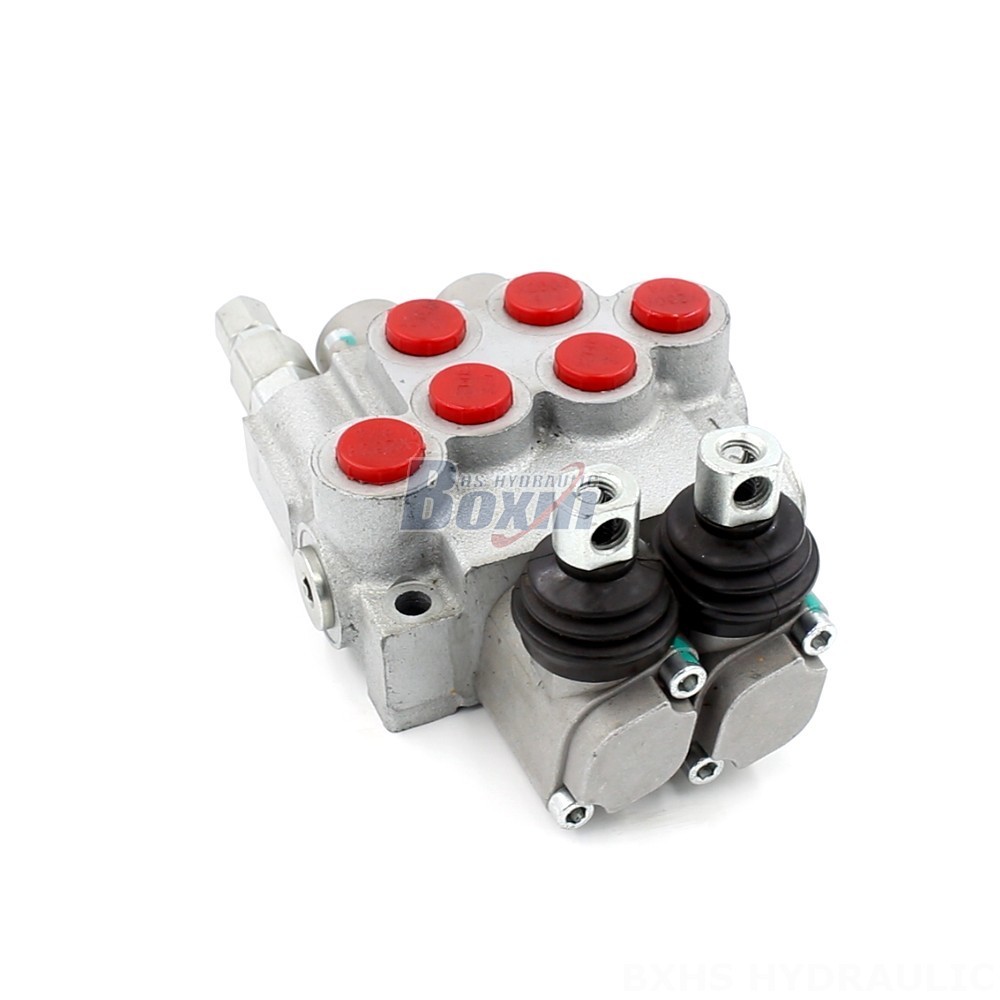

The P40-DKL Hydraulic Directional Valve is a reliable and durable 2-section monoblock valve with manual control, designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for telehandlers, forklifts, cranes, and other heavy machinery.
| P40-DKL系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The P40-DKL is a high-performance hydraulic directional valve designed for reliable operation in a wide range of applications. It features a compact monoblock construction, 2 sections, and manual control for easy operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, the P40-DKL is suitable for various heavy-duty applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. It offers a robust design with an operating viscosity range of 15-75 mm²/s and an ambient temperature range of -40°C to +80°C, ensuring reliable performance even in extreme conditions. The P40-DKL is available for wholesale, OEM, and customization to meet your specific requirements.
