741 次查看了此产品
The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |

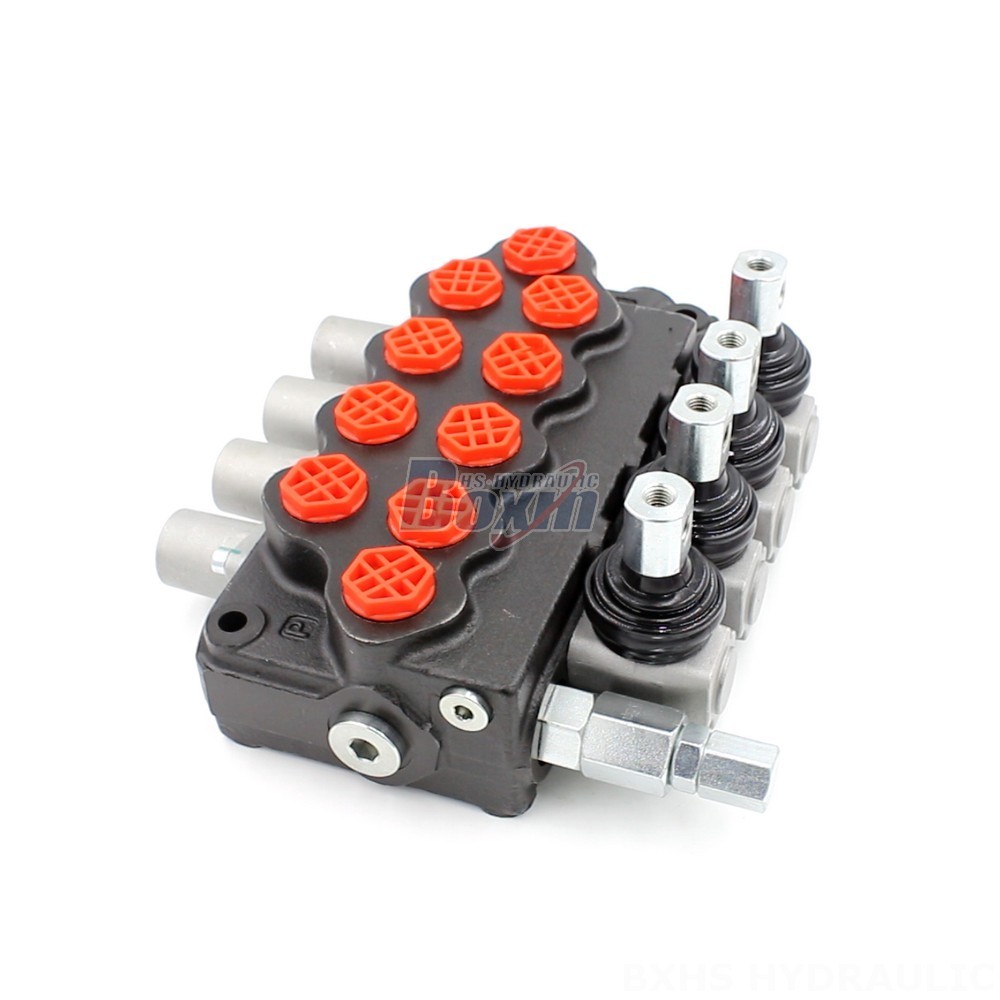

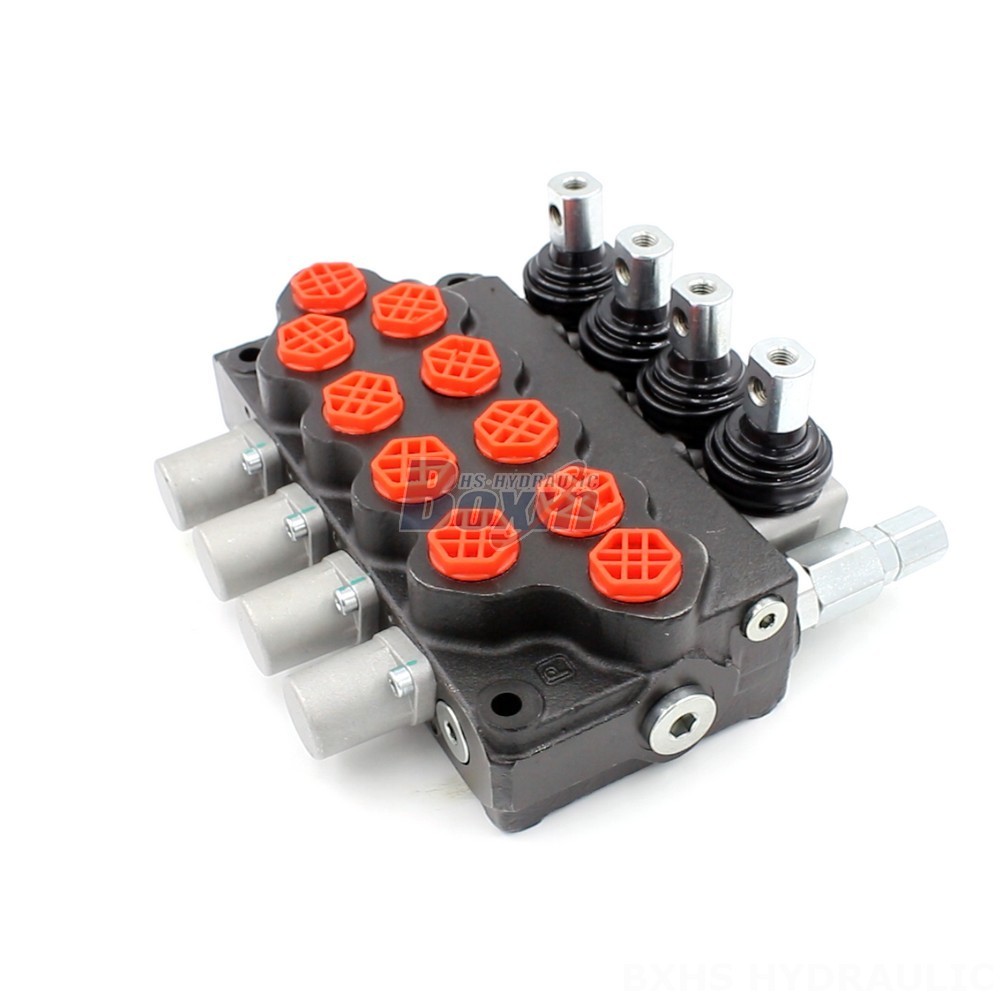

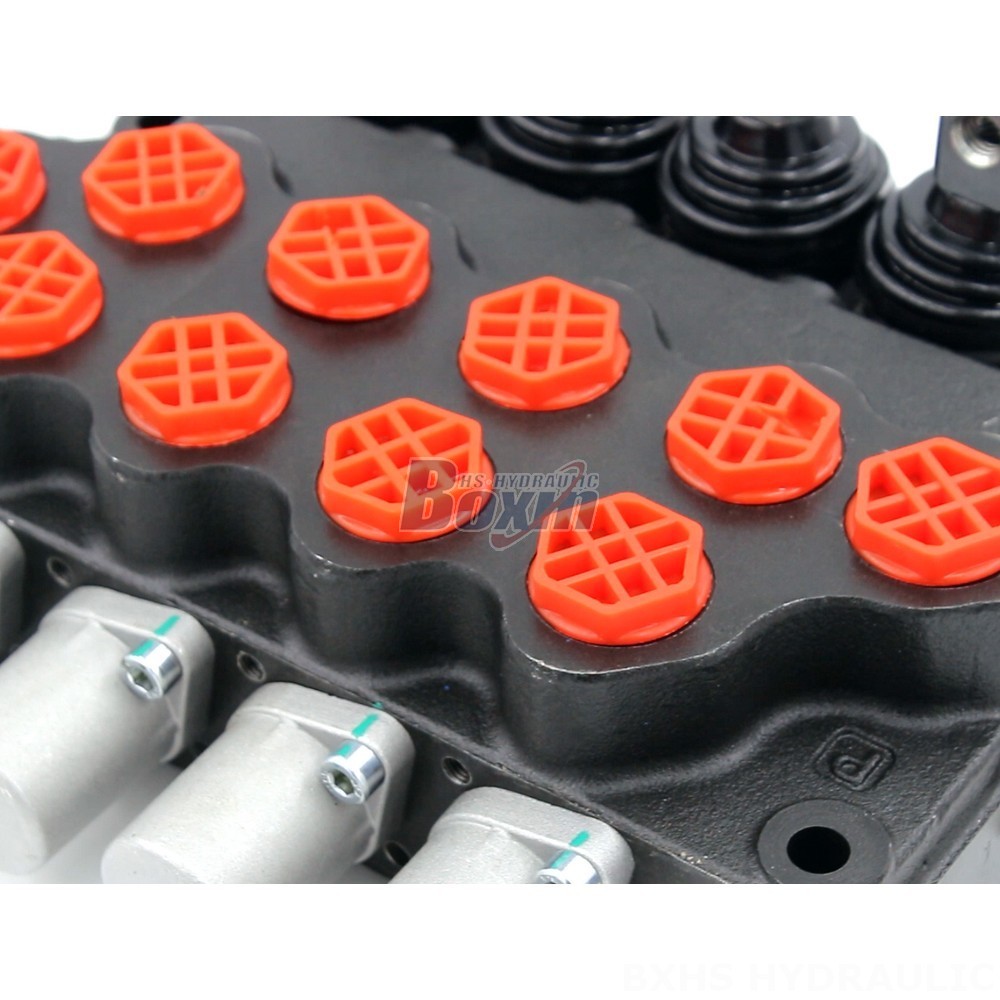

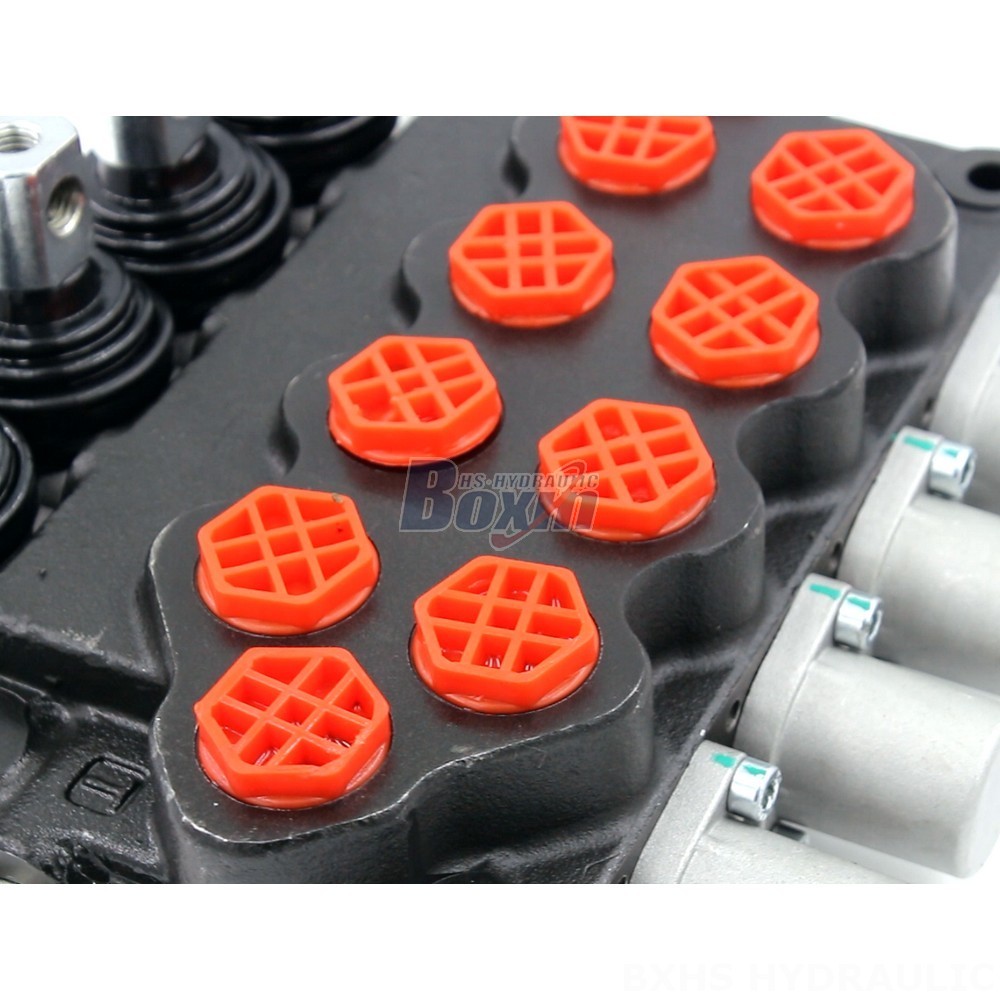

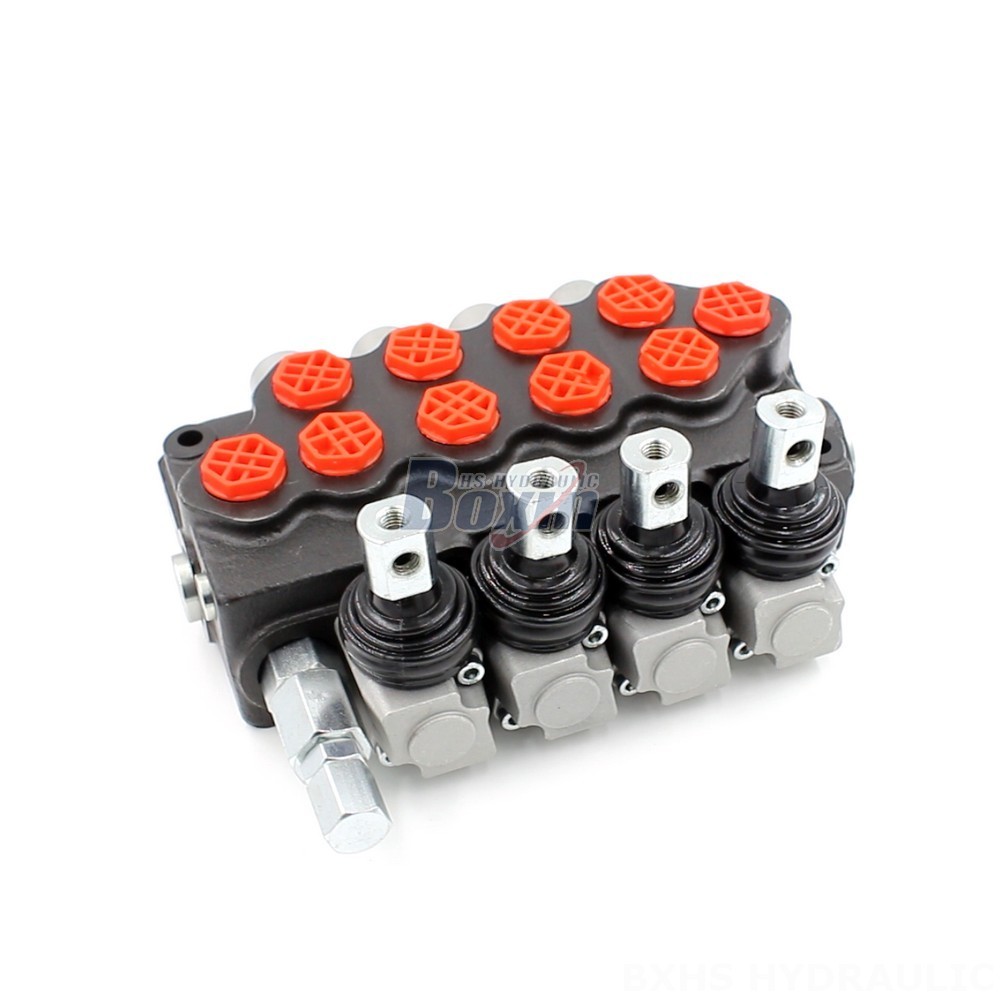

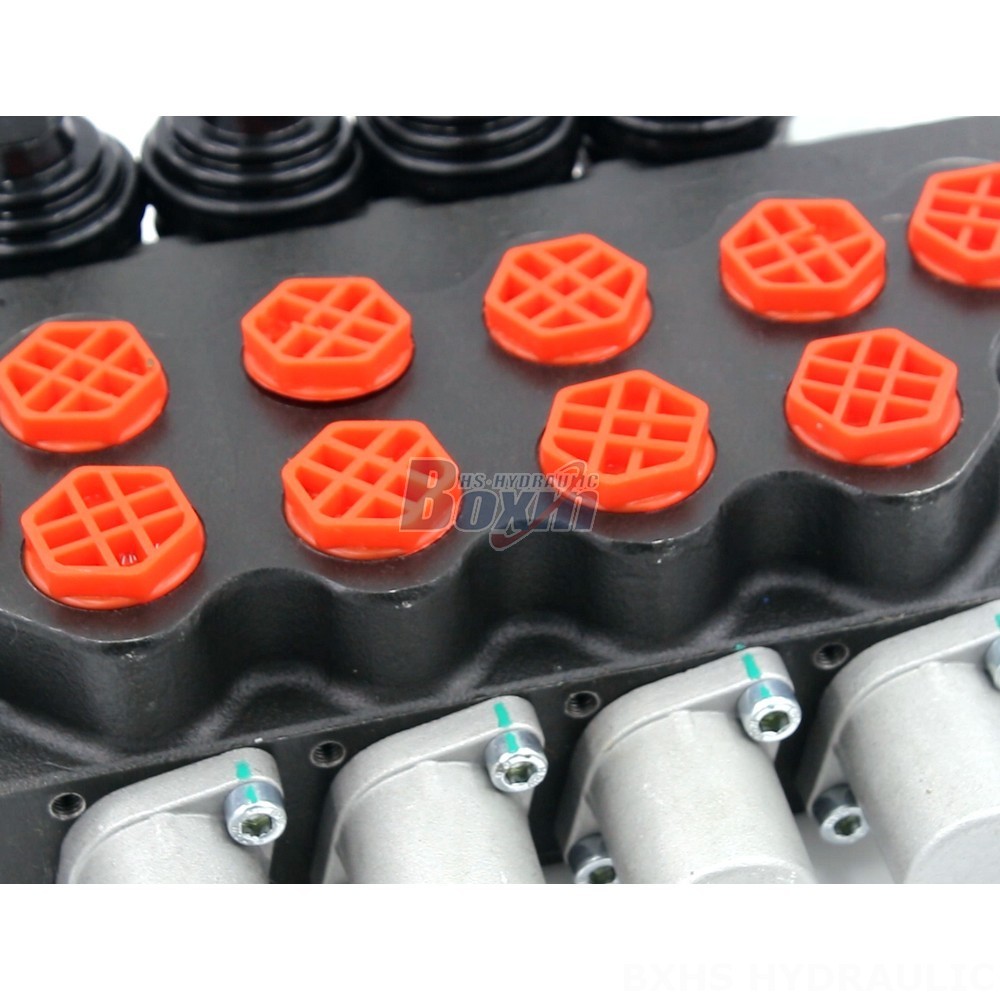

**SD5-G38 Series Hydraulic Directional Valve**
The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
**Key Features:**
* 4 section monoblock valve
* Manual control
* Rated flow of 40 L/min
* Maximum pressure of 305 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +60°C
* 4 spools
* Suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications
