控制方式:手控

路数:7 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:36*23*13

Grossweight:13.50 kg

库存: 有货

776 次查看了此产品

Hydraulic Multi Way Valve Hydraulic Directional Valve Experts: Partner with Us for Excellence

Hydraulic Multi Way Valve Hydraulic Directional Valve Experts: Partner with Us for Excellence

Hydraulic Multi Way Valve Hydraulic Directional Valve Experts: Partner with Us for Excellence drawing image

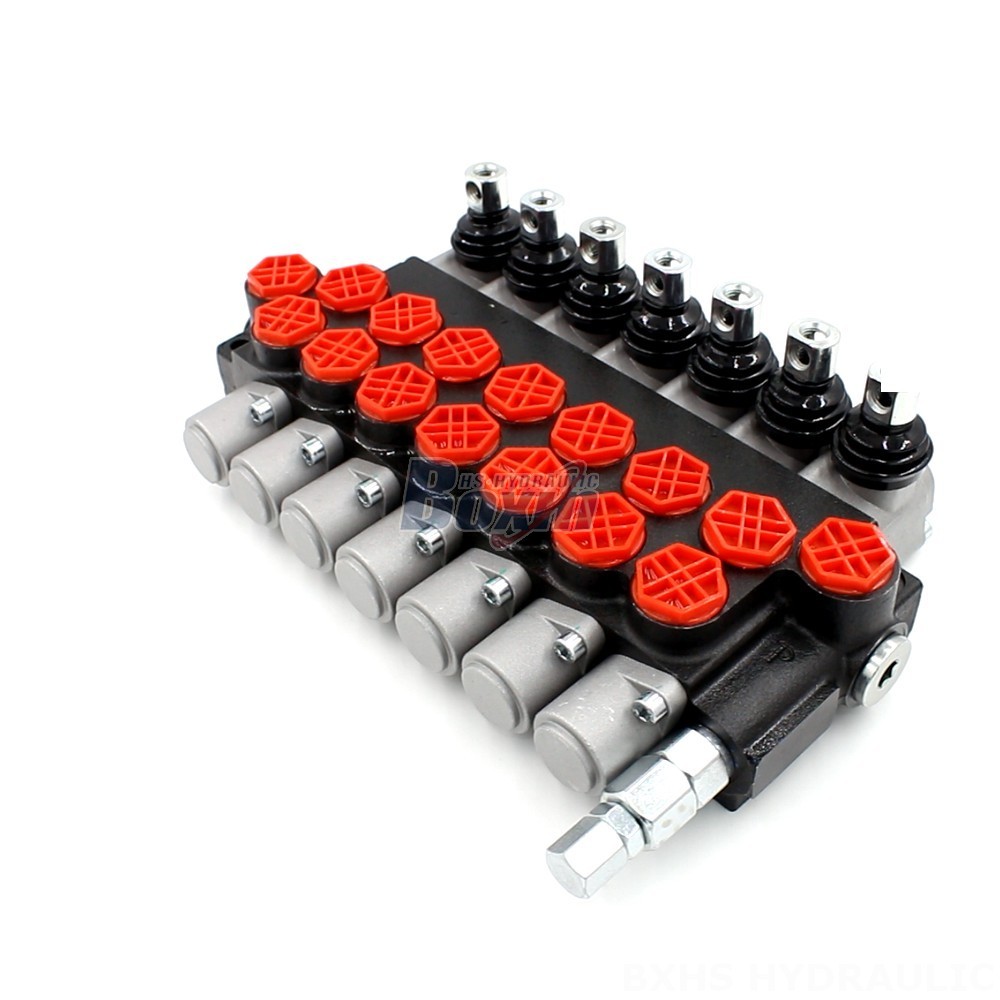

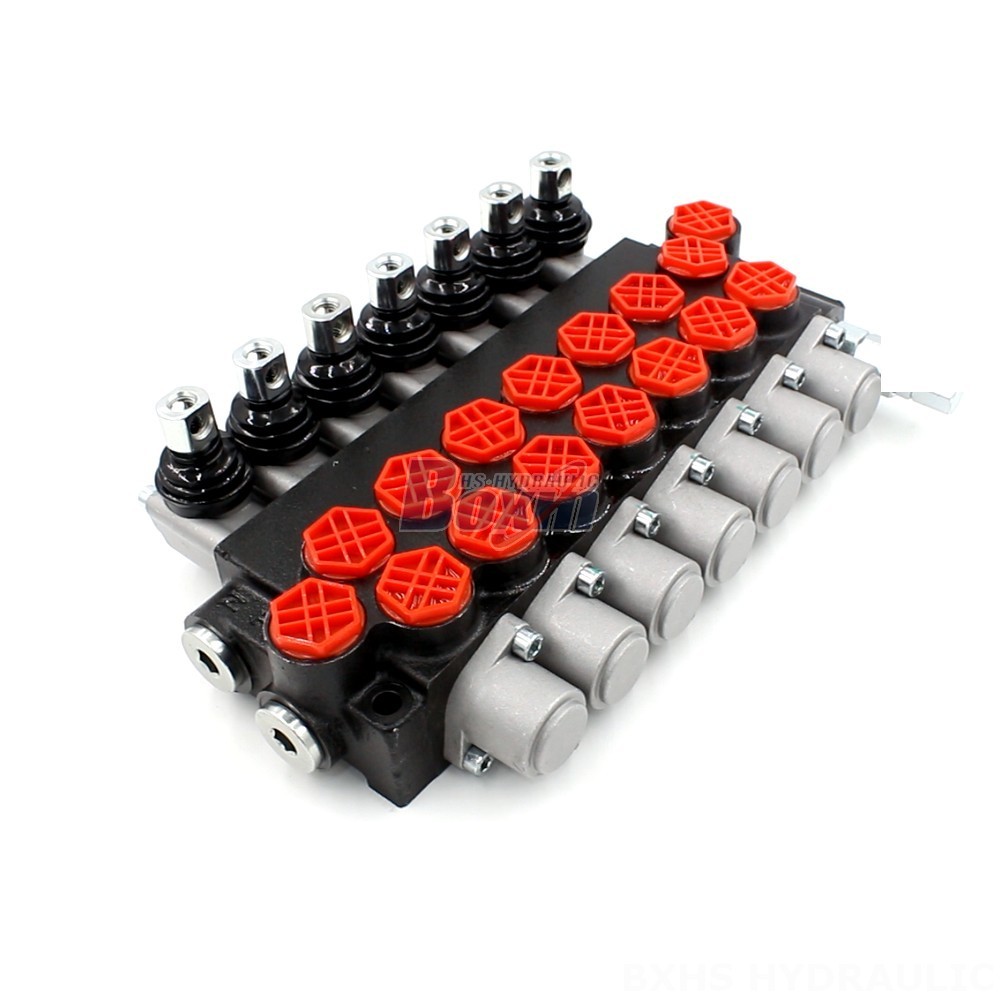

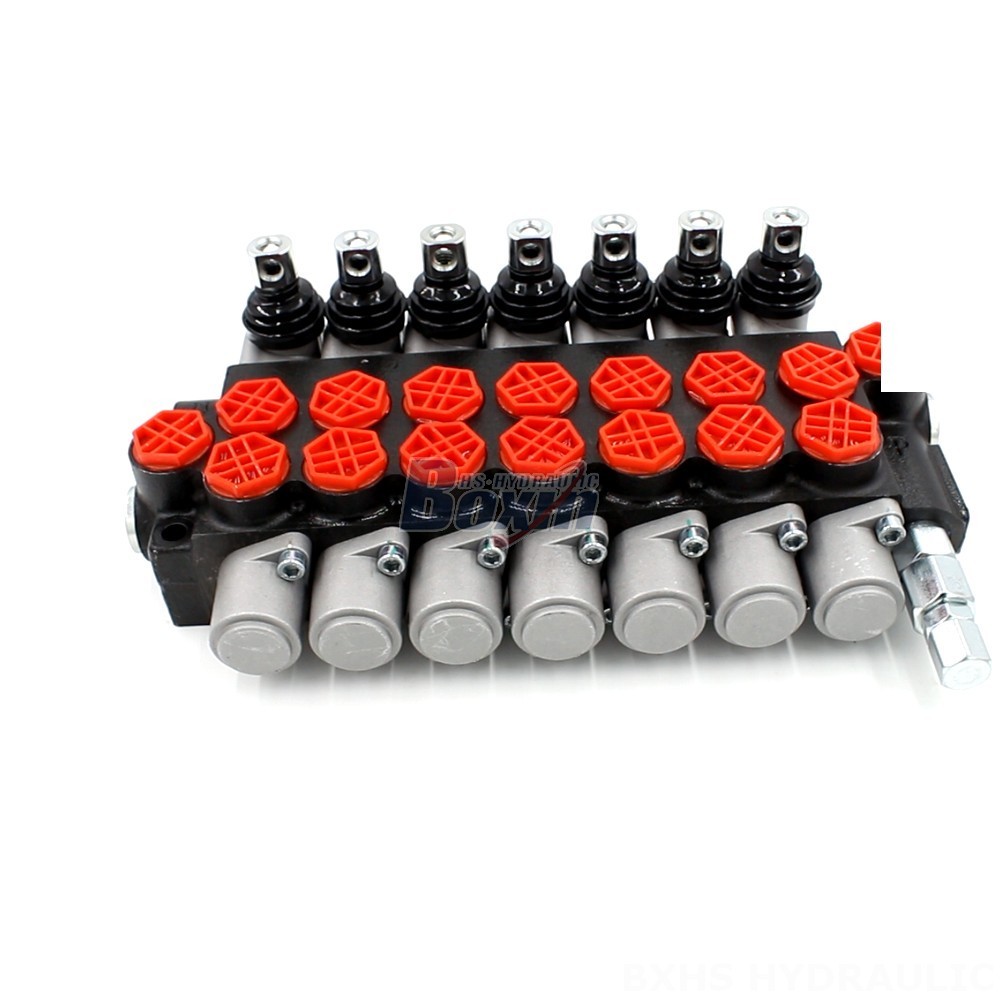

Our P40 Series 7-section hydraulic multi-way valve is a robust and versatile solution for various applications in material handling, construction, and agriculture. This monoblock valve features a rated flow of 40 L/min, a maximum pressure of 250 bar, and a manual control method. Its reliable performance and wide operating range make it ideal for telehandlers, forklifts, all-terrain cranes, and other heavy-duty equipment.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40 Series 7-section hydraulic multi-way valve is a high-performance valve designed for demanding applications. With its 7 spool configuration, it offers precise control of hydraulic fluid flow in various directions. The valve's monoblock structure ensures high strength and durability, while its rated flow of 40 L/min provides efficient operation. The maximum pressure rating of 250 bar guarantees reliable performance even under extreme conditions. This manual control valve is suitable for various applications, including material handling, construction, and agriculture, and is compatible with telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders. The valve's wide operating temperature range of -40°C to +80°C ensures reliable operation in diverse environments.
