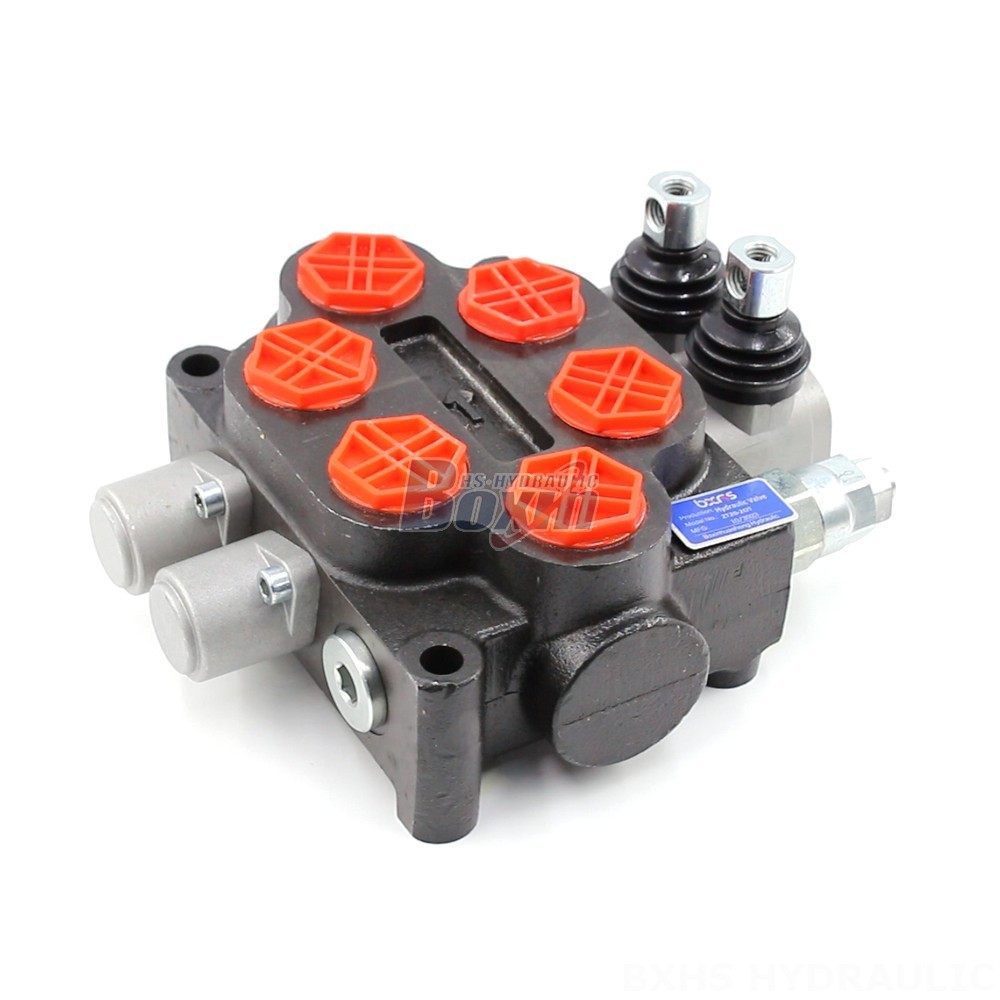

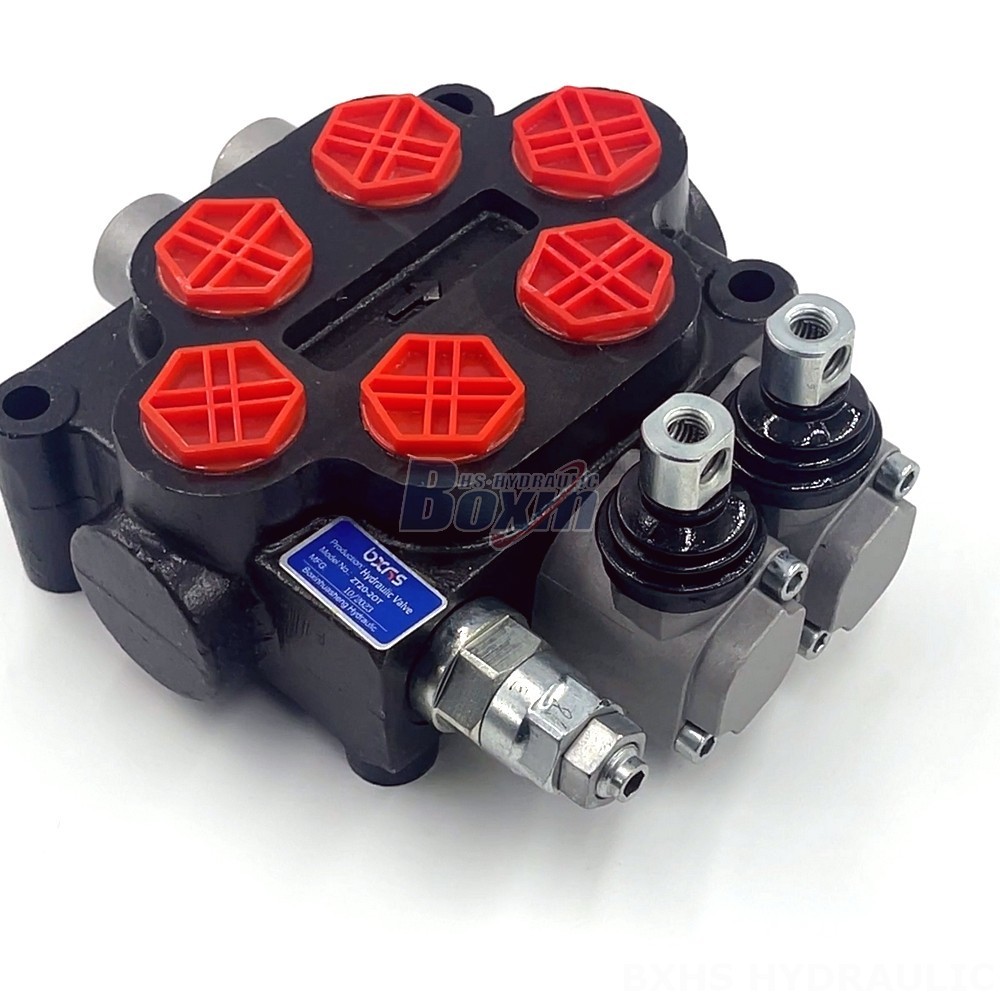

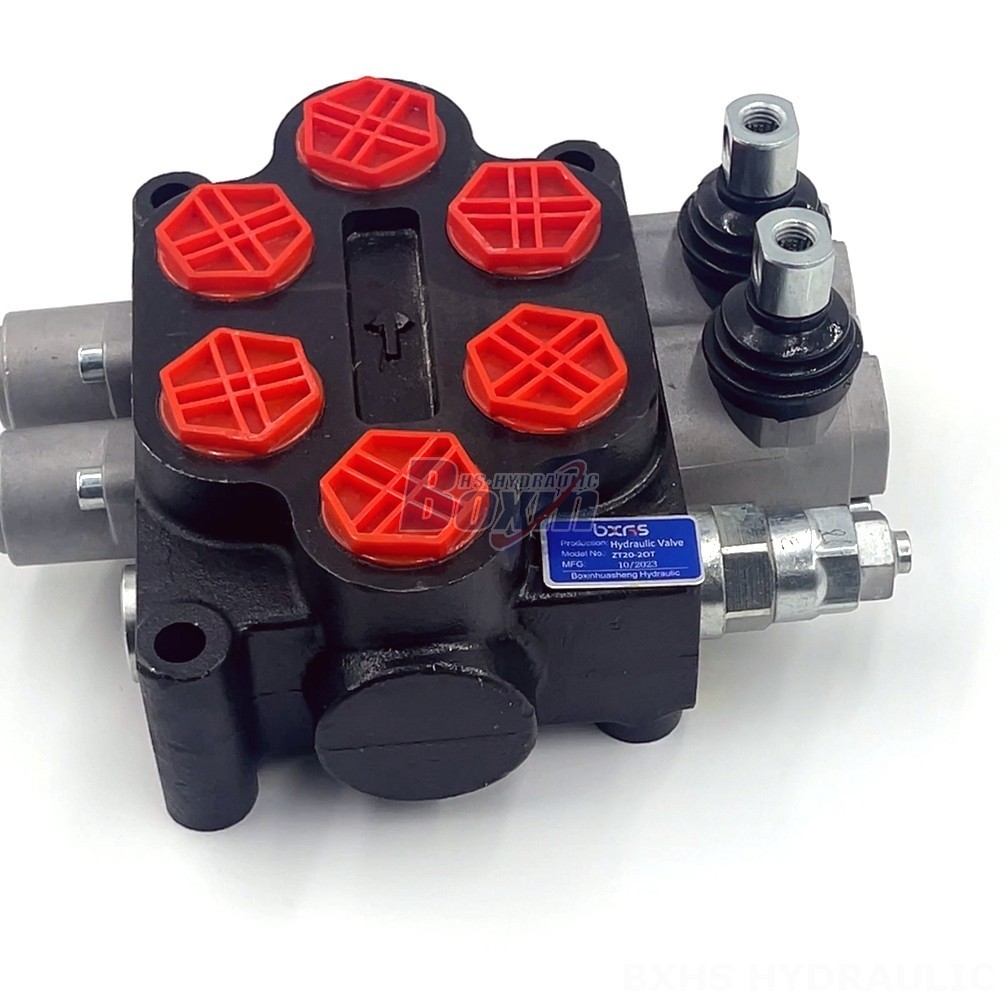

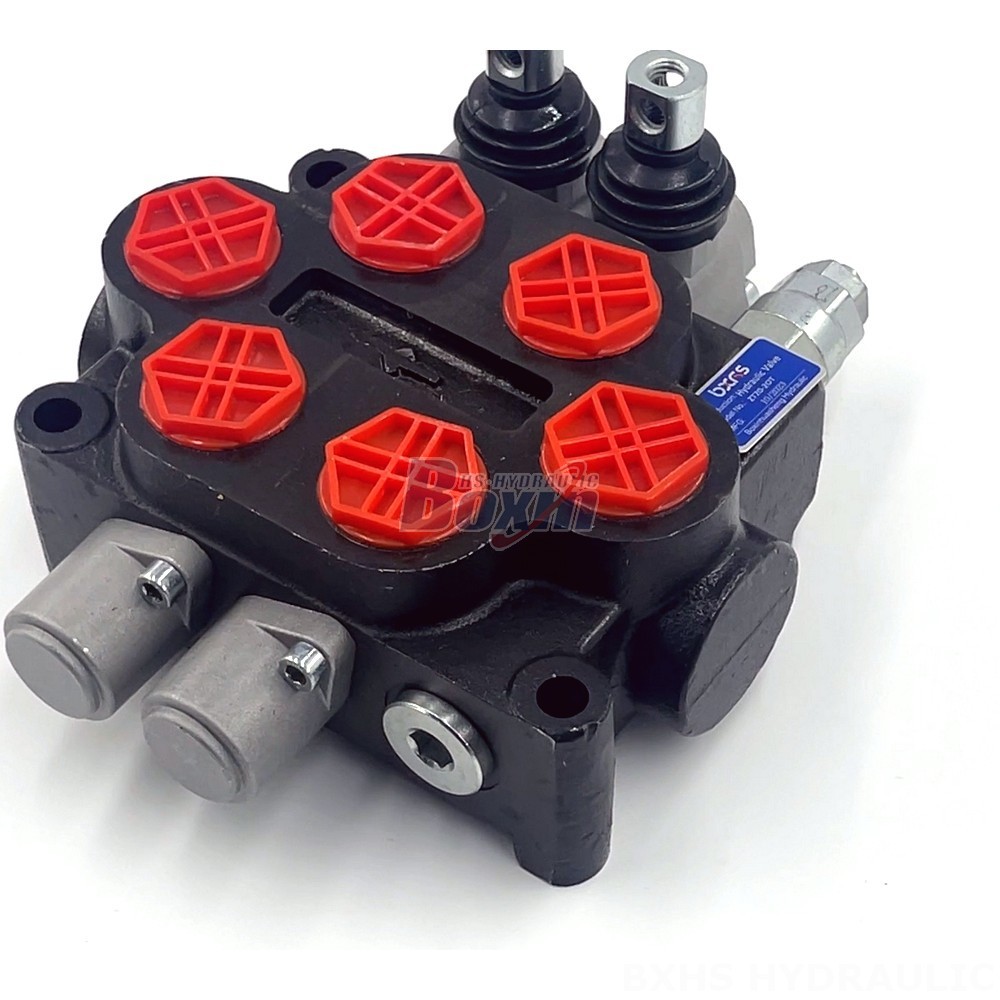

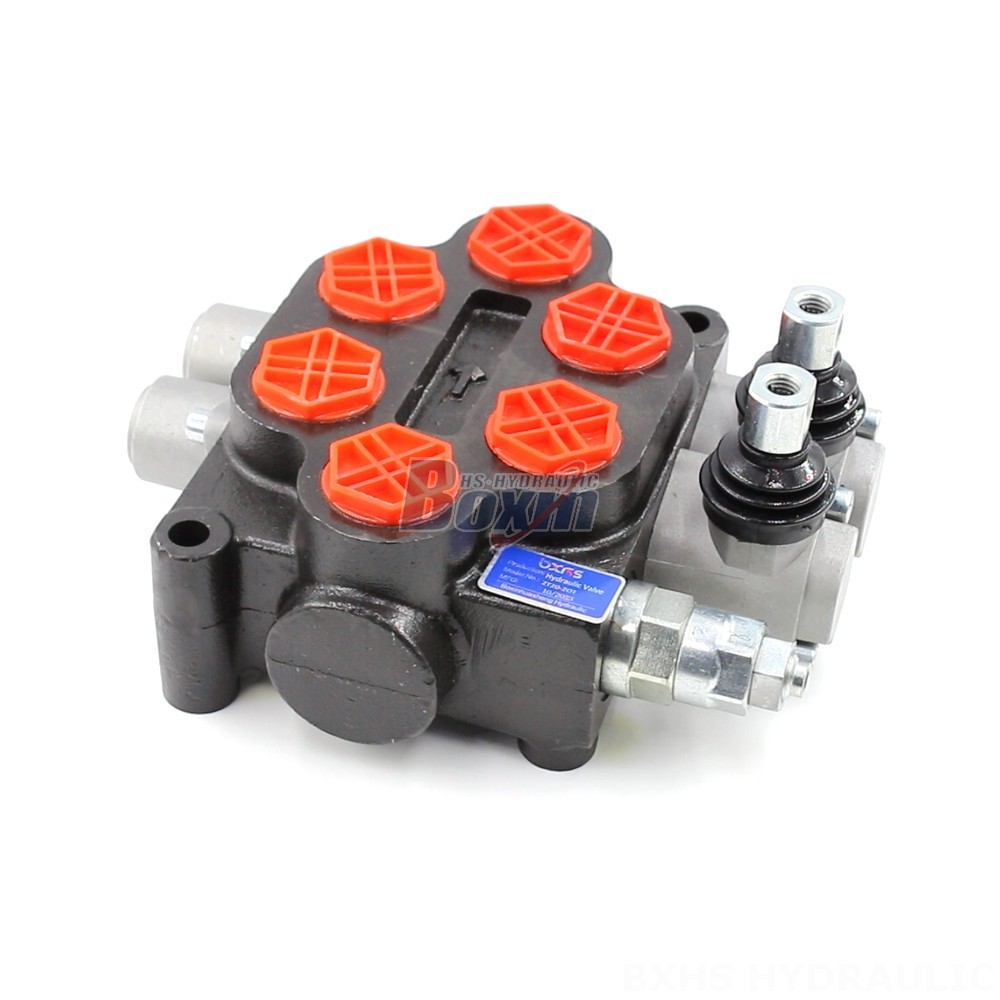

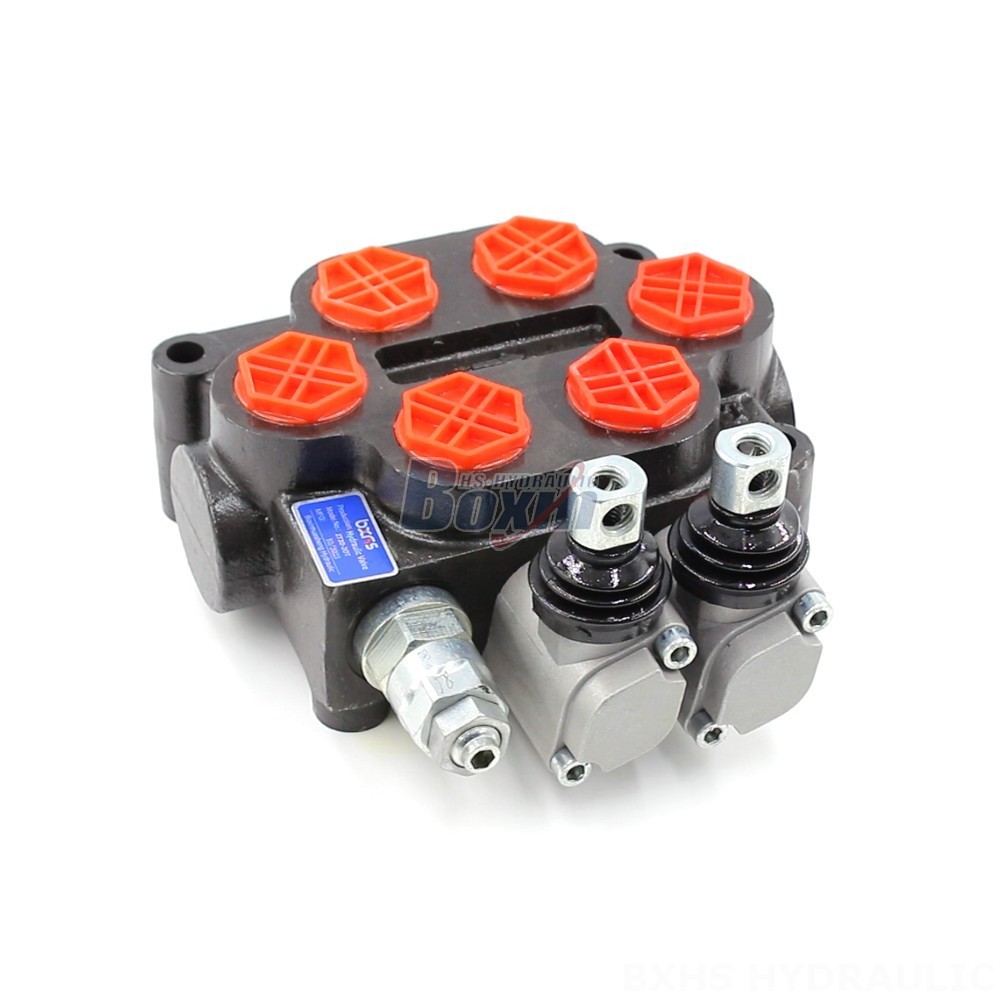

ZT20 Series Hydraulic Directional Control Valve is a high-performance valve designed for various applications in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles. With a rated flow of 100 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation. Its manual control and 2-section design provide precise flow control, while its monoblock structure ensures durability and compactness.
| ZT20系列 液压控制阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联 |
| 额定流量 | 100 L/min (26.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 8接头, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**ZT20 Series Hydraulic Directional Control Valve**
**Key Features:**
* Manual Control
* 2 Section
* Monoblock Valve
* Rated Flow: 100 L/min (26.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
