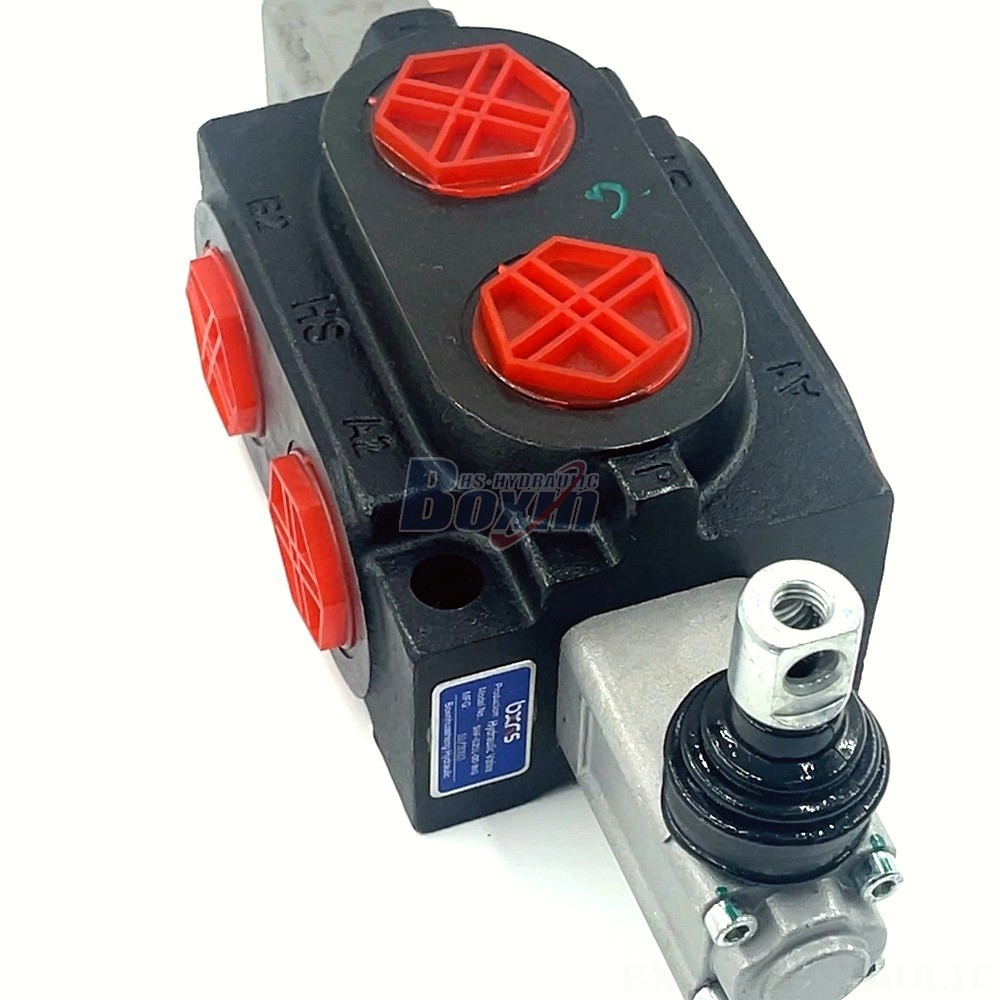

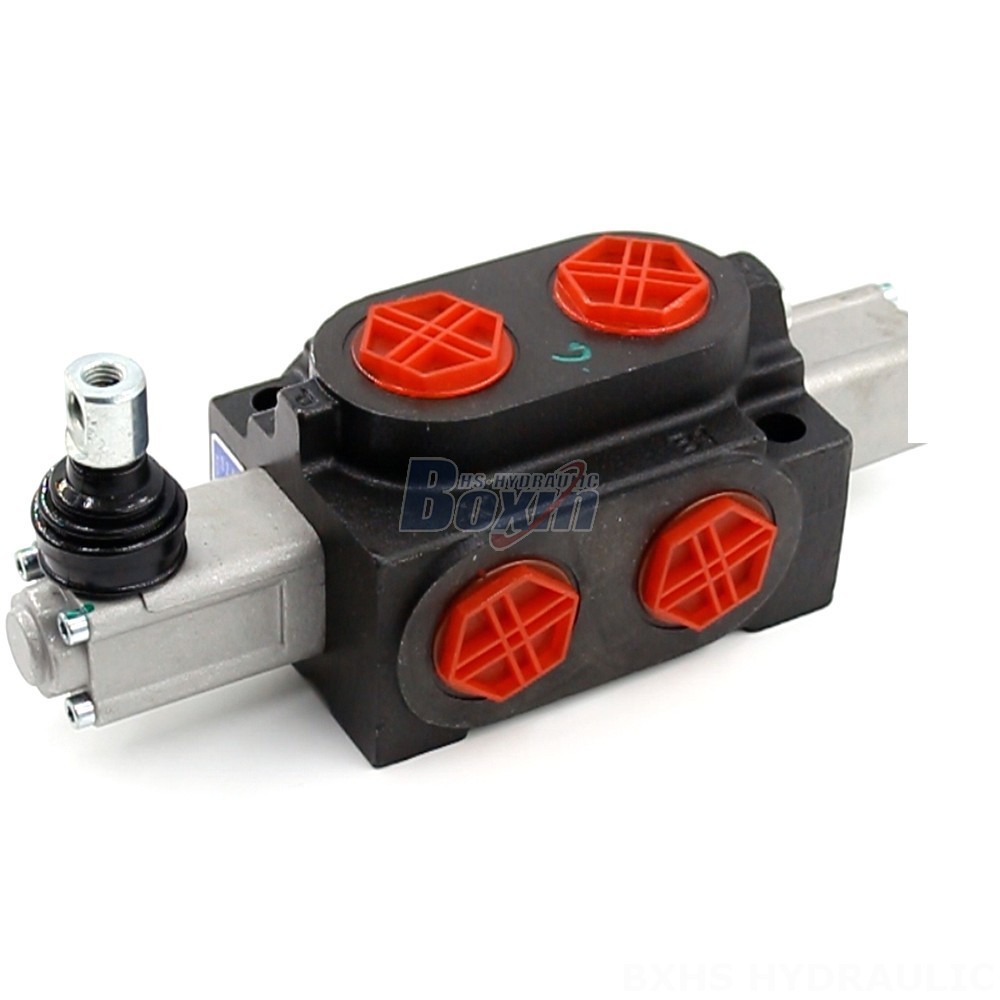

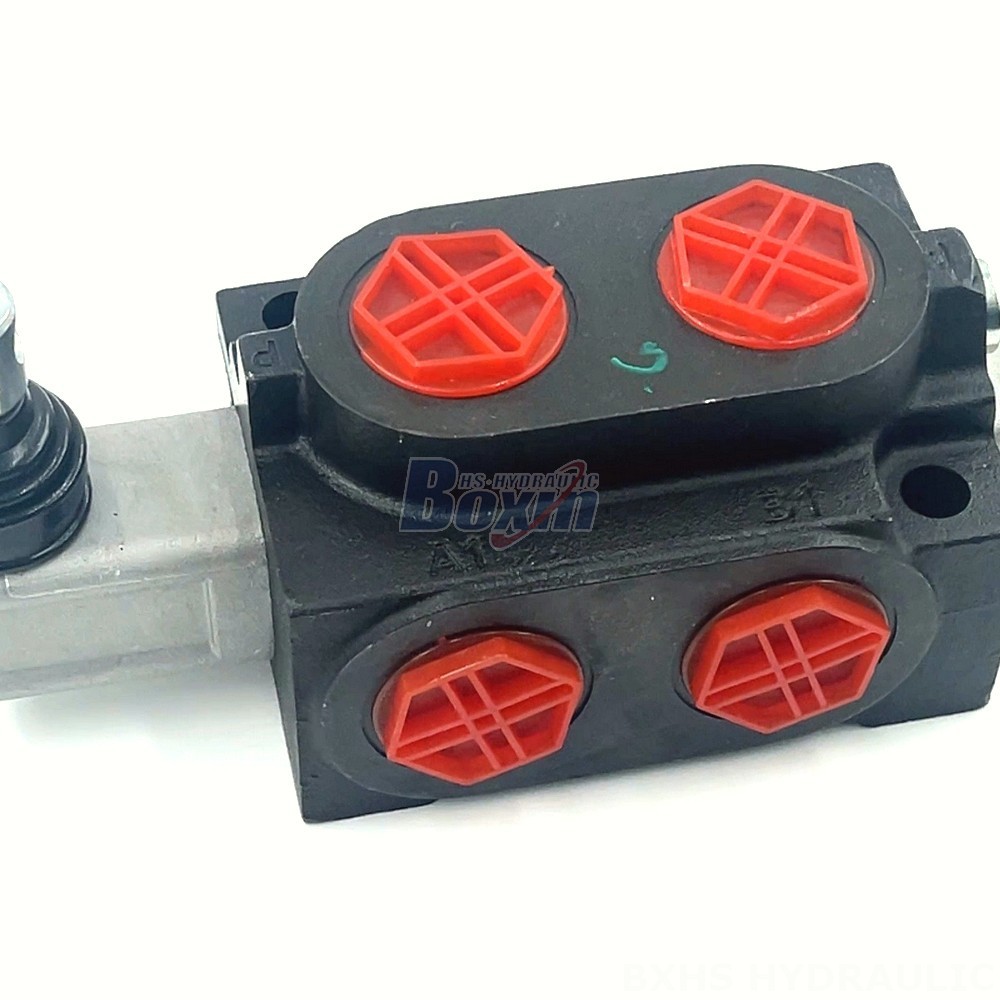

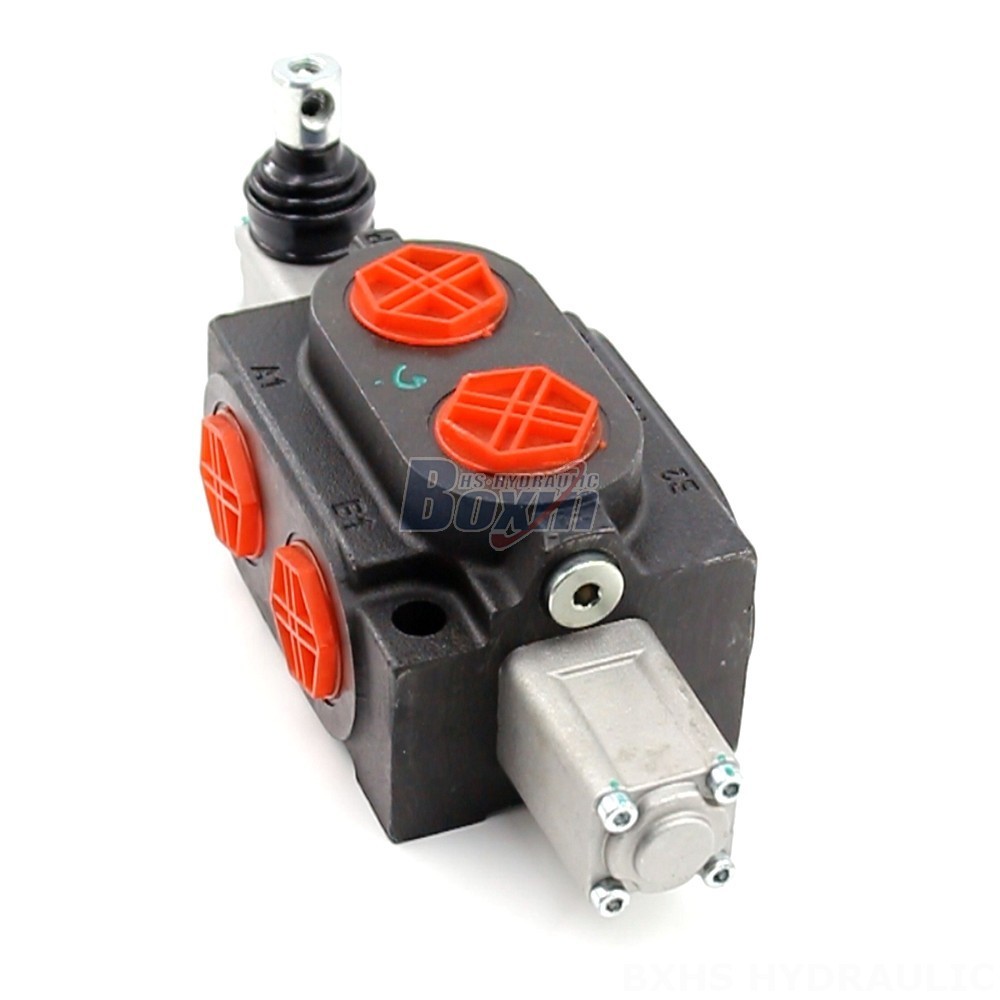

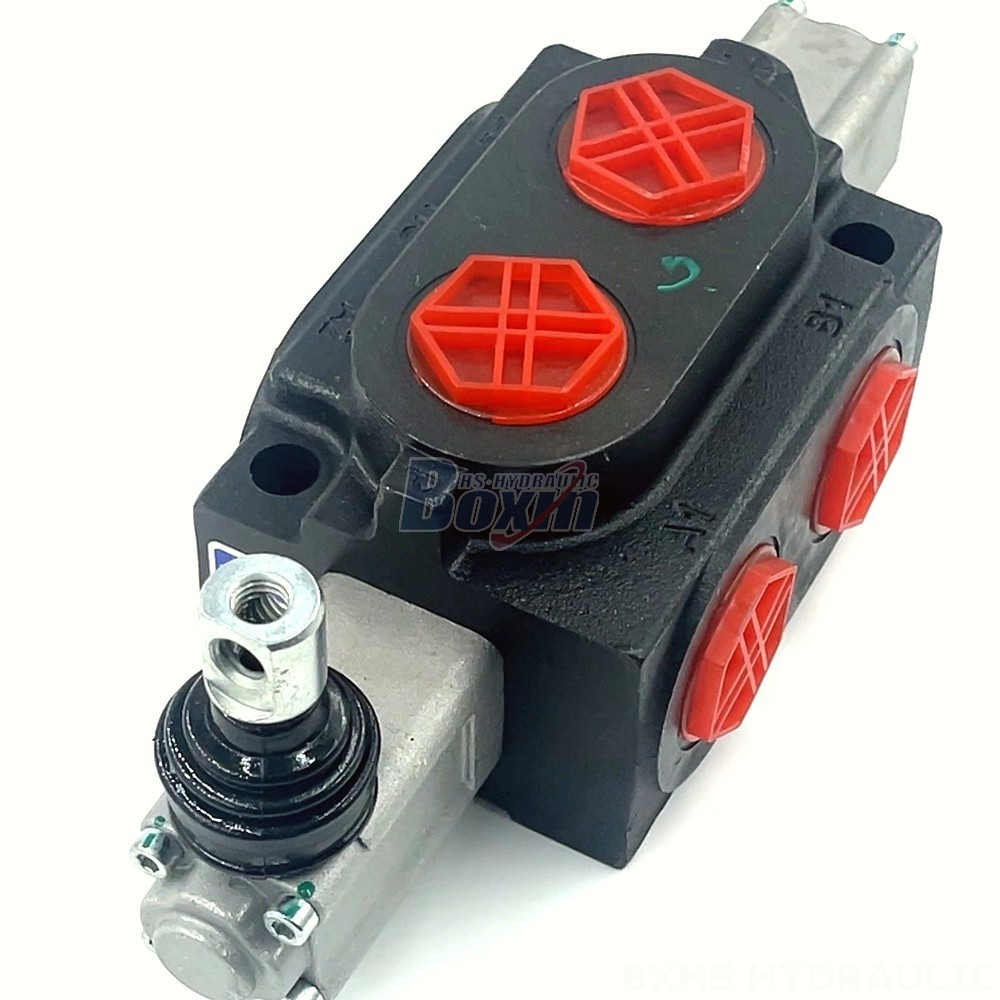

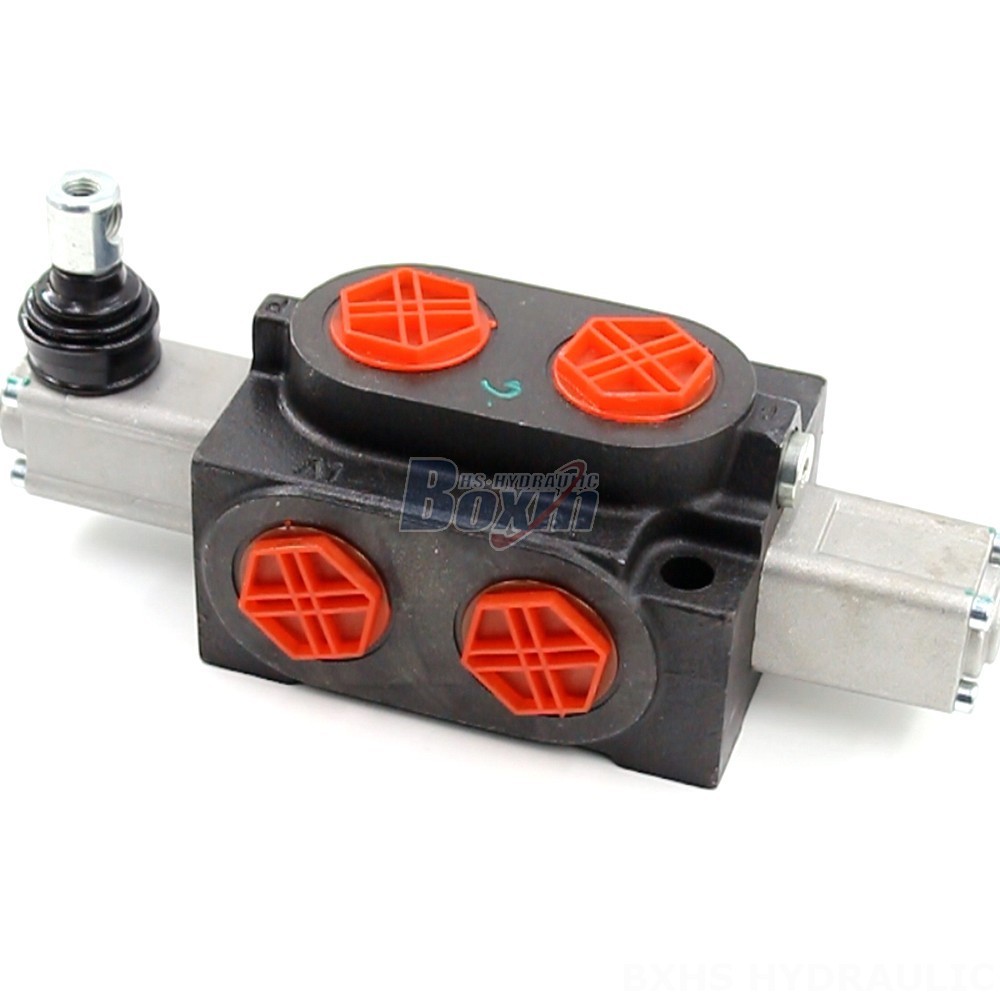

The SHFY-G25L-00 Hydraulic Directional Control Valve is a 1-section, manually controlled sectional valve designed for use in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 200 L/min and a maximum pressure of 315 bar, this valve provides precise control of hydraulic systems.
| SHFY-G25L-00系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 液控 |
| 路数 | 1 联 |
| 额定流量 | 200 L/min (52 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | M33×2.0螺纹 |
| 出油口 | M33×2.0螺纹 |
| 接口尺寸 | M33×2.0螺纹 |
| 联数 | 1联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
**Product Name:** Hydraulic Directional Control Valve | SHFY-G25L-00
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 200 L/min (52 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SHFY-G25L-00 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, TRACTOR AND FRONT-END LOADER, BALER
