Hydraulic Directional Control Valve: SD5-G38 Series | Manufacturing & Supply

控制方式:手控

路数:4 联

额定流量:45 L/min (11.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G3/8接口

出油口:G3/8接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD5系列单块式方向阀

Packagingsize:22.5*23.5*12.5

Grossweight:9.90 kg

库存: 有货

描述

Hydraulic Directional Control Valve: SD5-G38 Series | Manufacturing & Supply

Hydraulic Directional Control Valve: SD5-G38 Series | Manufacturing & Supply drawing image

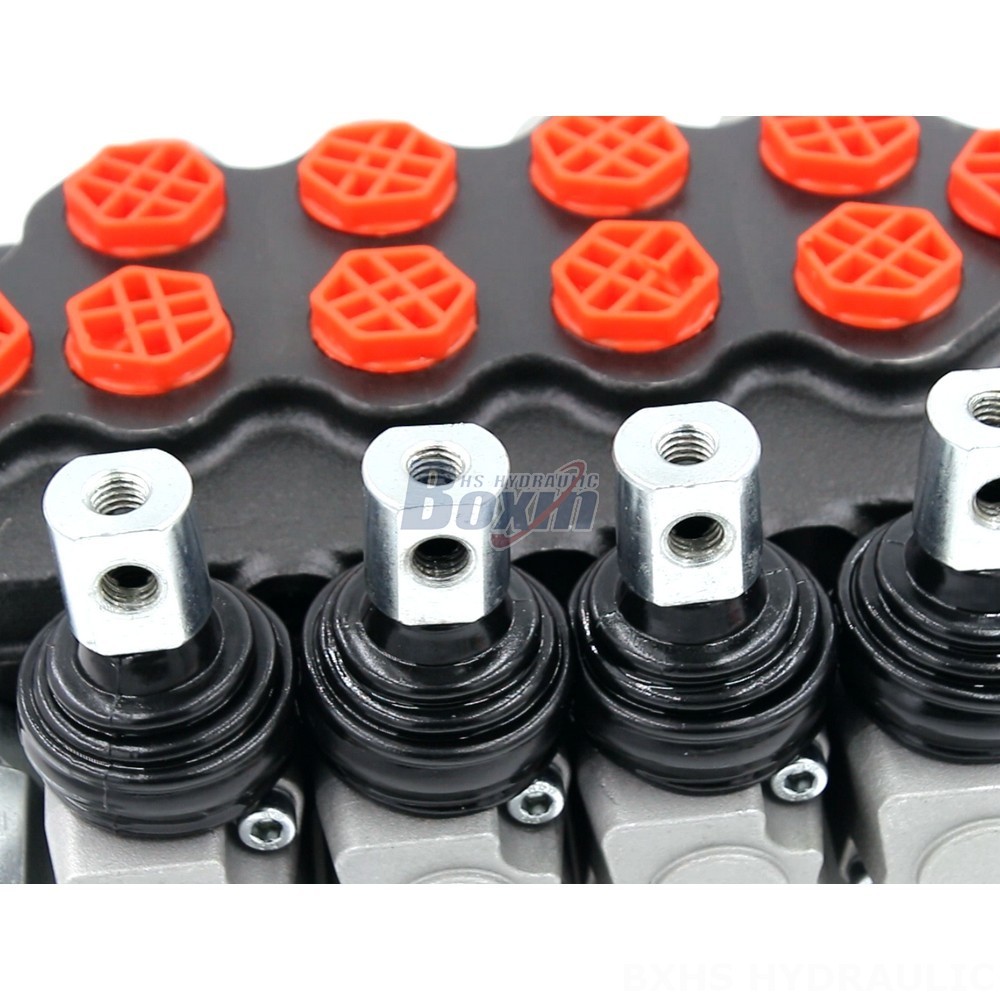

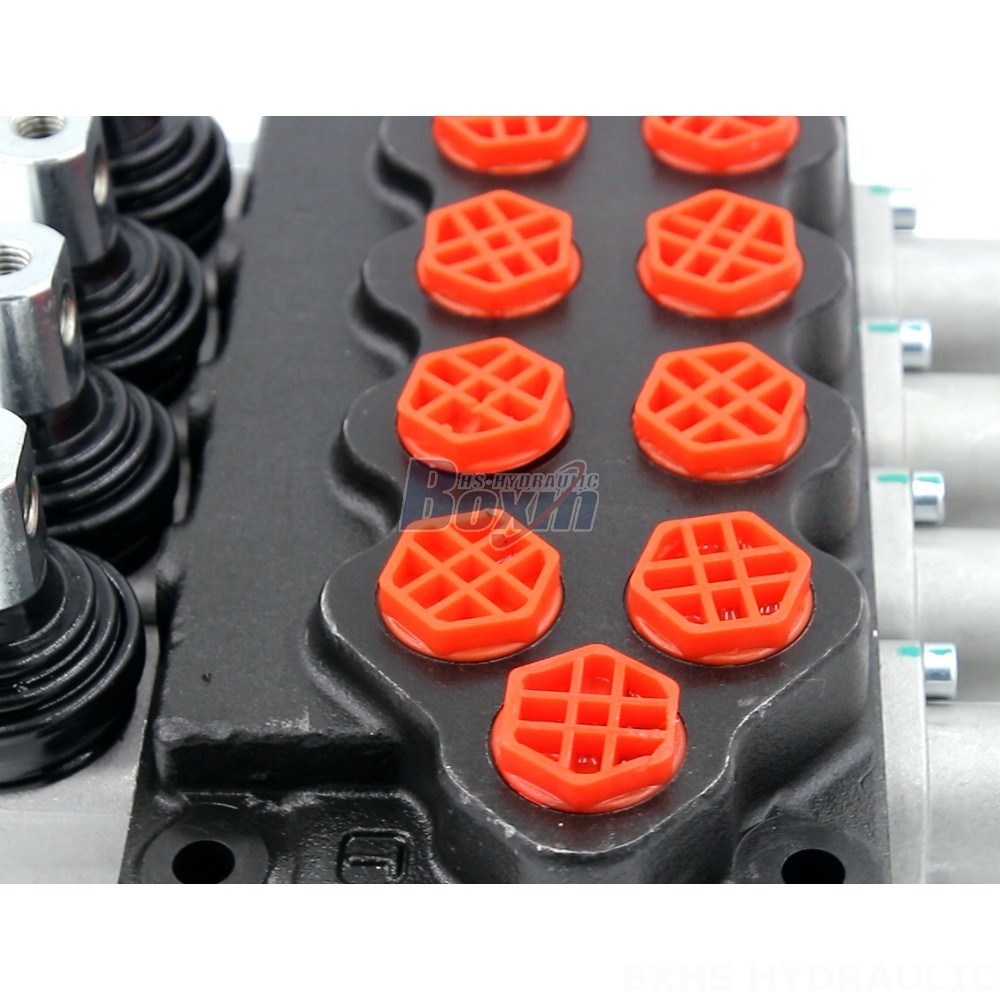

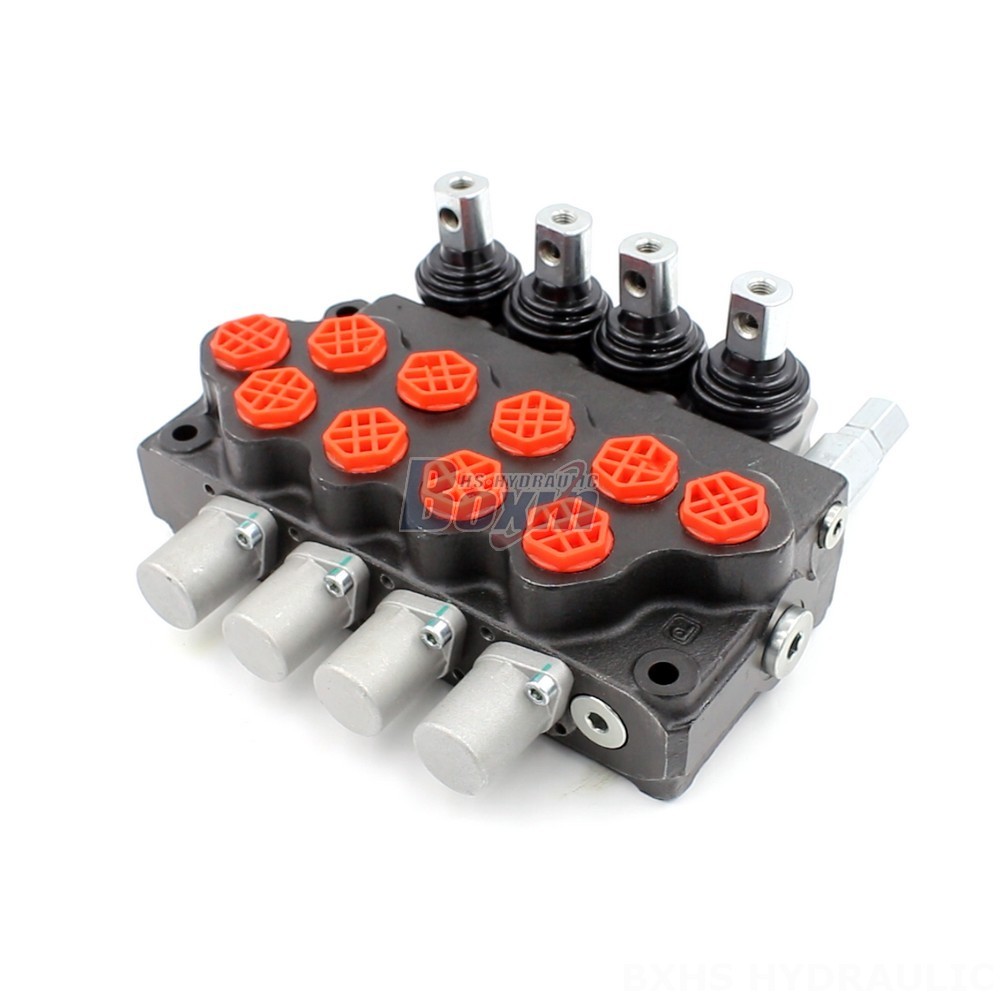

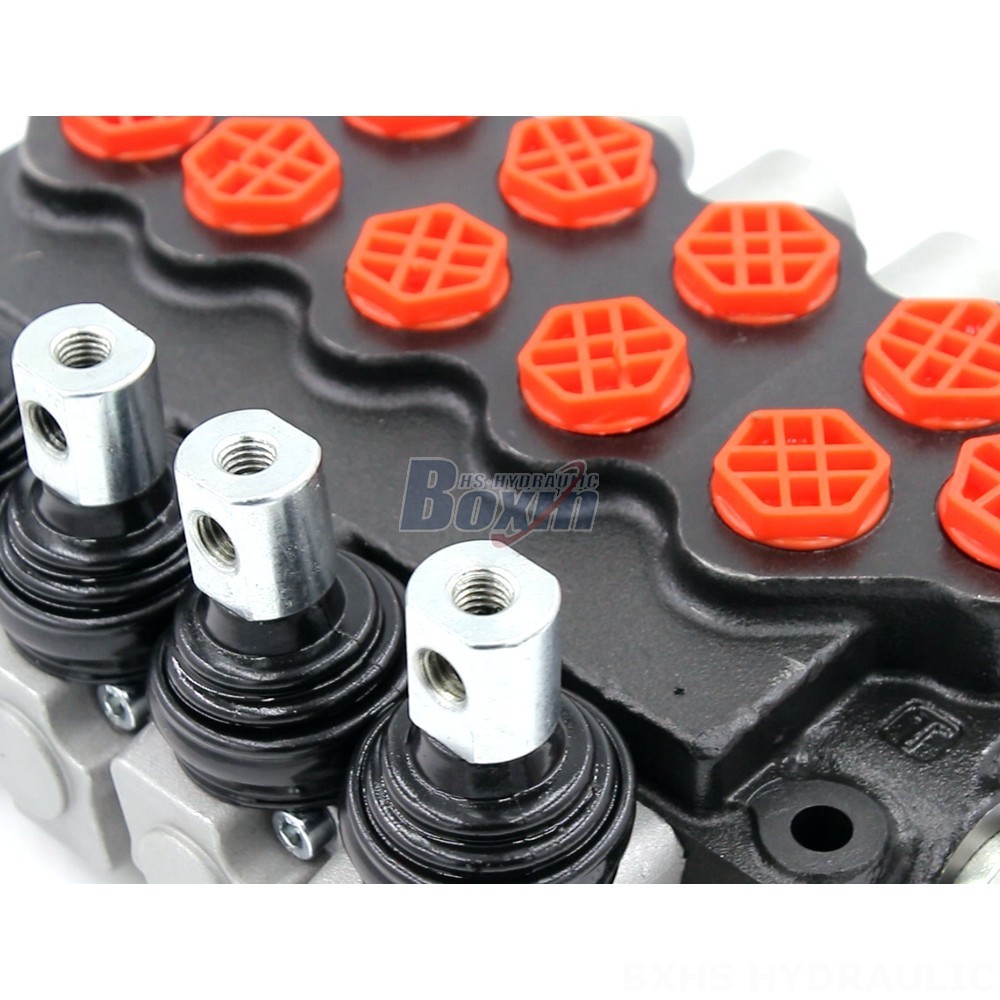

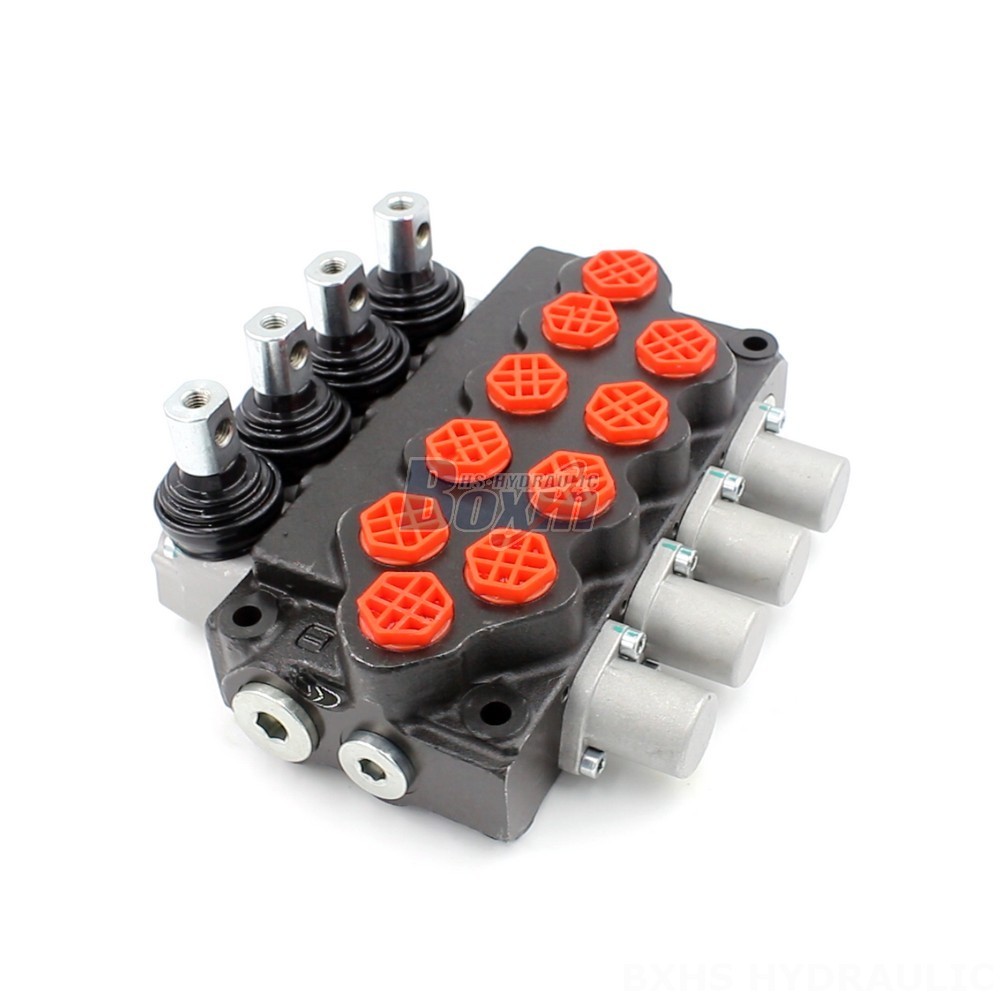

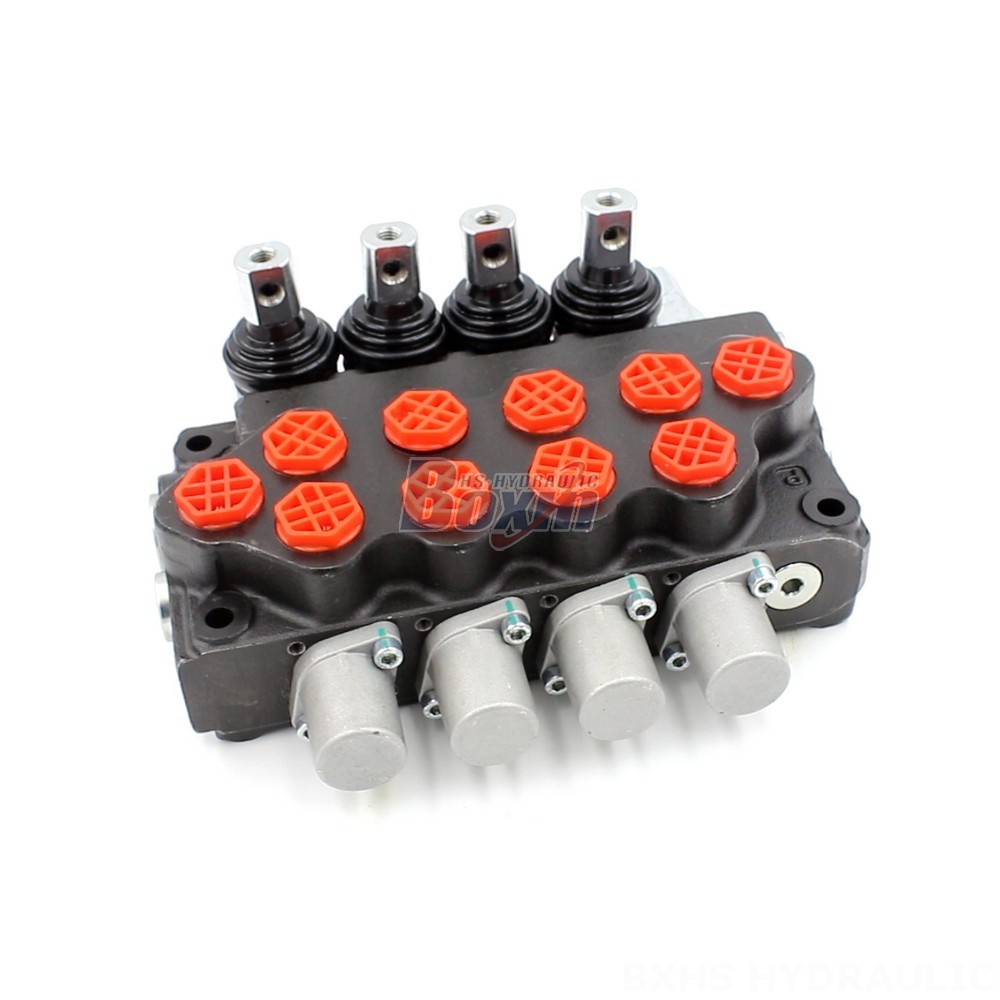

The SD5-G38 Series Hydraulic Directional Control Valve is a 4-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 305 bar. It is manually controlled and has an operating viscosity range of 15 - 75 mm²/s. The valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.

SD5系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +60°C (-40°F to +140°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	40 L/min (10.5 US gpm)
最大压力	305 bar (4400 psi)
进油口	G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口
出油口	G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头
接口尺寸	G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头

**Product Name:** Hydraulic Directional Control Valve: SD5-G38 Series

**Control Method:** Manual

**Section:** 4 Section

**Structure Type:** Monoblock valve

**Rated Flow:** 40 L/min (10.5 US gpm)

**Max Pressure:** 305 bar (4400 psi)

**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)

**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)

**Spool:** 4 Spool

**Series:** SD5 Series

**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES

**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
