1276 次查看了此产品

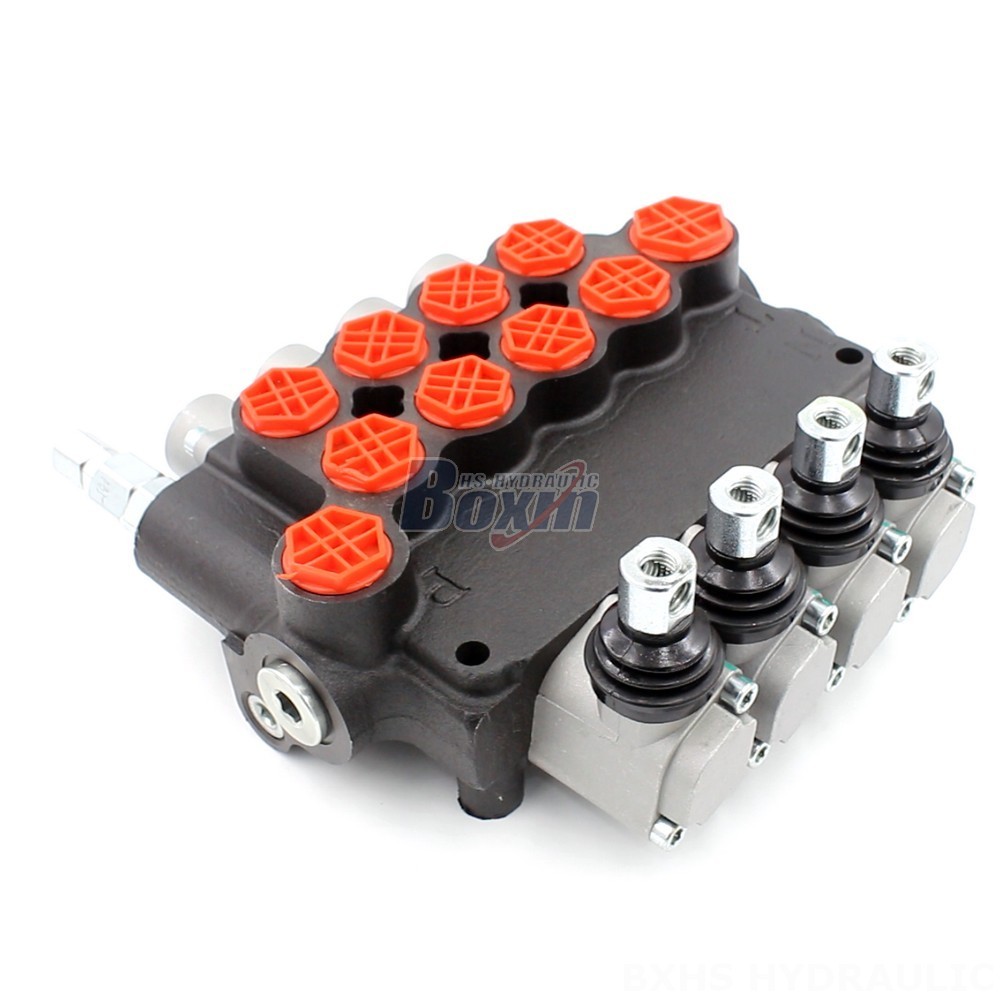

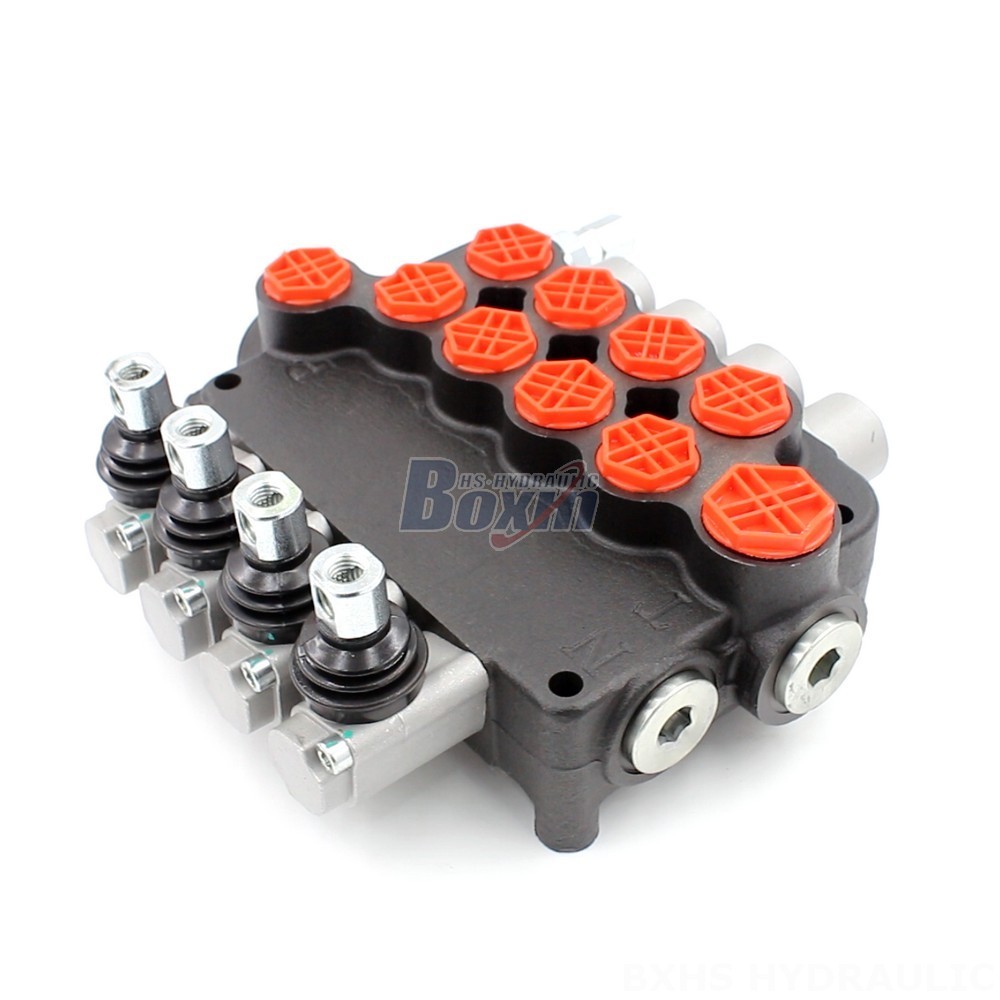

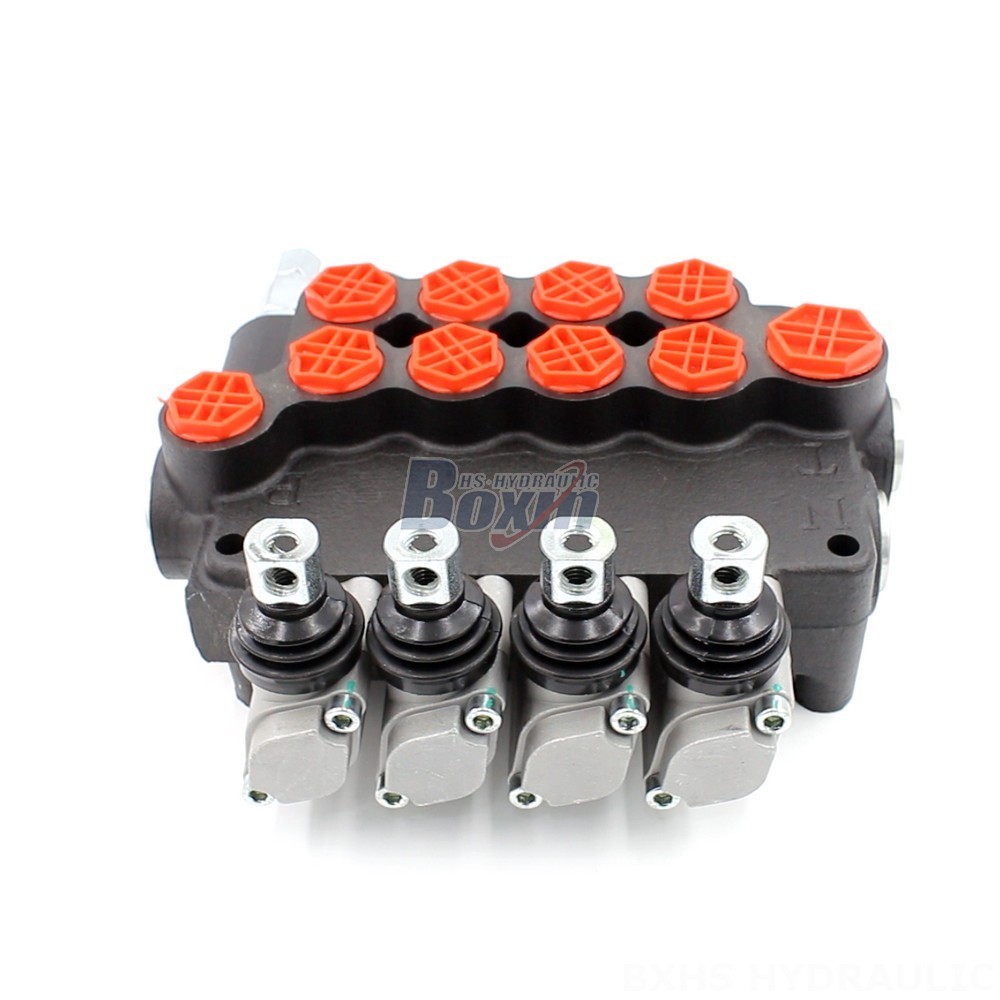

This P80-G34-G12-4OT hydraulic directional control valve is designed for heavy duty applications in construction, material handling and industrial vehicles. It features a robust monoblock construction with 4 sections and a rated flow of 80 L/min. This valve is ideal for tipper dump trucks, telehandlers, forklifts, excavators, and other heavy equipment.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80-G34-G12-4OT is a 4 section, manual control hydraulic directional control valve designed for demanding applications in construction, material handling, and industrial vehicles. This robust monoblock valve boasts a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for operating tipper dump trucks, telehandlers, forklifts, excavators, loaders, and other heavy duty equipment. It is specifically engineered for reliable performance in demanding environments, featuring an operating viscosity range of 15-75 mm²/s and an ambient temperature range of -40°C to +80°C.
