The P80-G12-G34 Series Hydraulic Directional Control Valve is a high-performance valve designed for various applications in industries like material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. With its compact monoblock structure and manual control, this valve offers reliable and efficient control of hydraulic systems.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |

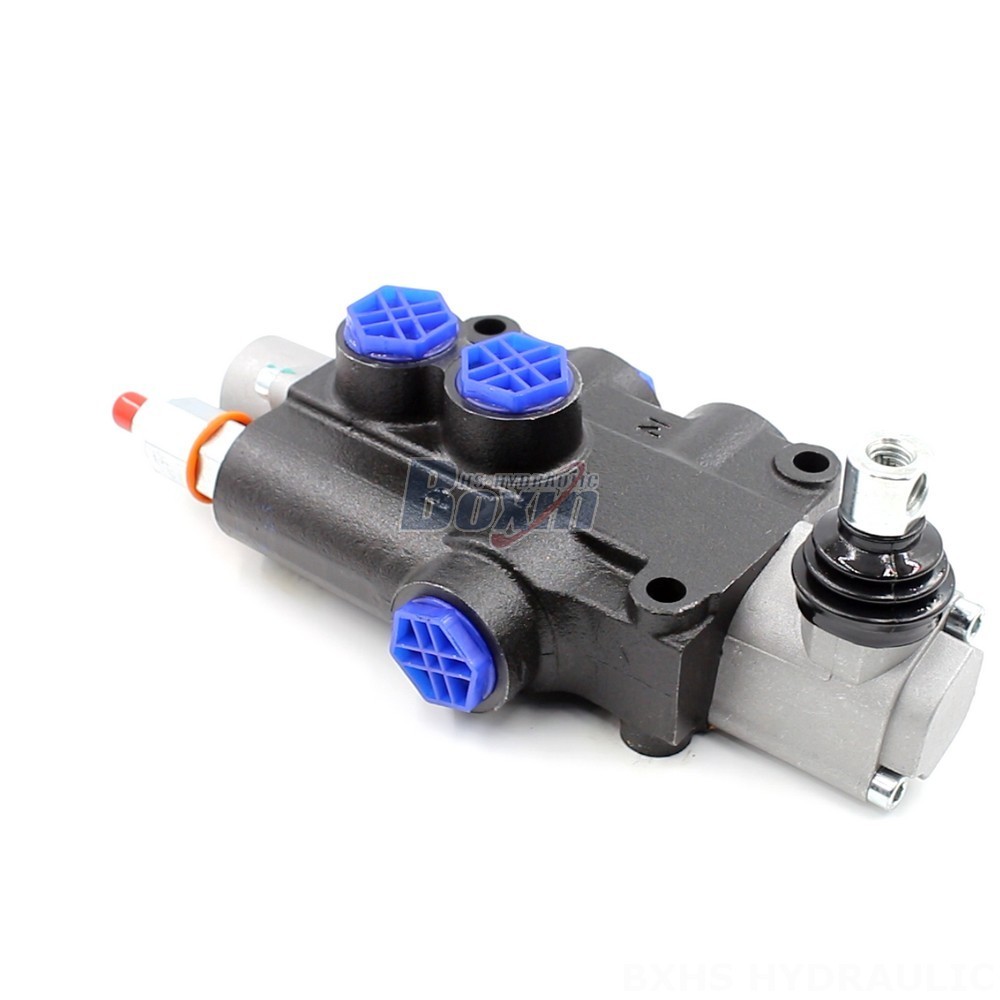

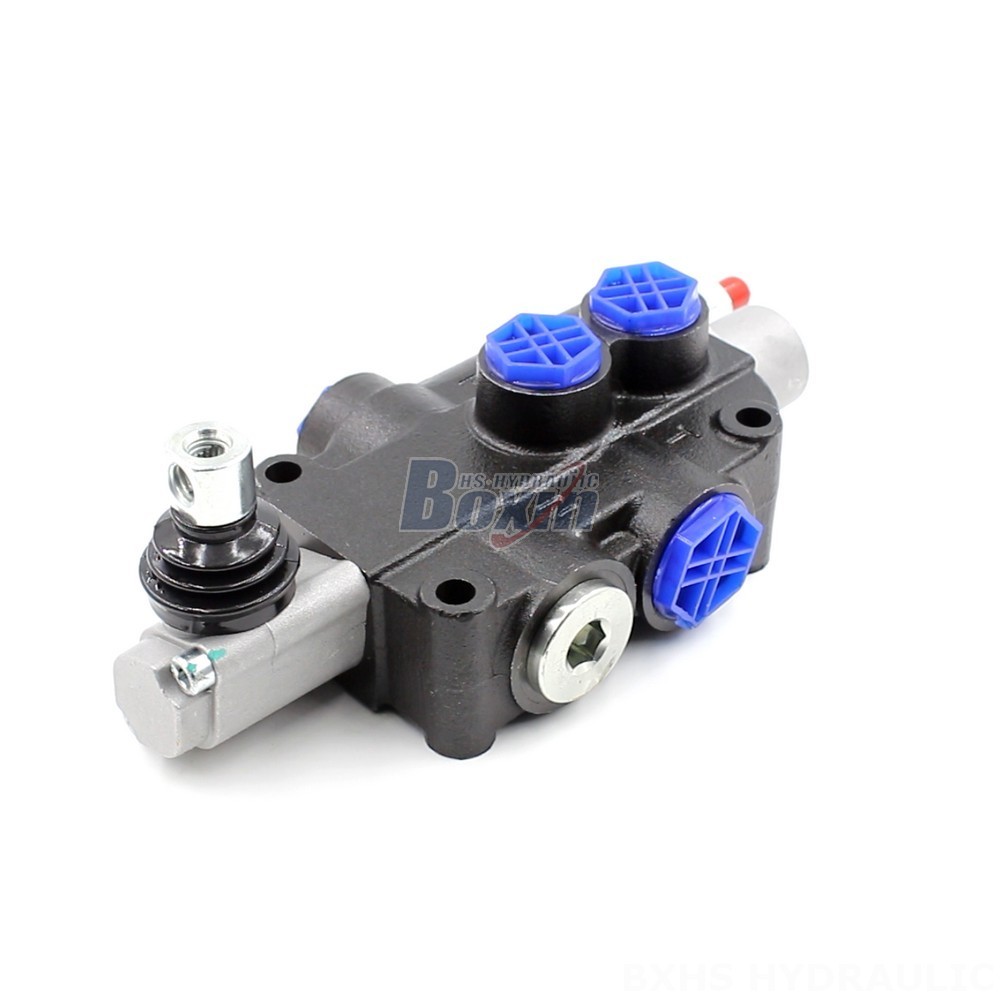

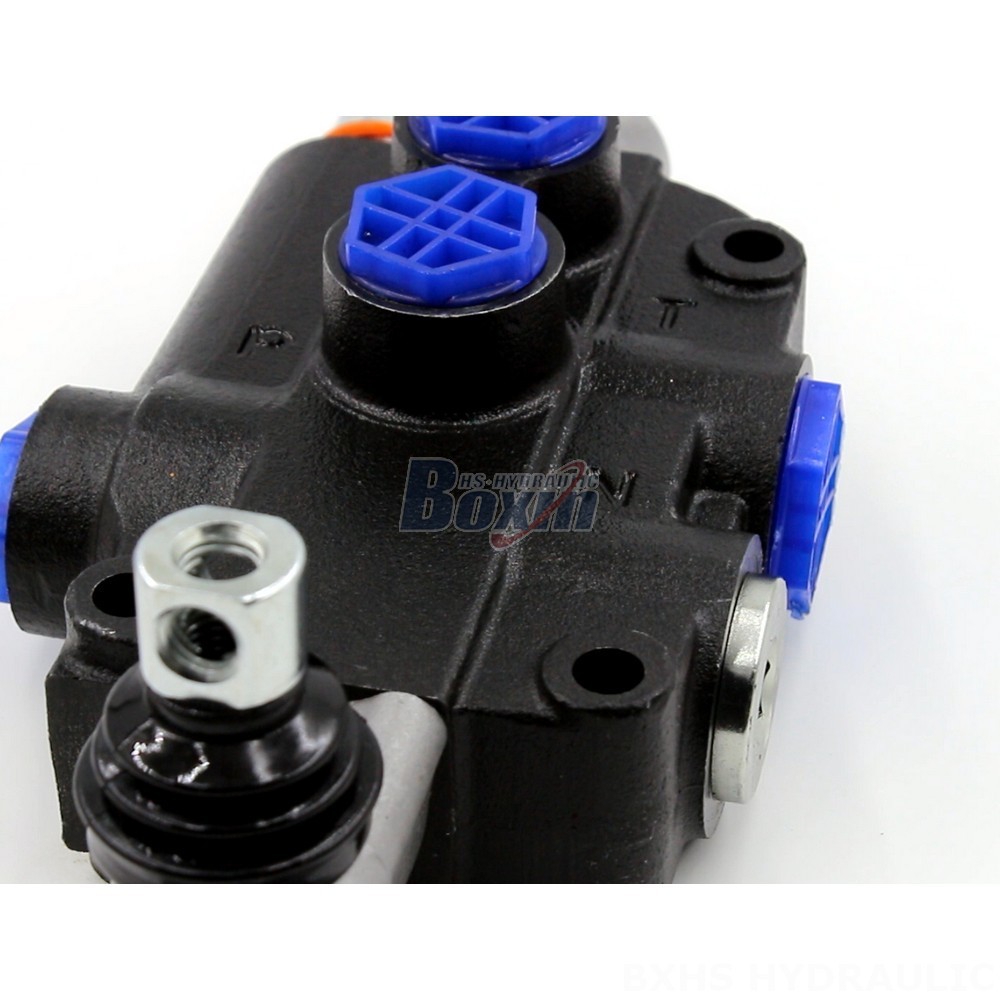

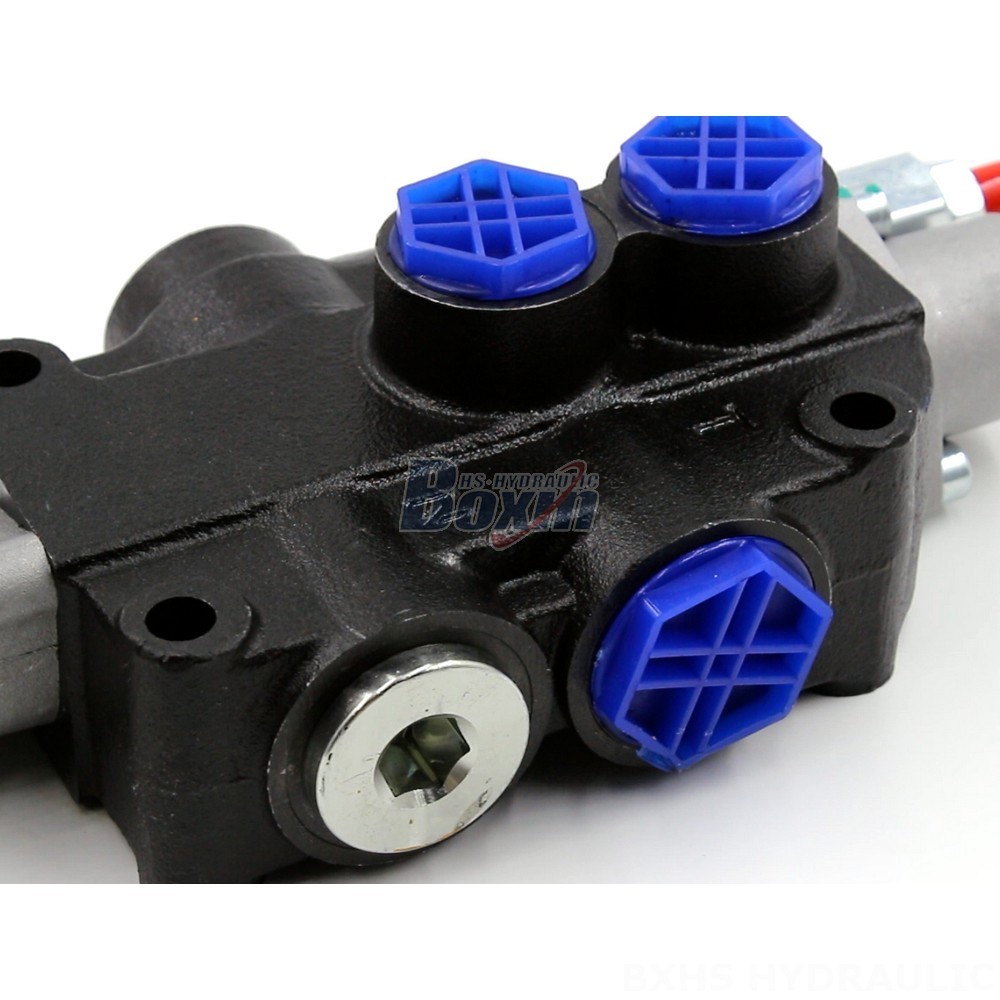

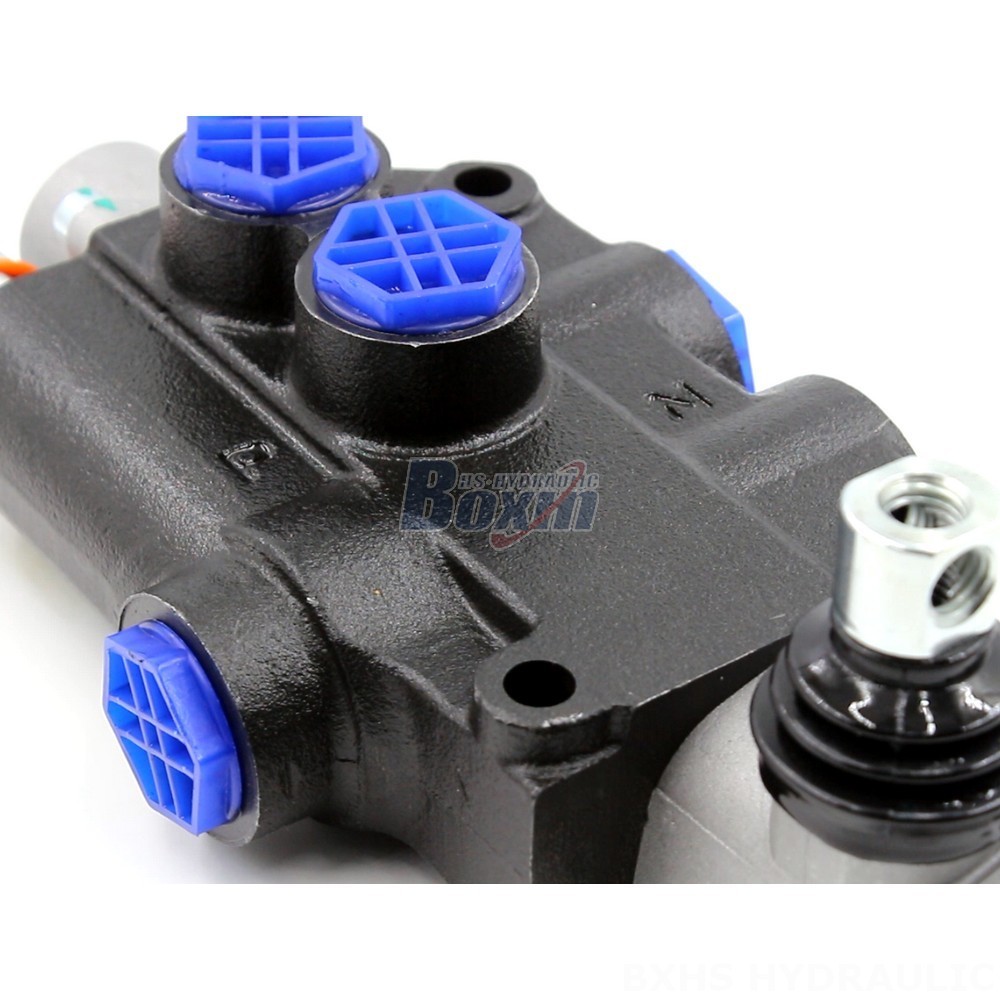

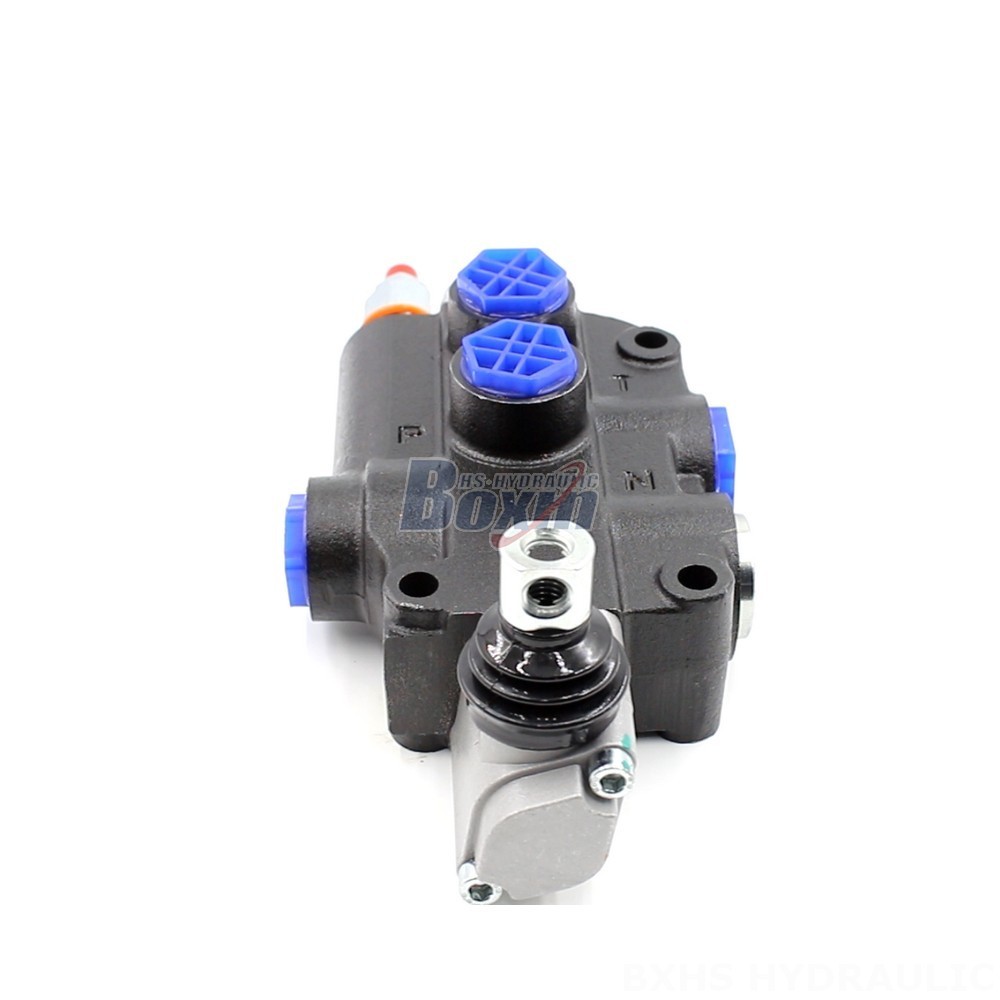

**P80-G12-G34 Series Hydraulic Directional Control Valve**
**Product Parameters:**
* Control Method: Manual
* Section: 1 Section
* Structure Type: Monoblock valve
* Rated Flow: 80 L/min (21.2 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 1 Spool
* Series: P80 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
**Key Features and Benefits:**
* Robust monoblock construction ensures durability and reliability in demanding operating conditions.
* Manual control provides precise and responsive operation.
* Wide operating viscosity range allows for compatibility with various hydraulic fluids.
* Compact design facilitates easy installation and space optimization.
* Suitable for a broad range of applications in industries such as material handling, construction, agriculture, and industrial vehicles.
