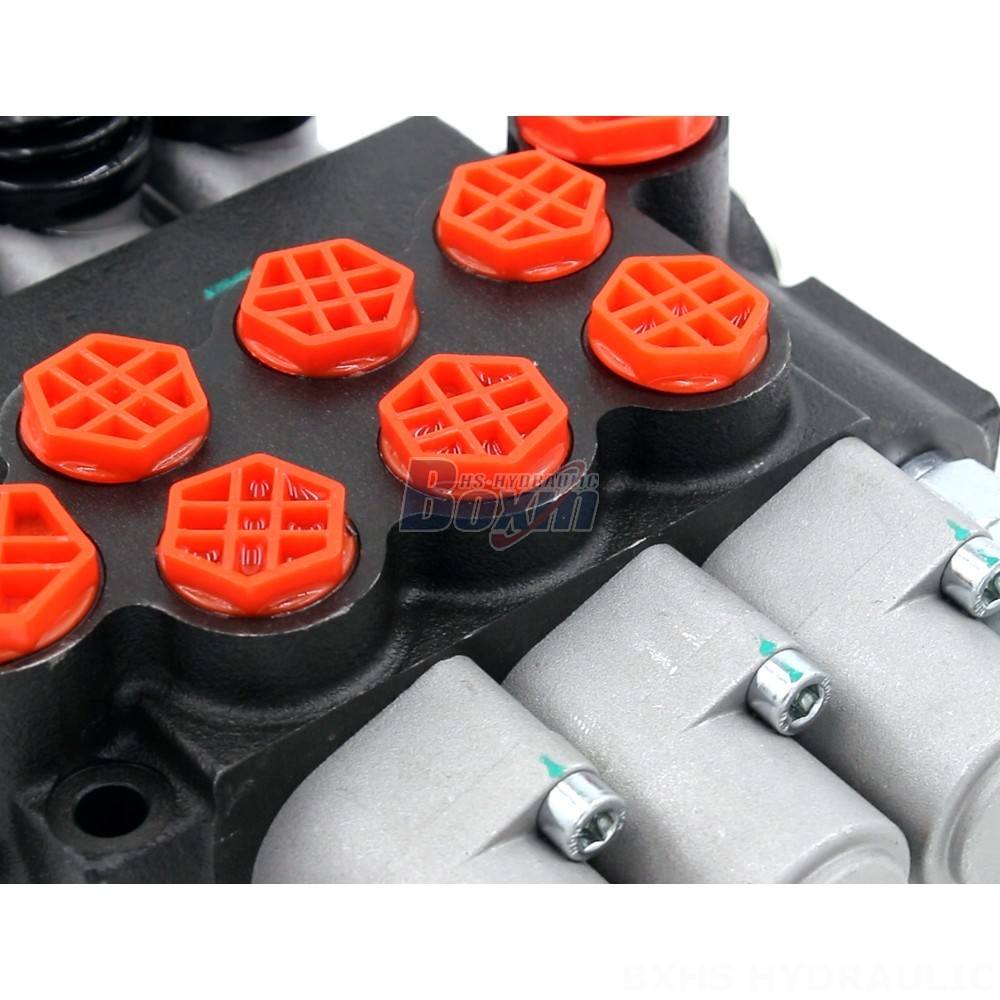

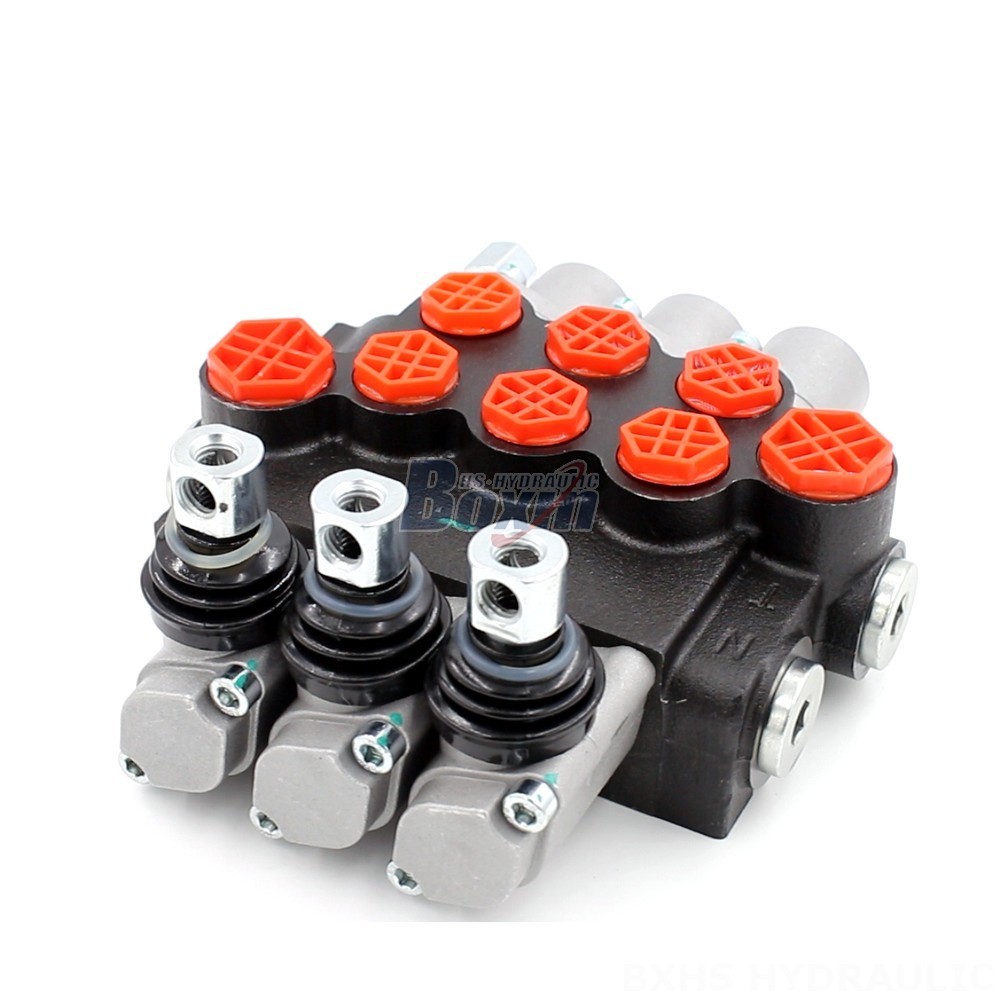

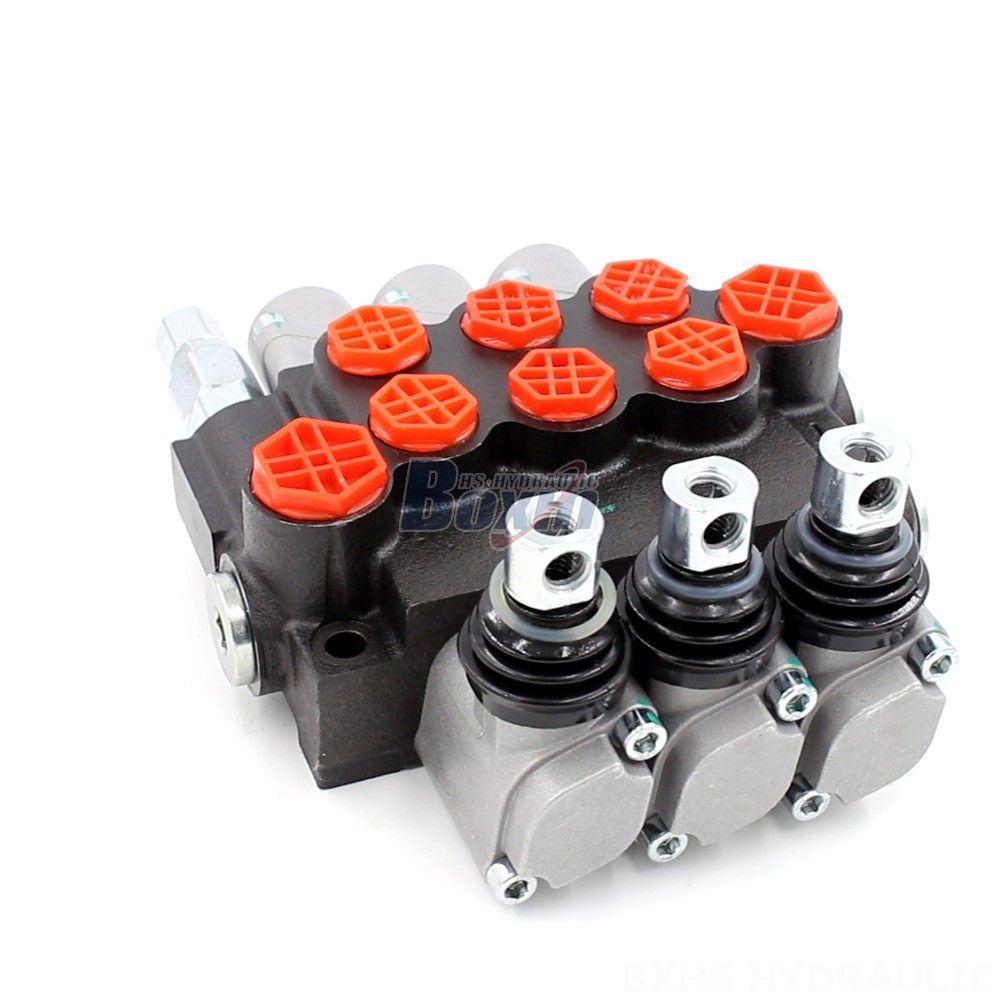

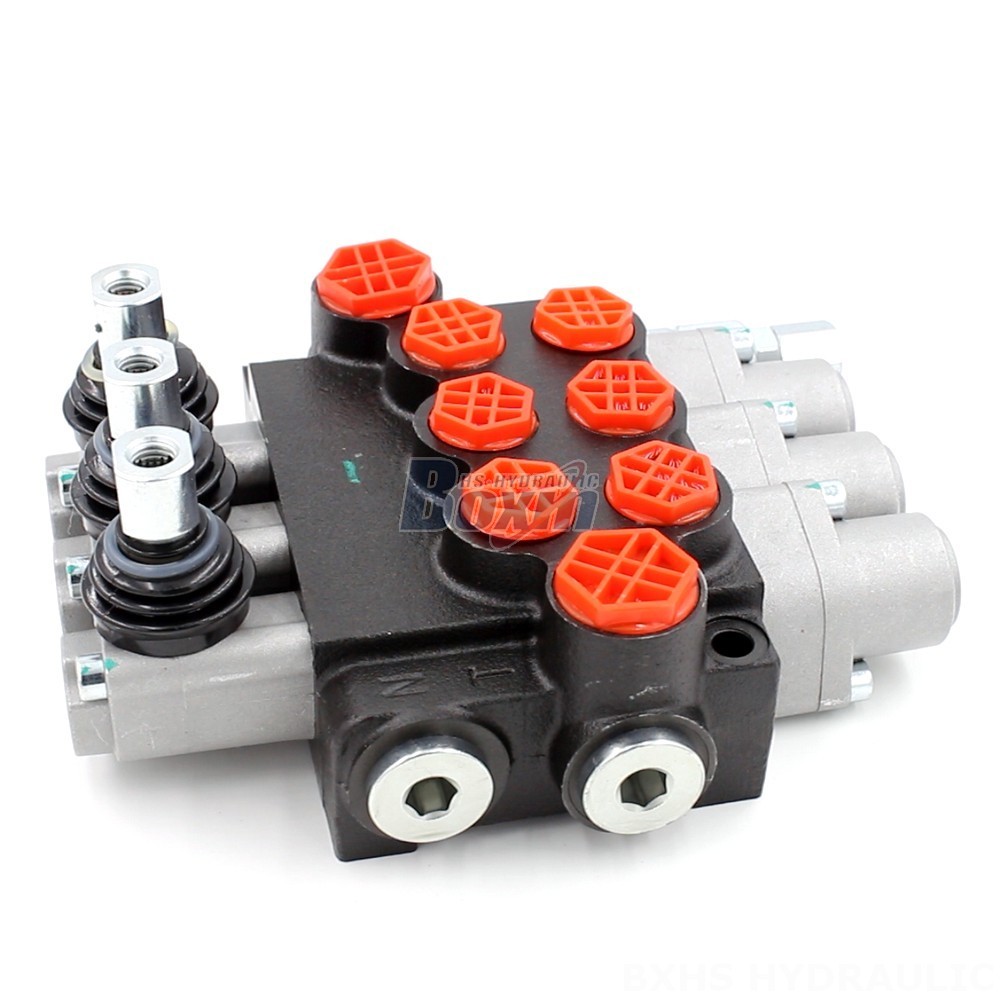

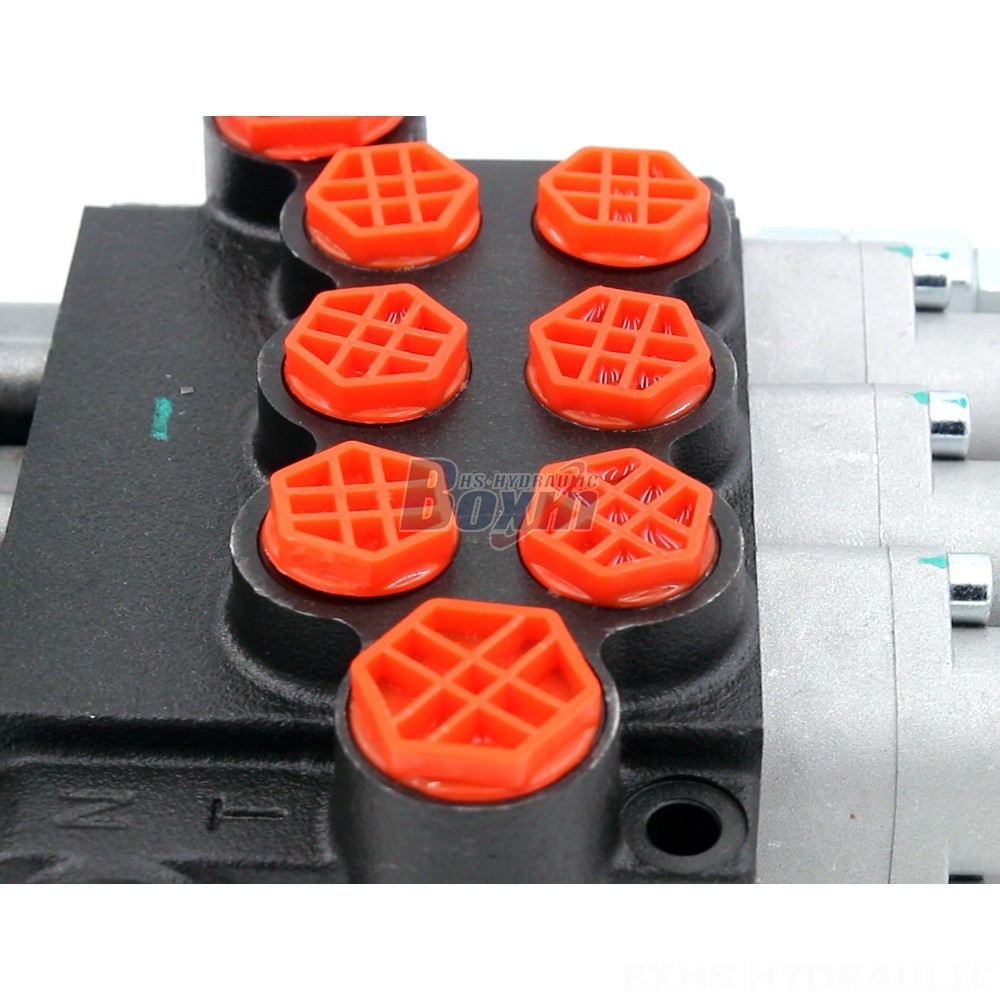

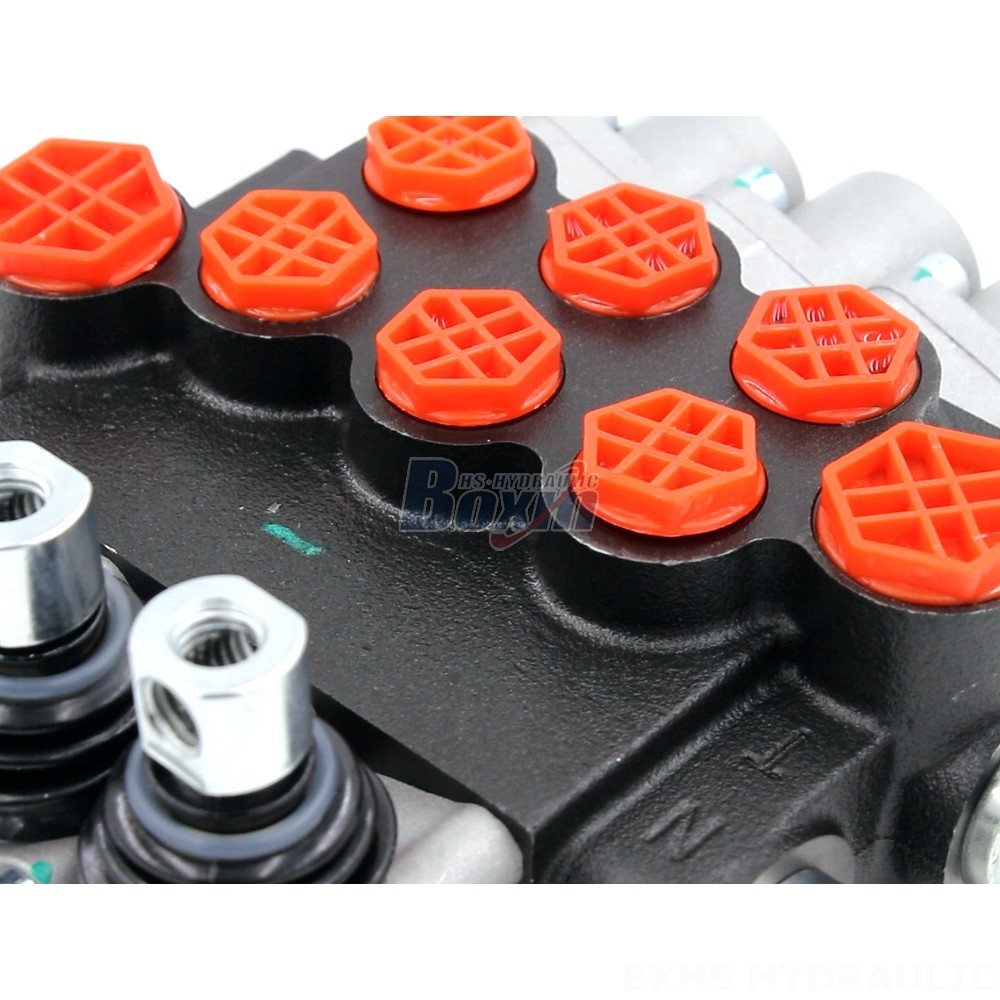

The Hydraulic Directional Control Valve - P40-G12-G38-3OT Series is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With its manual control, 3 section design, and monoblock valve structure, this valve offers precise control and durability in even the most demanding conditions.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
**Key Features:**
* Manual control for precise operation
* 3 section design for versatility
* Monoblock valve structure for durability
* 40 L/min rated flow for high efficiency
* 250 bar max pressure for demanding applications
* 15-75 mm²/s operating viscosity range for wide compatibility
* -40°C to +80°C ambient temperature range for use in extreme environments
* 3 spool design for increased control
* P40 Series for proven performance
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini- Excavator
* Skid Steer Loader
* Compact Wheel Loader
