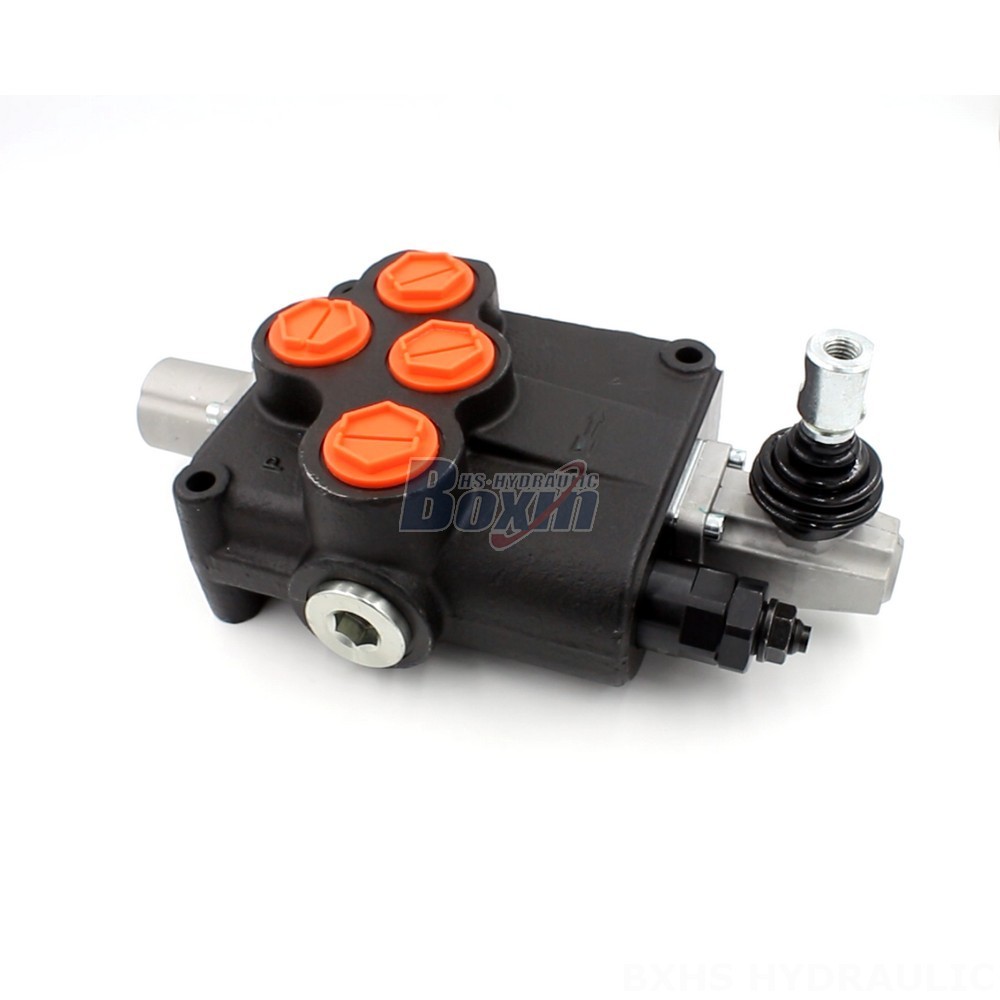

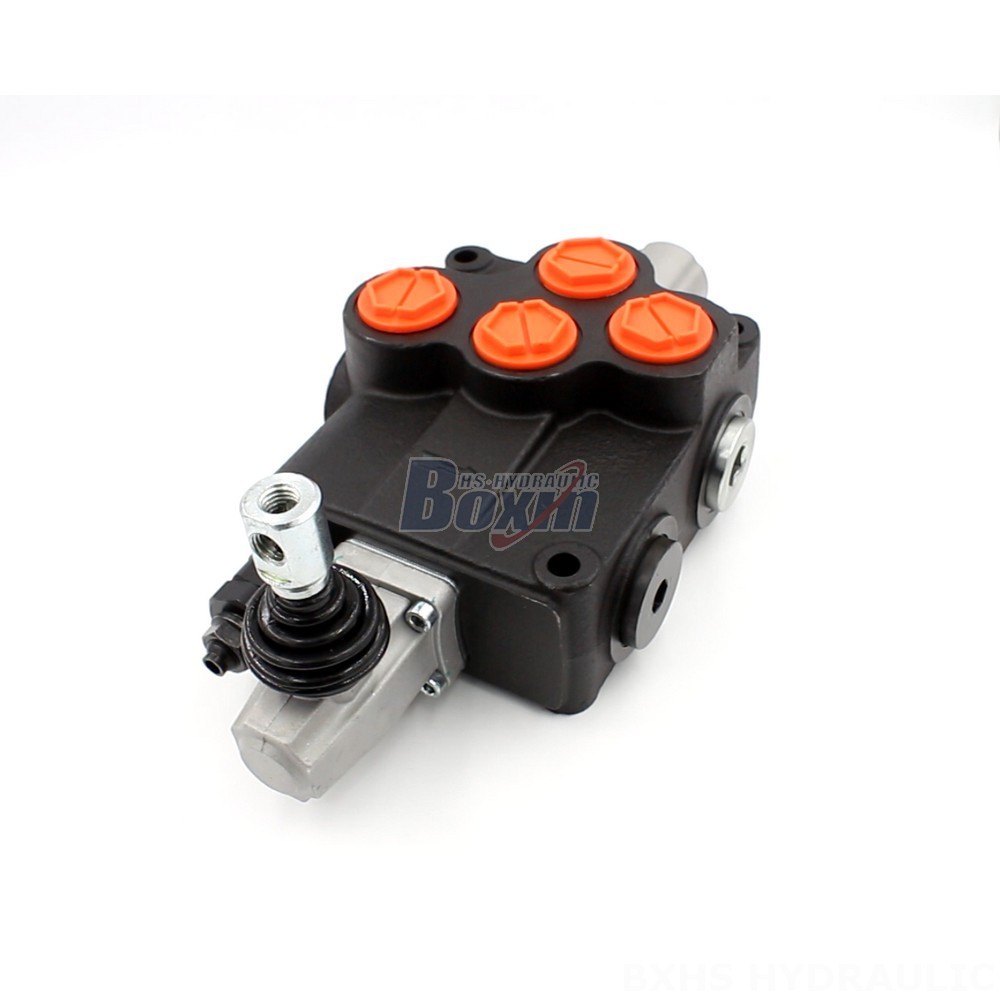

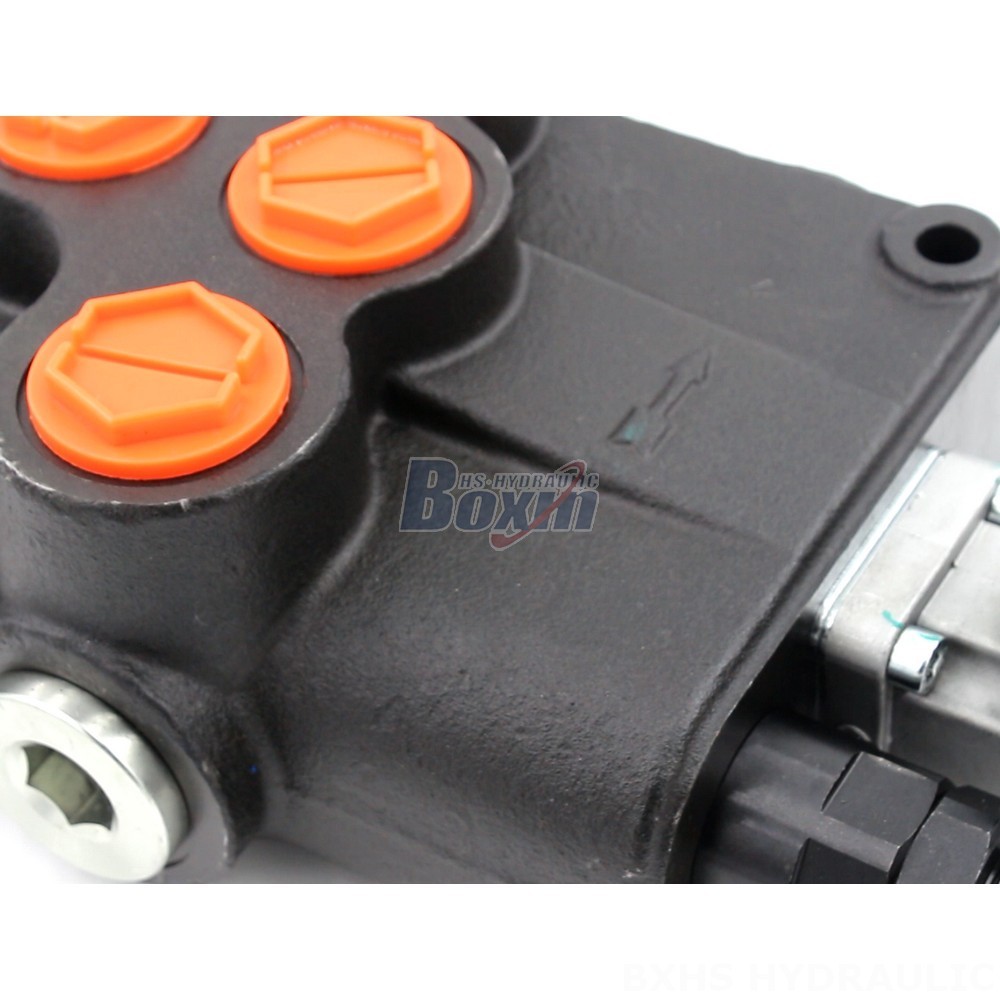

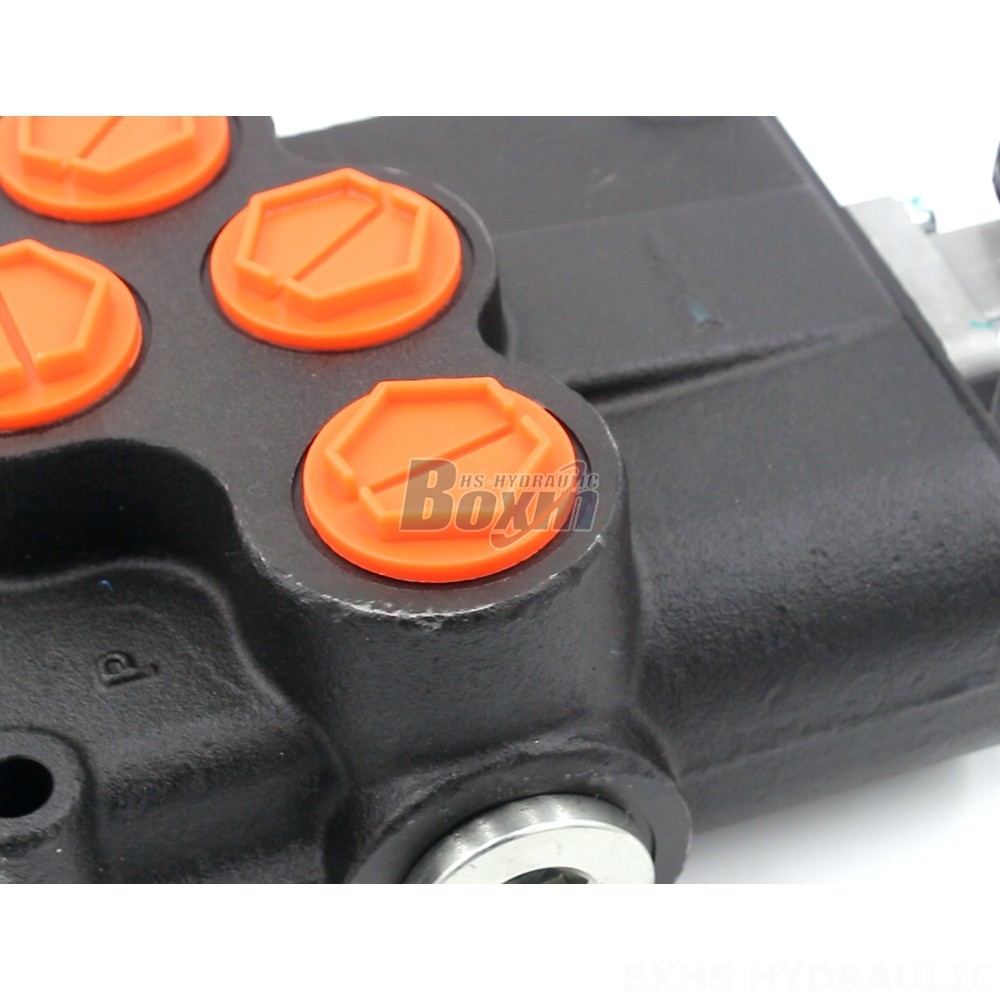

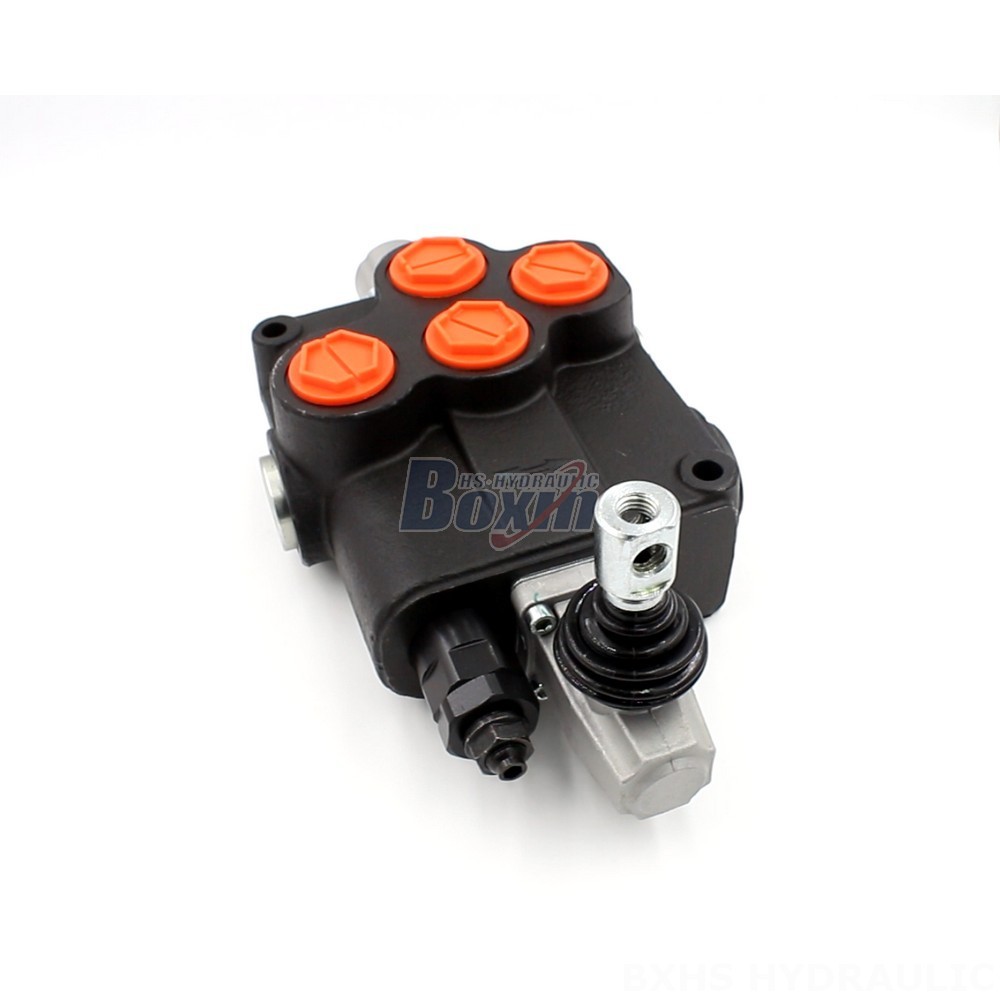

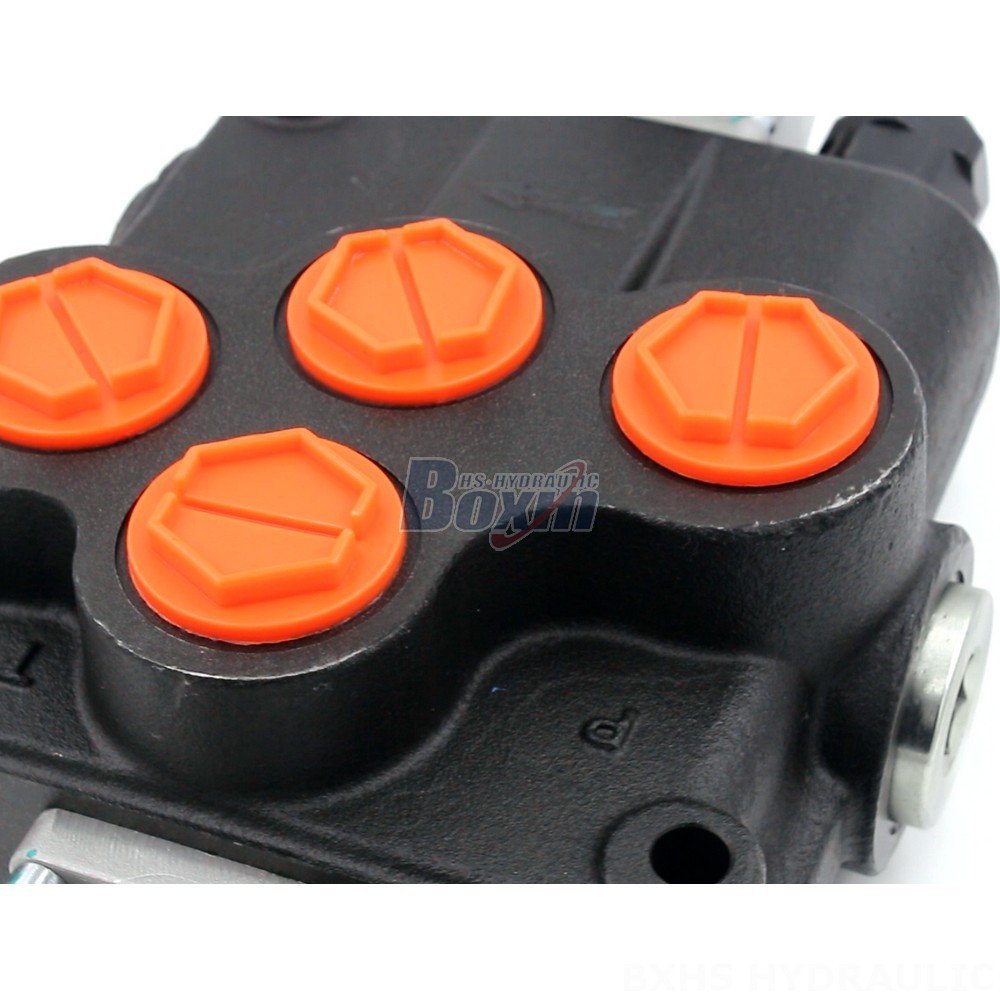

The P120-G1-OT Series Hydraulic Directional Control Valve is a high-quality valve designed for use in various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It offers exceptional performance with a rated flow of 120 L/min and a maximum pressure of 250 bar.
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Name:** Hydraulic Directional Control Valve - P120-G1-OT Series
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P120 Series
**Application Area:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Model:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MINI-EXCAVATOR
* SKID STEER LOADER
* WHEEL LOADER
* HARVESTER
* BALE WRAPPER
* SEEDING MACHINE
