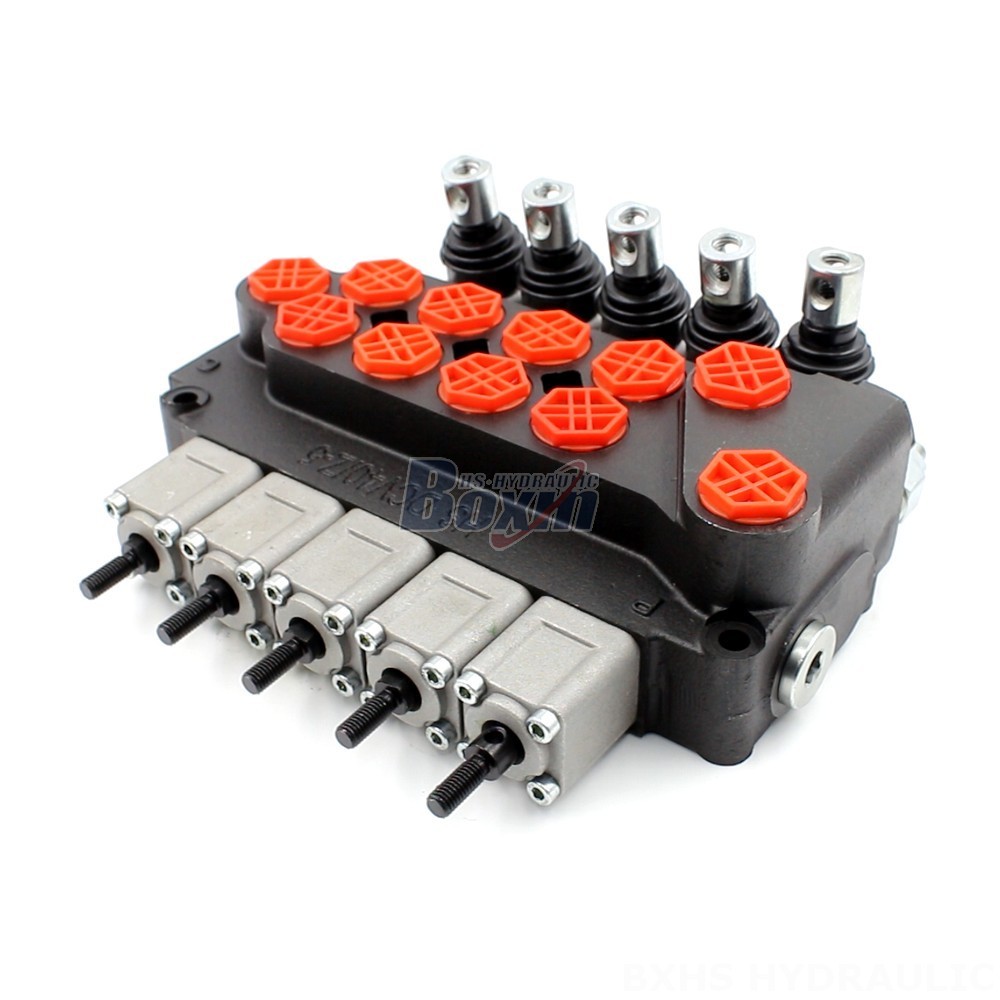

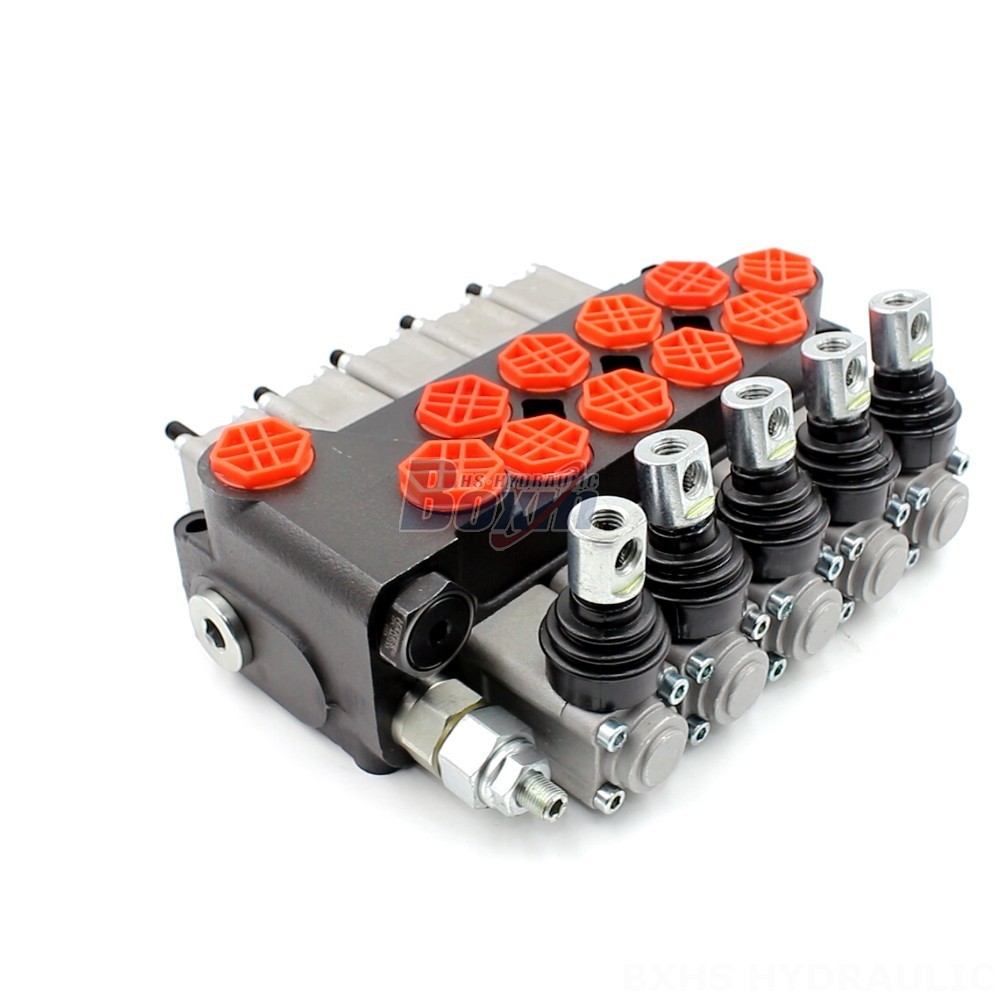

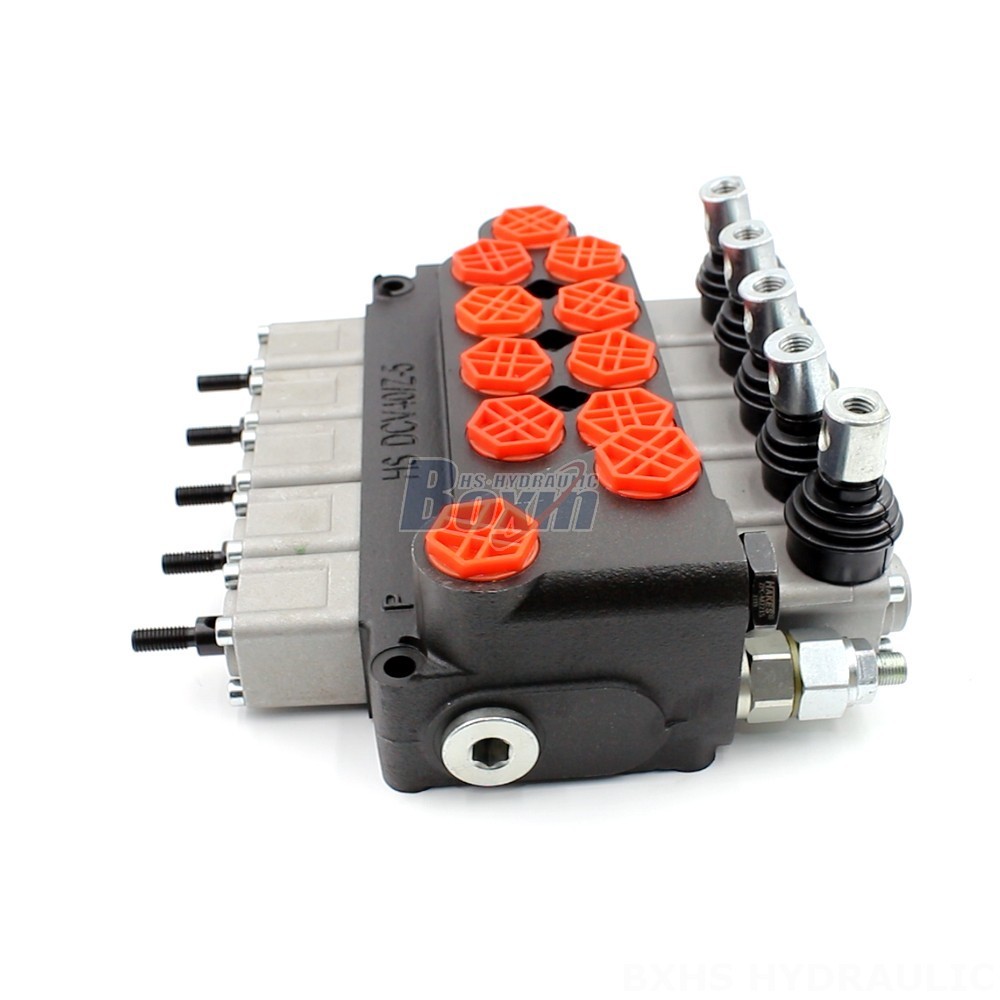

The DCV40Z Series is a 5-section, manual control, monoblock hydraulic directional control valve with a rated flow of 40 L/min and a maximum pressure of 350 bar. It is ideal for a wide range of applications including material handling, construction, agriculture, and industrial vehicles.
| DCV40Z系列 支腿控制阀 参数 | |
|---|---|
| 控制方式 | 手控, 电液控, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 350 bar (5100 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The DCV40Z Series is a high-performance, reliable hydraulic directional control valve designed for demanding applications. It features a robust monoblock construction with a 5-section spool for precise control of hydraulic flow. The valve offers a rated flow of 40 L/min and a maximum operating pressure of 350 bar. Its manual control allows for easy operation and adjustment. The DCV40Z series is perfect for various applications in material handling, construction, agriculture, and industrial vehicles. This includes telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this product as OEM, wholesale, and customized solutions. Contact us today for more details and pricing.
