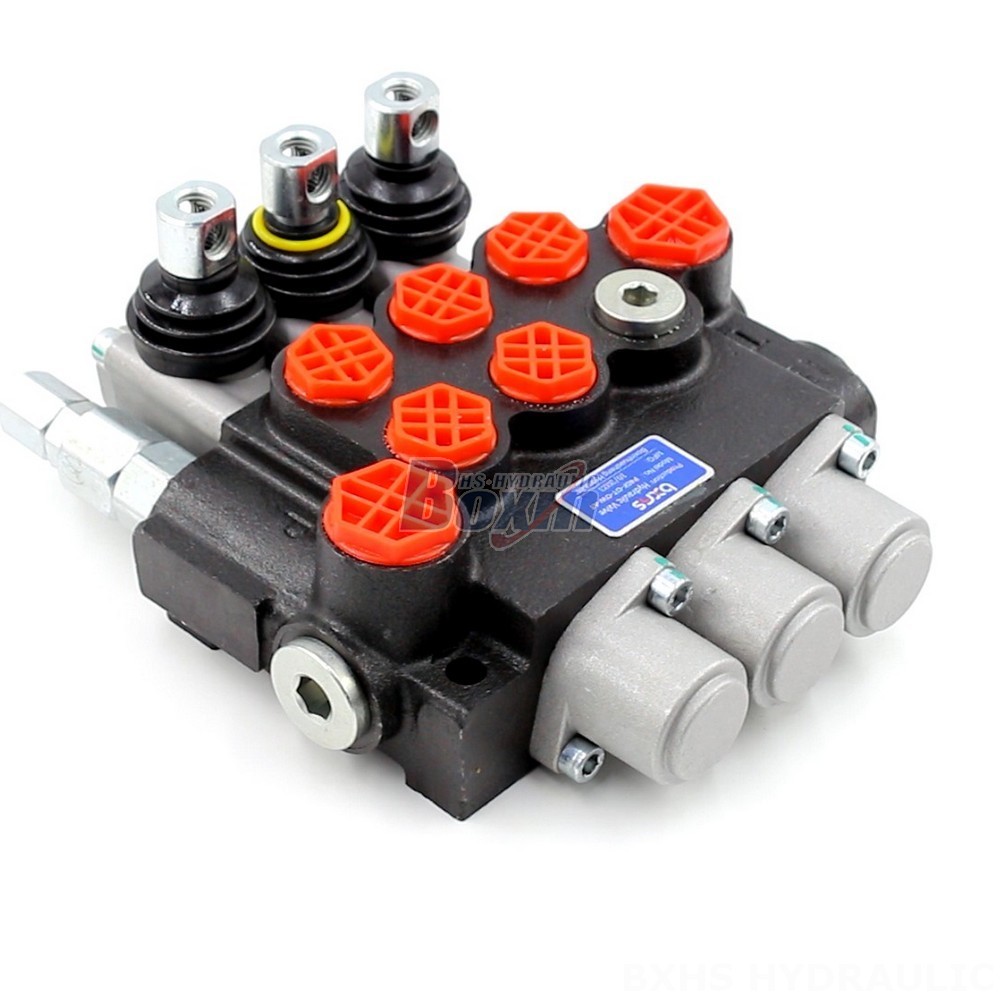

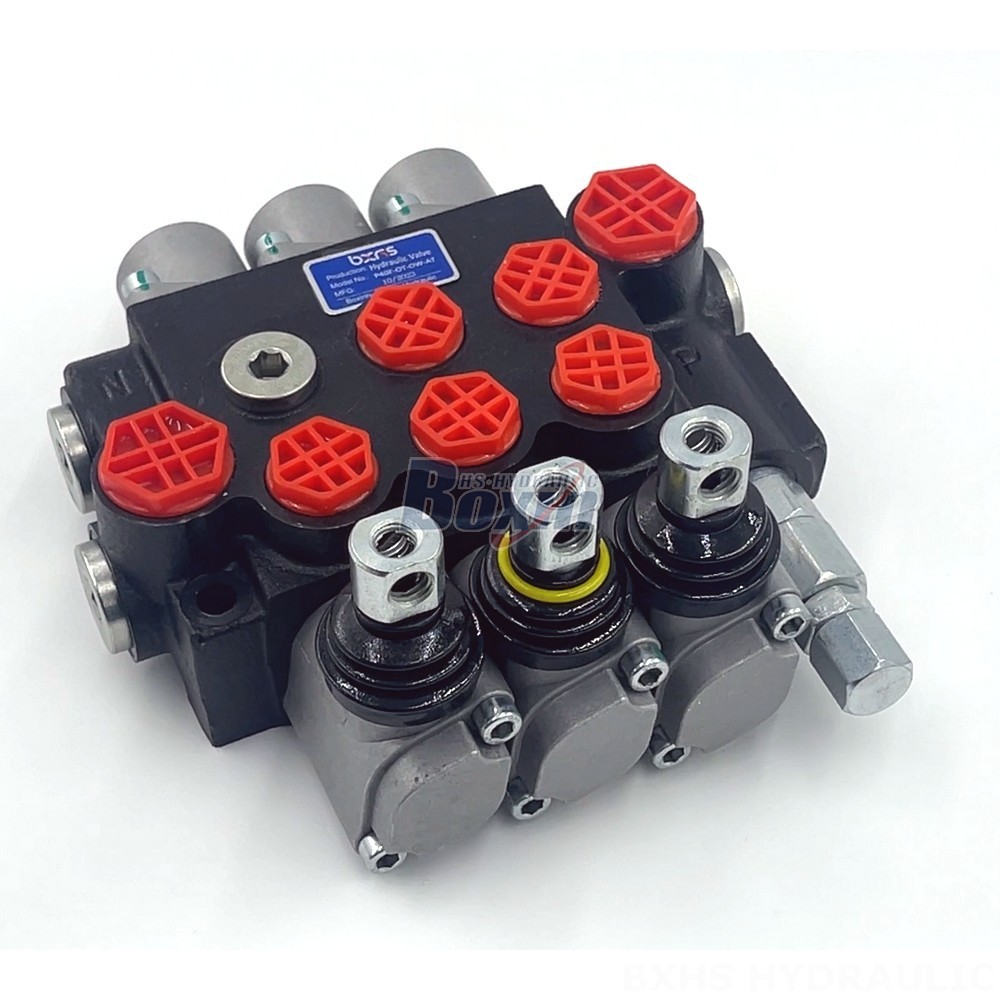

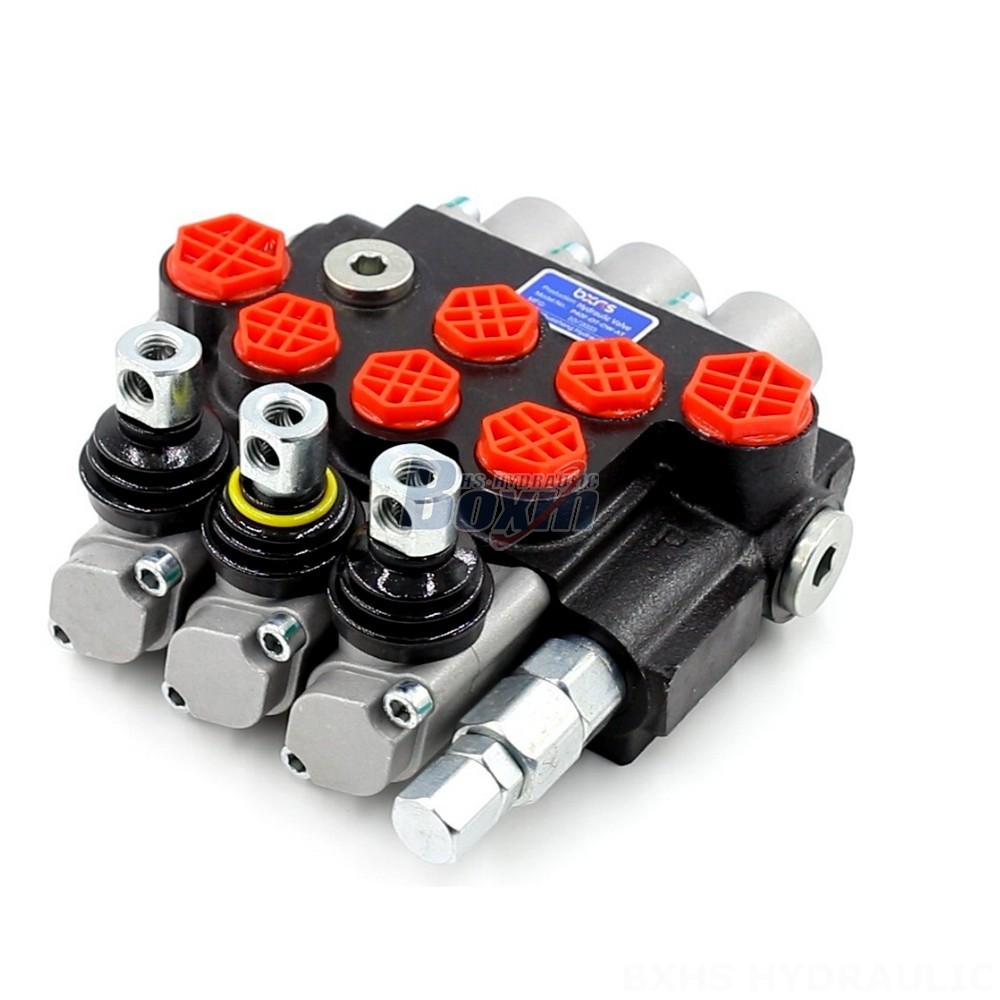

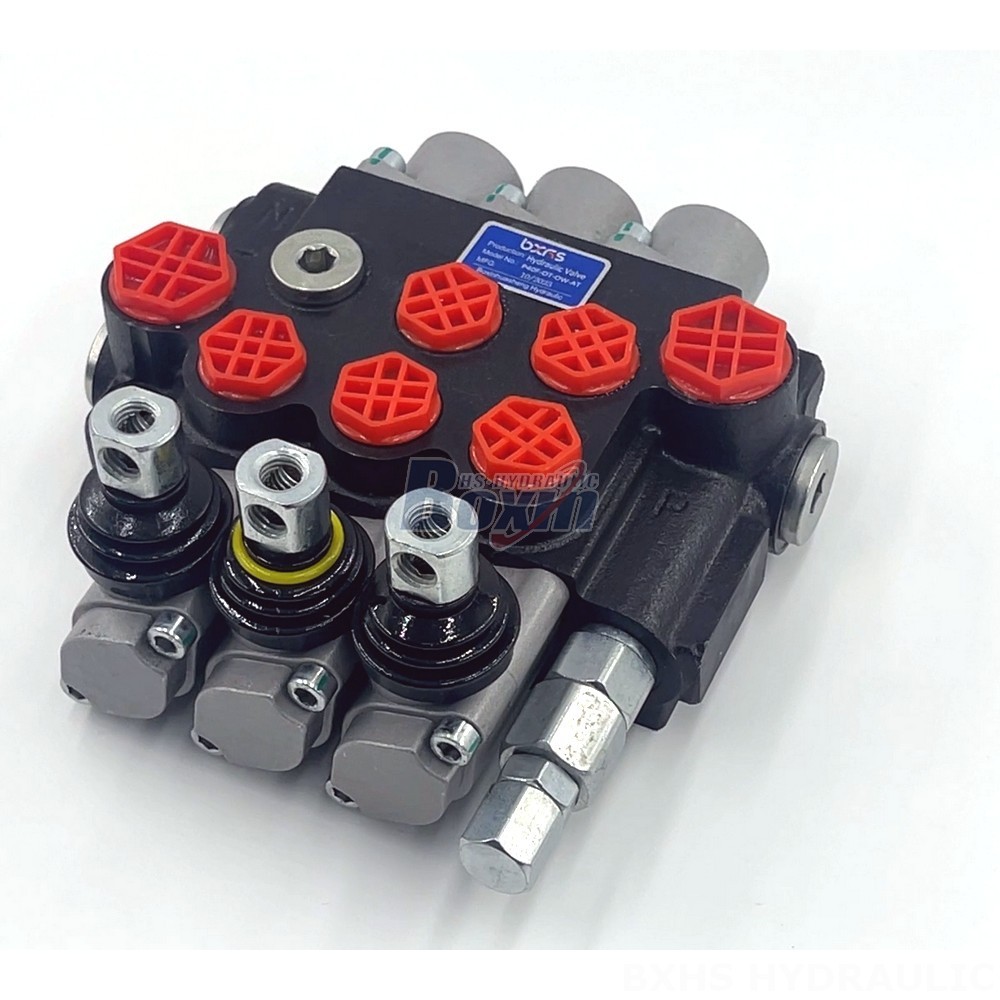

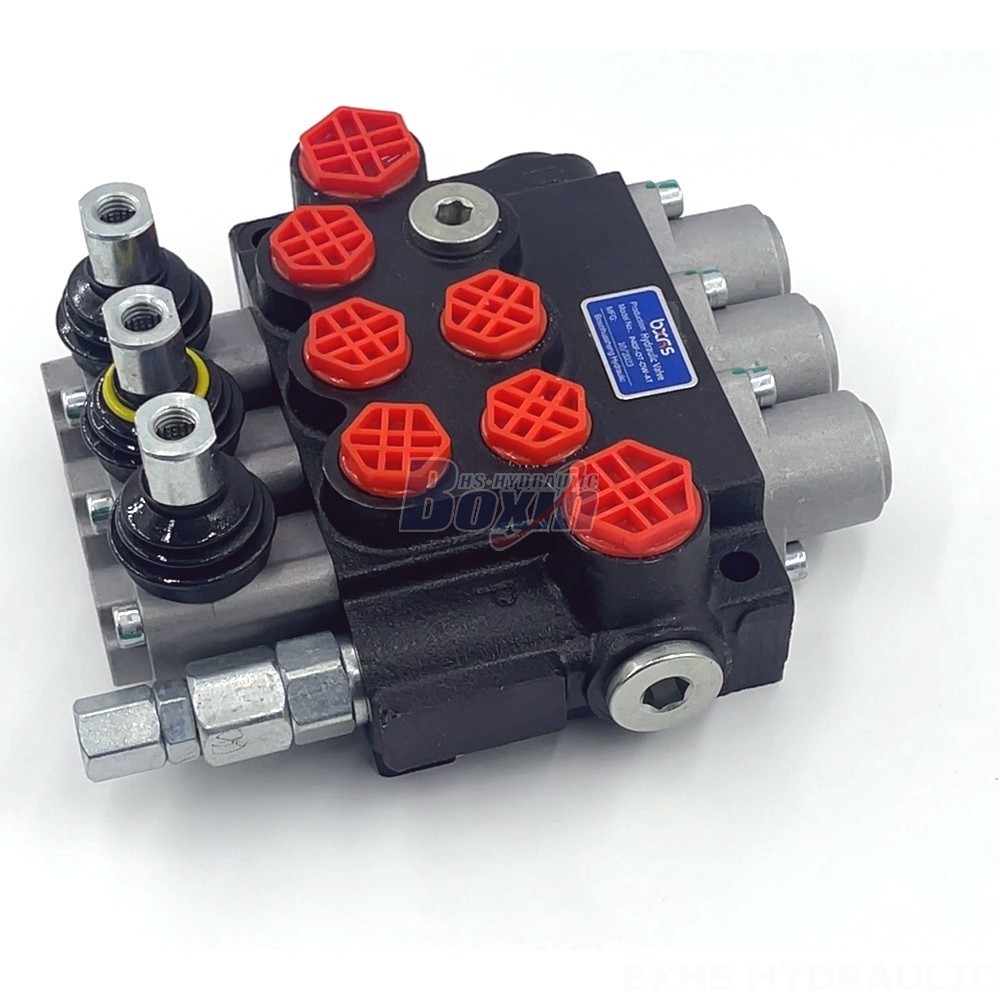

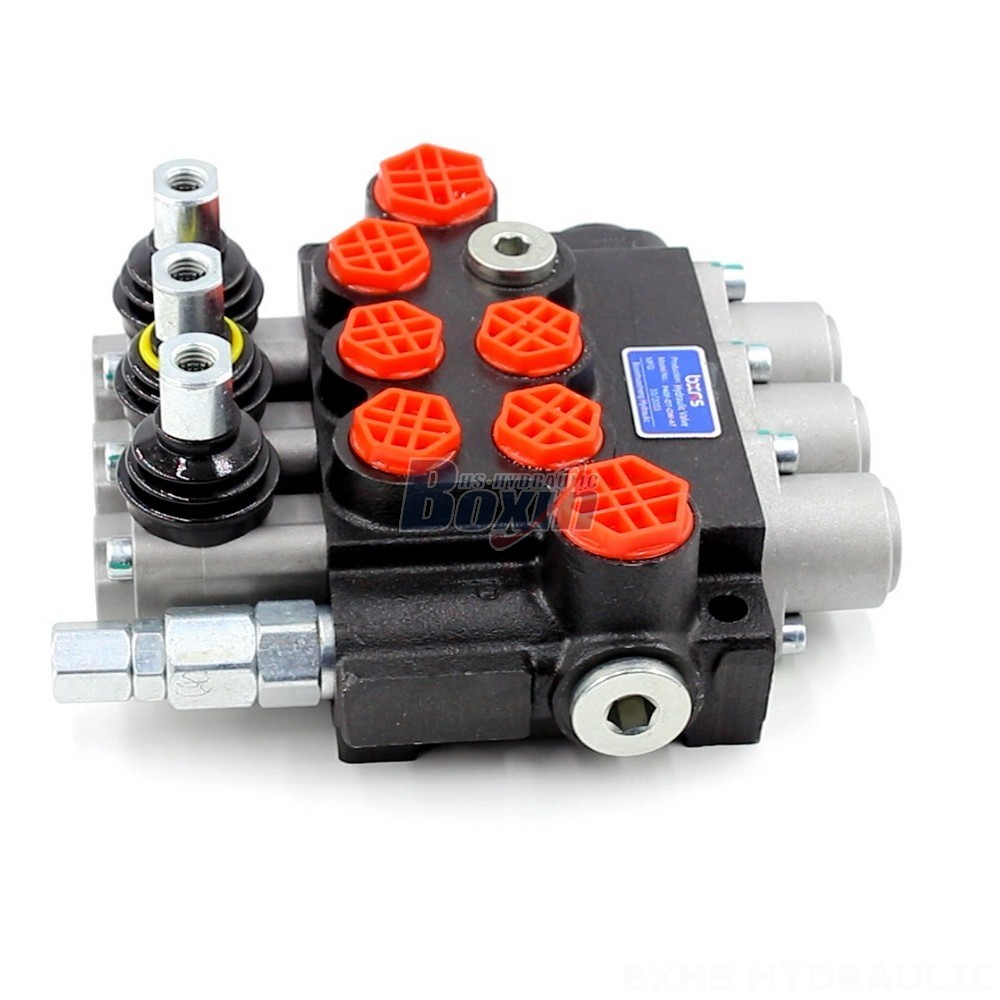

Tractor Front End Loader Hydraulic Control Valve Hydraulic Control Valve

控制方式:手控

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*20*12

Grossweight:6.60 kg

库存: 有货

1037 次查看了此产品

Tractor Front End Loader Hydraulic Control Valve Hydraulic Control Valve

Tractor Front End Loader Hydraulic Control Valve Hydraulic Control Valve

Tractor Front End Loader Hydraulic Control Valve Hydraulic Control Valve drawing image

This hydraulic control valve is designed for use in tractor front end loaders and other material handling, construction, and agricultural equipment. It features a 3-section monoblock design with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is suitable for a variety of applications, including telehandlers, forklifts, all terrain cranes, and more.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

This high-quality hydraulic control valve is specifically designed for tractor front end loader applications. It features a 3-section monoblock valve construction, providing a compact and reliable solution for controlling hydraulic functions. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers robust performance for demanding operations. The valve is manually controlled, allowing for precise and intuitive operation. This P40 Series valve is suitable for a wide range of equipment used in material handling, construction, earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
