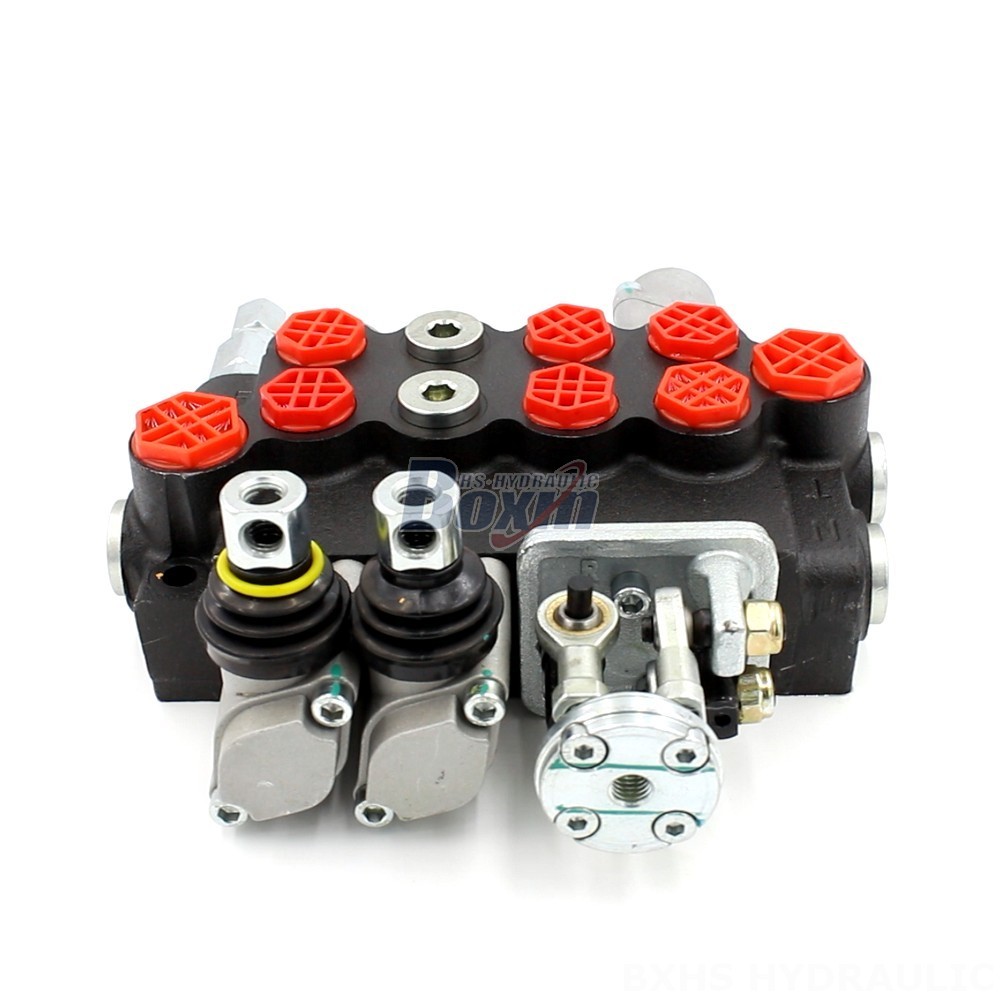

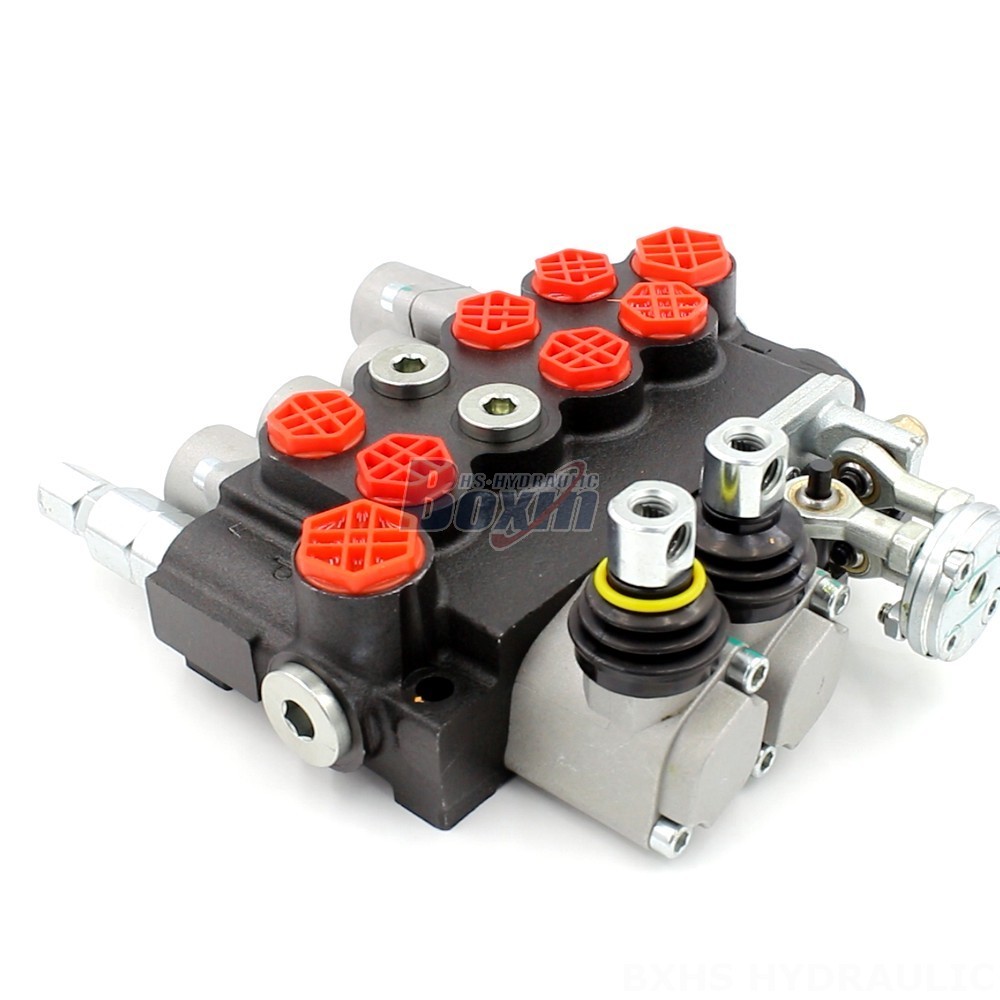

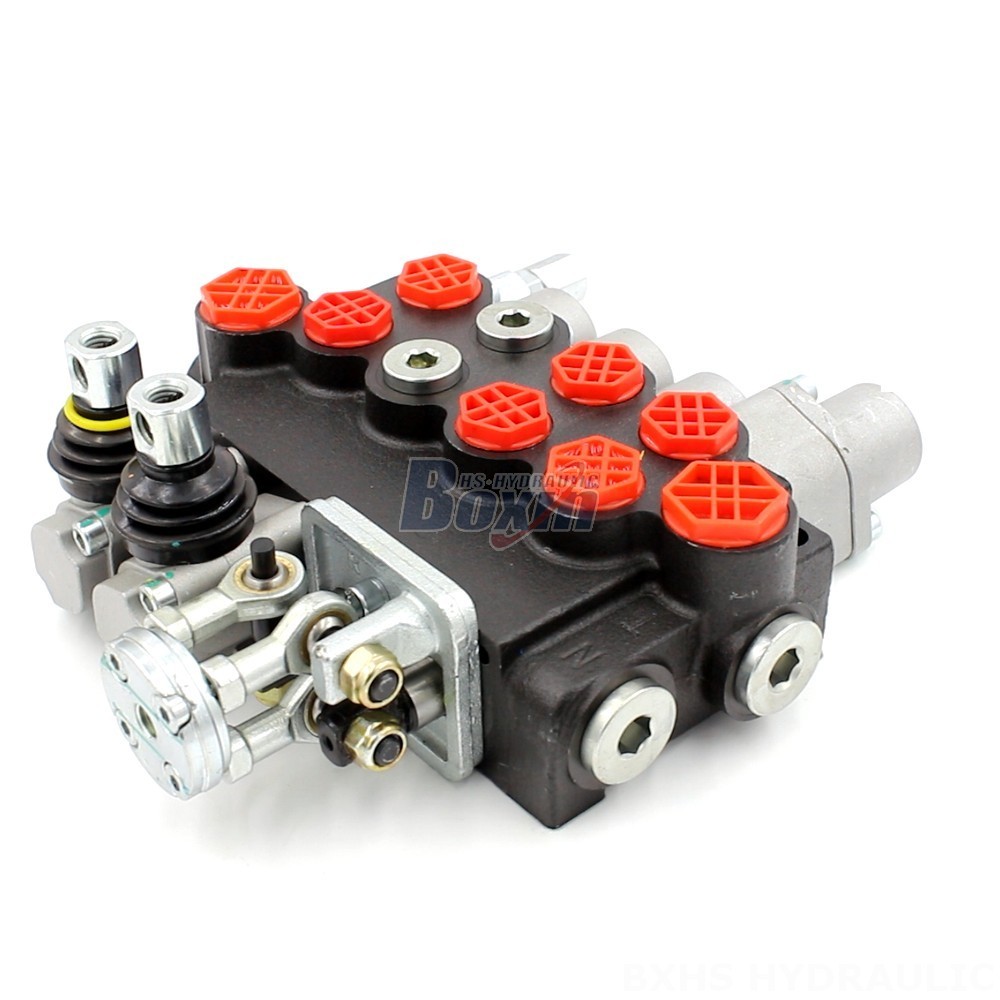

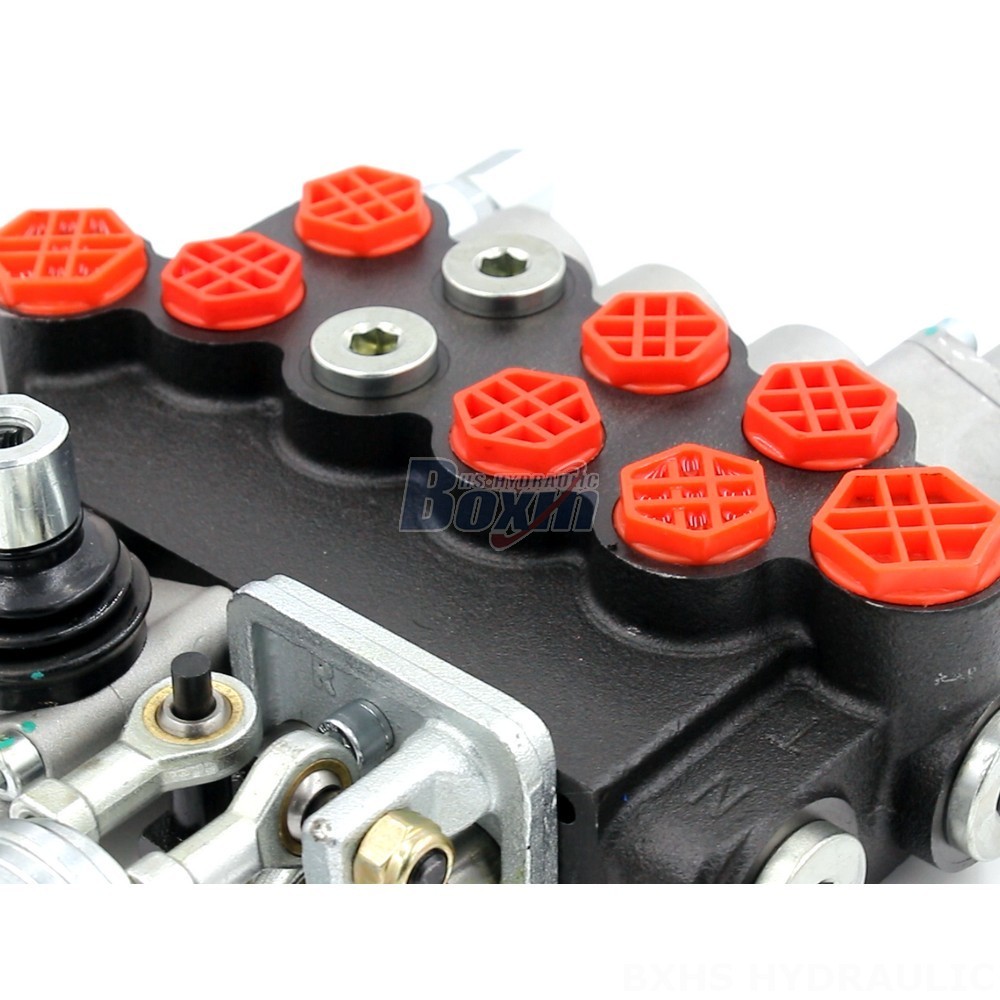

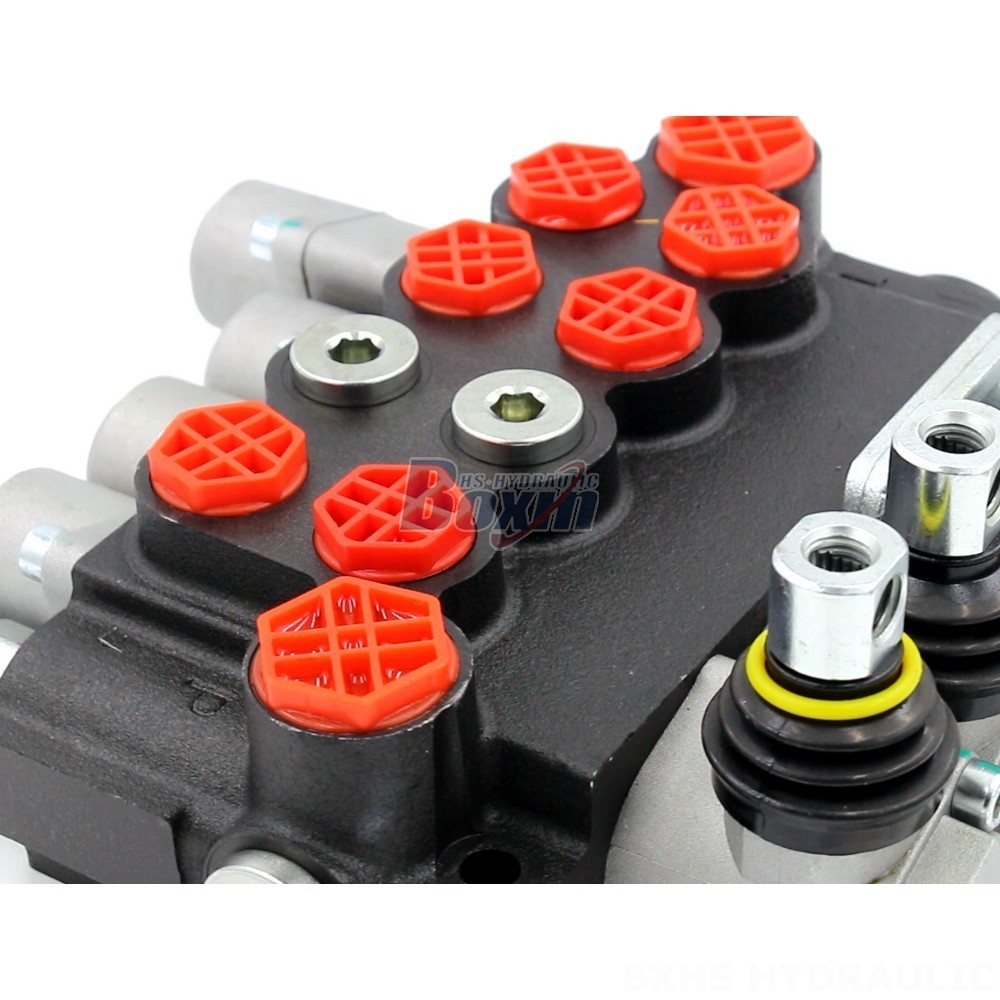

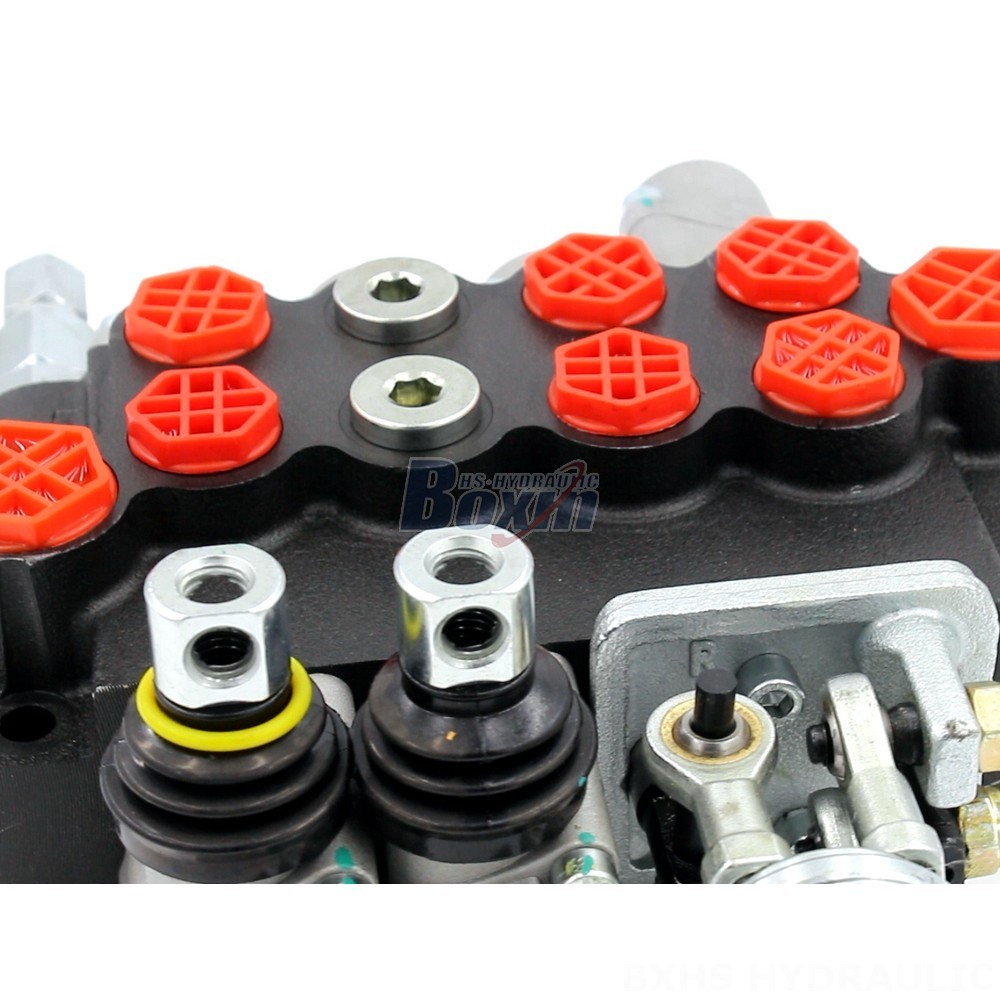

Hydropneumatic Distributor Hydraulic Control Valve | P40 Series | Trusted by Global Industries

控制方式:手控+一控二

路数:4 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:23*24*13

Grossweight:8.50 kg

库存: 有货

1123 次查看了此产品

Hydropneumatic Distributor Hydraulic Control Valve | P40 Series | Trusted by Global Industries

Hydropneumatic Distributor Hydraulic Control Valve | P40 Series | Trusted by Global Industries

Hydropneumatic Distributor Hydraulic Control Valve | P40 Series | Trusted by Global Industries drawing image

The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a reliable and durable solution for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This 4-section monoblock valve offers manual and joystick control, a rated flow of 40 L/min, and a maximum pressure of 250 bar. It is suitable for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a high-performance valve designed for demanding applications. It features a robust monoblock construction, 4 sections, and a rated flow of 40 L/min. The valve is available with both manual and joystick control options, providing users with flexibility and ease of operation. Its maximum pressure rating of 250 bar ensures reliable performance in heavy-duty environments. The P40 Series valve is suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators. It is designed to withstand temperatures ranging from -40°C to +80°C, making it suitable for various climates and operating conditions. The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a reliable and durable solution that meets the needs of global industries.
