HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type

控制方式:手控

路数:1 联

额定流量:90 L/min (23.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1接口

出油口:G1接口

接口尺寸:G1接口

品牌:BXHS

所属类别:分流阀

产品系列:HSJLZF系列 分流阀

Packagingsize:22*14*11

Grossweight:7.20 kg

库存: 有货

16 次查看了此产品

HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type

HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type

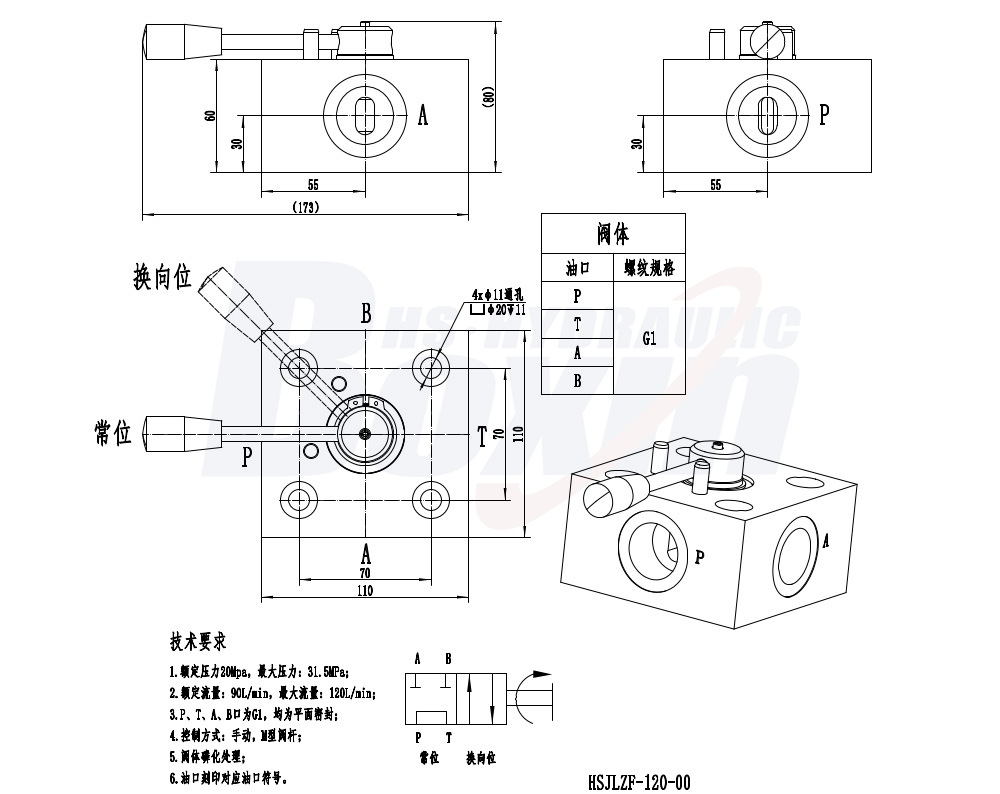

HSJLZF-120 Series Monoblock Directional Control Valve 1 Spool Manual Type drawing image

The HSJLZF-120 Series is a high-performance 1-spool manual monoblock directional control valve designed for heavy-duty applications. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this G1-ported valve provides precise fluid control for construction, agriculture, and industrial machinery.

HSJLZF系列 分流阀 参数
控制方式 手控
路数 1 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 90 L/min (23.8 US gpm)
最大压力 200 bar (2900 psi)
进油口 G1接口
出油口 G1接口
接口尺寸 G1接口

As a leading manufacturer of hydraulic solutions, we offer the HSJLZF-120 Series Monoblock Directional Control Valve, engineered for demanding environments. This 1-spool manual valve supports a high flow rate of 120 L/min (31.7 US gpm) and handles operating pressures up to 315 bar (4600 psi). It features G1 inlet and outlet ports, making it suitable for a wide range of machinery including mini-excavators, telehandlers, forklifts, and tractors. We provide comprehensive manufacturing services including OEM, ODM, and custom branding tailored to your technical requirements. Our factory-direct supply ensures competitive wholesale pricing for large-scale orders. We are actively seeking global partners, including distributors, wholesalers, agents, and traders to expand our international market presence. Whether you need reliable components for wood splitters, loaders, or sweepers, our factory provides stable supply and professional technical support to grow your business.
