The HSDVG32 Electric Proportional Control Valve is a high-performance valve designed for use in a variety of industrial applications. With a rated flow of 140 L/min and a maximum pressure of 315 bar, this valve is capable of handling a wide range of flow rates and pressures. The electric proportional control provides precise flow control, while the manual override allows for quick and easy adjustment. The valve is constructed from high-quality materials and is designed to withstand the harsh conditions of industrial use.
| HSDVG32系列 比例控制阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电液控, 电磁, 液控和手控, 软轴, 电比例, 电磁和手动, 电比例+手控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 分片阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 140 L/min (37 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G3/4接口 |
| 接口尺寸 | G1/2接口, G3/4接口 |

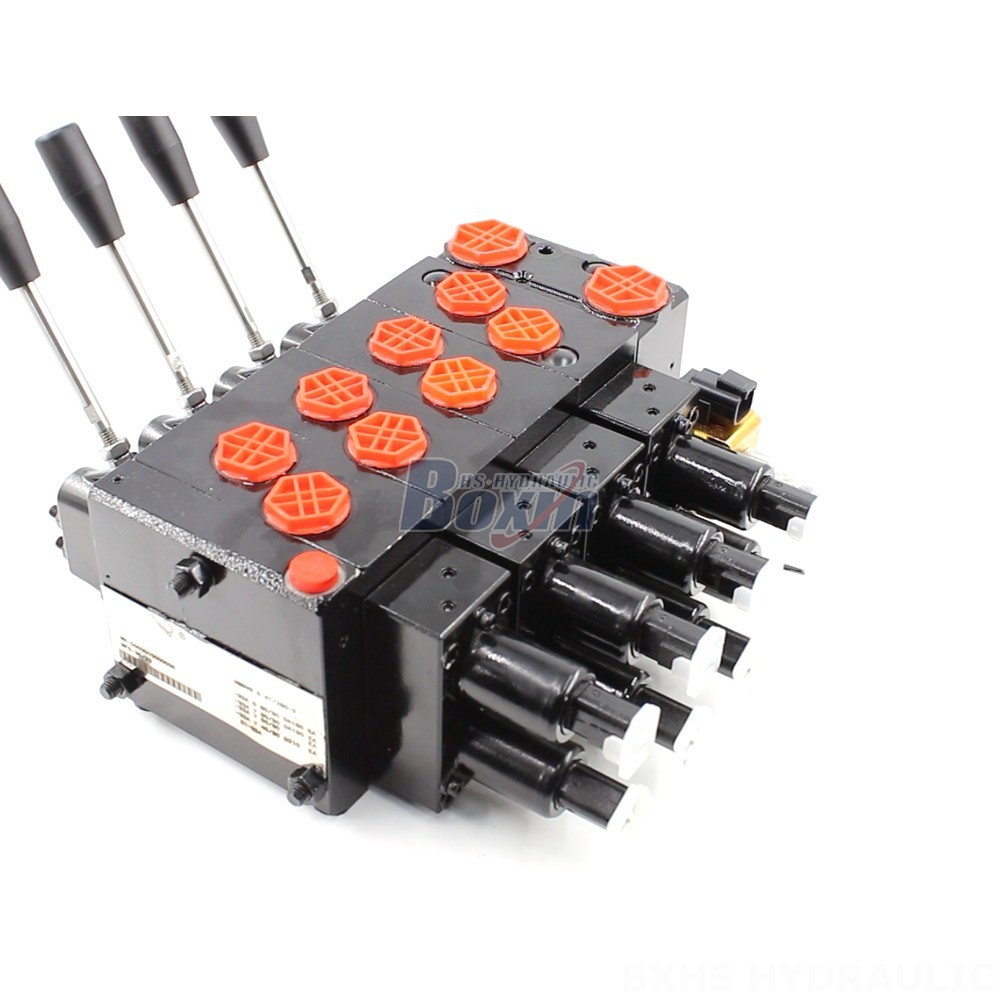

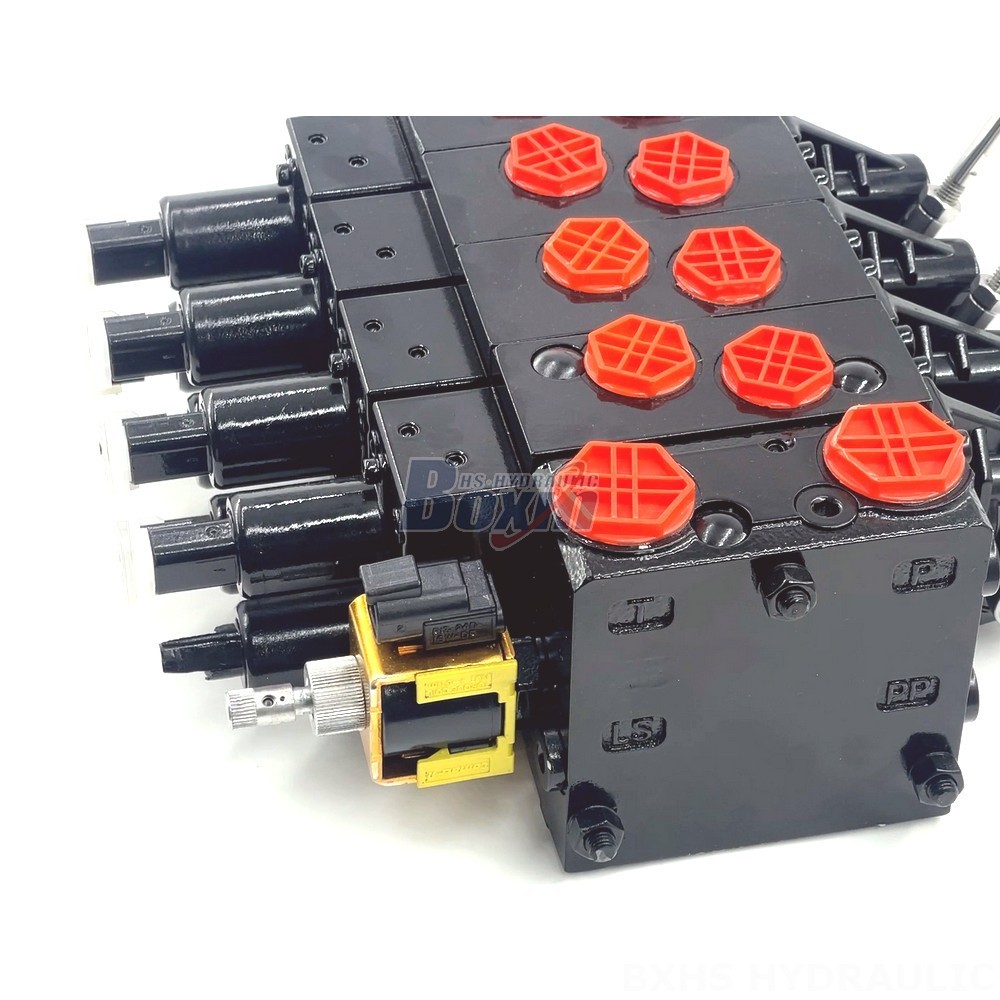

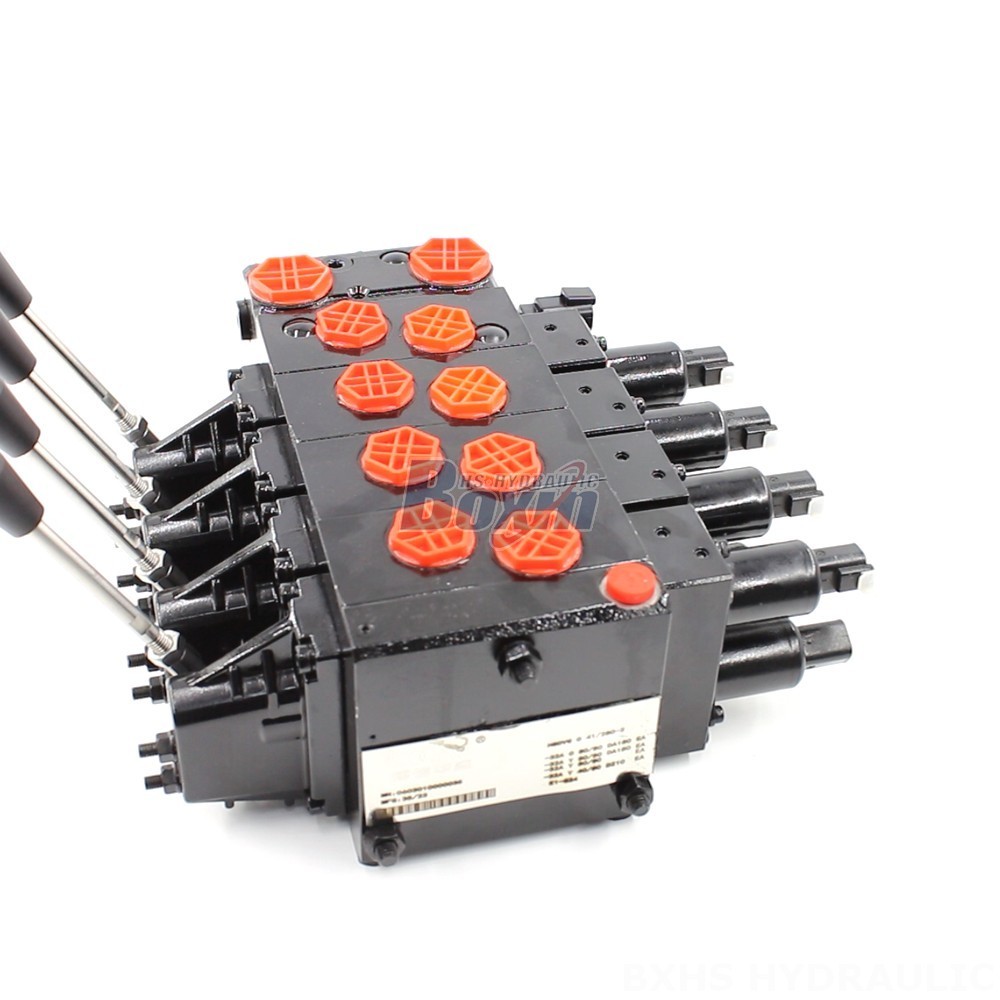

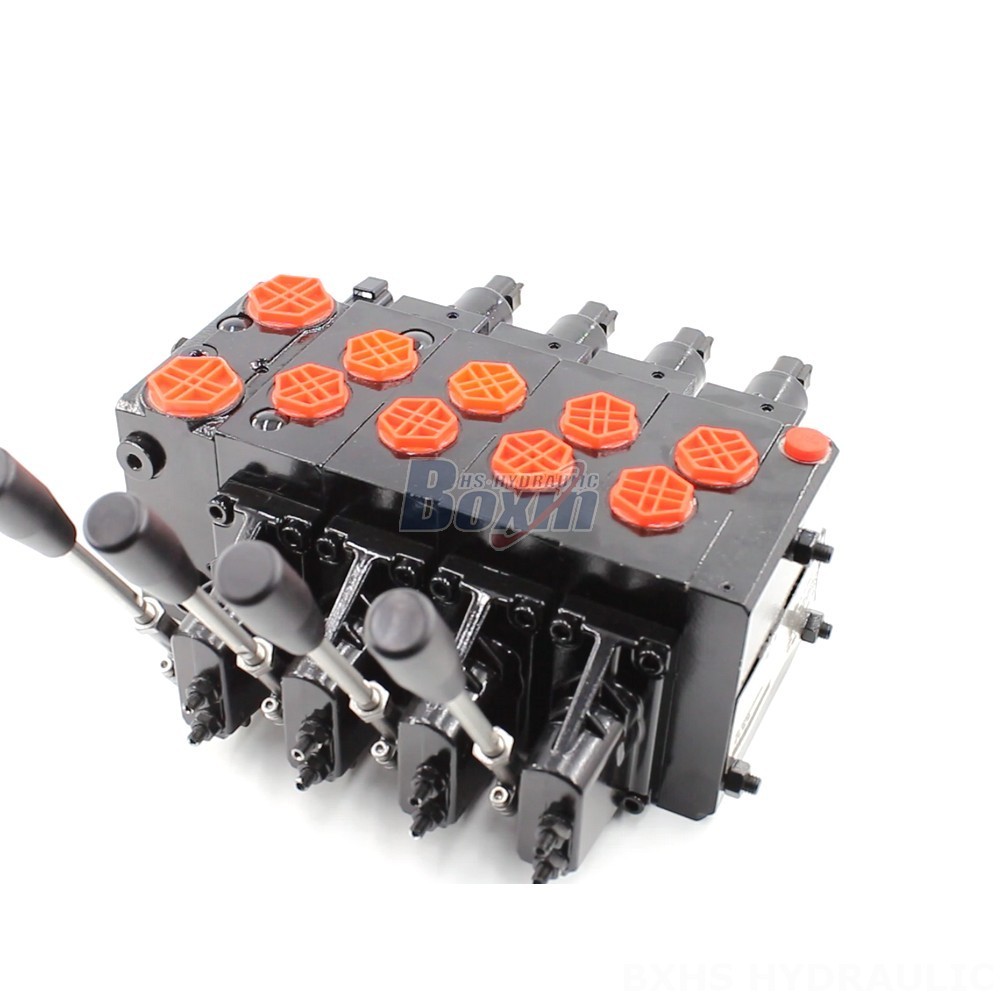

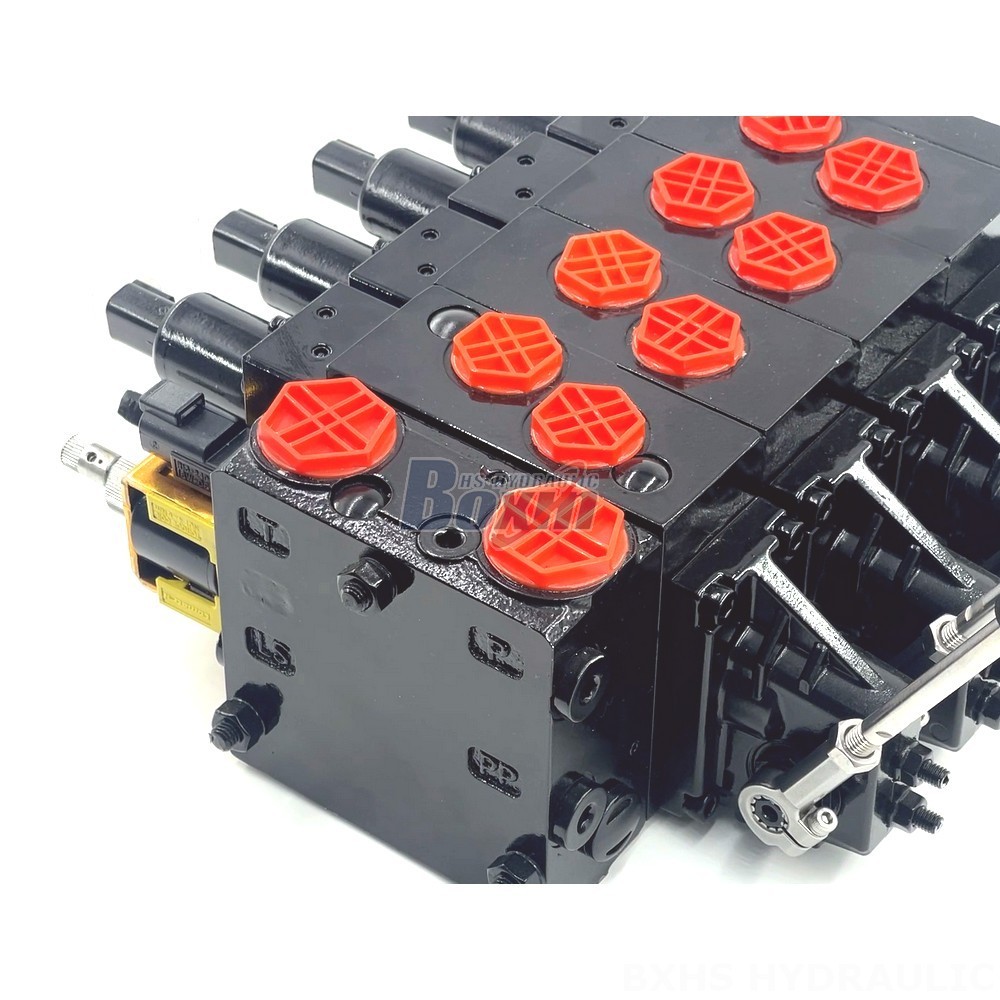

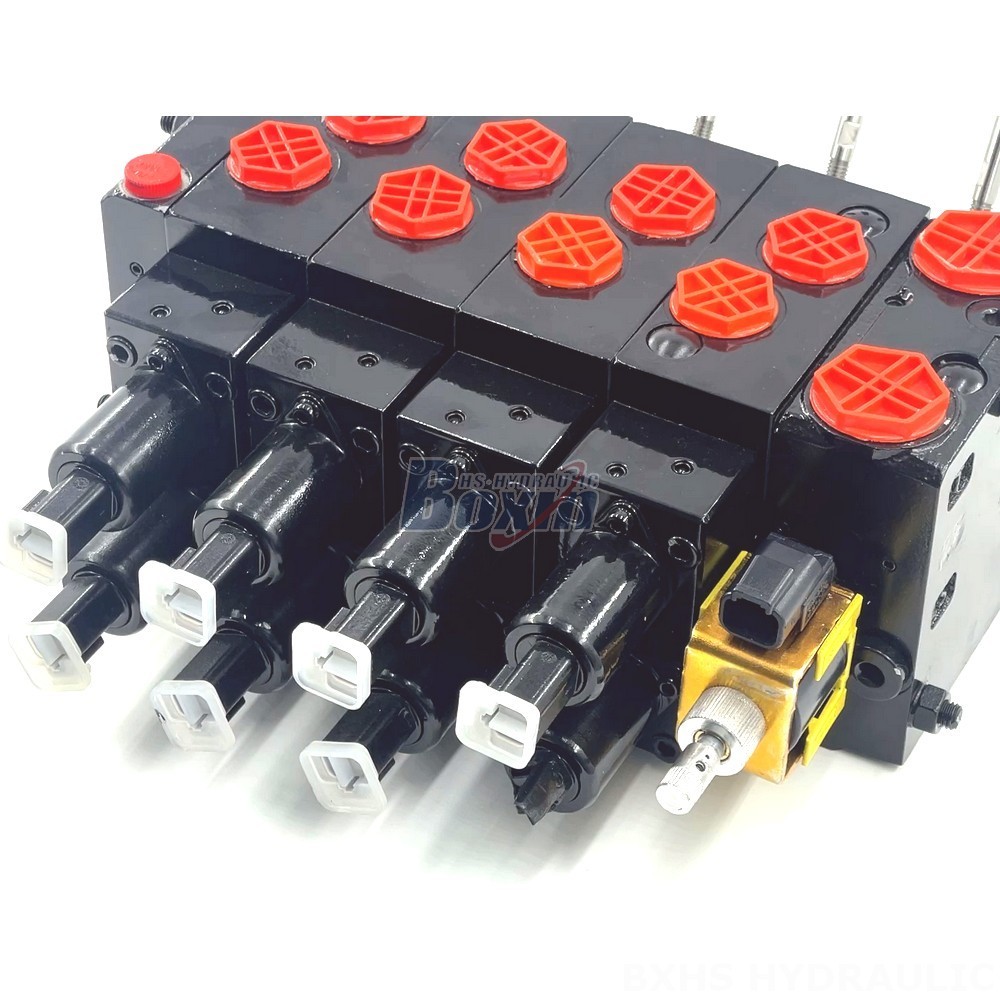

**Product Name:** HSDVG32 Electric Proportional Control Valve
**Control Method:** Electric proportional and Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 140 L/min (37 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** HSDVG32 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
