P40-DKL Series High-Performance Monoblock Valves are engineered for demanding industrial applications. These solenoid-controlled valves offer exceptional performance with a rated flow of 40 L/min and a maximum pressure of 250 bar. Their compact monoblock design and wide operating viscosity range (-15 cSt to 75 cSt) ensure versatility in various applications.
| P40-DKL系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

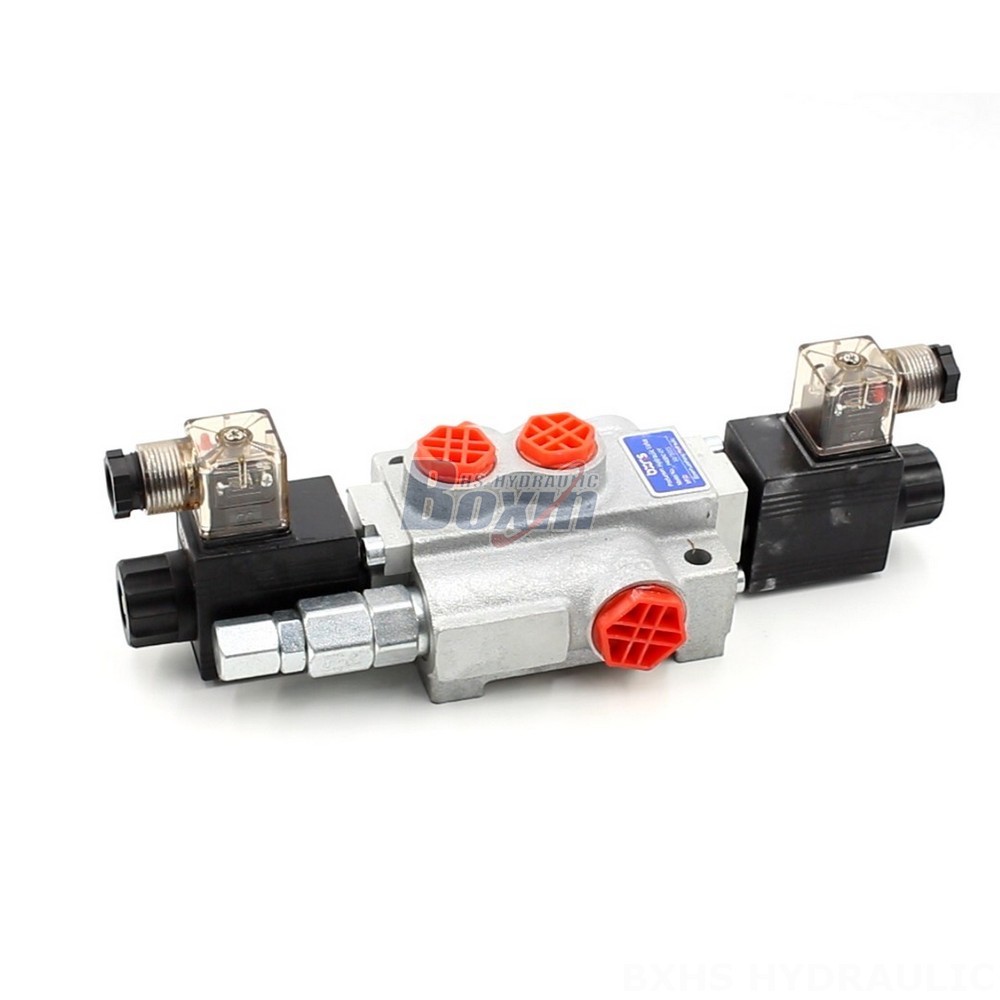

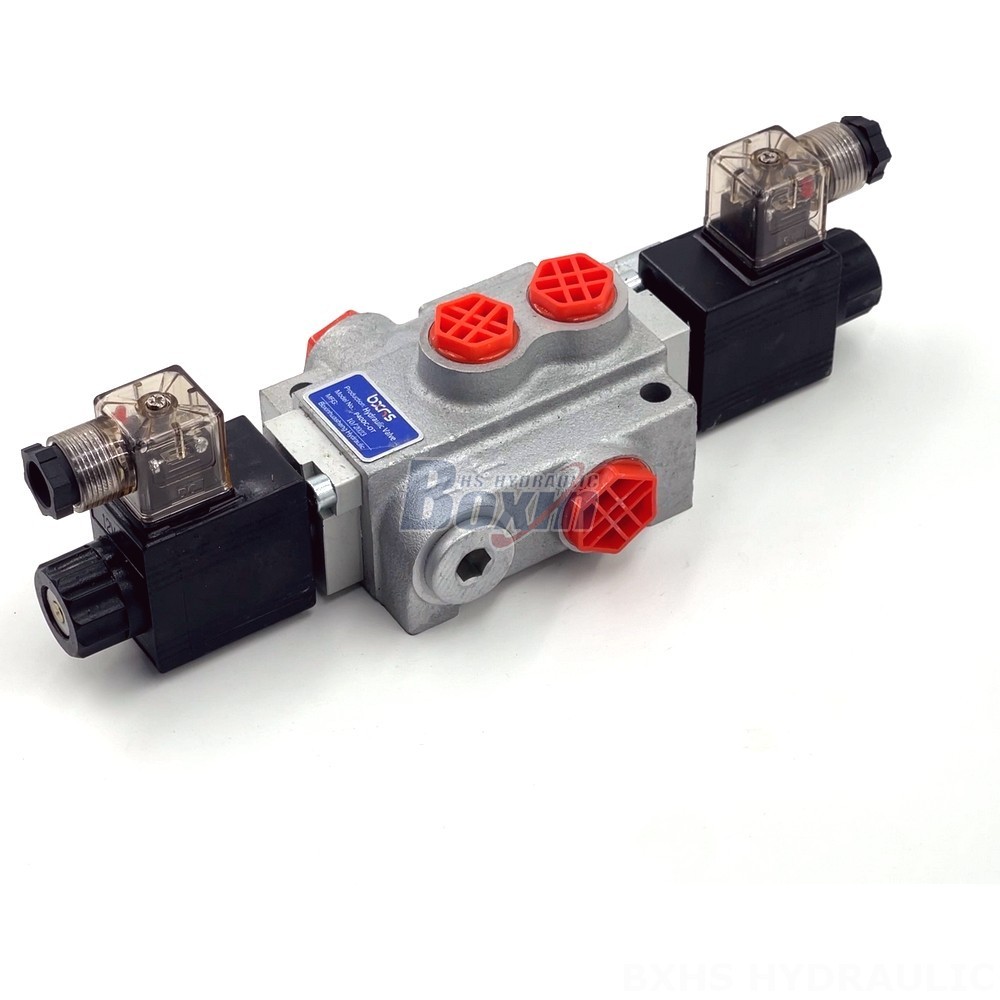

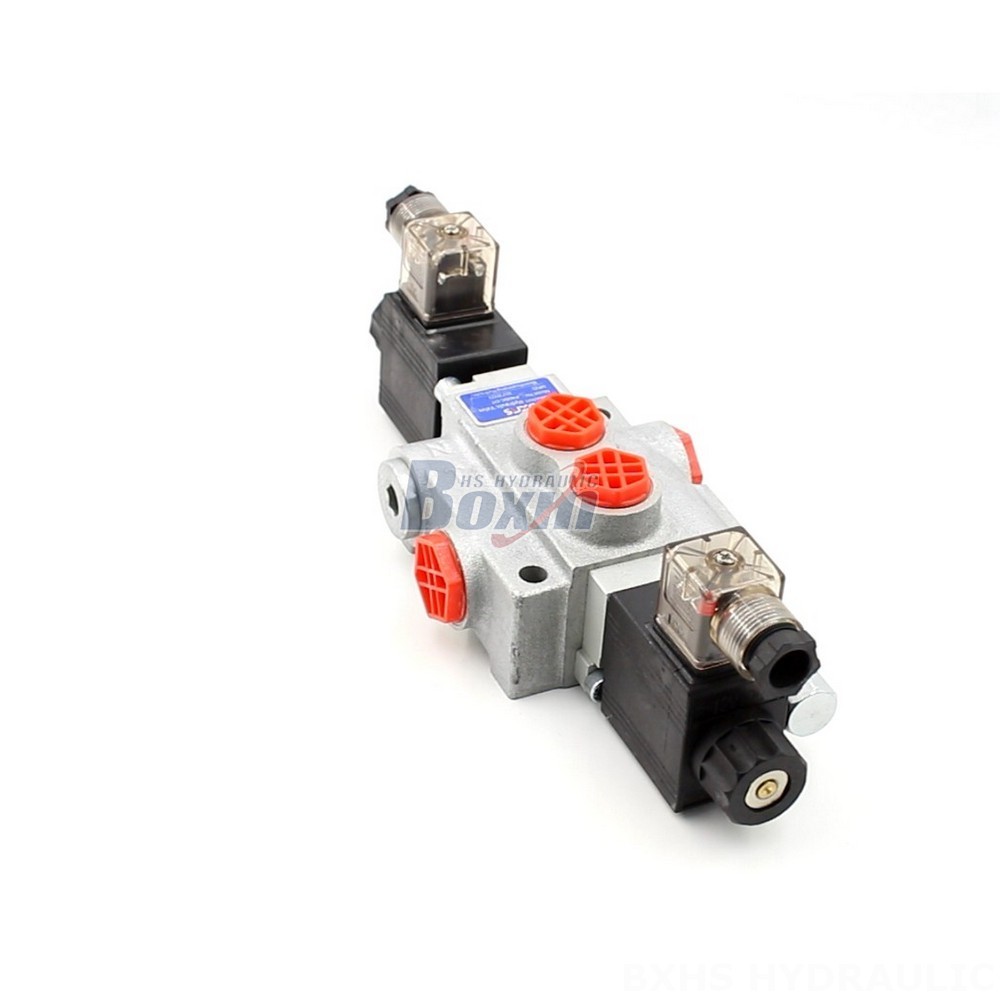

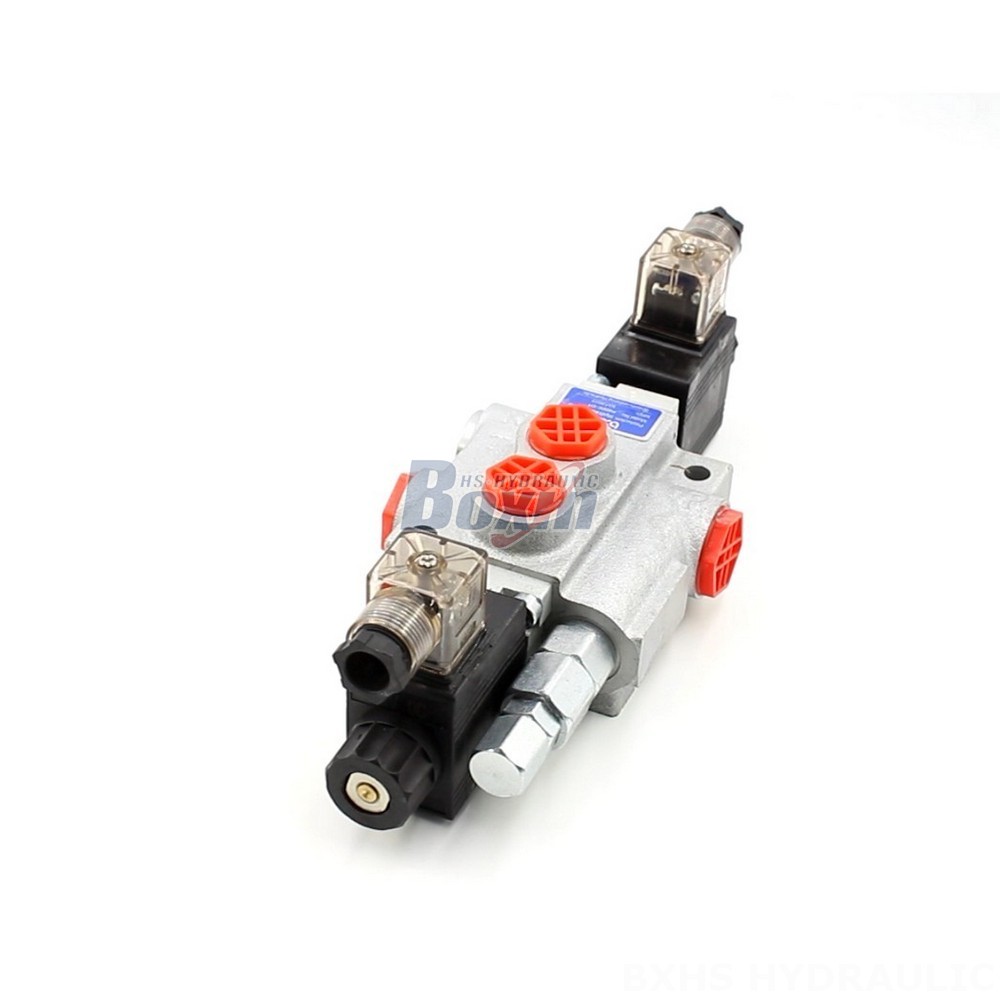

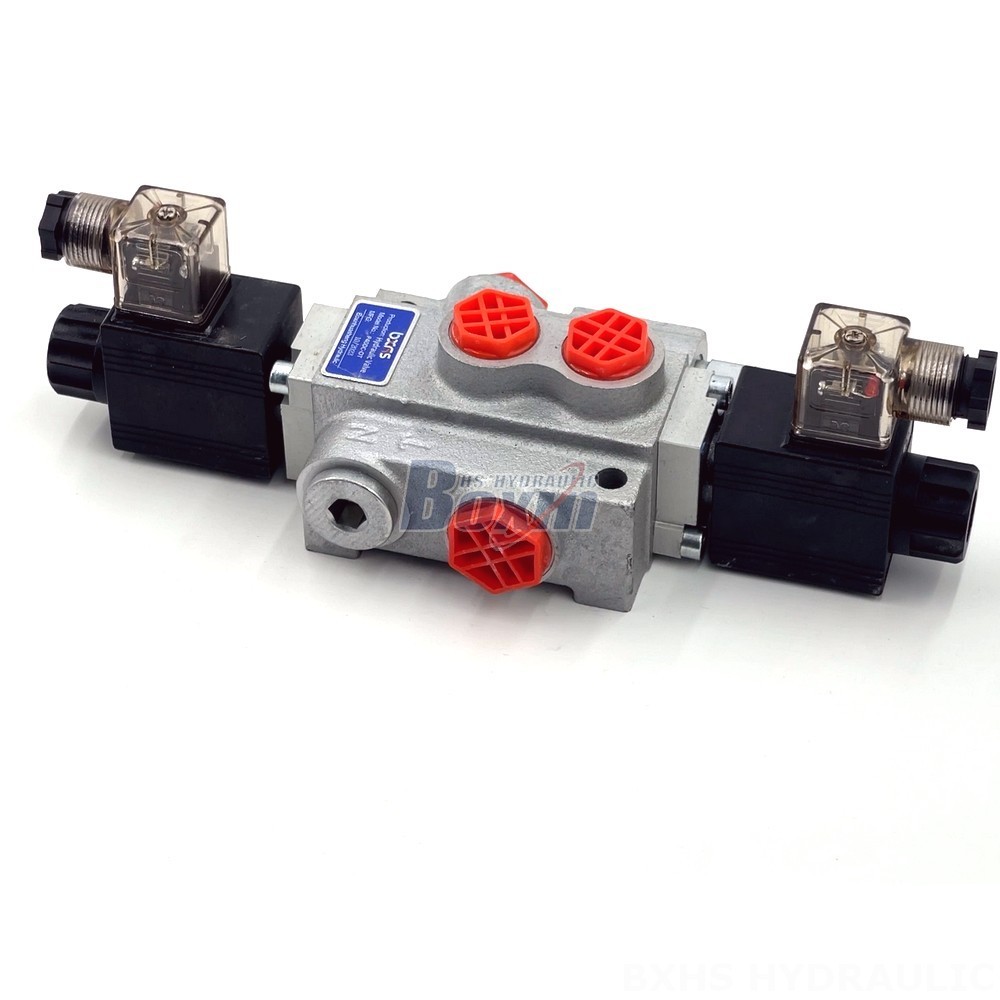

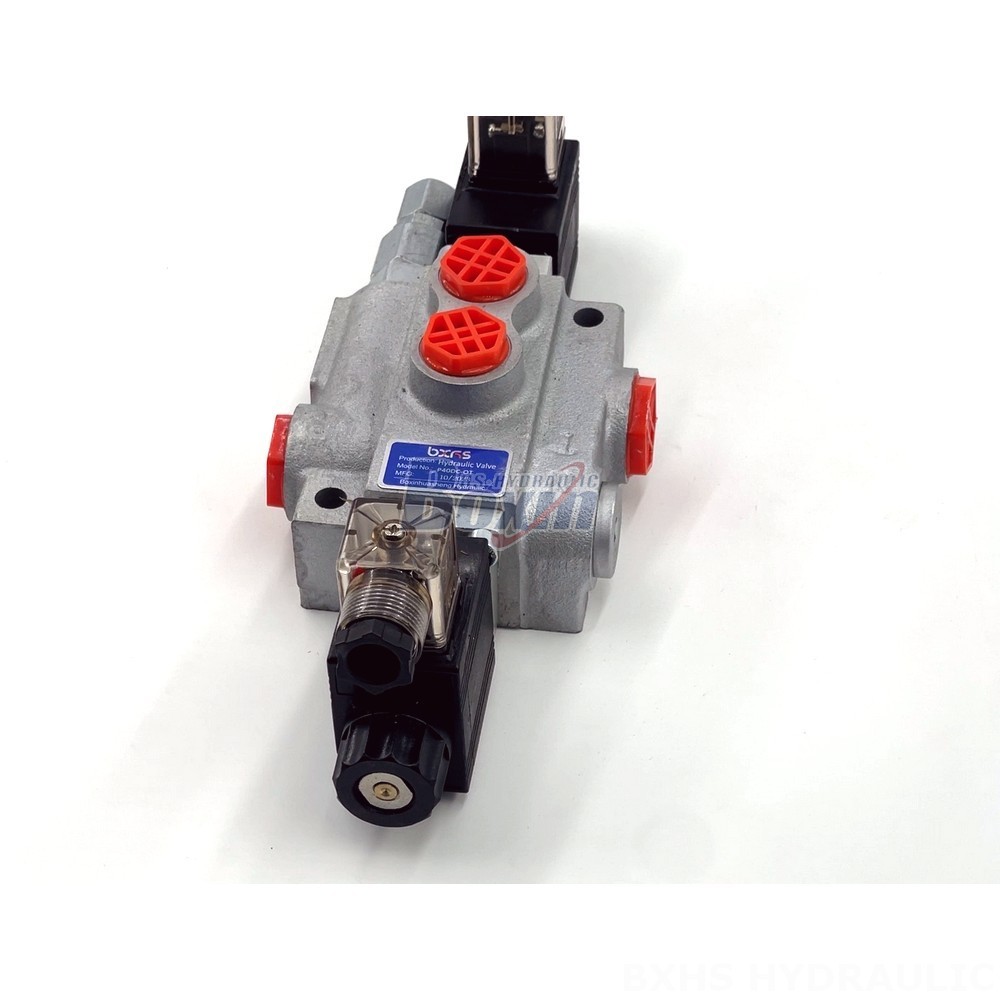

**P40-DKL Series High-Performance Monoblock Valves**
**Key Features:**
* Solenoid control for precise and reliable operation
* Monoblock structure for compact and robust design
* Rated flow of 40 L/min (10.5 US gpm) for efficient performance
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for versatility
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme conditions
* Single spool configuration for simple and effective control
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* TELEHANDLER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
* WHEEL LOADER
