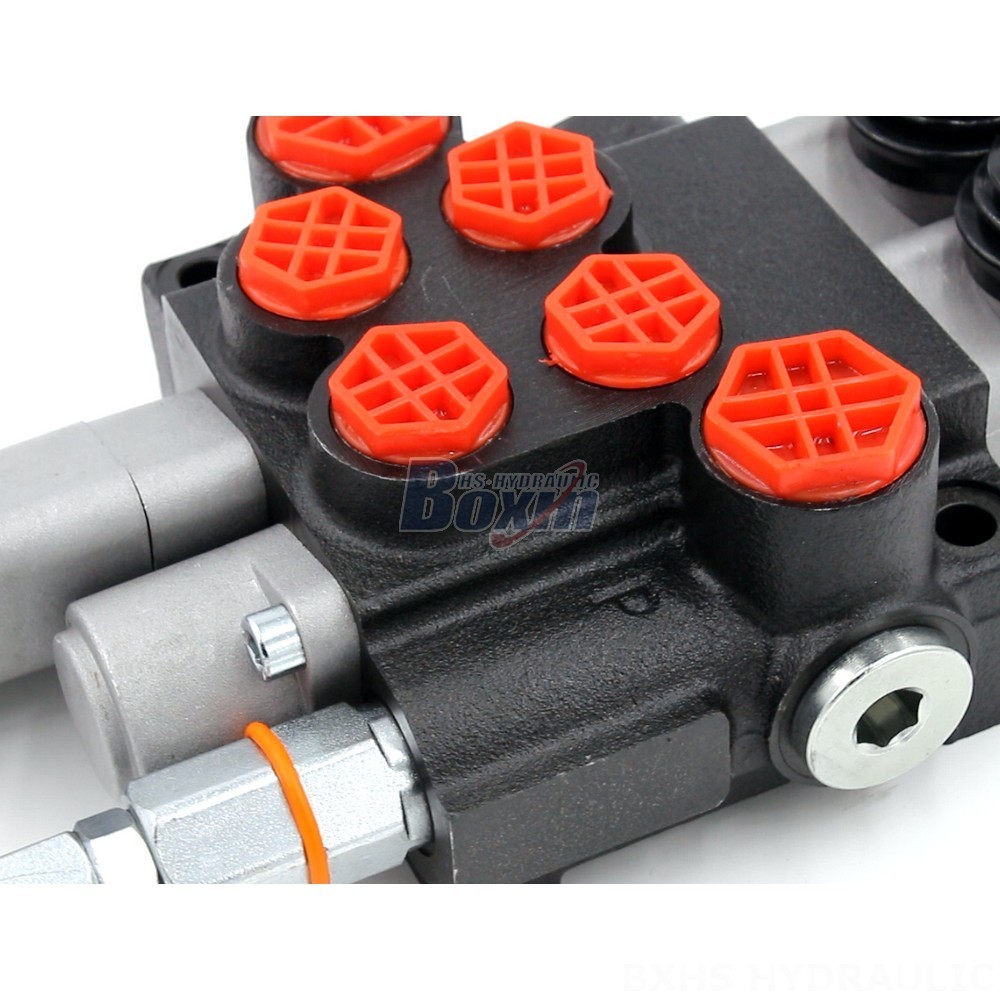

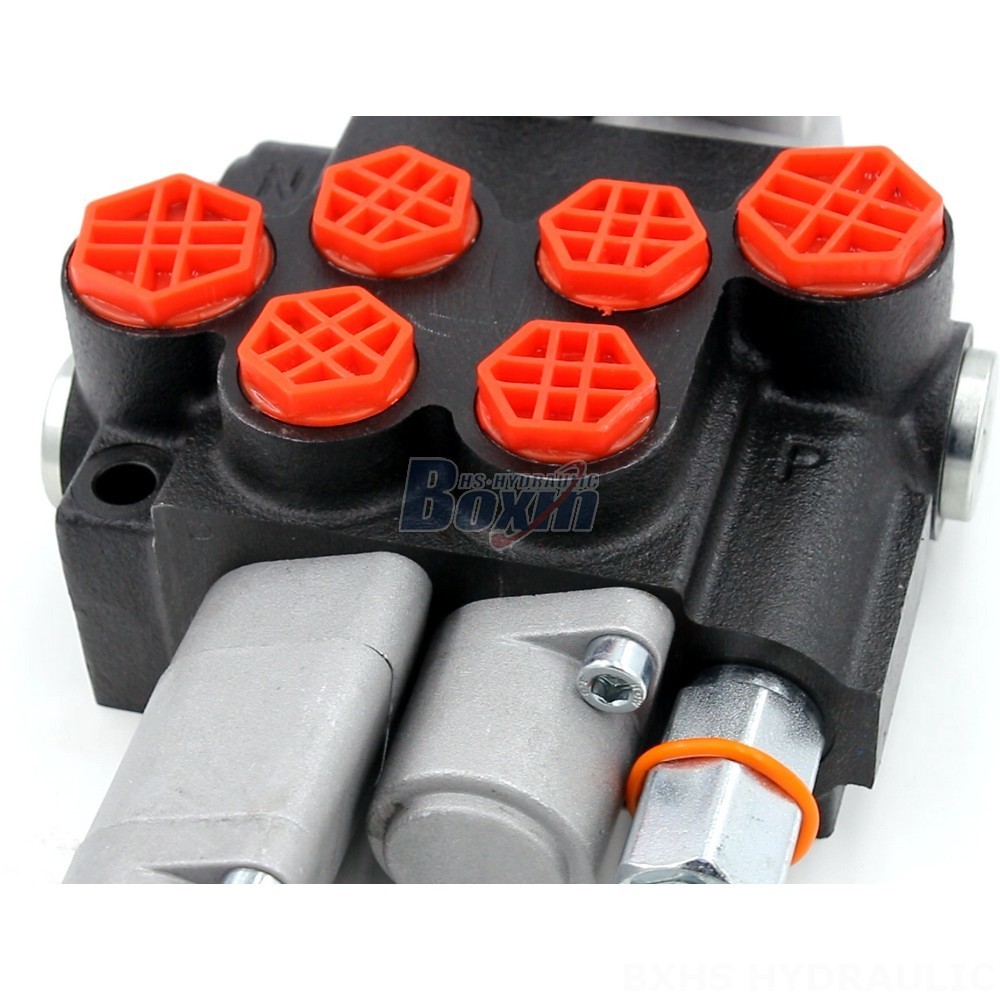

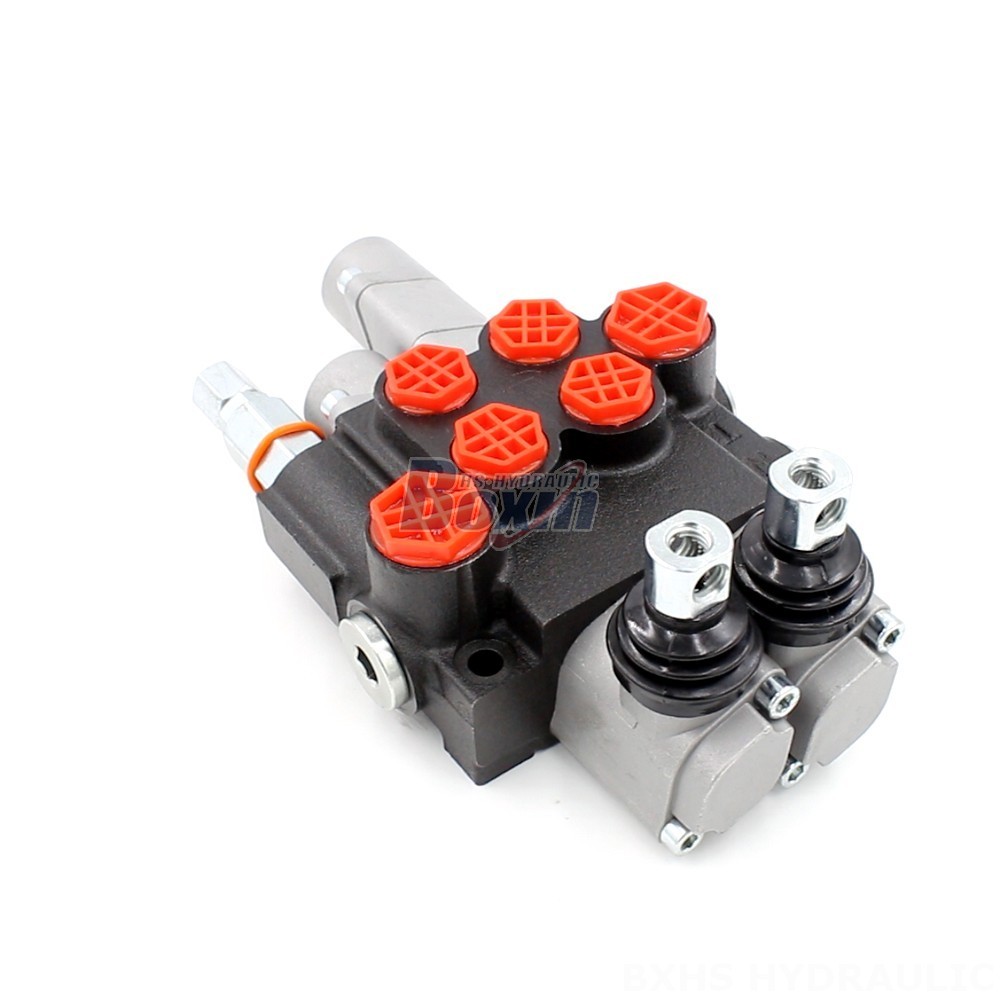

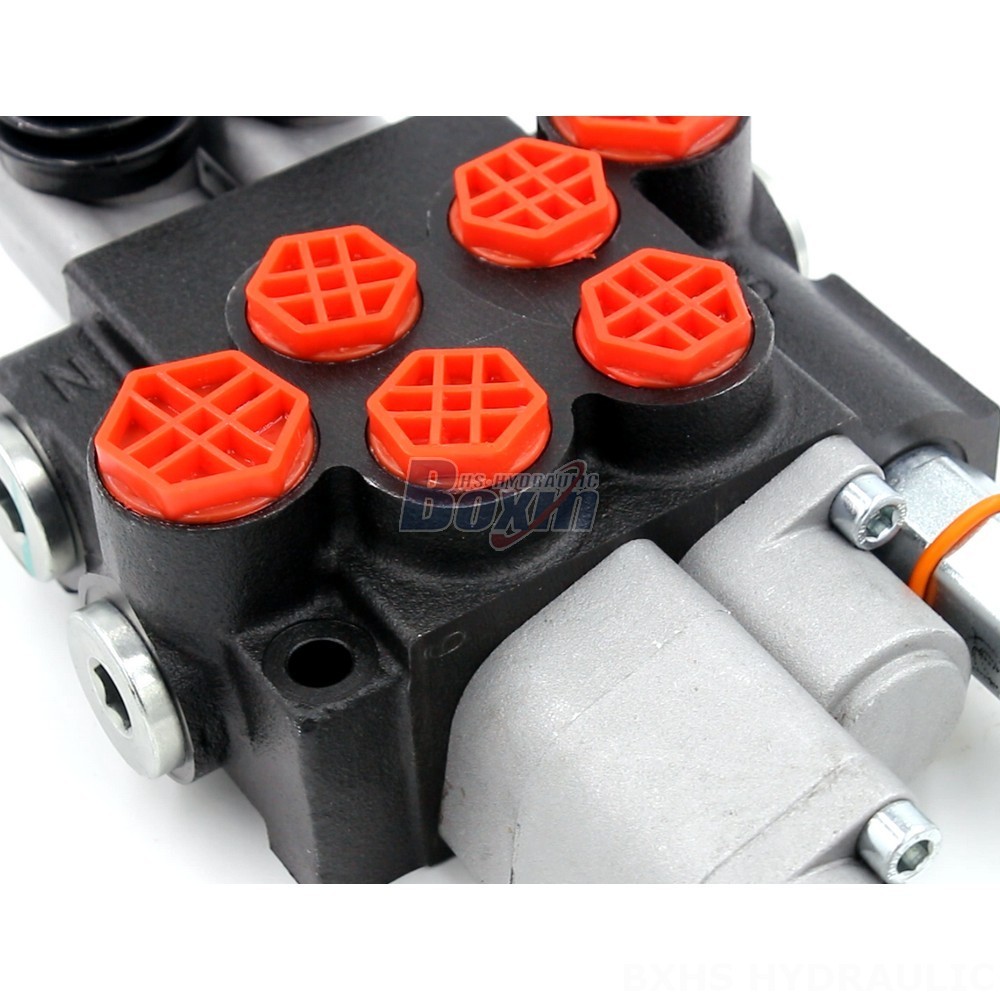

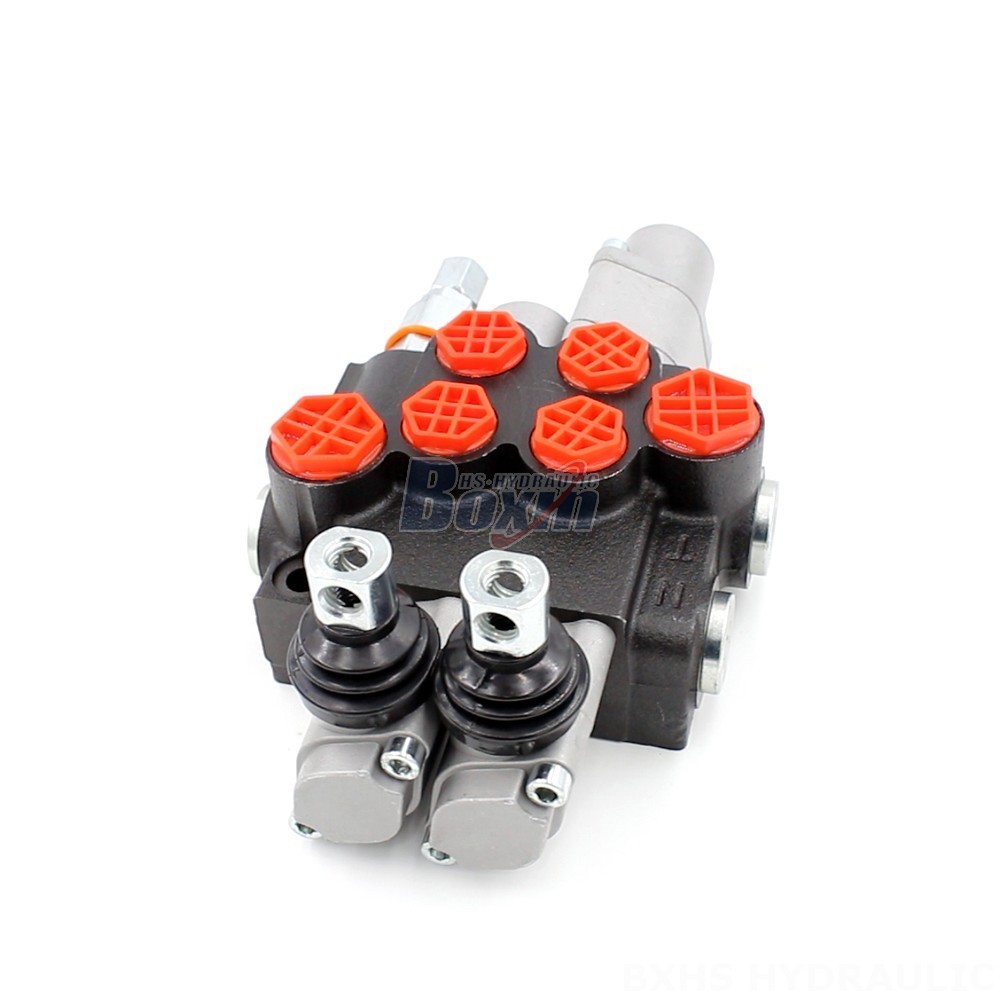

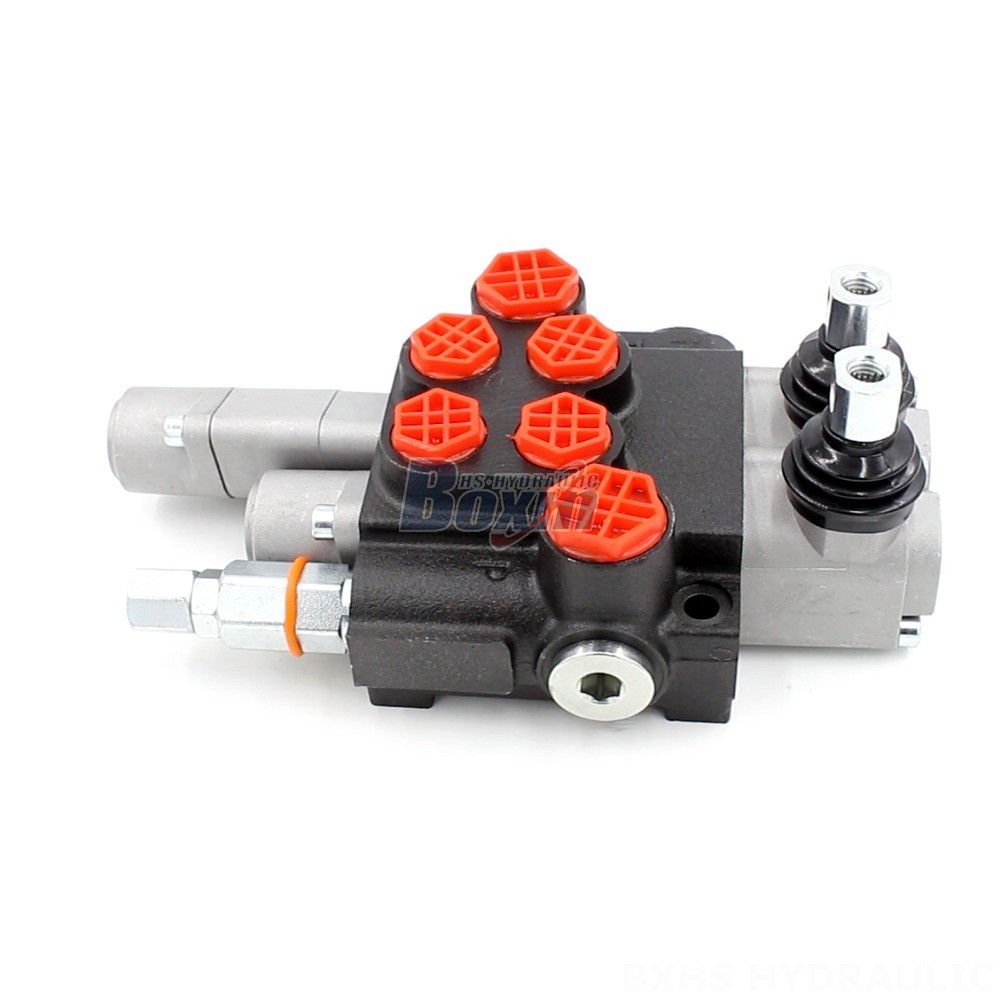

The P40-AQF-G38-G12 is a high-performance, 4-way hydraulic diverter valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual, 2-spool valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of machinery.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This P40 Series hydraulic diverter valve is a manual, 2-spool, monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It features an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). Designed for heavy duty applications, this valve is commonly used in construction and earthmoving equipment, agriculture, and industrial vehicles. Typical applications include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and backhoe loaders.
