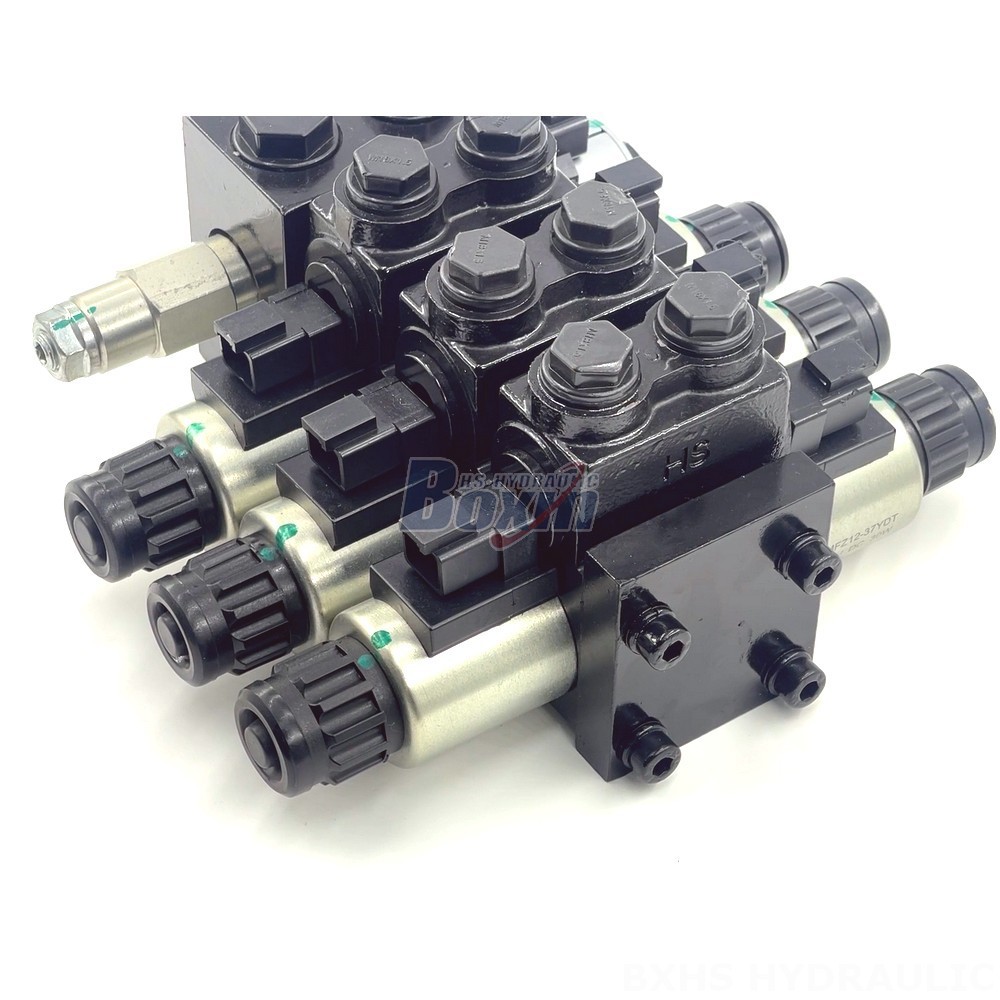

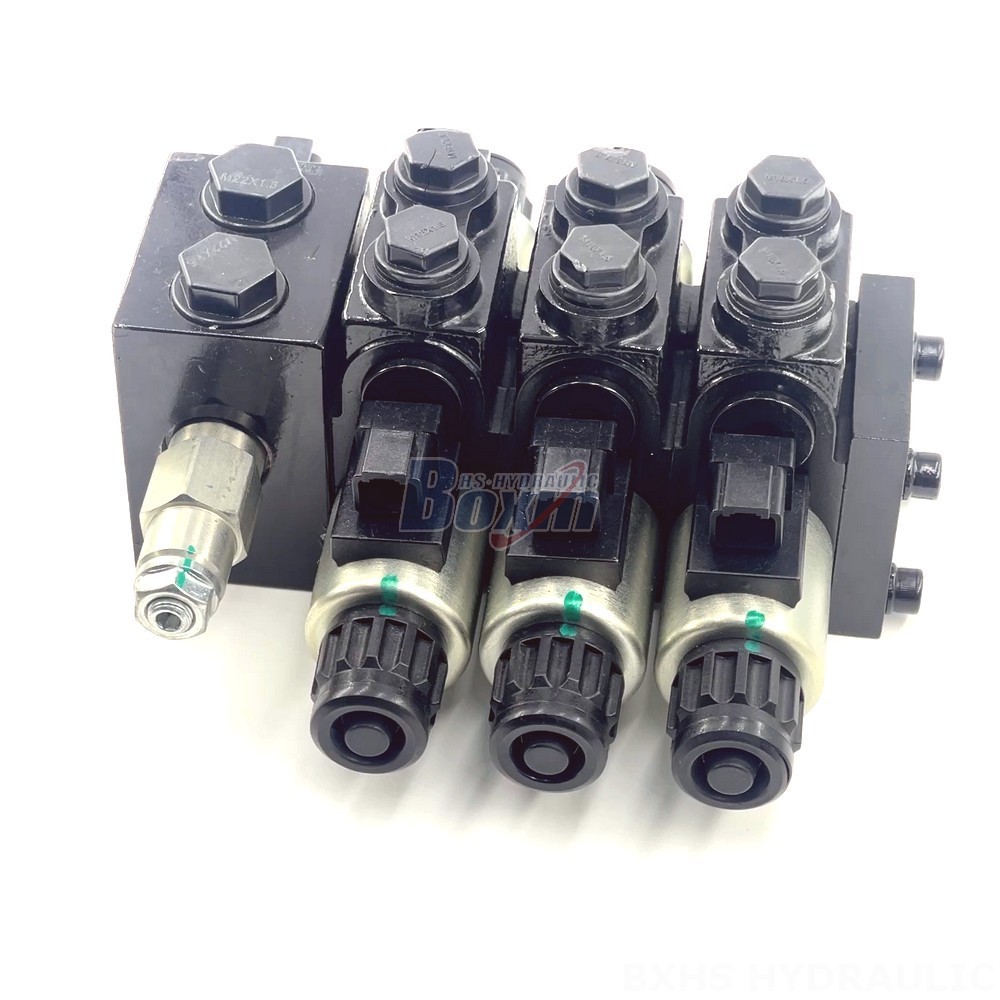

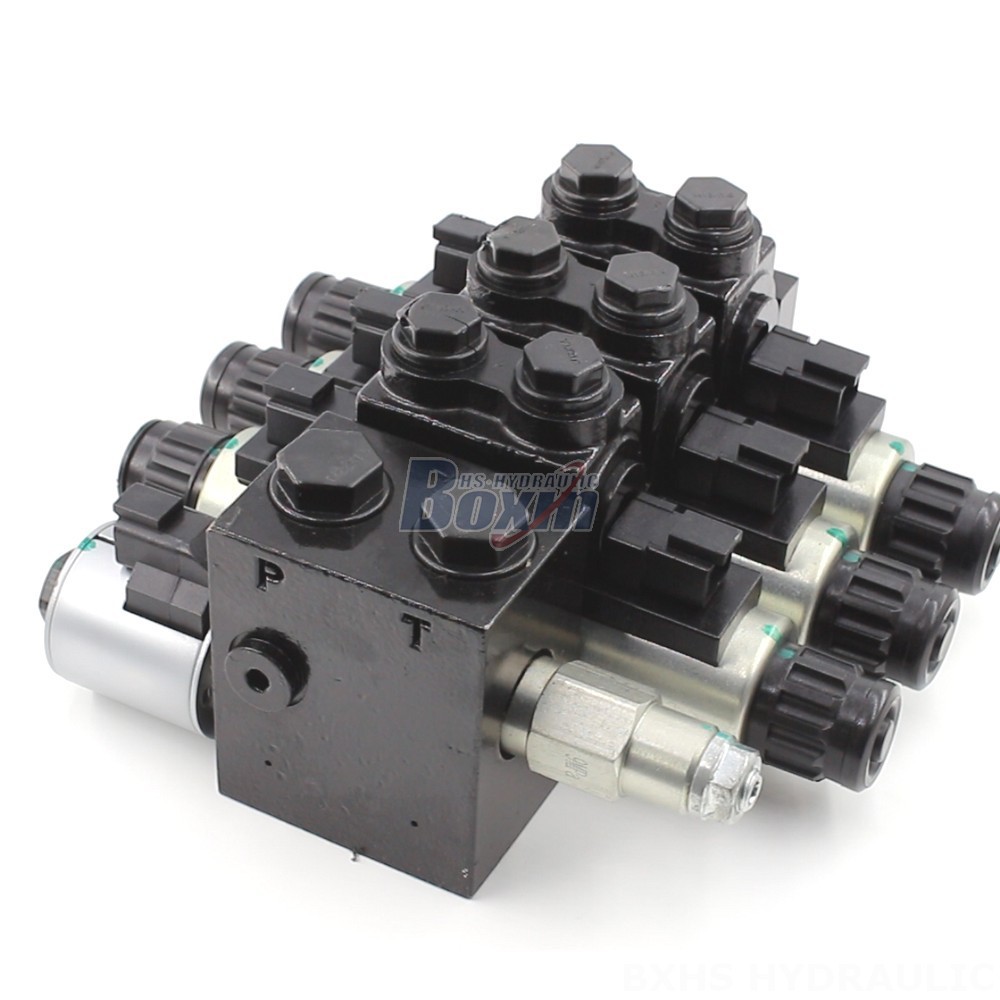

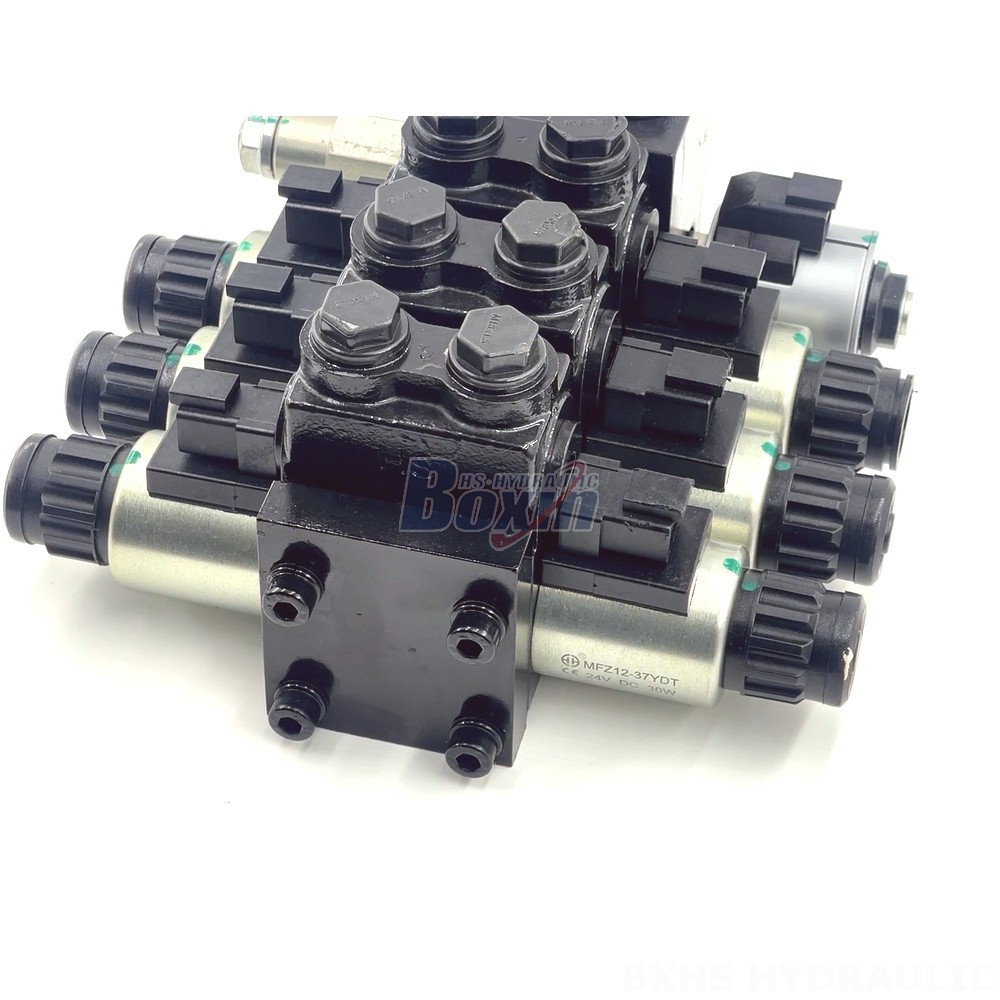

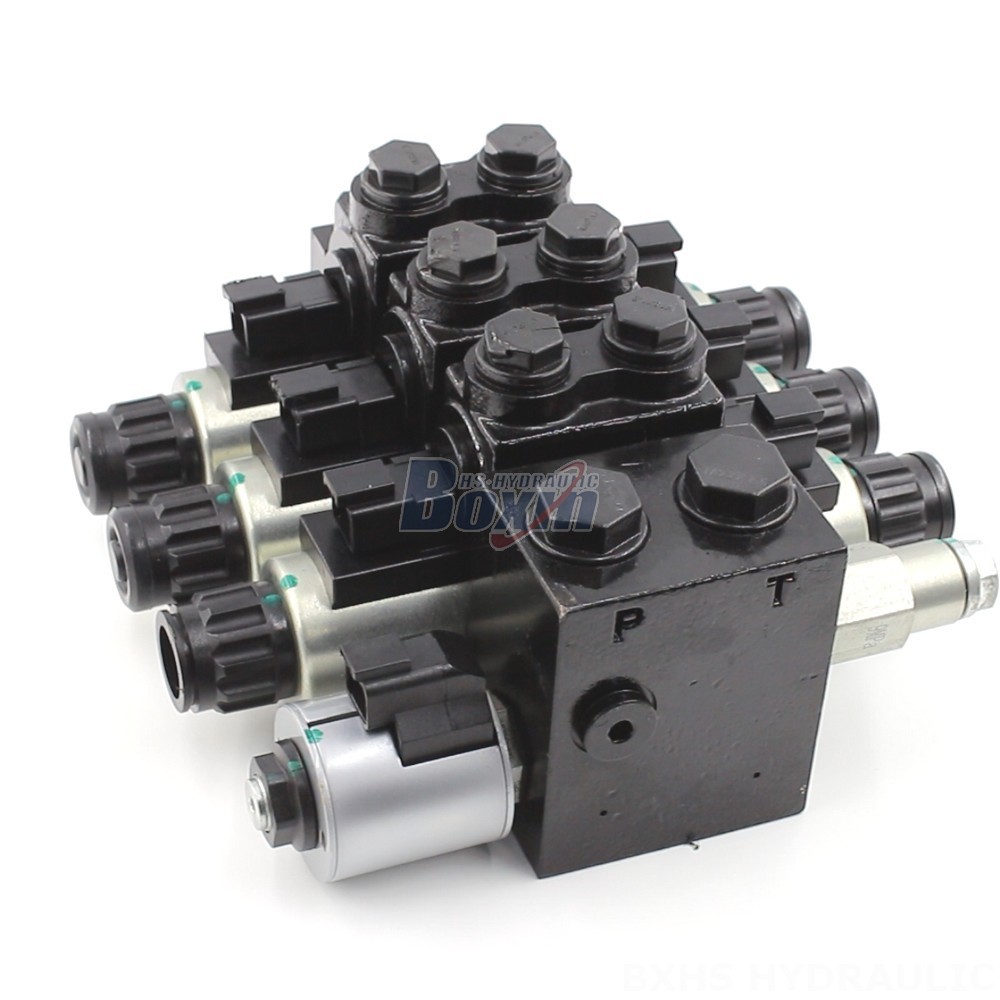

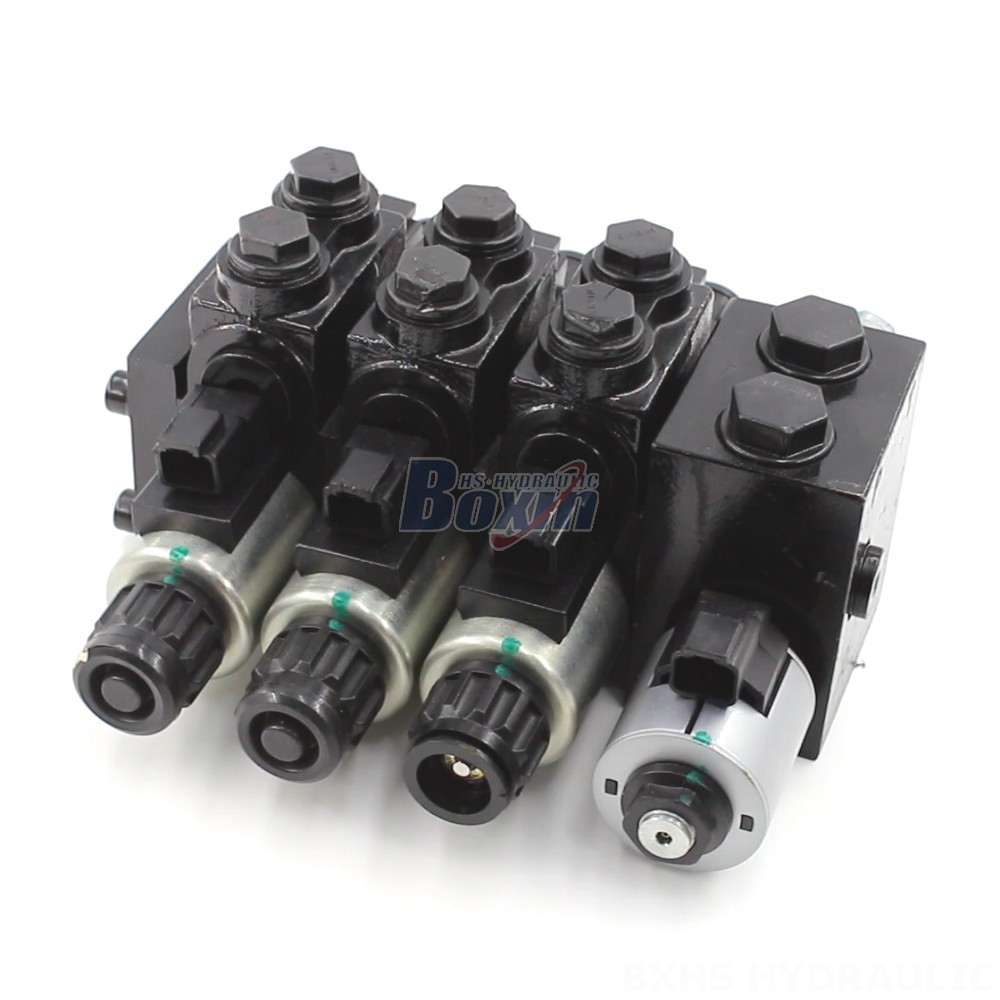

HDCF50 Series Solenoid Control Valve is a high-quality hydraulic valve designed and manufactured for various industrial applications. This 3-spool, sectional valve offers precise control and switching of fluid flow with its solenoid-operated design and a rated flow capacity of 50 L/min. Its robust construction ensures reliable performance in systems operating at pressures up to 160 bar.
| HDCF50系列 电磁控制阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 控制方式 | 电磁 |
| 接口尺寸 | M22×1.5螺纹, SAE 8接头 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
| 最大压力 | 160 bar (2300 psi) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 结构类型 | 分片阀 |
| 进油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
**Product Details:**
- Product Name: HDCF50 Solenoid 3 Spool Solenoid Control Valve
- Control Method: Solenoid
- Section: 3 Section
- Structure Type: Sectional valve
- Rated Flow: 50 L/min (13.2 US gpm)
- Max Pressure: 160 bar (2300 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -20°C to +80°C (-4°F to +176°F)
- Spool: 3 Spool
- Voltage: 12V 24V
- Series: HDCF50 Series
- Application Area: Material handling, construction and earth moving, agriculture, industrial vehicles
- Applicable Model: Telehandler, forklift, all-terrain crane, stacker, aerial platform, motor grader, telehandler, midi-excavator, mini-excavator, skid steer loader
The HDCF50 Solenoid Control Valve is expertly engineered to meet the demands of various hydraulic systems. Its durable construction and high-performance capabilities make it an ideal choice for applications requiring precise control and reliability.
