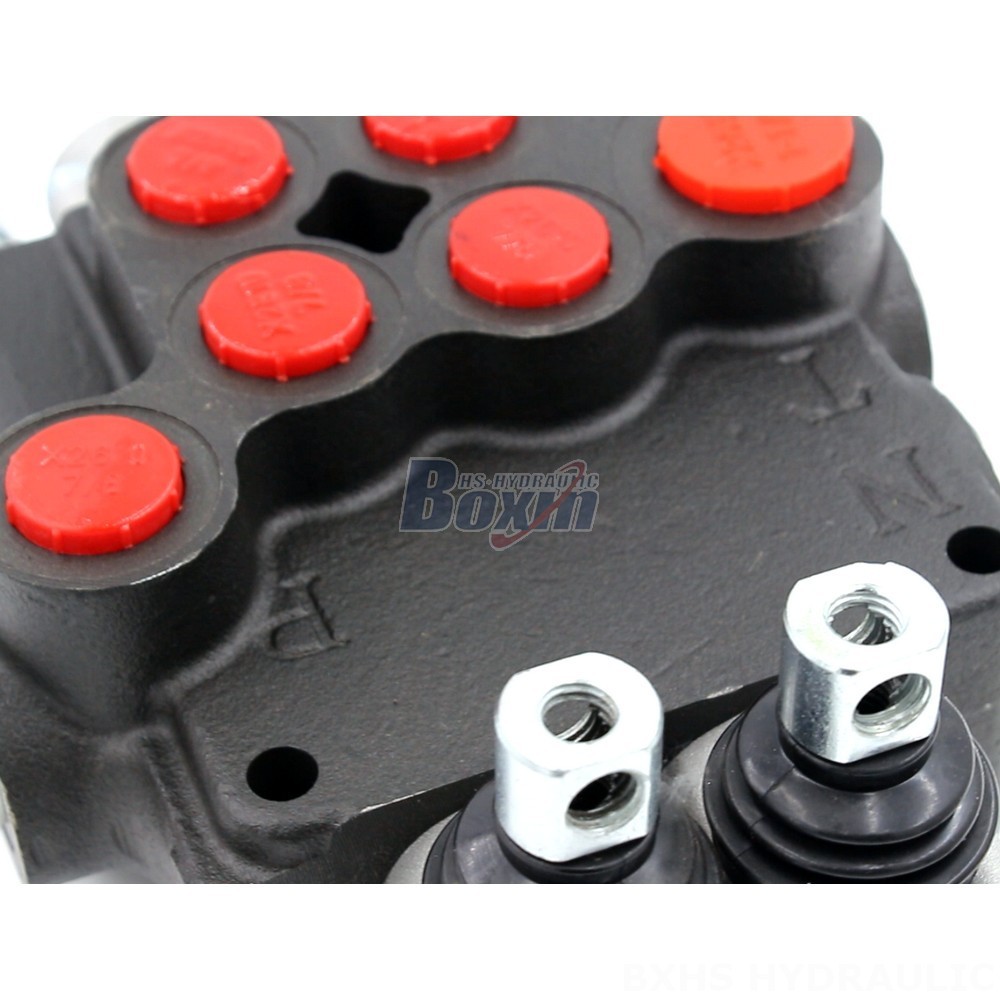

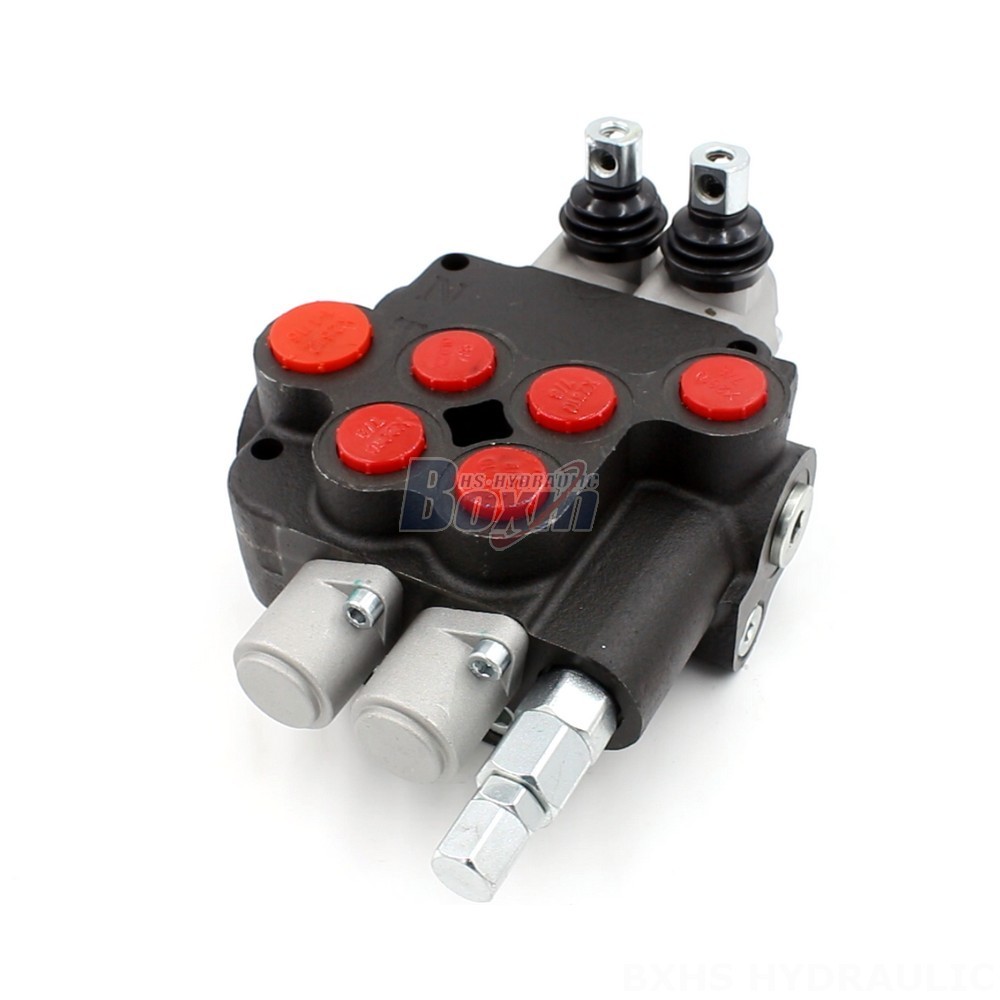

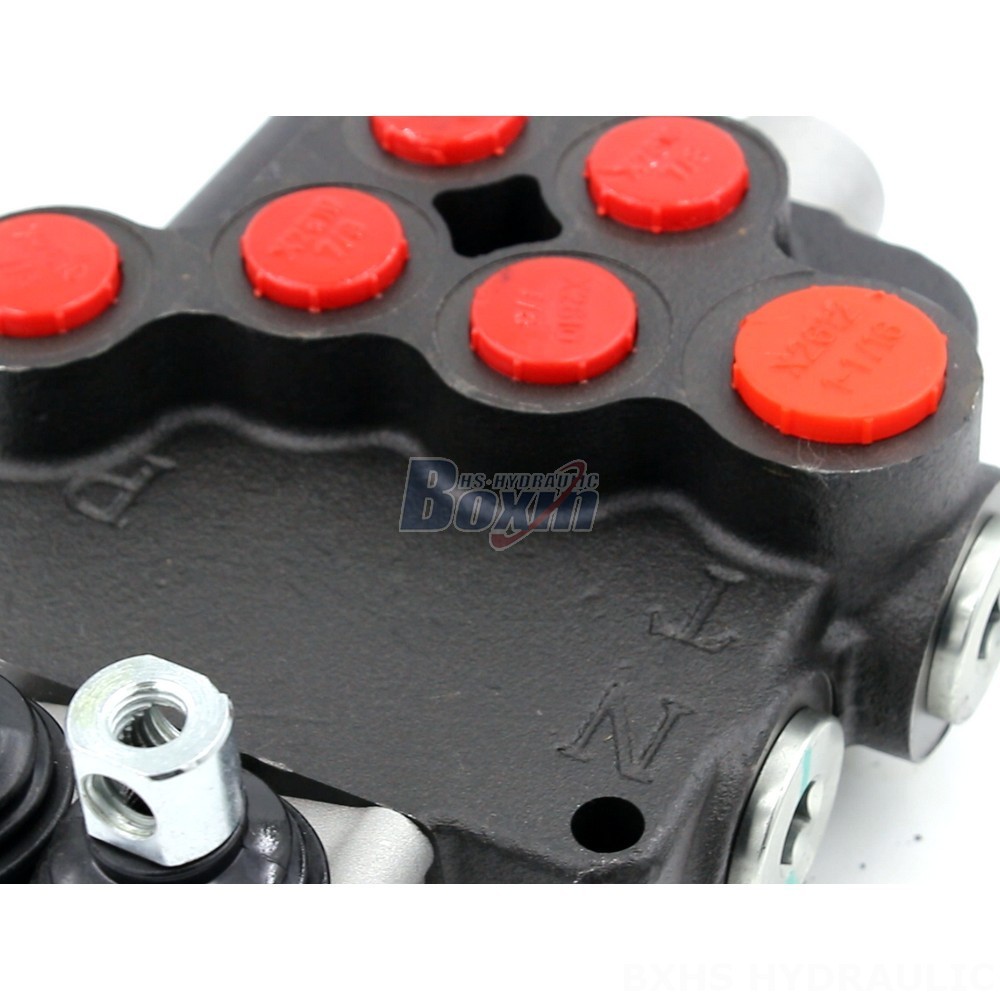

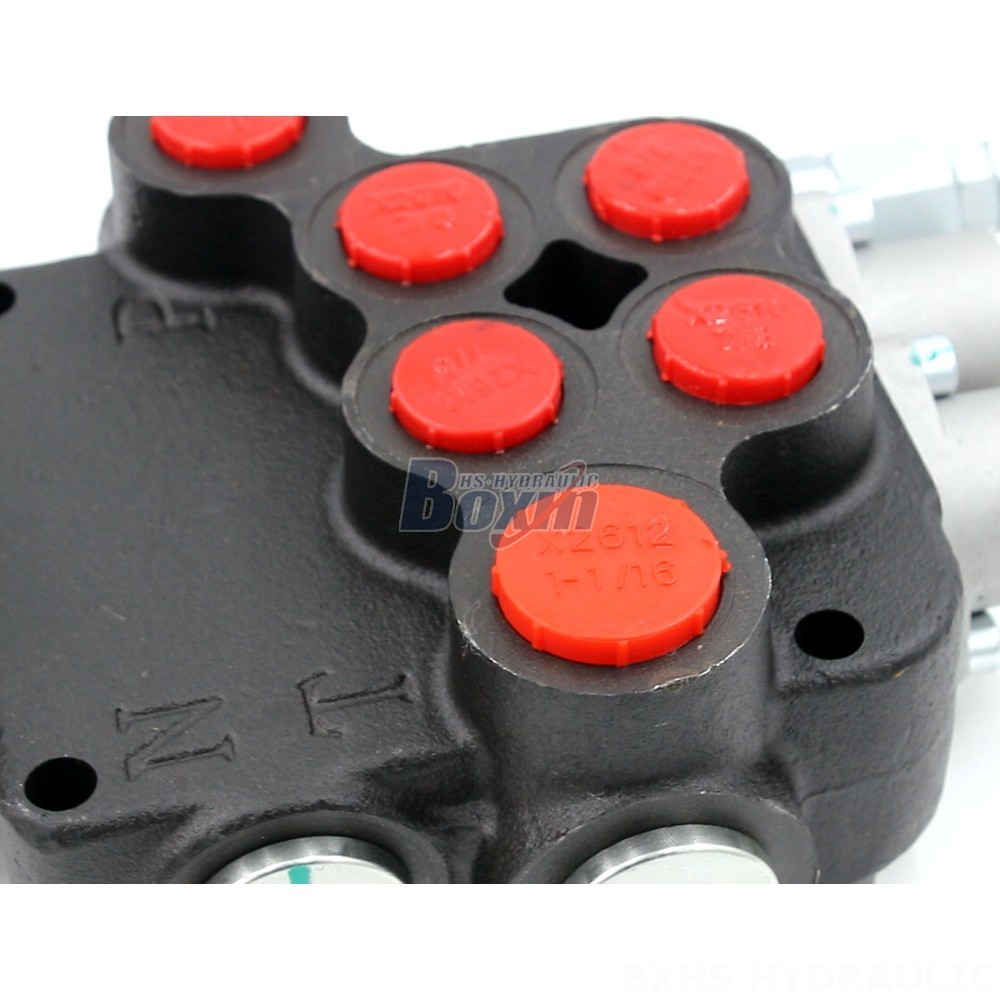

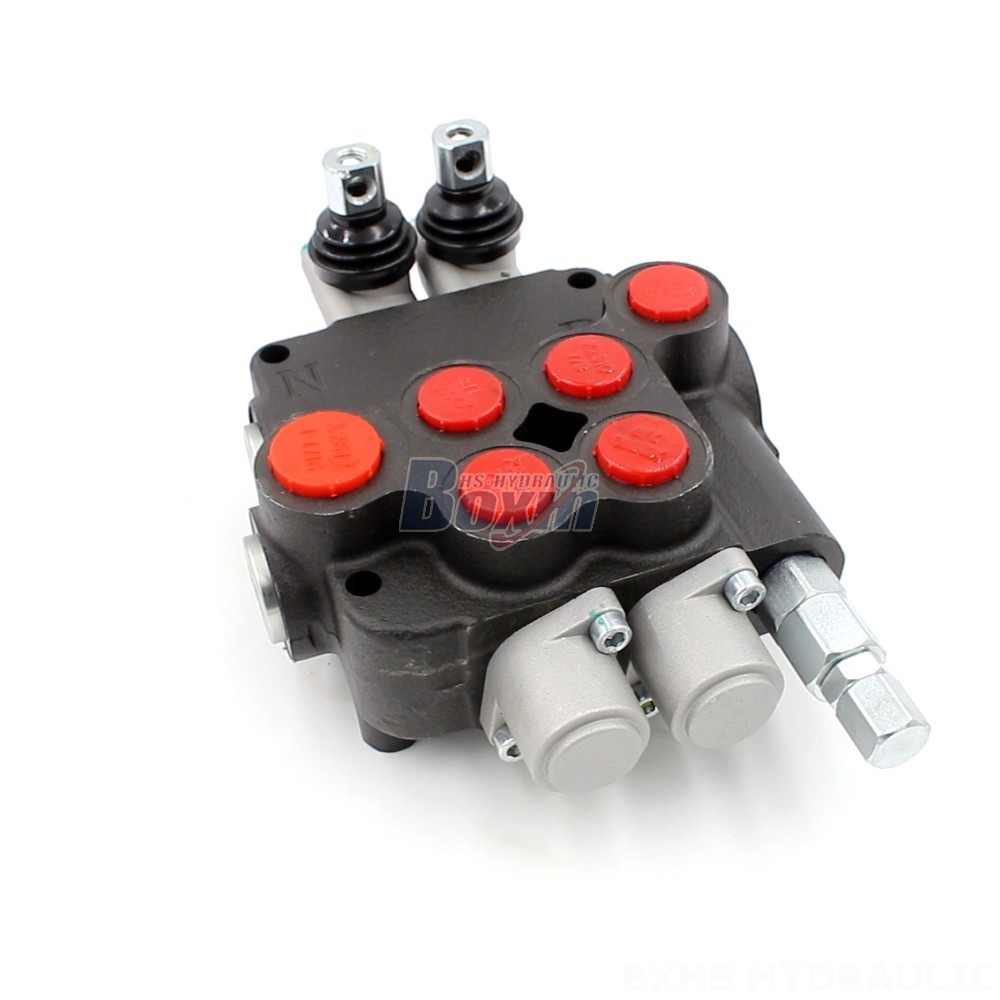

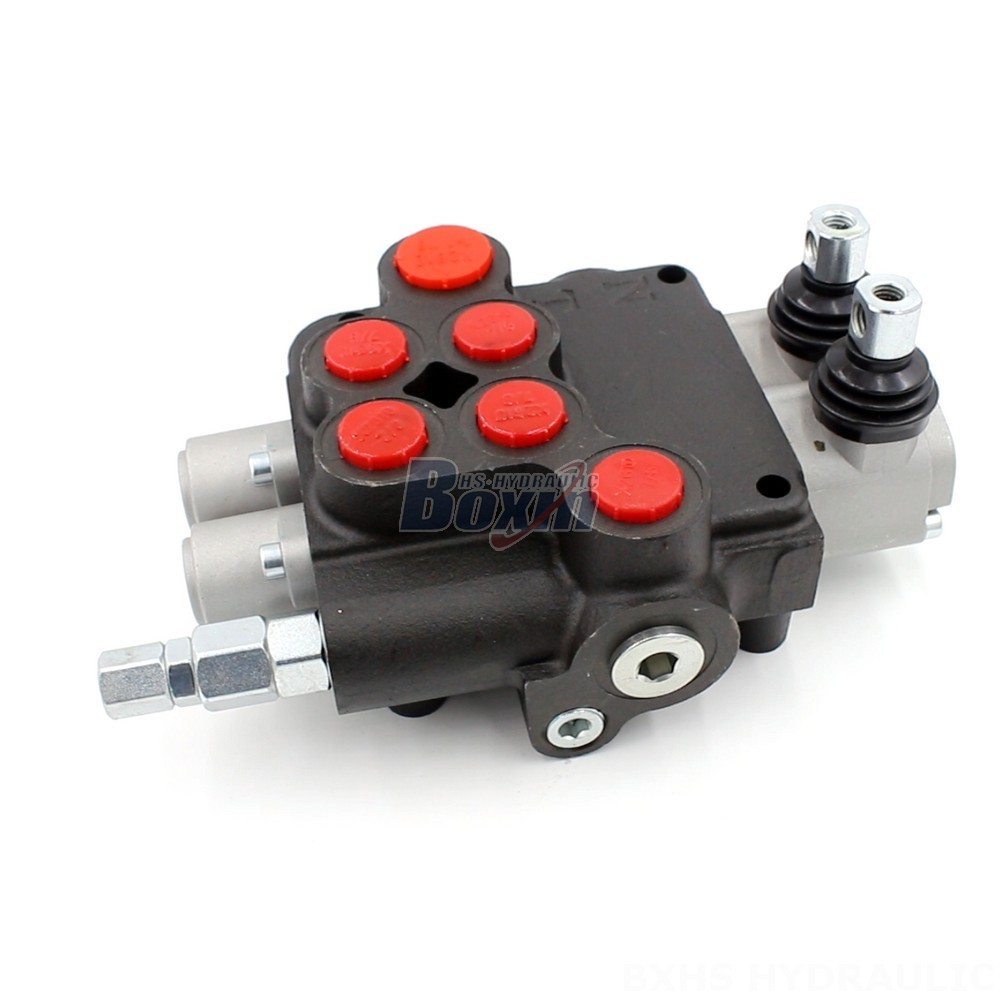

The P80-U116-U78 hydraulic valve is a high-performance, manually controlled monoblock valve designed for demanding applications in various industries. With a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s, it ensures efficient and reliable operation in challenging conditions. Its temperature range of -40°C to +80°C allows for use in extreme environments.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80-U116-U78 hydraulic valve features a single spool and is part of the P80 Series. Its versatile applications include material handling, construction and earth moving, agriculture, and industrial vehicles. It is ideally suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. We are seeking distributors, wholesalers, traders, and resellers to expand the global reach of this exceptional hydraulic valve.
