Hydraulic Directional Control Valve Manufacturers Floating Cable Valve

控制方式:软轴

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:19*31*12

Grossweight:5.32 kg

库存: 有货

939 次查看了此产品

Hydraulic Directional Control Valve Manufacturers Floating Cable Valve

Hydraulic Directional Control Valve Manufacturers Floating Cable Valve

Hydraulic Directional Control Valve Manufacturers Floating Cable Valve drawing image

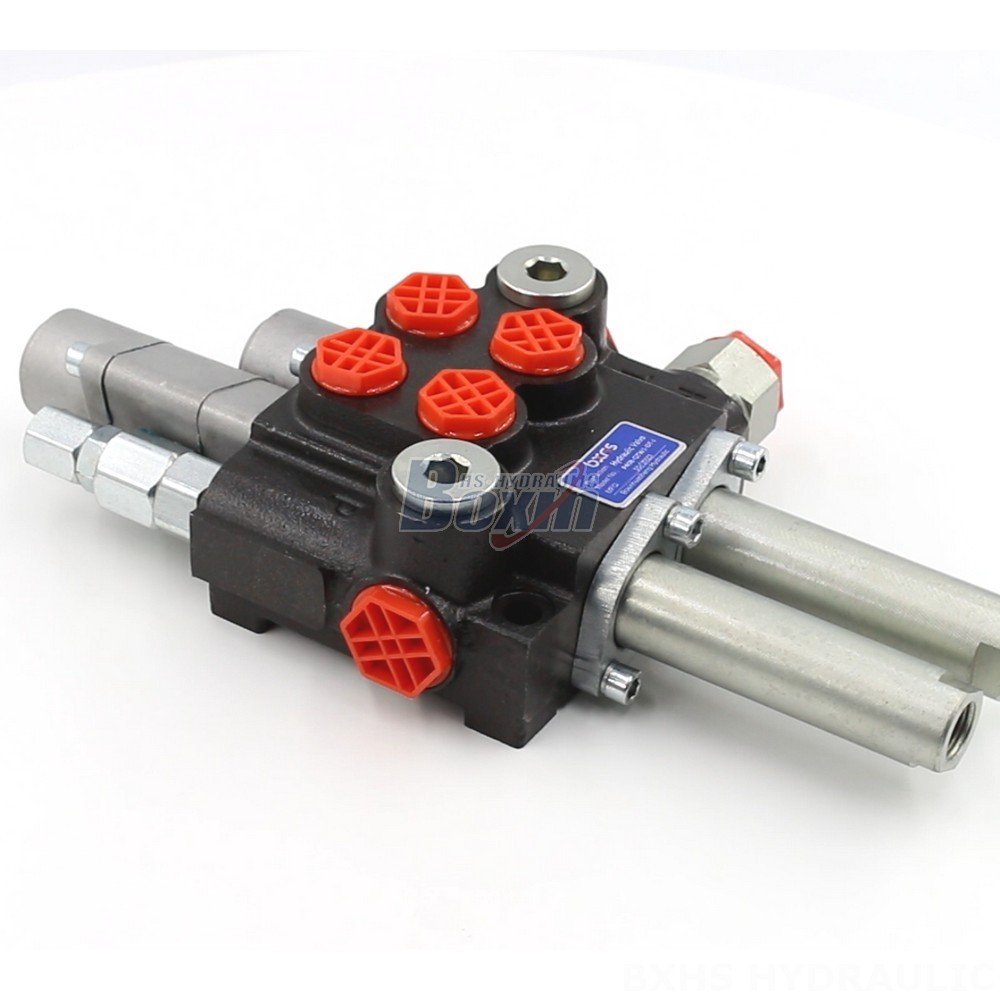

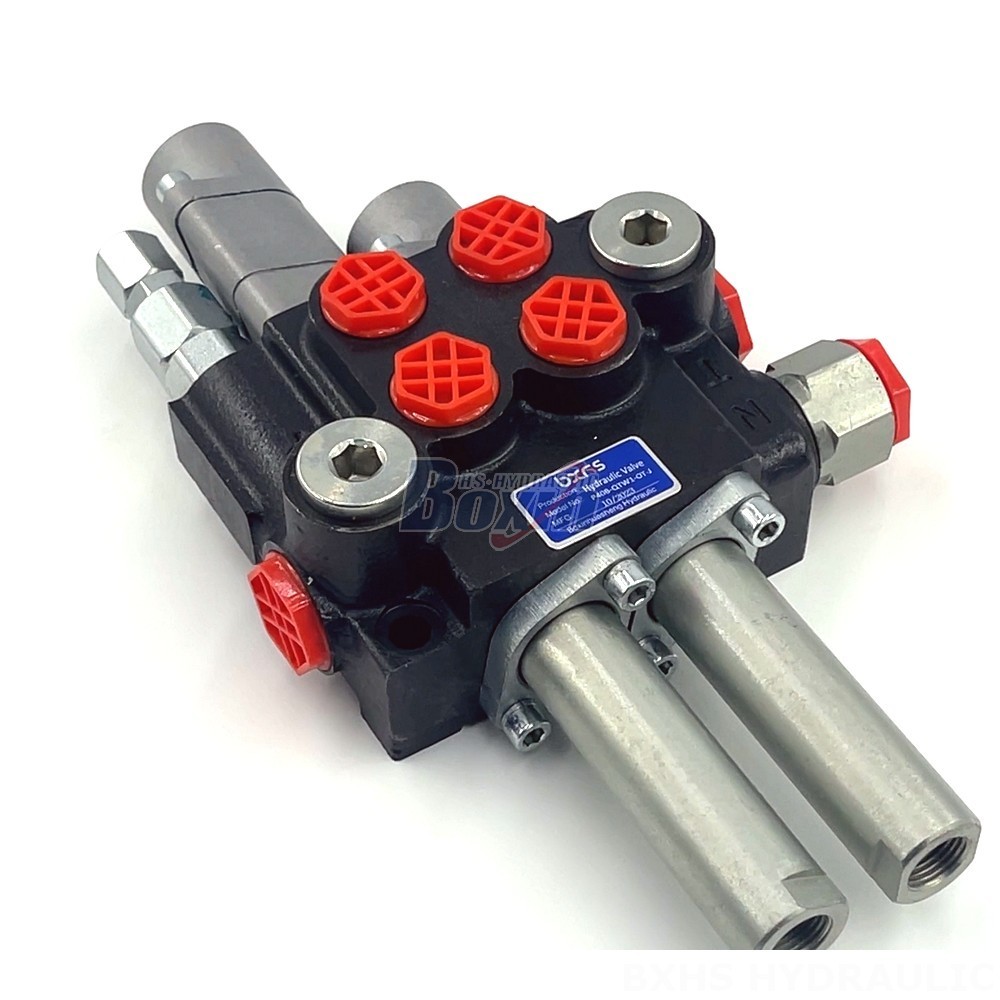

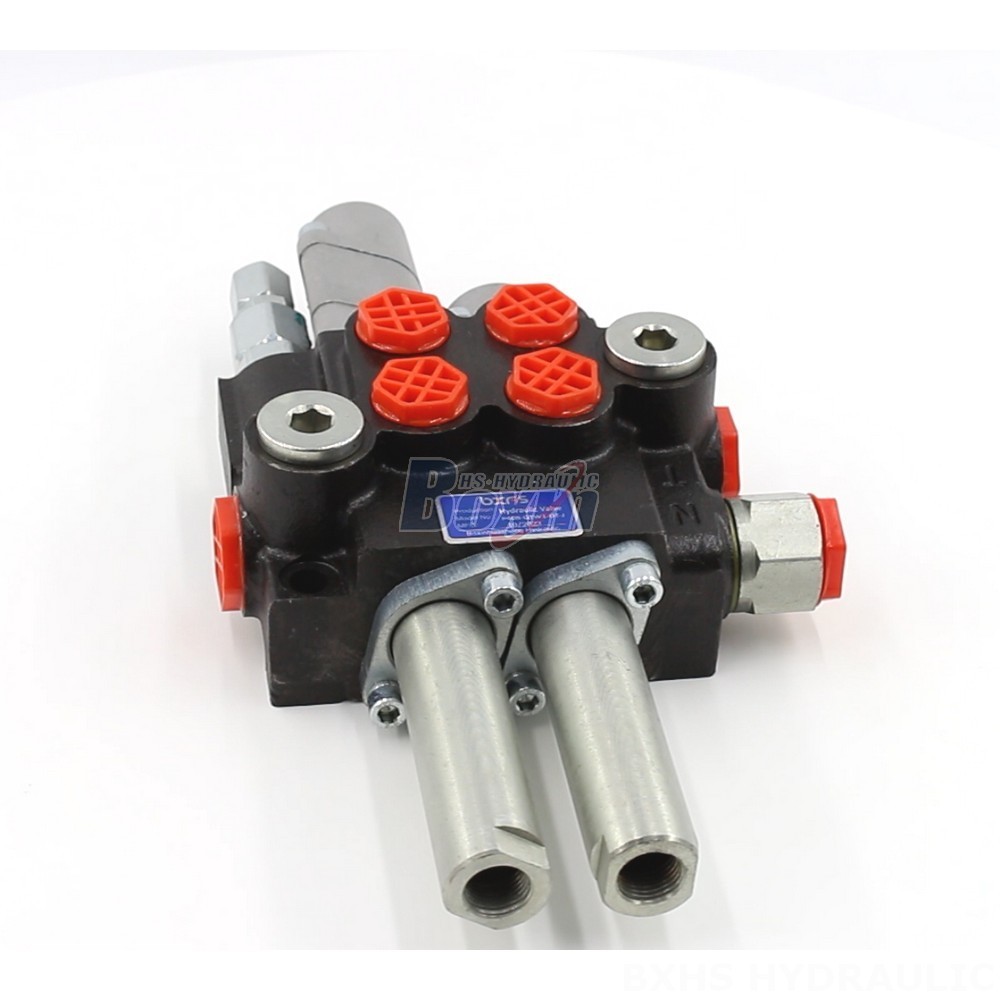

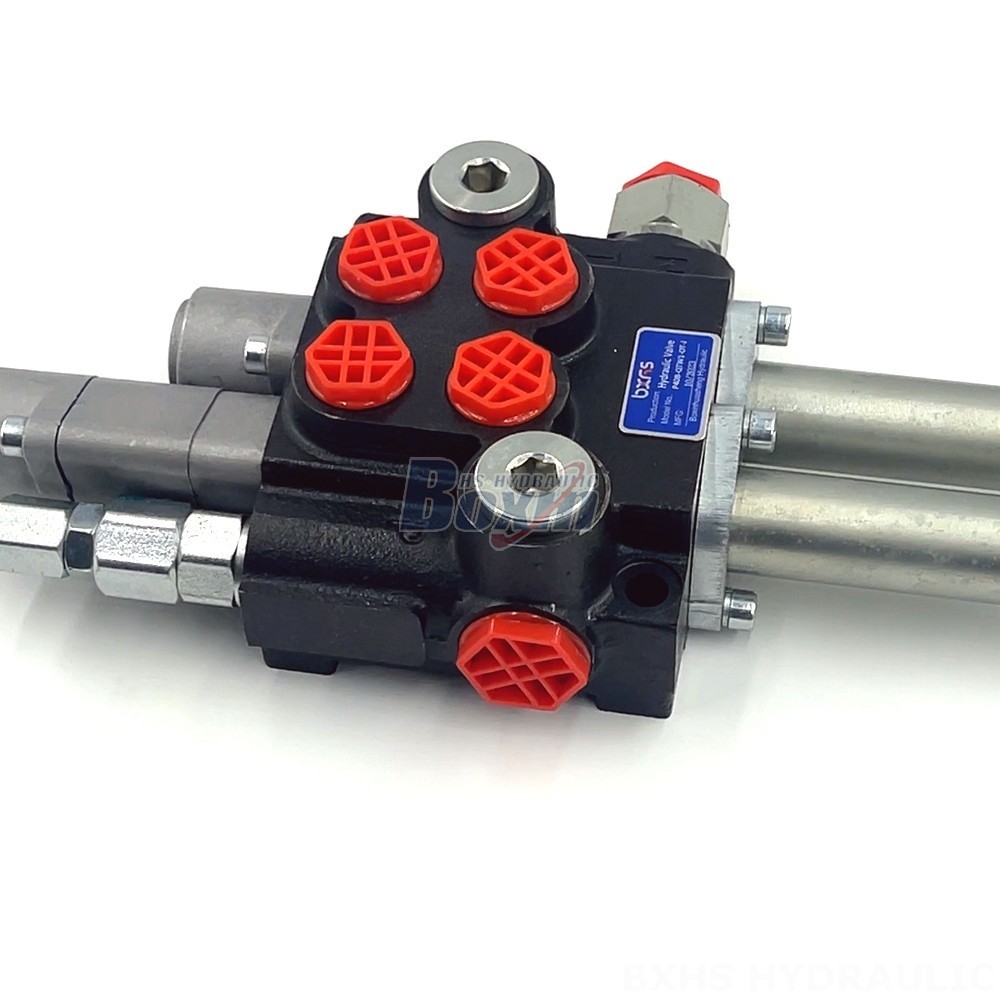

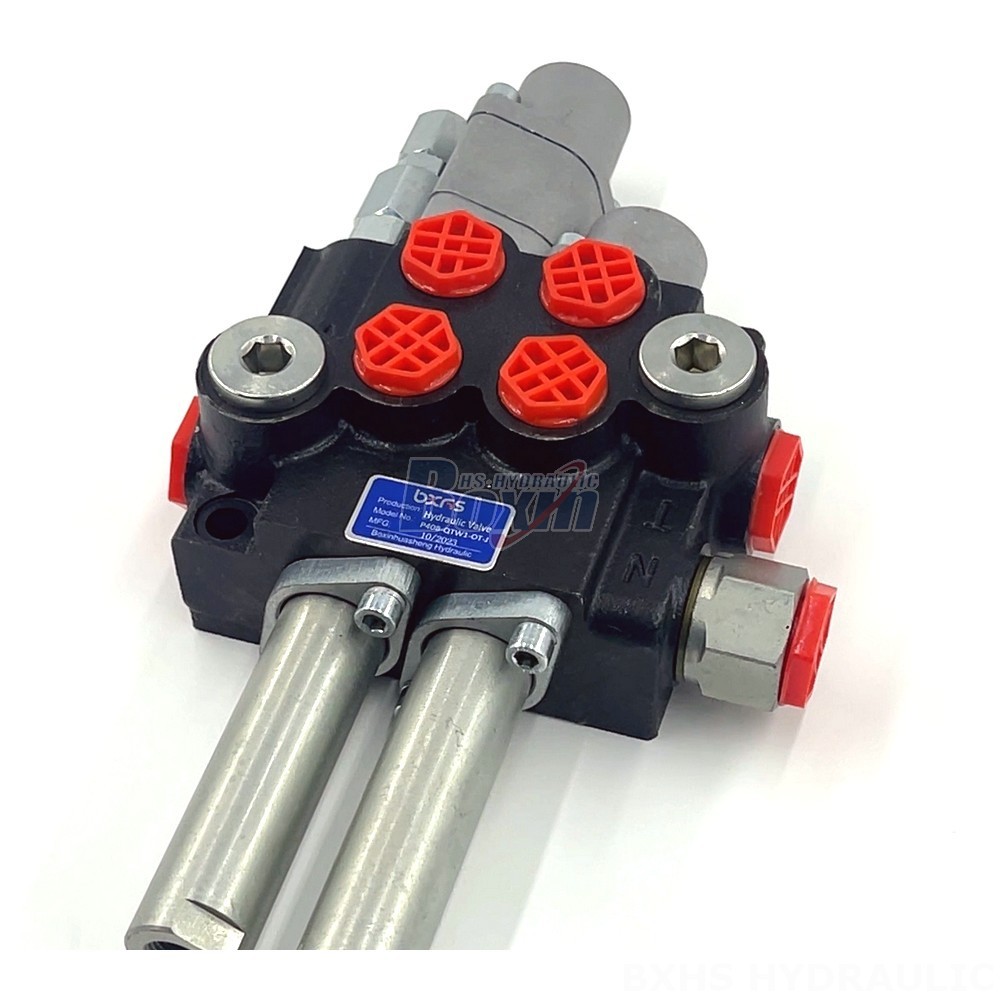

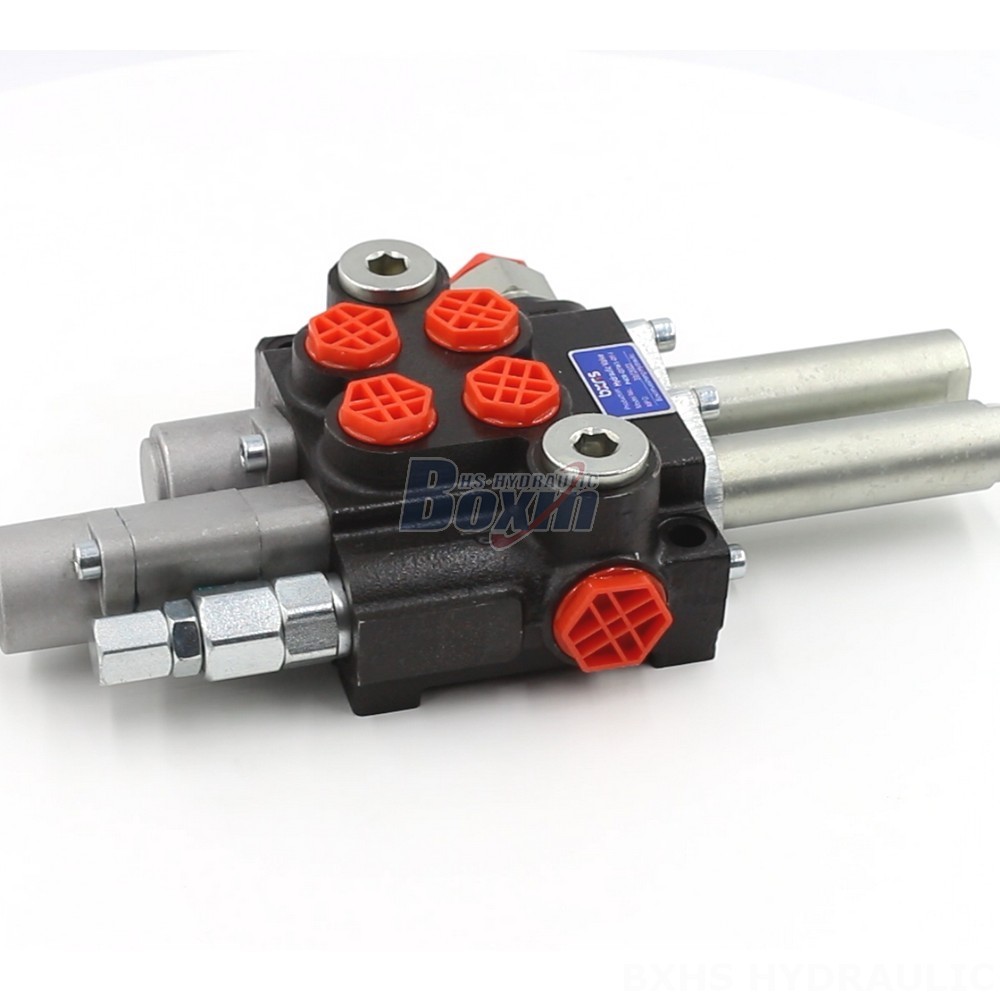

The P40 Series Floating Cable Valve is a hydraulic directional control valve designed for construction and material handling applications. It features a monoblock structure with 2 sections and 2 spools, offering a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

The P40 Series Floating Cable Valve is a high-performance hydraulic directional control valve designed for demanding applications in construction and material handling. It features a robust monoblock structure with 2 sections and 2 spools, providing reliable operation and long service life. This valve is specifically designed for cable control, offering smooth and precise control of hydraulic functions. The P40 Series valve has a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for various types of equipment. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures optimal performance across a wide range of temperatures. The valve can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), making it ideal for use in various climates. The P40 Series Floating Cable Valve is specifically designed for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its compact size and lightweight design make it easy to install and maintain, while its rugged construction ensures long-lasting performance.
