The Factory Wholesale Supply: P80-U116-U78 Hydraulic Valves from the Manufacturer are designed for use in a variety of applications including material handling, construction, agriculture, and industrial vehicles. These valves are manufactured to the highest standards and are available at competitive prices.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |

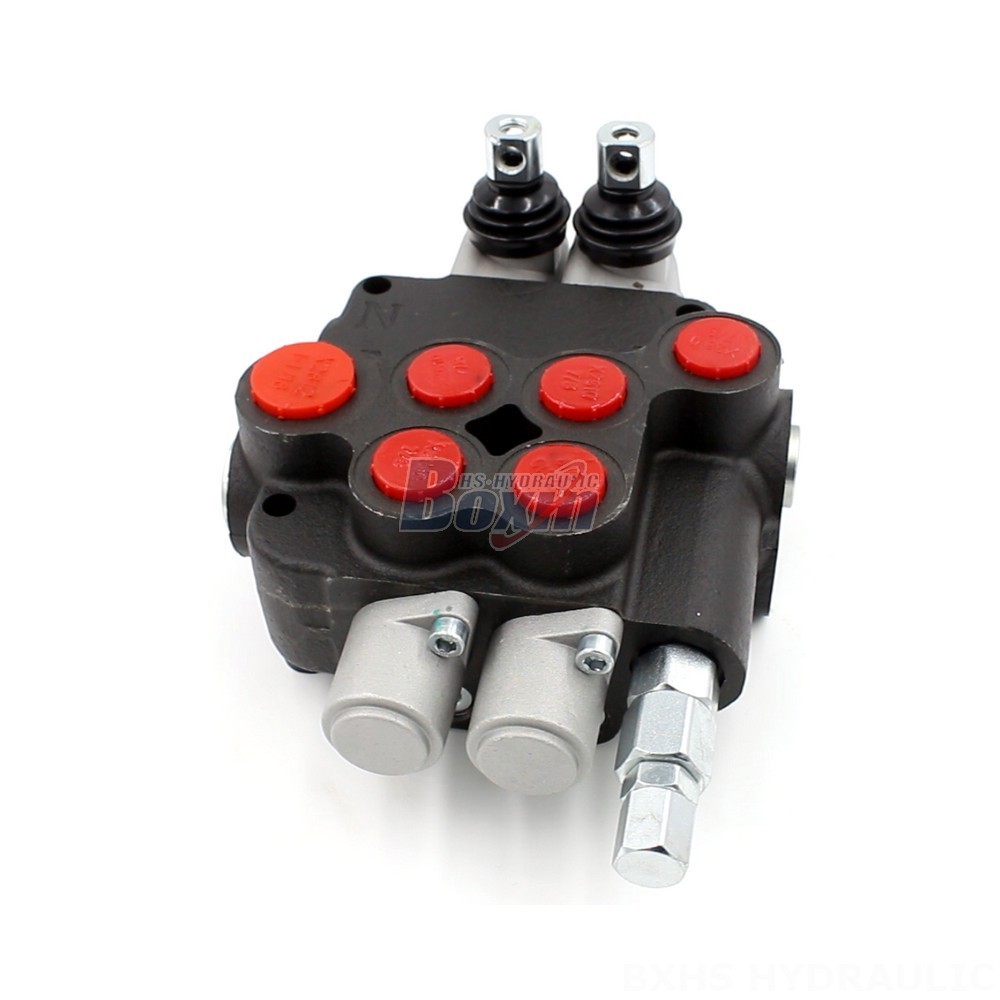

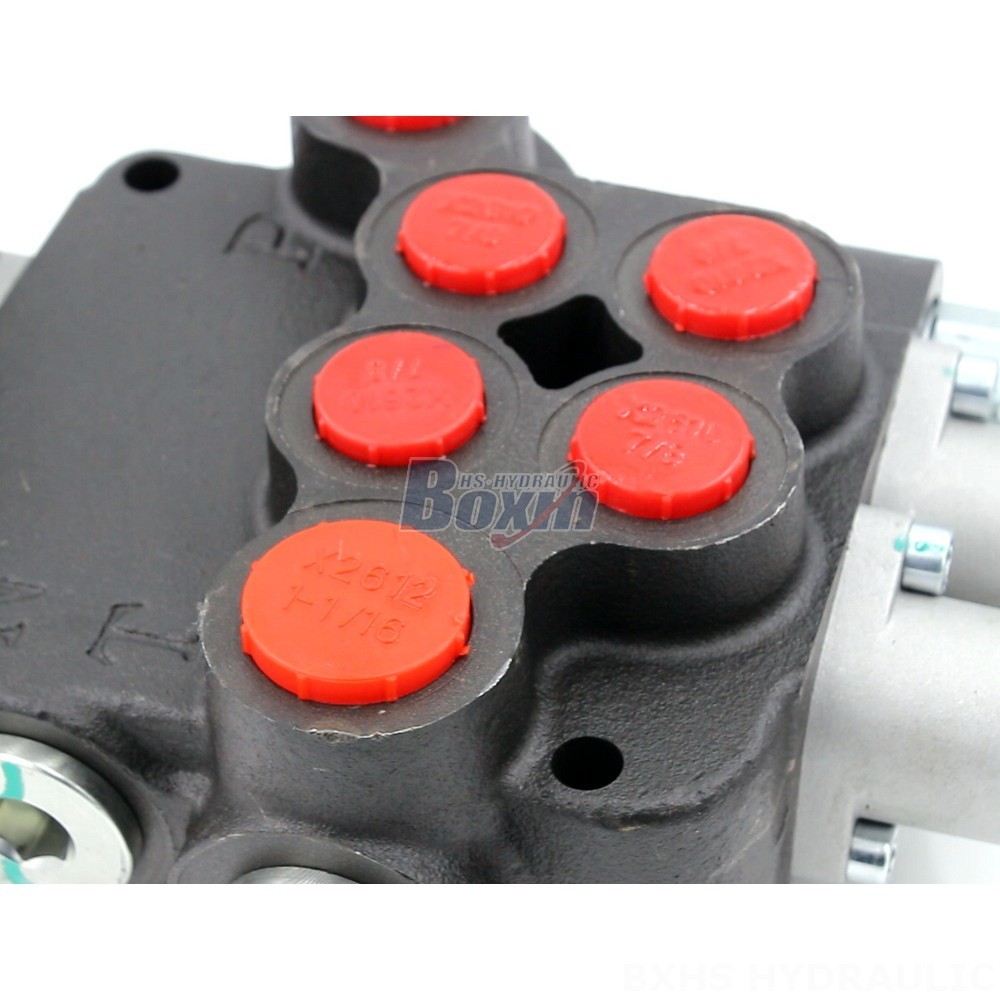

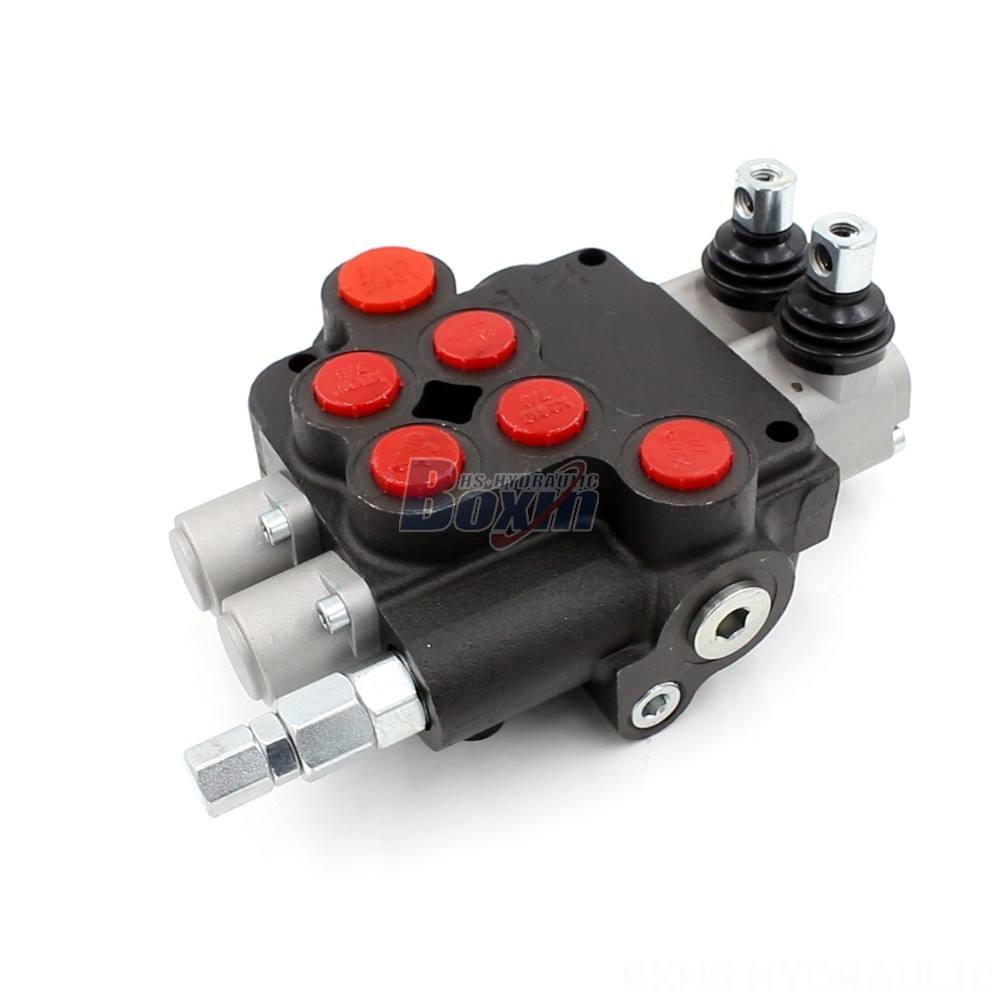

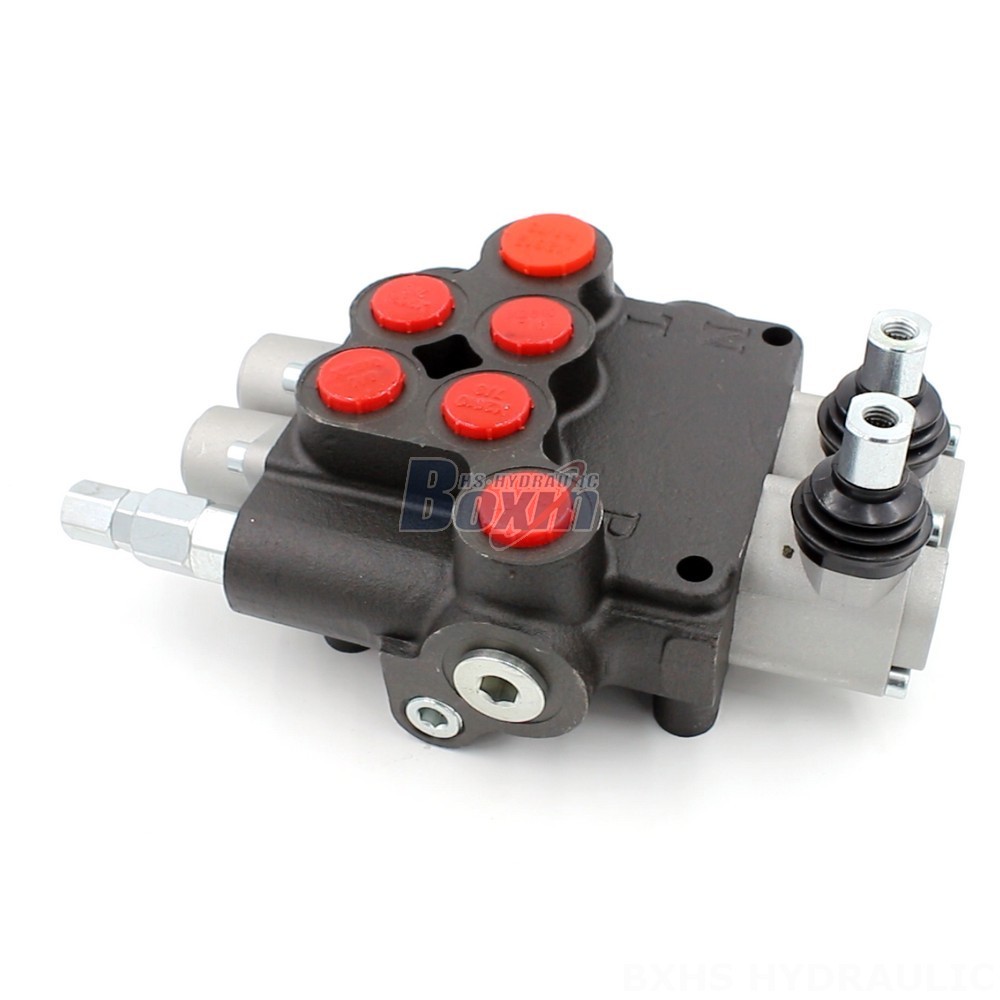

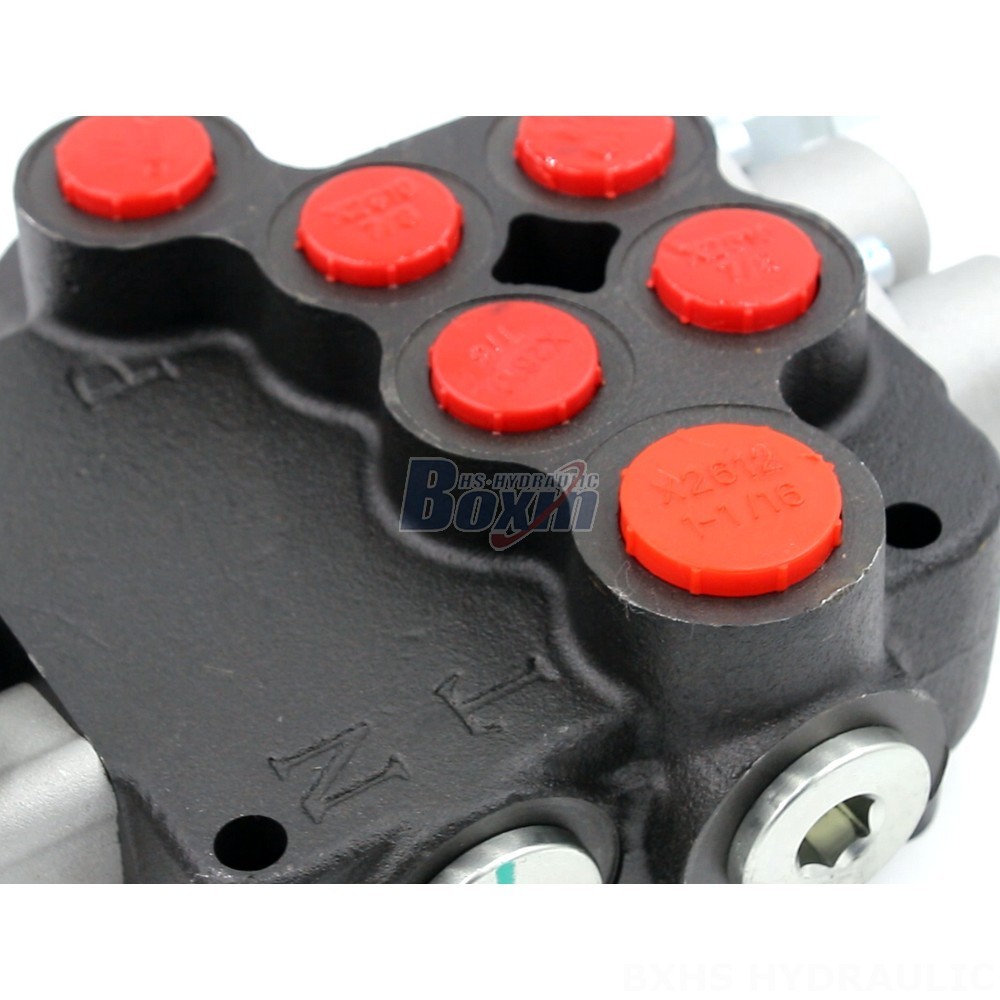

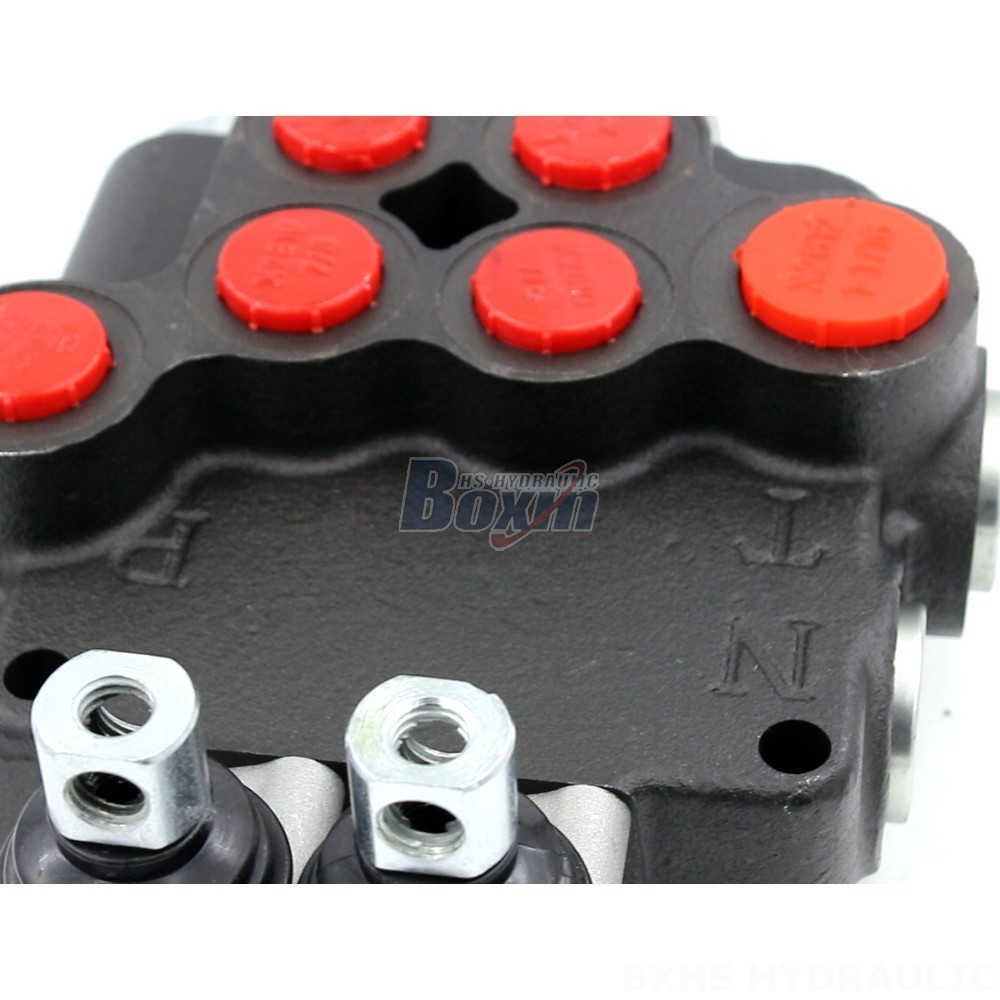

The P80-U116-U78 Hydraulic Valve is a monoblock valve with a manual control. It has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a wide range of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also suitable for use in a wide range of ambient temperatures, from -40°C to +80°C. The P80-U116-U78 Hydraulic Valve is available from the manufacturer at competitive prices. The valve is also available with a variety of options, including different spool types and port configurations.
