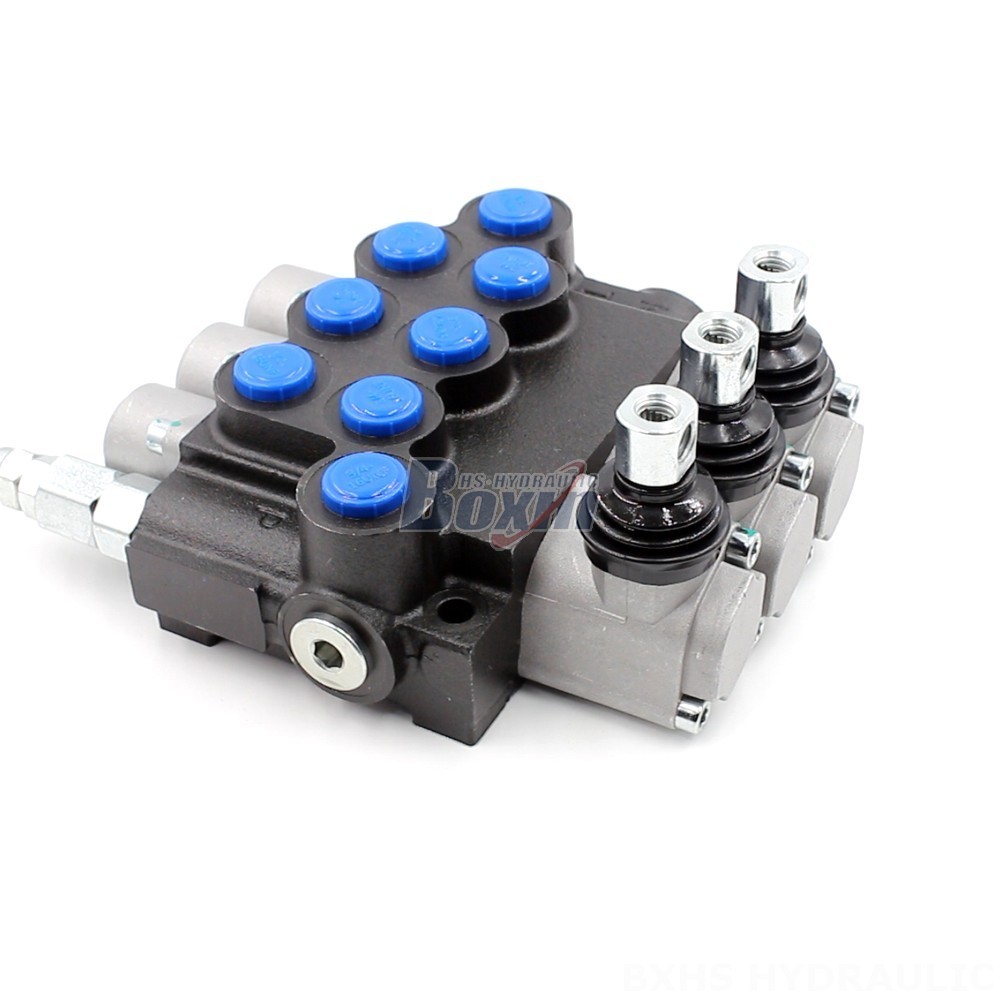

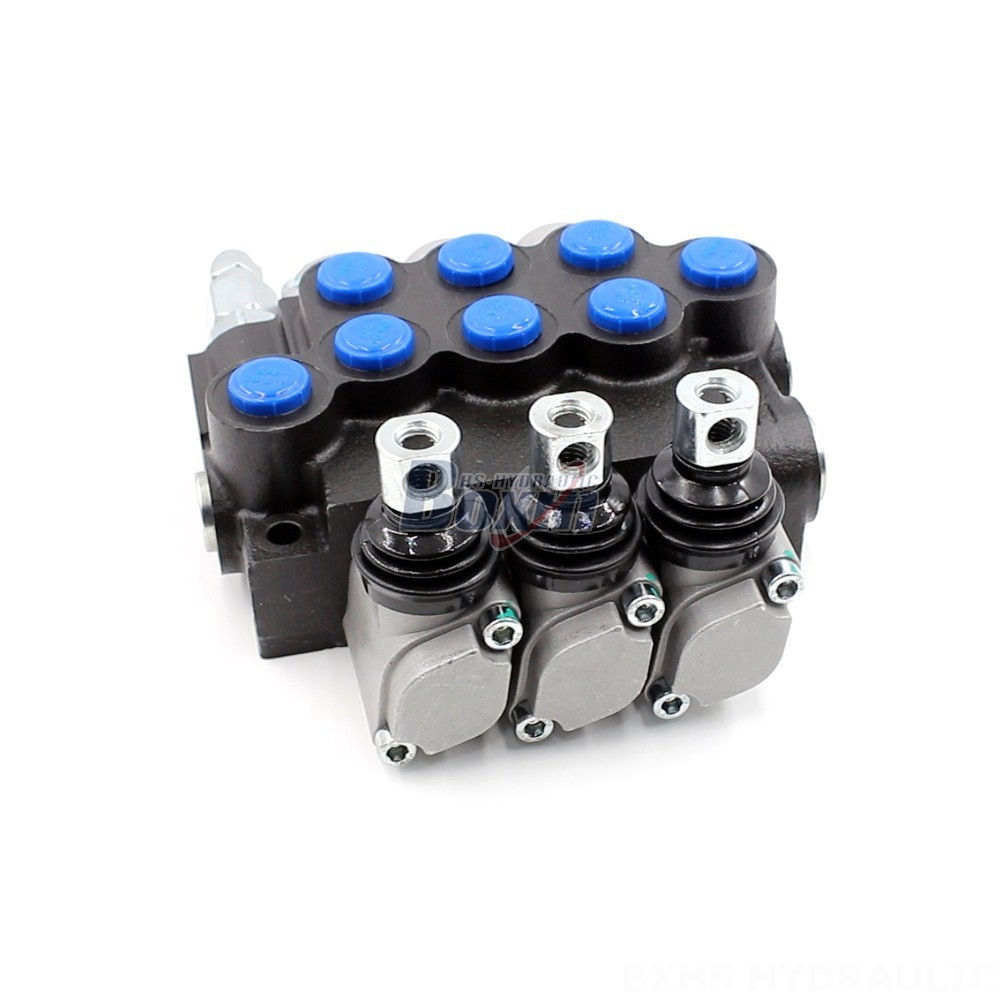

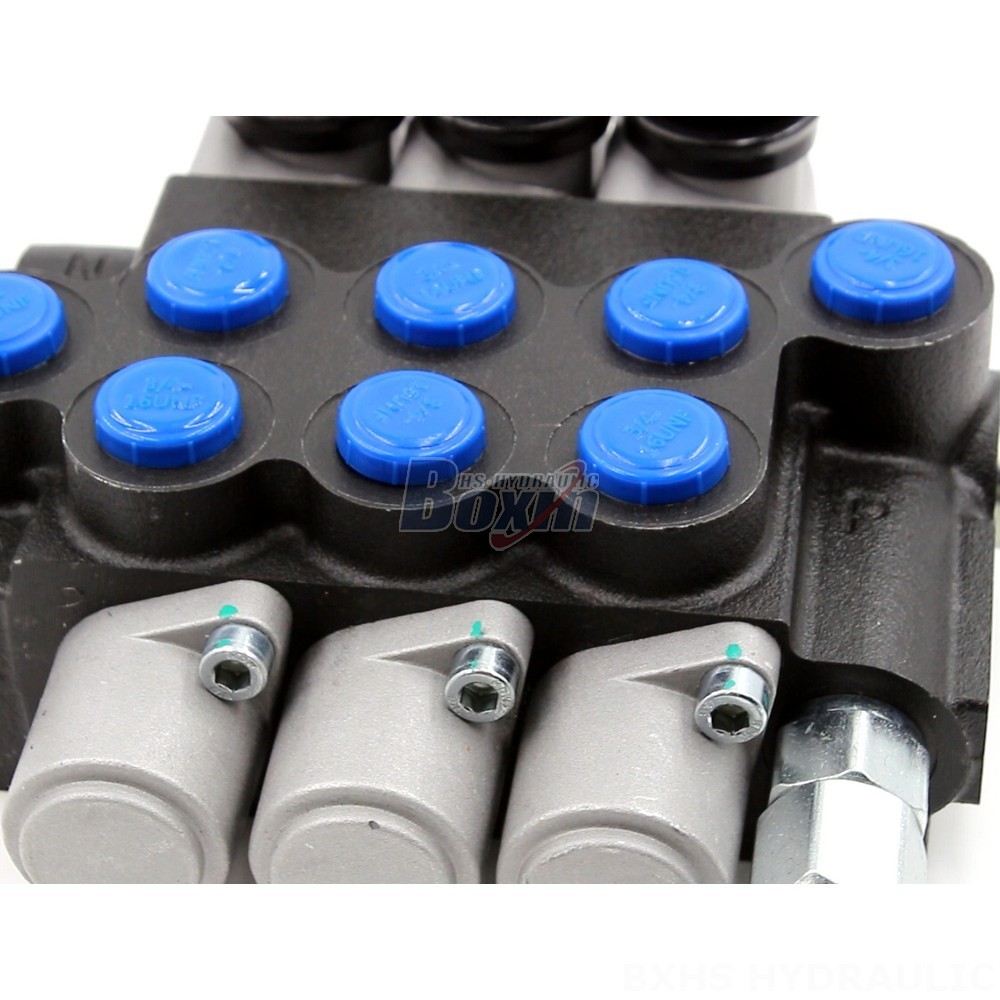

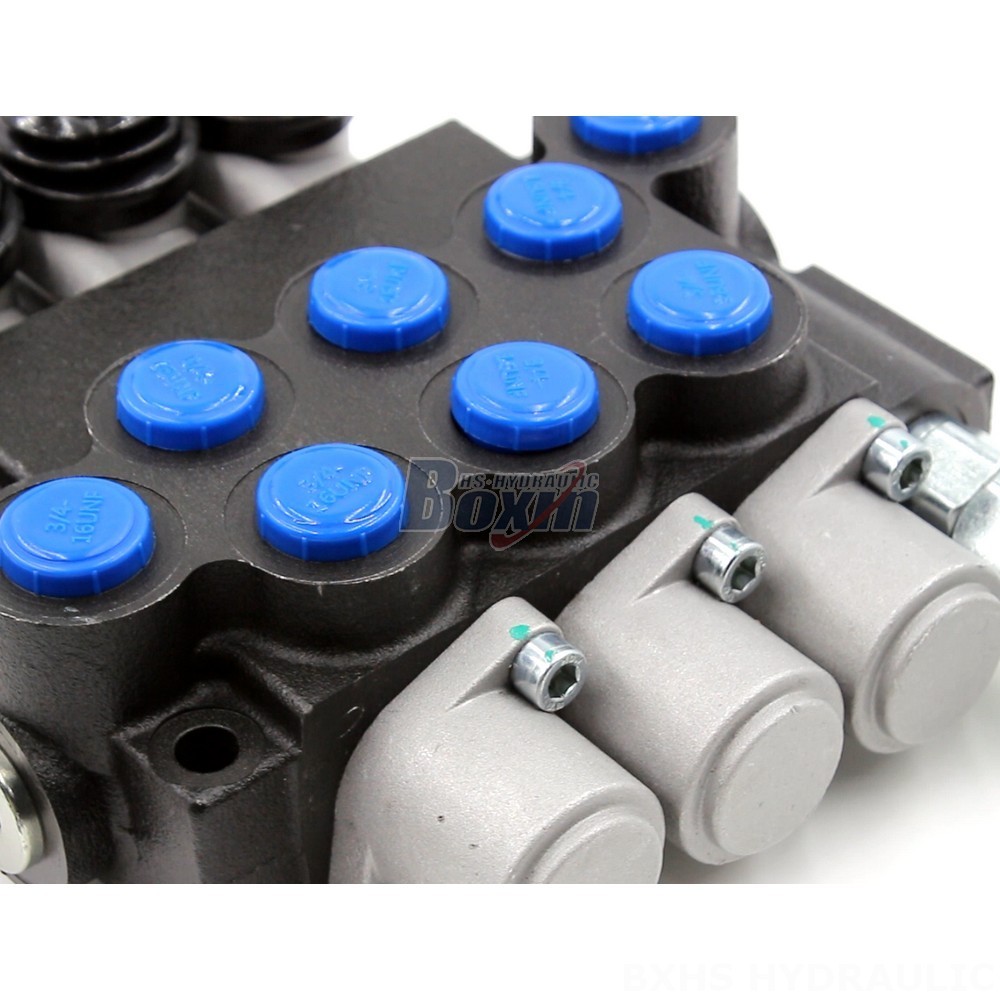

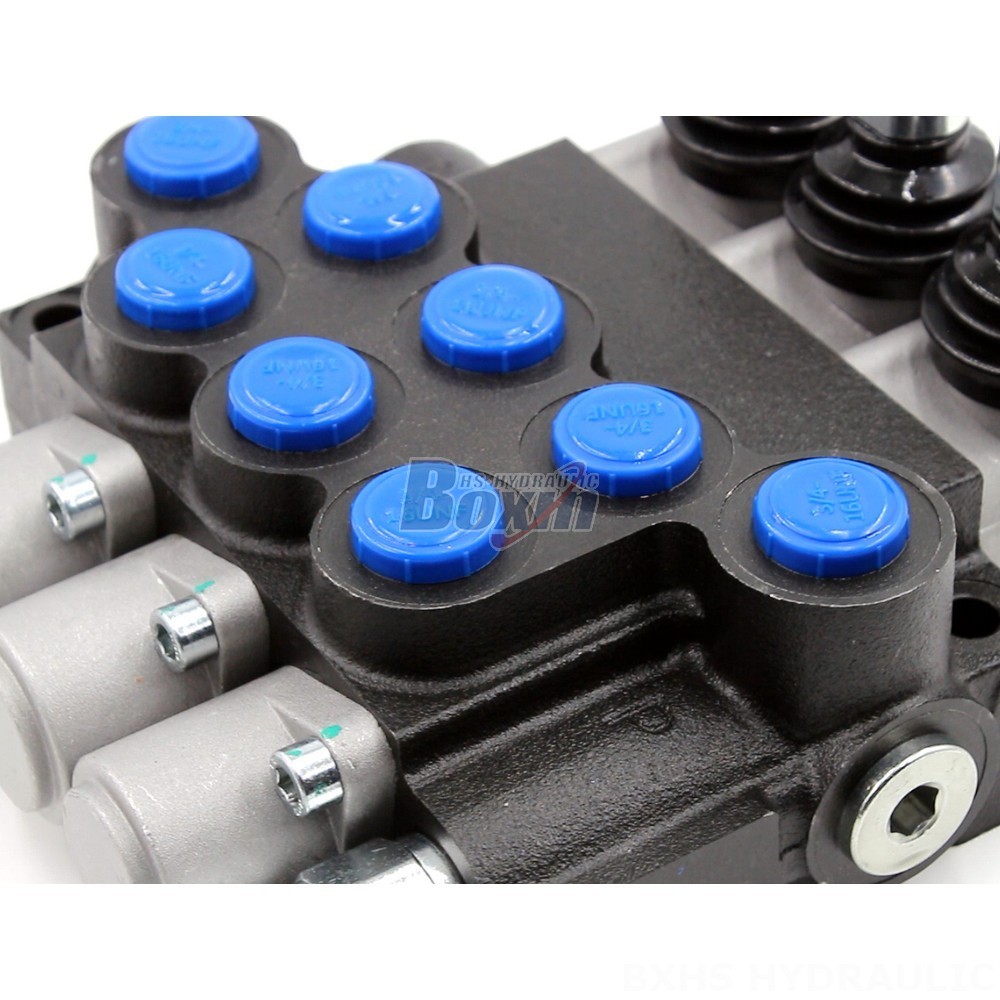

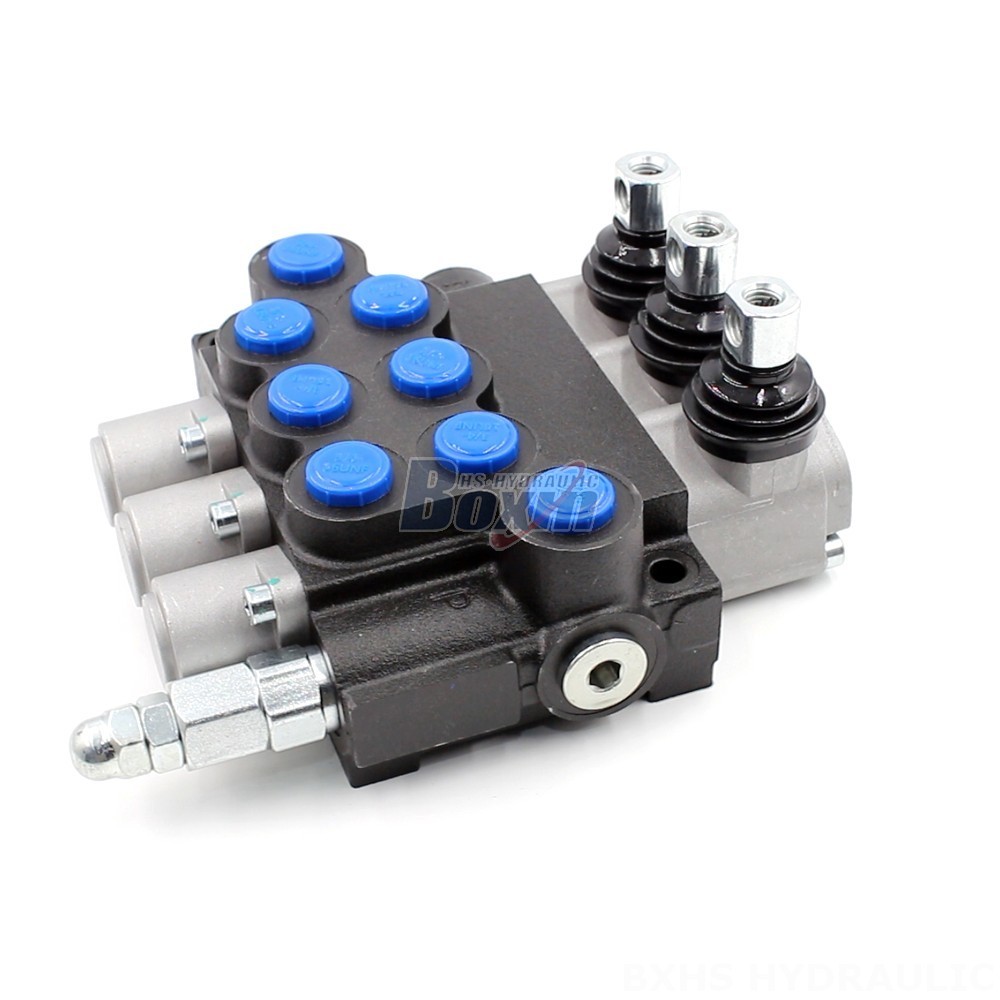

This P40-U78 Hydraulic Valve is a 3-section monoblock valve designed for manual control in various applications, including material handling, construction, and agriculture. It features a rated flow of 40 L/min, a max pressure of 250 bar, and is suitable for a wide range of operating temperatures.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
Our factory directly supplies this high-quality P40-U78 Hydraulic Valve, a 3-section monoblock valve with manual control. This valve is designed for applications in material handling, construction, and agriculture, and is suitable for various machines such as telehandlers, forklifts, cranes, and excavators. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions. It is also engineered for a wide operating temperature range of -40°C to +80°C, ensuring durability and longevity. We are a global supplier offering manufacturing, OEM, private labeling, customization, and wholesale services. Contact us today to learn more about our products and find the perfect solution for your needs.
