Maximize savings with factory wholesale prices on SD5 Valves. Our high-quality hydraulic valves are manufactured to exacting standards and offer exceptional performance in various applications, including material handling, construction, agriculture, and industrial vehicles.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |

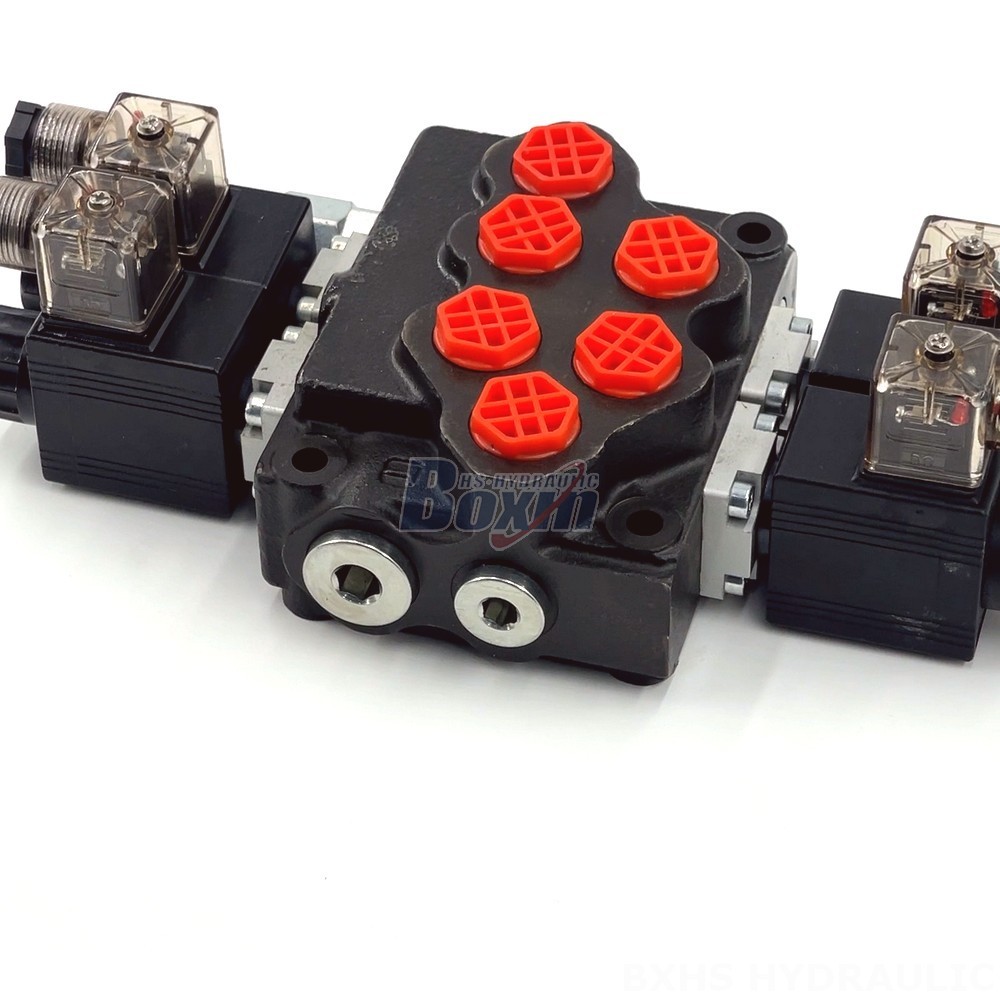

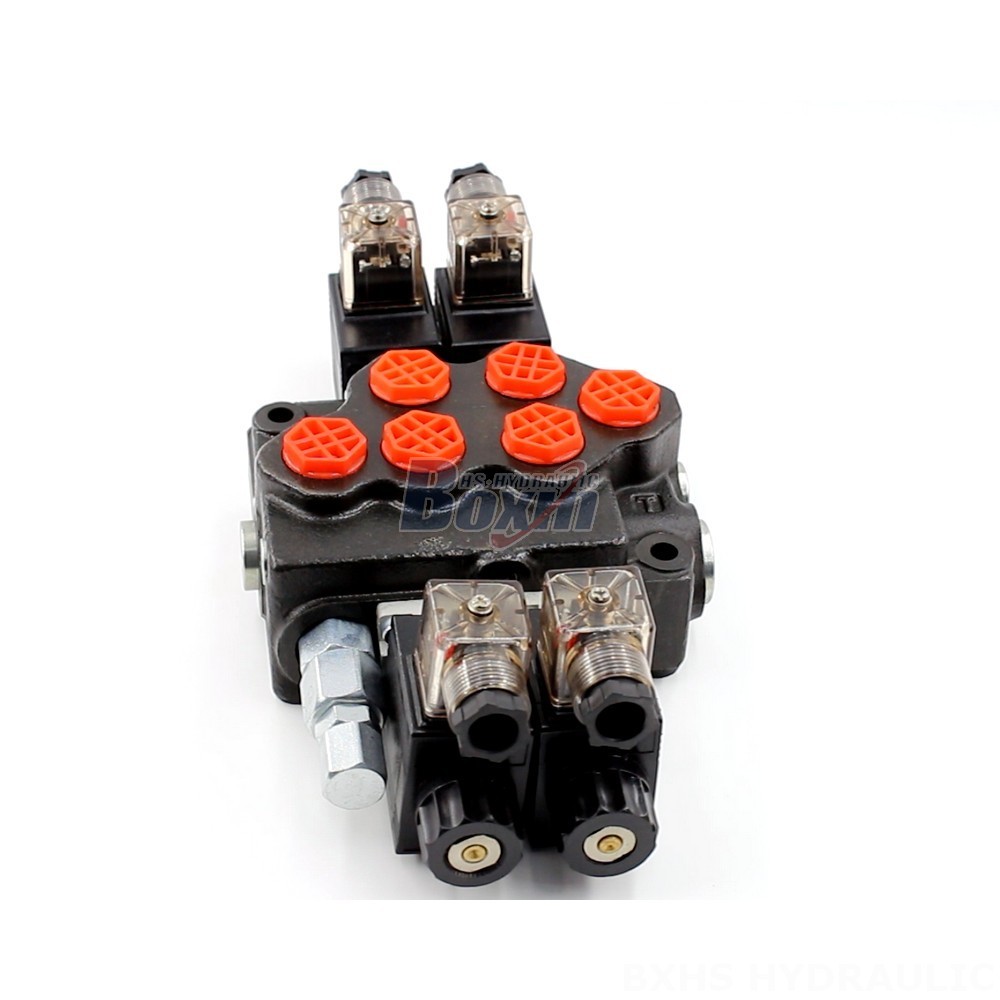

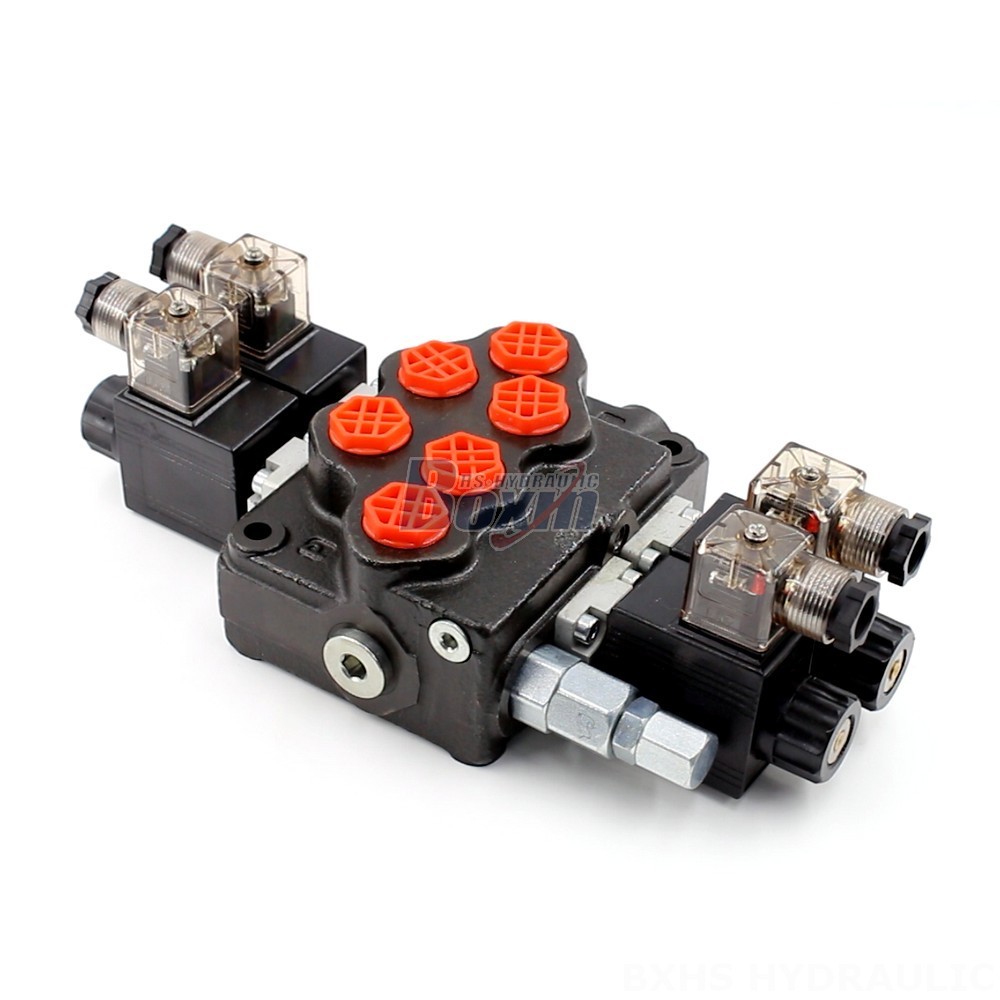

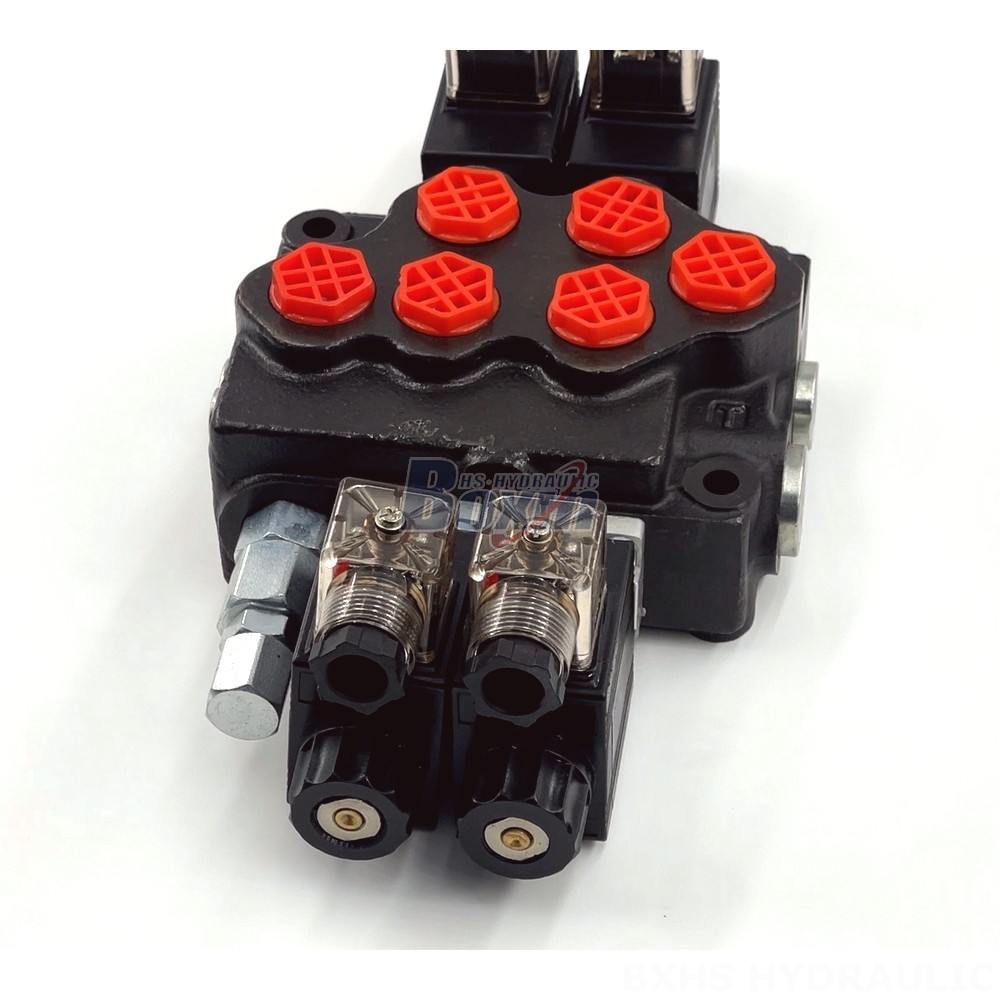

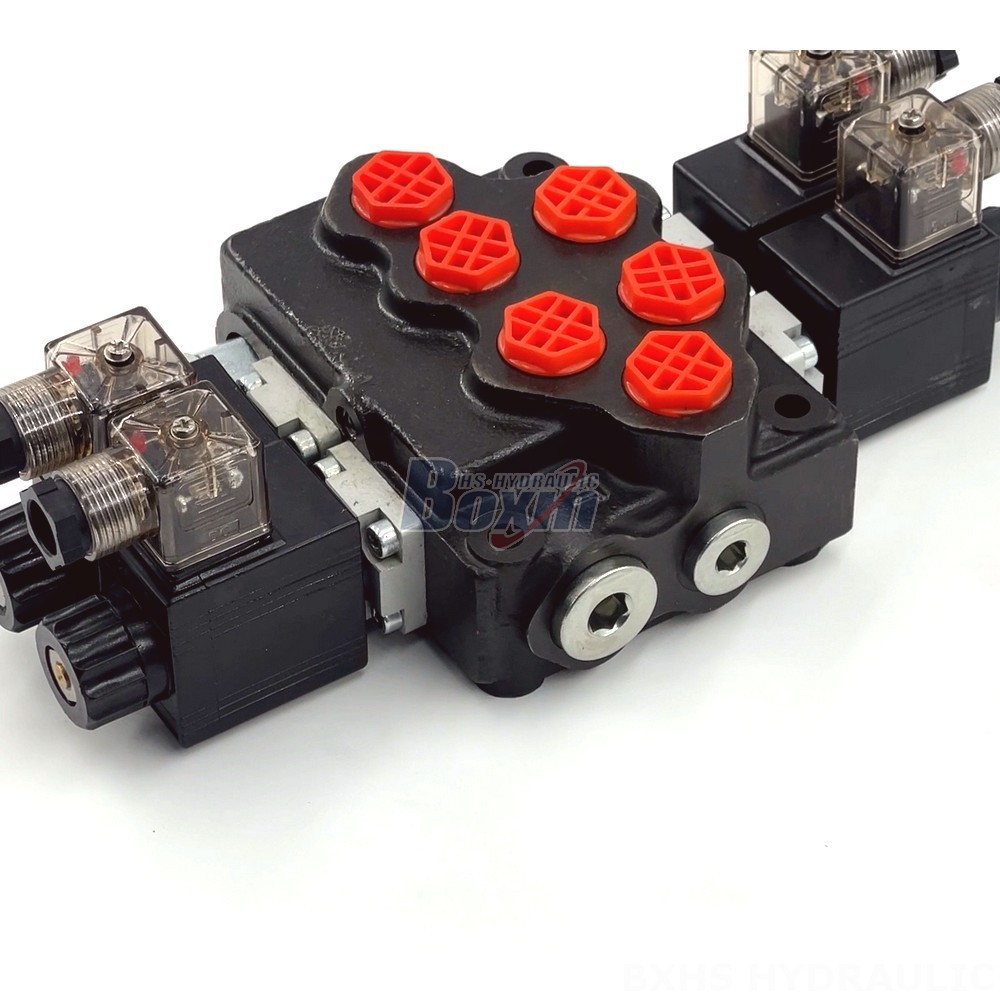

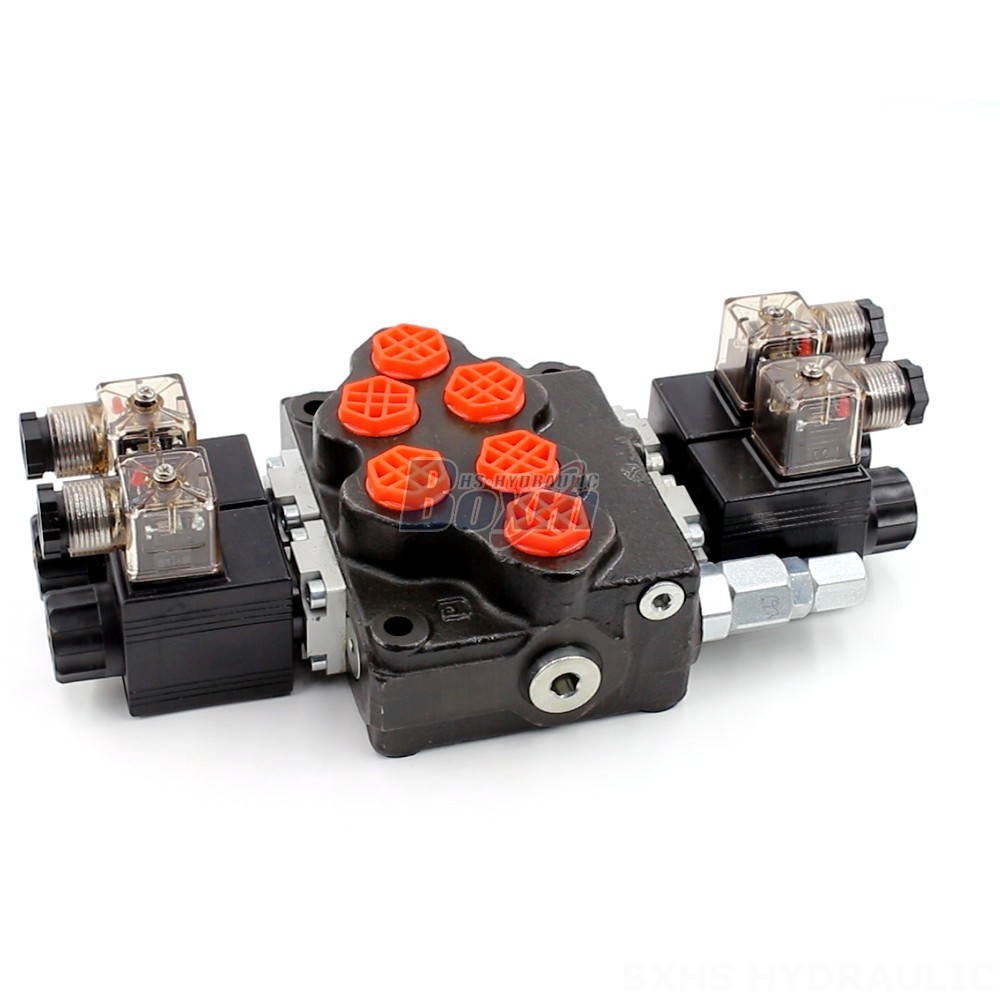

**SD5 Series Hydraulic Valve**
**Factory Wholesale Prices: Purchase Direct and Save**
- Solenoid control for precise operation
- 2 section design for versatile applications
- Monoblock construction for durability and compact size
- 40 L/min (10.5 US gpm) rated flow for efficient operation
- 305 bar (4400 psi) maximum pressure for demanding applications
- 15 - 75 mm²/s (15 cSt to 75 cSt) operating viscosity range for compatibility with various fluids
- -40°C to +60°C (-40°F to +140°F) ambient temperature range for wide-ranging use
- 2 spool for enhanced control
**Applications:**
- Material handling
- Construction and earth moving
- Agriculture
- Industrial vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All terrain crane
- Stacker
- Aerial platform
- Motor grader
- Midi-excavator
- Mini-excavator
- Skid steer loader
- Compact wheel loader
As a leading manufacturer, we offer custom manufacturing, OEM, ODM, and private label services. Contact us today to discuss your specific requirements and experience the benefits of factory wholesale pricing.
