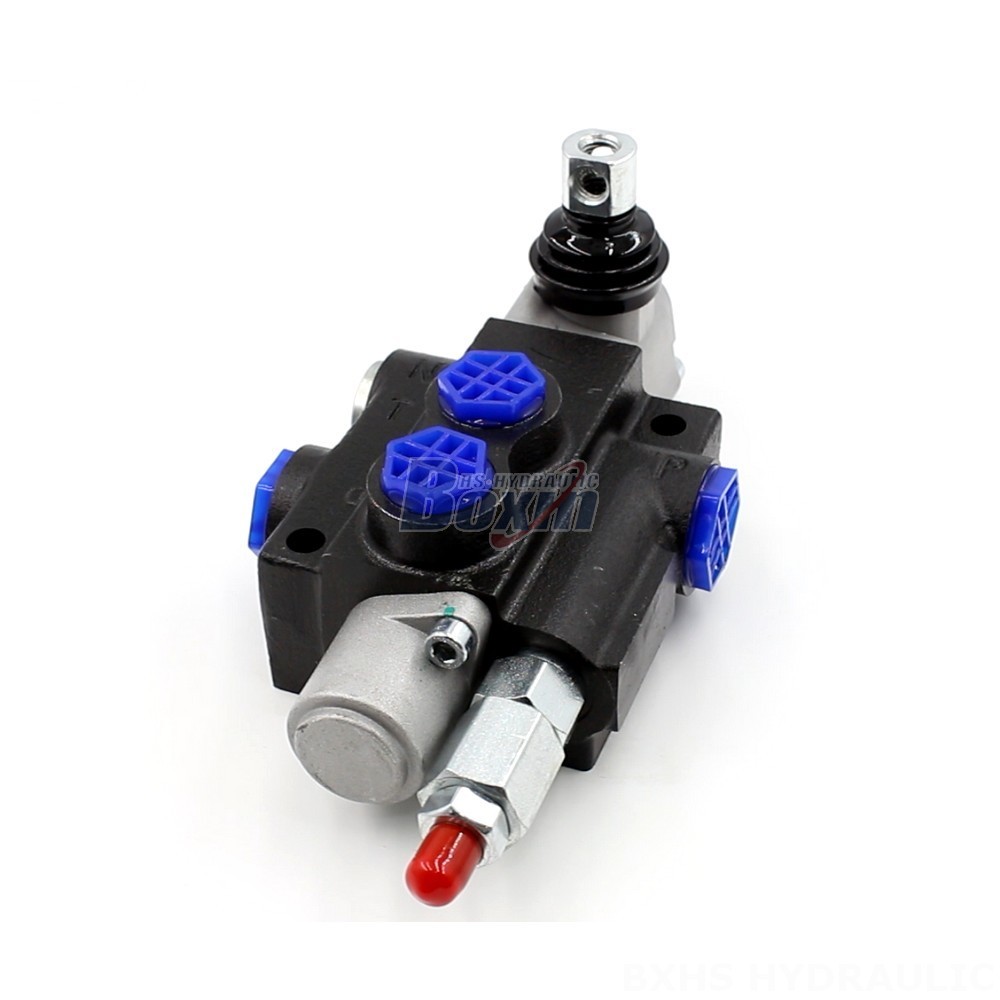

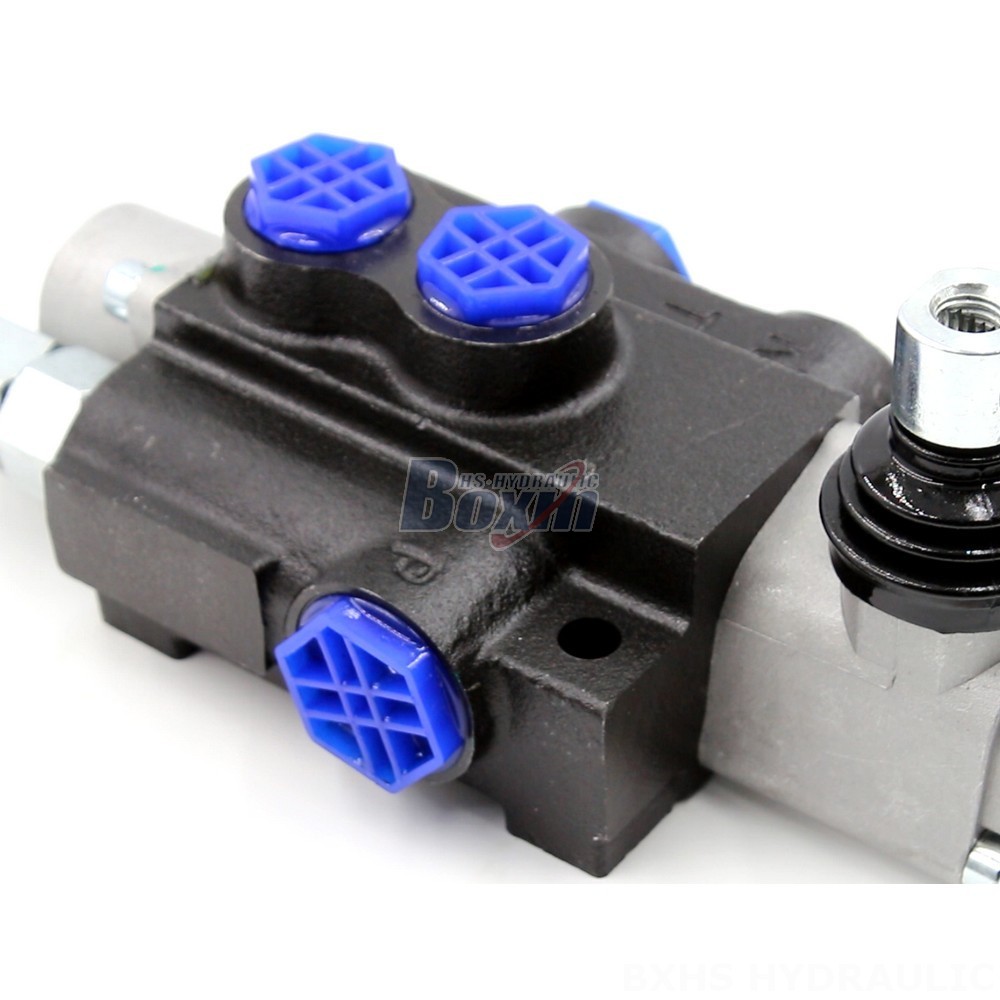

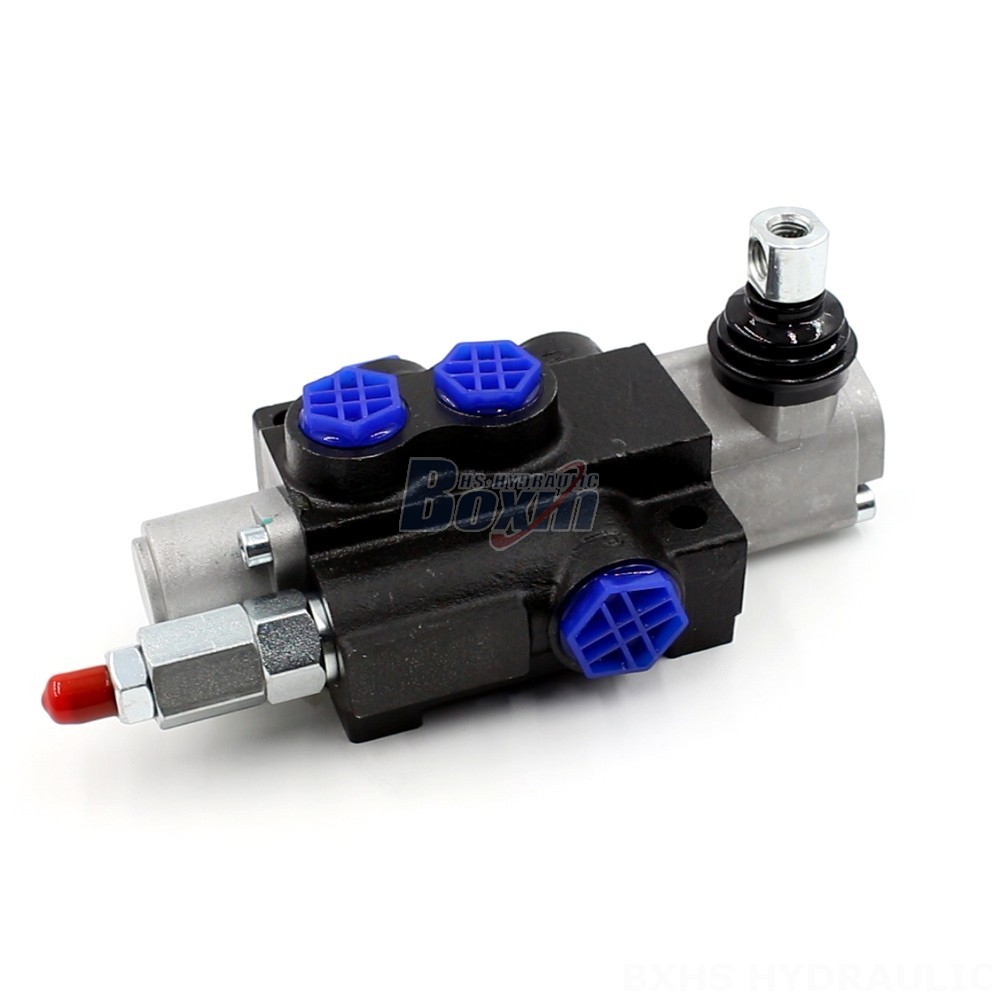

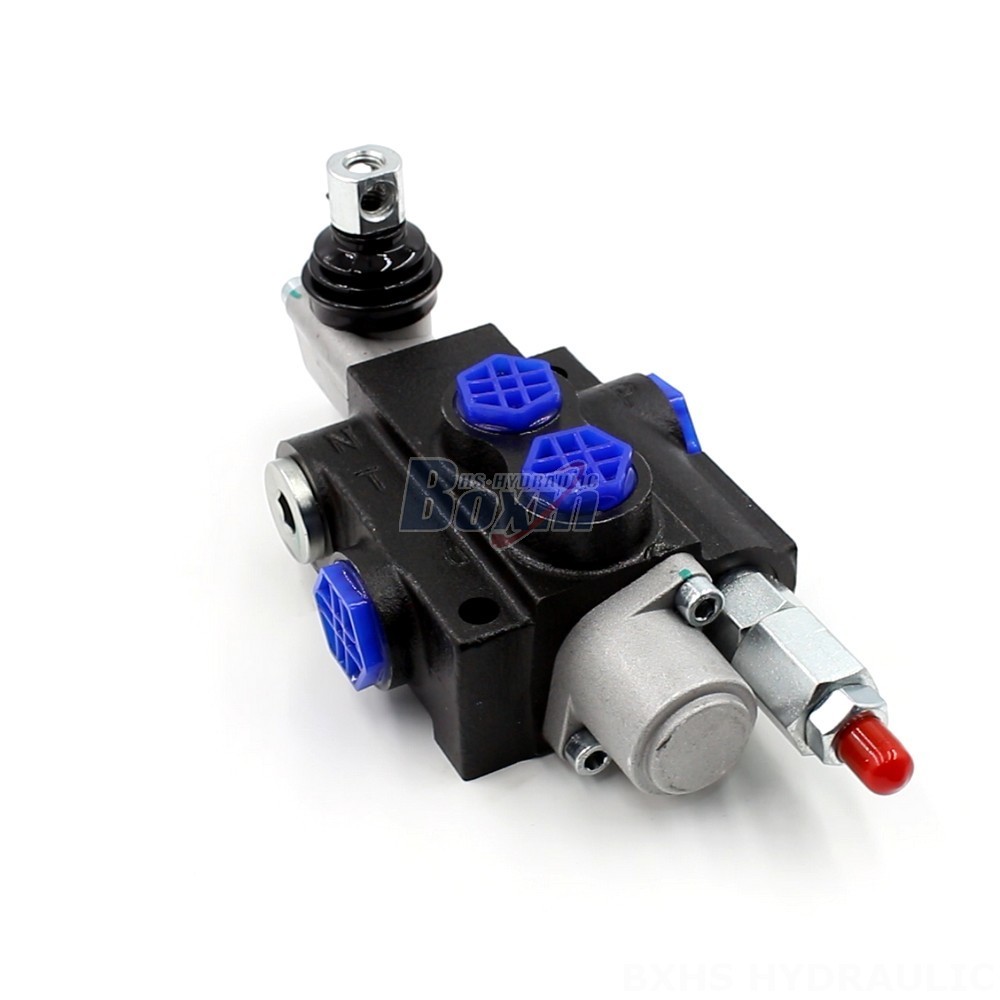

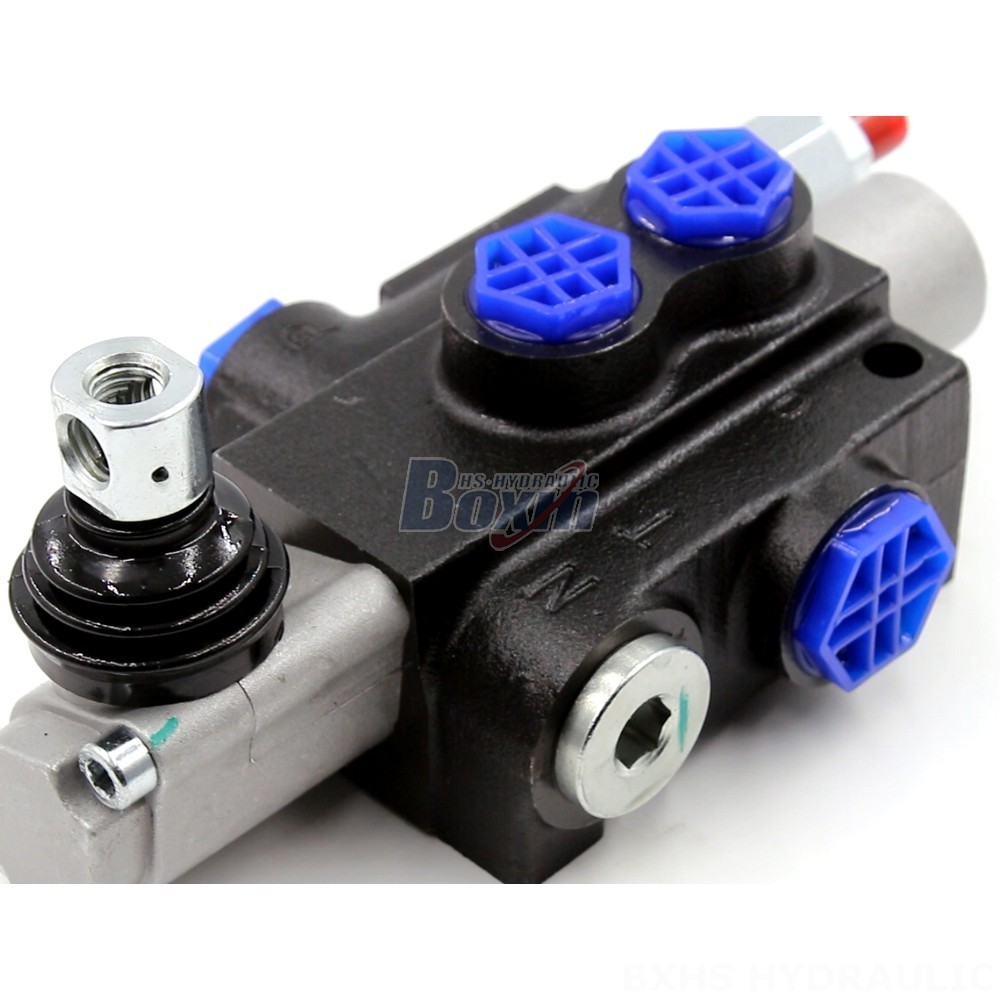

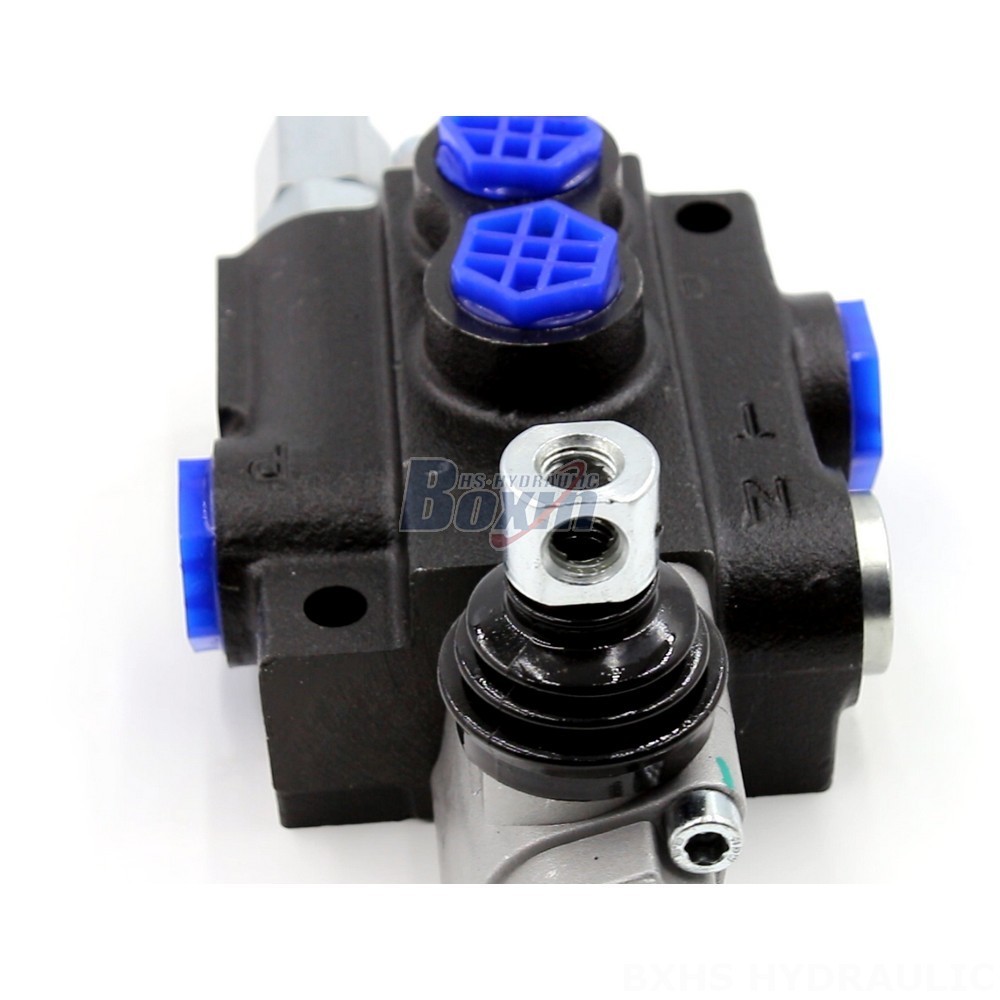

The P40-G12 valve is a high-quality, reliable and versatile directional control valve designed for a wide range of applications in construction, agriculture, material handling, and industrial vehicles. It features a robust monoblock construction, manual control, and a rated flow of 40 L/min. This valve is factory supplied and customizable to meet specific requirements.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-G12 valve is a directional control valve designed for demanding applications in construction, agriculture, material handling, and industrial vehicles. This robust monoblock valve features manual control, providing precise and reliable operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for various applications. We are a factory manufacturer and supplier, offering global sales, OEM/ODM services, customization, and bulk purchases. We also welcome distributors, wholesalers, dealers, and traders to collaborate with us. Contact us today to discuss your specific needs and explore the benefits of our high-quality P40-G12 valves.
