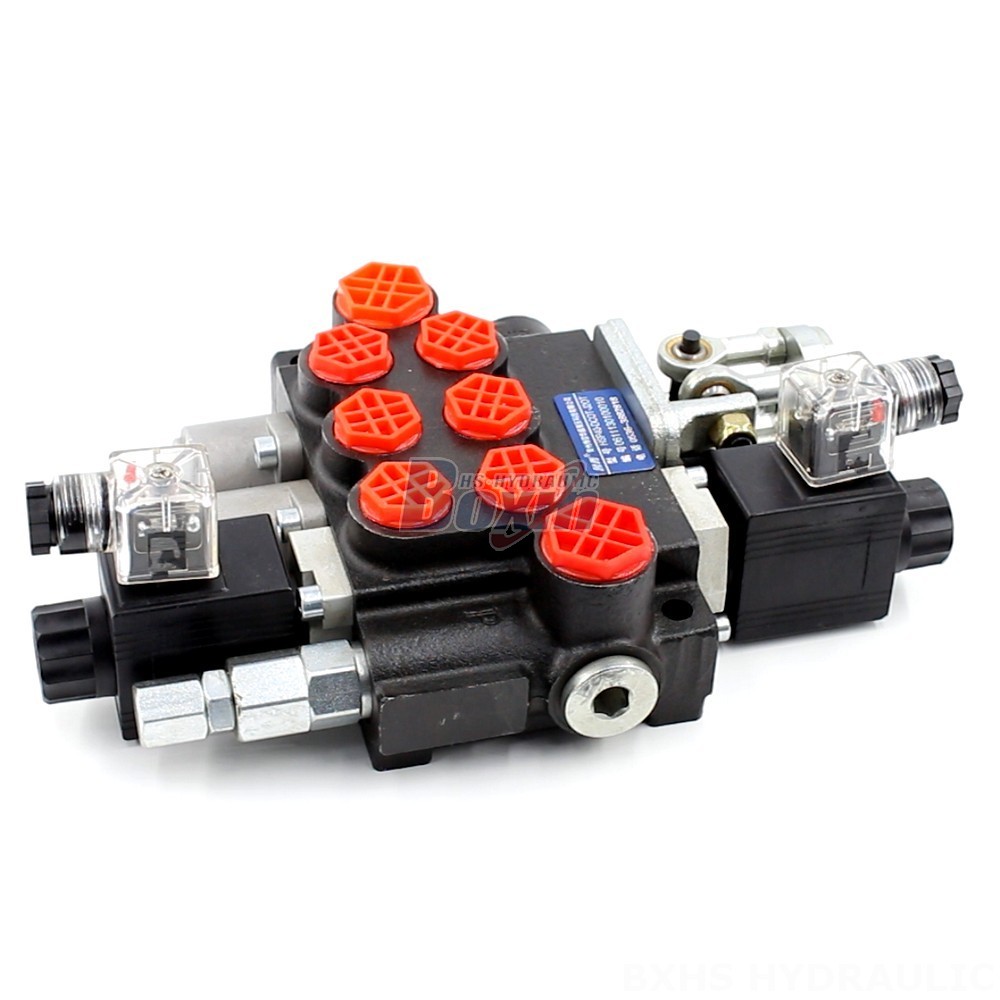

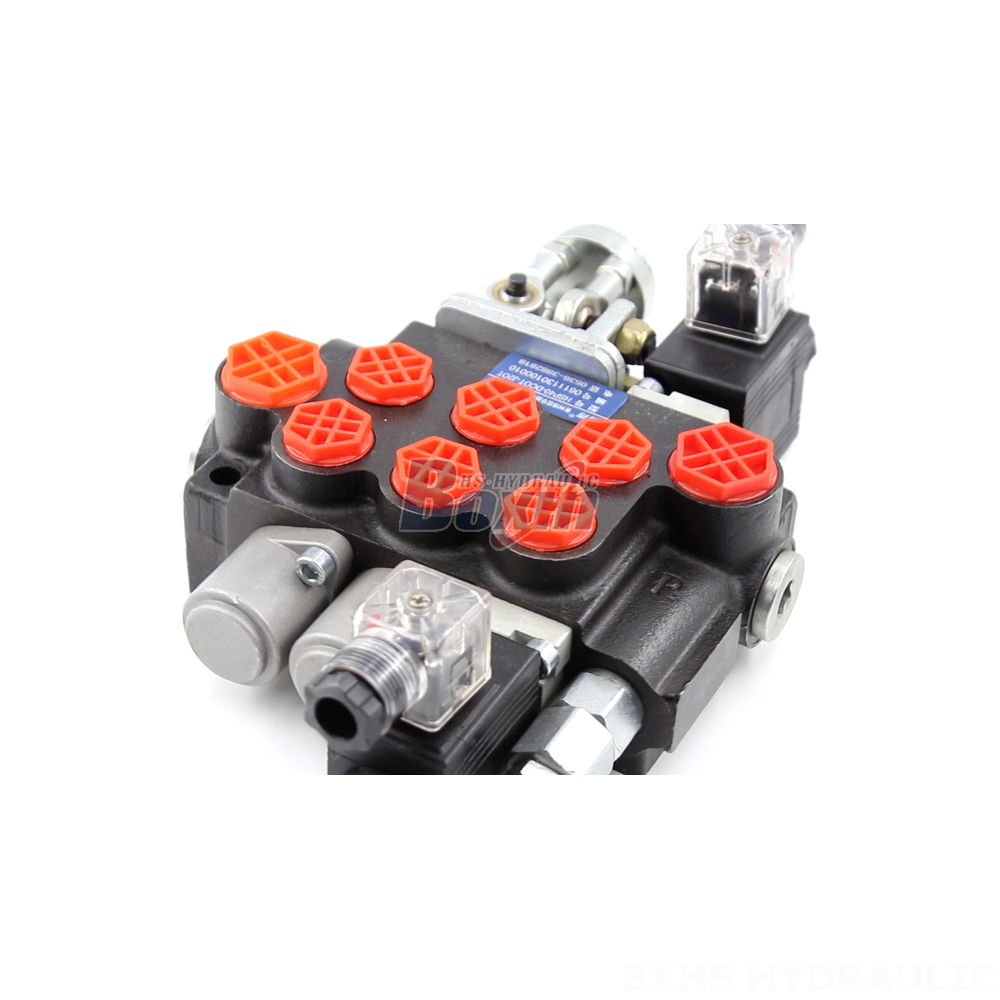

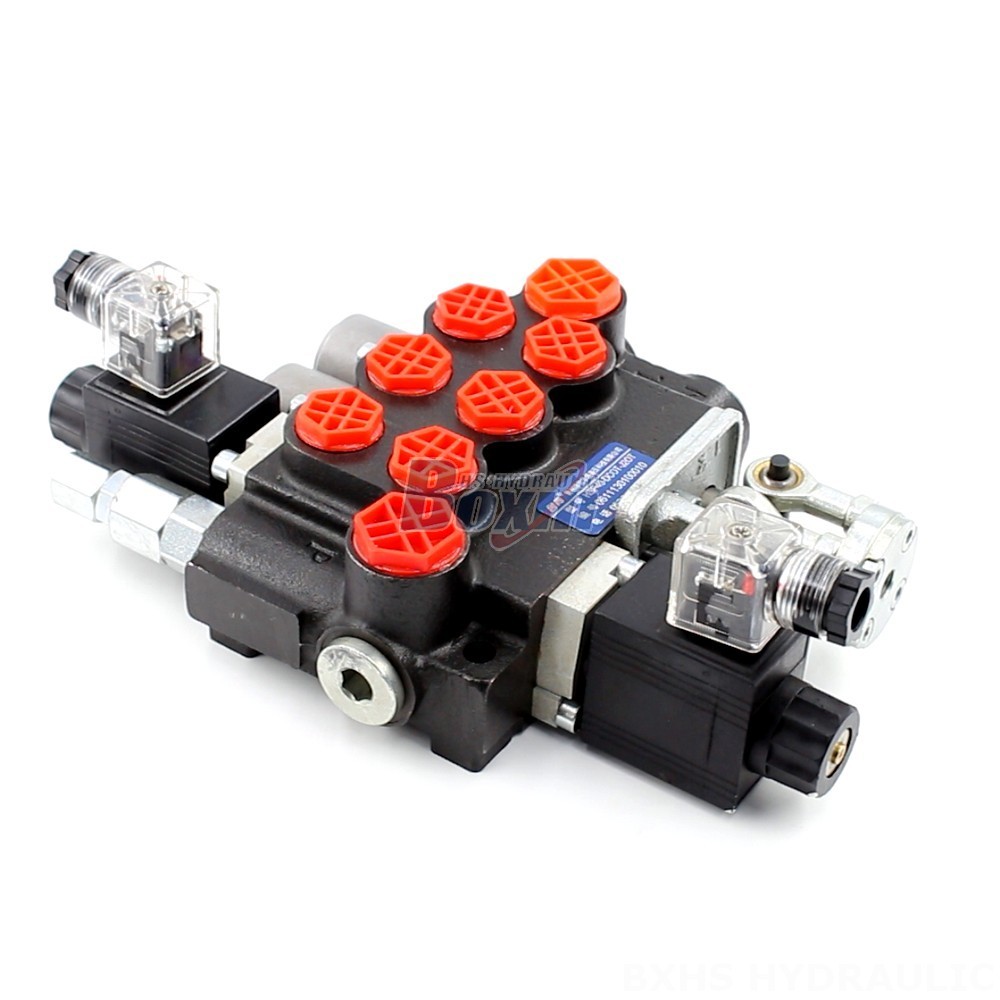

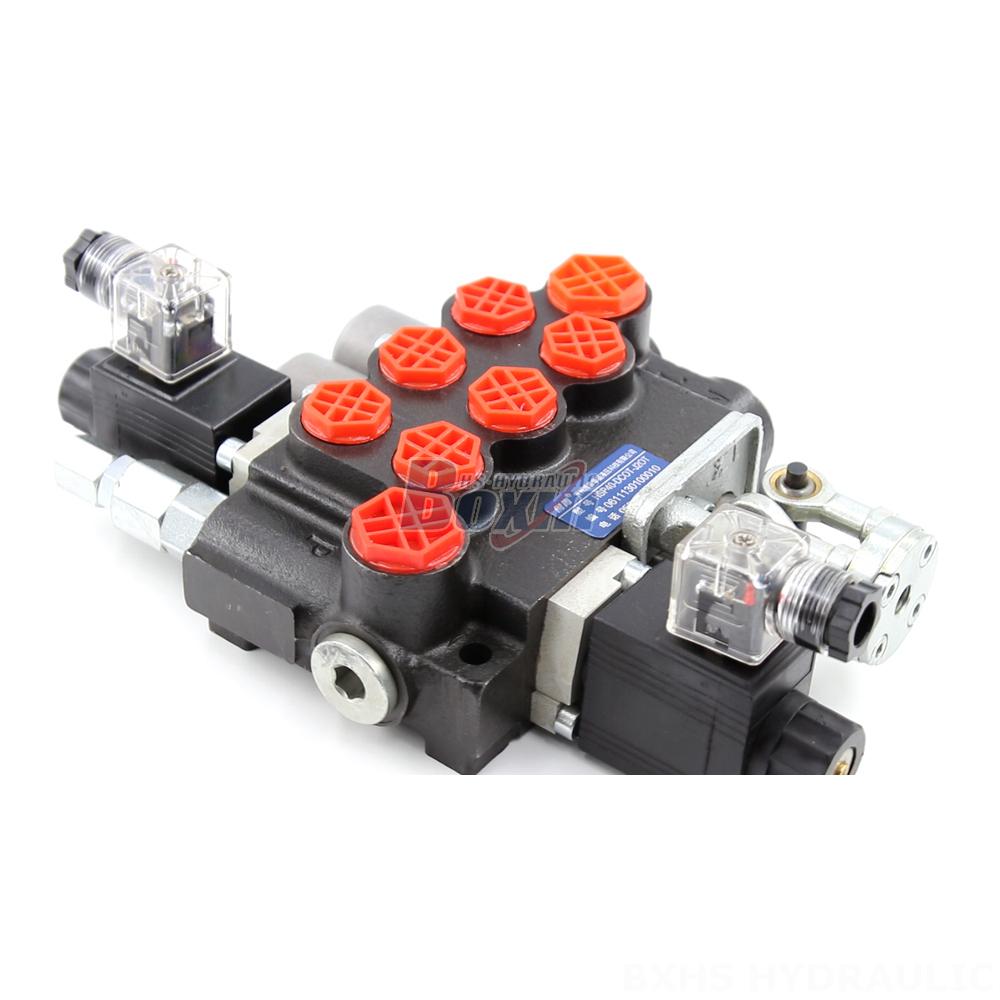

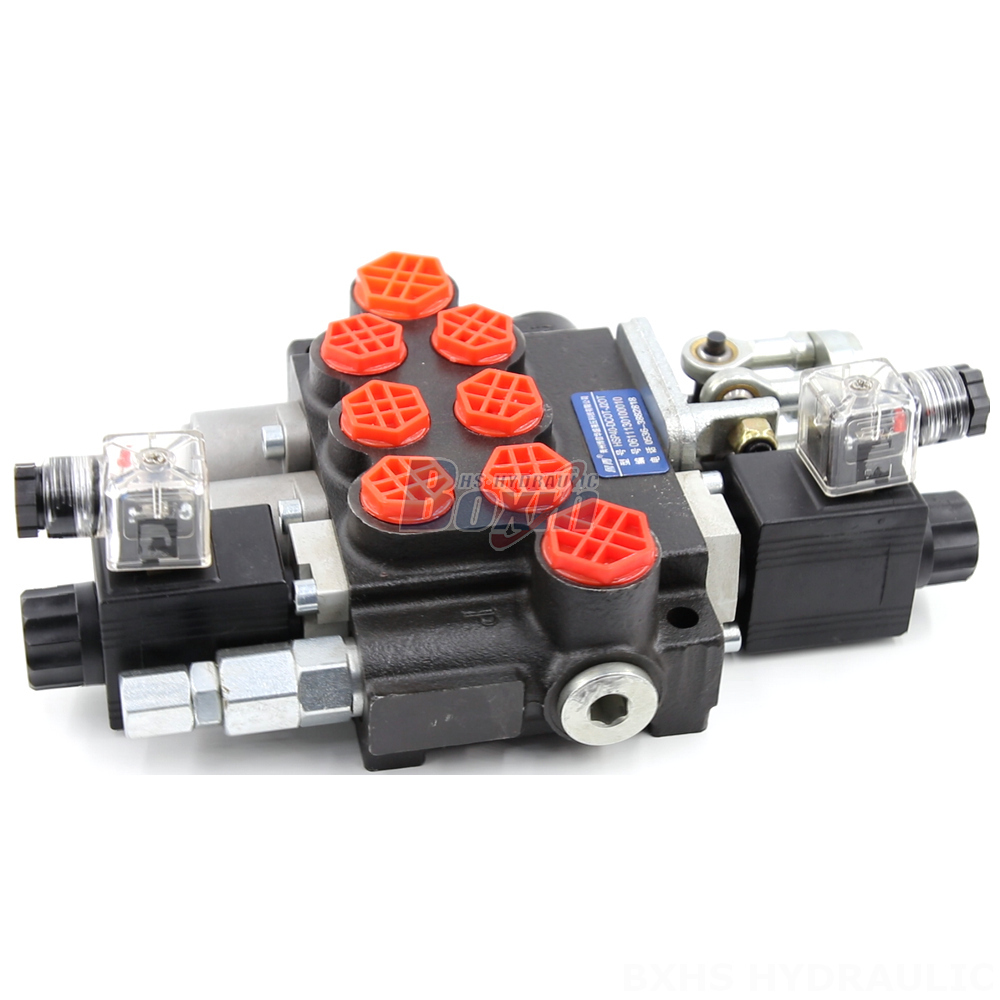

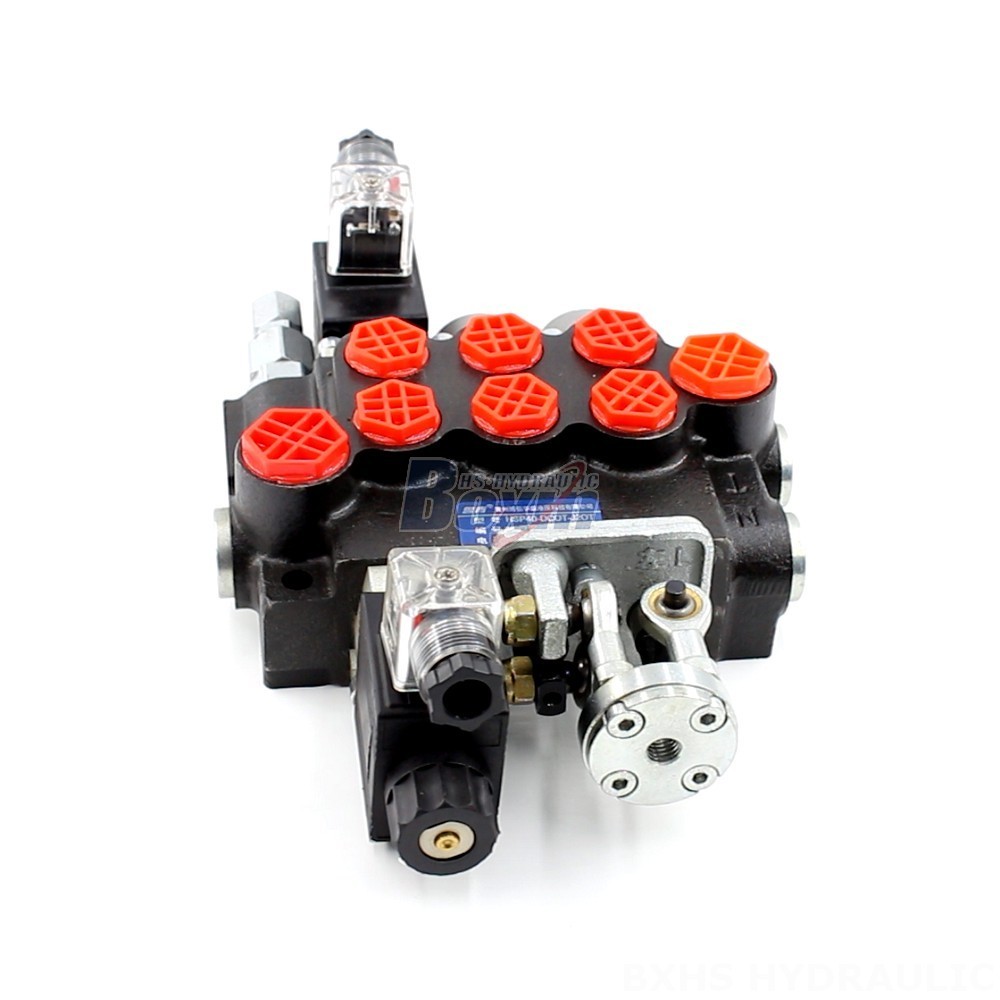

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves

控制方式:电磁+一控二

路数:3 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:30*22*15

Grossweight:10.00 kg

库存: 有货

994 次查看了此产品

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves drawing image

This high-performance P40 series hydraulic valve is designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock design, solenoid and joystick control options, and a rated flow of 40 L/min. This valve is ideal for telehandlers, forklifts, mini-excavators, and more.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

This P40 series hydraulic valve is a reliable and durable solution for a wide range of heavy-duty applications. It features a 3-section monoblock design for exceptional strength and performance. The valve is available with both solenoid and joystick control options, providing versatility and ease of operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems. It's suitable for use in telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. This valve is manufactured to the highest standards and is backed by factory direct supply, ensuring quality and affordability.
