Exclusive Factory Deals on P40 Floating Cable 2 Spool Monoblock Directional Valves

控制方式:软轴

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40系列 单块式方向阀

Packagingsize:19*31*12

Grossweight:5.32 kg

库存: 有货

1112 次查看了此产品

Exclusive Factory Deals on P40 Floating Cable 2 Spool Monoblock Directional Valves

Exclusive Factory Deals on P40 Floating Cable 2 Spool Monoblock Directional Valves

Exclusive Factory Deals on P40 Floating Cable 2 Spool Monoblock Directional Valves drawing image

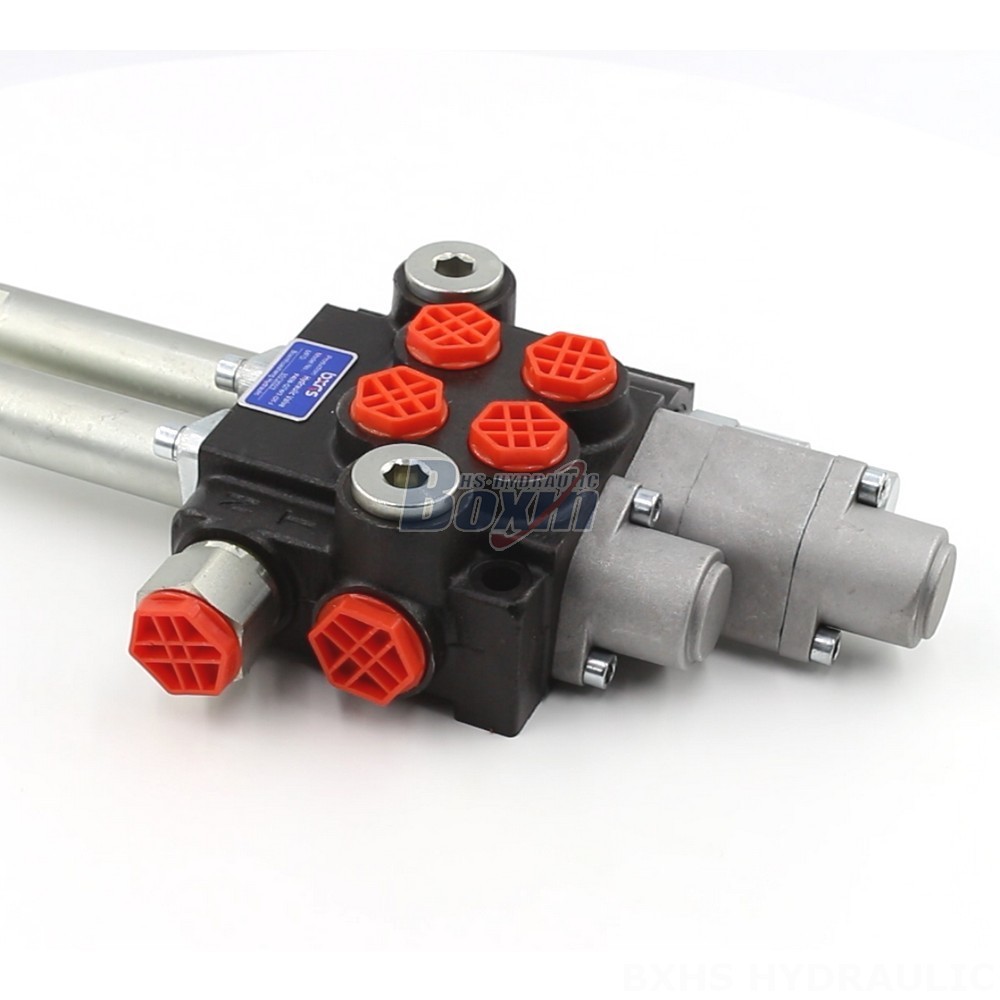

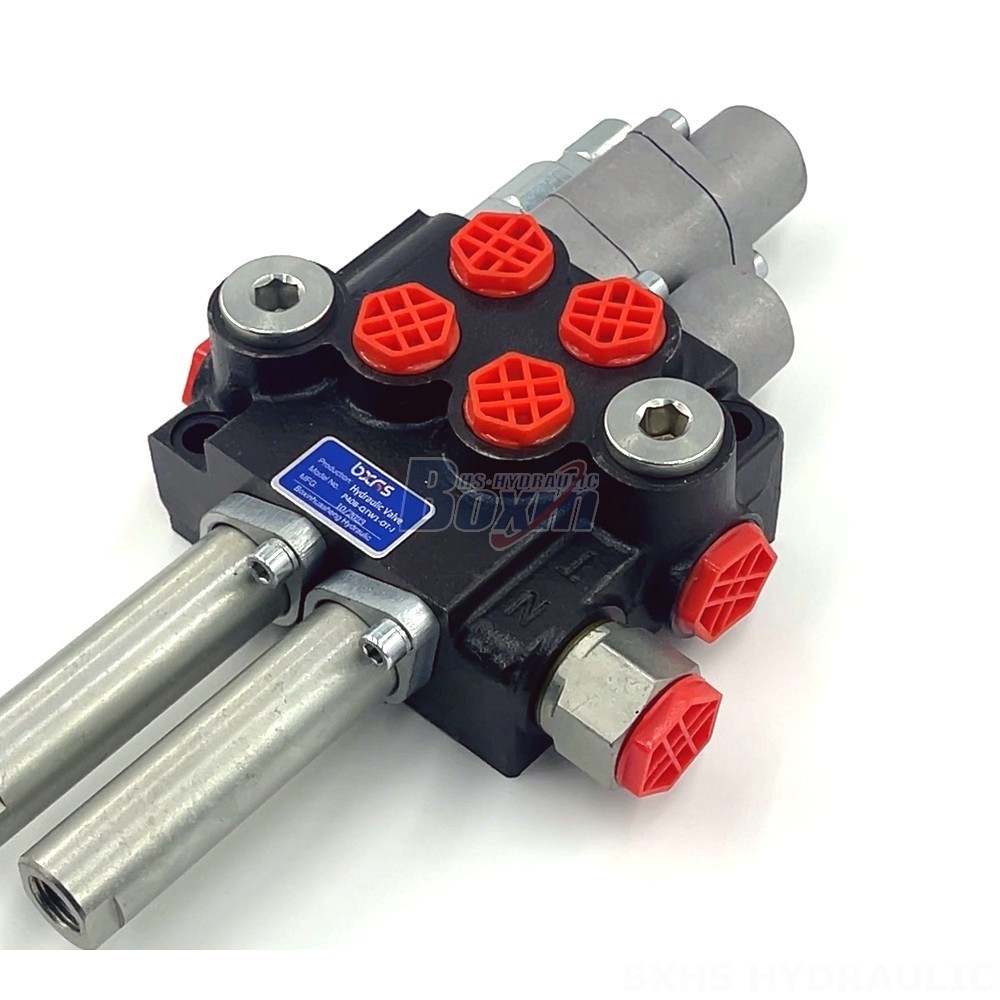

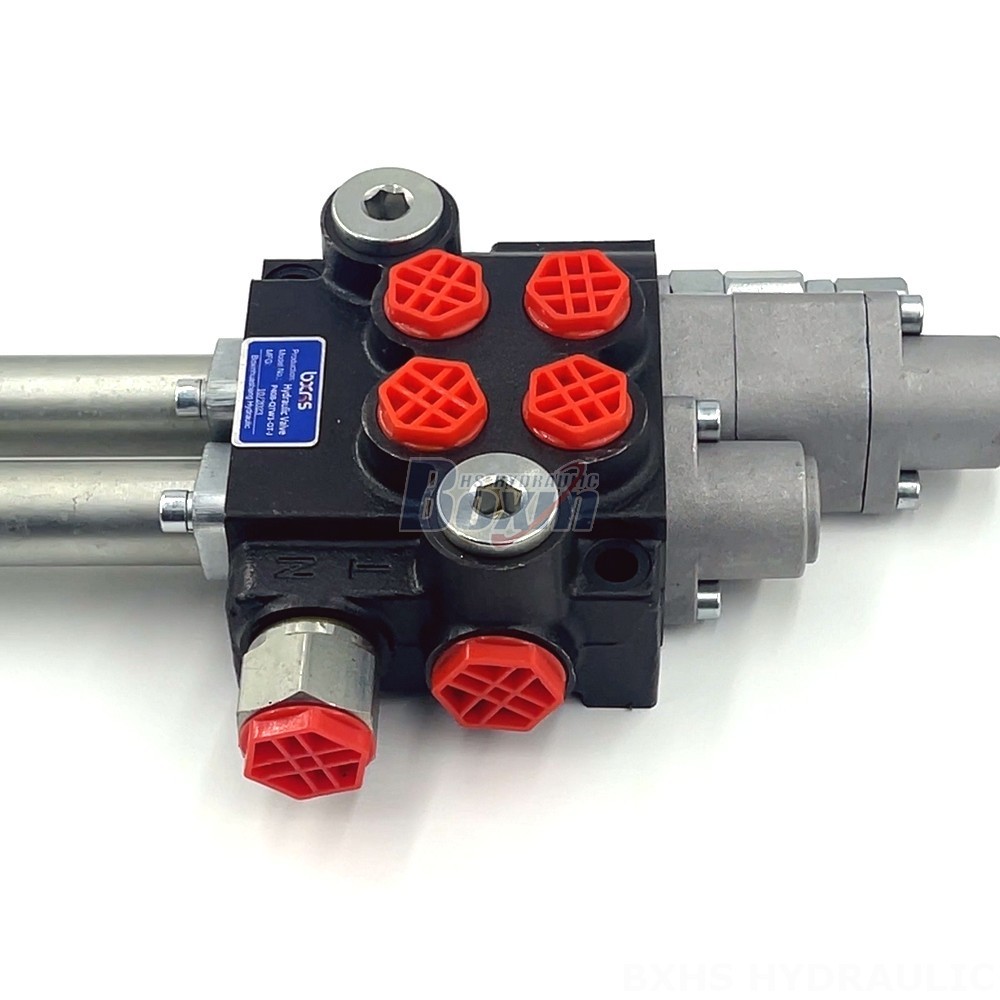

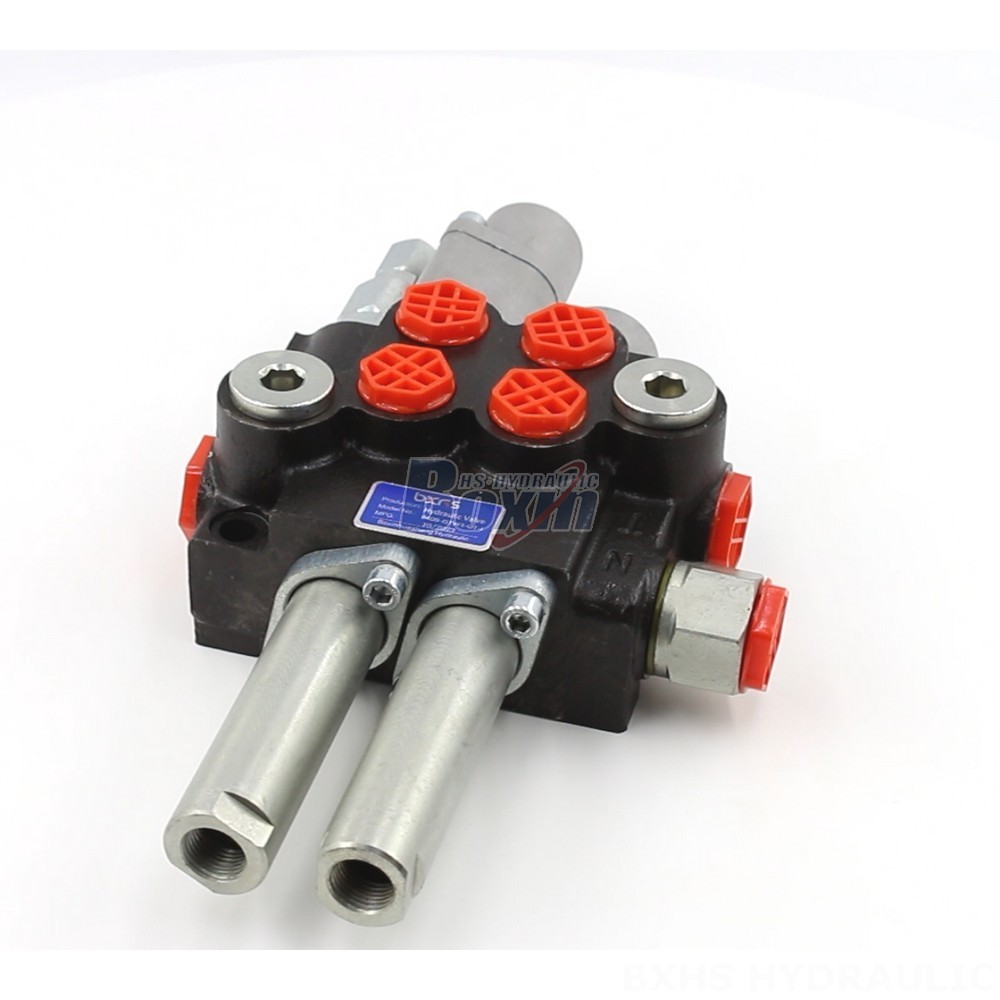

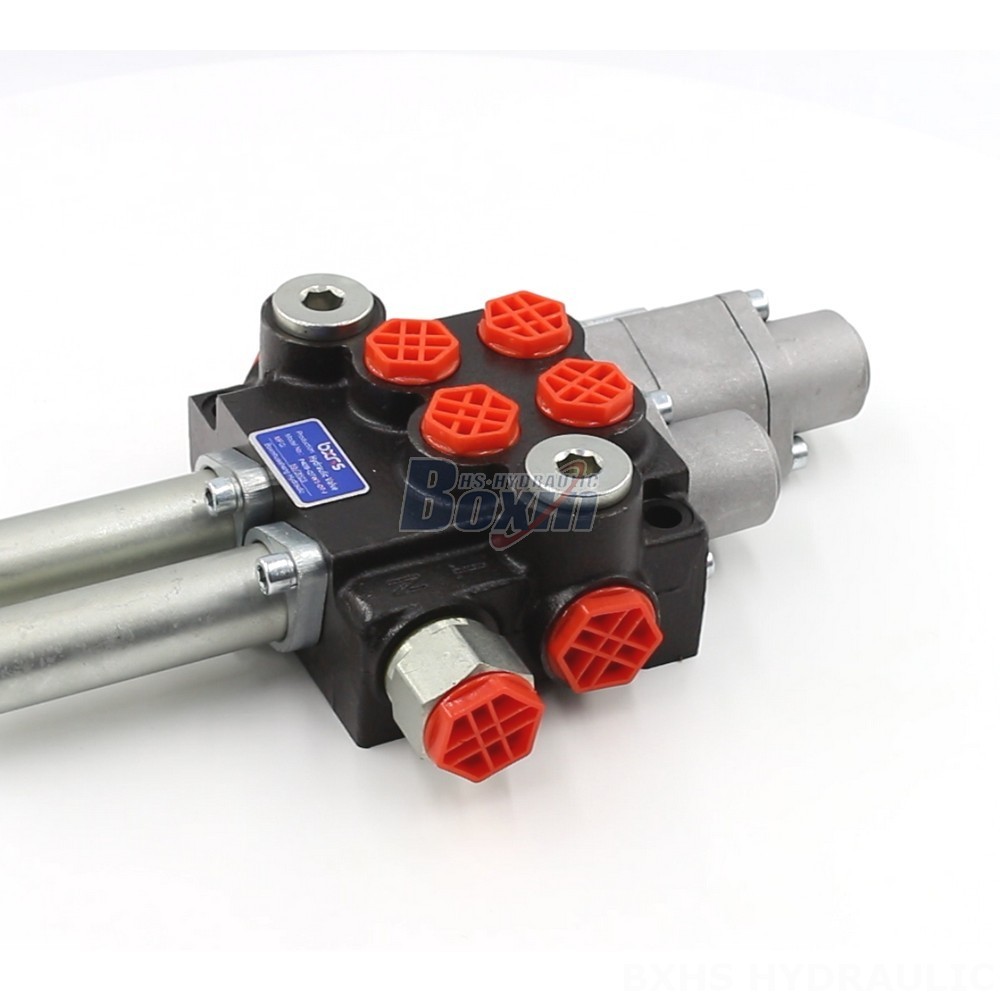

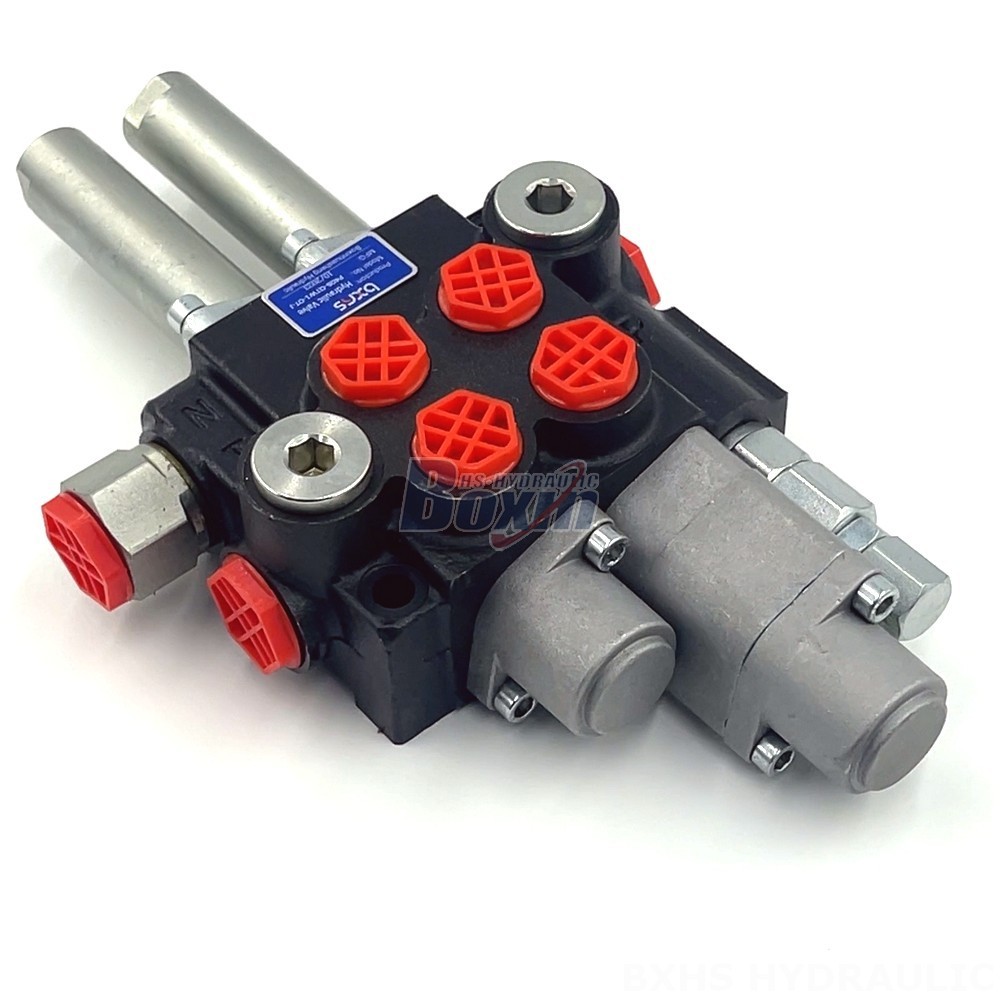

Introducing our exclusive factory deals on high-performance P40 Floating Cable 2 Spool Monoblock Directional Valves. These valves are meticulously engineered for seamless operation, providing precise flow control in demanding hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, our valves excel in diverse industries, including material handling, construction, agriculture, and industrial vehicles. Their flexible 2-spool design and compatibility with various applications make them a versatile choice for your hydraulic system requirements.

P40系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

Our P40 series valves feature a rugged monoblock construction, ensuring durability and leak-free performance. The floating cable control mechanism offers precise spool actuation, while the 2-spool design allows for independent control of two separate hydraulic circuits. These valves operate within a wide viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C, ensuring reliable operation in challenging conditions. As a leading manufacturer, we offer these valves at competitive factory deals, enabling you to optimize your hydraulic system performance without breaking the bank. Whether you're a distributor, wholesaler, or end-user, we invite you to explore our exclusive factory deals on P40 Floating Cable Directional Valves.
