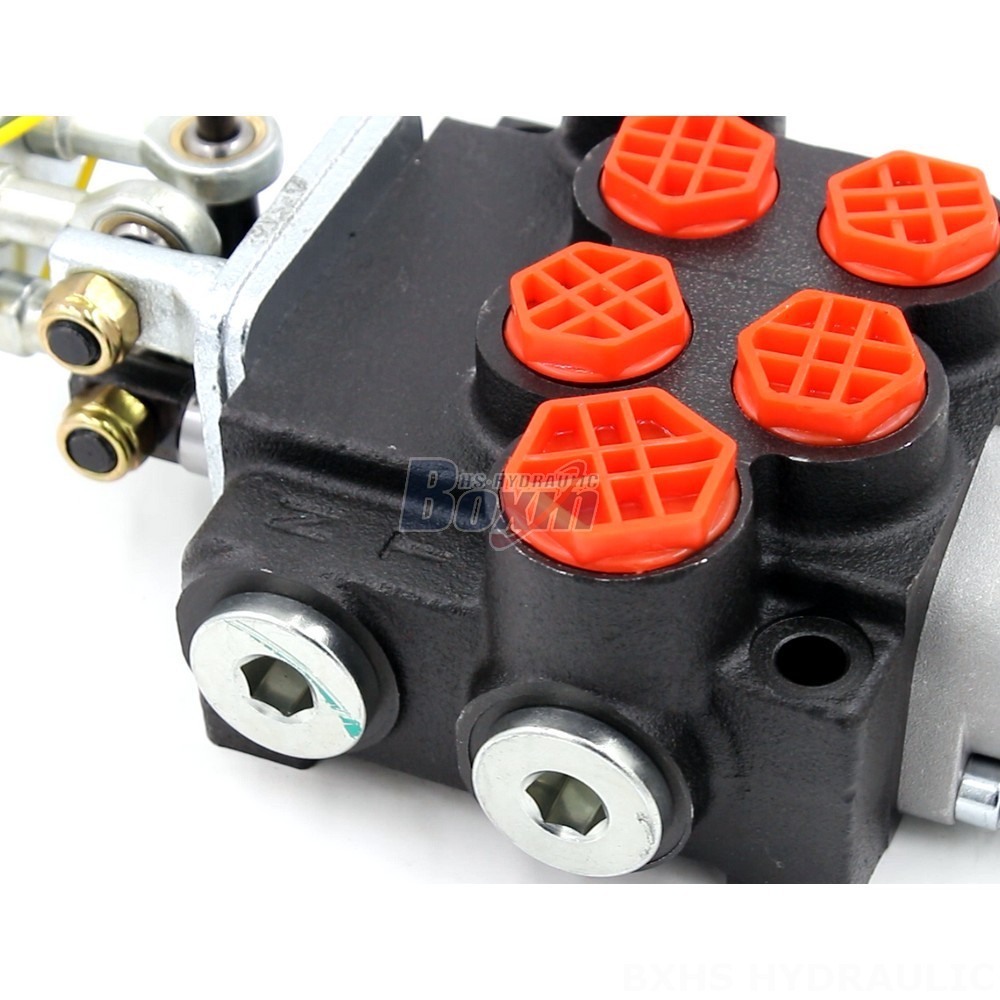

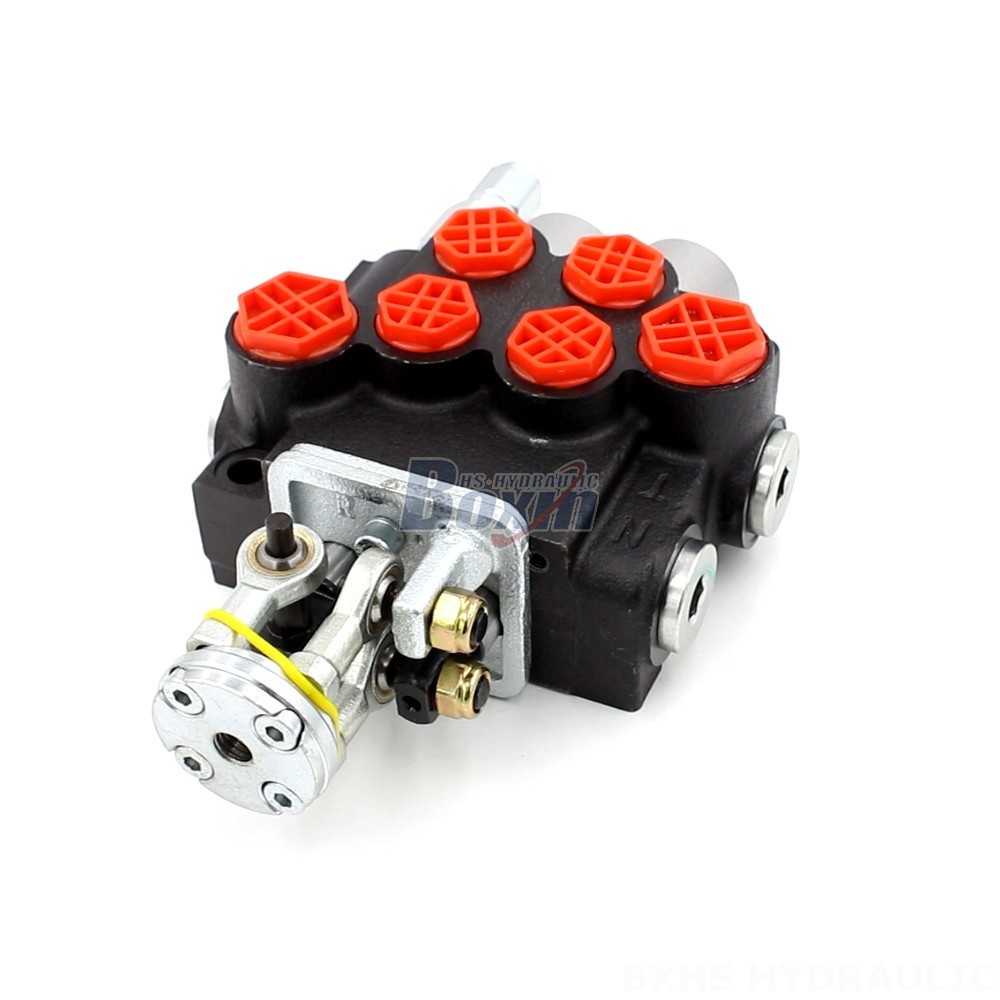

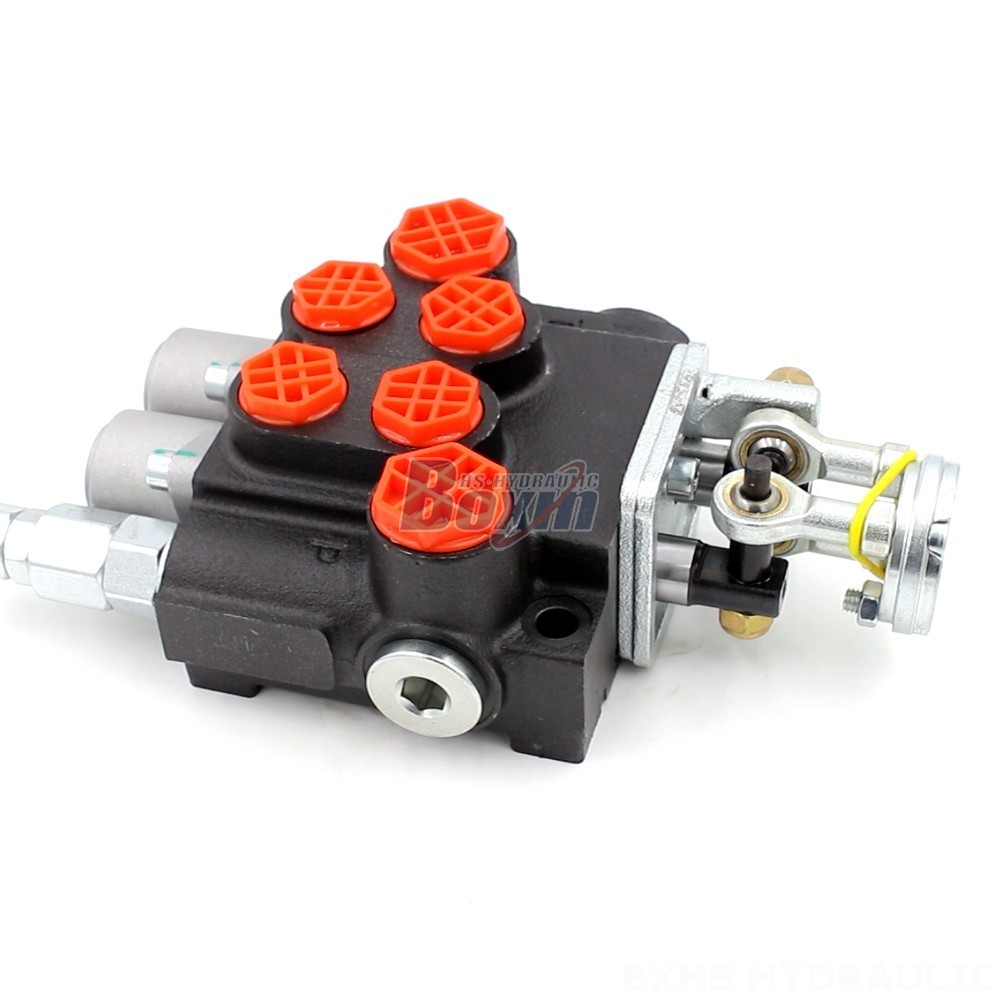

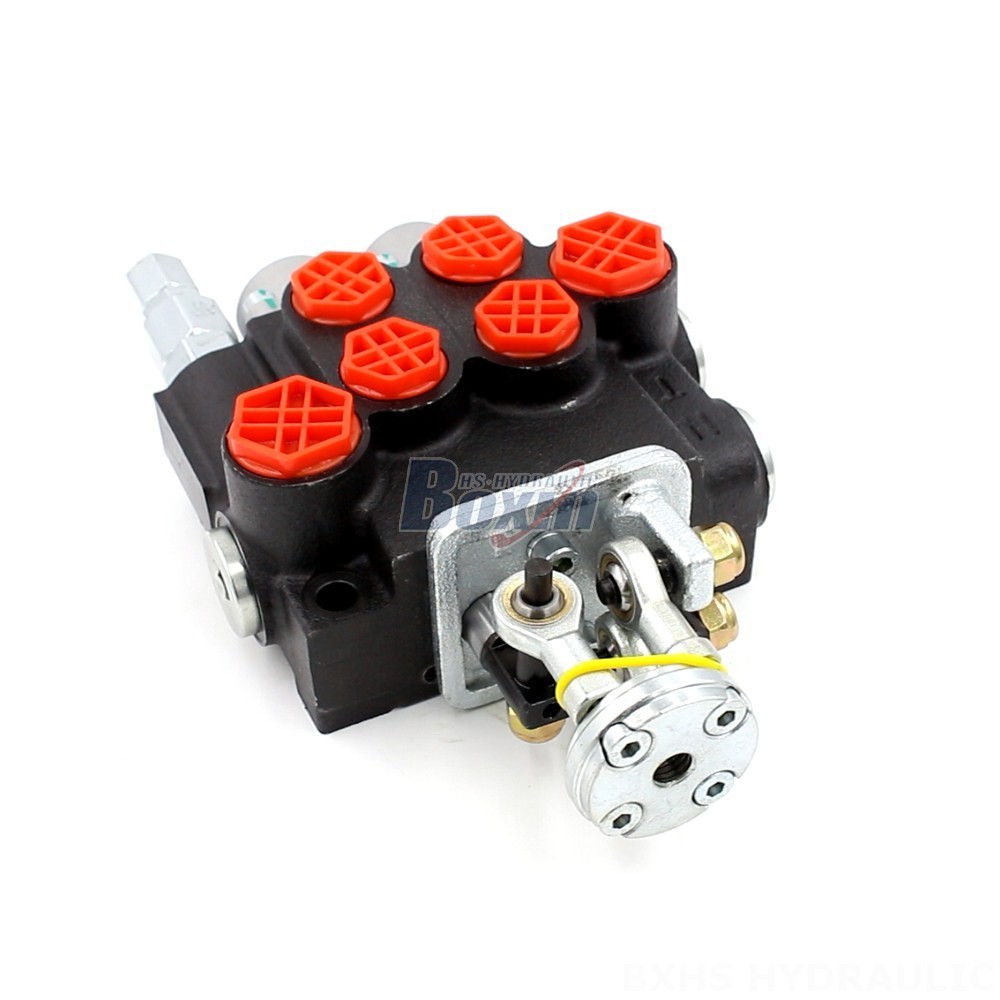

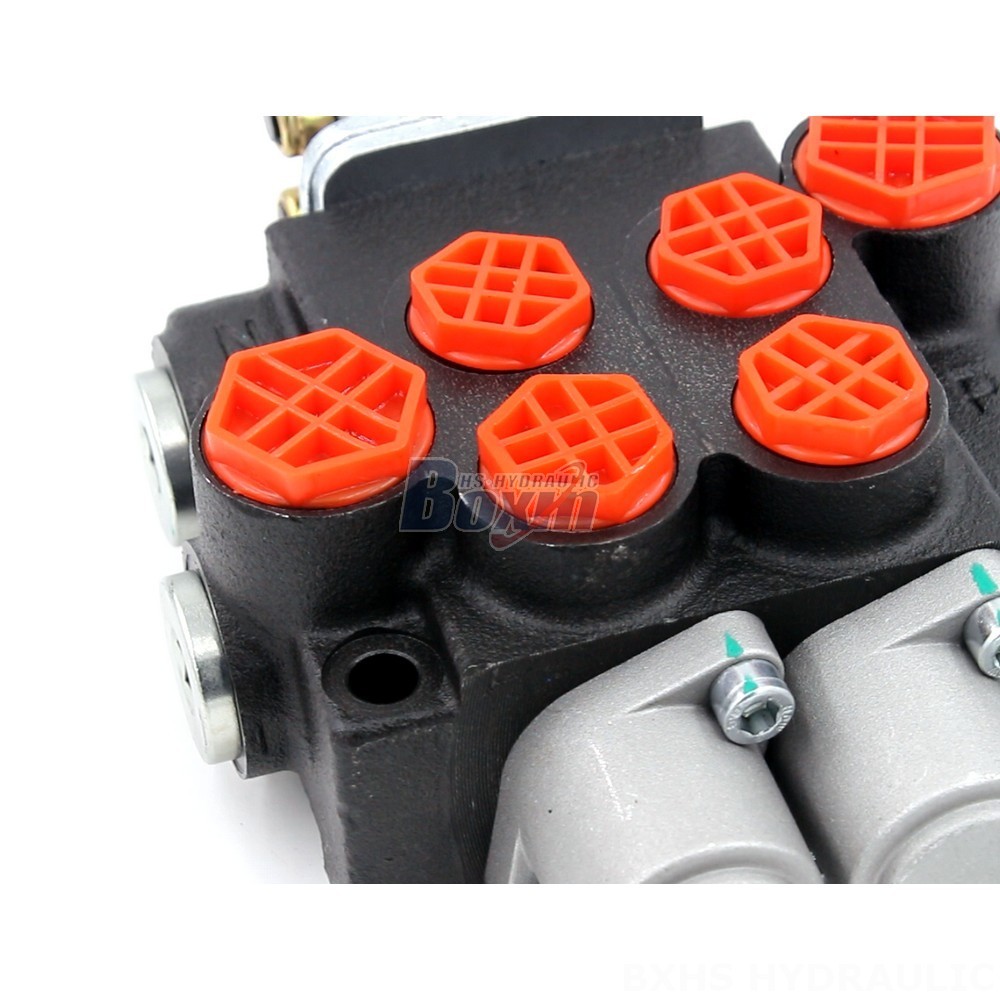

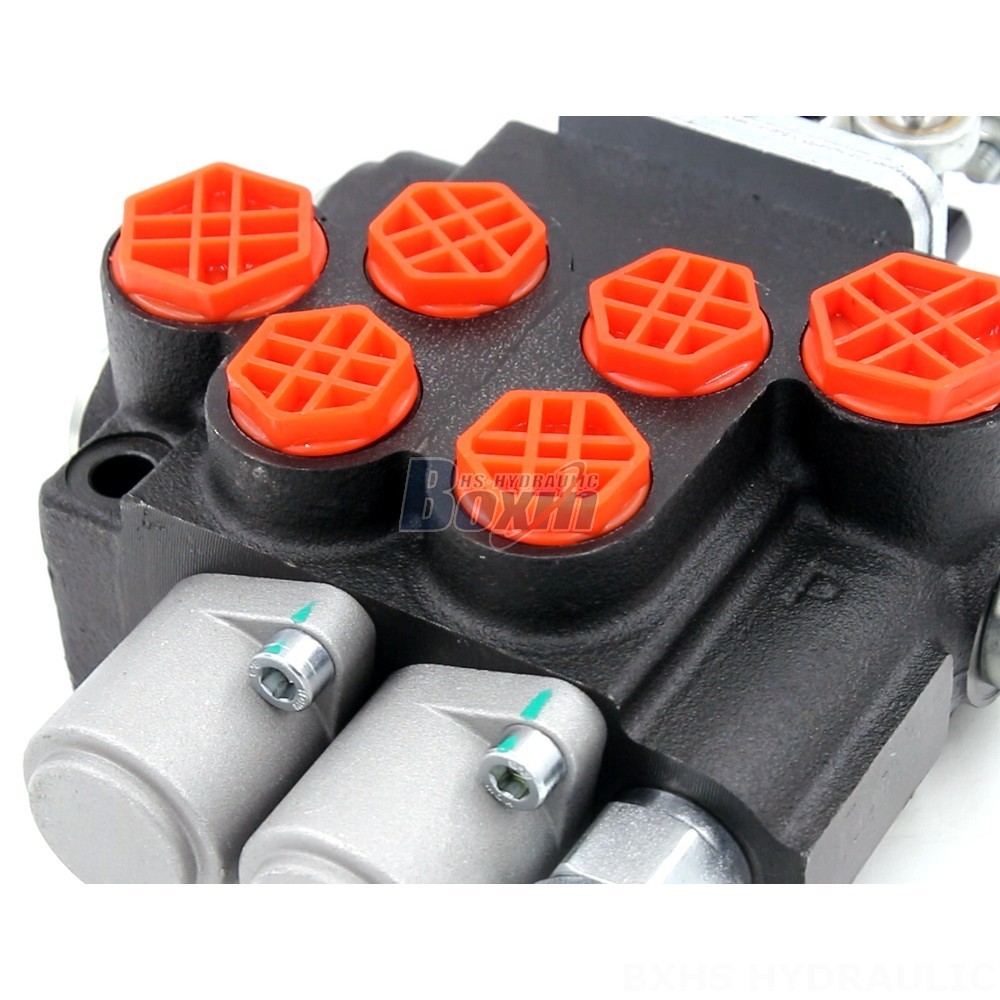

Exceptional Quality at Factory Prices: P40-2OT Hydraulic Directional Valves. Control Method: Manual and Joystick, Section: 2 Section, Structure Type: Monoblock valve, Rated Flow: 40 L/min (10.5 US gpm), Max Pressure: 250 bar (3600 psi), Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt), Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F), Spool: 2 Spool, Series: P40 Series, Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES, Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40-2OT Hydraulic Directional Valves are manufactured by a leading hydraulic products manufacturer and are available at factory prices. These valves are designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valves are available in manual and joystick control methods, and feature a monoblock valve structure, 40 L/min rated flow, 250 bar max pressure, and 2 spool. The valves are also suitable for use in a wide range of ambient temperatures, from -40°C to +80°C (-40°F to +176°F). If you are looking for high-quality hydraulic directional valves at factory prices, the P40-2OT series is an excellent option.
