783 次查看了此产品

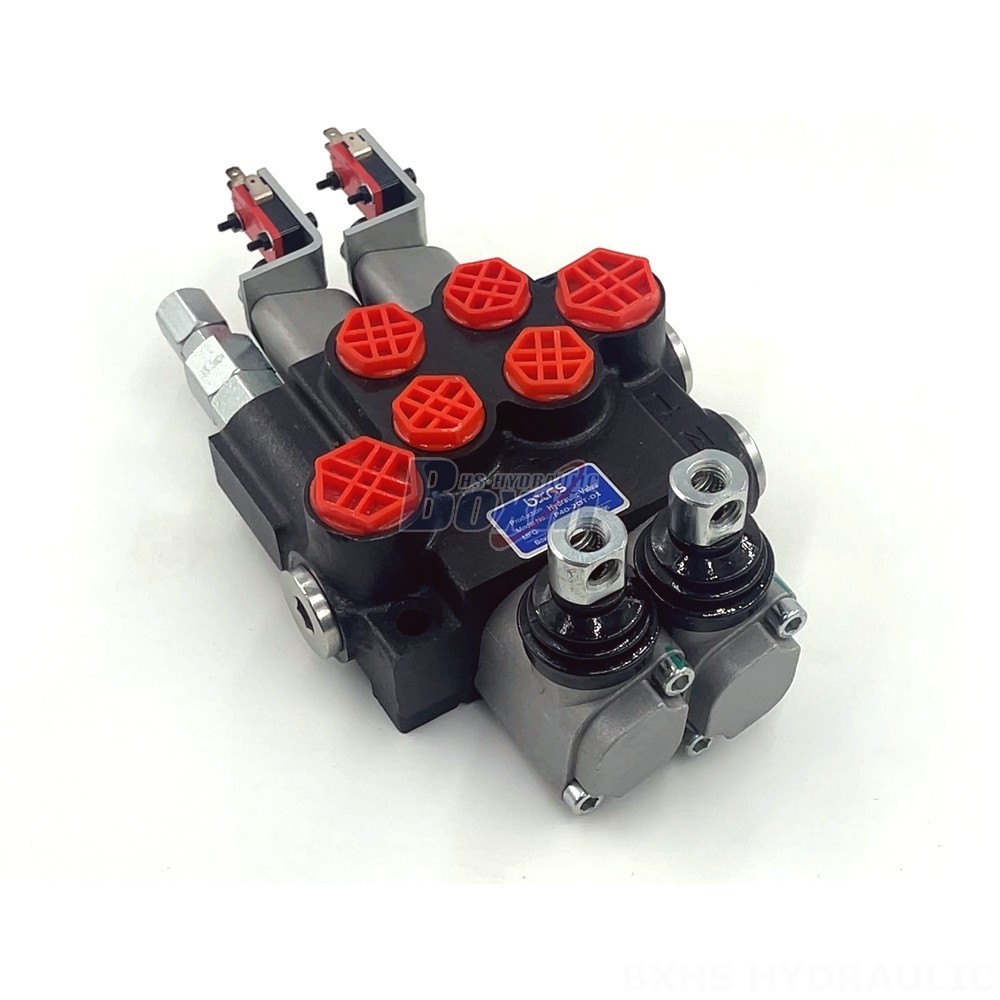

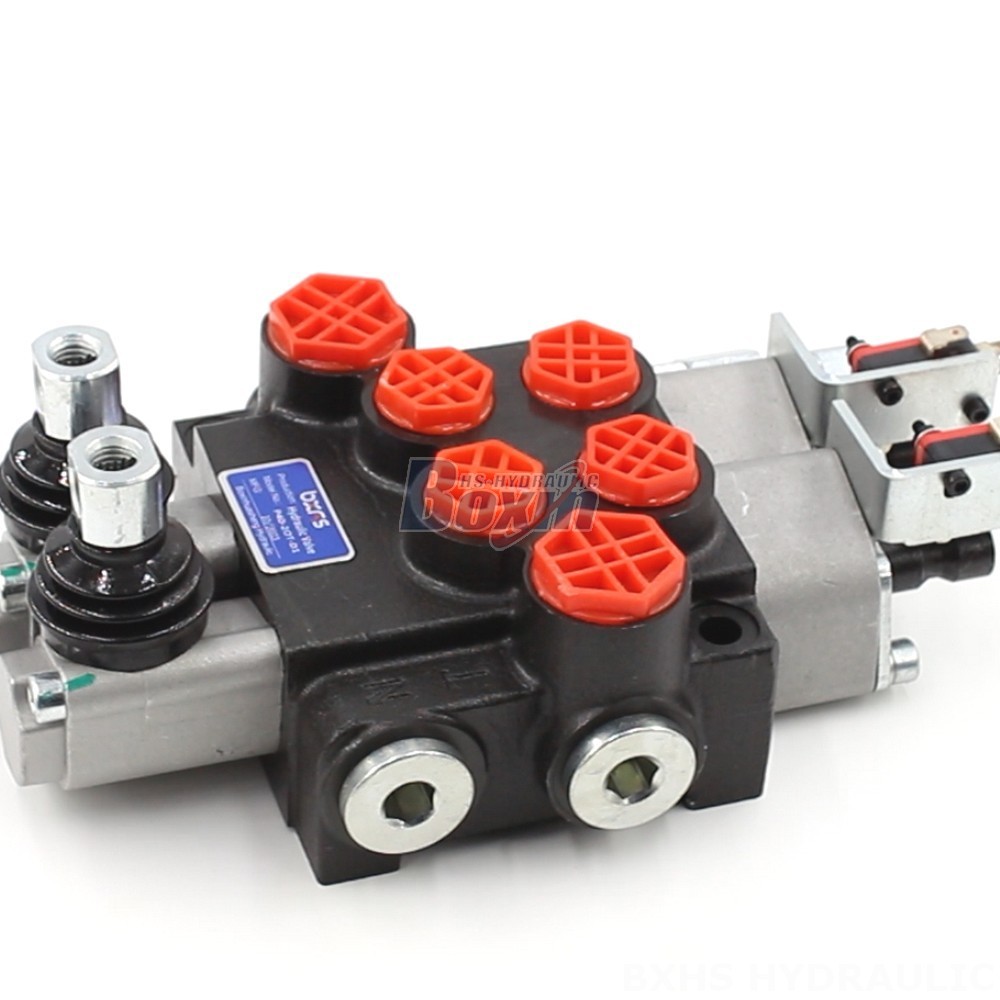

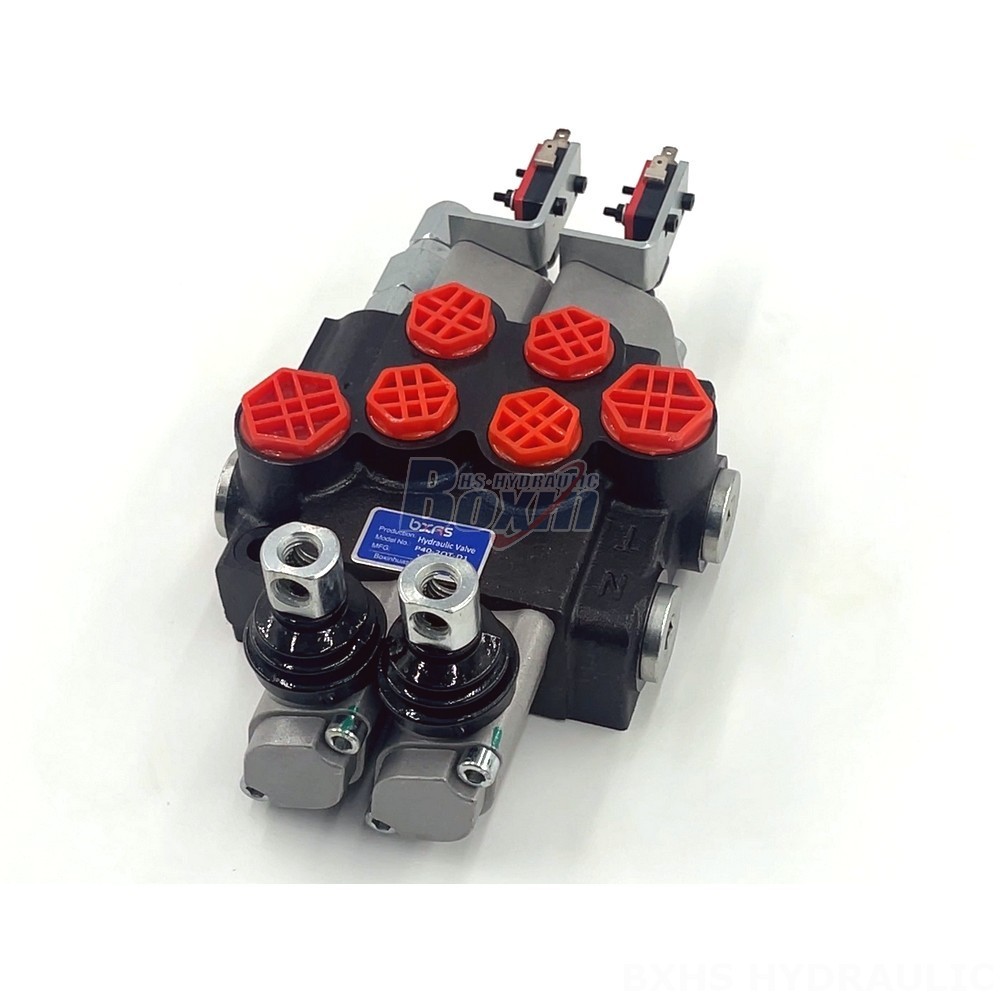

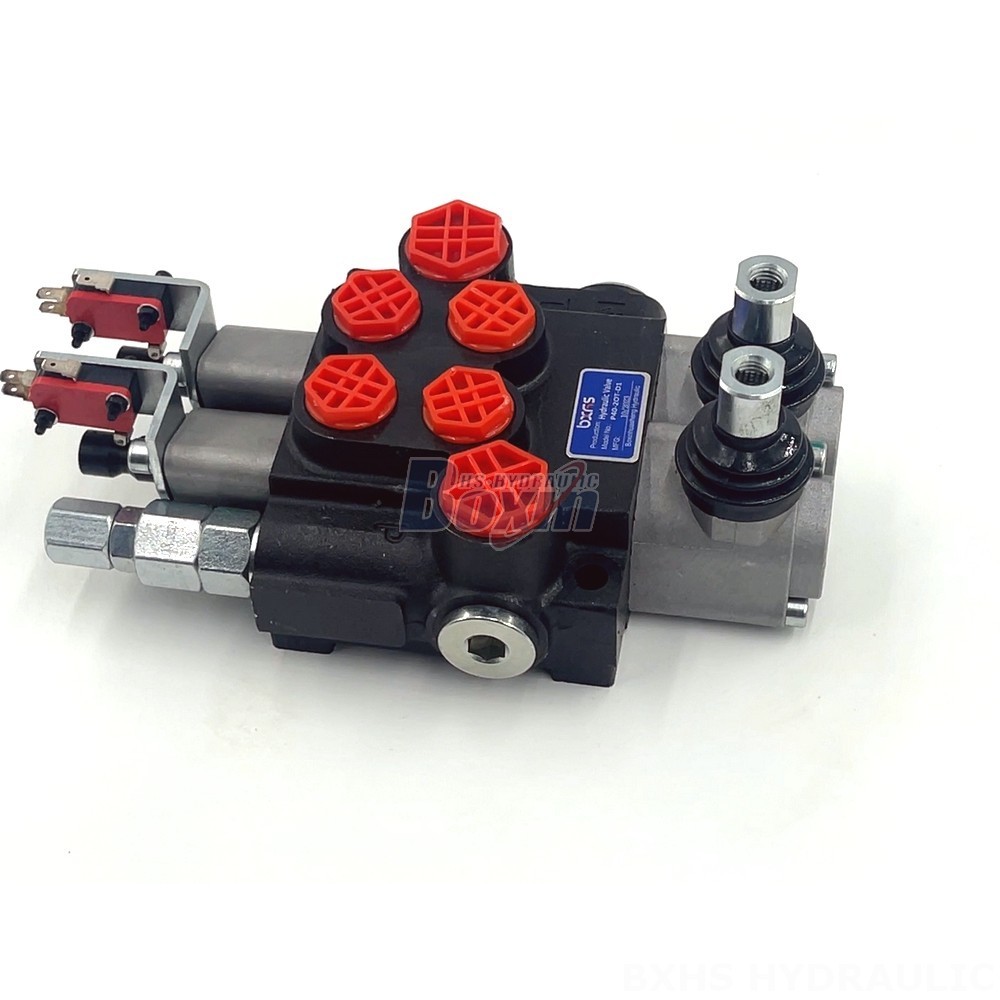

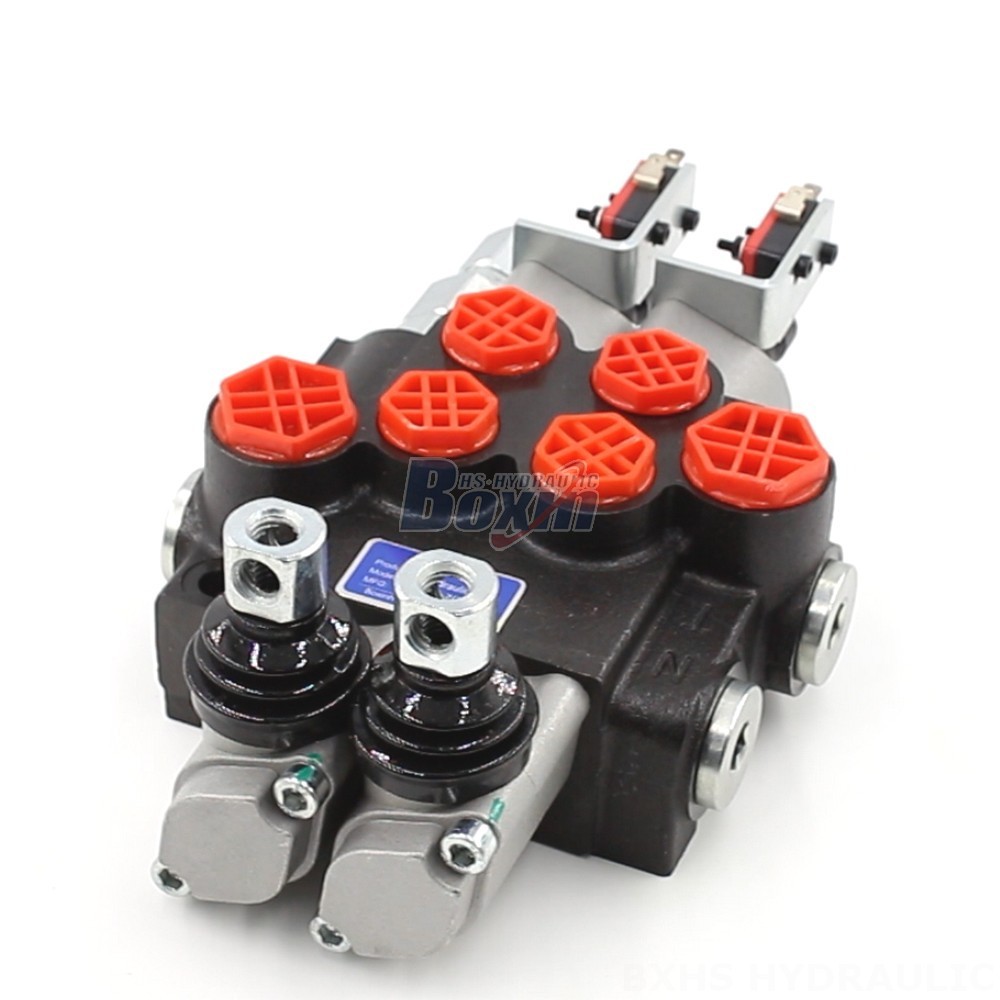

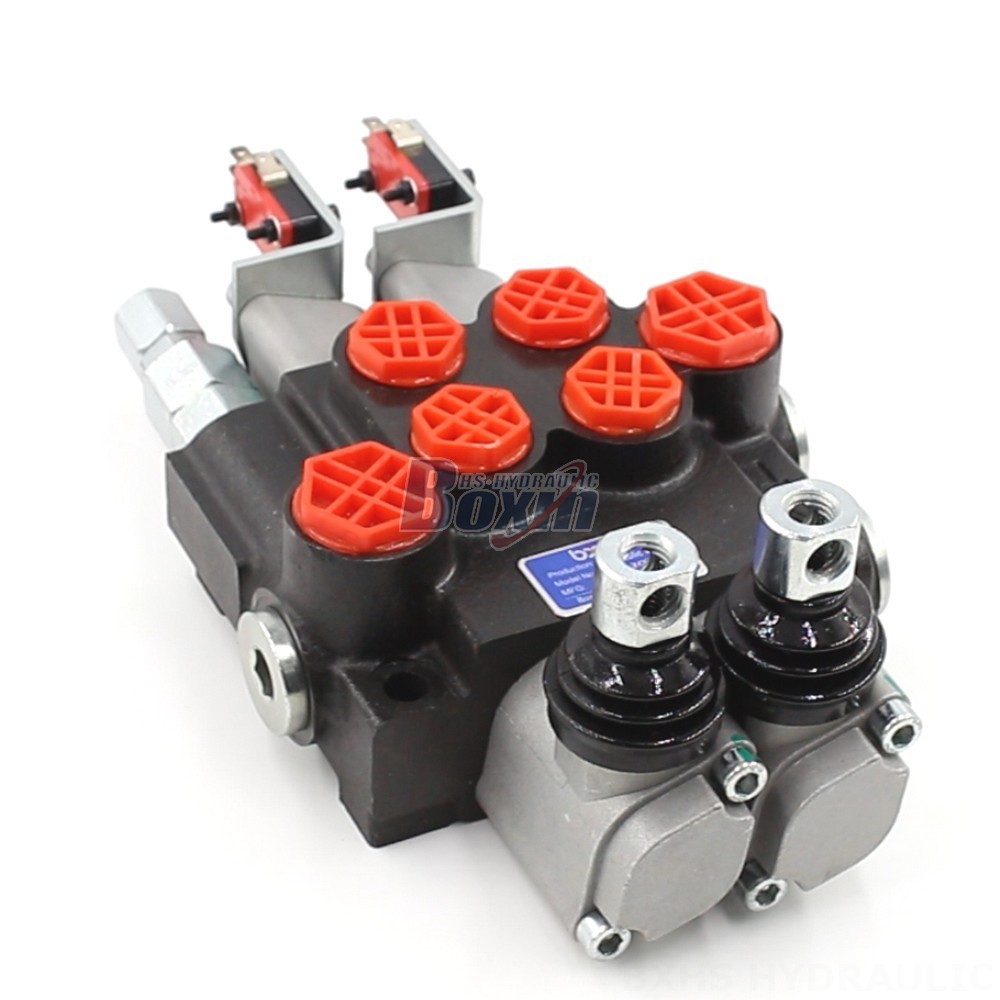

The P40 Micro Switch Directional Valve is a high-quality, durable, and reliable valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, industrial vehicles, and forestry. The valve features a manual control method, 2 section monoblock structure, 40 L/min rated flow, 250 bar max pressure, and a wide operating viscosity range of 15 - 75 mm²/s. It also has a wide ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of environments. The valve is available in 2 spool configurations and is part of the P40 Series.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40 Micro Switch Directional Valve is manufactured by a leading hydraulic products manufacturer and is available for factory wholesale, OEM, ODM, and private label services. The valve is made from high-quality materials and is rigorously tested to ensure durability and reliability. It is also backed by a comprehensive warranty. The valve is available in a variety of configurations to meet the specific needs of your application. Contact us today to learn more about the P40 Micro Switch Directional Valve and how it can benefit your business.
