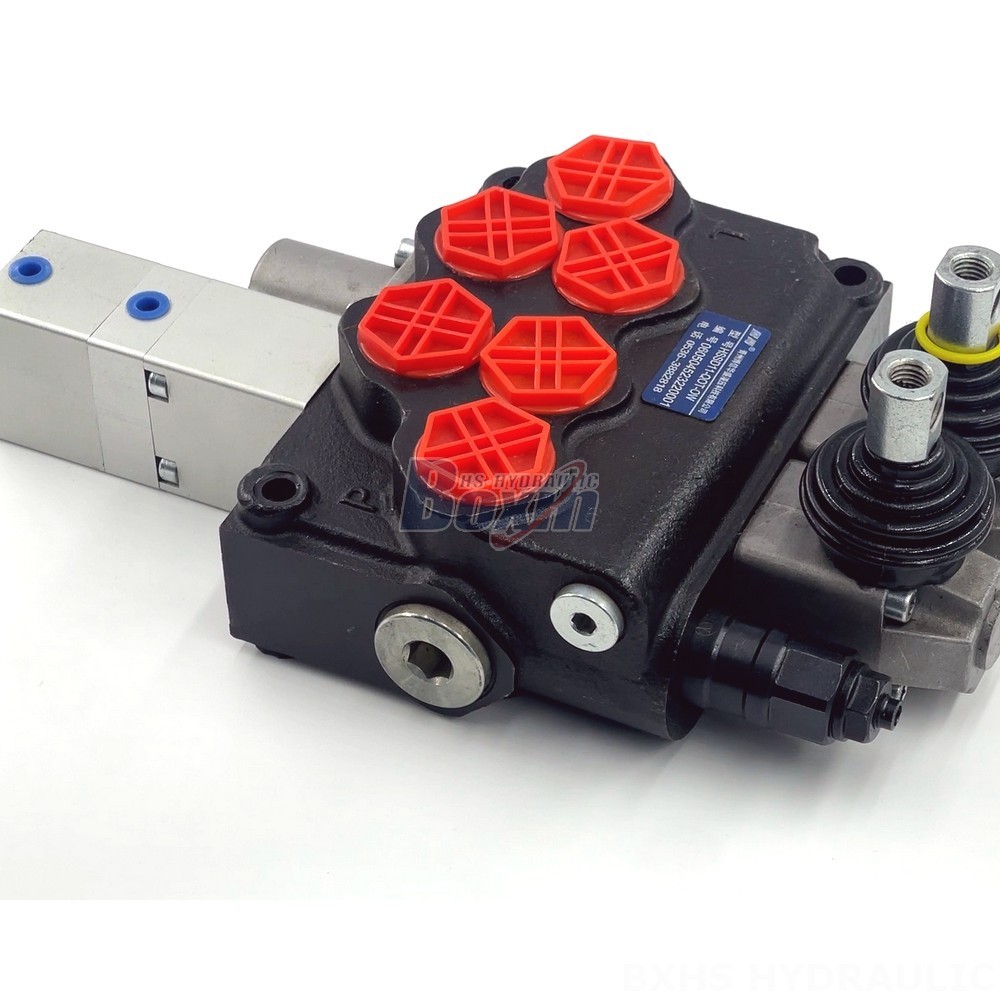

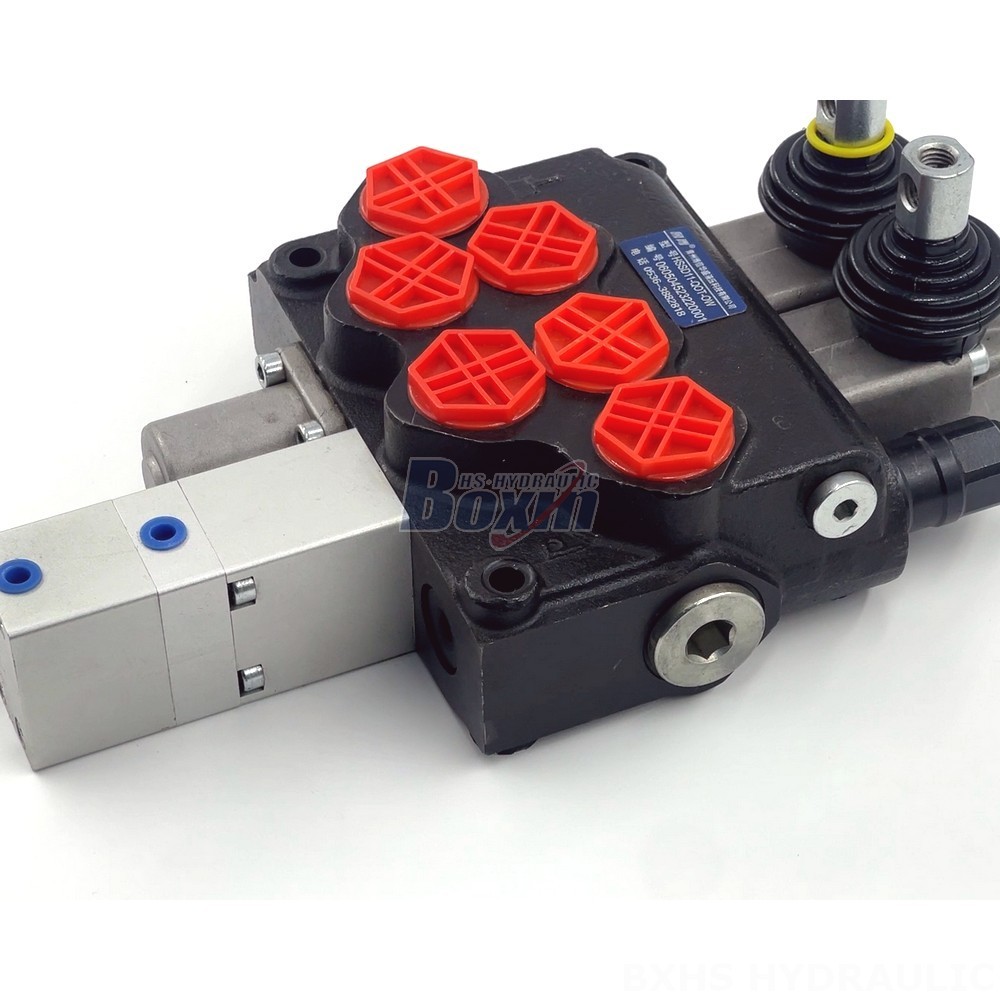

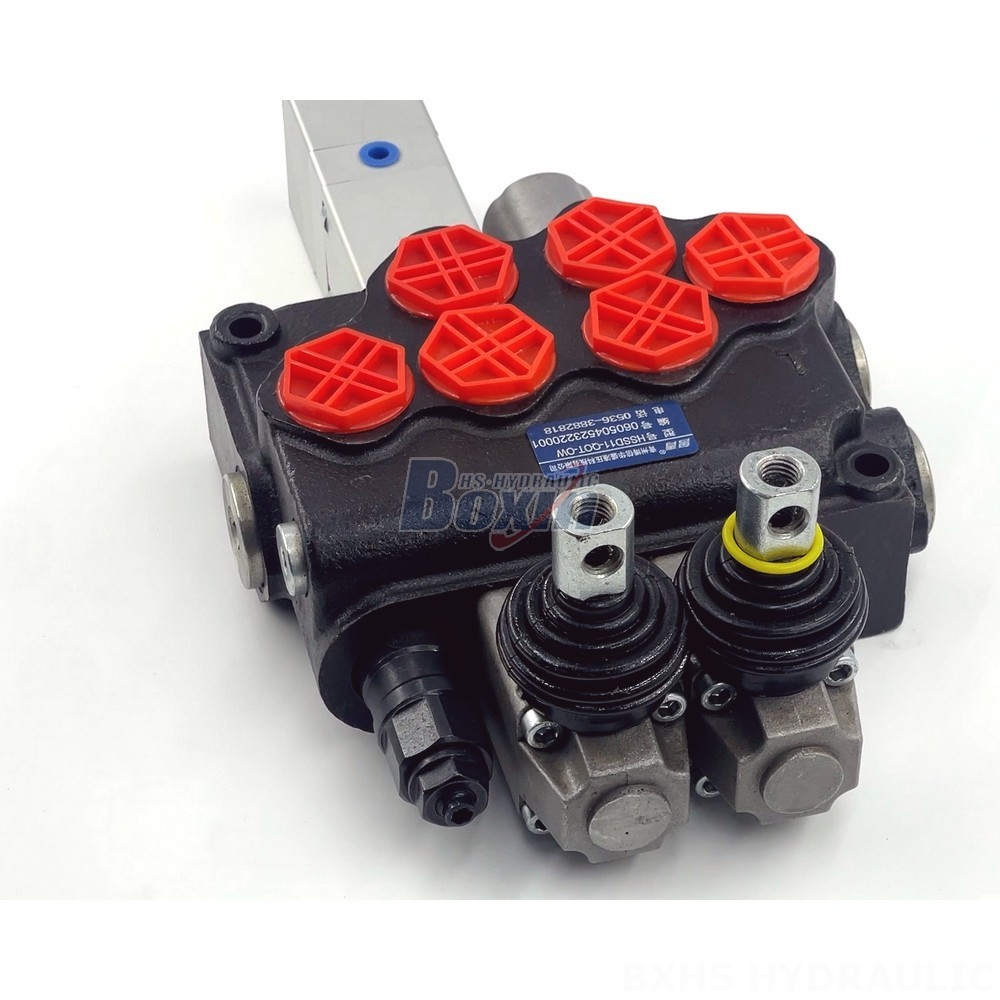

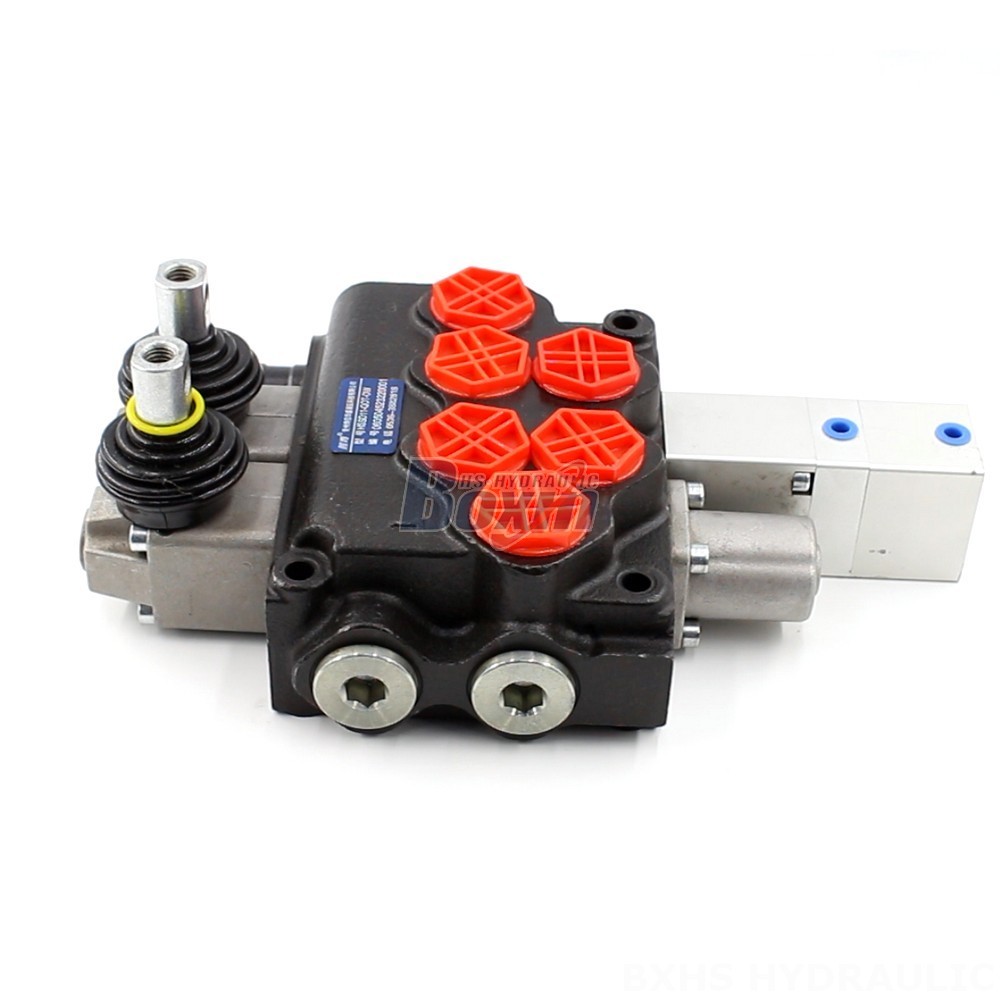

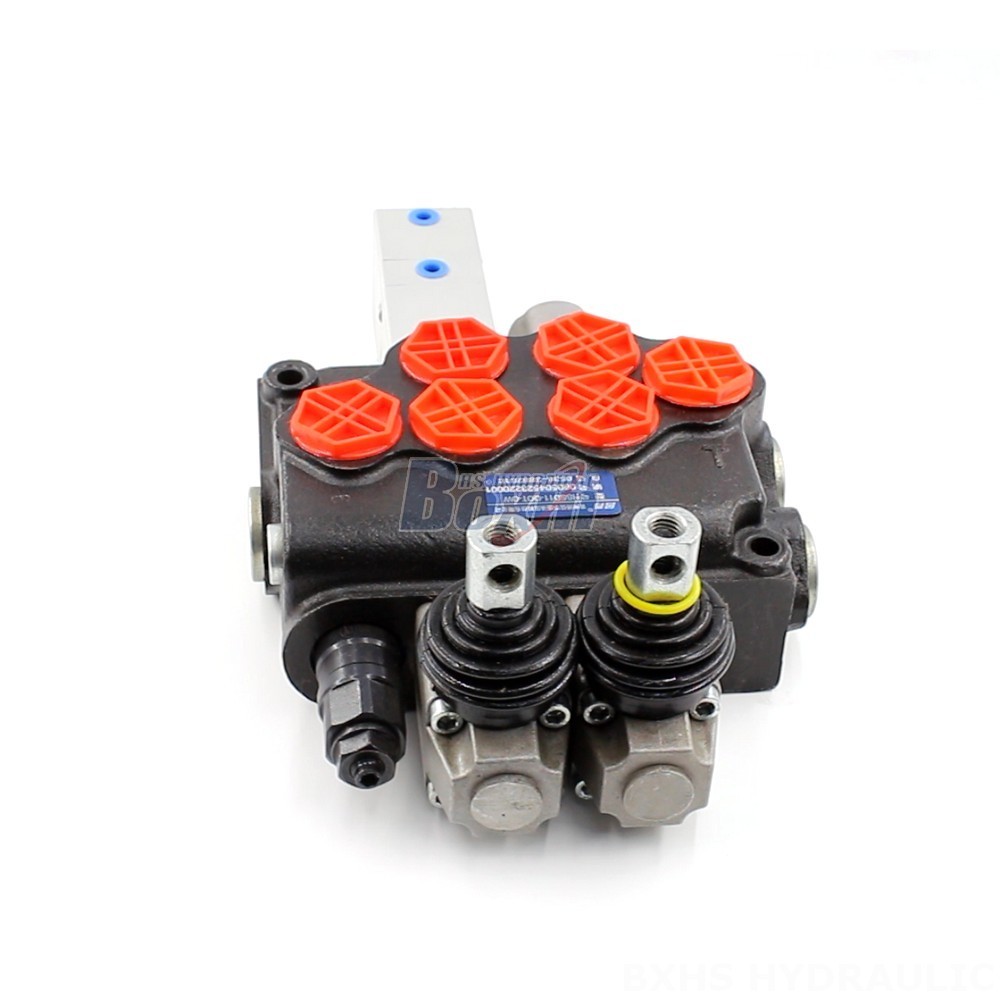

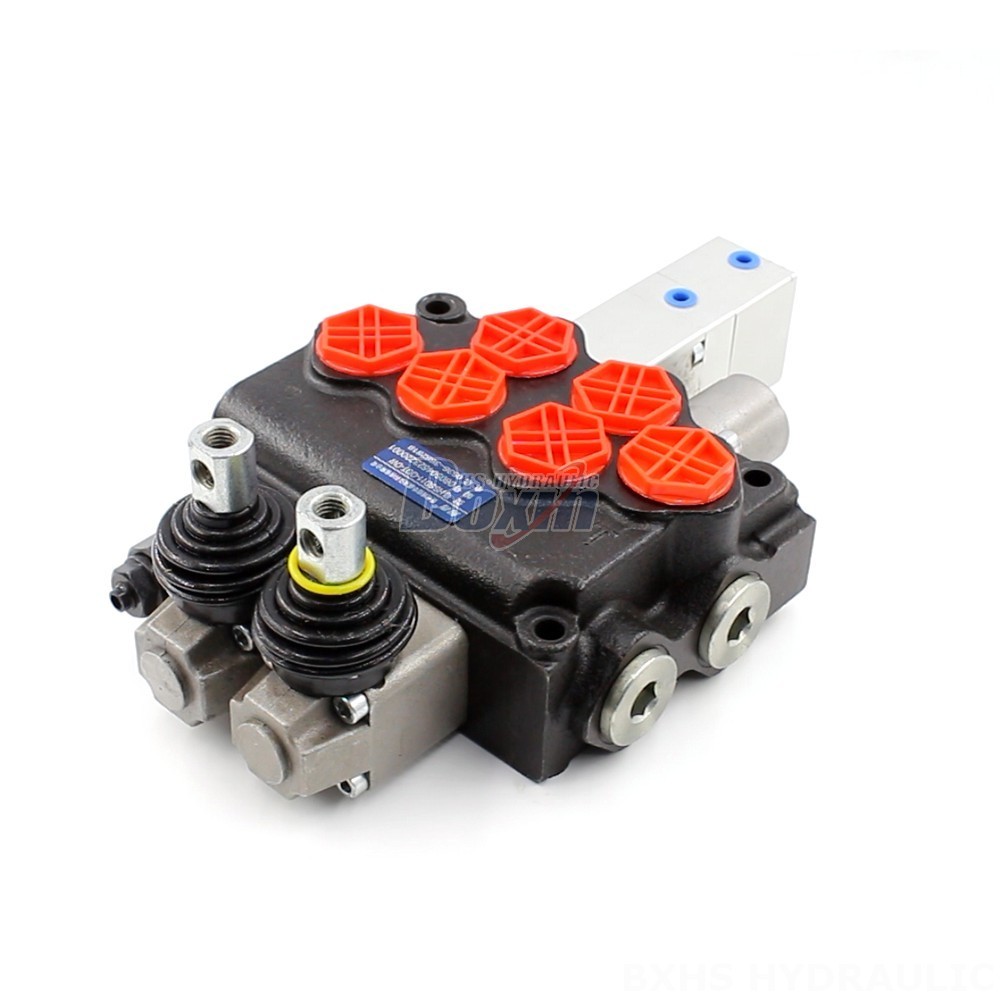

The SD11 Directional Valve is a high-performance hydraulic valve designed for demanding applications in the construction, agriculture, and industrial sectors. With a rated flow of 70 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable fluid control in various hydraulic systems.
| SD11系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 气动和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 70 L/min (18.5 US gpm) |
| 最大压力 | 305 bar (4400 psi), 315 bar (4600 psi) |
| 进油口 | G3/4接口, SAE 12接头 |
| 出油口 | G3/4接口, SAE 12接头 |
| 接口尺寸 | G3/4接口, SAE 12接头 |
**SD11 Directional Valve: Efficiency and Performance**
**Key Features:**
- Manual control method
- Monoblock valve structure for compact design and durability
- High flow capacity of 70 L/min (18.5 US gpm)
- Maximum pressure rating of 250 bar (3600 psi)
- Wide operating viscosity range from 15 to 75 mm²/s (15 cSt to 75 cSt)
- Versatile 1-spool configuration
- Suitable for a wide range of applications including material handling, construction, agriculture, and industrial vehicles
**Benefits:**
- Enhanced system efficiency and performance
- Precise fluid control for improved machine operation
- Robust construction for demanding applications
- Easy integration into hydraulic systems
