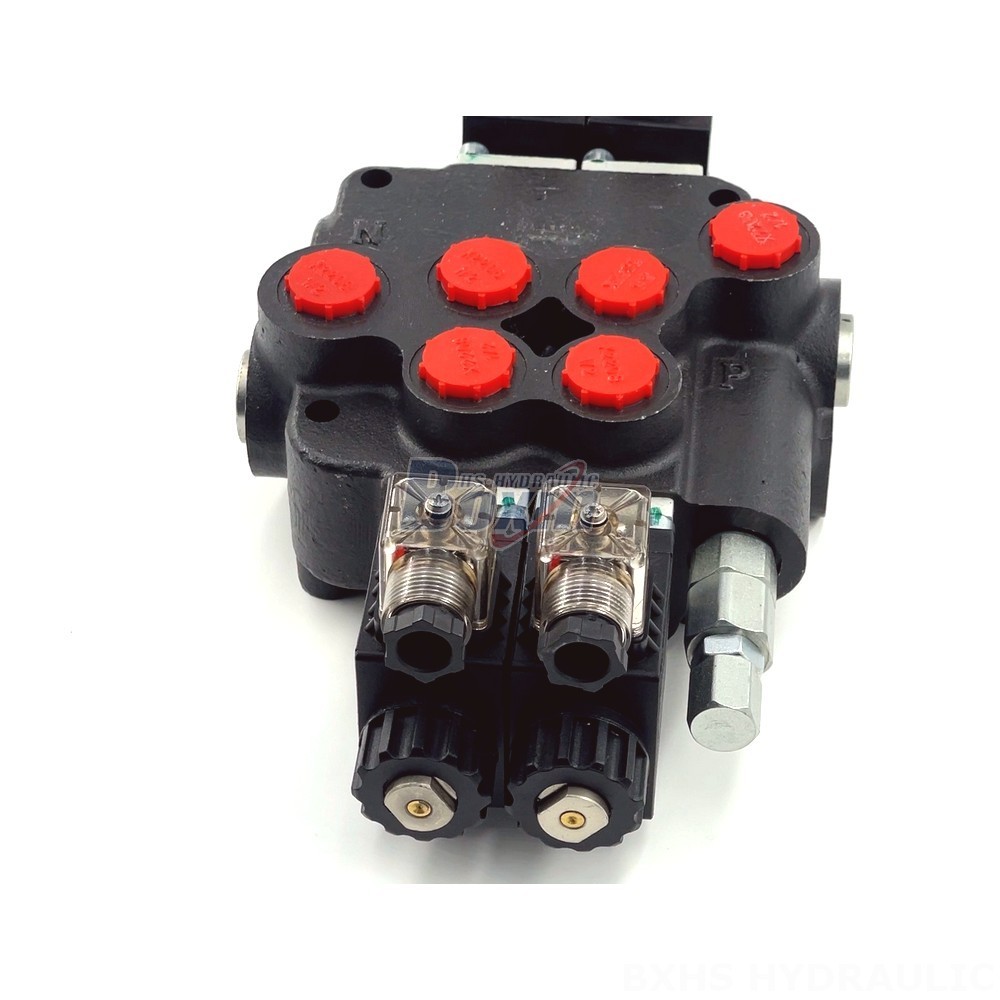

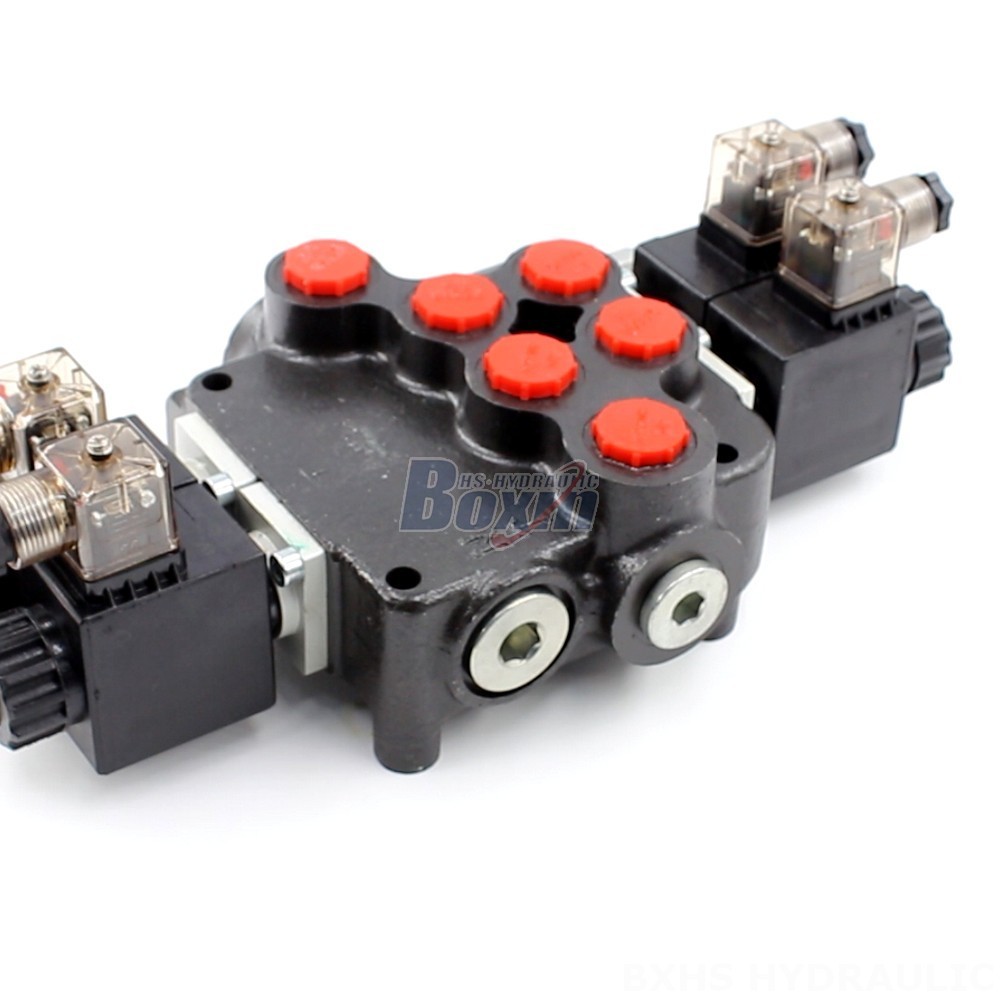

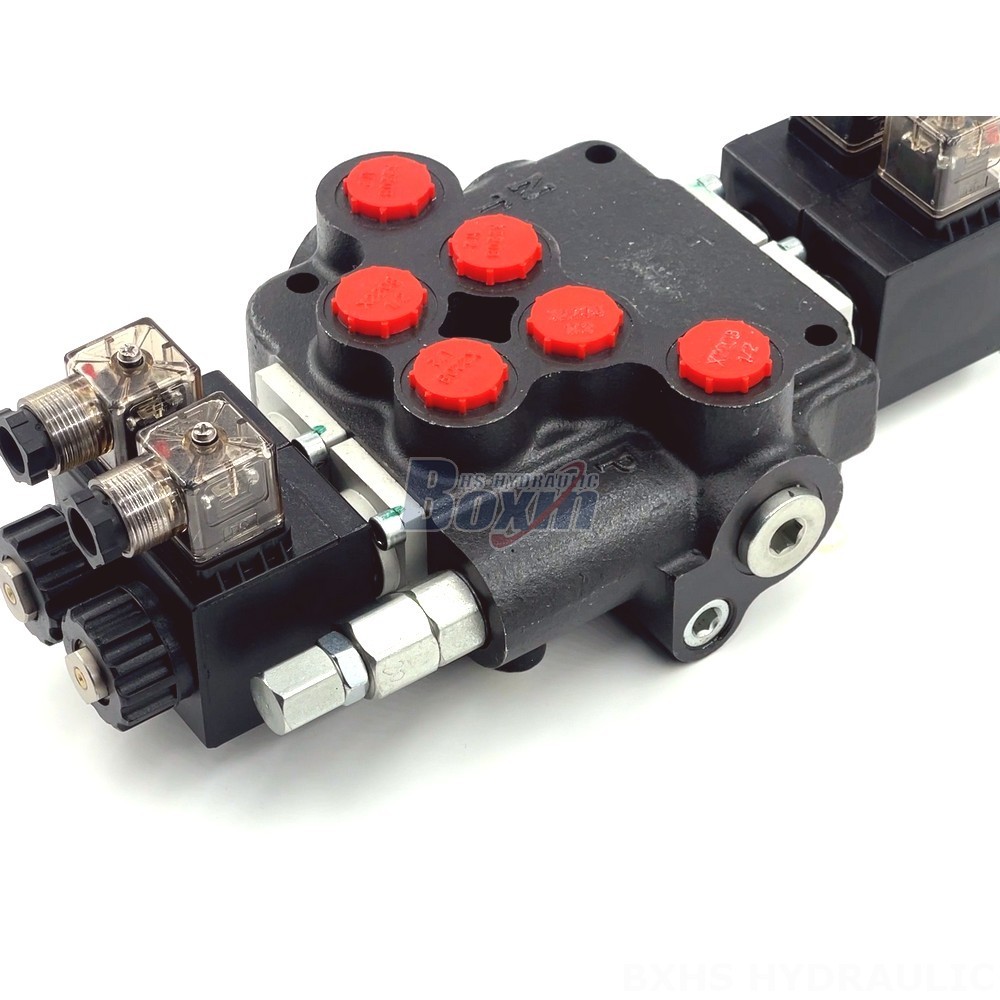

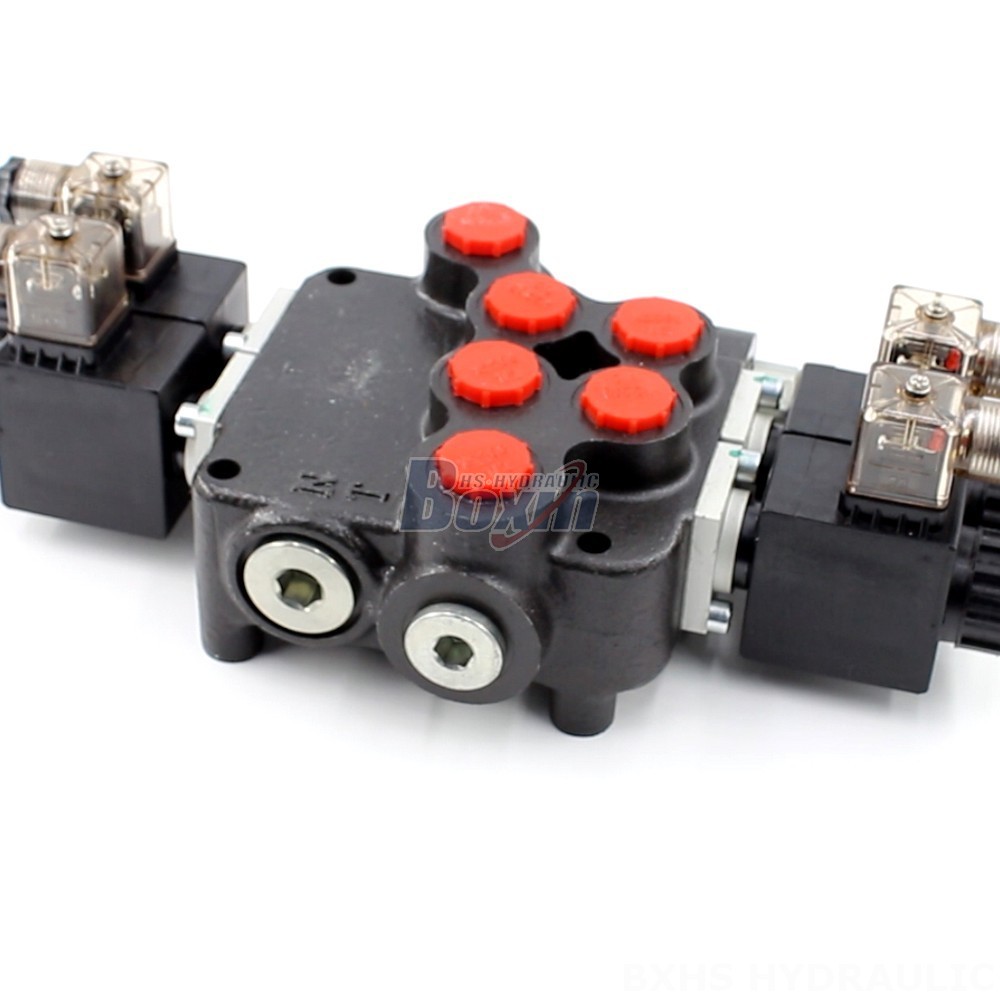

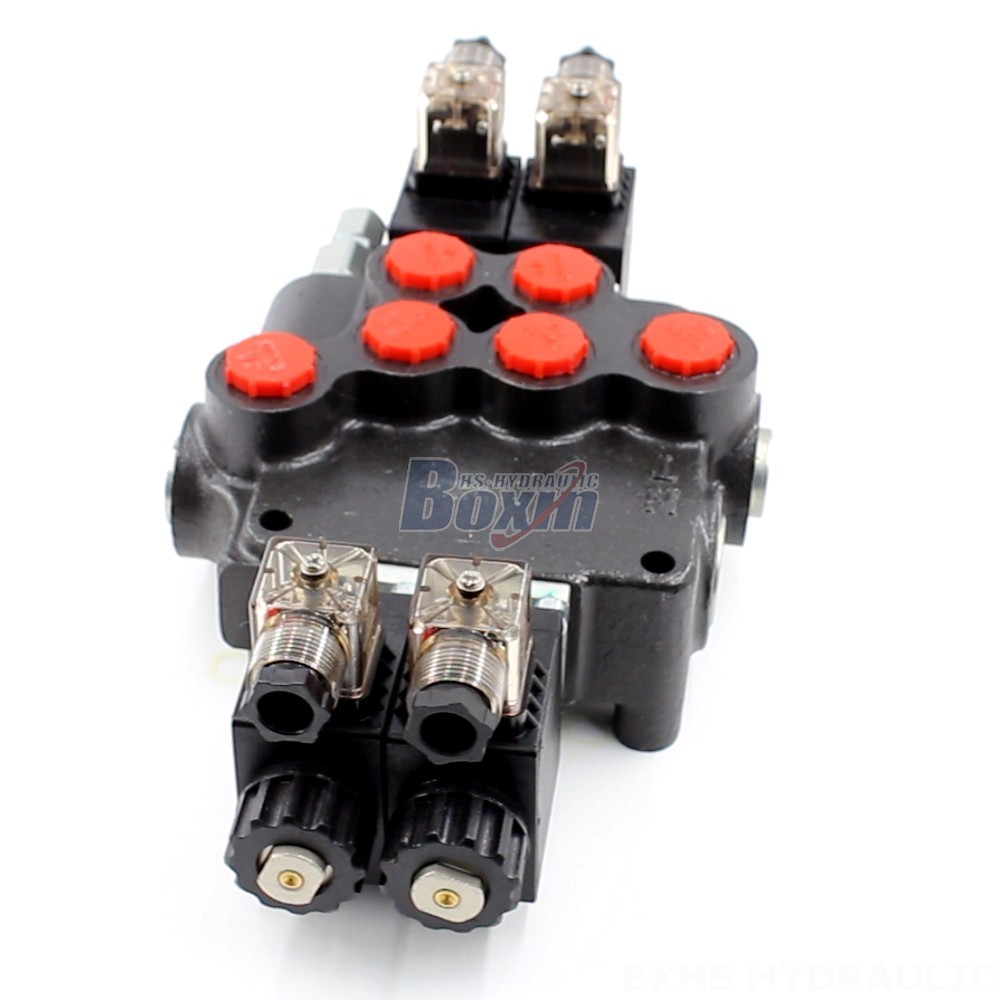

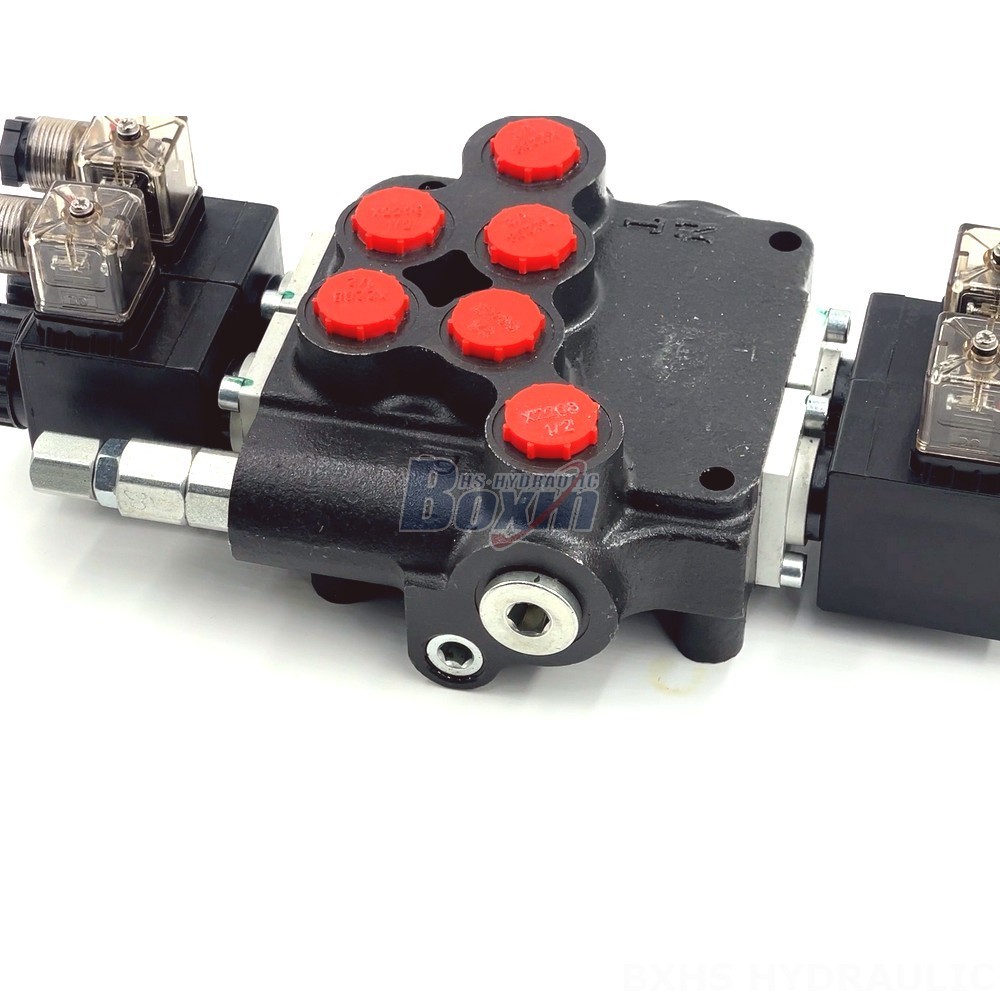

We are a hydraulic product manufacturer offering P80 Series 2 Spool Monoblock Directional Valves. These solenoid-controlled valves feature a rated flow of 80 L/min and a max pressure of 250 bar, ideal for material handling, construction, agriculture, and industrial vehicles. Seeking distributors, wholesalers, and traders globally.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
Our P80 Series 2 Spool Monoblock Directional Valves offer a reliable and efficient solution for various applications. This solenoid-controlled valve boasts a 2-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Operating within a temperature range of -40°C to +80°C, this valve is suitable for demanding environments. We specialize in manufacturing, OEM, private labeling, customization, and wholesale. We are actively searching for distributors, wholesalers, agents, and traders worldwide to expand our market reach. If you are interested in partnering with a leading hydraulic component manufacturer, we invite you to contact us.
