Double Acting Hydraulic Control Valve Distributors Wanted: P80-G12-OW Hydraulic Monoblock Valve

控制方式:手控

路数:1 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列单块式方向阀

Packagingsize:26*15*11

Grossweight:5.00 kg

库存: 有货

描述

Double Acting Hydraulic Control Valve Distributors Wanted: P80-G12-OW Hydraulic Monoblock Valve

Double Acting Hydraulic Control Valve Distributors Wanted: P80-G12-OW Hydraulic Monoblock Valve drawing image

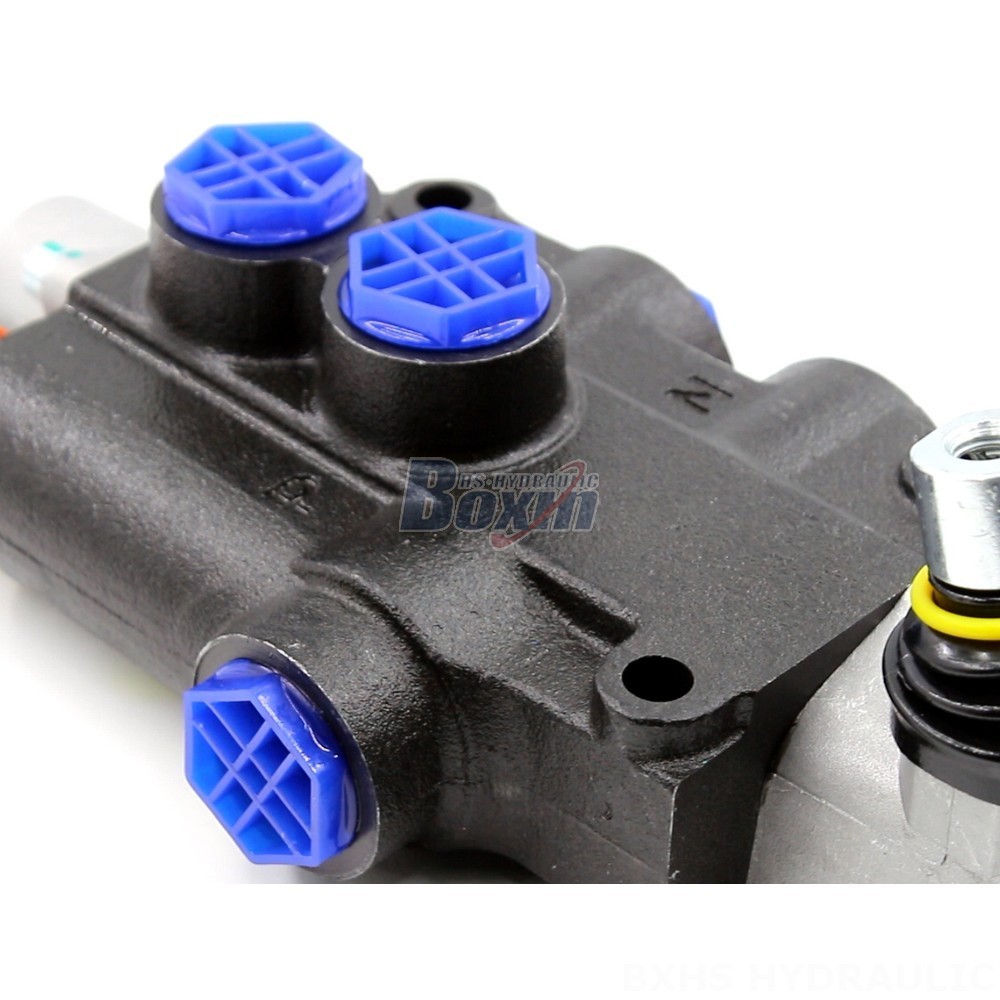

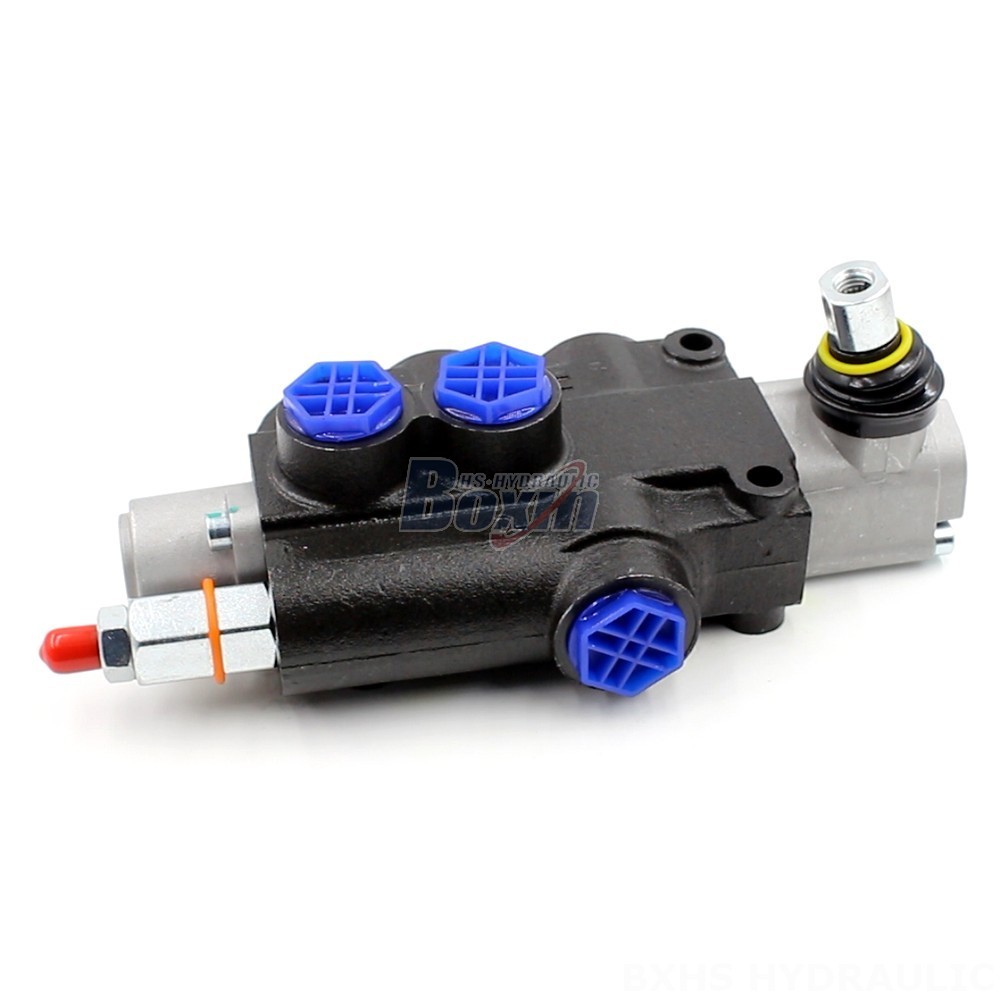

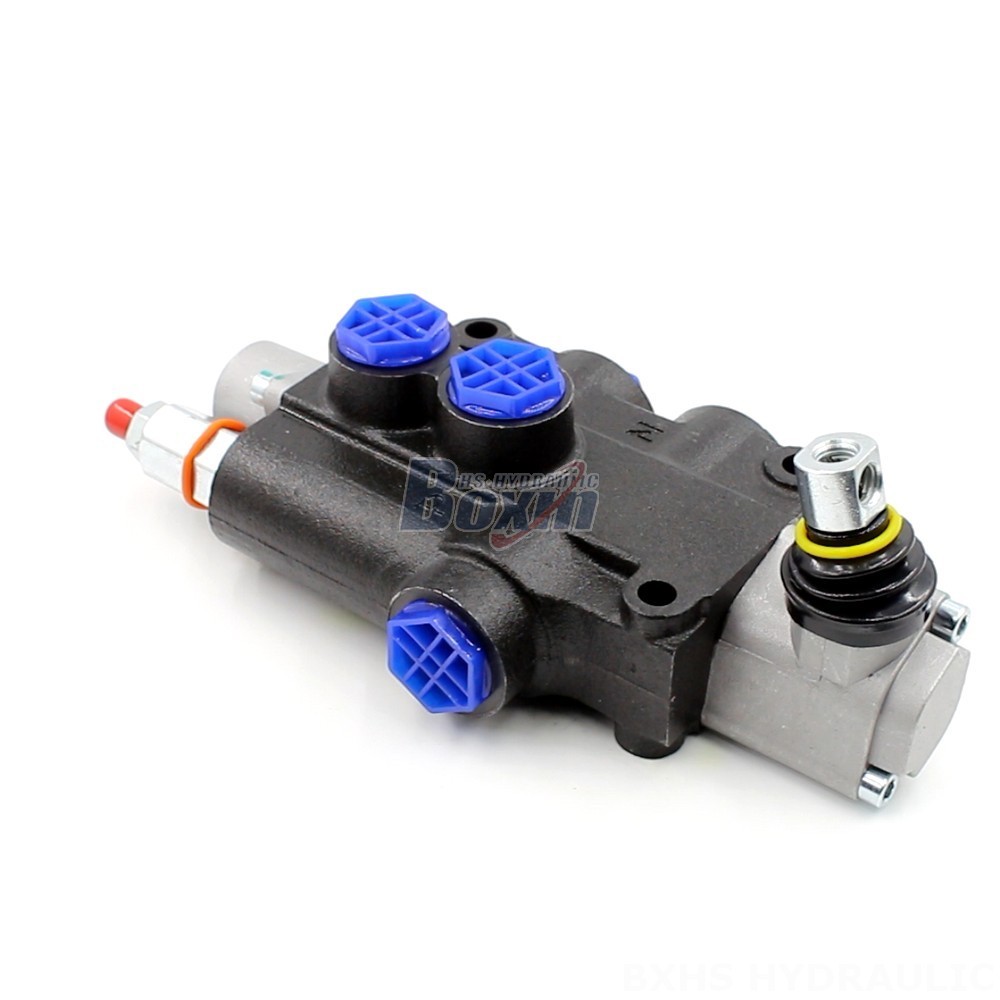

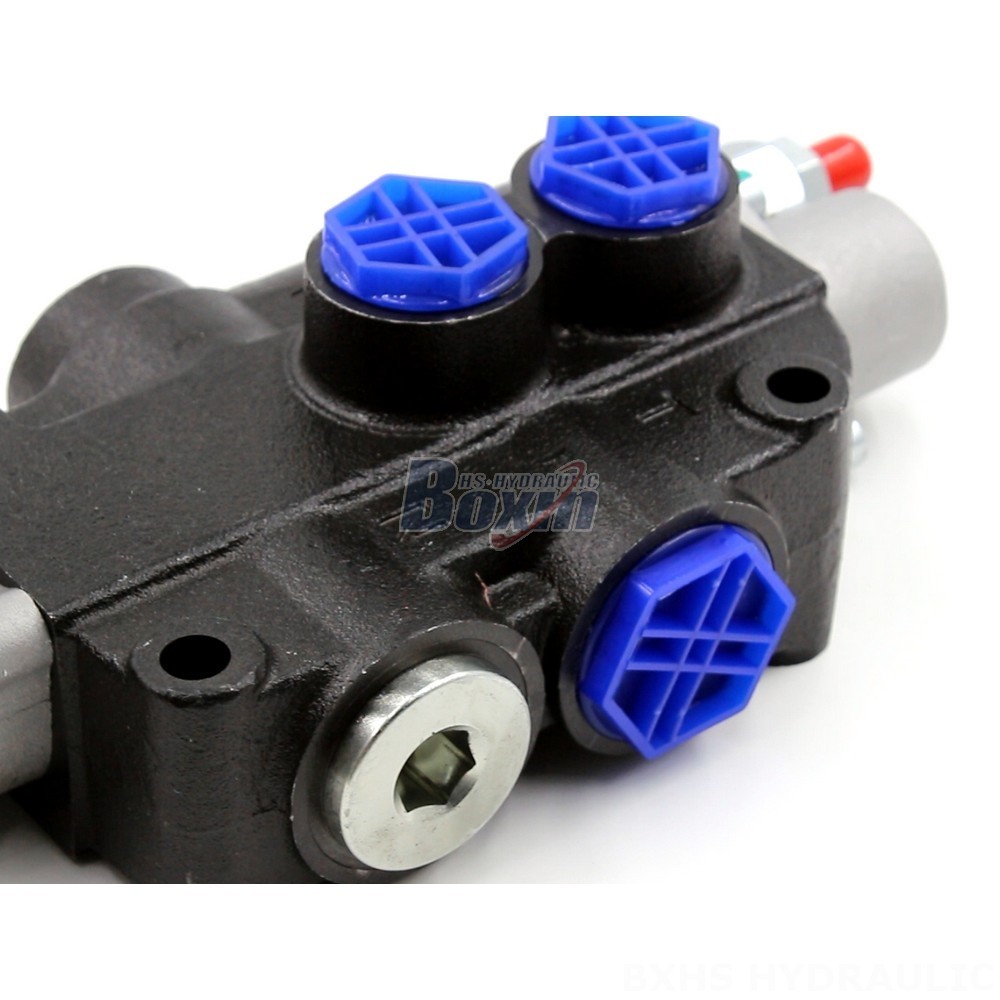

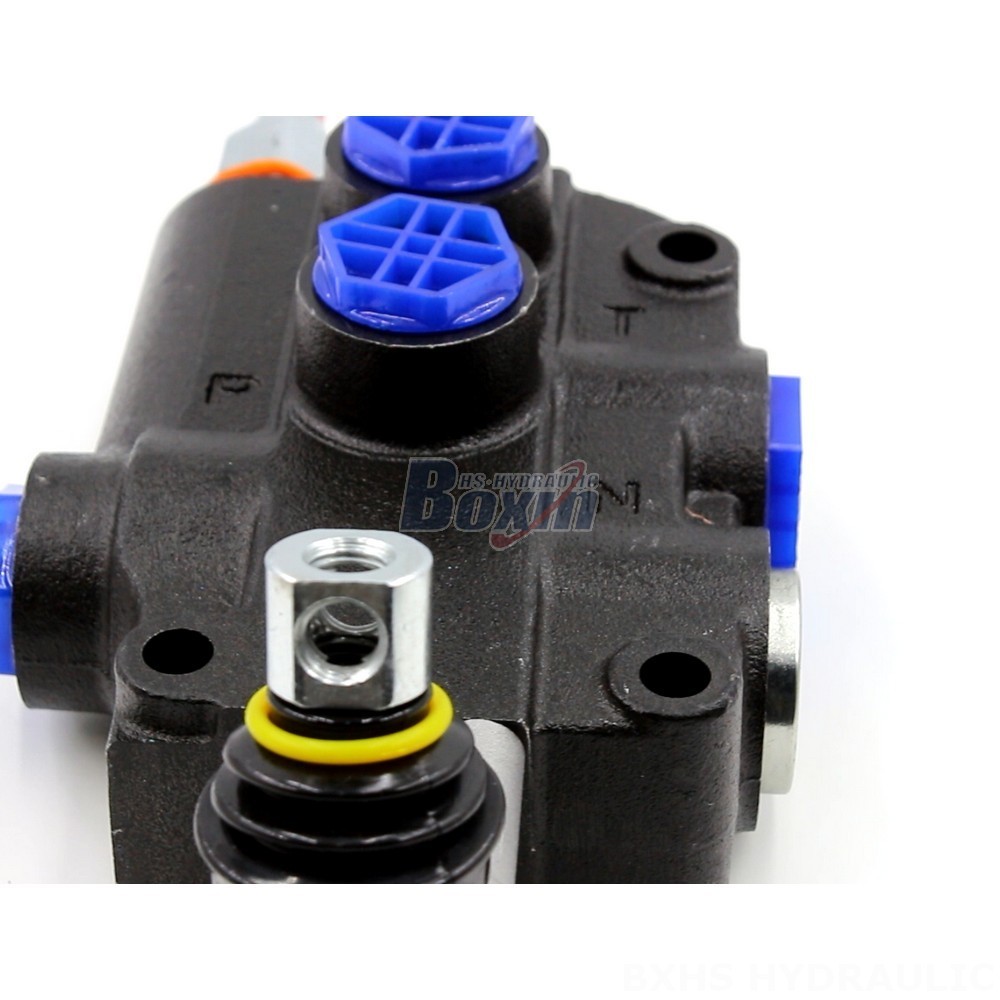

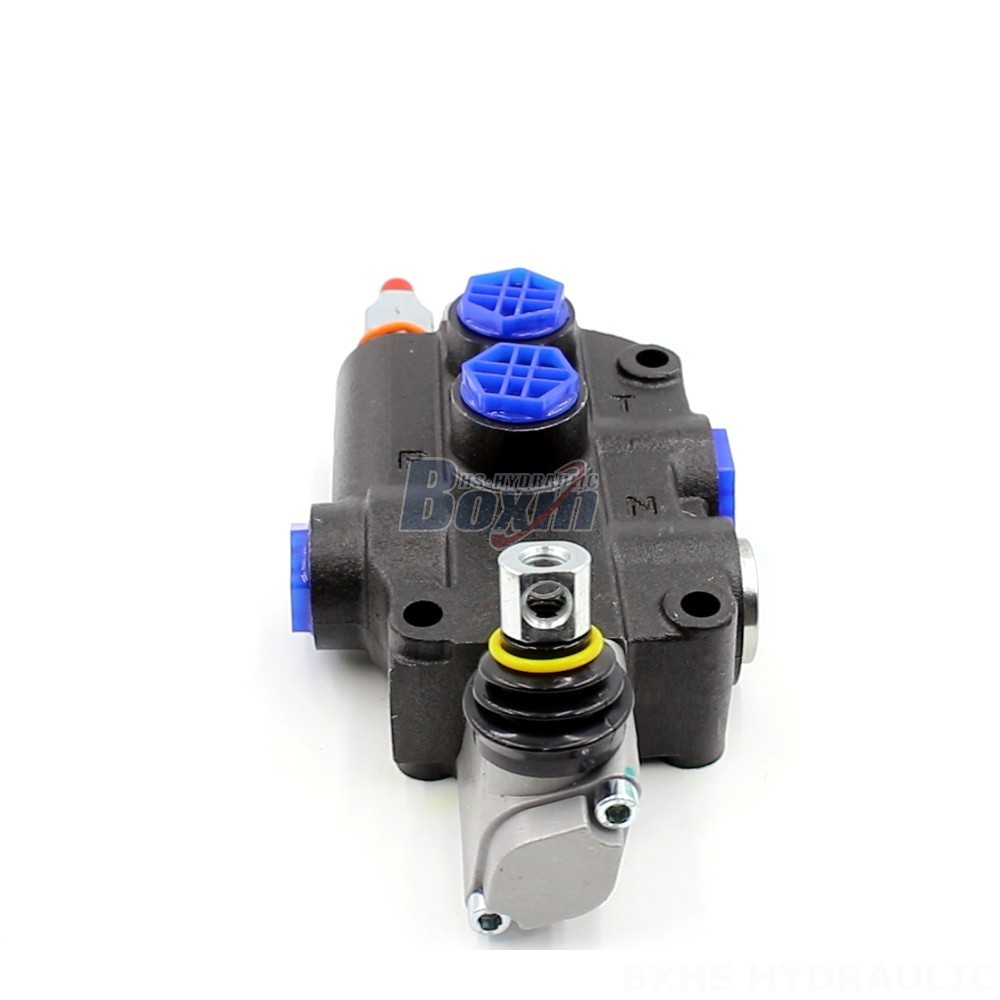

The P80-G12-OW Hydraulic Monoblock Valve is a high-performance, double-acting, manual control valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles.

P80系列单块式方向阀参数
控制方式	手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	80 L/min (21.2 US gpm)
最大压力	315 bar (4600 psi)
进油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口	G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸	G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

This robust monoblock valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It is suitable for a wide range of operating temperatures (-40°C to +80°C) and viscosity ranges (15 - 75 mm²/s). The P80-G12-OW is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. Its durable construction and reliable performance ensure smooth operation and long service life.
