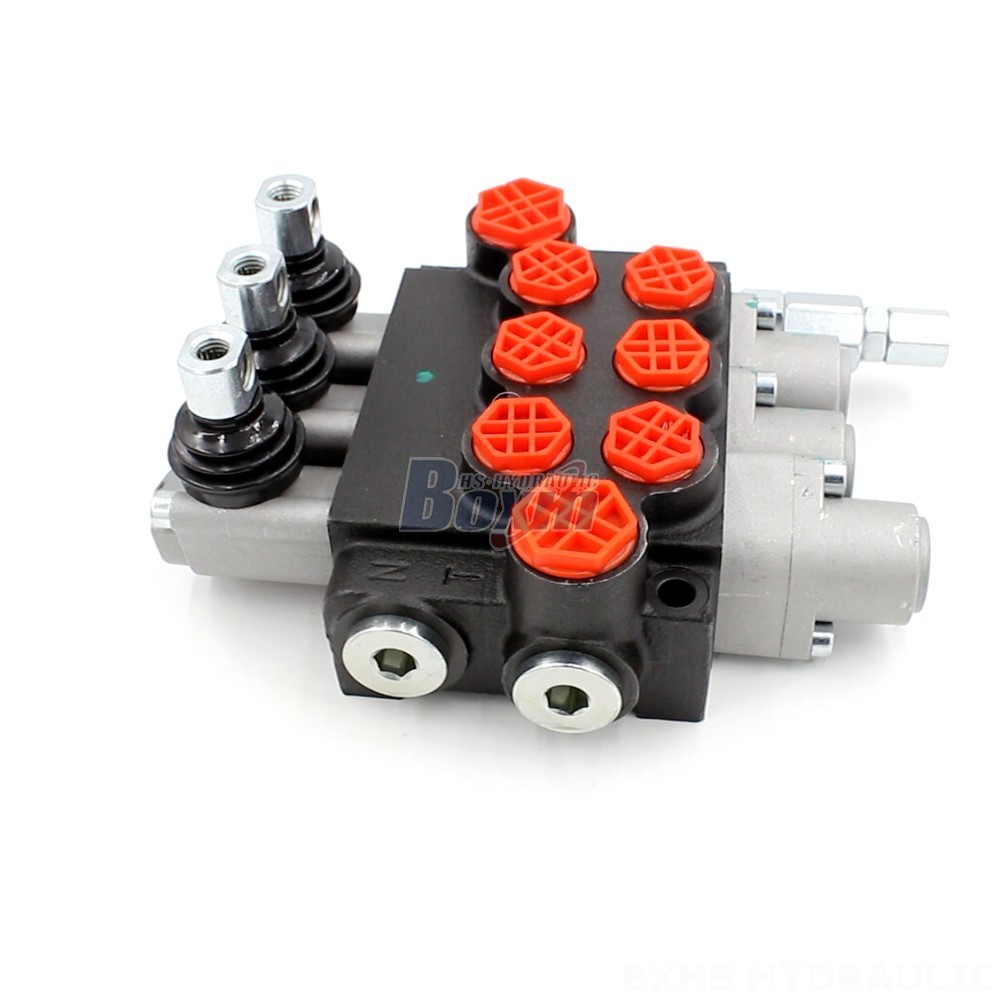

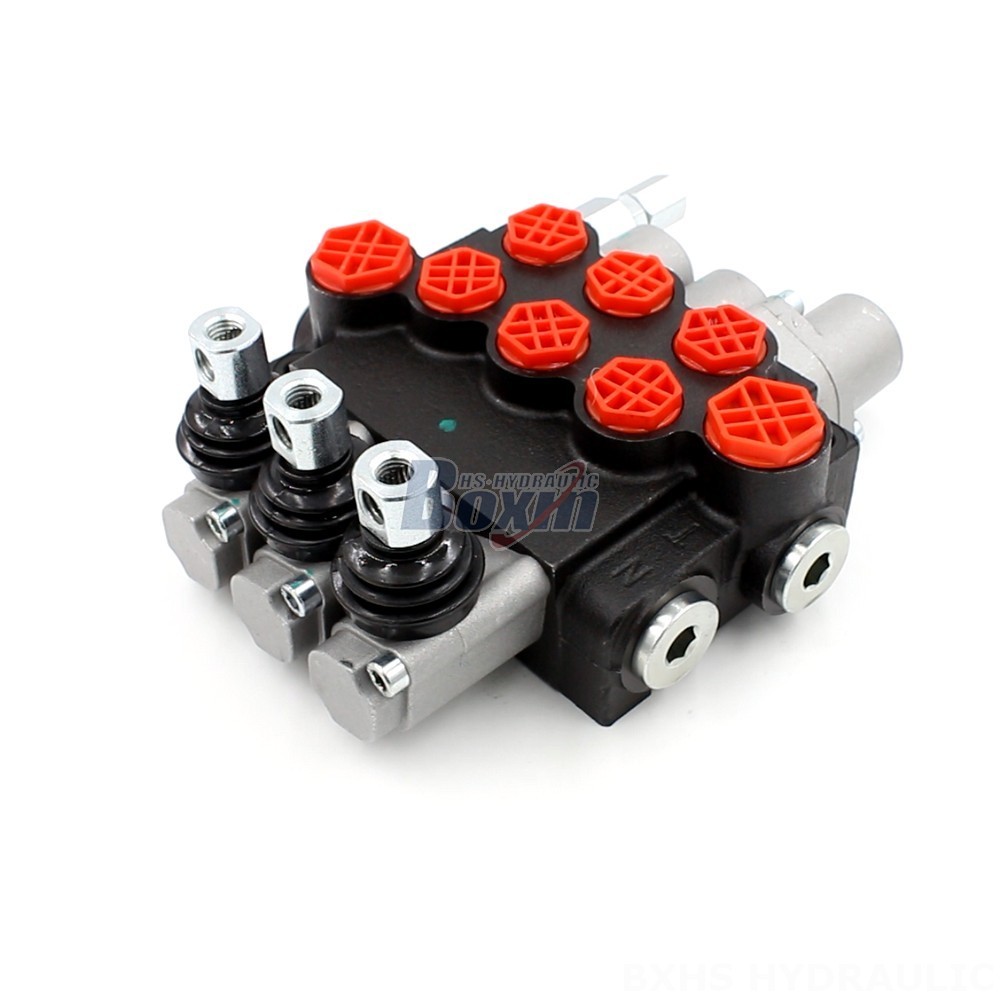

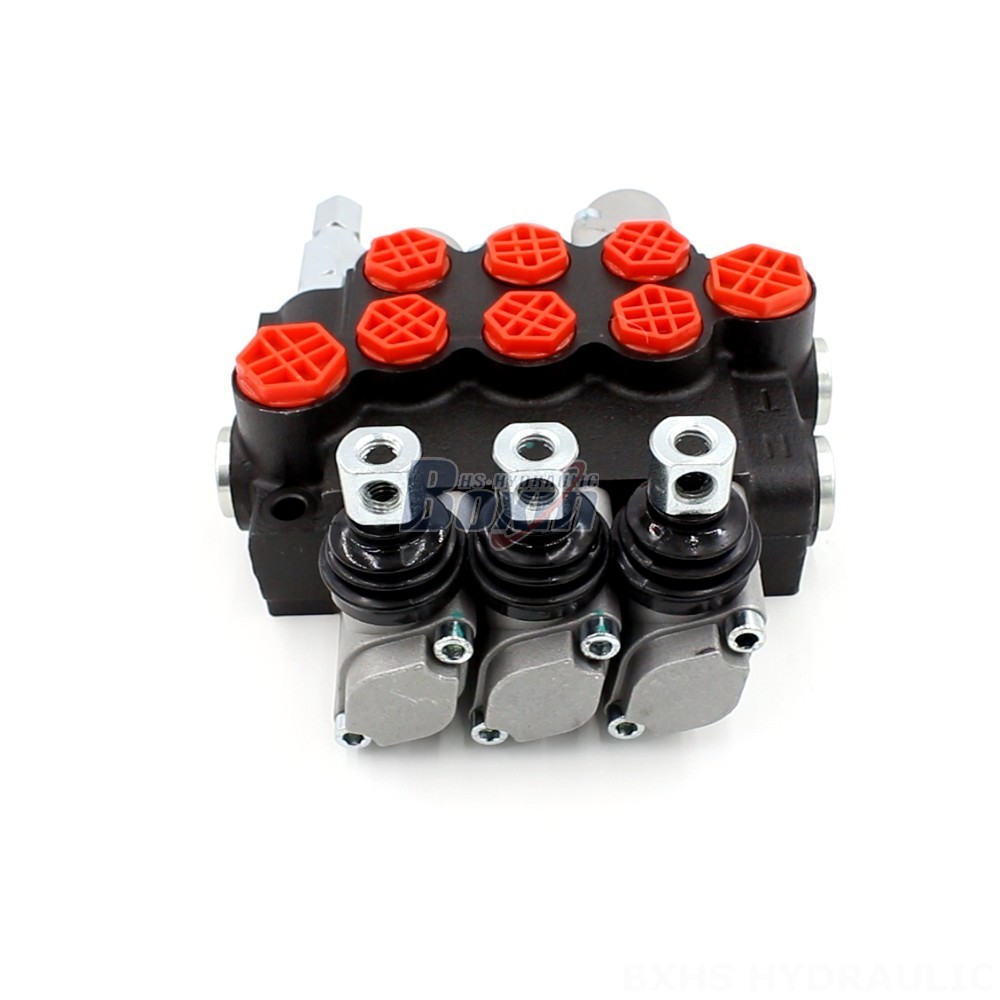

The P40-G12-G38-OT-OT-OT Hydraulic Monoblock Valve is a high-performance directional control valve designed for use in construction, agriculture and material handling applications. This 3-section manual control valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a variety of mobile equipment.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This P40 Series hydraulic monoblock valve is a reliable and durable solution for controlling hydraulic systems in various applications. It features a 3-section design with a manual control method and is rated for a flow of 40 L/min at a maximum pressure of 250 bar. This valve is suitable for use in a wide range of temperatures, from -40°C to +80°C, and can handle operating viscosities from 15 to 75 mm²/s. The P40-G12-G38-OT-OT-OT is commonly used in construction equipment such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and tractors. It is also widely used in agriculture equipment and material handling applications.
