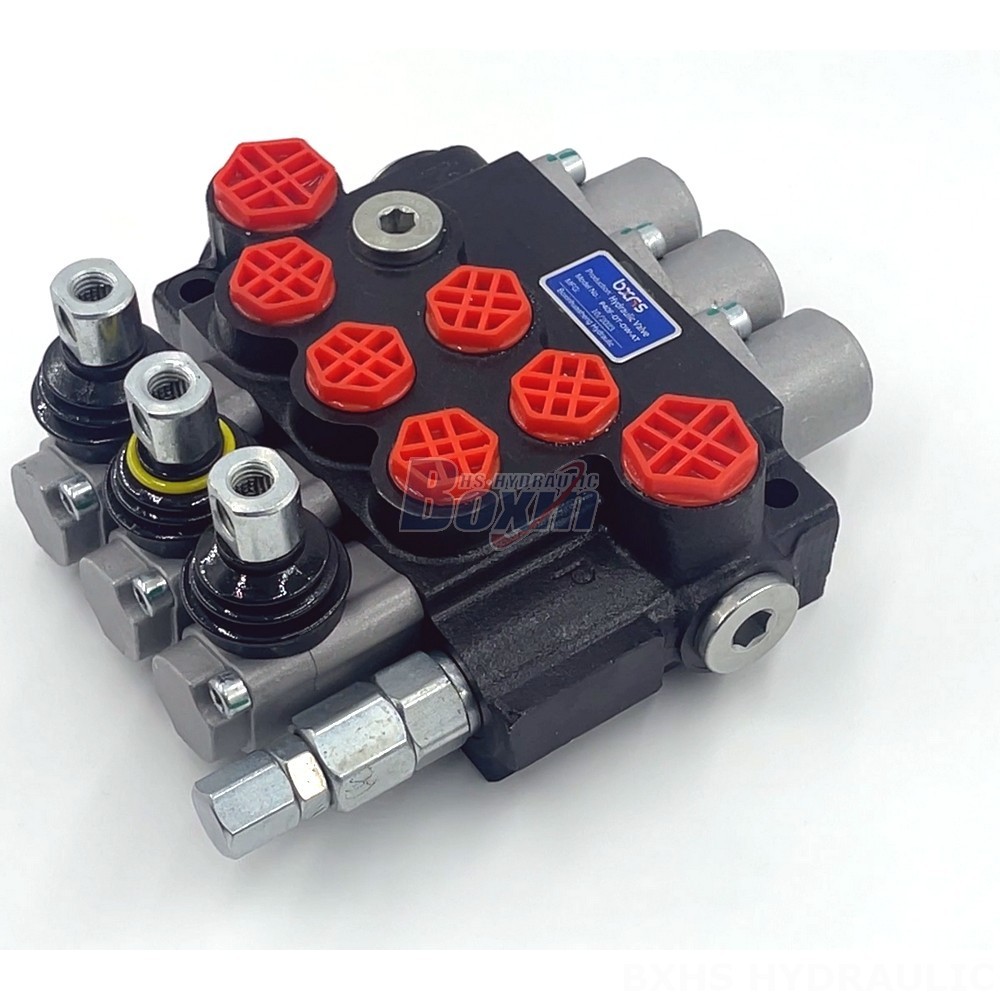

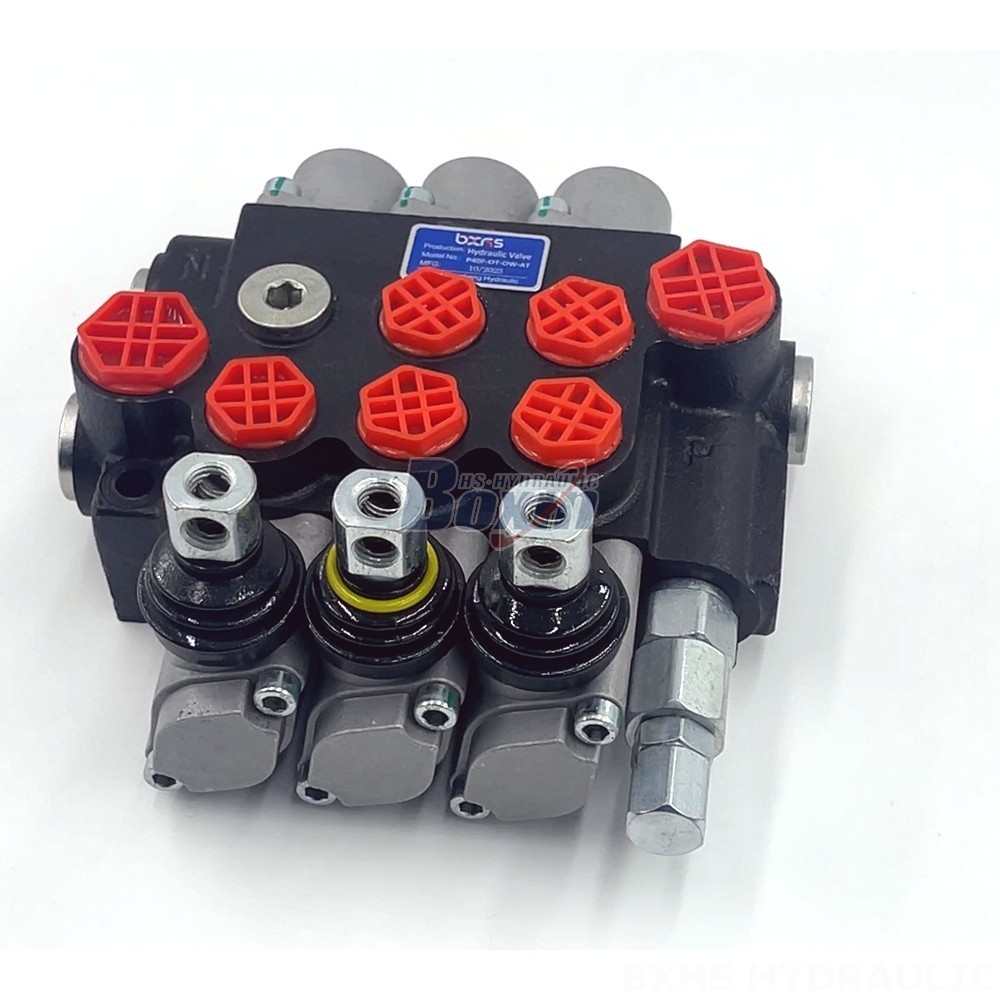

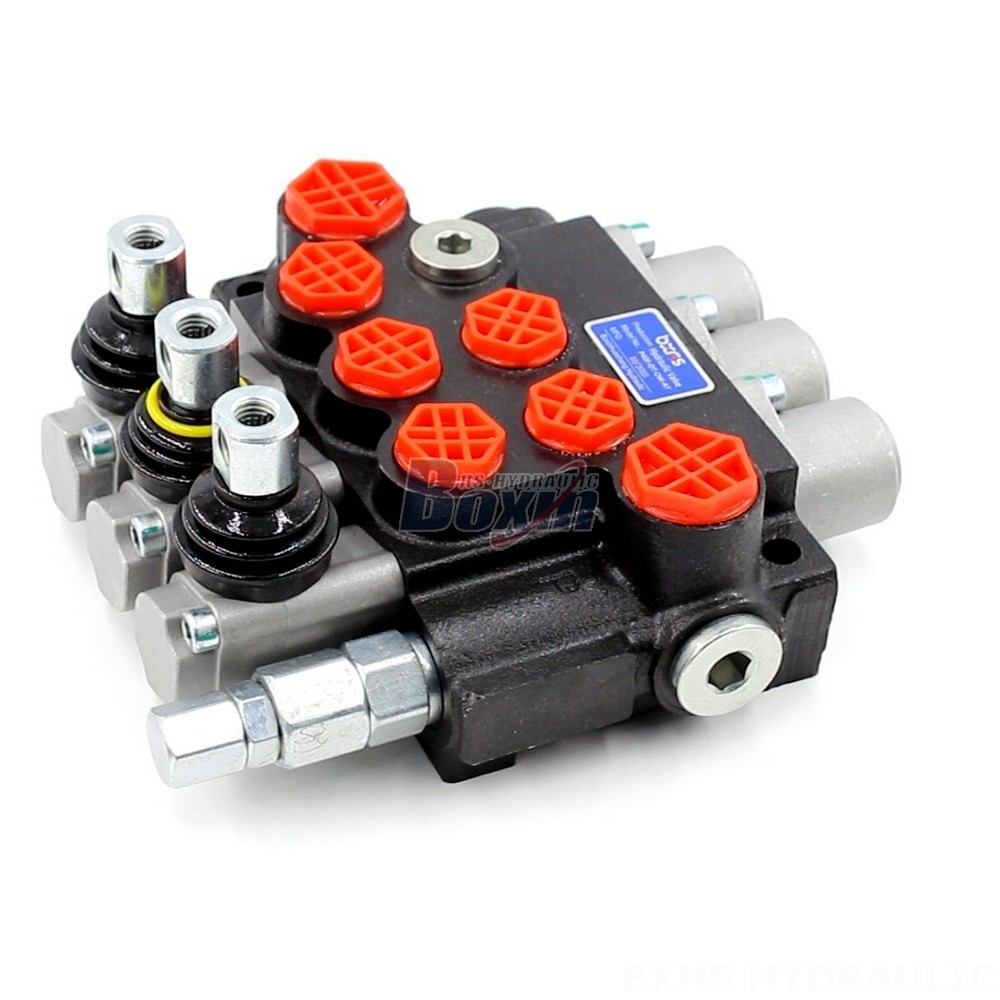

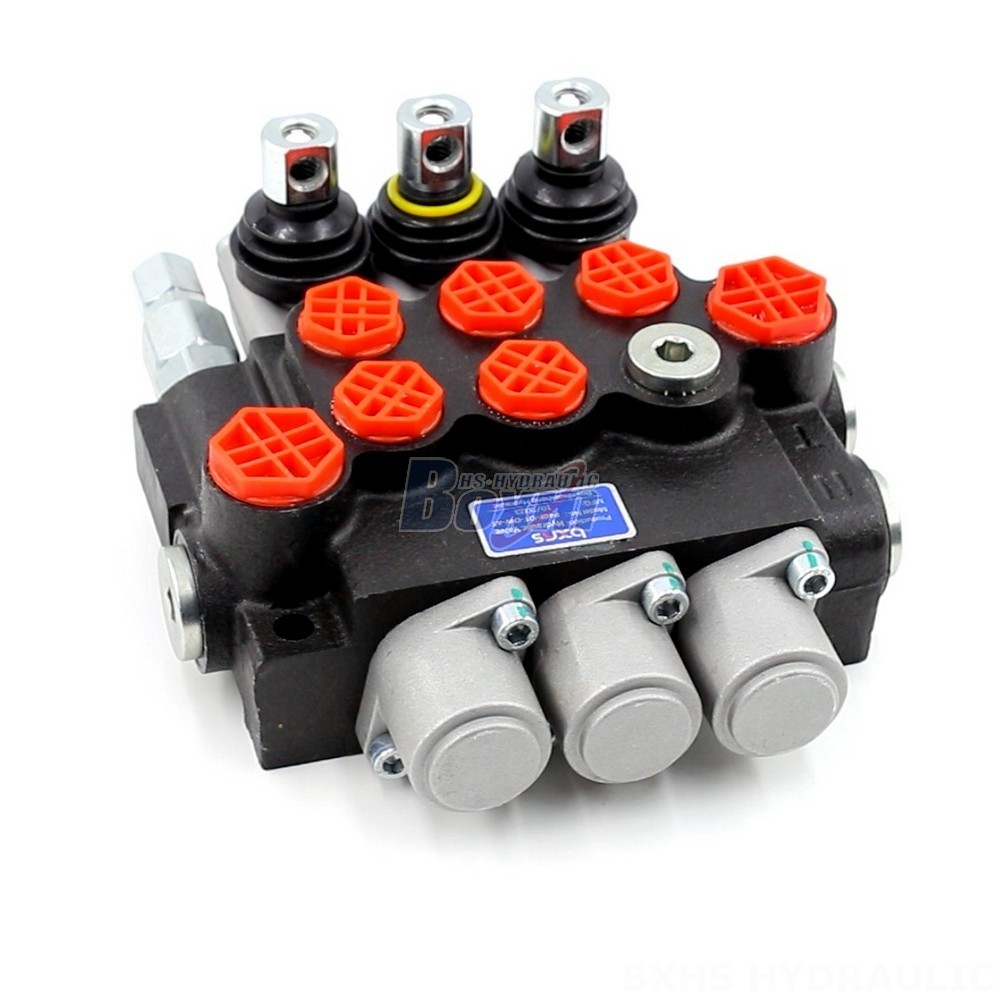

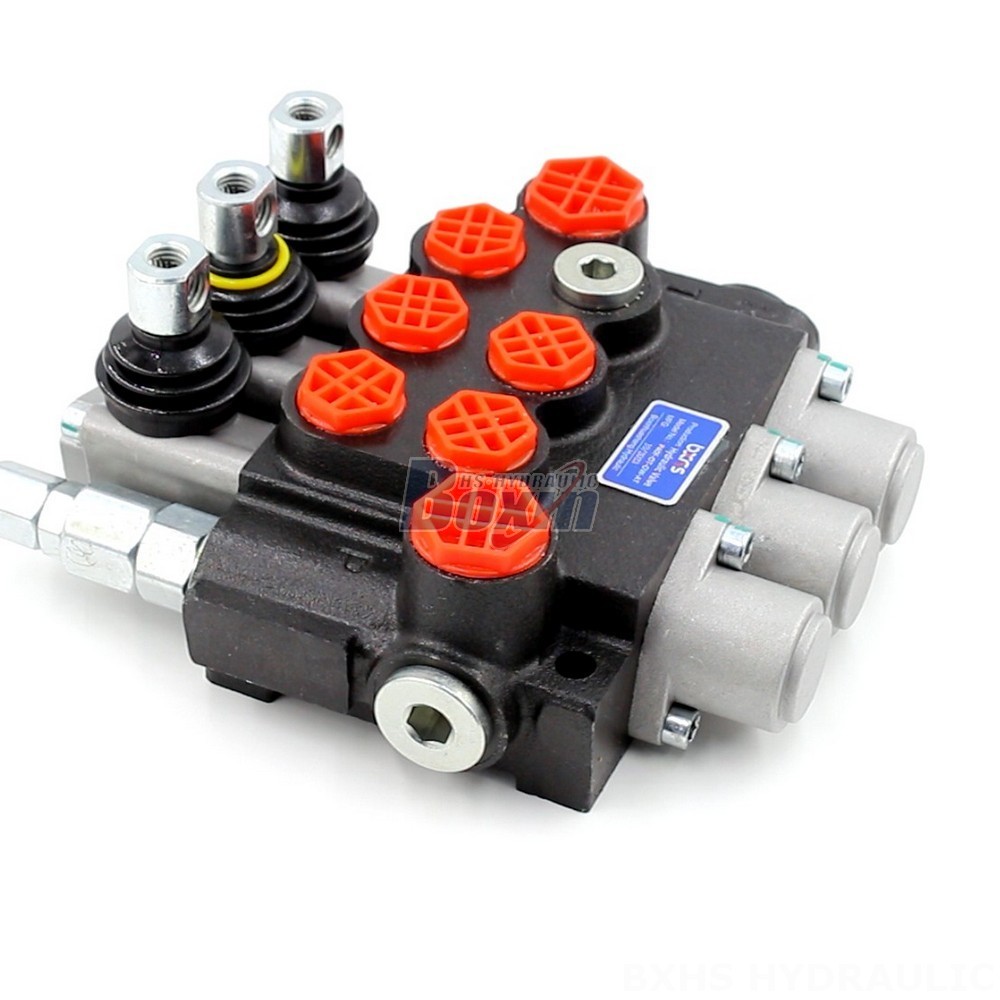

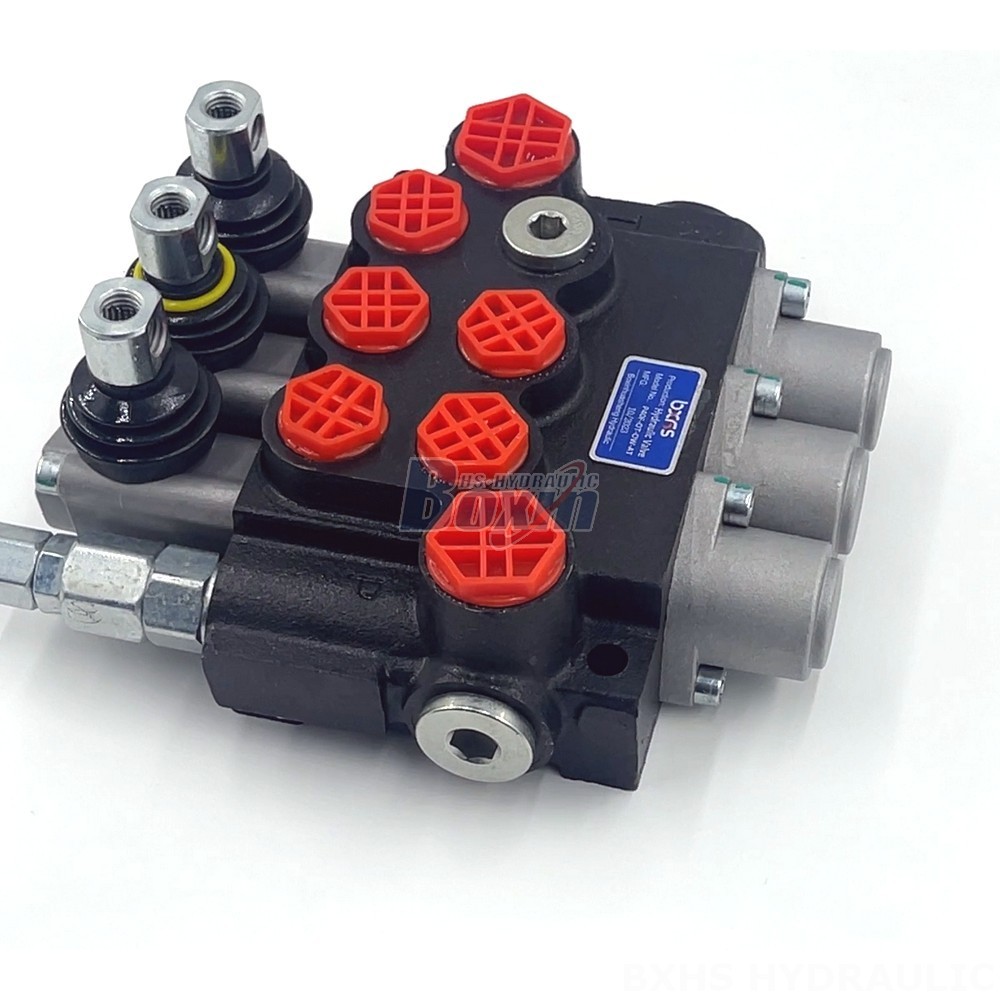

This P40 series directional control valve features 3 spools, 2 acting functionality, and manual control. Designed for demanding applications in construction, material handling, agriculture, and industrial vehicles, it offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi).
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This 3-spool, 2-acting directional control valve is designed for manual operation and is part of the P40 series. It features a monoblock structure and offers a rated flow of 40 L/min (10.5 US gpm) with a maximum pressure of 250 bar (3600 psi). The valve is suitable for operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This valve is ideal for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
