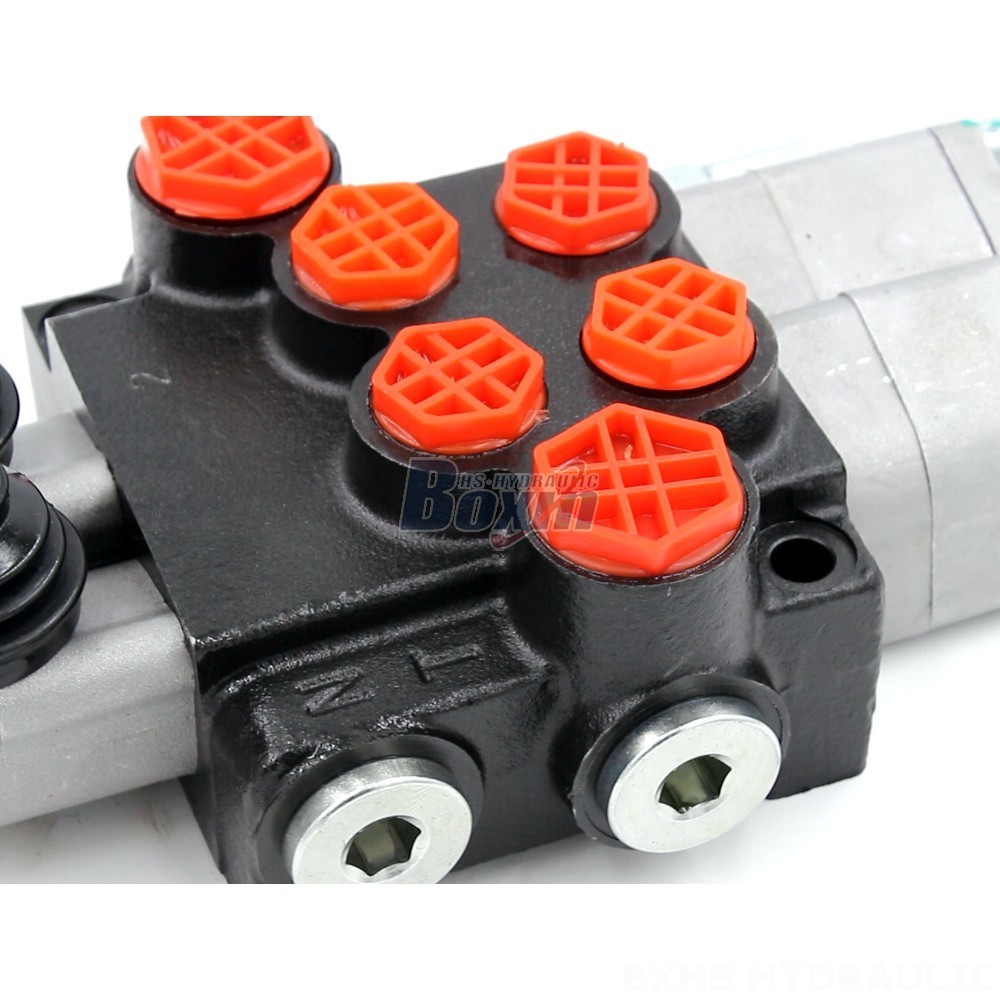

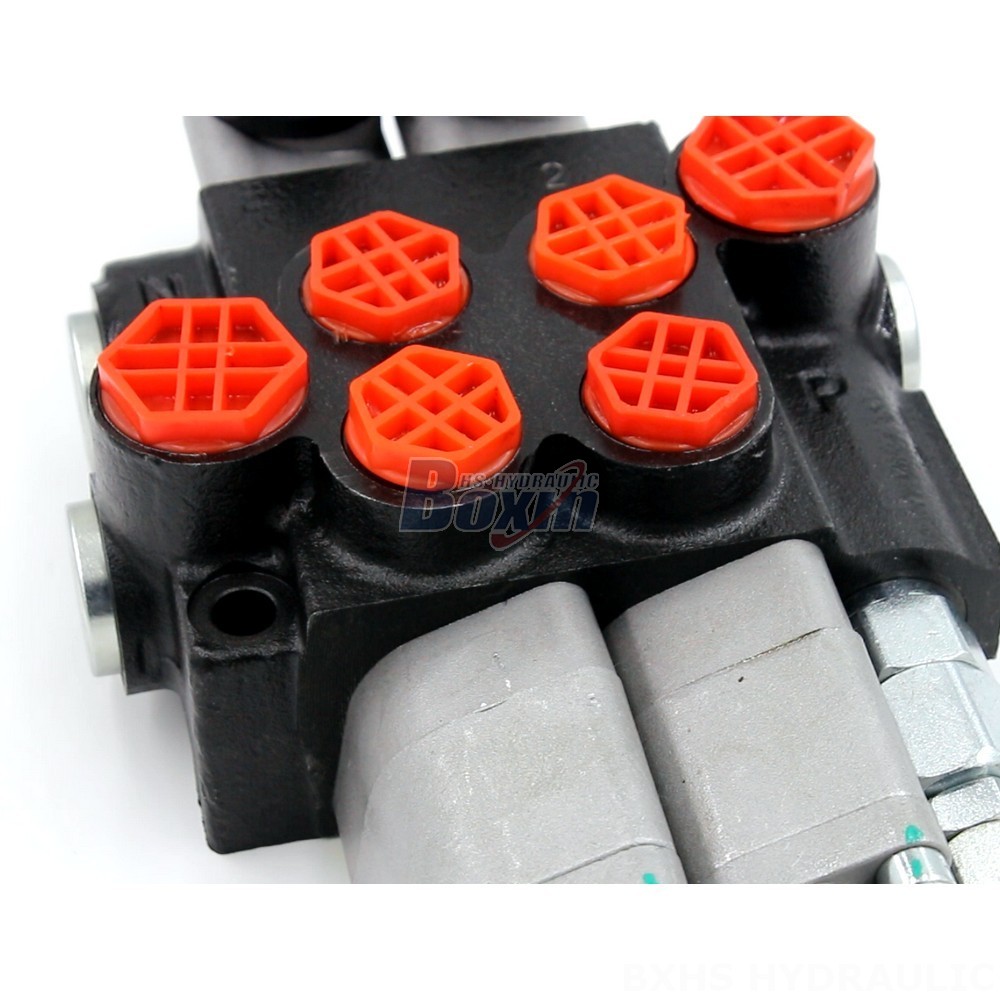

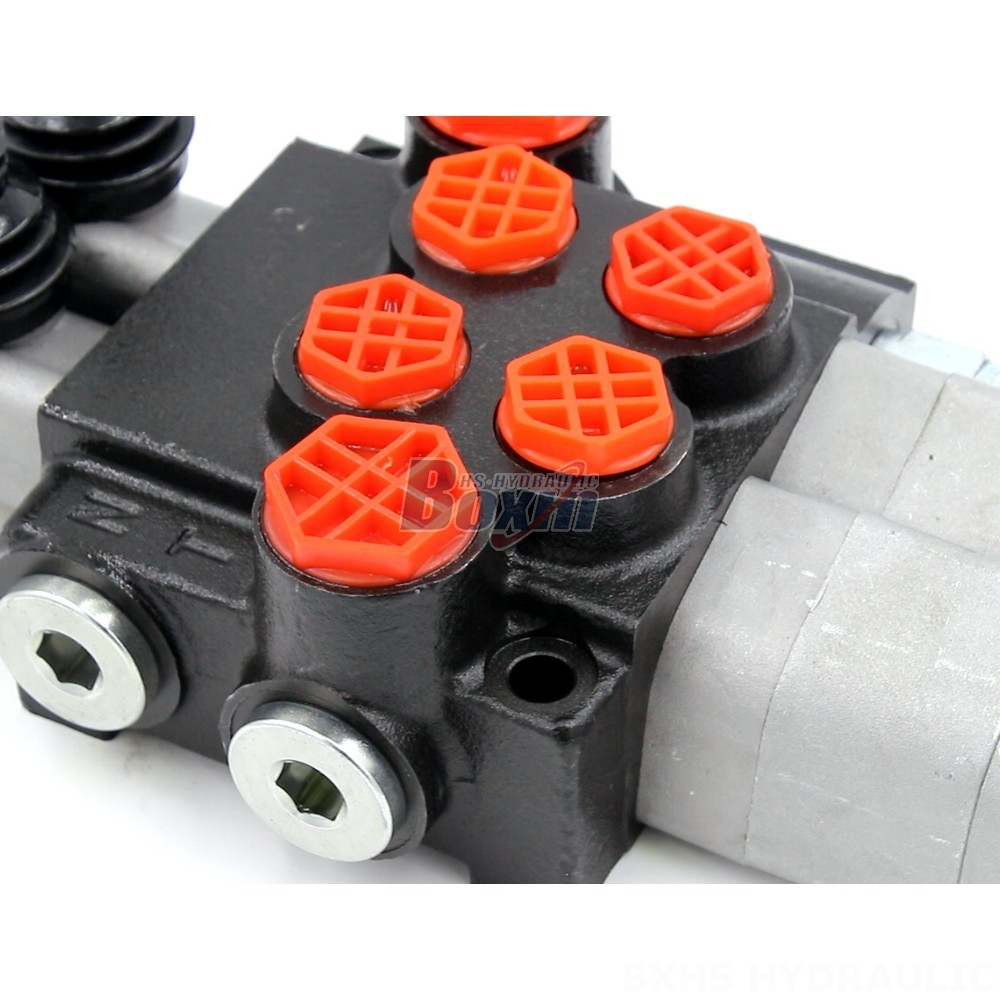

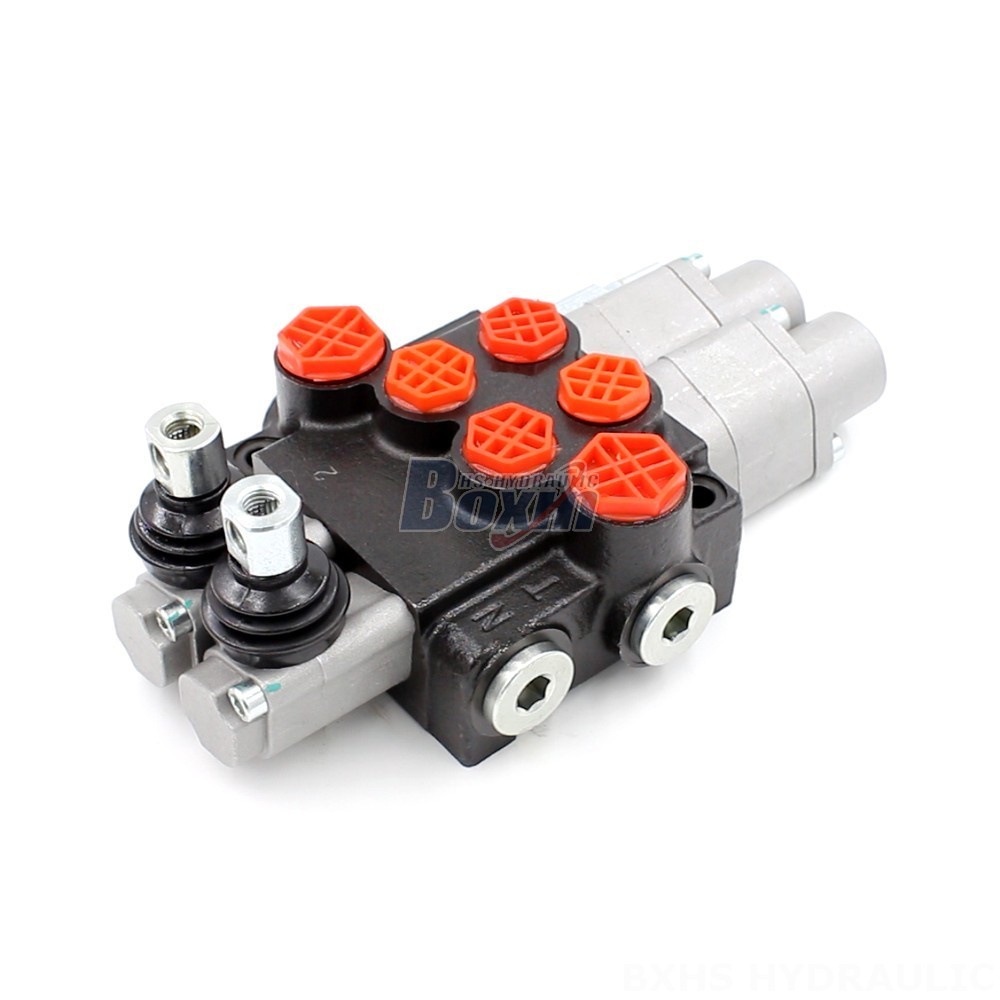

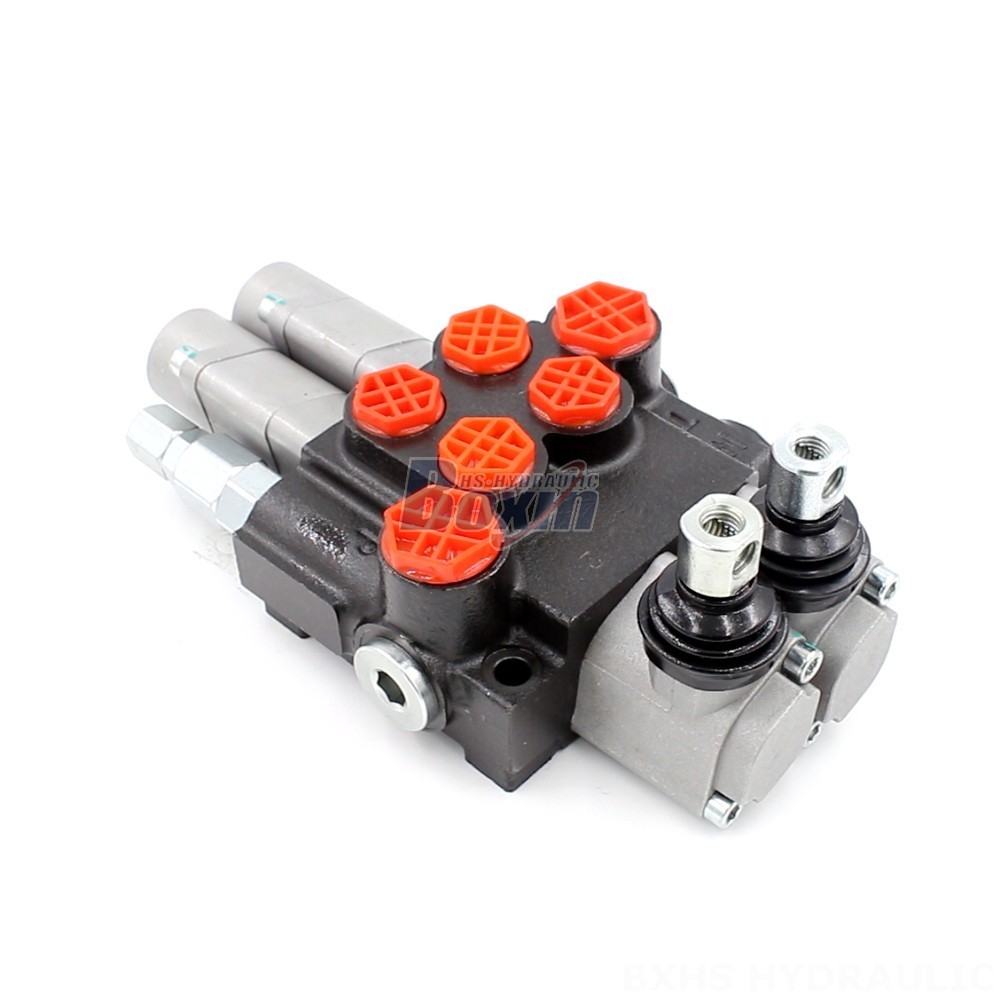

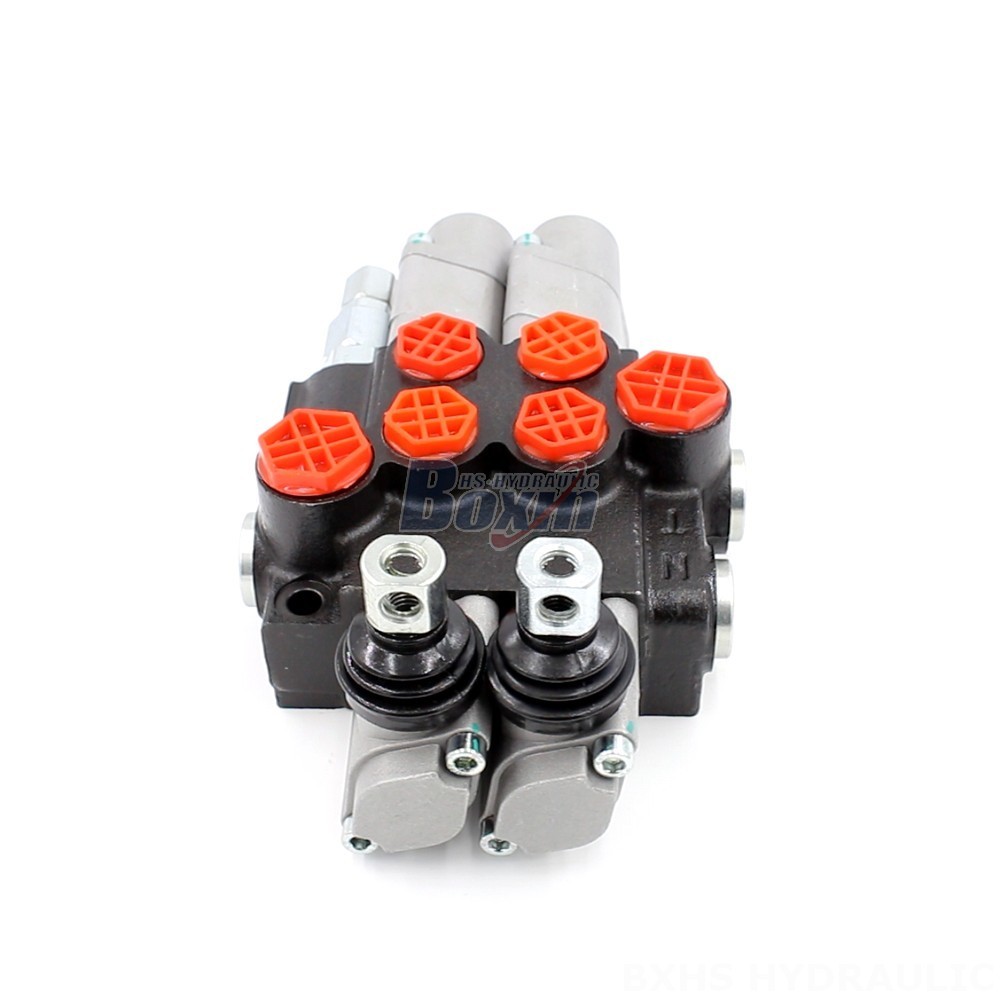

The P40-G12-G38-2QTW is a 2-section, monoblock hydraulic directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features manual control and is suitable for a wide range of applications in material handling, construction, and agriculture.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
This high-performance hydraulic directional control valve from our P40 series is a reliable and efficient solution for various applications. It features a compact design with a 2-section, monoblock structure, delivering smooth and precise control. The valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations. It also offers a wide operating viscosity range and exceptional temperature resistance. With its manual control mechanism, it provides intuitive and easy operation. This valve is perfect for various applications, including material handling, construction, and agriculture. It is compatible with a range of machinery, such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
