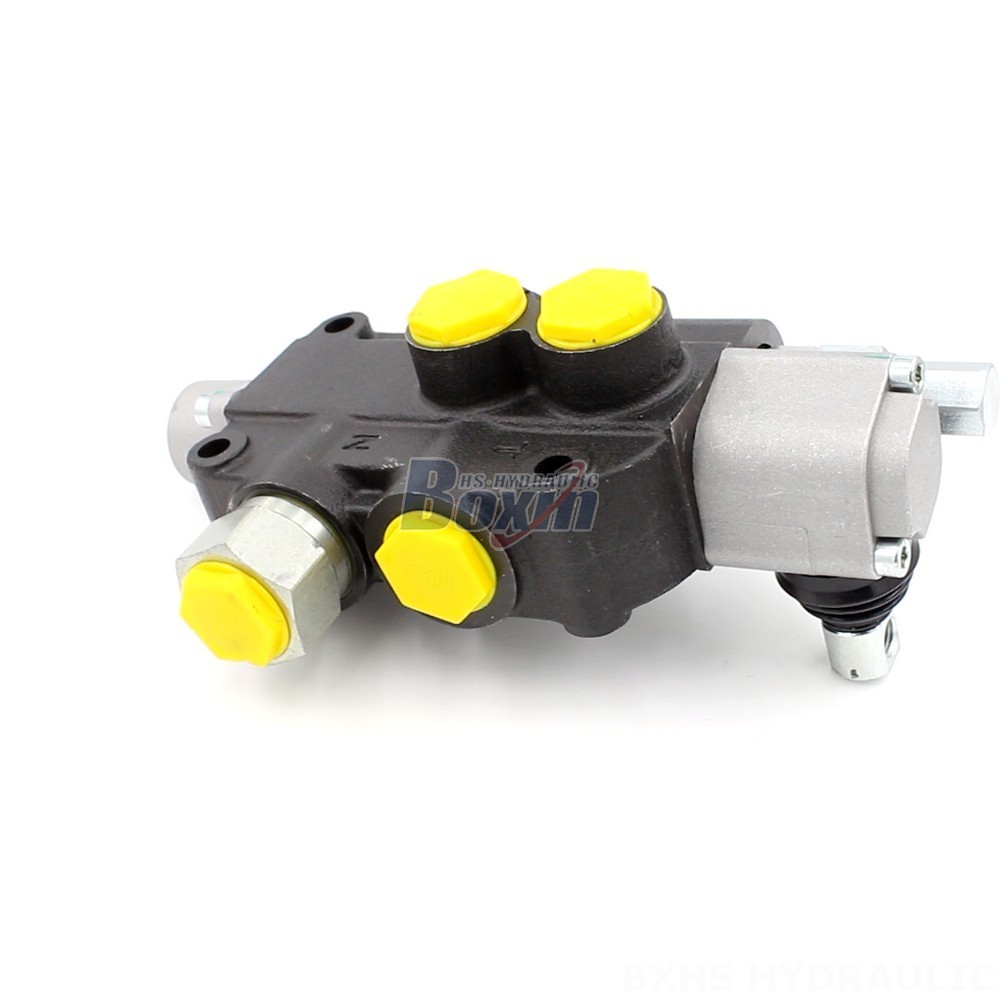

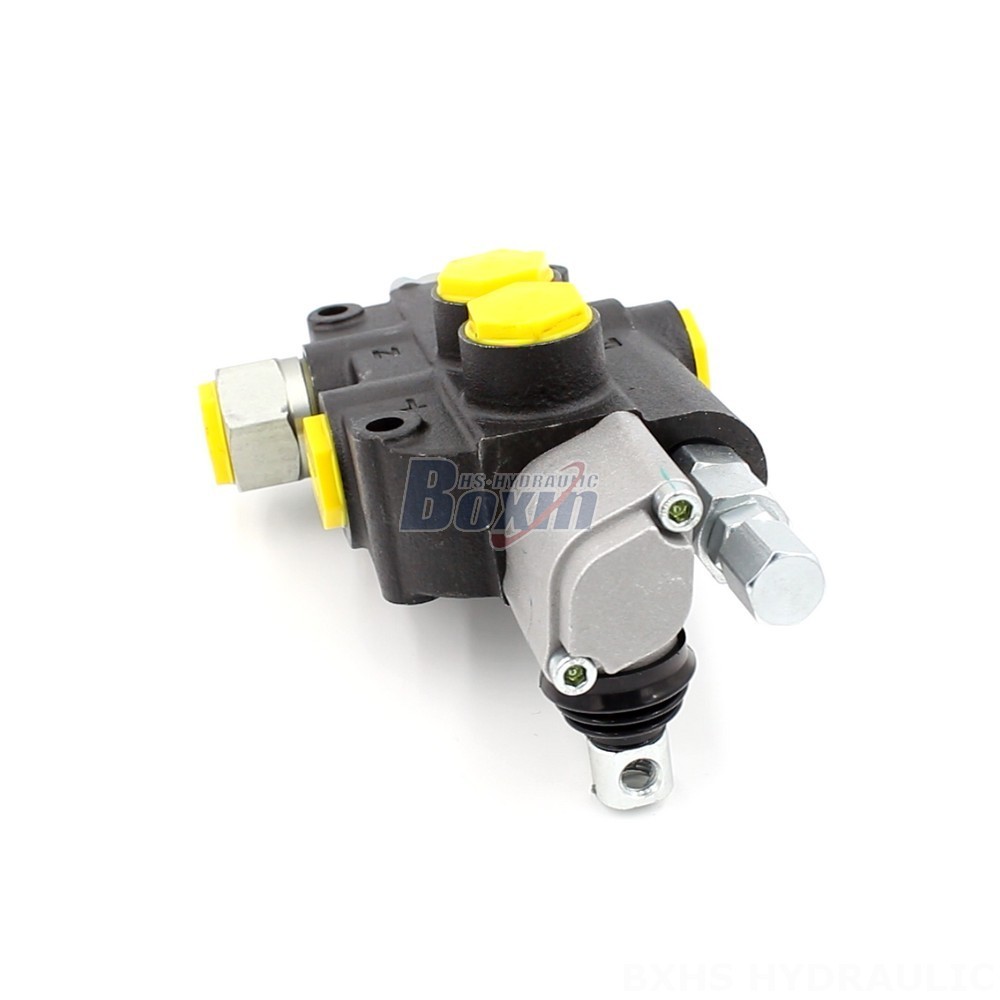

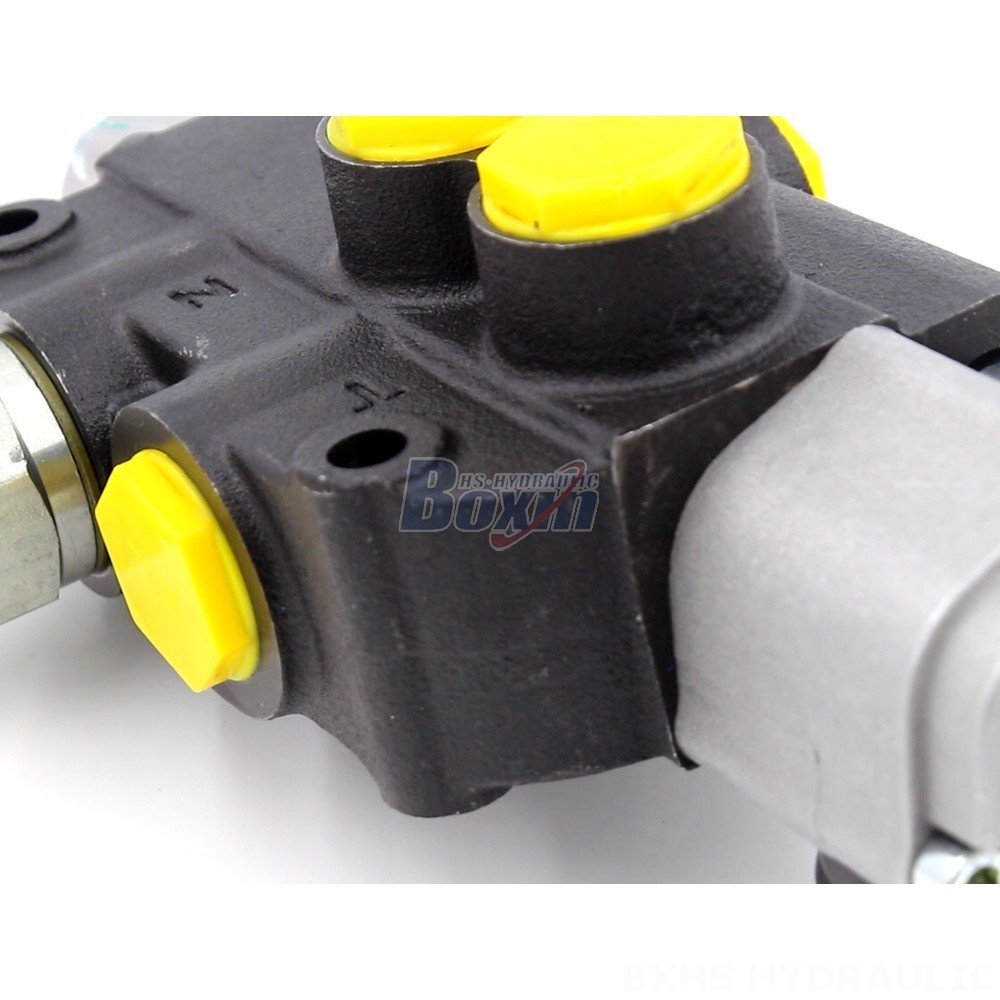

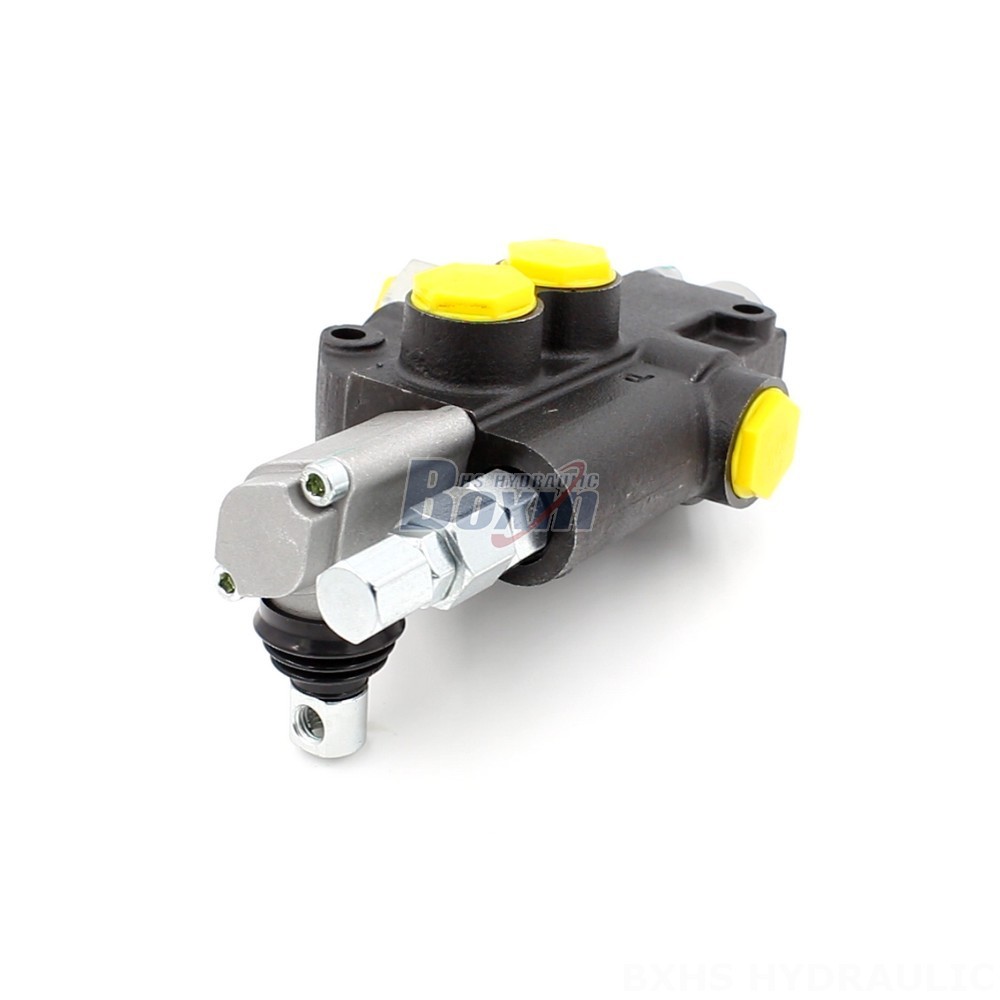

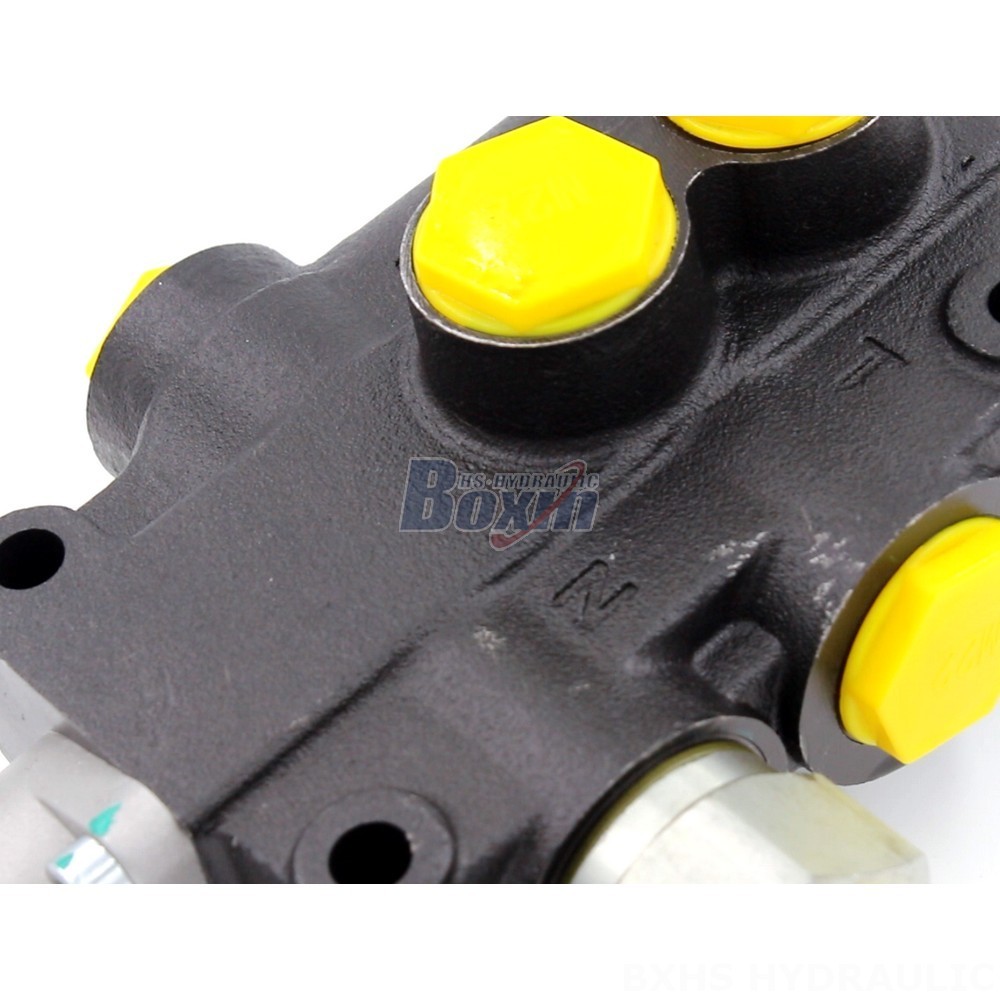

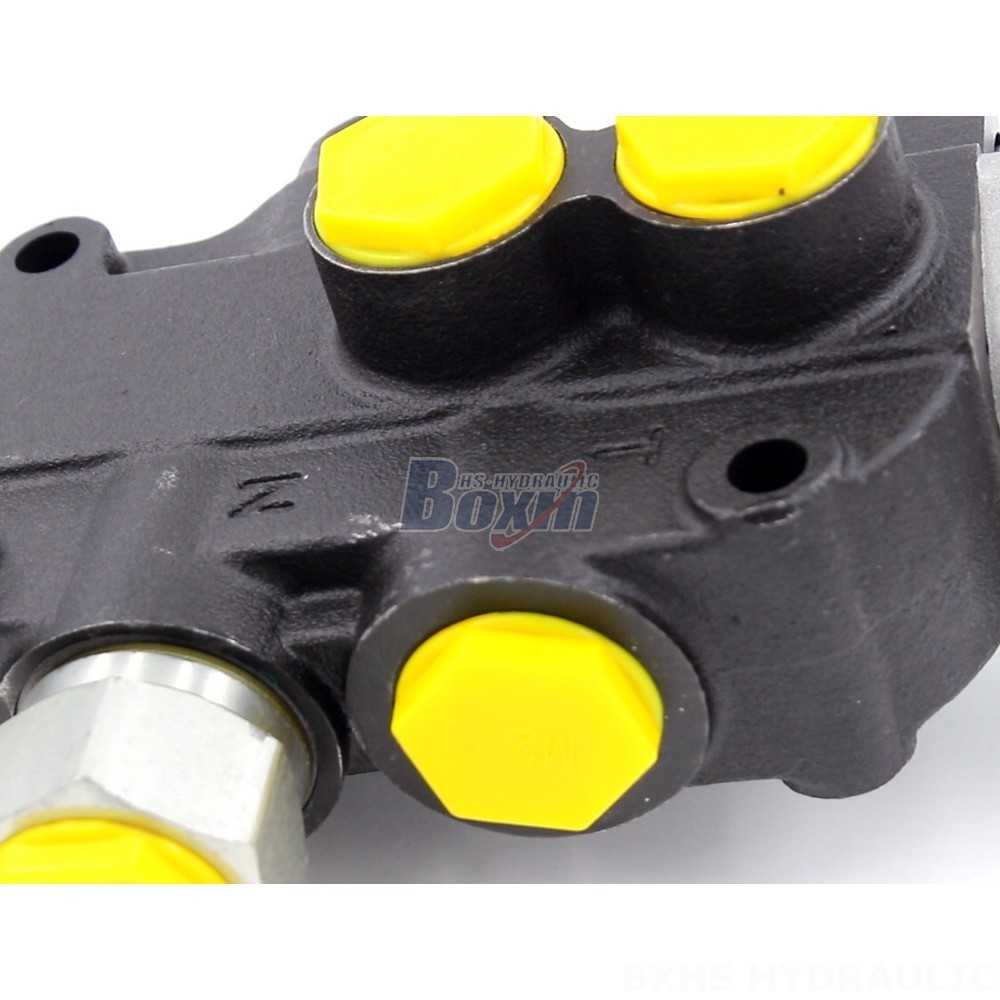

The P80J Series Pressure Limiting Valve is a high-quality, reliable hydraulic valve designed for a wide range of applications. Manufactured with precision and durability, this monoblock valve offers manual control and a rated flow of 80 L/min. Available directly from the source, it's perfect for various industries like material handling, construction, and agriculture.
| P80J系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 电磁和手动, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M20×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M20×1.5螺纹, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80J Series Pressure Limiting Valve is a reliable, high-quality hydraulic valve offering manual control. This monoblock valve is designed for demanding applications and features a rated flow of 80 L/min and a maximum pressure of 250 bar. Suitable for various industries including material handling, construction, earthmoving, agriculture, and industrial vehicles, the P80J Series is compatible with a variety of equipment. As a direct factory supplier, we offer competitive pricing and wholesale options for distributors, wholesalers, agents, and traders. Contact us today to learn more about our pressure limiting valves and explore our factory wholesale opportunities.
