Introducing the P40-G12-G38-3QTW Hydraulic Valves, available directly from the source at wholesale prices. These valves are designed for manual control, featuring a 3-section monoblock construction. With a rated flow capacity of 40 L/min and a maximum pressure of 250 bar, they are suitable for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

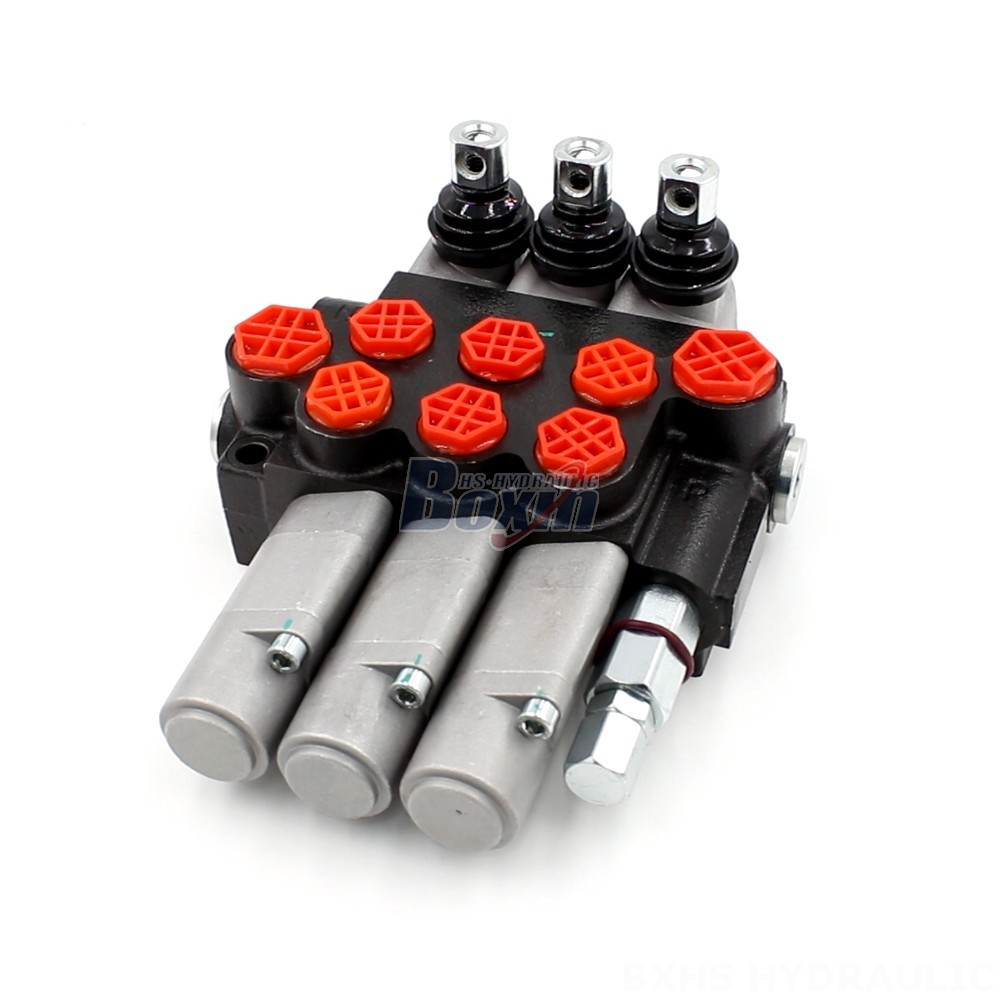

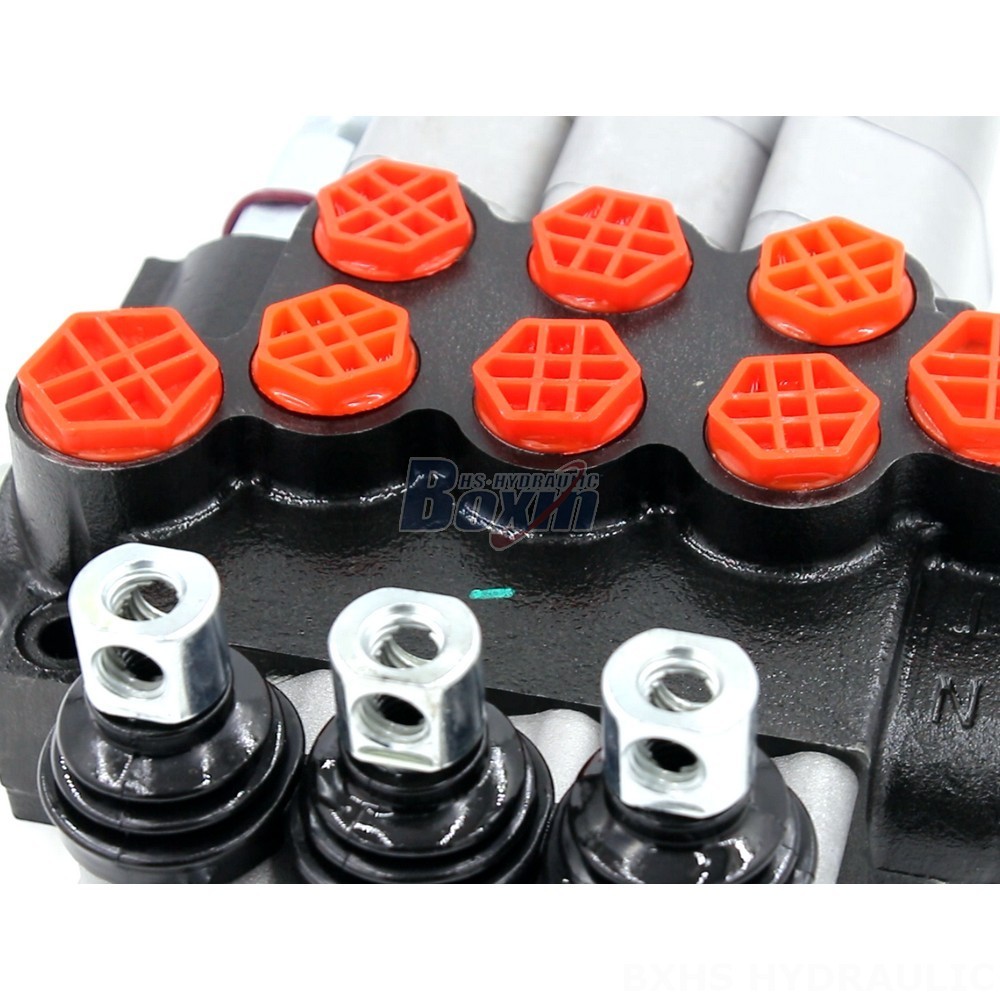

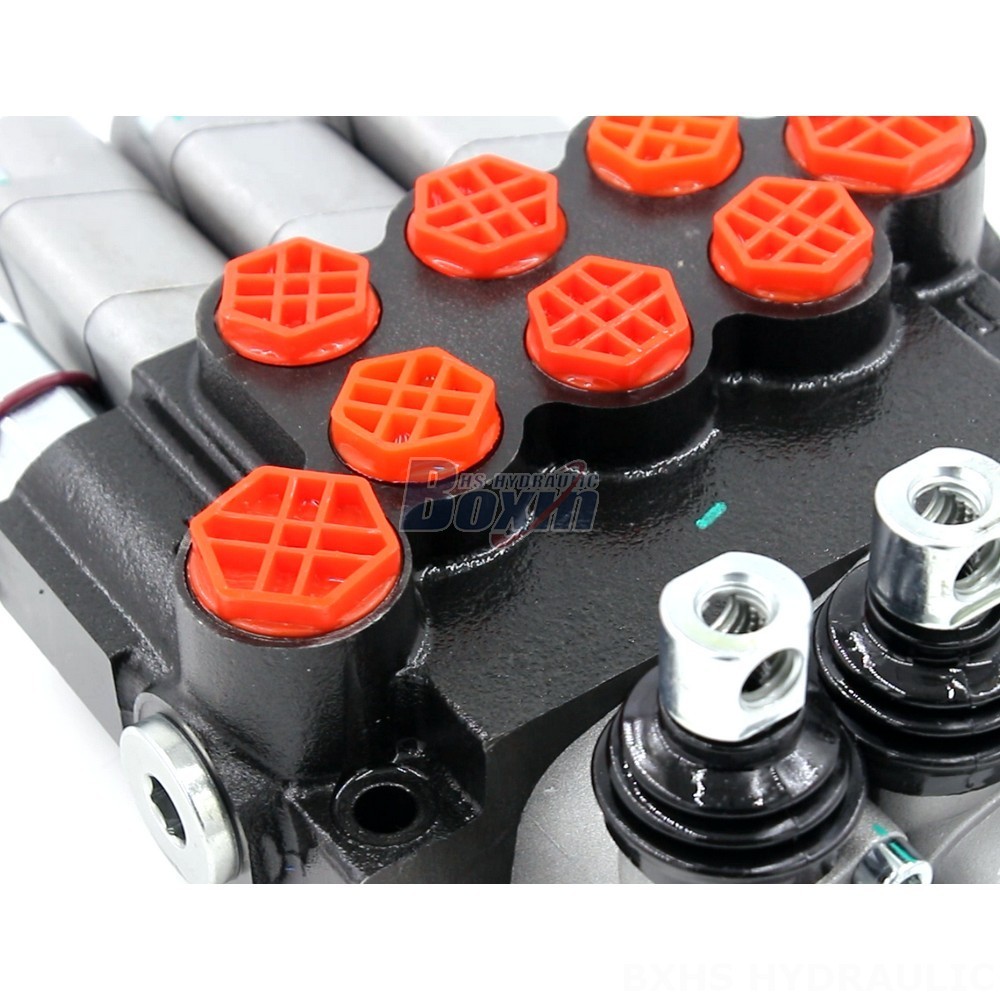

**P40-G12-G38-3QTW Hydraulic Valves**
**Features:**
- Direct from the source manufacturing
- Wholesale factory prices
- Manual control
- 3-section monoblock valve
- Rated flow: 40 L/min (10.5 US gpm)
- Max pressure: 250 bar (3600 psi)
- Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
- Spool: 3 Spool
- Series: P40 Series
**Applications:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
- WHEEL LOADER
- BACKHOE LOADER
- DUMPER
- FACE DRILL RIG
- CONCRETE BOOM PUMP
- PAVE ROLLER
- ROTARY DRILLING
- CRUSHER - STONE CUTTER
