Introducing the P40-G38-G12-OT Directional Control Valve, manufactured and supplied directly from our factory. This 3-section monoblock valve is designed for use in a wide range of industrial applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is built to handle demanding hydraulic systems. It is manually controlled and features a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The P40-G38-G12-OT valve is part of our P40 Series and is commonly used in equipment such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |

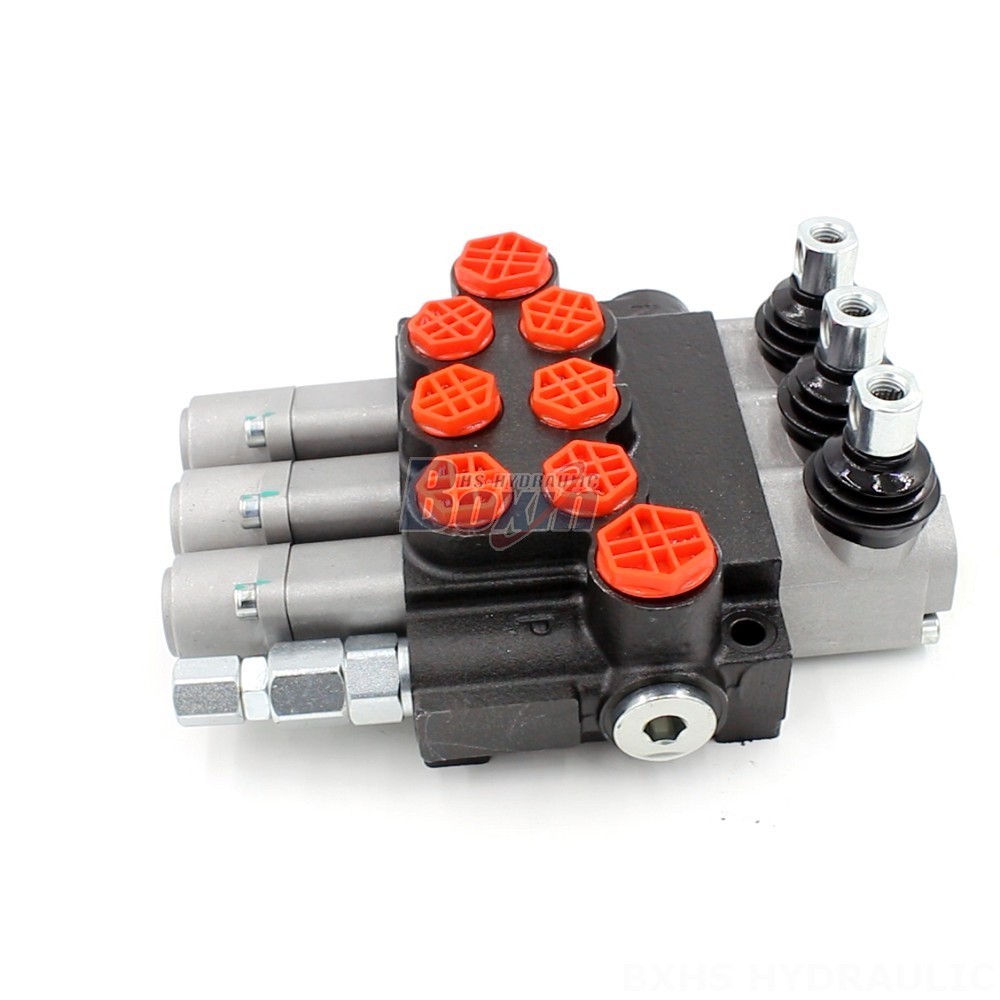

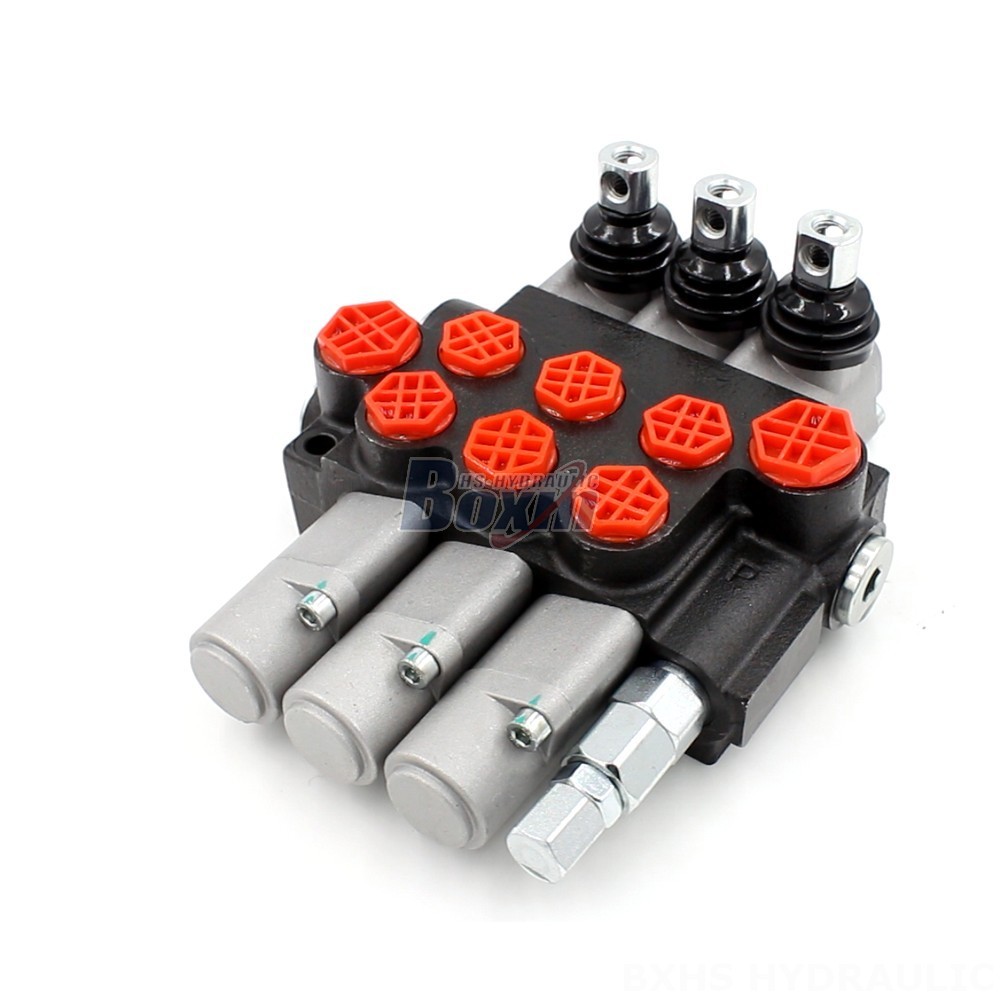

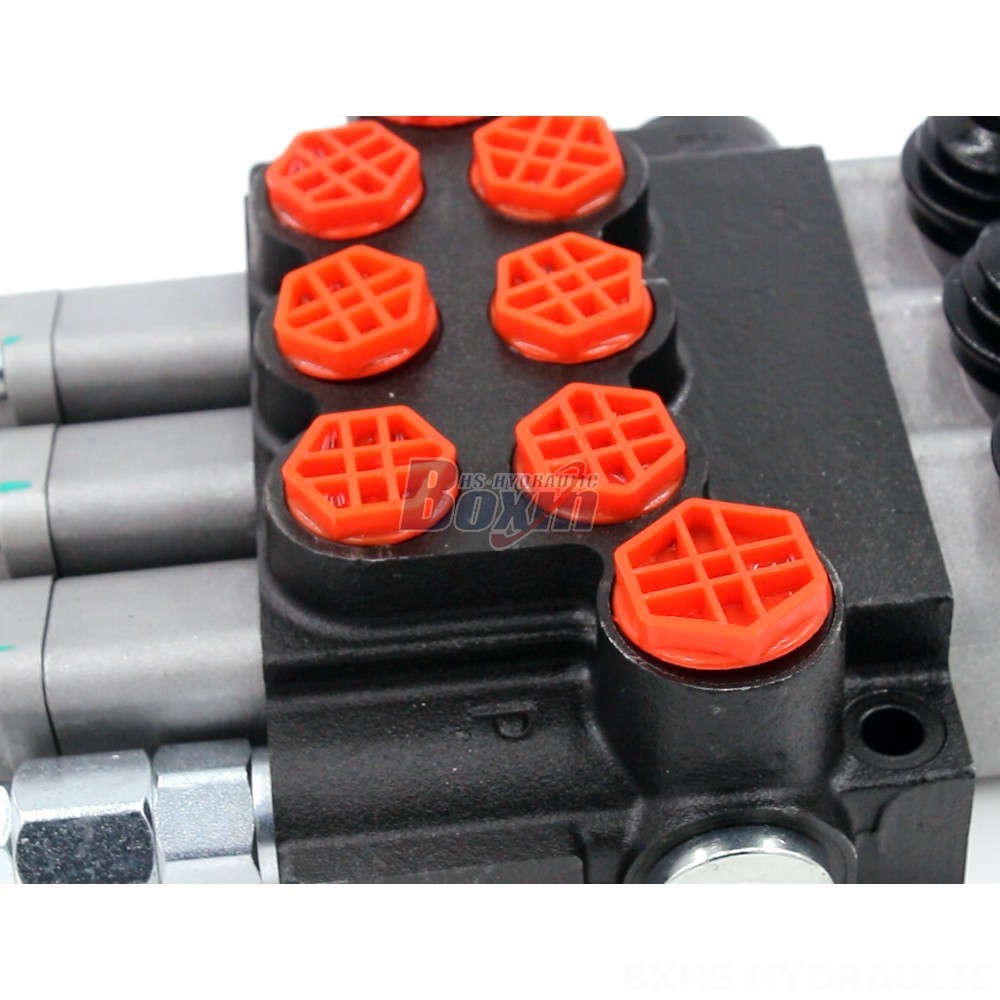

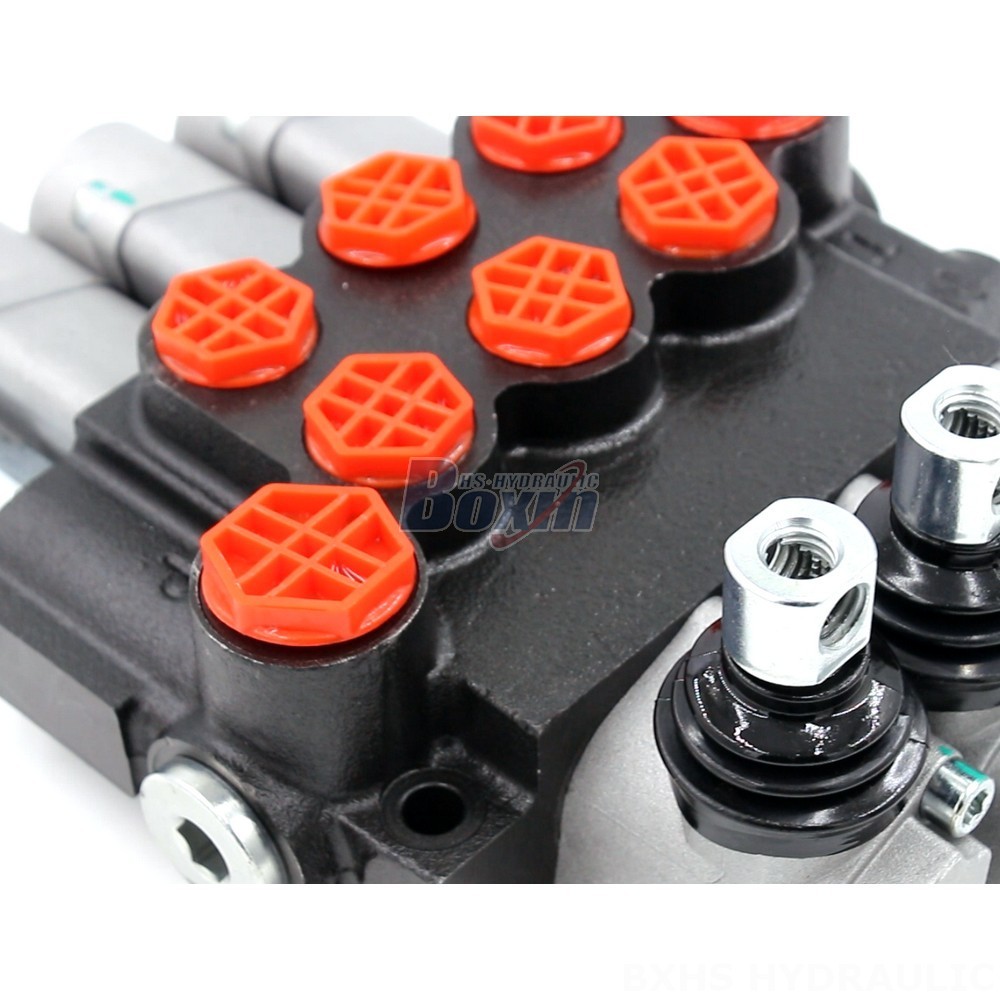

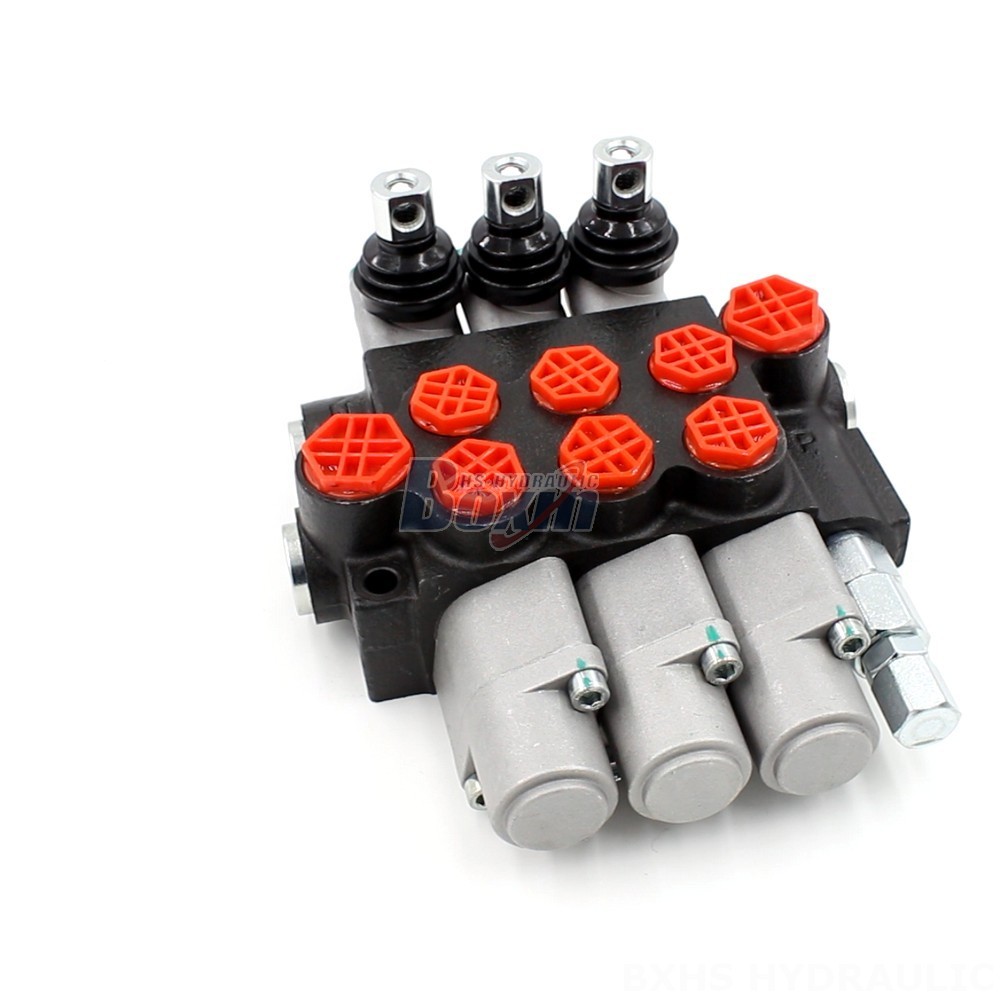

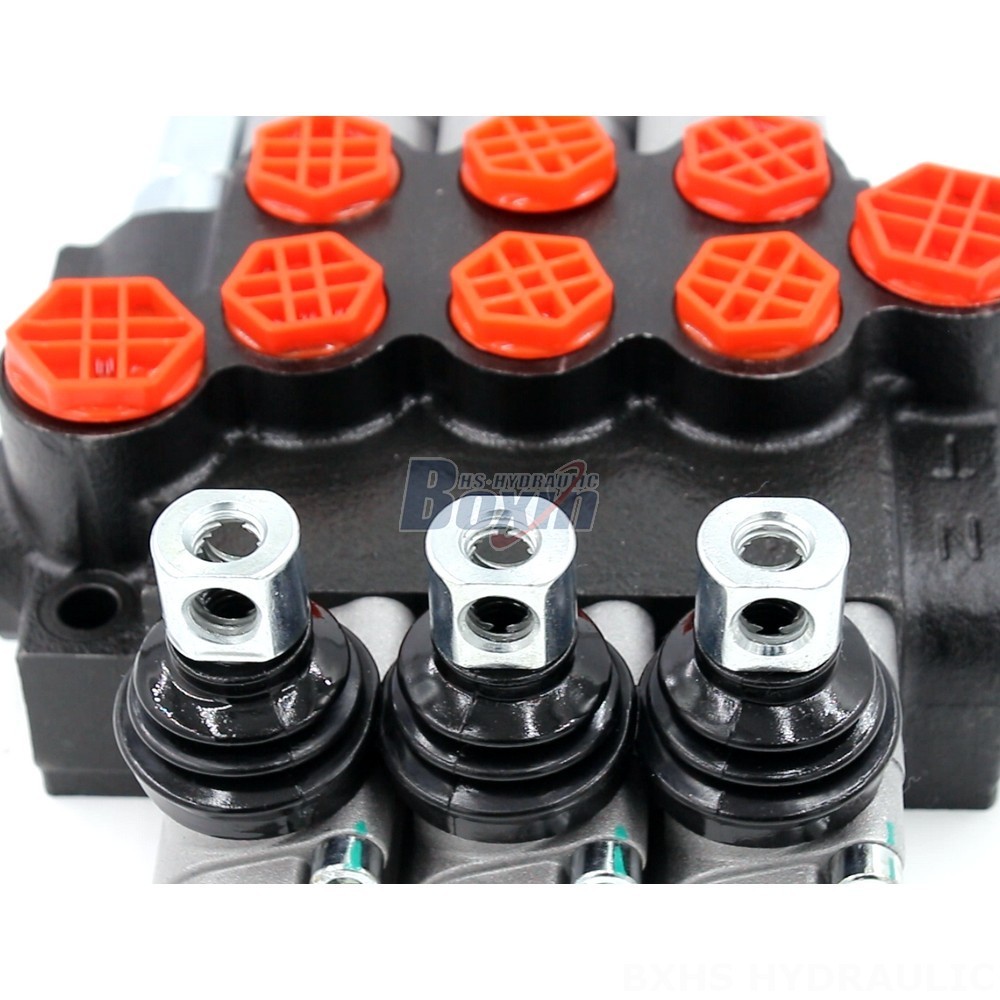

**P40-G38-G12-OT Directional Control Valve**
**Factory Supply | Wholesale Prices**
**Product Specifications:**
- **Control Method:** Manual
- **Section:** 3 Section
- **Structure Type:** Monoblock valve
- **Rated Flow:** 40 L/min (10.5 US gpm)
- **Max Pressure:** 250 bar (3600 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
- **Spool:** 3 Spool
- **Series:** P40 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- MIDI-Excavator
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
**Benefits of Factory Supply:**
- Competitive wholesale prices
- Direct access to manufacturers for quality control
- Customization options to meet specific requirements
- Prompt delivery and technical support
Contact us today to discuss your hydraulic valve needs and request a quote.
