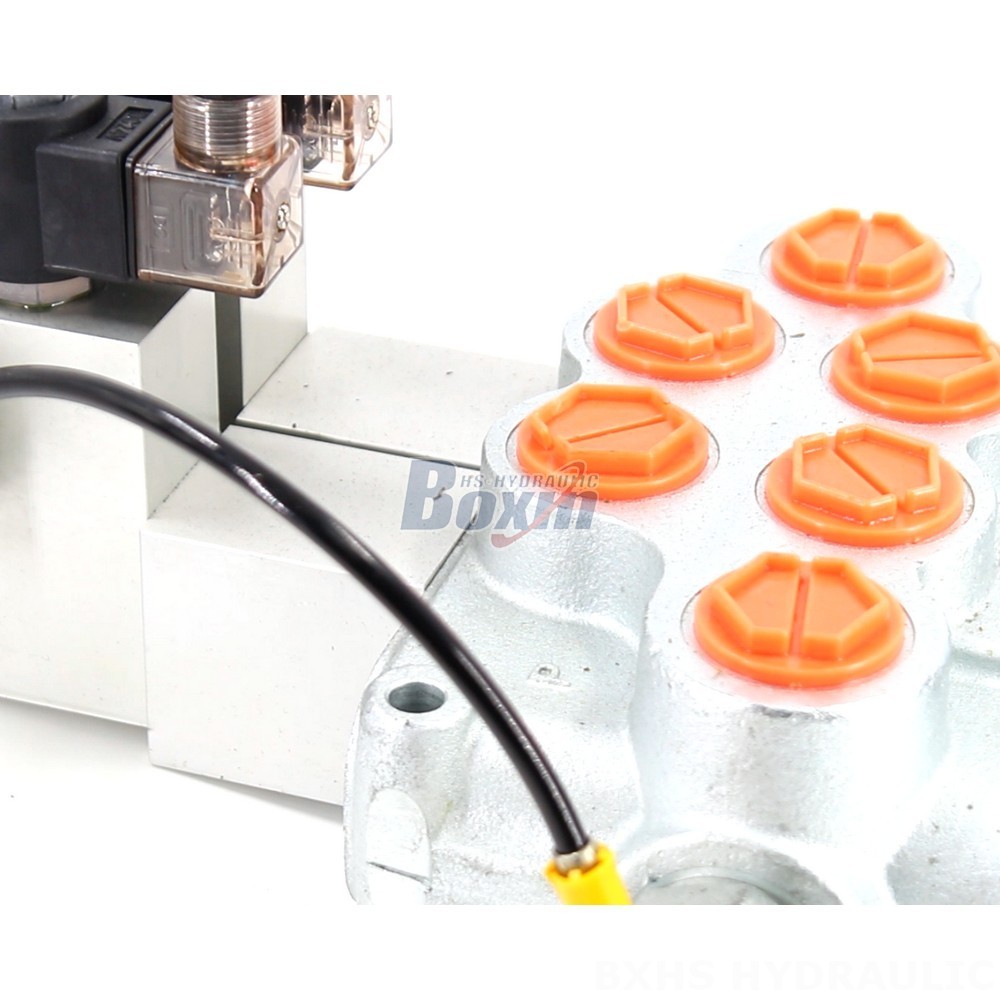

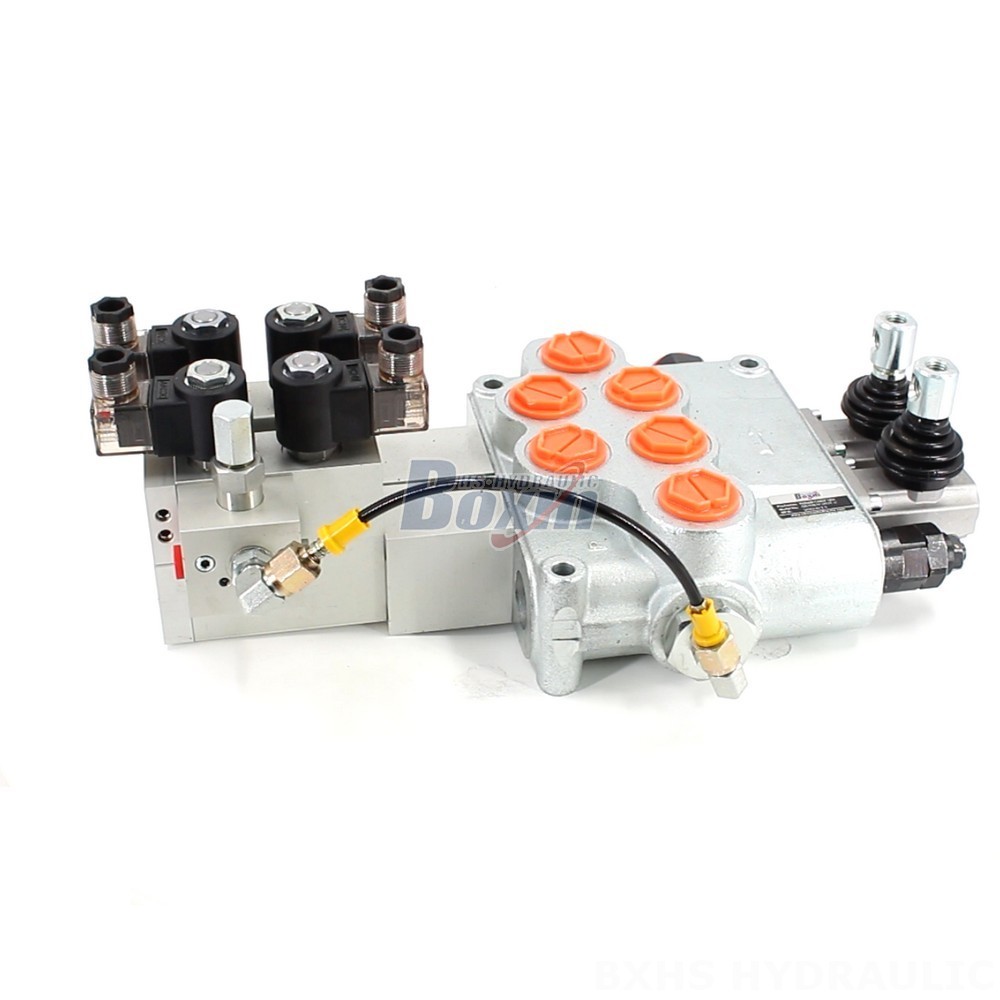

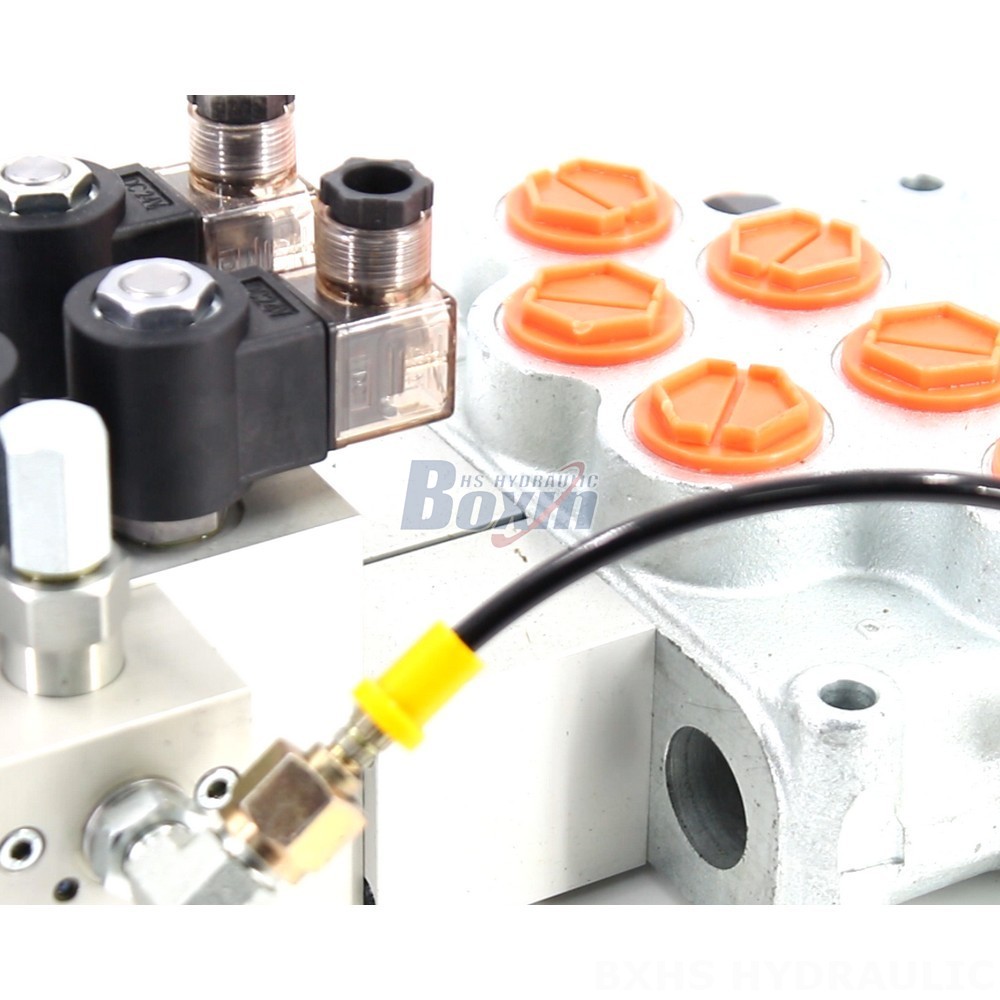

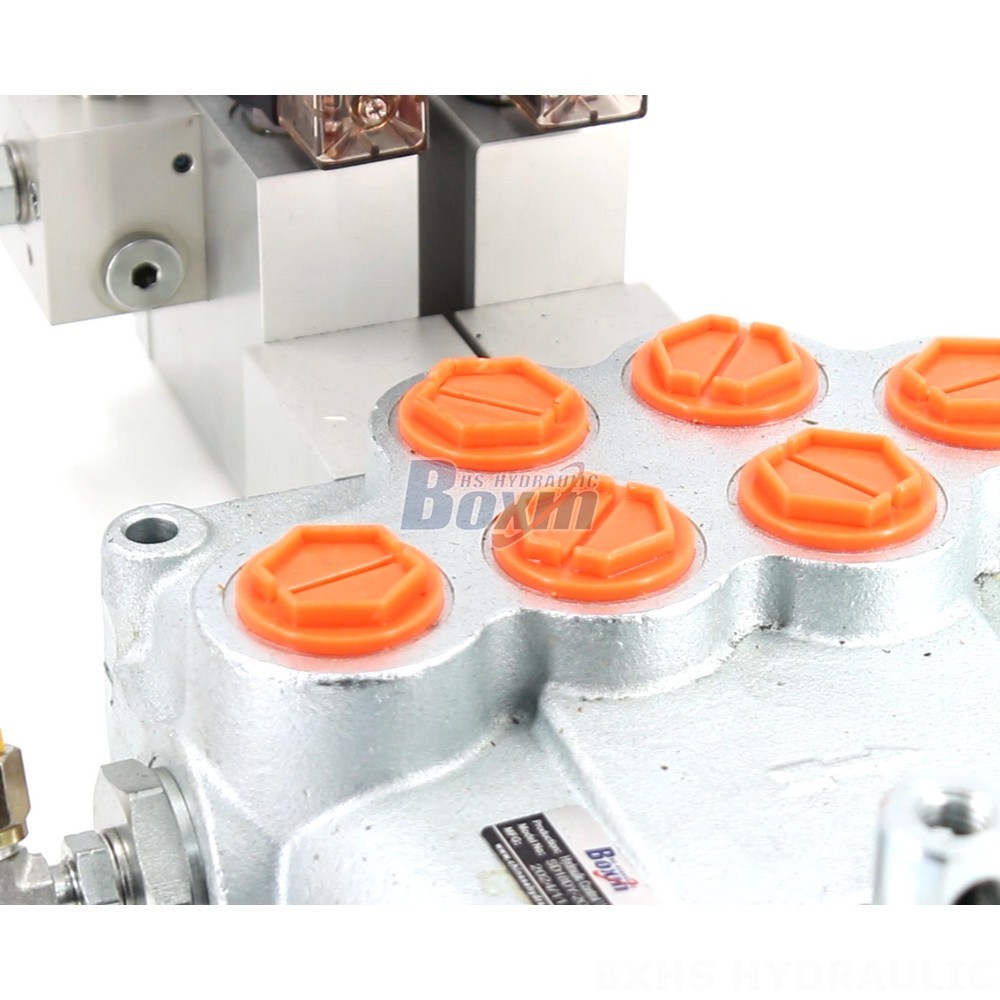

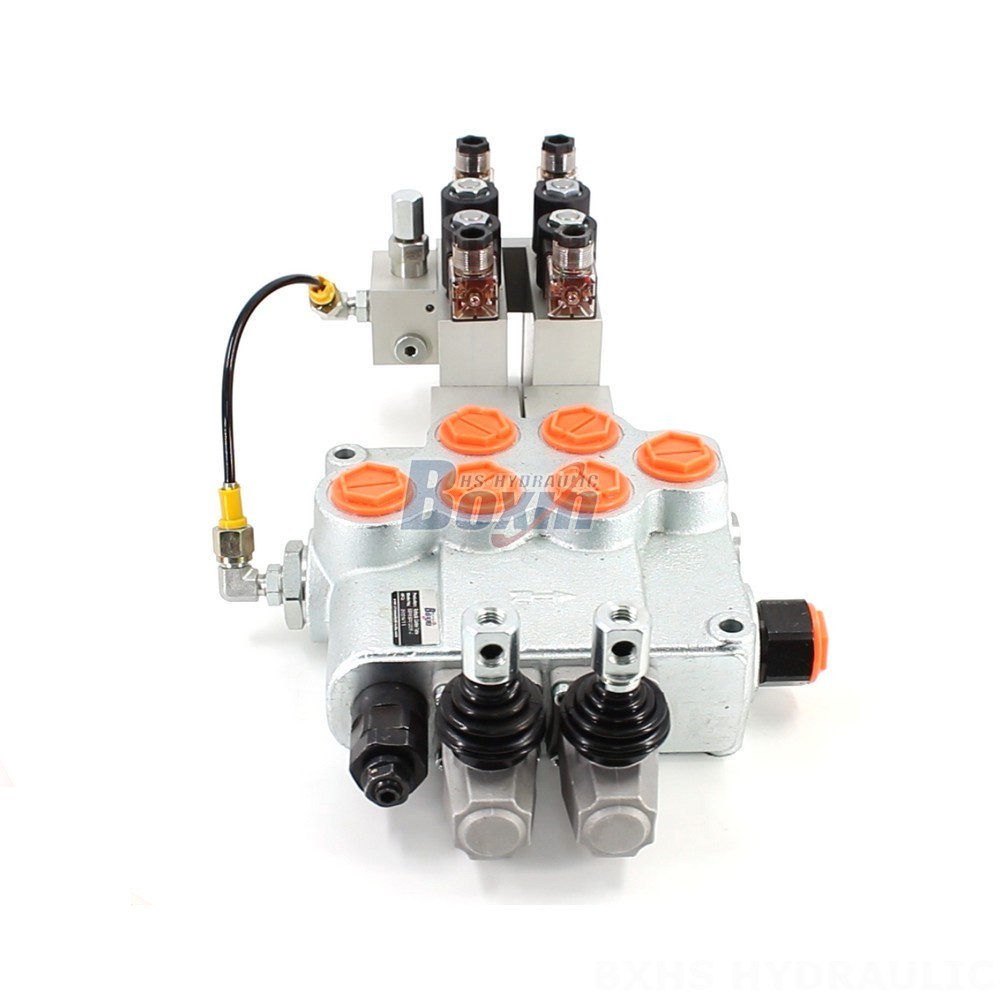

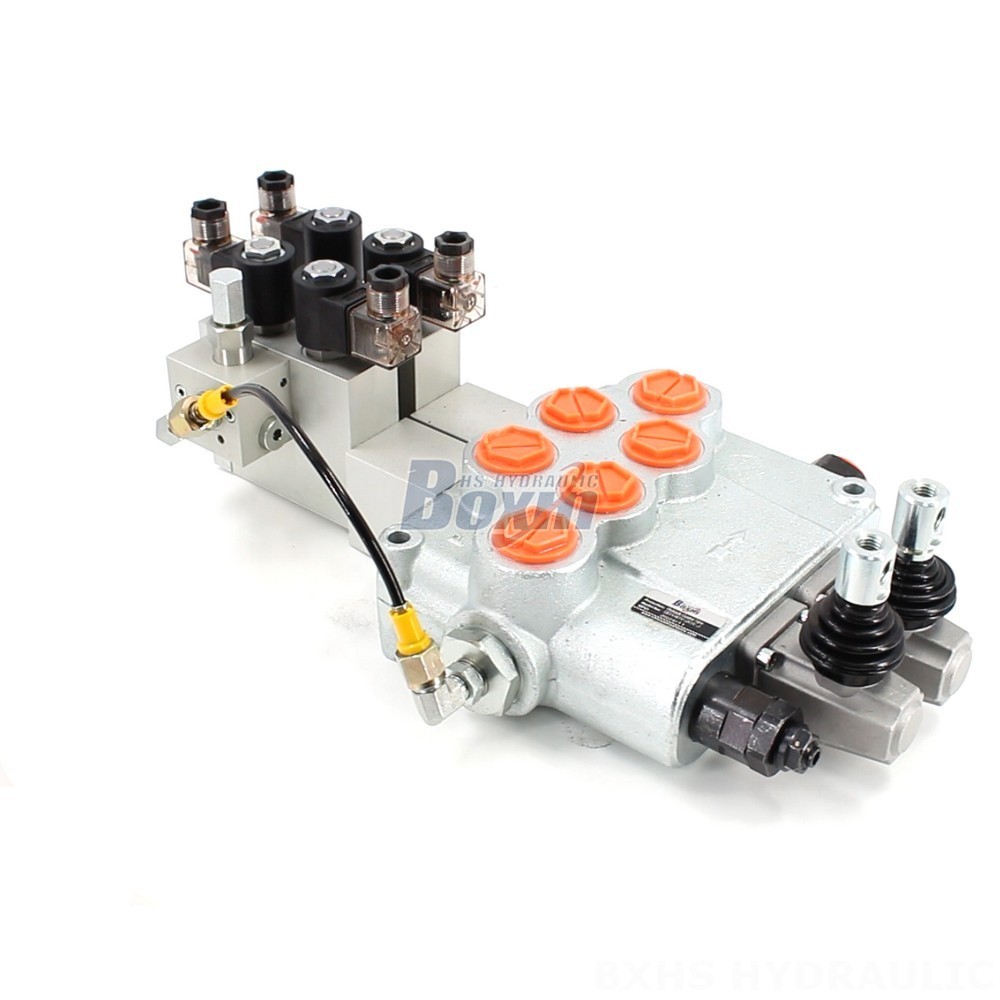

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

控制方式:电液控

路数:2 联

额定流量:160 L/min (42.2 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1接口

出油口:G1接口

接口尺寸:G1接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:SD18系列 单块式方向阀

Packagingsize:21*47*32

Grossweight:22.50 kg

库存: 有货

355 次查看了此产品

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves drawing image

Direct from factory, the SD18 electric 2-spool monoblock directional valve offers high performance (160 L/min, 315 bar) and wide operating temperature range (-40°C to +80°C). Ideal for construction, industrial vehicles, and agriculture applications.

SD18系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制
路数 1 联, 2 联, 3 联, 4 联
额定流量 160 L/min (42.2 US gpm)
最大压力 305 bar (4400 psi)
进油口 G1/2接口, G1接口, SAE 16接头
出油口 G1接口, SAE 16接头
接口尺寸 G1接口, SAE 16接头
联数 1联, 2联, 3联, 4联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 12 - 400 mm²/s (12 cSt to 400 cSt)

We are a leading manufacturer of high-quality hydraulic products, supplying globally. Our SD18 Series Electric 2-Spool Monoblock Directional Valves are designed for demanding applications in construction and earthmoving, industrial vehicles, and agriculture. These robust valves boast a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi), ensuring reliable performance even under extreme conditions.

**Key Features:**
* **Electric Control:** Precise and efficient operation.
* **Monoblock Structure:** Compact design and high durability.
* **High Flow Rate:** 160 L/min (42.2 US gpm).
* **High Pressure Capability:** 315 bar (4600 psi).
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Suitable for:** Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders, Backhoe Loaders, Tractors, Front-End Loaders, Harvesters, and Telehandlers.

**Our Services:**
We offer comprehensive services including manufacturing, OEM (Original Equipment Manufacturing), private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a **manufacturer**, we provide **factory direct** pricing and superior quality. Benefit from our **factory wholesale** options and competitive pricing. Contact us today to explore collaboration opportunities and discuss your specific needs. Experience the advantage of working directly with the **factory supplier**.
