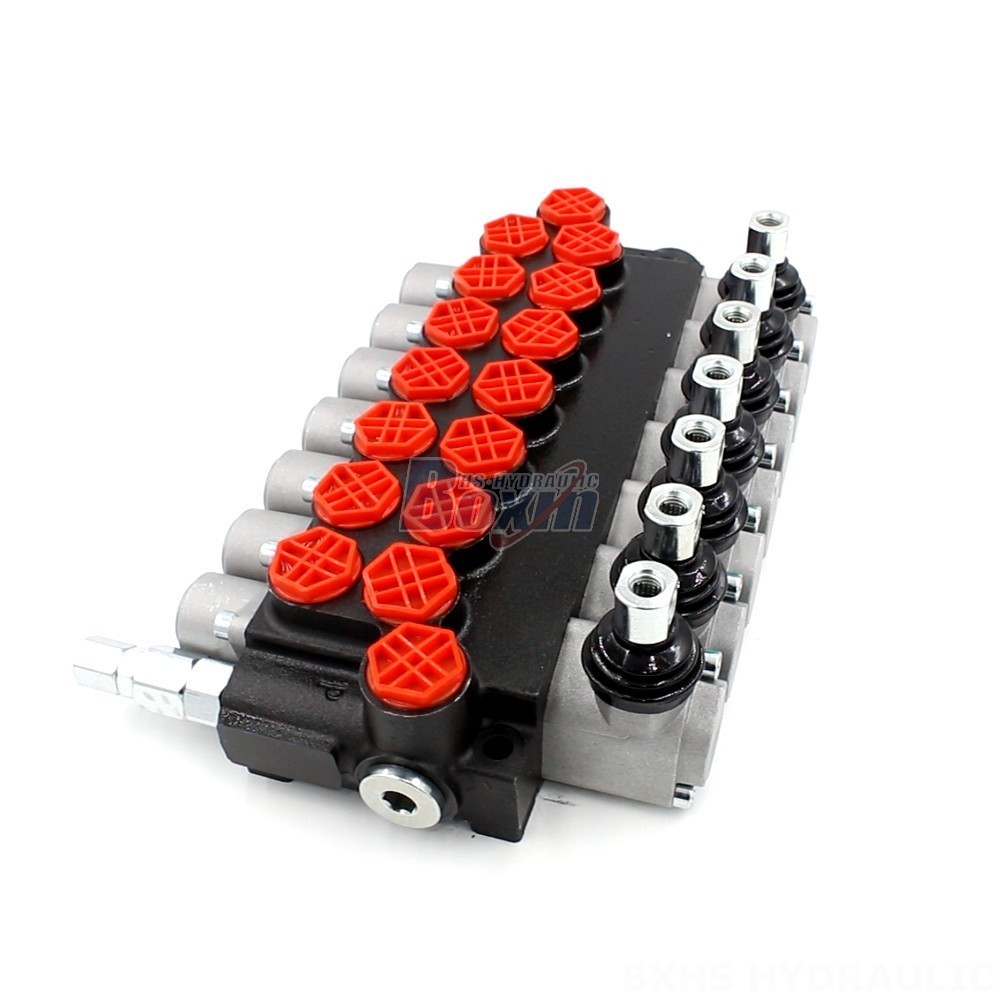

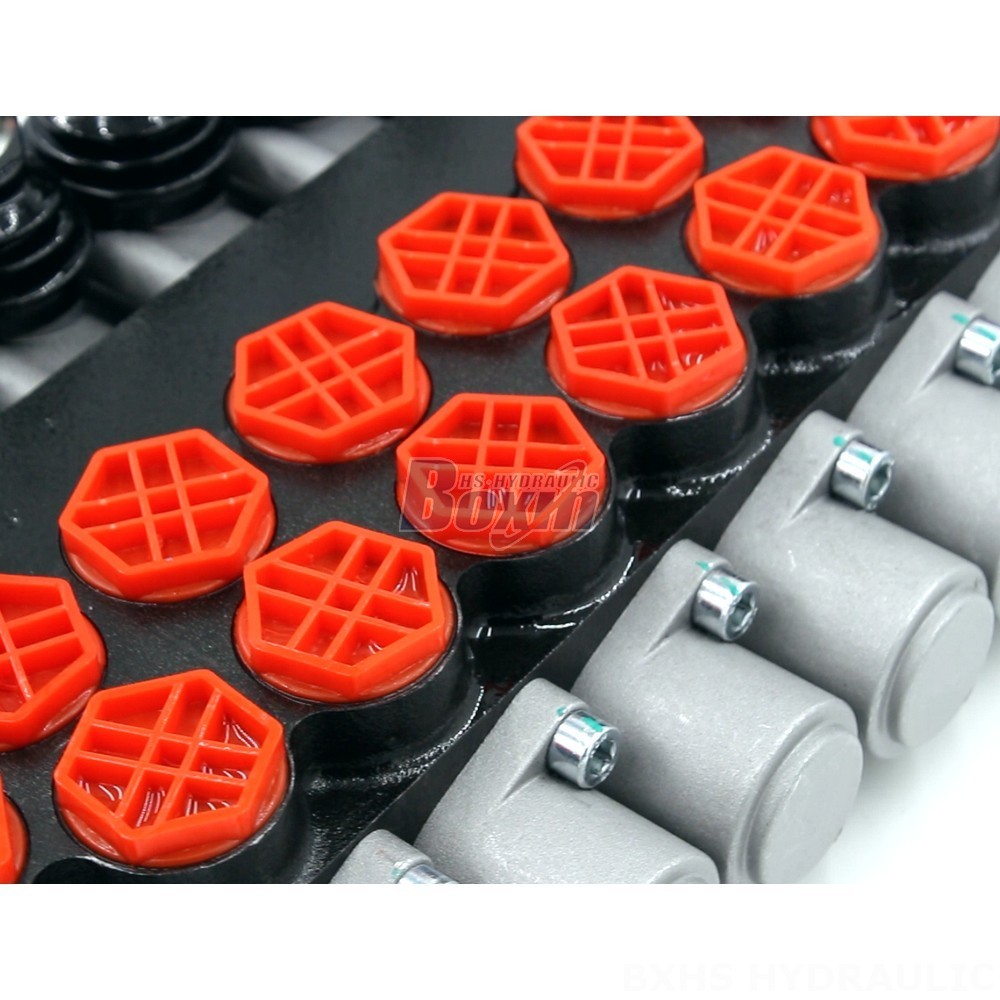

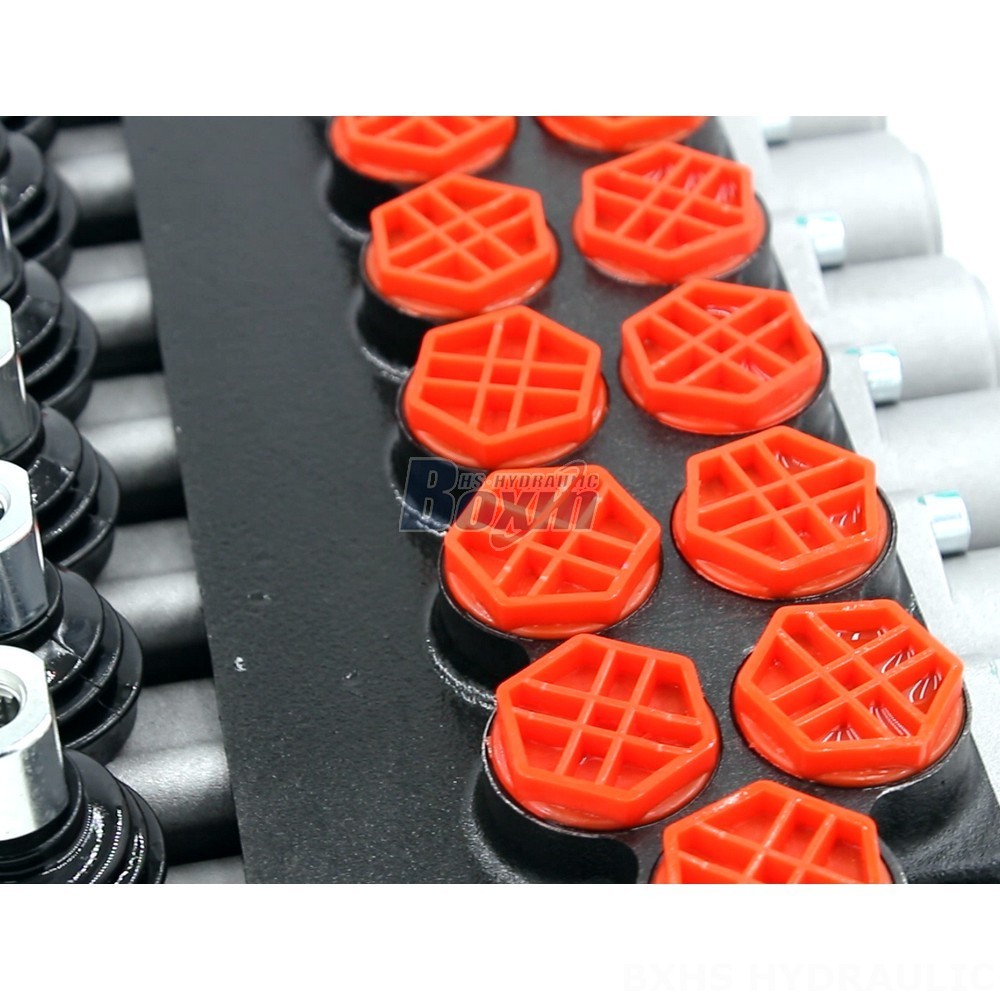

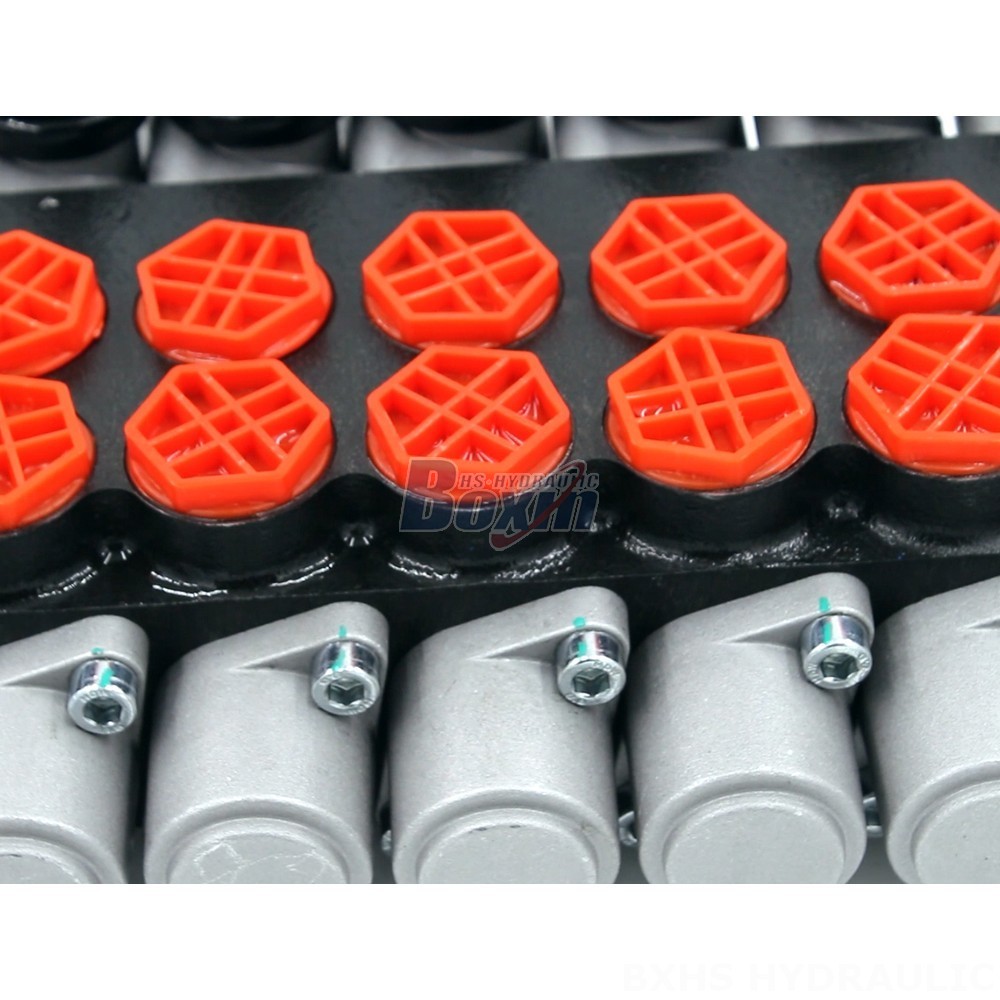

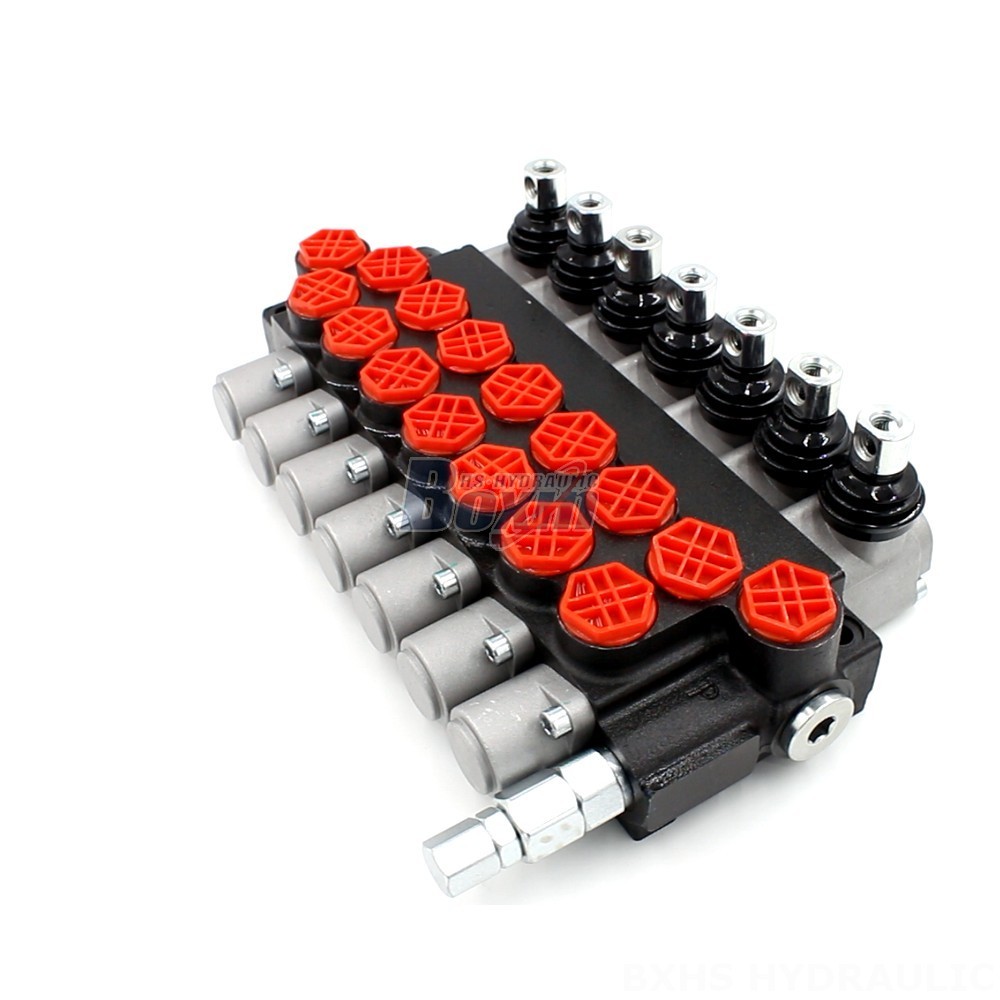

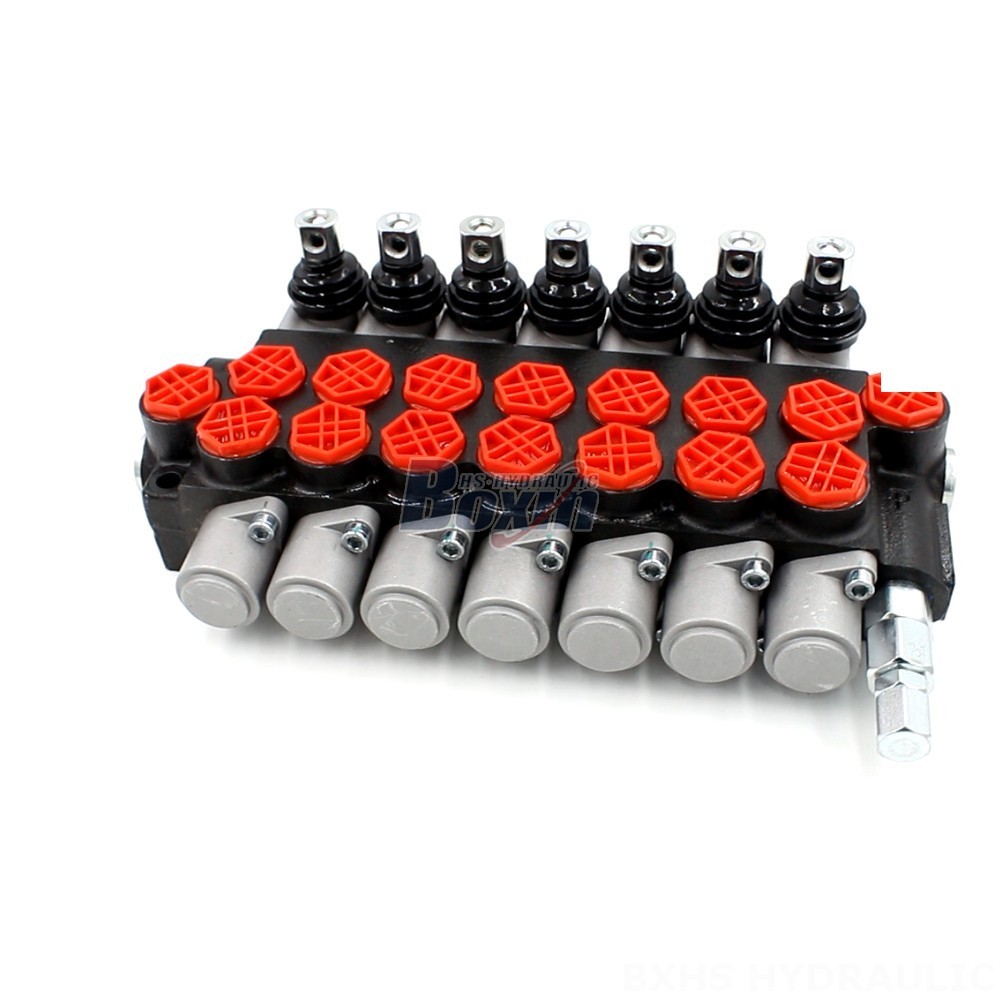

This 7-spool hydraulic valve is a robust and reliable control solution for material handling, construction, agriculture, and industrial vehicles. Featuring a compact monoblock design, it offers high flow rates and pressure capabilities, making it ideal for a wide range of applications.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
Our 7-spool hydraulic valve is part of the P40 Series, offering a compact and efficient solution for controlling hydraulic systems in various applications. It features a monoblock structure for enhanced durability and performance. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding environments. Its wide operating viscosity range and ambient temperature range ensure reliable operation in diverse conditions. As a manufacturer, we offer direct access to hydraulic expertise, providing factory supply and factory wholesale options for our customers. We also offer OEM, ODM, and customization services to meet specific needs. Partner with us to find the perfect solution for your hydraulic system.
