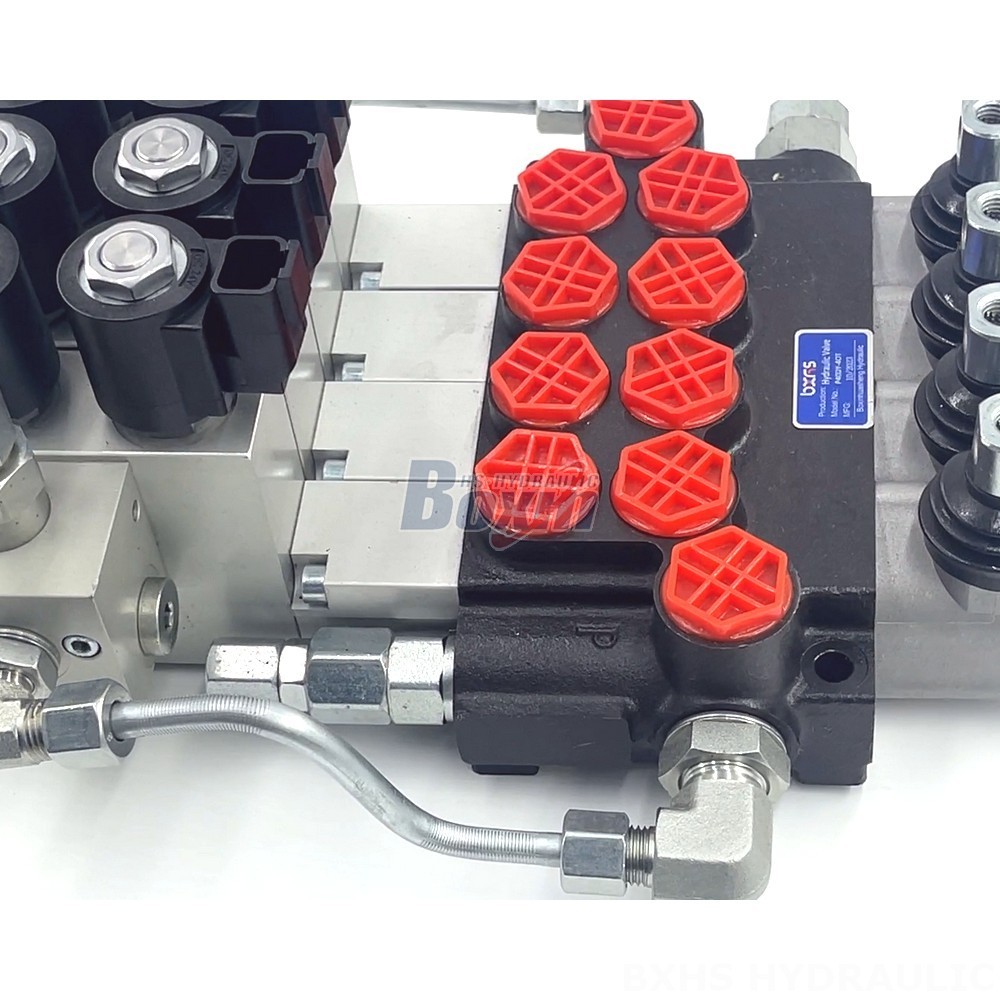

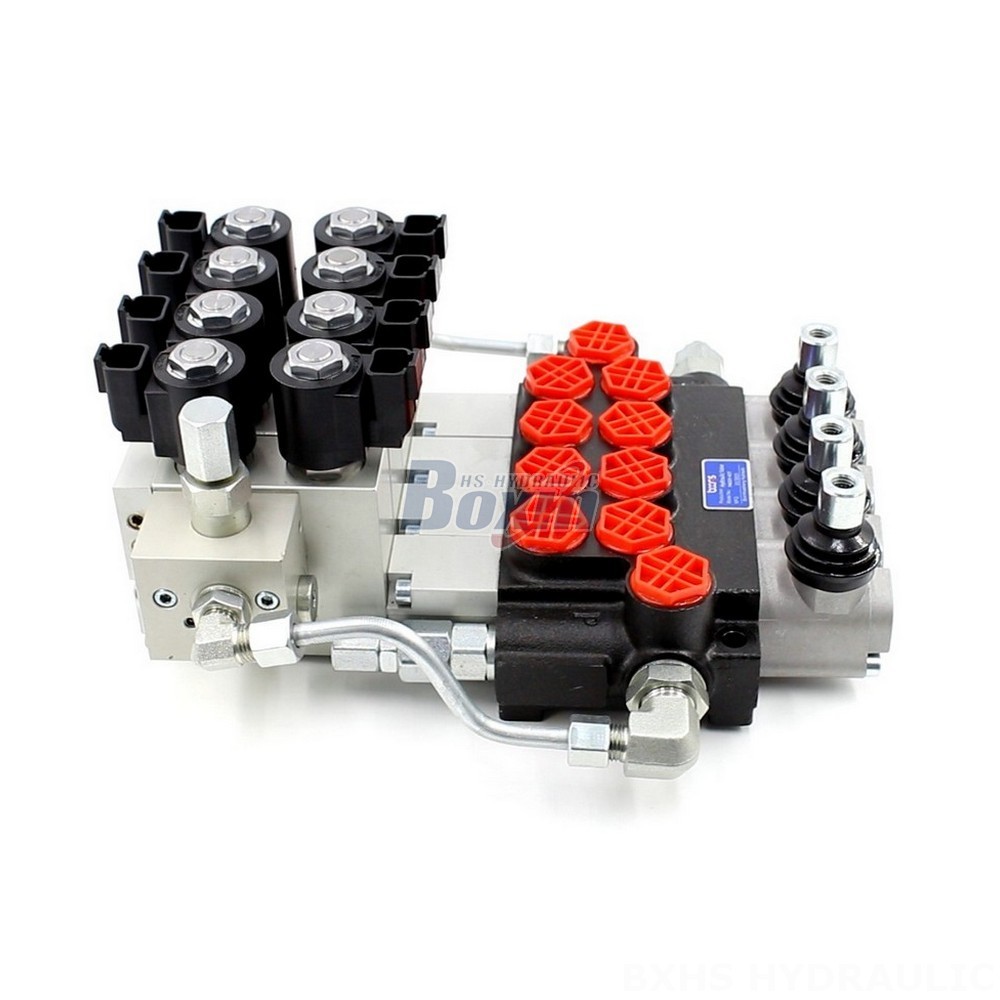

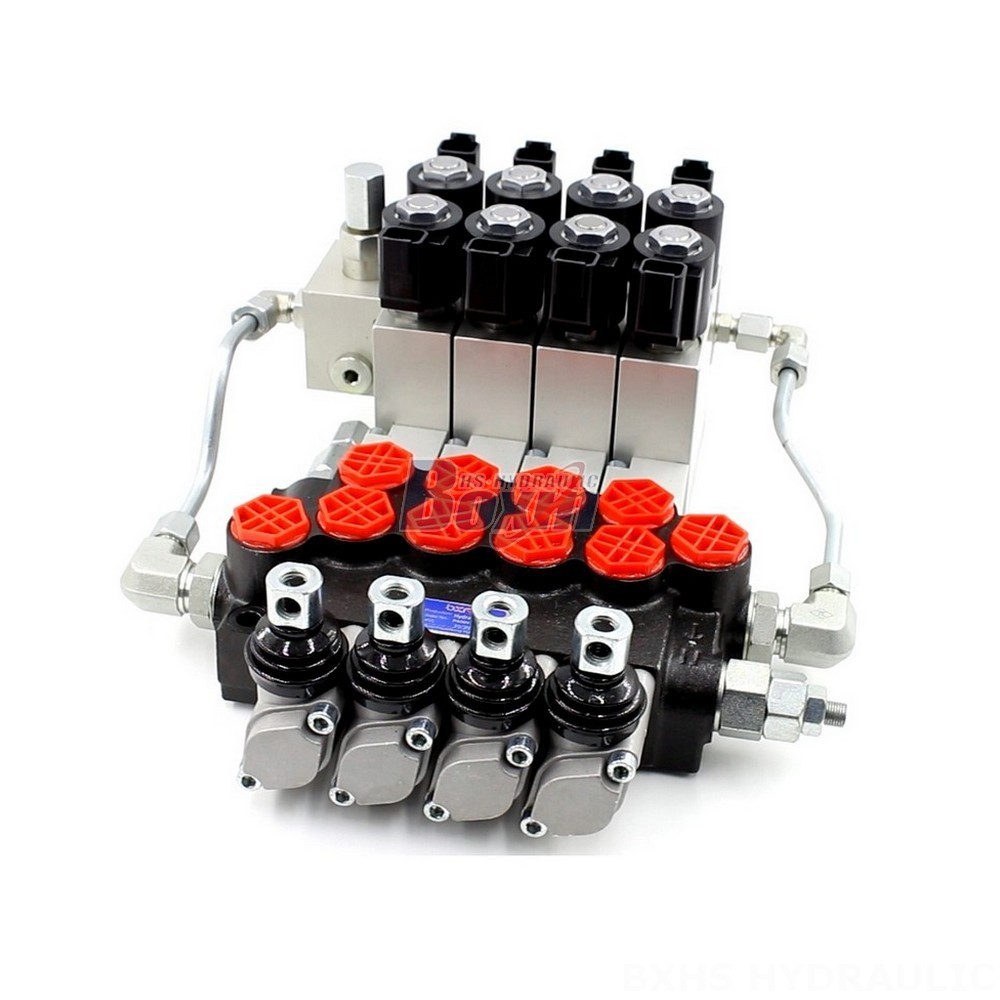

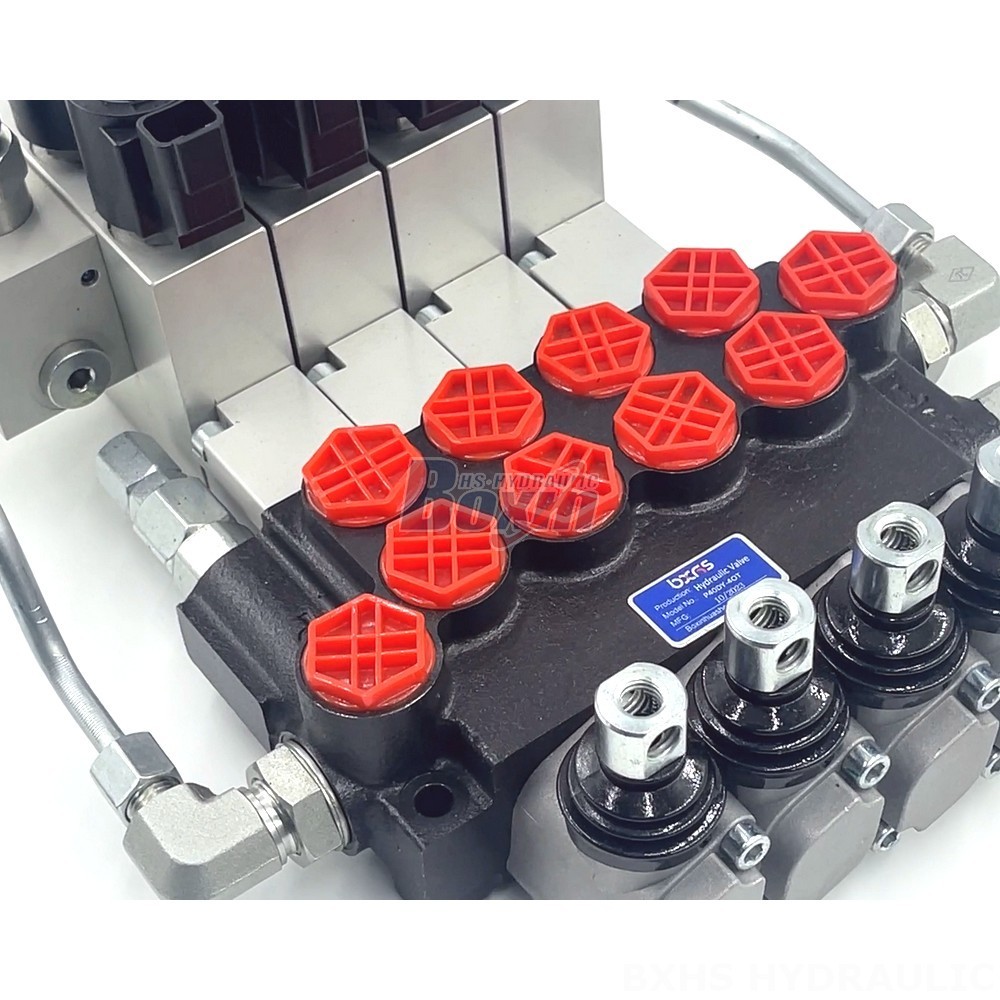

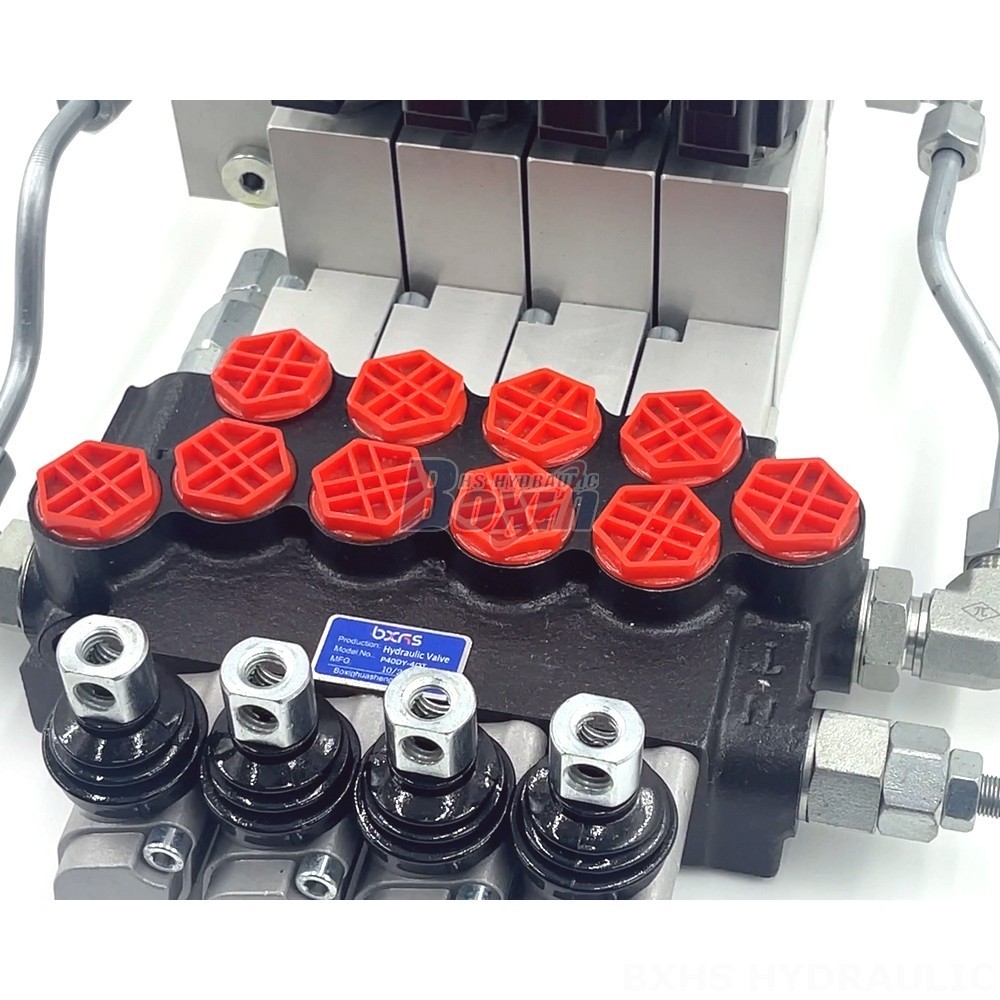

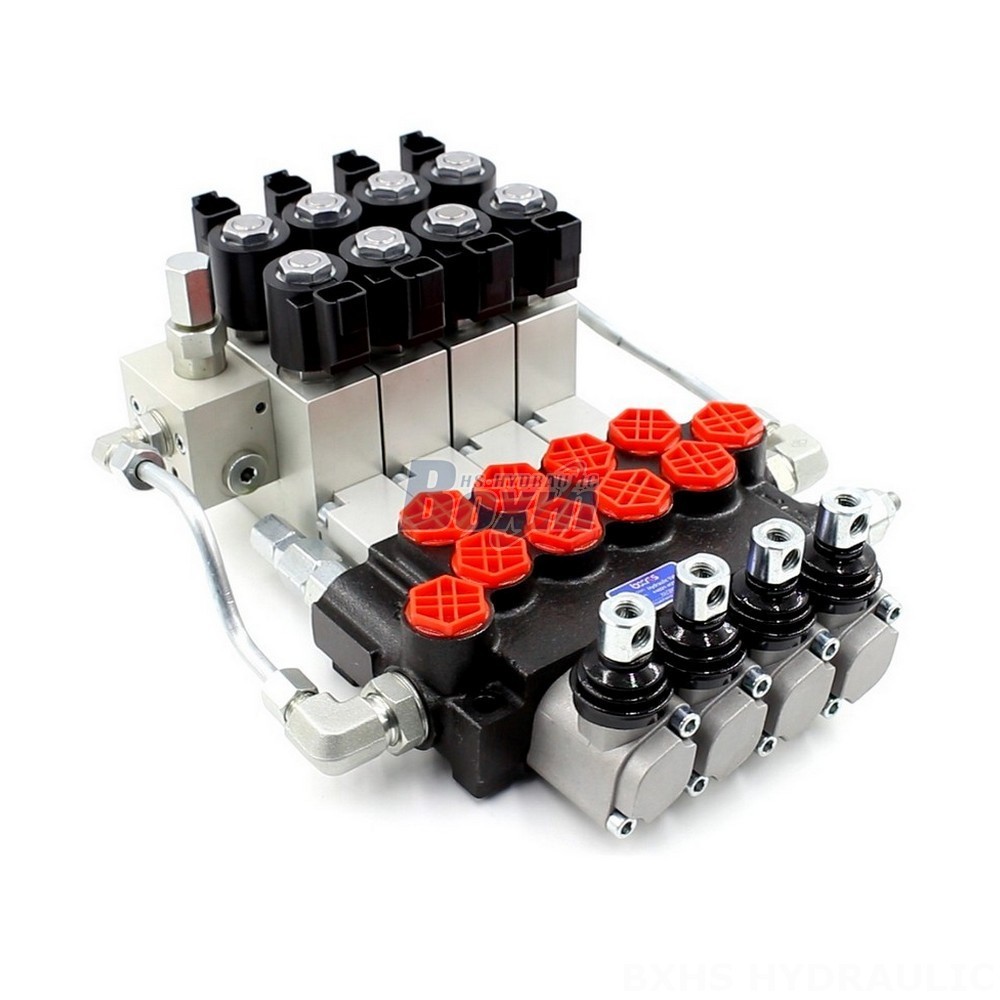

This 12V DC hydraulic valve, P40 Series, is a 4-section, 4-spool monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. We offer ODM services for this valve, providing custom design and manufacturing to your specific requirements.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
The P40 Series hydraulic valve is a high-performance electro-hydraulic control valve designed for demanding applications in industries such as construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock construction with 4 sections and 4 spools, providing precise and reliable control of hydraulic systems. The valve operates on 12V DC power and is available with a range of options to meet your specific needs. We offer ODM services for this valve, including custom design, manufacturing, and private labeling. We can also provide wholesale pricing and support for distributors and dealers. Contact us today to discuss your requirements and get a customized quote.
