947 次查看了此产品

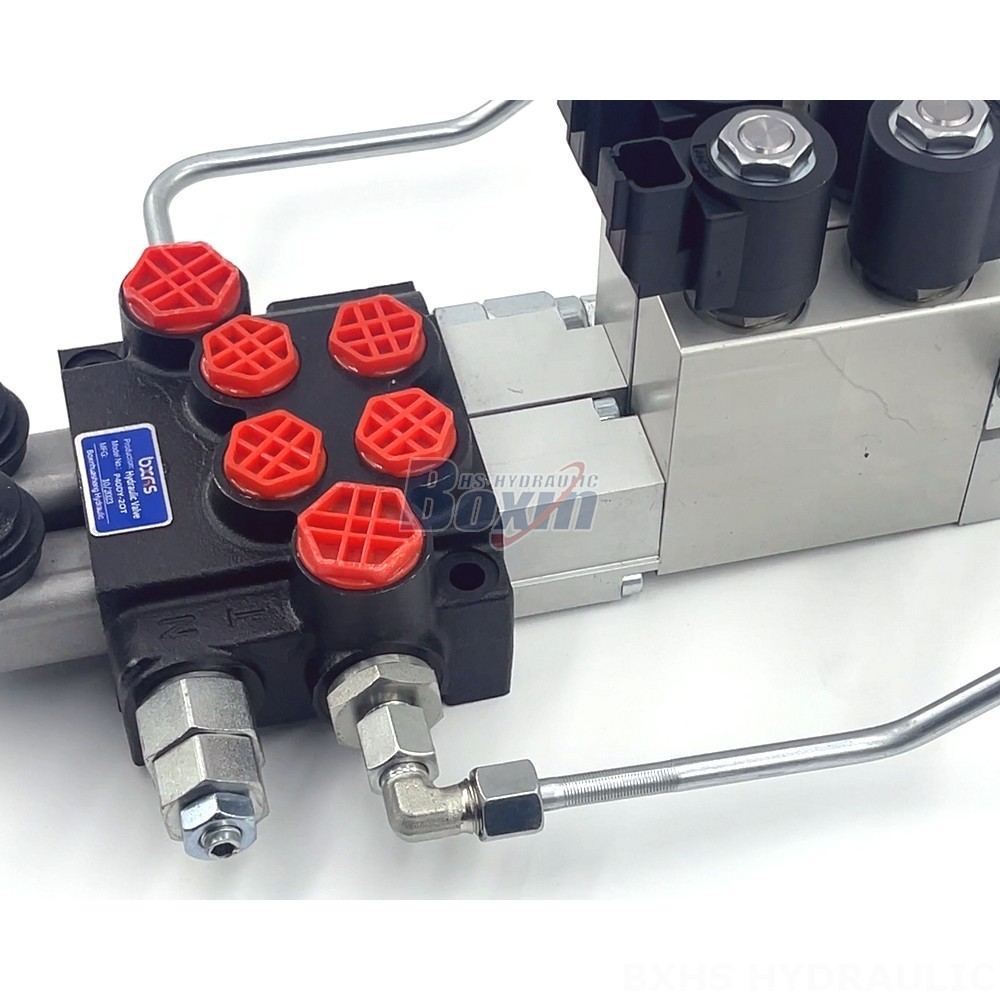

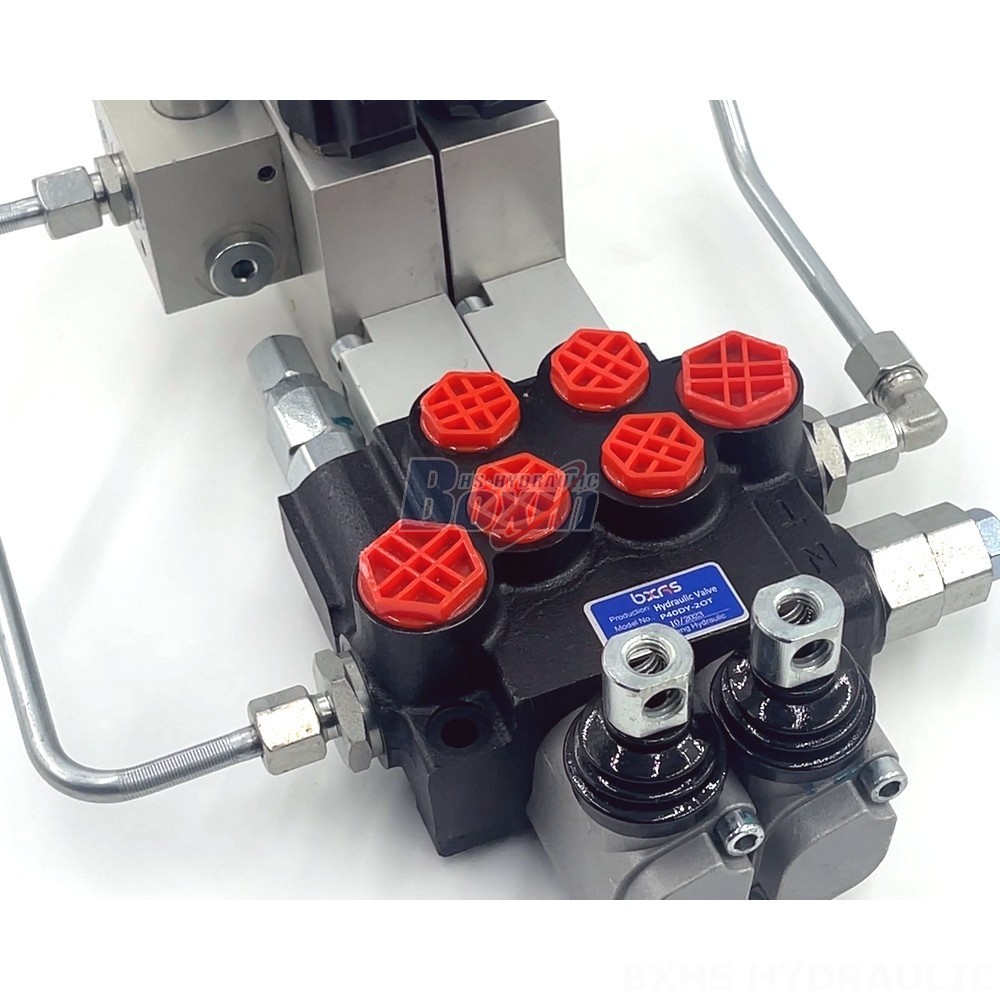

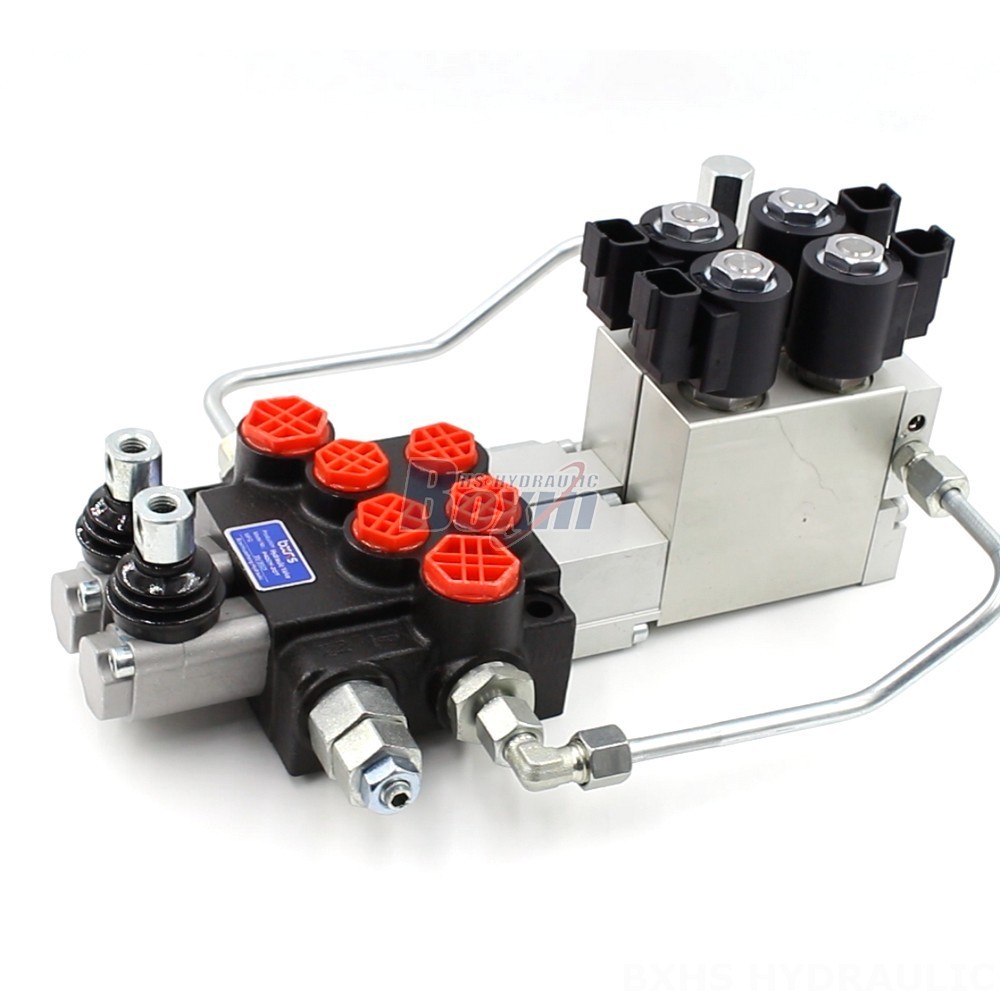

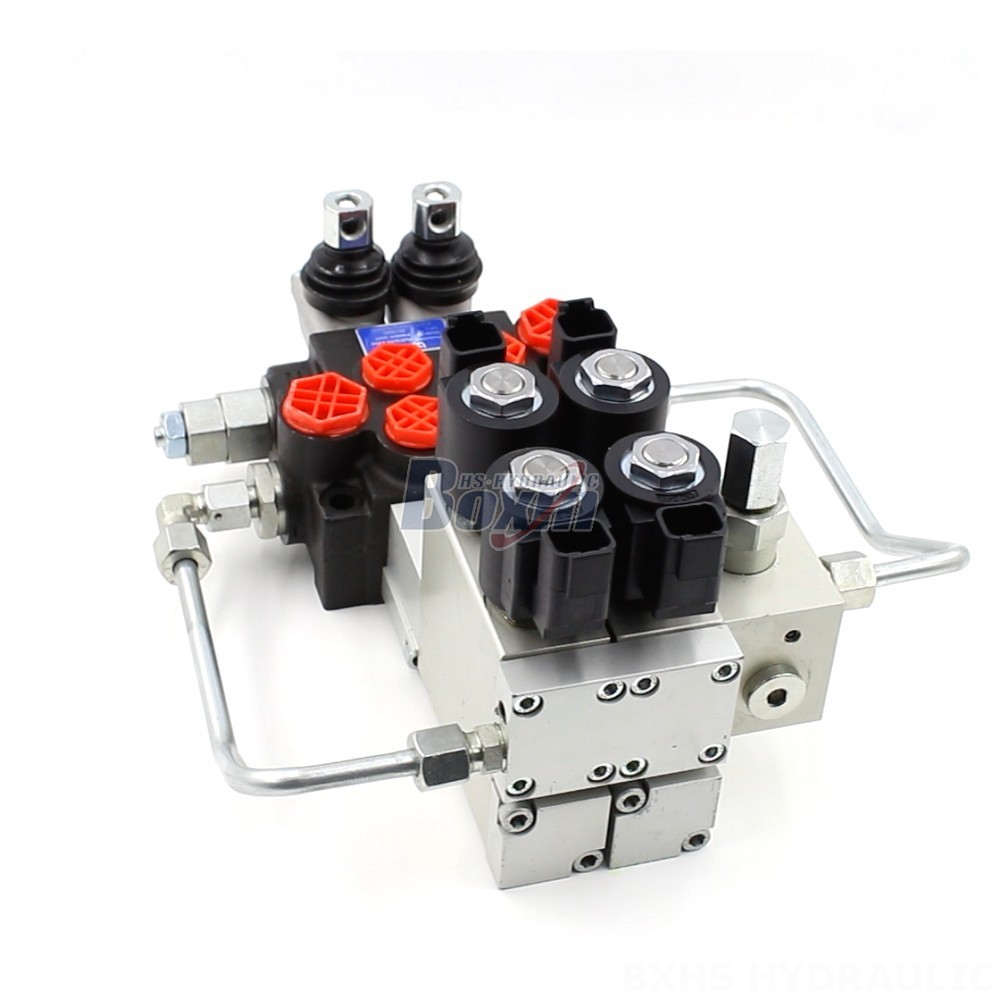

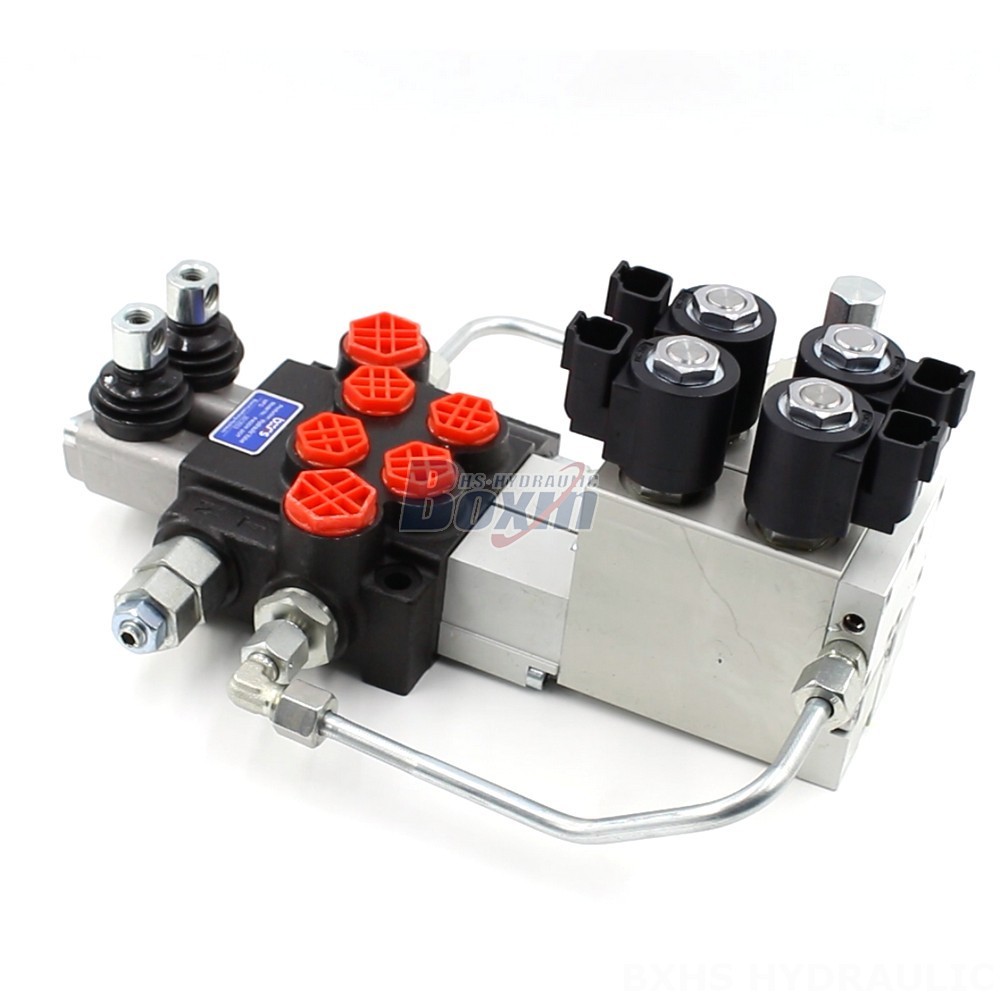

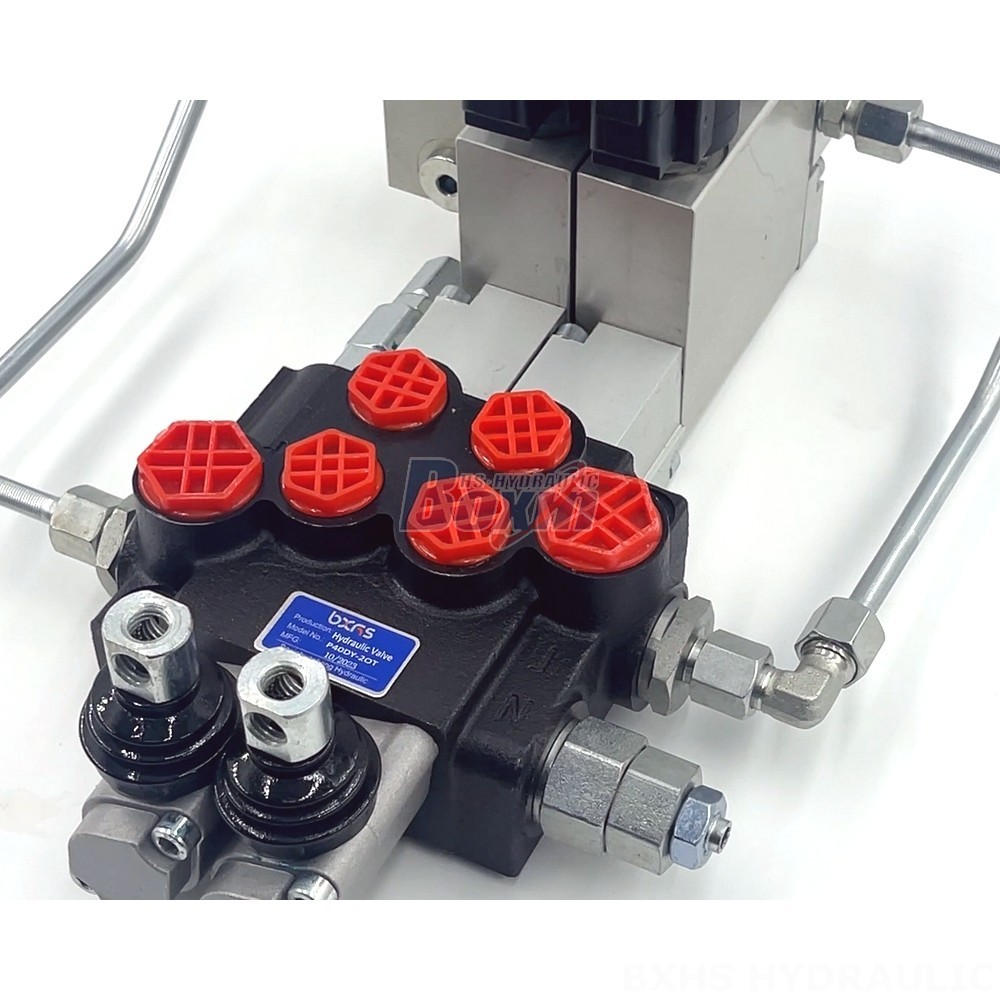

These P40 Valves are electro-hydraulic, 2 section, monoblock valves with a rated flow of 40 L/min and a max pressure of 250 bar. They have an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valves have 2 spools and are available in a variety of configurations to meet your specific needs.
| P40系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁+一控二, 手控+一控二, 电磁与软轴控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
Our P40 Series valves are designed and manufactured to your specifications. We offer OEM and ODM services, so you can be sure that you're getting the perfect valves for your application. Our valves are made with high-quality materials and components, and they're tested to ensure that they meet the highest standards of performance and reliability.
If you're looking for a high-quality, custom-made valve, then our P40 Series valves are the perfect choice. Contact us today to learn more about our products and services.
